Understanding Sentinel Policies

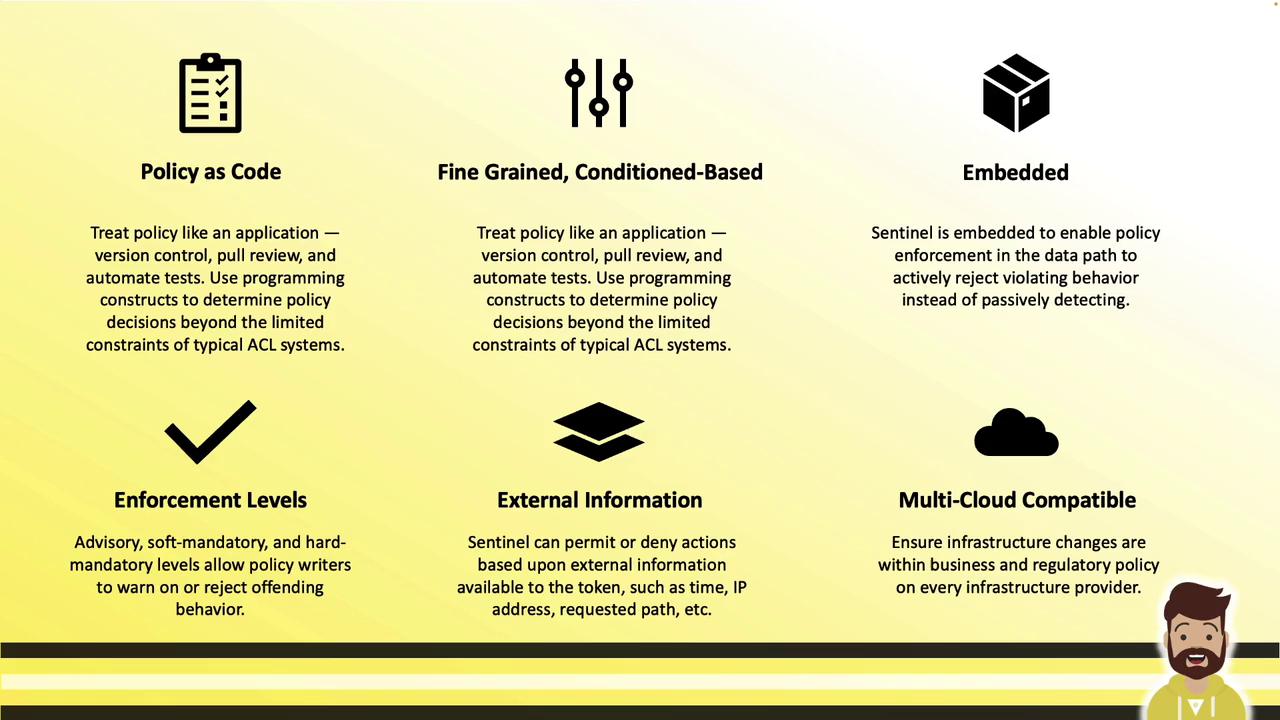

Sentinel is HashiCorp’s embedded policy-as-code framework, built directly into the Vault binary. It provides fine-grained, logic-based policy evaluation to permit or deny access to Vault paths and secrets based on dynamic conditions and external data.

With Sentinel you can:

• Treat policies like application code (version control, PR reviews, automated testing, CI/CD)
• Define condition-based rules (time, IP address, request path, MFA status, etc.)
• Pull in external data (current time, client IPs, request details)
• Enforce policies at three levels: advisory, soft mandatory, and hard mandatory
• Reuse the same policies across Terraform, Nomad, Vault, and Consul (enterprise editions)

Sentinel Across HashiCorp Enterprise Products

Sentinel isn’t limited to Vault. It’s part of HashiCorp’s enterprise offerings for:

• Terraform
• Nomad
• Vault
• Consul

Once you author a Sentinel policy, you can apply it across these platforms with minimal changes.

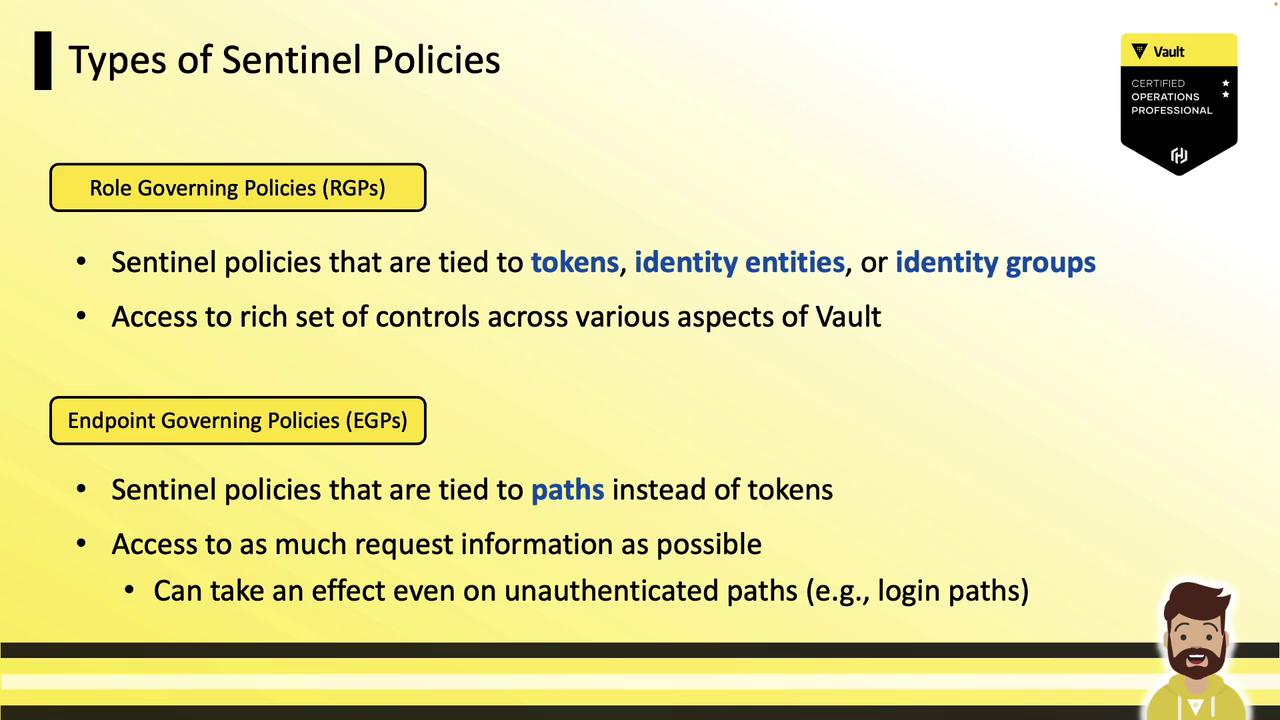

Types of Sentinel Policies

Vault supports two main policy types:

Example: An EGP on /dev/data could deny all access outside business hours, regardless of token validity.

Anatomy of a Sentinel Policy

Every Sentinel policy consists of:

1. Imports: Standard libraries—base64, decimal, http, json, sockaddr, time, mfa, etc.
2. Variables & helper rules: Reusable rule definitions.
3. main rule: The required entry point. Returns true to allow or false to deny.

Basic template:

import "<library>"

helper_rule = rule {
  <condition>
}

main = rule {
  <condition>
}

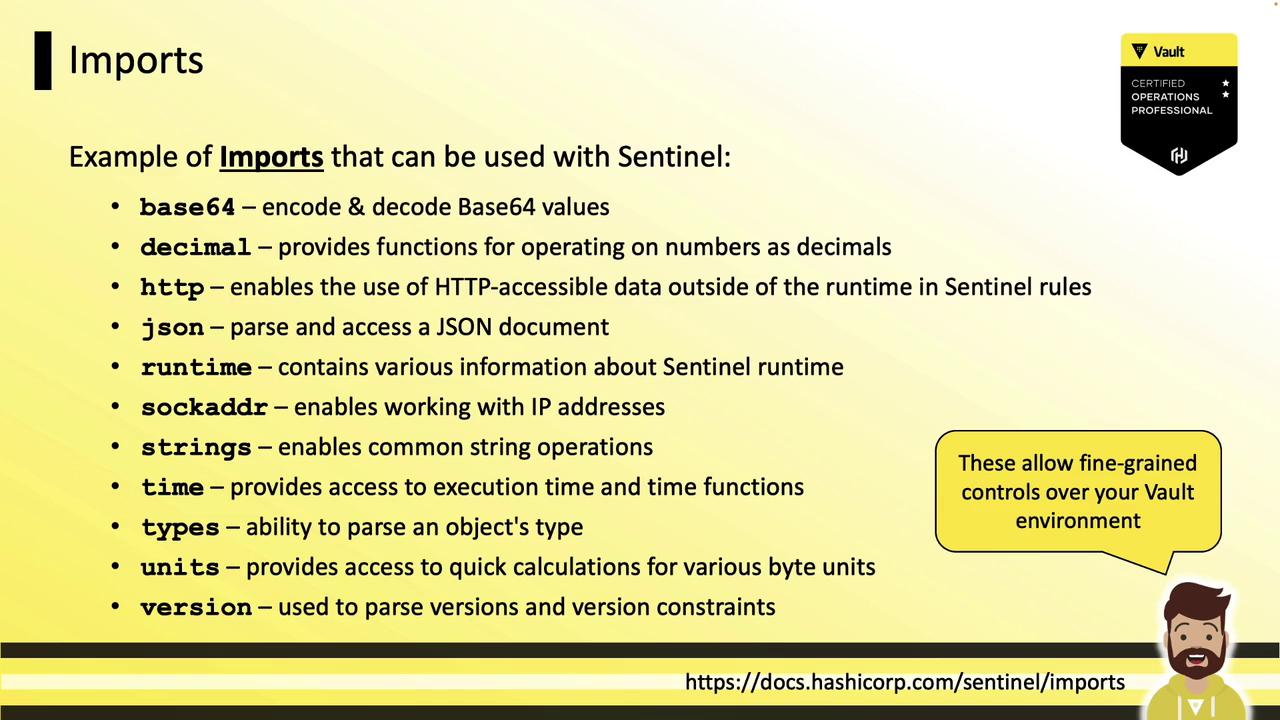

Common Sentinel Imports

• base64 – Encode/decode Base64 strings
• decimal – High-precision decimal arithmetic
• http – Perform HTTP requests within policies
• json – Parse and manipulate JSON data
• sockaddr – Handle IP addresses and CIDR blocks
• time – Load, compare, and parse timestamps
• mfa – Access the results of MFA methods
• strings – String manipulation functions

Example RGP: Allow Specific Identities

This RGP grants access only to identities named “jeff” or members of the “sysops” group:

main = rule {
  identity.entity.name is "jeff" or
  identity.entity.id is "fe2a5bfd-c483-9263-b0d4-f9d345efdf9f" or
  "sysops" in identity.groups.names or
  "14c0940a-5c07-4b97-81ec-0d423accb8e0" in keys(identity.groups.by-id)
}

Using the entity ID prevents bypass by deleting and recreating the user.

Example EGP 1: Revoke Old Tokens

Apply to all paths (*) to deny tokens issued before a cutoff timestamp:

import "time"

main = rule when not request.unauthenticated {
  time.parse(request.auth.token.creation_time).unix >
  time.parse("2022-12-25T00:00:01Z").unix
}

• when not request.unauthenticated ensures this only applies to authenticated requests.
• Denies any token created before December 25, 2022.

Example EGP 2: LDAP Login with MFA and IP Check

This policy requires both an IP CIDR check and a Ping MFA challenge on auth/ldap/login:

import "sockaddr"
import "mfa"

# IP must be within 10.0.23.0/16
cidrcheck = rule {
  sockaddr.is_contained(request.connection.remote_addr, "10.0.23.0/16")
}

# Require Ping MFA validation
ping_valid = rule {
  mfa.methods.ping.valid
}

main = rule when request.path is "auth/ldap/login" {
  ping_valid and cidrcheck
}

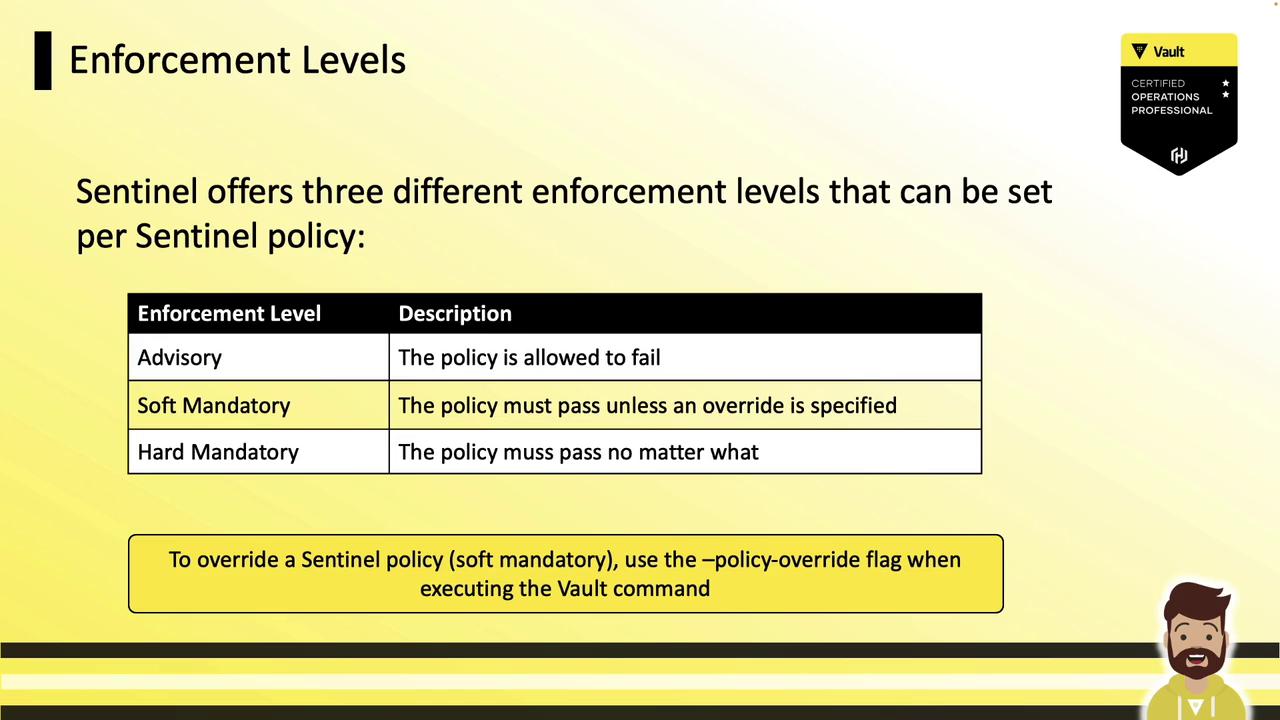

Enforcement Levels

When creating RGPs or EGPs you choose:

• Advisory: Failures are logged but do not block requests.
• Soft Mandatory: Failures block requests unless ?policy_override=true is specified.
• Hard Mandatory: Failures block requests with no override allowed.

Creating Sentinel Policies in the Vault UI

Role Governing Policy (RGP)

1. Navigate to Policies > Role Governing
2. Click Create Policy
3. Enter a name (e.g., business-hours-access)
4. Paste your Sentinel code:

   import "time"

   # Weekdays (Mon–Fri) and 08:00–18:00
   workdays = rule {
     time.now.weekday > 0 && time.now.weekday < 6
   }

   workhours = rule {
     time.now.hour >= 8 && time.now.hour < 18
   }

   main = rule {
     workdays and workhours
   }


5. Select an enforcement level
6. Click Create Policy

Endpoint Governing Policy (EGP)

1. Go to Policies > Endpoint Governing
2. Click Create Policy
3. Provide a name (e.g., cidr-validation-jenkins)
4. Paste the policy:

   import "sockaddr"

   cidrcheck = rule {
     sockaddr.is_contained(request.connection.remote_addr, "10.0.16.88/32")
   }

   main = rule {
     cidrcheck
   }


5. Add the target paths (e.g., kv/automation/jenkins)
6. Choose enforcement level
7. Click Create Policy

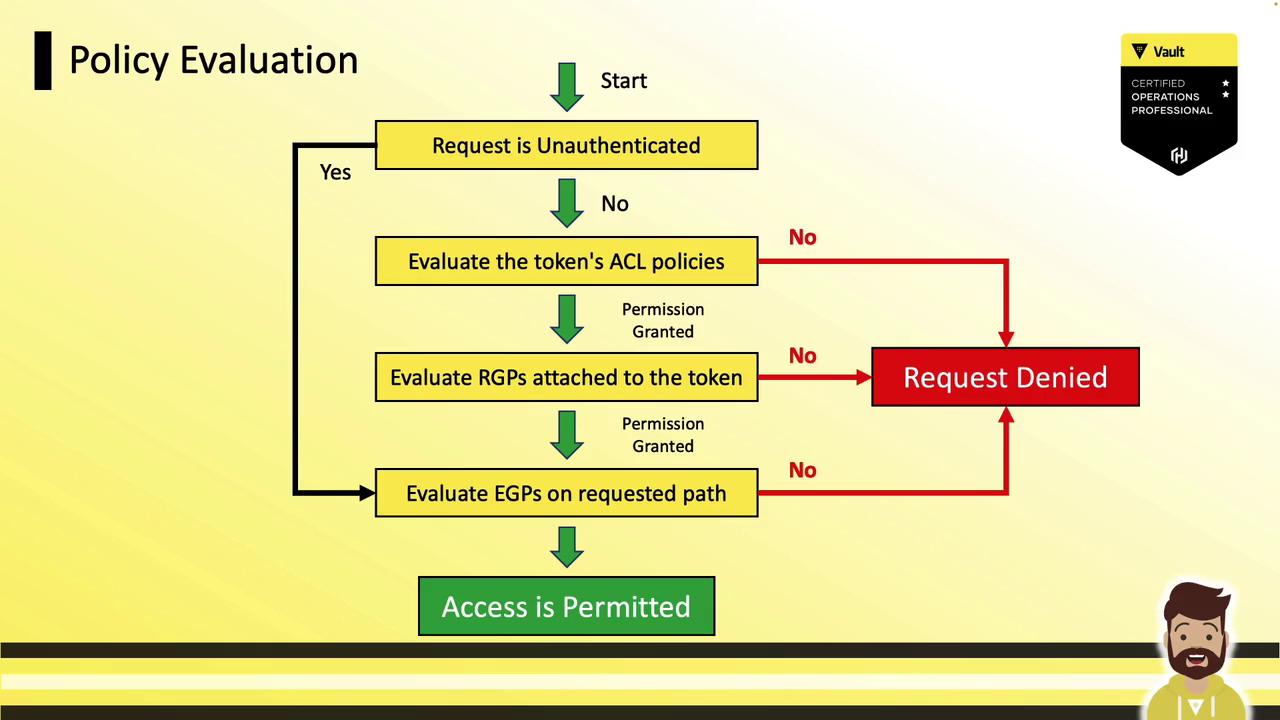

Policy Evaluation Flow

1. Unauthenticated path?
   • Yes → Evaluate any EGP on that path and permit/deny immediately.
2. Authenticated request
   a. Evaluate Vault ACL policies attached to the token; deny on failure.
   b. Evaluate RGPs attached to the identity; deny on failure.
   c. Evaluate any EGP on the requested path; deny on failure.
   d. If all checks pass → Access Permitted

Root Token Bypass

Root tokens automatically bypass all Sentinel evaluations and are always granted access. For realistic performance testing, use regular service or batch tokens instead of root.
