Demo KeyValue Secrets Engine Version 2

In this guide, we’ll dive into HashiCorp Vault’s Key/Value (KV) Secrets Engine Version 2. You’ll learn how to:

• List and inspect enabled secrets engines
• Upgrade a KV v1 mount to KV v2
• Enable a brand-new KV v2 engine
• Write, read, and version secrets
• Perform soft deletes (undelete) and hard deletes (destroy)
• Manage metadata and custom metadata
• Configure KV v2 prefixes in ACL policies
• Interact with KV v2 via the HTTP API

We’ll cover both the CLI and the Vault web UI to give you a complete picture of versioned secret management.

1. List Existing Secrets Engines

First, verify which engines are enabled:

vault secrets list

Example output:

Path          Type       Accessor         Description
----          ----       --------         -----------
cubbyhole/    cubbyhole  cubbyhole_xyz    per-token private secret storage
identity/     identity   identity_abc     identity store
sys/          system     system_def       system endpoints used for control, policy, and debugging
training/     kv         kv_12345         n/a
transit/      transit    transit_67890    n/a

By default, the training/ mount is KV v1.

See Vault CLI documentation for more on the vault secrets list command.

2. Upgrade an Existing KV v1 Mount to KV v2

To enable versioning on the existing training/ mount:

1. Inspect the mount in detail:

   vault secrets list --detailed


2. Enable versioning:

   vault kv enable-versioning training/


3. Confirm the mount now uses KV v2:

   vault secrets list --detailed


You should see options: {version: 2} for the training/ path.

3. Enable a New KV v2 Engine

To create a fresh KV v2 mount at kvv2/:

vault secrets enable -path=kvv2 kv-v2

Verify:

vault secrets list

Look for kvv2/ with type: kv and options: {version: 2}.

4. Writing and Reading Versioned Secrets

4.1 Write a Secret

vault kv put kvv2/apps/circleci admin=password

Output example:

==== Secret Path ====
kvv2/data/apps/circleci
==== Metadata ======
Key             Value
created_time    2022-03-25T14:18:15.817666Z
custom_metadata <nil>
deletion_time   n/a
destroyed       false
version         1

4.2 Read the Latest Version

vault kv get kvv2/apps/circleci

==== Secret Path ====
kvv2/data/apps/circleci

==== Metadata ====
Key             Value
created_time    2022-03-25T14:18:15.817666Z
version         1

==== Data ====
Key     Value
admin   password

5. Versioning Secrets

Update to create version 2:

vault kv put kvv2/apps/circleci admin=P@ssw0rd!

Retrieve specific versions:

vault kv get -version=1 kvv2/apps/circleci   # Version 1
vault kv get kvv2/apps/circleci             # Latest (Version 2)

6. Soft Delete and Undelete

6.1 Soft Delete

vault kv delete kvv2/apps/circleci

Now, vault kv get kvv2/apps/circleci shows metadata without data.

6.2 Undelete

vault kv undelete --versions=2 kvv2/apps/circleci
vault kv get kvv2/apps/circleci

Version 2 is restored and data is visible again.

7. Hard Delete (Destroy)

Permanently remove version 1:

vault kv destroy --versions=1 kvv2/apps/circleci

Reading that version now shows destroyed = true; it cannot be undeleted.

8. Metadata Operations

8.1 View All Metadata

vault kv metadata get kvv2/apps/circleci

You’ll see:

• cas_required
• current_version
• max_versions
• Per-version status (created, deleted, destroyed)

8.2 Add Custom Metadata

vault kv metadata put kvv2/apps/circleci custom1=foo custom2=bar

Reading the secret shows your custom key-value pairs under Metadata.

9. JSON Output and Filtering

Fetch JSON and parse with jq:

vault kv get -format=json kvv2/apps/circleci \
  | jq -r '.data.metadata.custom2'
# Output: bar

This is useful for automation and CI pipelines.

10. Cleanup: Delete All Metadata

To remove both data and metadata for a secret path:

vault kv metadata delete kvv2/apps/circleci

Running vault kv list kvv2/apps now returns nothing.

11. KV v2 Prefixes in ACL Policies

When you write ACL policies for KV v2, include both data/ and metadata/ paths:

path "kvv2/data/apps/artifactory" {
  capabilities = ["read"]
}

path "kvv2/metadata/apps/artifactory" {
  capabilities = ["read", "list"]
}

12. Managing Secrets via the Web UI

Vault’s UI offers point-and-click management for KV v2 secrets:

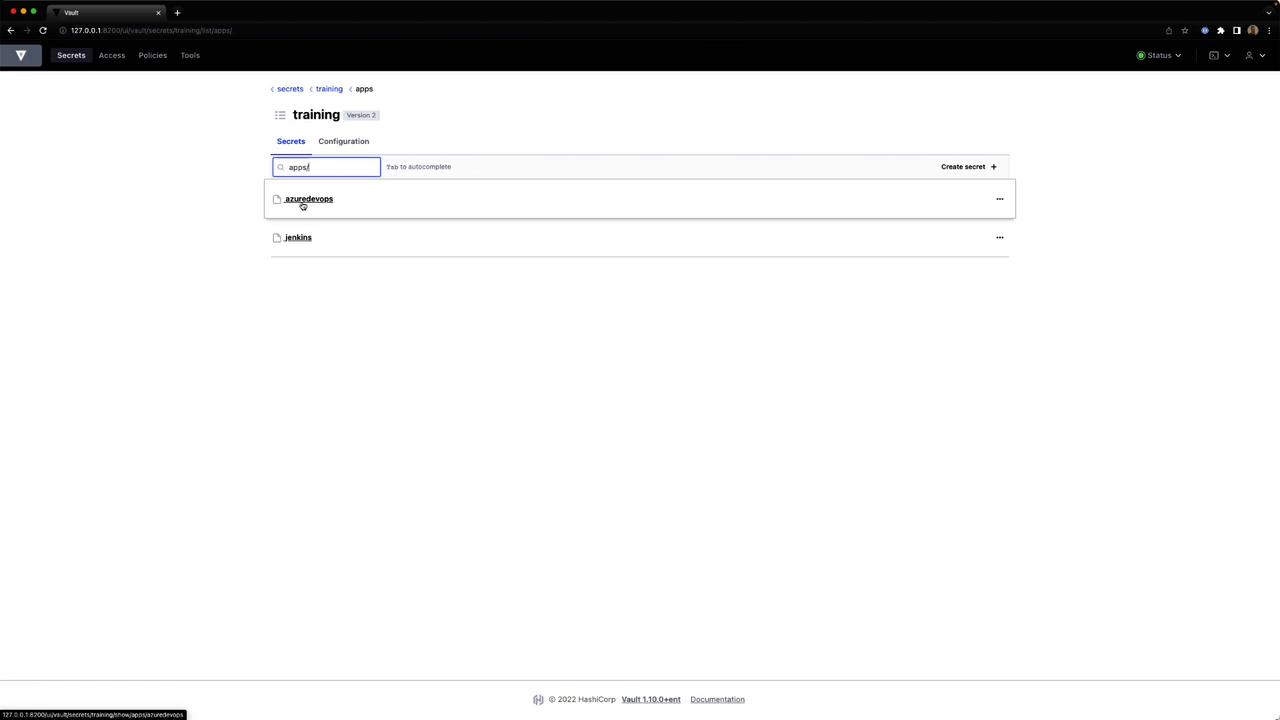

Browse secrets and create a new entry
Click Secrets > kvv2 and select Create secret.

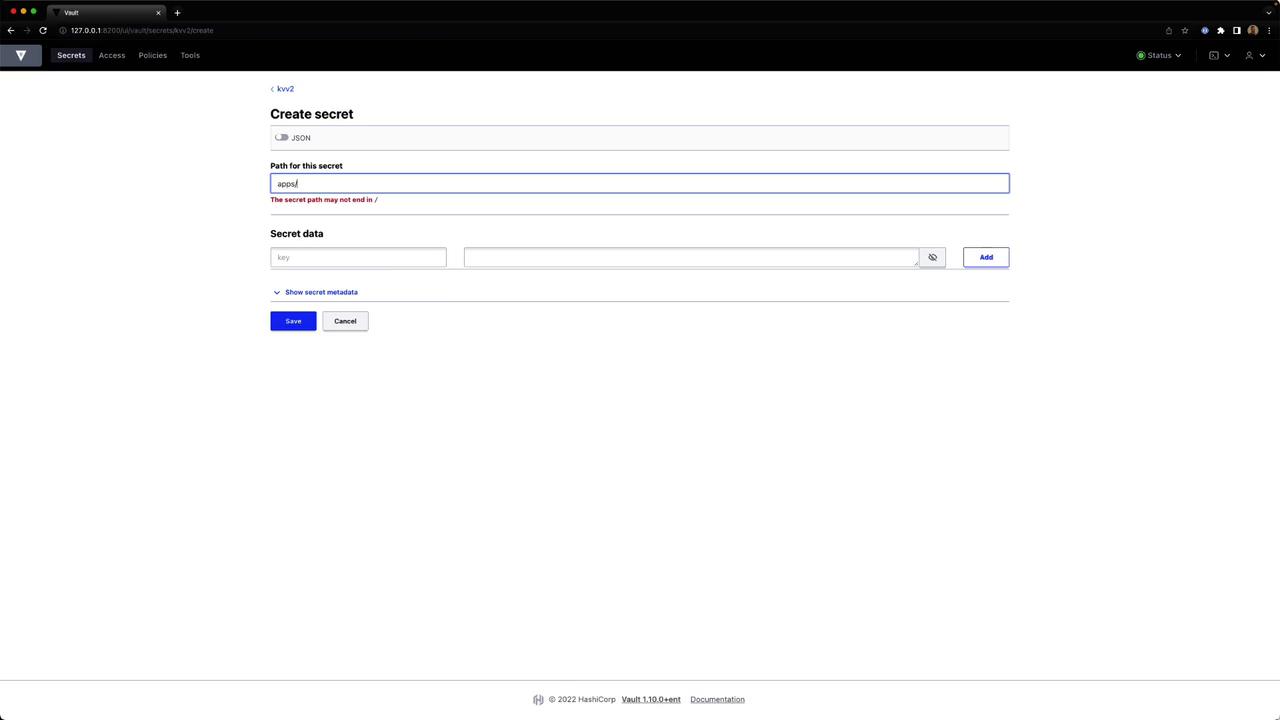

Enter secret data
Provide artifact = "jenkins" or other key-value pairs, then save.

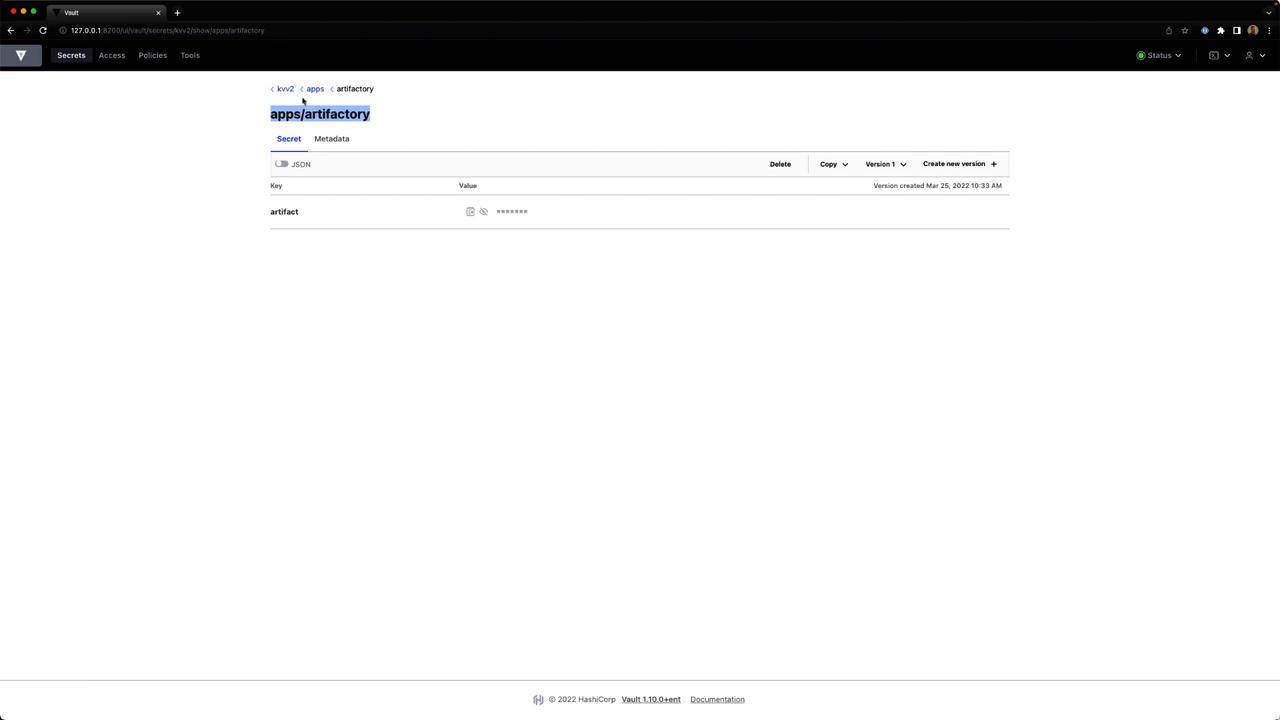

View stored JSON
Select the secret to see its JSON key-value data.

Create an ACL policy
Under Policies, click Create policy, enter a name and HCL, then save.

13. Accessing KV v2 via the HTTP API

To retrieve secret data over HTTP, include /data/ in the path:

curl --header "X-Vault-Token: $VAULT_TOKEN" \
     http://127.0.0.1:8200/v1/kvv2/data/apps/artifactory \
  | jq

Response:

{
  "request_id": "...",
  "data": {
    "data": {
      "artifact": "jenkins"
    },
    "metadata": {
      "created_time": "...",
      "version": 1
    }
  }
}

For KV v1 mounts, omit the /data/ prefix.

References

• Vault KV Secrets Engine v2
• Vault CLI Commands
• Vault HTTP API

That wraps up our deep dive into the KV v2 engine. Enjoy secure, versioned secret management with HashiCorp Vault!
