KeyValue Secrets Engine

In this guide, we’ll explore the Key/Value (KV) Secrets Engine in Vault, focusing on what Operations Professionals need to know. The KV Secrets Engine is ideal for storing static secrets—such as service-account passwords or API keys—that are generated outside Vault. While Vault also offers powerful dynamic credentials, static secrets remain ubiquitous in many environments.

Vault supports two flavors of the KV Secrets Engine:

• Version 1: A simple, non-versioned store.
• Version 2: A fully versioned store, tracking metadata (creation time, version number, deletion status, etc.).

Secrets can be accessed via the UI, CLI, or API. Access control is enforced by Vault policies that grant specific capabilities (create, read, update, delete) on defined paths. All data at rest is encrypted using AES-256. You can mount multiple KV engines at unique paths to isolate workloads.

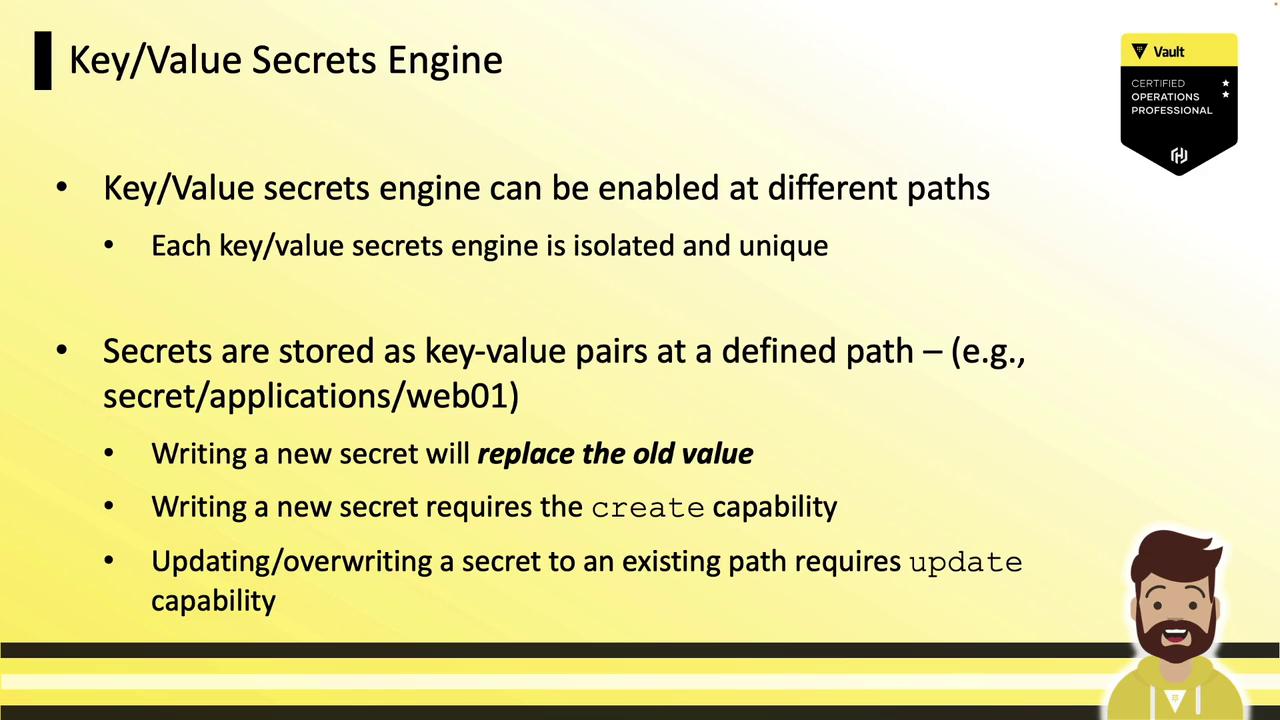

How to Store Secrets as Key/Value Pairs

To write secrets, choose a mount path and supply your key/value pairs. For example, after enabling the KV engine at secret/:

vault write secret/applications/web01 \
  user=dbadmin \
  password=P@ssw0rd \
  api=b93md83mdmapw

• create capability is required when writing to a new path.
• update capability is required for overwriting an existing secret.

Organizing a KV Engine Hierarchy

Suppose you mount a KV engine at apps/. You can structure environments like this:

• apps/AWS/prod – Production credentials
• apps/AWS/dev – Development certificates

Example writes:

vault write apps/AWS/prod \
  user=dbadmin \
  password=P@ssw0rd \
  api=b93md83mdmapw

vault write apps/AWS/dev \
  cert='---BEGIN CERTI...' \
  key='---BEGIN PRIVA...'

You can also manage KV engines via the CLI.

Enabling and Listing KV Version 1

# Enable a KV v1 engine at the default path kv/
vault secrets enable kv

# Enable a KV v1 engine at a custom path hcvop/
vault secrets enable -path=hcvop kv

# List all secrets engines with detailed info
vault secrets list --detailed

Enabling and Listing KV Version 2

You can enable KV v2 with either shorthand or an explicit version flag.

Method 1 (shorthand):

vault secrets enable kv-v2

Method 2 (explicit):

vault secrets enable -path=training -version=2 kv

Re-run the listing:

vault secrets list --detailed

Upgrading a KV v1 Engine to v2

You can convert an existing KV v1 mount to version 2. Be aware this action is irreversible without restoring from backup.

vault kv enable-versioning training/
# Success! Tuned the secrets engine at: training/

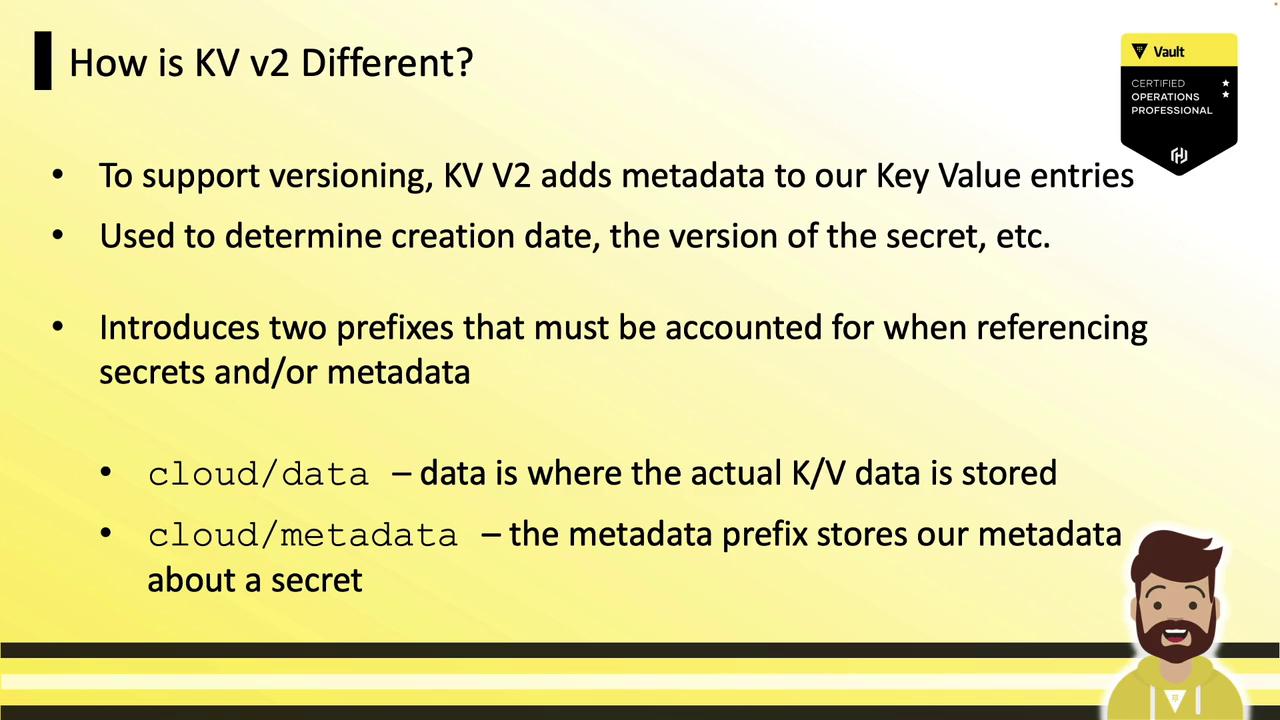

Understanding KV v2 Metadata and Path Prefixes

KV v2 tracks detailed metadata (creation date, version, deletion status, custom fields) for every secret. To support versioning, KV v2 introduces two API path prefixes:

• data/ – Stores the secret data
• metadata/ – Stores the versioning metadata

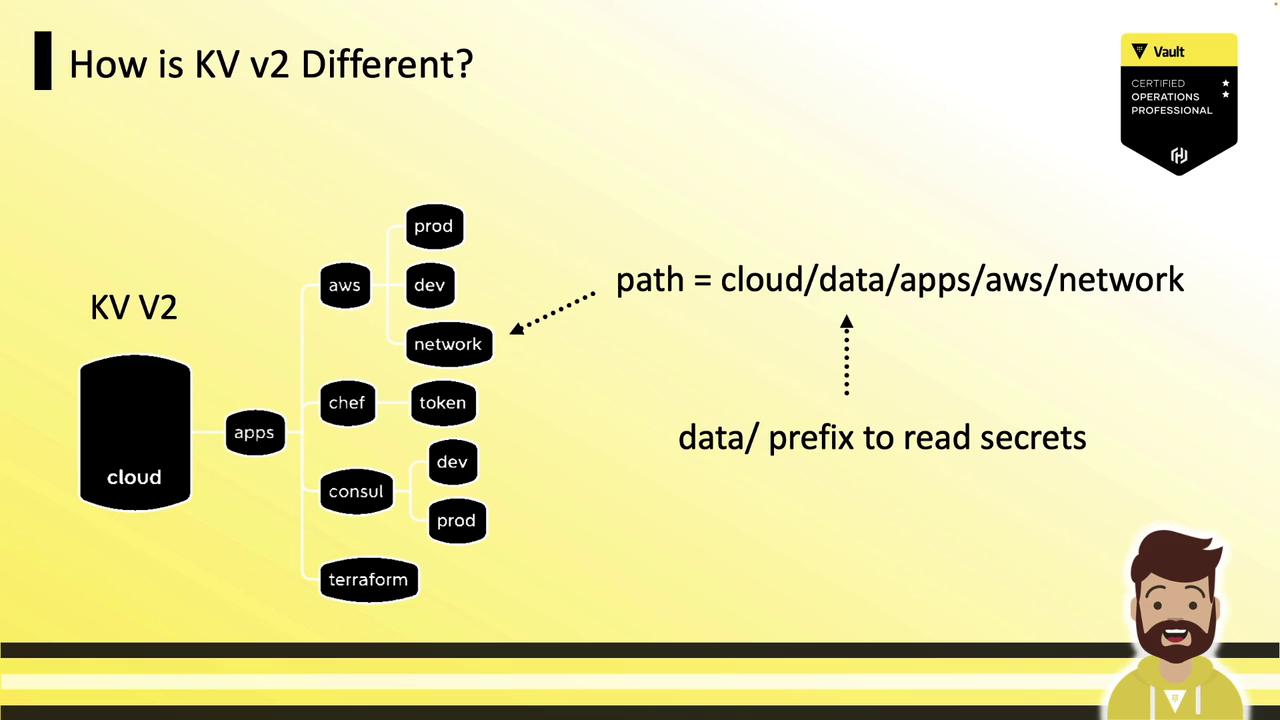

For a KV v2 engine mounted at cloud/ with a secret path apps/AWS/network:

• Data path: cloud/data/apps/AWS/network
• Metadata path: cloud/metadata/apps/AWS/network

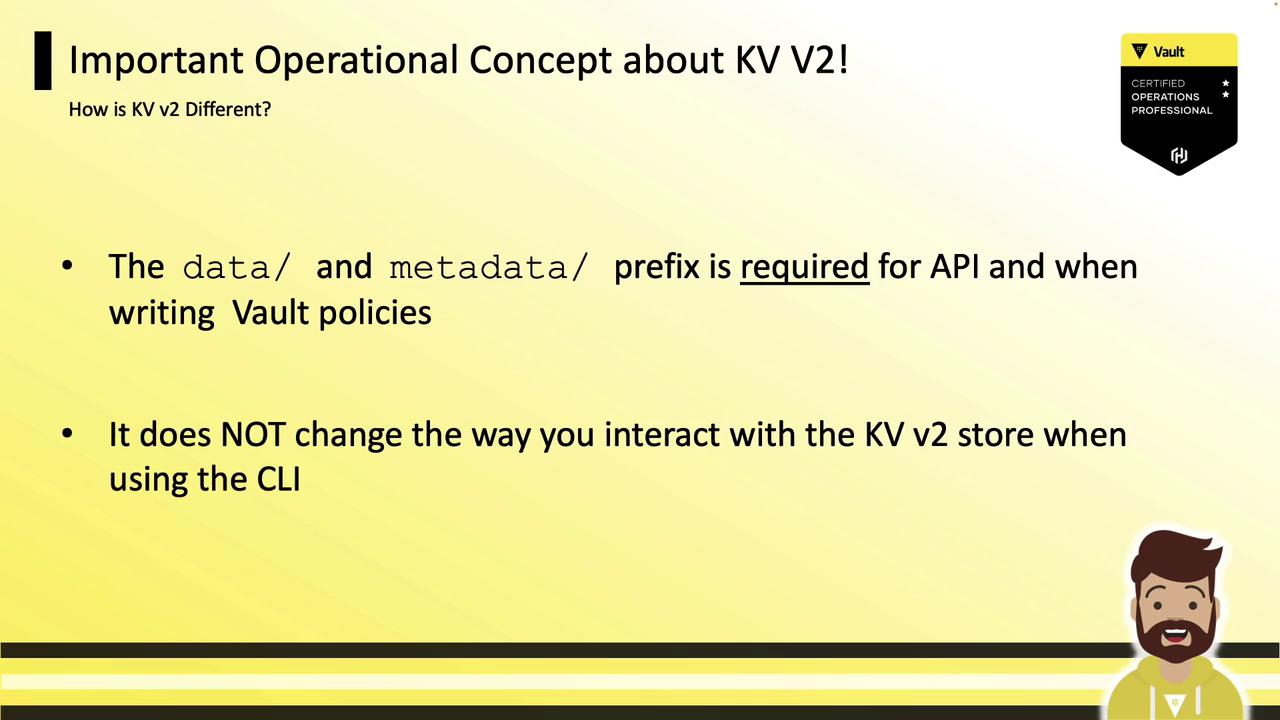

When working with the API or writing policies, you must include the data/ and metadata/ prefixes. The vault kv CLI commands automatically handle these prefixes for you:

Next Steps

You’re now ready to get hands-on with KV v1 and KV v2 in Vault. Practice writing policies, making API calls, and exploring the versioning features to master static secret management.
