HashiCorp Certified: Vault Operations Professional 2022

Scale Vault for Performance

Performance Standby Nodes

Understanding Performance Standby Nodes is critical for scaling read throughput in Vault Enterprise. This guide covers:

  • Vault Open Source HA behavior
  • Vault Enterprise Performance Standby features
  • Scaling out read performance
  • Consistency and replication
  • Health checks and routing
  • Enabling/disabling performance standby

Exam Objective

You need to describe what performance standby nodes are and why they’re used. Configuration commands aren’t required for the HashiCorp exam.


Vault Open Source HA Cluster

In Vault Open Source, an HA cluster contains:

  • 1 active node (handles all reads and writes)
  • Multiple standby nodes (forward requests to active, monitor health)

A load balancer must direct client traffic to the active node. If a client request lands on a standby, Vault uses RPC forwarding (or returns a redirect) so that only the active processes reads and writes.

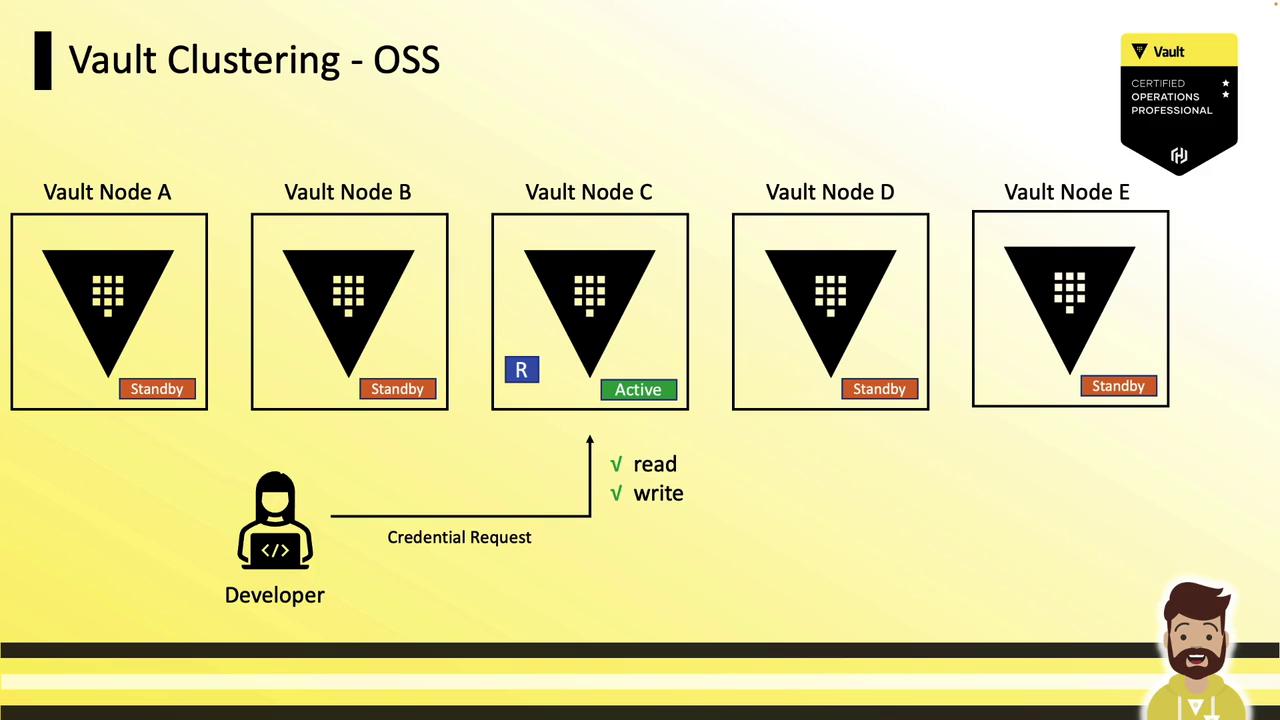

The image illustrates a Vault clustering setup with five nodes, where Node C is active, and the others are on standby. It also shows a developer making credential requests with read and write permissions.

Because standby nodes don’t respond to reads or writes locally, scaling in Vault OSS means scaling up—increasing CPU, memory, or disk size rather than adding more nodes.

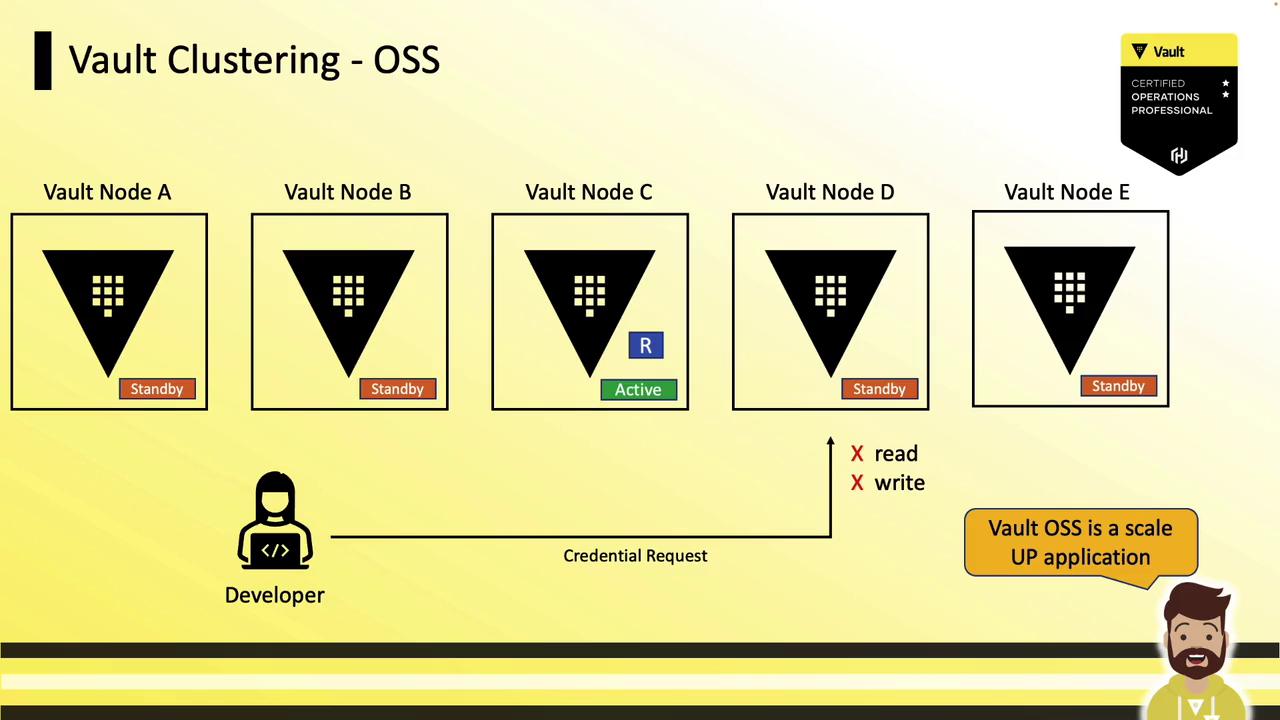

The image illustrates a Vault Clustering setup with five nodes, where Node C is active, and the others are on standby. It shows a developer making a credential request, with a note that Vault OSS is a scale-up application.

FeatureVault Open SourceVault Enterprise
Active writesYesYes
Standby readsNoYes (performance standby)
Scaling methodScale-upScale-out
Licensing requirementNoneEnterprise license

Vault Enterprise with Performance Standby Nodes

Vault Enterprise introduces Performance Standby nodes that:

  • Serve read requests locally
  • Forward write requests to the active node
  • Scale out read capacity by adding more performance standby nodes

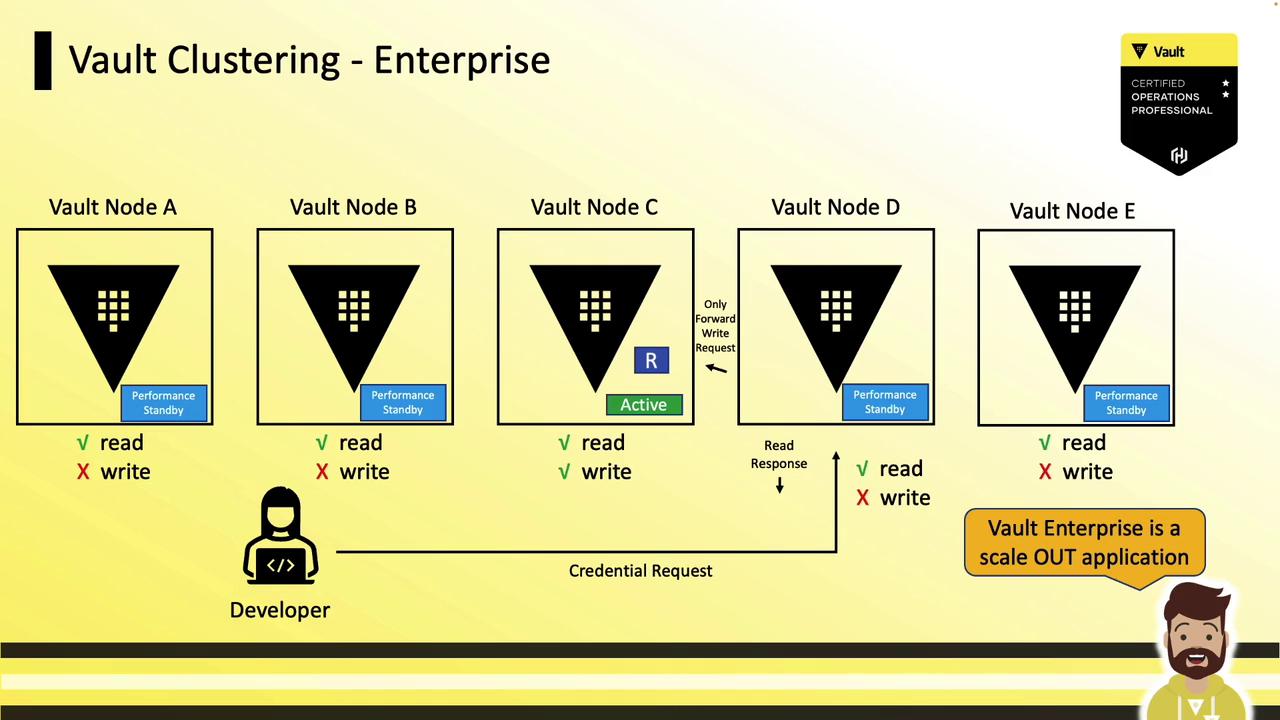

The image illustrates a Vault Clustering setup for enterprise, showing multiple Vault nodes (A to E) with their read and write capabilities, and a developer making credential requests. Node C is active, while others are in performance standby.

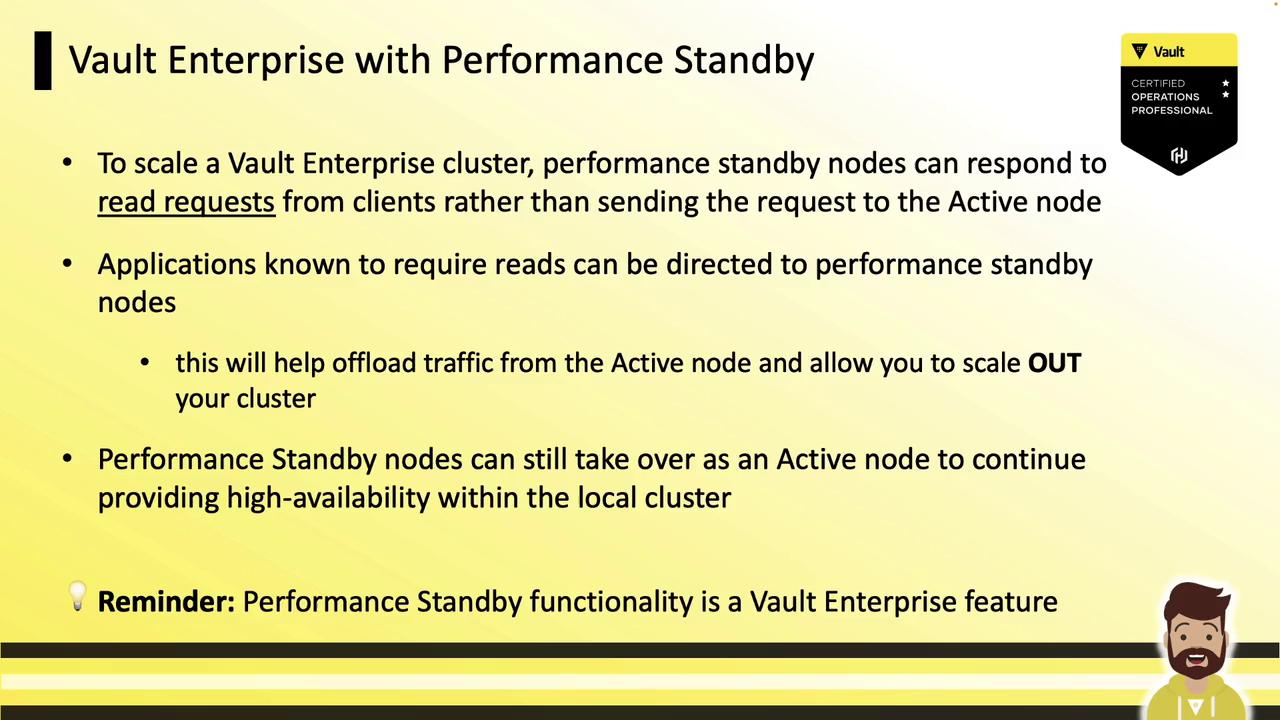

The image is a slide about "Vault Enterprise with Performance Standby," explaining how performance standby nodes can handle read requests to scale a cluster and maintain high availability. It includes a reminder that this functionality is specific to Vault Enterprise.


Scaling Out Read Performance

To scale read performance in Vault Enterprise:

  1. Add performance standby nodes to your cluster.
  2. Configure your load balancer or DNS to route read-only traffic to performance standby nodes.
  3. Use health checks to differentiate between active (writes+reads) and performance standby (reads only).

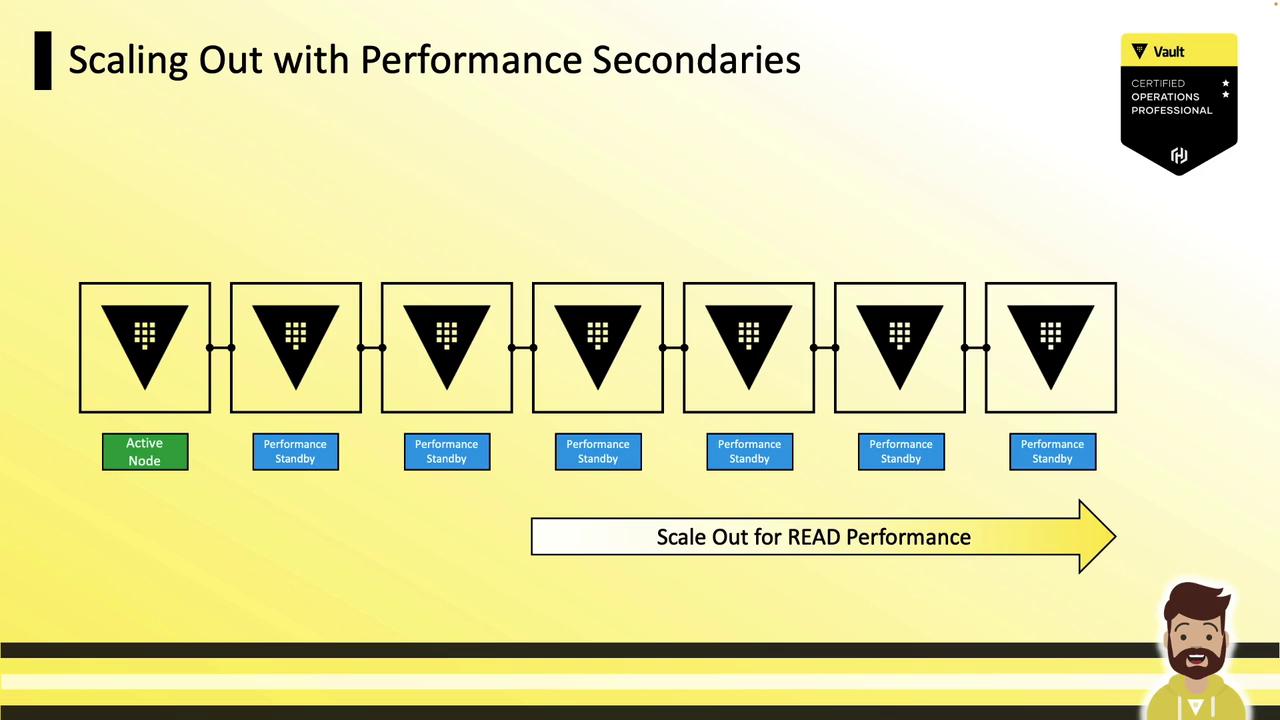

The image illustrates a system architecture for "Scaling Out with Performance Secondaries," showing an active node and multiple performance standby nodes connected in a sequence. It includes a label indicating scaling out for read performance.

Defining a Read

A read is any Vault operation that does not result in a storage write. Examples include:

vault read secret/data/my-app/config

Common read-only engines:

  • Key/Value Secrets Engine: fetching secrets
  • Transit Secrets Engine: encrypt/decrypt without persisting data
  • SSH Signing: signing client keys without storage

Performance standby nodes can service these requests locally, reducing load on the active node.


Consistency and Eventual Replication

When using Integrated Storage, replication to performance standbys is eventual. After a write:

  1. Active node commits locally.
  2. Changes replicate asynchronously to standby nodes.
  3. Standbys serve fresh data only after replication completes.

Eventual Consistency

A client reading immediately from a performance standby might see stale data or receive an error until replication finishes.

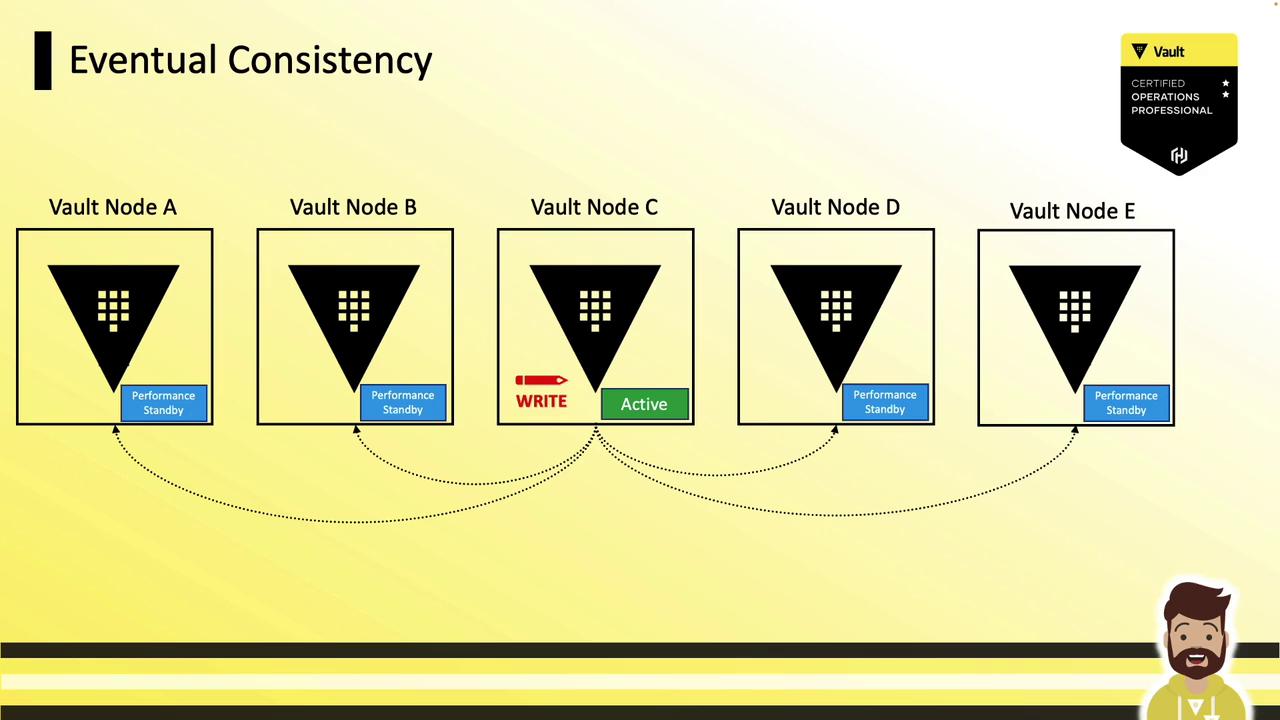

The image illustrates a diagram of a system with five Vault Nodes labeled A to E, showing their roles in eventual consistency. Node C is marked as "Active" and "Write," while the others are in "Performance Standby."


Health Checks and Targeting Standbys

Use Vault’s health endpoint and a load balancer to route traffic:

Endpoint:

GET /v1/sys/health

HTTP status codes:

Status CodeMeaning
200Active (initialized & unsealed)
473Performance standby (reads only)
501/503Uninitialized or sealed

Configure your load balancer to send read-only clients to nodes returning 473 and all other traffic to 200.

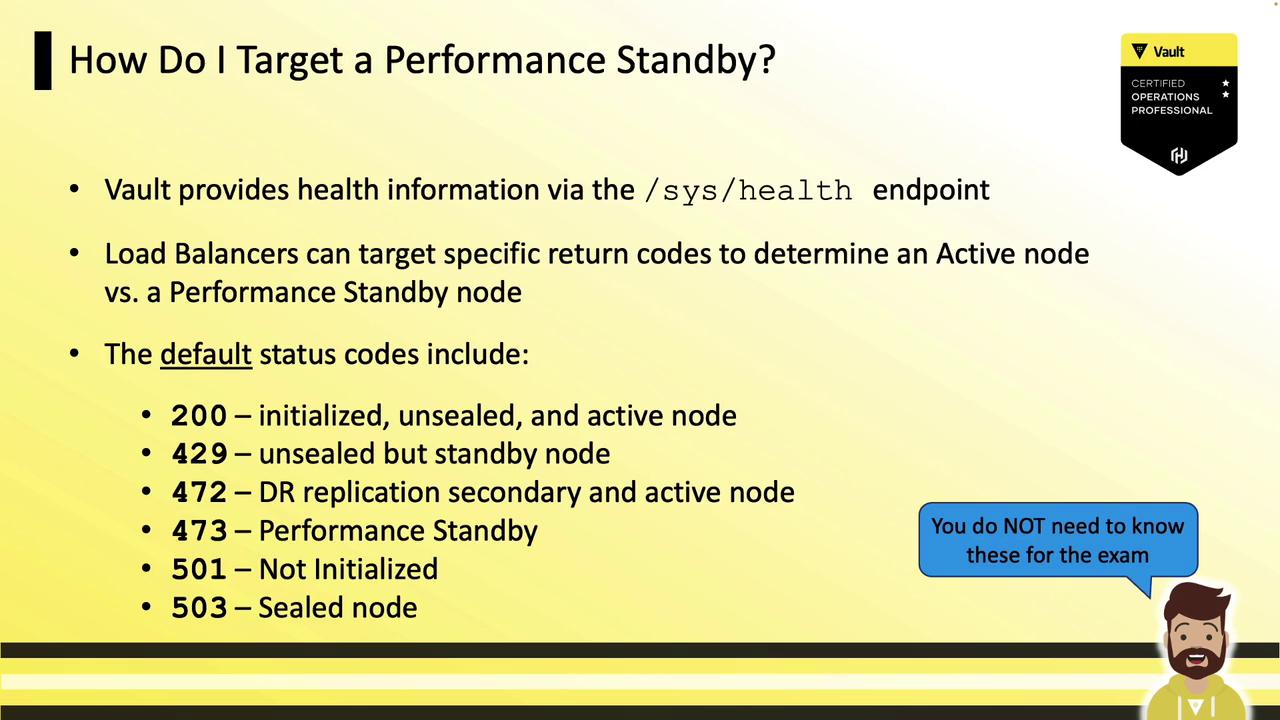

The image is a slide explaining how to target a performance standby in Vault, detailing health information endpoints and default status codes. It includes a note that these details are not needed for an exam.


Enabling and Disabling Performance Standby

Performance standby is enabled by default for Vault Enterprise with a valid license. To disable:

# Vault server configuration
disable_performance_standby = true

After restarting, the node will no longer advertise performance standby status.
