K8s PKI View Certificate Details

In this guide, you’ll learn how to locate, inspect, and verify all TLS certificates in an existing Kubernetes cluster. As a cluster administrator, performing a certificate health check ensures control-plane components and nodes trust the correct Certificate Authority (CA) and have valid, unexpired certificates.

1. Cluster Provisioning Methods

First, determine how your control-plane is deployed. This affects where certificate files live and how services reference them.

1.1 Manual Deployment (Native OS Services)

When Kubernetes components are managed by systemd, certificate flags appear in each service unit. For example, view the API server unit:

cat /etc/systemd/system/kube-apiserver.service
[Service]
ExecStart=/usr/local/bin/kube-apiserver \
  --advertise-address=172.17.0.32 \
  --client-ca-file=/var/lib/kubernetes/ca.pem \
  --etcd-cafile=/var/lib/kubernetes/ca.pem \
  --etcd-certfile=/var/lib/kubernetes/kubernetes.pem \
  --etcd-keyfile=/var/lib/kubernetes/kubernetes-key.pem \
  --kubelet-certificate-authority=/var/lib/kubernetes/ca.pem \
  --kubelet-client-cert-file=/var/lib/kubernetes/kubelet-client.crt \
  --kubelet-client-key=/var/lib/kubernetes/kubelet-client.key \
  --tls-cert-file=/var/lib/kubernetes/kubernetes.crt \
  --tls-private-key-file=/var/lib/kubernetes/kubernetes-key.pem \
  --allow-privileged=true \
  --service-node-port-range=30000-32767 \
  --v=2

1.2 kubeadm Deployment (Static Pods)

With kubeadm, control-plane components run as static pods. Check the manifest under /etc/kubernetes/manifests/kube-apiserver.yaml:

apiVersion: v1
kind: Pod
metadata:
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - name: kube-apiserver
    image: k8s.gcr.io/kube-apiserver:v1.X.Y
    command:
      - kube-apiserver
      - --client-ca-file=/etc/kubernetes/pki/ca.crt
      - --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt
      - --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
      - --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
      - --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
      - --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
      - --tls-cert-file=/etc/kubernetes/pki/apiserver.crt
      - --tls-private-key-file=/etc/kubernetes/pki/apiserver.key
      - --service-account-key-file=/etc/kubernetes/pki/sa.pub
      - --secure-port=6443
      - --service-cluster-ip-range=10.96.0.0/12
      - --authorization-mode=Node,RBAC

2. Gather Certificate Paths

Extract every file path ending in .crt, .key, or .pem from service units or manifests.

3. Inspect Certificates with OpenSSL

For each certificate file, run:

openssl x509 -in /etc/kubernetes/pki/apiserver.crt -text -noout

Key fields to verify:

• Subject: confirms the CN (e.g., CN=kube-apiserver)
• X509v3 Subject Alternative Name: ensure all required IPs/DNS entries exist
• Issuer: usually the Kubernetes CA (O=kubernetes)
• Validity: check Not Before and Not After dates for expiry

4. Document Certificate Metadata

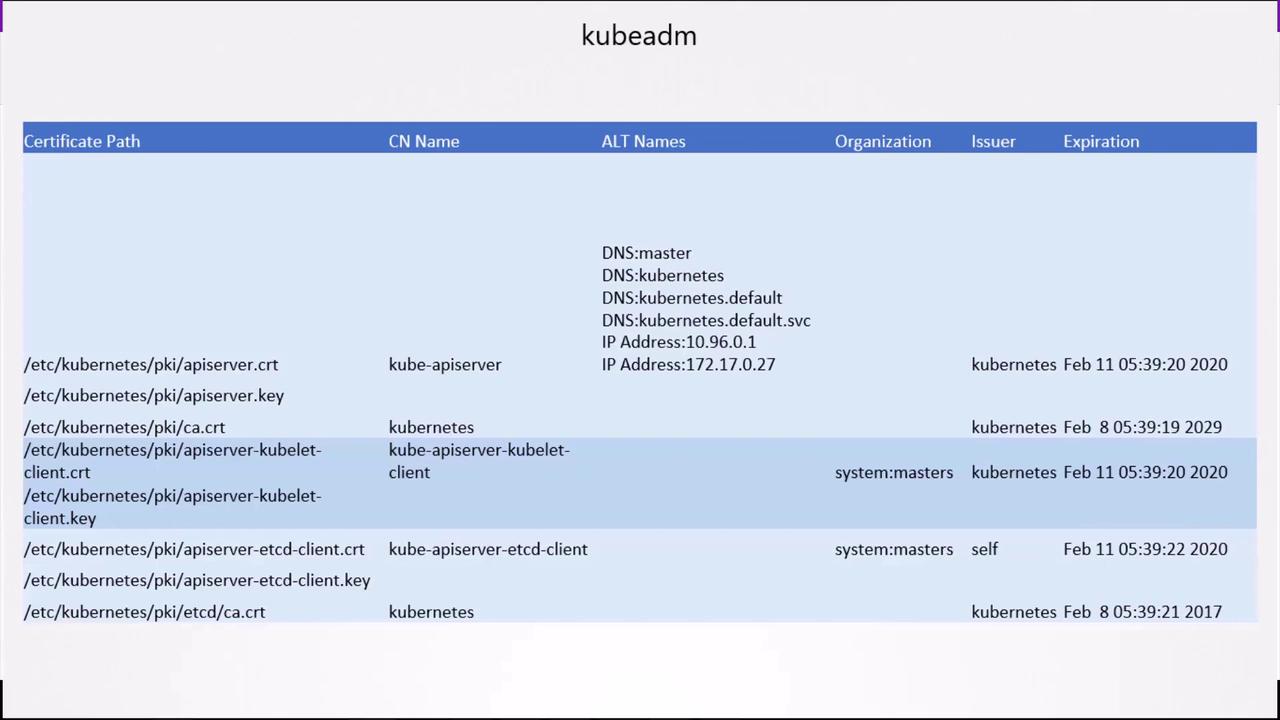

Organize certificate details in a spreadsheet or table for easy tracking. An example layout:

Refer to the official Kubernetes certificates documentation for certificate requirements and best practices.

5. Troubleshooting and Logs

If a component fails due to certificate issues, view logs to pinpoint TLS errors.

5.1 Native Services

journalctl -u etcd.service -l

Sample output snippet:

2019-02-13T02:53:28.185353Z I | embed: ClientTLS: cert = /etc/kubernetes/pki/etcd/server.crt, key = /etc/kubernetes/pki/etcd/server.key
WARNING: transport: authentication handshake failed: remote error: tls: bad certificate

5.2 kubeadm (Static Pods)

Fetch API server logs:

kubectl -n kube-system logs kube-apiserver-<node-name>

If kubectl is unavailable, use Docker:

docker ps -a
docker logs <container-id>
