K8s PKI Certificate Creation

Secure your Kubernetes cluster by generating TLS certificates using OpenSSL. This guide walks through creating a root Certificate Authority (CA), issuing client certificates for users and system components, and setting up server certificates for etcd, the API server, and kubelet nodes.

Prerequisites

Ensure OpenSSL is installed (openssl version).
Work in a secure directory with strict file permissions.
Replace placeholder IPs, hostnames, and node names to match your environment.

Certificate Overview

Artifact	Purpose	Example Command Snippet
`ca.key` / `ca.crt`	Root CA private key and self-signed cert	`openssl genrsa -out ca.key 2048`
`admin.key` / `admin.crt`	Cluster-admin user credentials	`openssl req -new -key admin.key…`
`etcd-server.key` / `etcd-server.crt`	etcd server TLS pair	`openssl x509 -req -in etcd-server.csr…`

1. Generate the CA Certificate

Protect your CA private key at all costs—this key signs every other certificate in your cluster.

Warning

Protect ca.key securely. If compromised, all cluster certificates become untrusted.

openssl genrsa -out ca.key 2048
openssl req -new -key ca.key -subj "/CN=KUBERNETES-CA" -out ca.csr
openssl x509 -req -in ca.csr -signkey ca.key -out ca.crt

ca.key: Private key for your root CA.
ca.csr: Certificate Signing Request with CA identity.
ca.crt: Self-signed root certificate trusted by all components.

2. Generate Client Certificates

Client certificates authenticate users and system services to the API server. All CSRs are signed by the root CA.

2.1 Admin User

Create a key, CSR, and certificate for the cluster administrator. Membership in system:masters grants full control.

openssl genrsa -out admin.key 2048
openssl req -new -key admin.key \
  -subj "/CN=kube-admin/O=system:masters" \
  -out admin.csr
openssl x509 -req -in admin.csr \
  -CA ca.crt -CAkey ca.key \
  -out admin.crt

Common Name (CN): Identifier seen in API audit logs.
Organization (O): Group membership.

2.2 System Component Users

Repeat the process for each Kubernetes control-plane component:

kube-scheduler
kube-controller-manager
kube-proxy

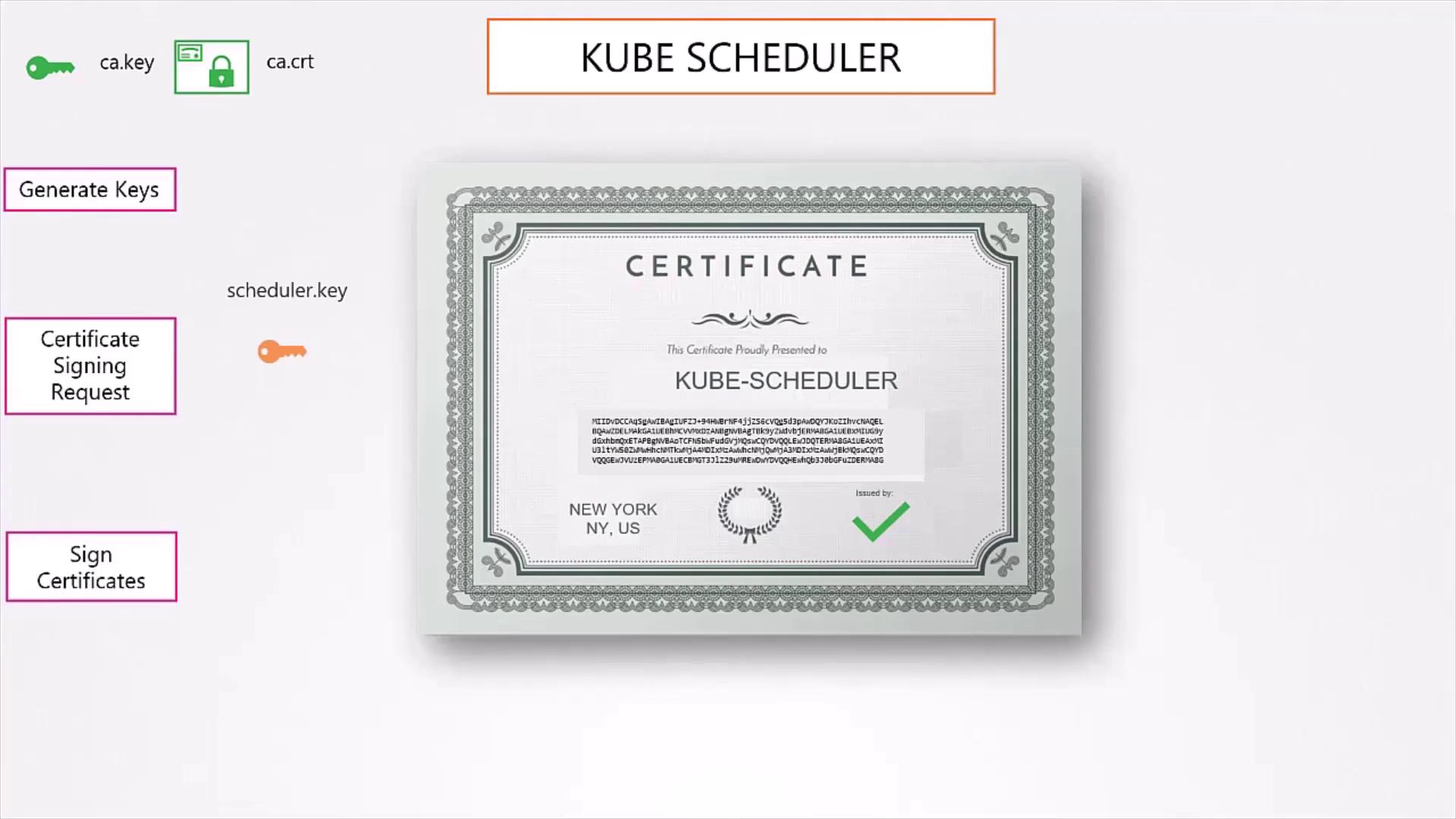

The image shows a certificate for "Kube Scheduler" with related icons and text about generating keys, certificate signing requests, and signing certificates.

Each CSR’s CN must be prefixed with system: (e.g., /CN=system:kube-scheduler).

3. Using Client Certificates

You can invoke the API directly with curl:

curl https://kube-apiserver:6443/api/v1/pods \
  --key admin.key \
  --cert admin.crt \
  --cacert ca.crt

Or embed credentials in a kubeconfig file:

apiVersion: v1
clusters:
- cluster:
    certificate-authority: ca.crt
    server: https://kube-apiserver:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: kube-admin
  name: admin-context
current-context: admin-context
kind: Config
users:
- name: kube-admin
  user:
    client-certificate: admin.crt
    client-key: admin.key

Most Kubernetes clients leverage kubeconfig to manage certificates and endpoints.

4. Server-Side Certificates

All Kubernetes servers must trust the CA root (ca.crt) and present valid certificates signed by it.

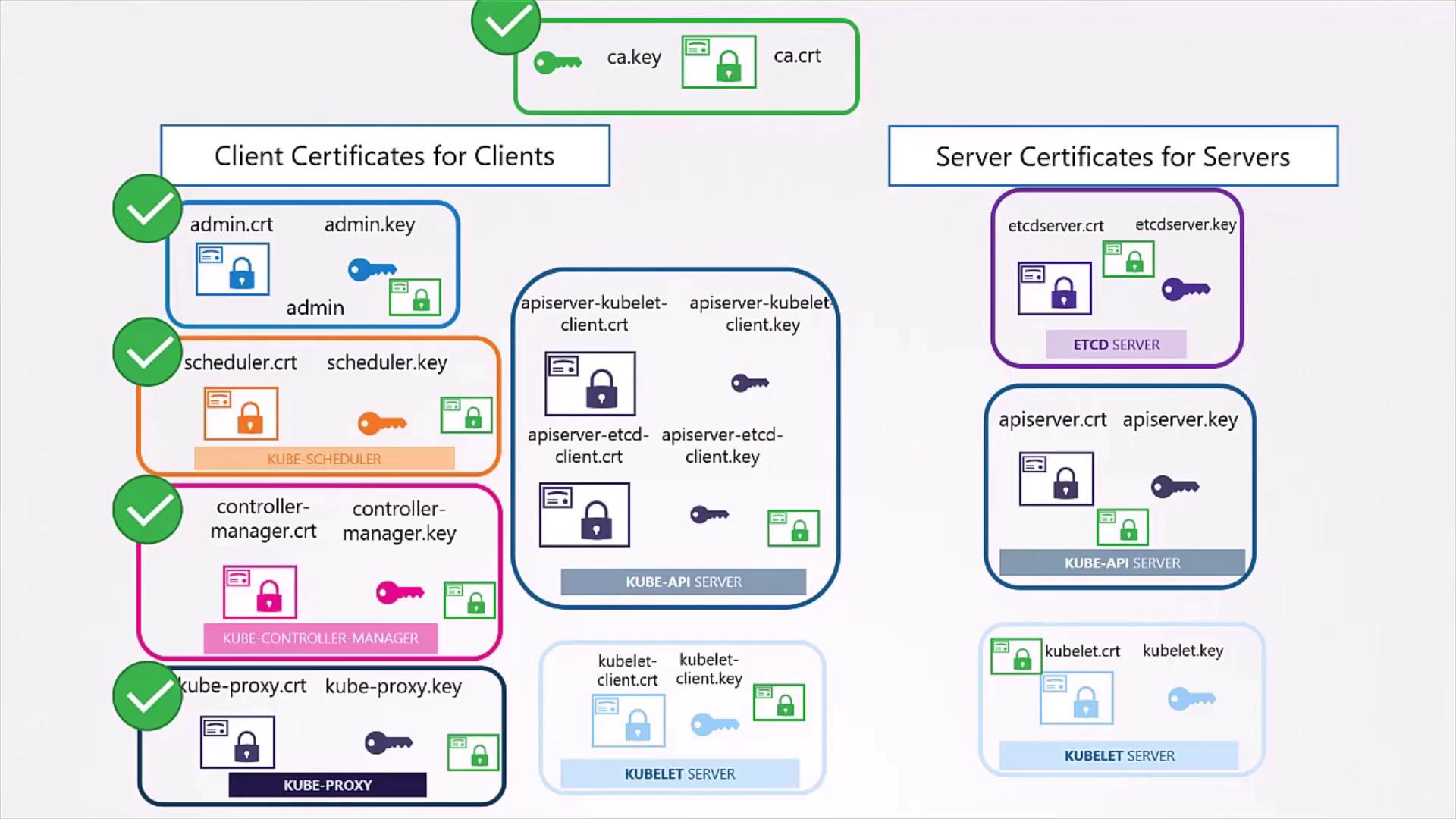

The image is a diagram showing the organization of client and server certificates for Kubernetes components, including keys and certificates for various services like kube-scheduler, kube-controller-manager, and kubelet.

4.1 etcd Server and Peers

Generate a certificate for the etcd server and peers in HA clusters:

openssl genrsa -out etcd-server.key 2048
openssl req -new -key etcd-server.key \
  -subj "/CN=etcd-server" \
  -out etcd-server.csr
openssl x509 -req -in etcd-server.csr \
  -CA ca.crt -CAkey ca.key \
  -out etcd-server.crt

For peer communication, use /CN=etcd-peer. Then configure your etcd service:

# etcd.yaml
etcd:
  --advertise-client-urls=https://127.0.0.1:2379
  --listen-client-urls=https://127.0.0.1:2379
  --cert-file=/path-to-certs/etcd-server.crt
  --key-file=/path-to-certs/etcd-server.key
  --client-cert-auth=true
  --trusted-ca-file=/path-to-certs/ca.crt
  --listen-peer-urls=https://127.0.0.1:2380
  --initial-advertise-peer-urls=https://127.0.0.1:2380
  --peer-cert-file=/path-to-certs/etcd-peer.crt
  --peer-key-file=/path-to-certs/etcd-peer.key
  --peer-client-cert-auth=true
  --peer-trusted-ca-file=/path-to-certs/ca.crt

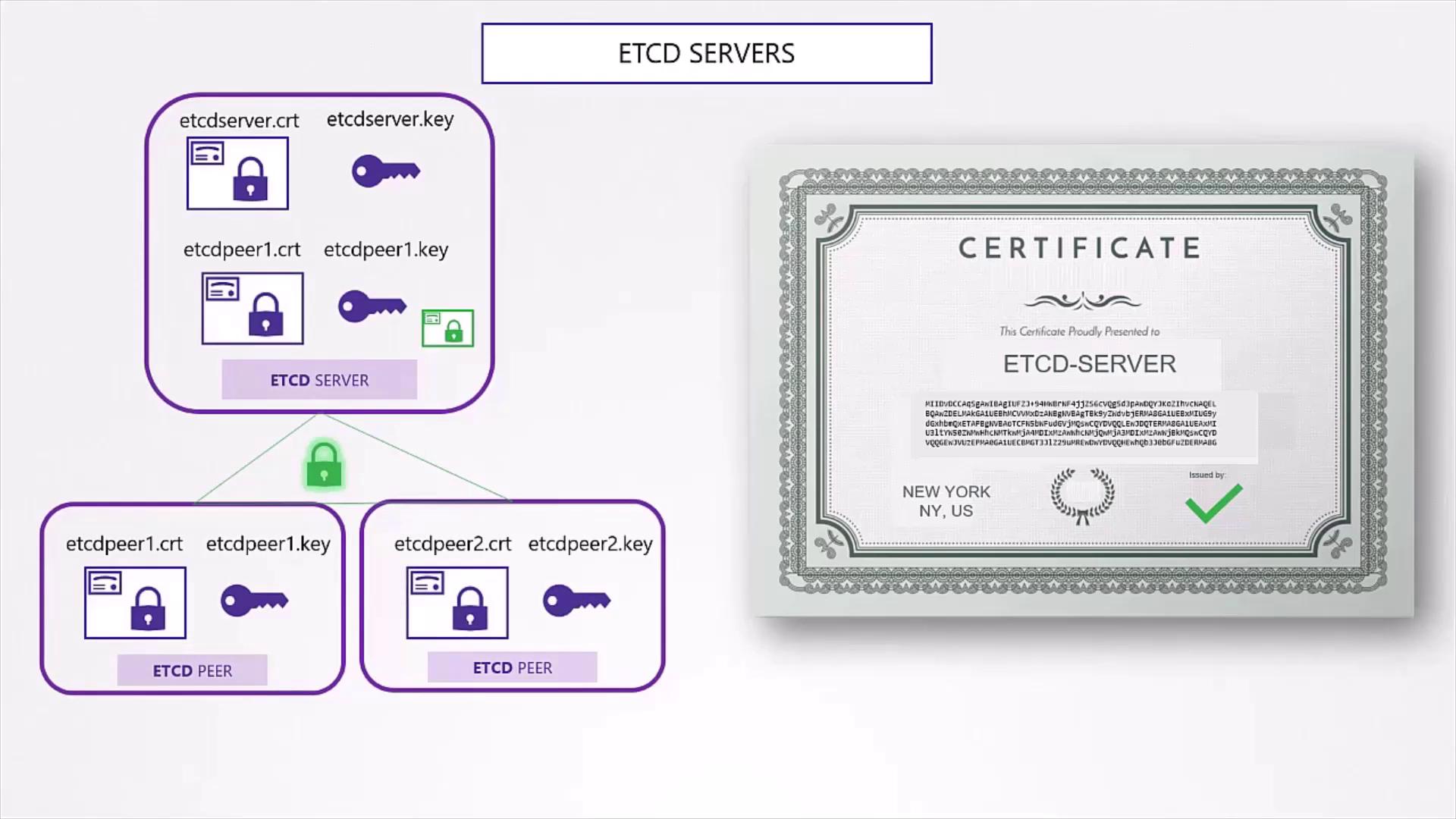

The image illustrates the structure of ETCD servers and peers, showing certificates and keys for secure communication. It includes a visual representation of a certificate labeled "ETCD-SERVER."

4.2 kube-apiserver

The API server certificate must cover all DNS names and IP addresses used by the service. Create an OpenSSL config (openssl.cnf) with an [ alt_names ] section:

[ req ]
distinguished_name = req_distinguished_name
req_extensions     = v3_req

[ v3_req ]
subjectAltName = @alt_names

[ alt_names ]
DNS.1 = kube-apiserver
DNS.2 = kubernetes
DNS.3 = kubernetes.default
DNS.4 = kubernetes.default.svc
DNS.5 = kubernetes.default.svc.cluster.local
IP.1  = 10.32.0.1
# Add more IPs/hostnames as needed

Generate and sign the CSR:

openssl genrsa -out apiserver.key 2048
openssl req -new -key apiserver.key \
  -subj "/CN=kube-apiserver" \
  -config openssl.cnf \
  -out apiserver.csr
openssl x509 -req -in apiserver.csr \
  -CA ca.crt -CAkey ca.key \
  -extensions v3_req \
  -extfile openssl.cnf \
  -out apiserver.crt

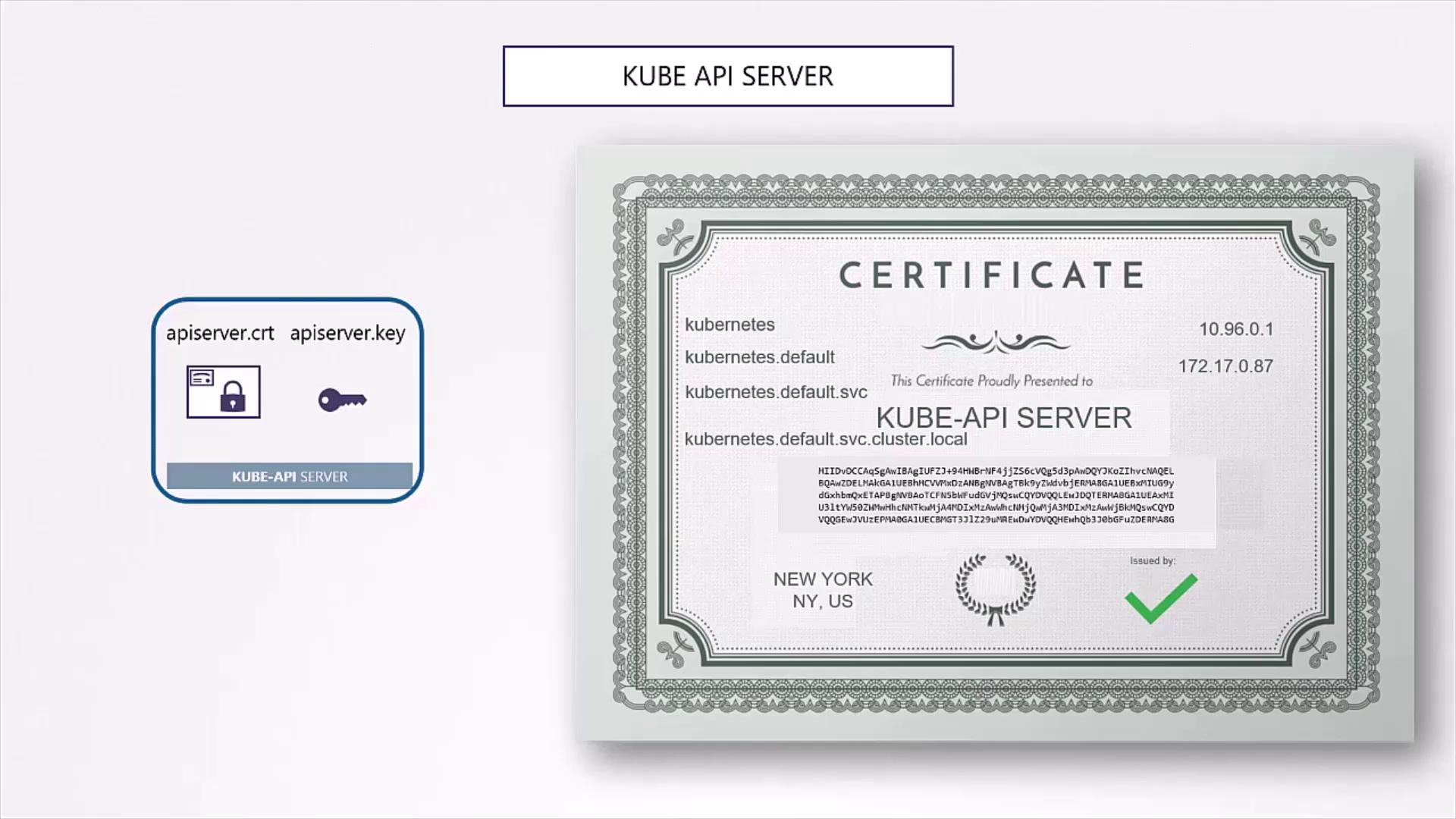

The image shows a digital certificate for a Kube API server, including details like IP addresses and a key icon representing security credentials.

Configure the API server service:

ExecStart=/usr/local/bin/kube-apiserver \
  --advertise-address=${INTERNAL_IP} \
  --bind-address=0.0.0.0 \
  --etcd-servers=https://127.0.0.1:2379 \
  --etcd-cafile=/var/lib/kubernetes/ca.crt \
  --etcd-certfile=/var/lib/kubernetes/apiserver-etcd-client.crt \
  --etcd-keyfile=/var/lib/kubernetes/apiserver-etcd-client.key \
  --client-ca-file=/var/lib/kubernetes/ca.crt \
  --tls-cert-file=/var/lib/kubernetes/apiserver.crt \
  --tls-private-key-file=/var/lib/kubernetes/apiserver.key \
  --kubelet-certificate-authority=/var/lib/kubernetes/ca.crt \
  --kubelet-client-certificate=/var/lib/kubernetes/apiserver-kubelet-client.crt \
  --kubelet-client-key=/var/lib/kubernetes/apiserver-kubelet-client.key \
  --service-account-key-file=/var/lib/kubernetes/service-account.pem \
  --authorization-mode=Node,RBAC \
  --service-cluster-ip-range=10.32.0.0/24 \
  --service-node-port-range=30000-32767 \
  --v=2

4.3 Kubelet Server

Each Kubernetes node requires its own TLS certificate named after the node:

openssl genrsa -out kubelet-node01.key 2048
openssl req -new -key kubelet-node01.key \
  -subj "/CN=system:node:node01/O=system:nodes" \
  -out kubelet-node01.csr
openssl x509 -req -in kubelet-node01.csr \
  -CA ca.crt -CAkey ca.key \
  -out kubelet-node01.crt

CN: system:node:<nodeName>
O: system:nodes

Embed the certificates in the kubelet configuration (/var/lib/kubelet/config.yaml):

kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  x509:
    clientCAFile: "/var/lib/kubernetes/ca.crt"
authorization:
  mode: Webhook
clusterDomain: "cluster.local"
clusterDNS:
  - "10.32.0.10"
podCIDR: "${POD_CIDR}"
resolvConf: "/run/systemd/resolve/resolv.conf"
runtimeRequestTimeout: "15m"
tlsCertFile: "/var/lib/kubelet/kubelet-node01.crt"
tlsPrivateKeyFile: "/var/lib/kubelet/kubelet-node01.key"

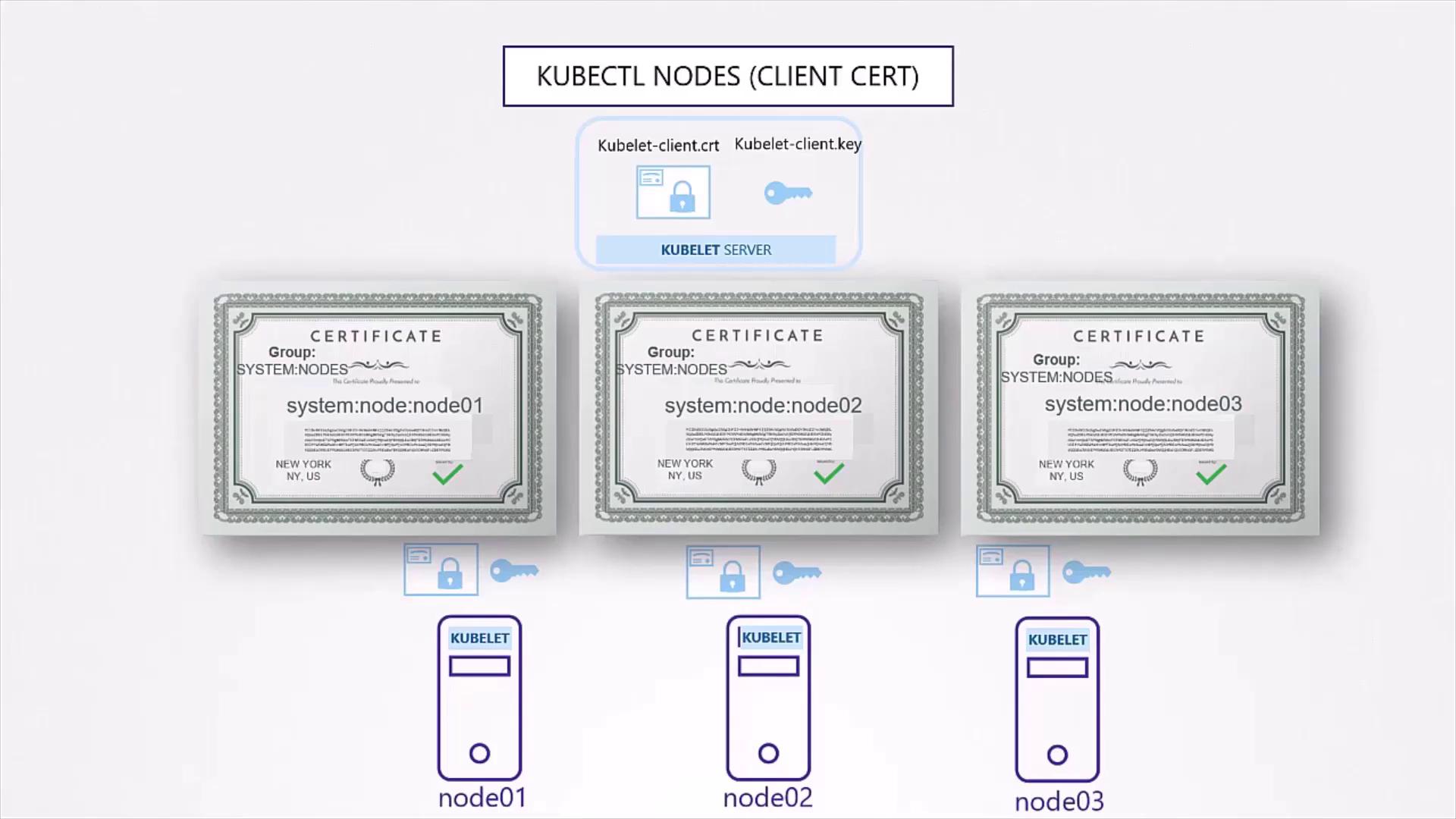

The image shows a diagram of Kubernetes nodes with client certificates for three nodes (node01, node02, node03) under the "KUBECTL NODES (CLIENT CERT)" heading, illustrating their authentication setup.

That completes the Kubernetes PKI certificate generation process. For automation, explore how kubeadm handles this in the docs.
