Supply Chain Security Minimize base image footprint

Welcome to this lesson on reducing the attack surface and disk usage of Docker images. In this guide, we’ll explore the differences between base and parent images, and share best practices for constructing minimal, secure containers.

Understanding Parent vs Base Images

Every Docker build begins with a FROM instruction. The image you specify is your parent image, and its ancestors are known as base images. Tracing the lineage helps you understand what gets into your final artifact.

# 1. Your application image
FROM httpd
COPY index.html /usr/local/apache2/htdocs/index.html

Here, httpd is the parent. But what is httpd built from?

# 2. The httpd image
FROM debian:buster-slim
ENV HTTPD_PREFIX=/usr/local/apache2
ENV PATH=$HTTPD_PREFIX/bin:$PATH
WORKDIR $HTTPD_PREFIX
# ...install Apache HTTP Server...

And finally:

# 3. The Debian image
FROM scratch
ADD rootfs.tar.xz /
CMD ["bash"]

When an image starts FROM scratch, it sits at the bottom of the chain—there are no layers beneath it.

Best Practices for Building Minimal Images

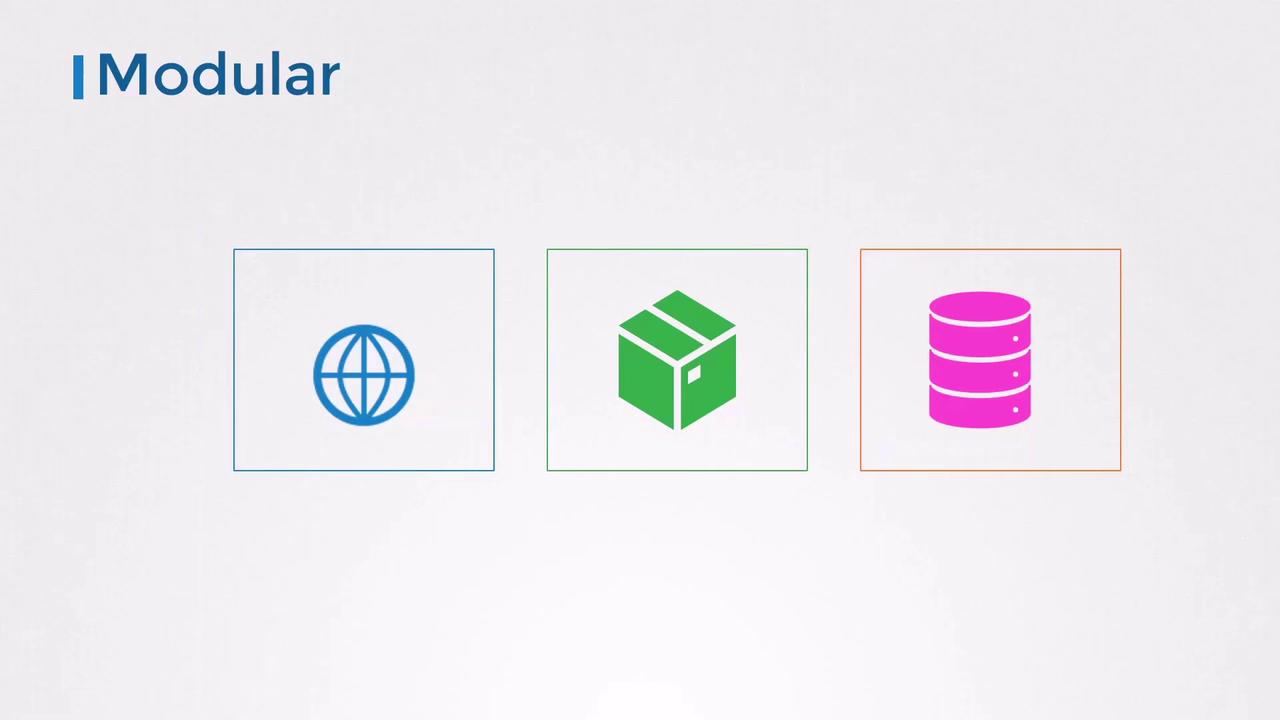

1. Design for Modularity
   Build one service per image. Compose them together at runtime for scalability and separation of concerns.



2. Keep Containers Stateless
   Containers should be ephemeral. Persist data in external volumes or managed services like Redis.

3. Choose an Appropriate Base

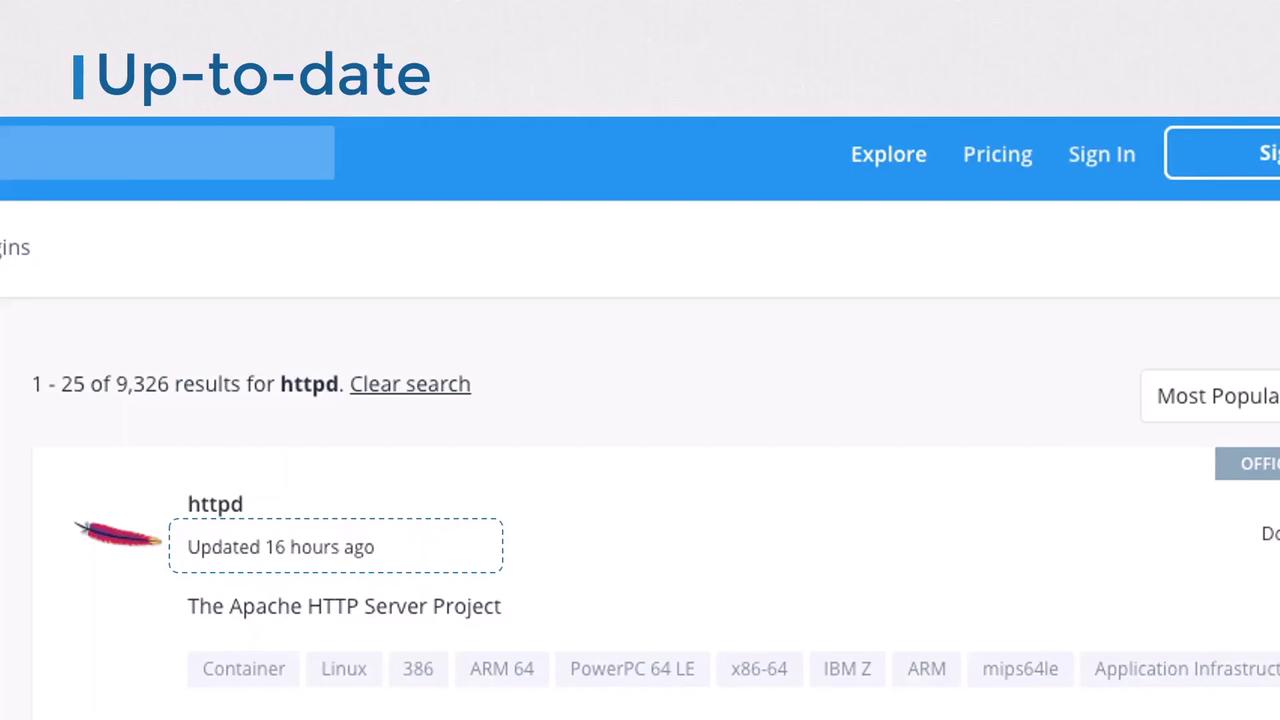

   Official, regularly-updated images (e.g., nginx, httpd) reduce risk. Verify publishers and check update frequency.

   FROM httpd:2.4-alpine
   COPY index.html /usr/local/apache2/htdocs/index.html

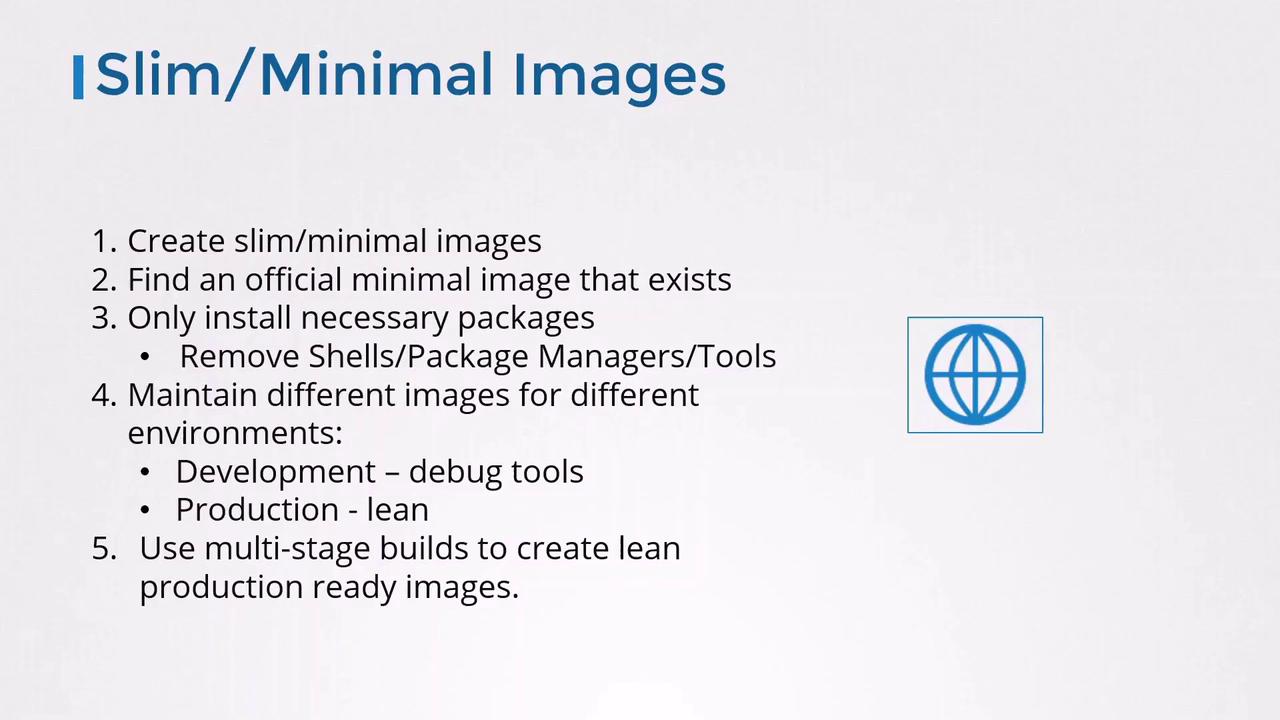

4. Keep Images Small

   • Start from minimal OS distributions (Alpine, Debian Slim).
   • Only install required libraries.
   • Clean up caches and package metadata.
   • Remove build tools (curl, wget, package managers) after install.
   • Use multi-stage builds for production artifacts.

   Strategy	Description	Example Snippet
   Multi-stage builds	Separate build and runtime dependencies	FROM golang:1.19 AS builder<br>RUN go build -o app .
   Minimal OS	Use Alpine or slim variants	FROM python:3.10-alpine
   Cleanup after install	Remove package caches and temp files	RUN apk add --no-cache build-base && \<br> apk del build-base



One popular set of ultra-minimal images is Google’s Distroless, which include only your app and runtime libraries—no shell, no package manager.

Security Benefits of Minimal Images

Smaller images have fewer components to scan—and fewer vulnerabilities. For instance, scanning the Debian-based httpd image with Trivy reports:

trivy image httpd
httpd (debian 10.8)
====================
Total: 124 (UNKNOWN: 0, LOW: 88, MEDIUM: 9, HIGH: 25, CRITICAL: 2)

Switching to an Alpine-based httpd drops known issues to zero:

References

• Docker Official Images
• Trivy Vulnerability Scanner
• Google Distroless Images
