AWS Config

In this guide, we’ll explore how to leverage AWS Config and a PCI Conformance Pack to ensure your AWS environment adheres to the Payment Card Industry Data Security Standard (PCI DSS). You’ll learn how to continuously monitor configuration changes, enforce encryption and logging rules, and quickly remediate non-compliant resources.

PCI Compliance Workflow

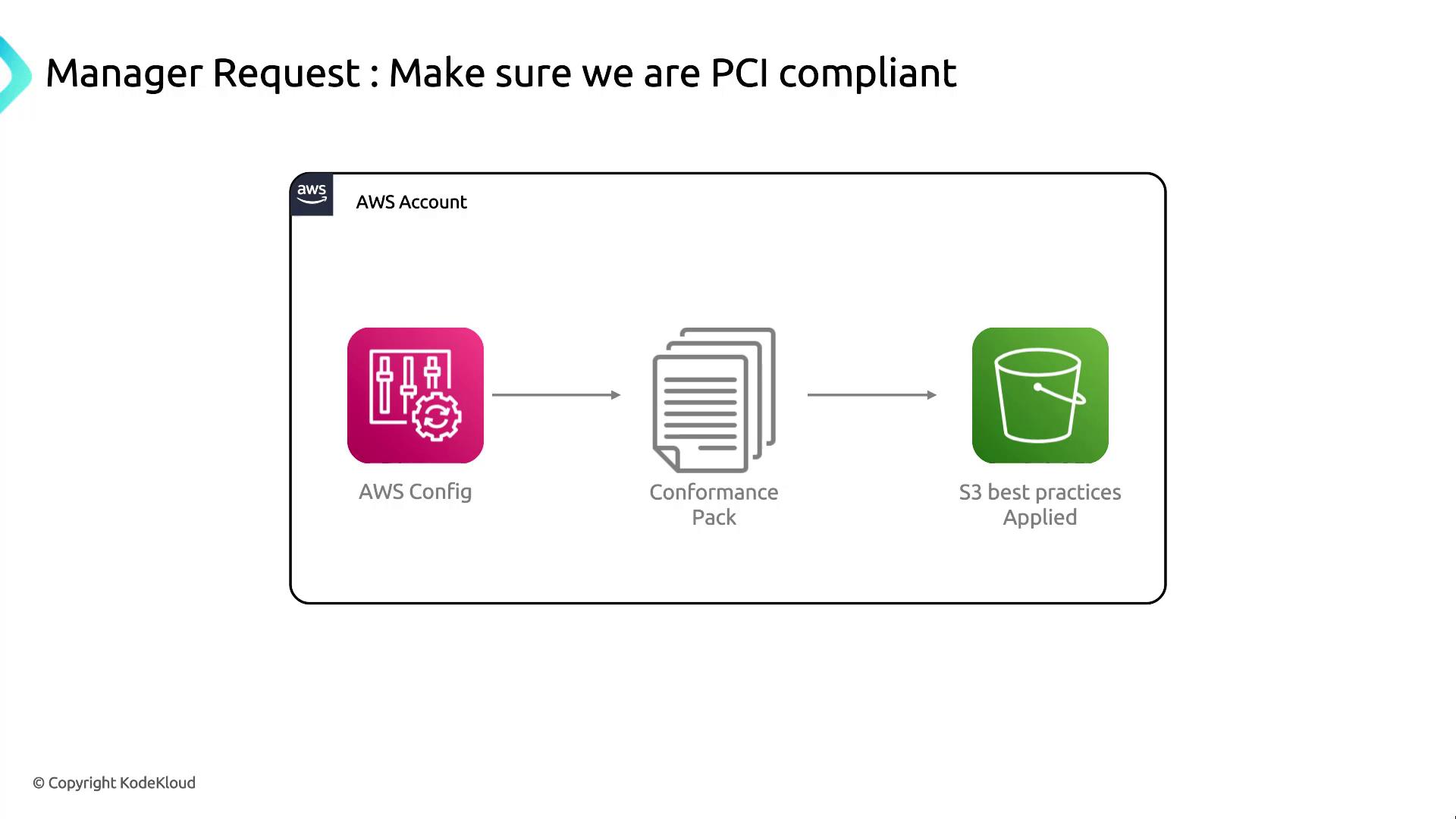

The diagram below illustrates how AWS Config, paired with a PCI conformance pack, enforces critical controls—such as S3 bucket encryption, access policies, and logging—across your AWS account.

The image illustrates a process for ensuring PCI compliance using AWS Config and a Conformance Pack to enforce S3 bucket encryption, logging, and access policies.

Key AWS Config Functions

AWS Config provides the following core capabilities to help you maintain and audit compliance:

  • Configuration Tracking: Records detailed history of resource configurations.
  • Compliance Assessment: Evaluates resources against rules defined in conformance packs.
  • Change Management: Maintains a timeline of changes for troubleshooting and auditing.

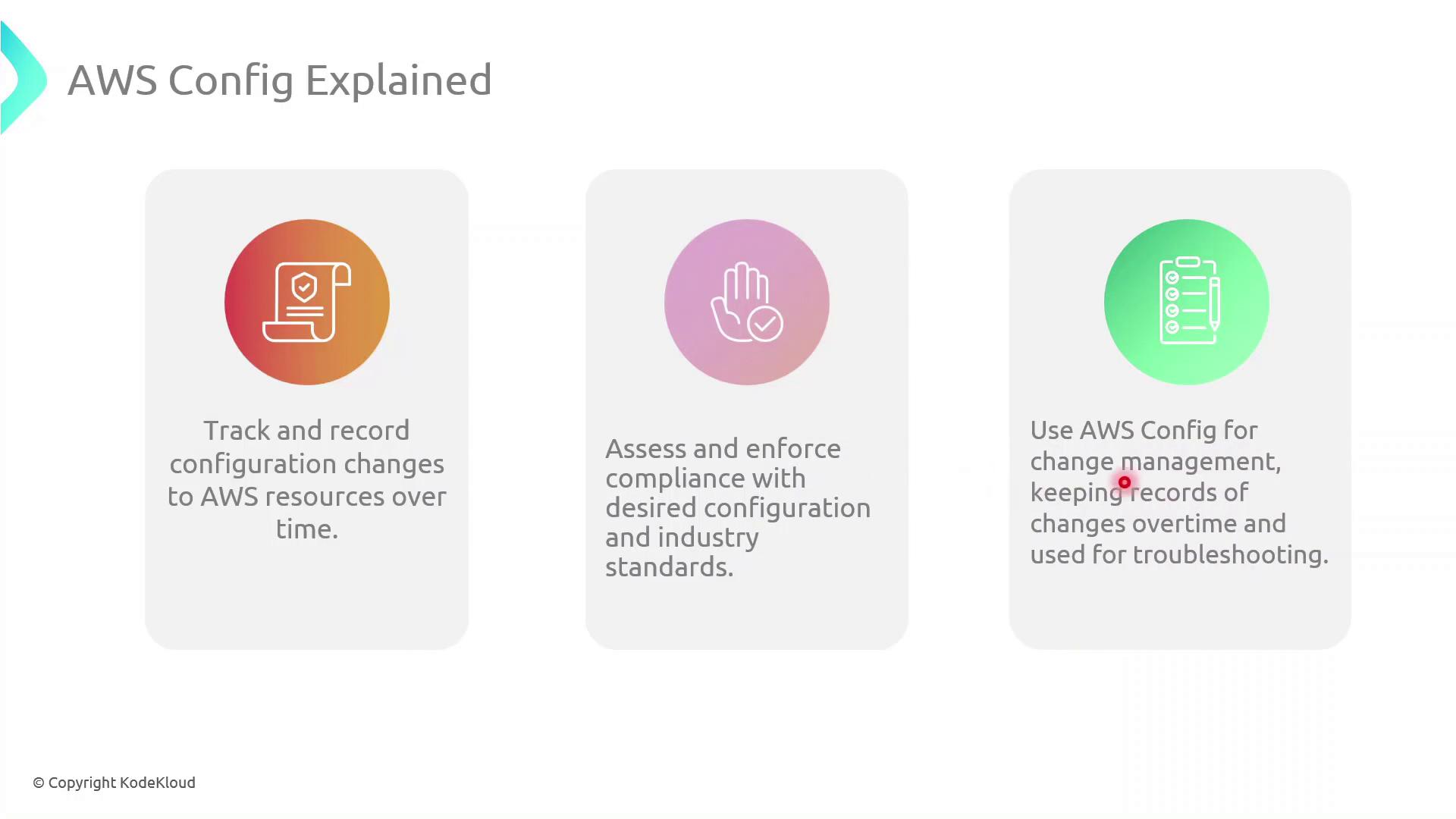

The image explains AWS Config, highlighting its functions: tracking configuration changes, enforcing compliance, and managing changes for troubleshooting.

For deeper details, see the AWS Config Developer Guide.

PCI Conformance Pack Overview

A PCI conformance pack is a curated collection of managed AWS Config rules and remediation actions mapped to PCI DSS requirements. Typical rules include:

Rule NameDescription
s3-bucket-server-side-encryption-enabledEnsures all S3 buckets have default encryption enabled.
cloudtrail-enabledVerifies that AWS CloudTrail is enabled in every region.
iam-password-policyChecks that the IAM password policy meets complexity standards.

Note

You can customize managed rules or add AWS Config Custom Rules using AWS Lambda to address organization-specific requirements.

Demo: Deploying the PCI Conformance Pack

Follow these steps to deploy and evaluate the PCI conformance pack in your AWS account:

  1. Sign in to the AWS Management Console.
  2. Navigate to AWS Config in the Services menu.
  3. In the left pane, select Conformance packs.
  4. Click Deploy conformance pack, then choose PCI Compliance from the AWS-managed list.
  5. Review parameters (if any), then click Deploy.

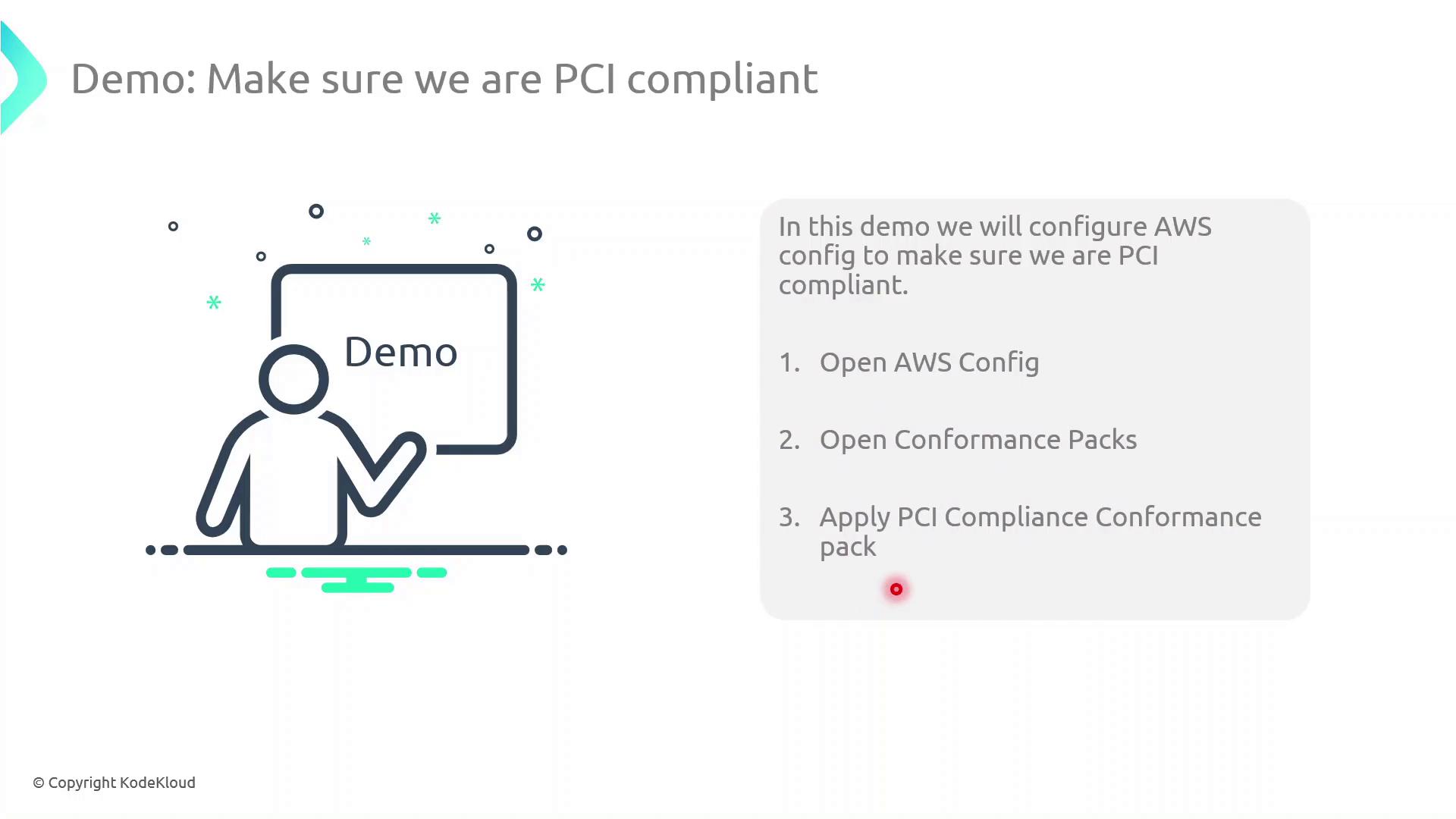

The image is a slide titled "Demo: Make sure we are PCI compliant," showing steps to configure AWS for PCI compliance, including opening AWS Config, opening Conformance Packs, and applying a PCI Compliance Conformance pack.

Once deployed, AWS Config immediately evaluates your resources against the PCI rules and highlights any compliance violations on the Conformance packs dashboard.

Next Steps

  • Review non-compliant resources and apply automated or manual remediations.
  • Configure AWS Config delivery channels to aggregate configuration snapshots in an S3 bucket.
  • Set up Amazon SNS notifications for real-time alerts on compliance drift.
