AZ-400: Designing and Implementing Microsoft DevOps Solutions

Branching Strategies for Source Code

Implement fork workflow

In this guide, you’ll learn how to safely experiment with a project by creating a personal copy of an Azure DevOps repository. Forking enables you to develop features, test changes, and submit pull requests back to the original codebase—all without affecting the upstream repository. This workflow is perfect for open source contributions and large-team collaboration.

1. Forking a Repository

  1. Sign in to Azure DevOps as your user (e.g., Lloyd).
  2. Navigate to Repos and locate the KodeKloud GIFs repository.
  3. Click Fork, name your fork (for example, KodeKloudGifts.LloydChristmas), choose the branches to include, and confirm.

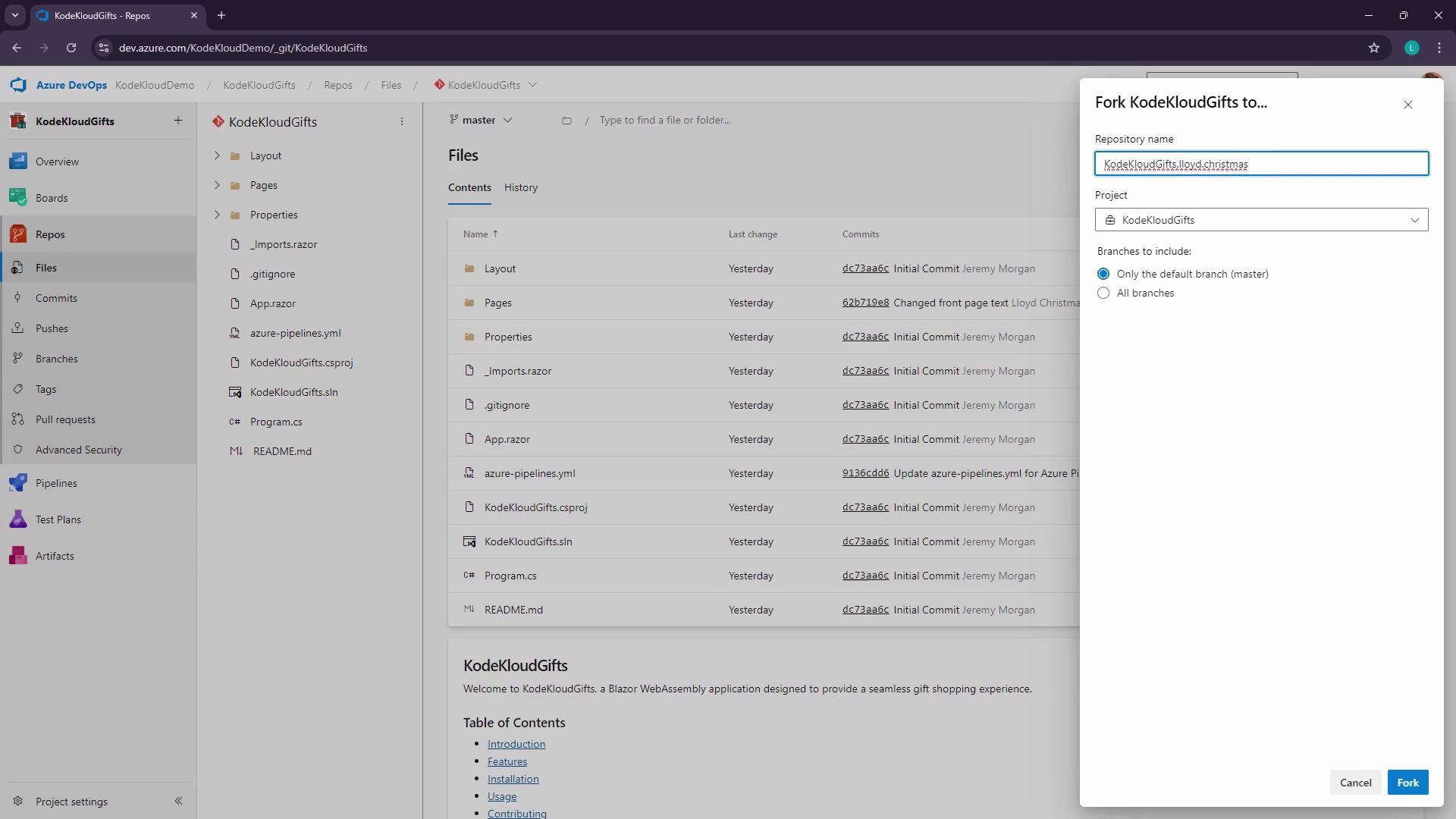

The image shows an Azure DevOps repository interface for "KodeKloudGifts," displaying a list of files and a dialog box for forking the repository.

Note

Forks are isolated copies—your changes won’t affect the original repository until you open a pull request.

After the fork completes, the Clone button points to your new repository:

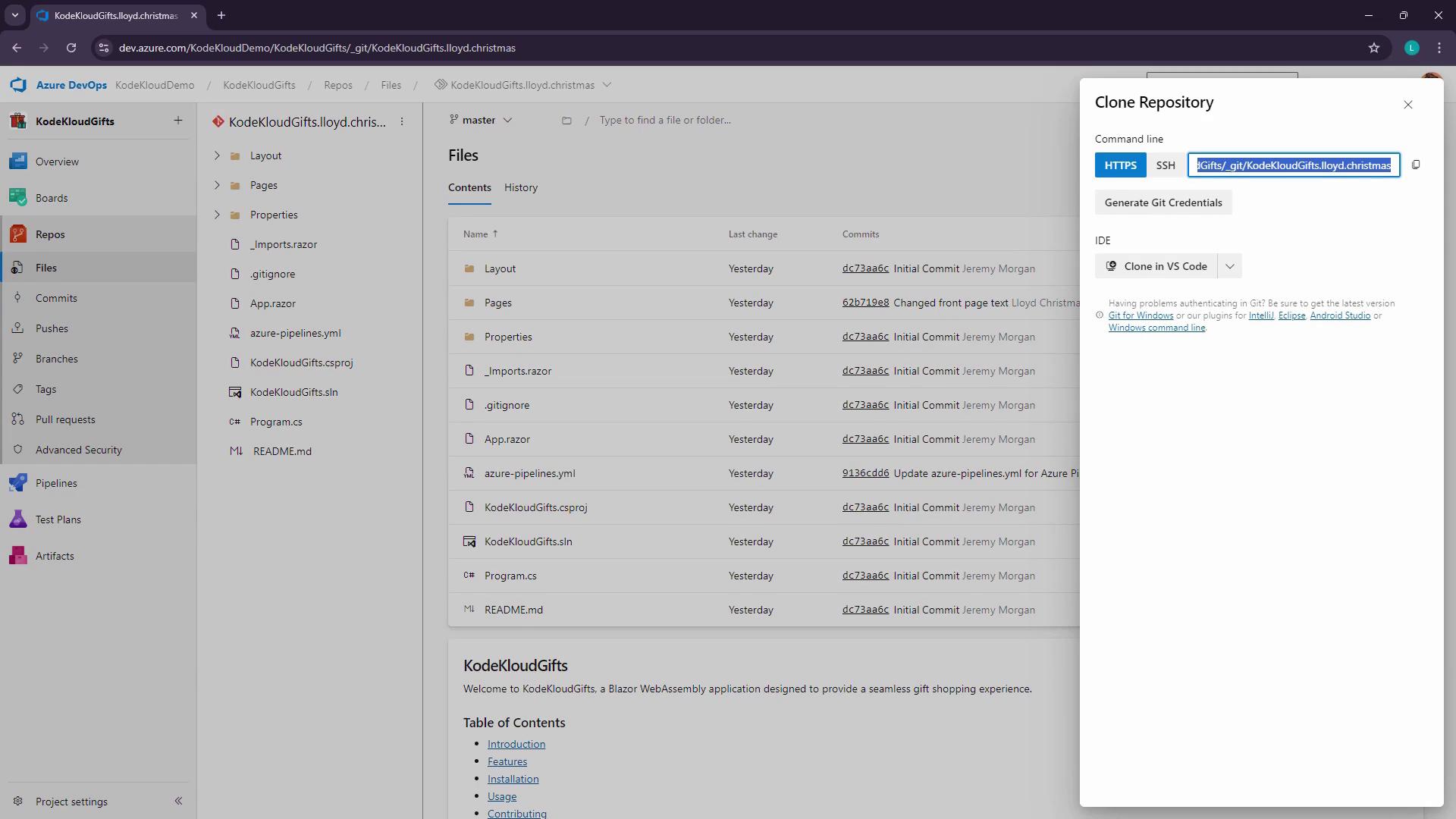

The image shows an Azure DevOps repository interface with a list of files and a "Clone Repository" dialog box open, displaying options for cloning via HTTPS or SSH.

2. Cloning and Setting Up Your Fork

Use Git to clone your fork, not the original:

git clone https://dev.azure.com/KodeKloudDemo/KodeKloudGifts/_git/KodeKloudGifts.lloyd.christmas

Sample output:

Cloning into 'KodeKloudGifts.lloyd.christmas'...
remote: Azure Repos
remote: This repository is a fork. Learn more at https://aka.ms/whatisafork.
remote: To add its upstream as a remote, run:
remote:   git remote add upstream https://dev.azure.com/KodeKloudDemo/KodeKloudGifts/_git/KodeKloudGifts
Unpacking objects: 100% (37/37), done.

Note

After cloning, run the following to set up the original repo as upstream:

git remote add upstream https://dev.azure.com/KodeKloudDemo/KodeKloudGifts/_git/KodeKloudGifts

Open your project in Visual Studio Code:

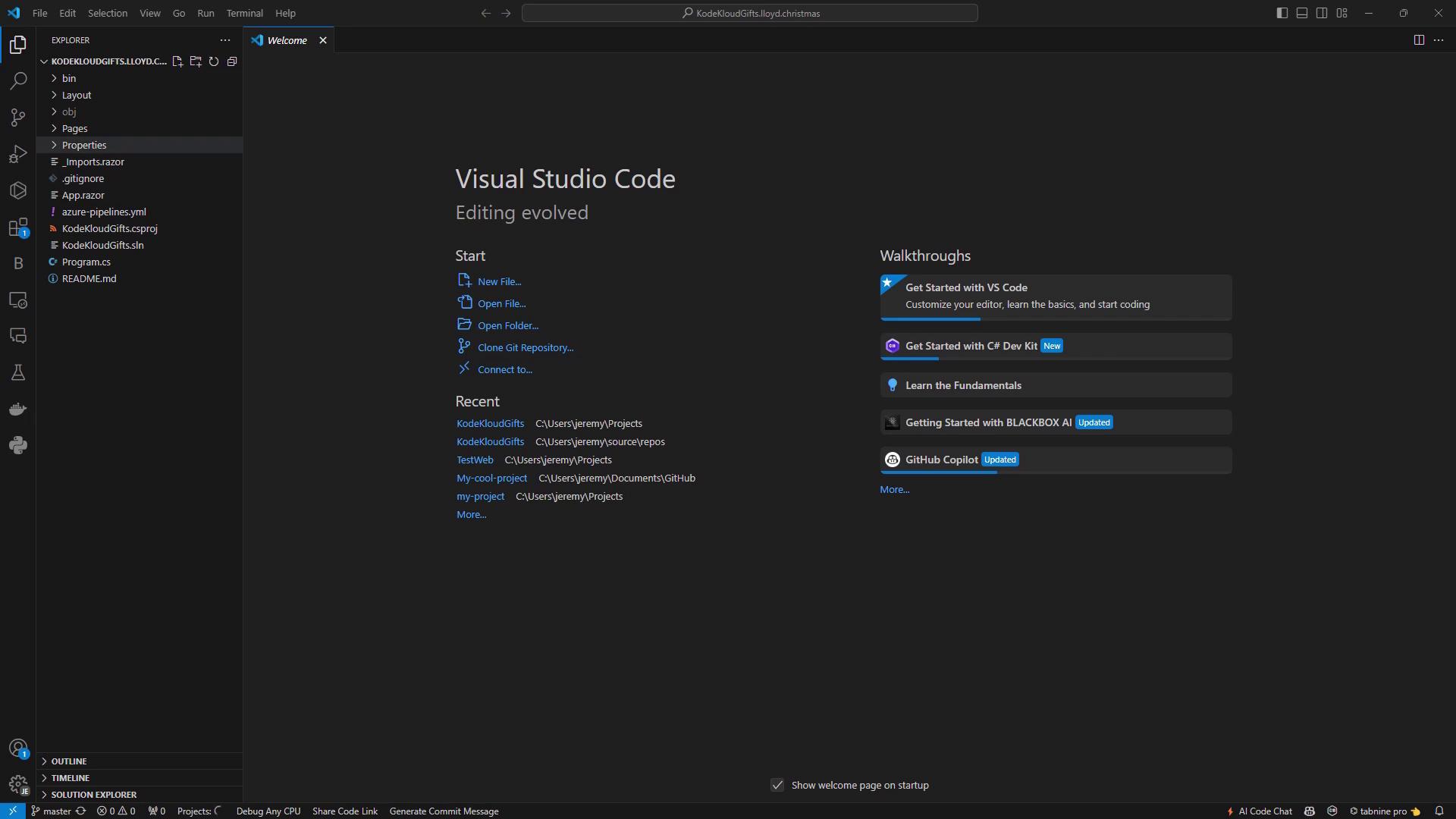

The image shows the Visual Studio Code interface with a project open, displaying the Explorer panel on the left and the Welcome page with start options and walkthroughs on the right.

3. Modifying the Code

Edit Pages/Home.razor to showcase Lloyd’s GIF shop:

@page "/"
<PageTitle>Home</PageTitle>

<h1>Welcome to Lloyd’s KodeKloud Gift Shop!</h1>
<p>
  Discover Lloyd’s handpicked collection of quirky and unique GIF gifts.
  Whether for a friend, family, or yourself, shop the fun here!
</p>

Commit and push your updates:

git status
git add Pages/Home.razor
git commit -m "Update Home.razor with new shop details"
git push origin master

4. Comparing Fork vs. Upstream

Switch between your fork and the upstream repository in Azure DevOps to verify changes:

The image shows an Azure DevOps repository interface with a project named "KodeKloudGifts." It displays a list of files under the "Pages" directory, including "Counter.razor," "Home.razor," and "Weather.razor."

Your fork’s Home.razor now reflects the new content, while the upstream remains unchanged.

5. Creating a Pull Request

When you’re ready to merge, create a pull request:

  1. In your fork, go to Pull Requests > New Pull Request.
  2. Select master (or your feature branch) as both source and target, if applicable.
  3. Add a descriptive title and summary.

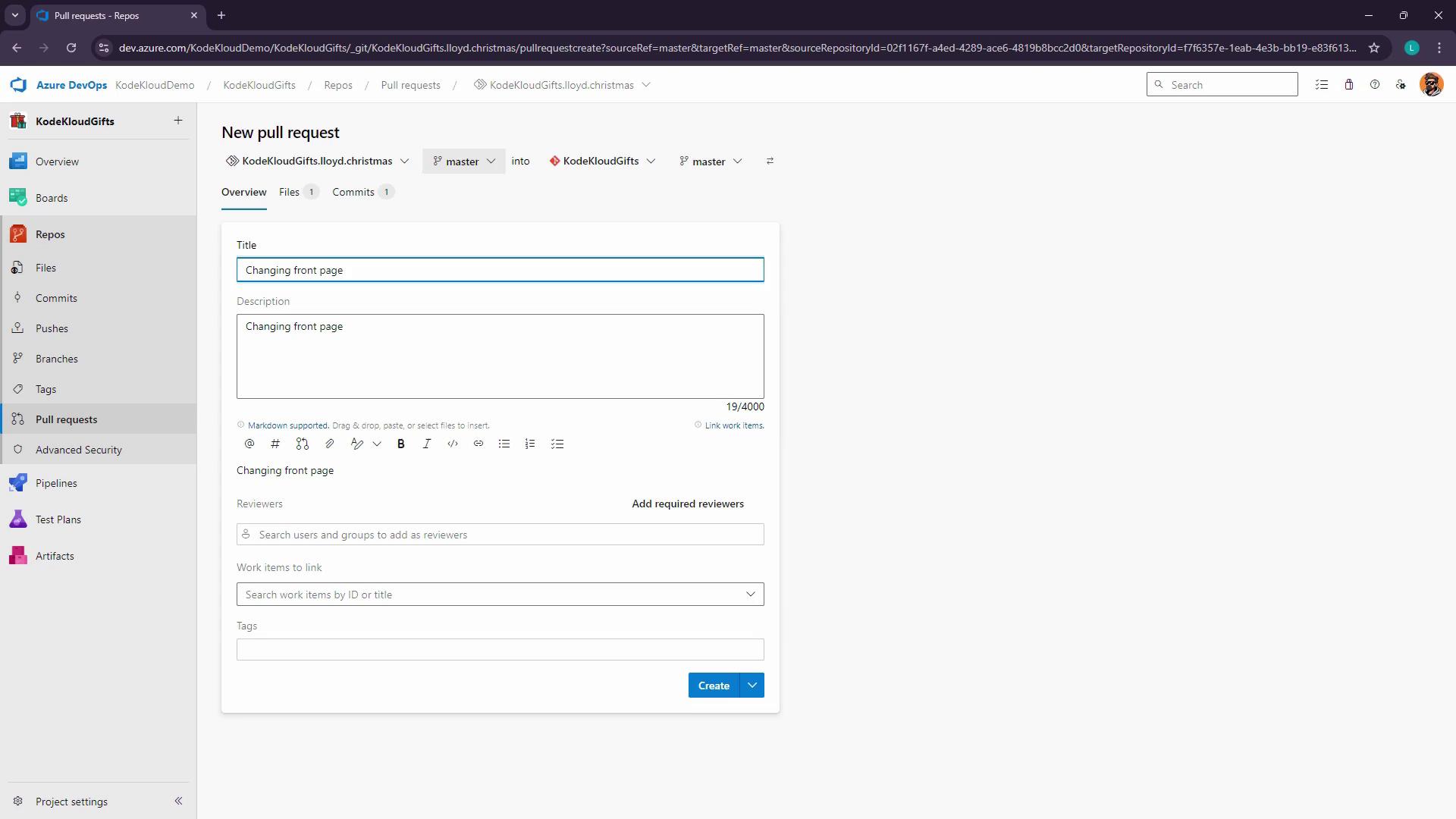

The image shows a pull request creation page on Azure DevOps, with fields for title, description, and reviewers. The title and description are filled with "Changing front page."

Tag reviewers, link work items, and adjust settings:

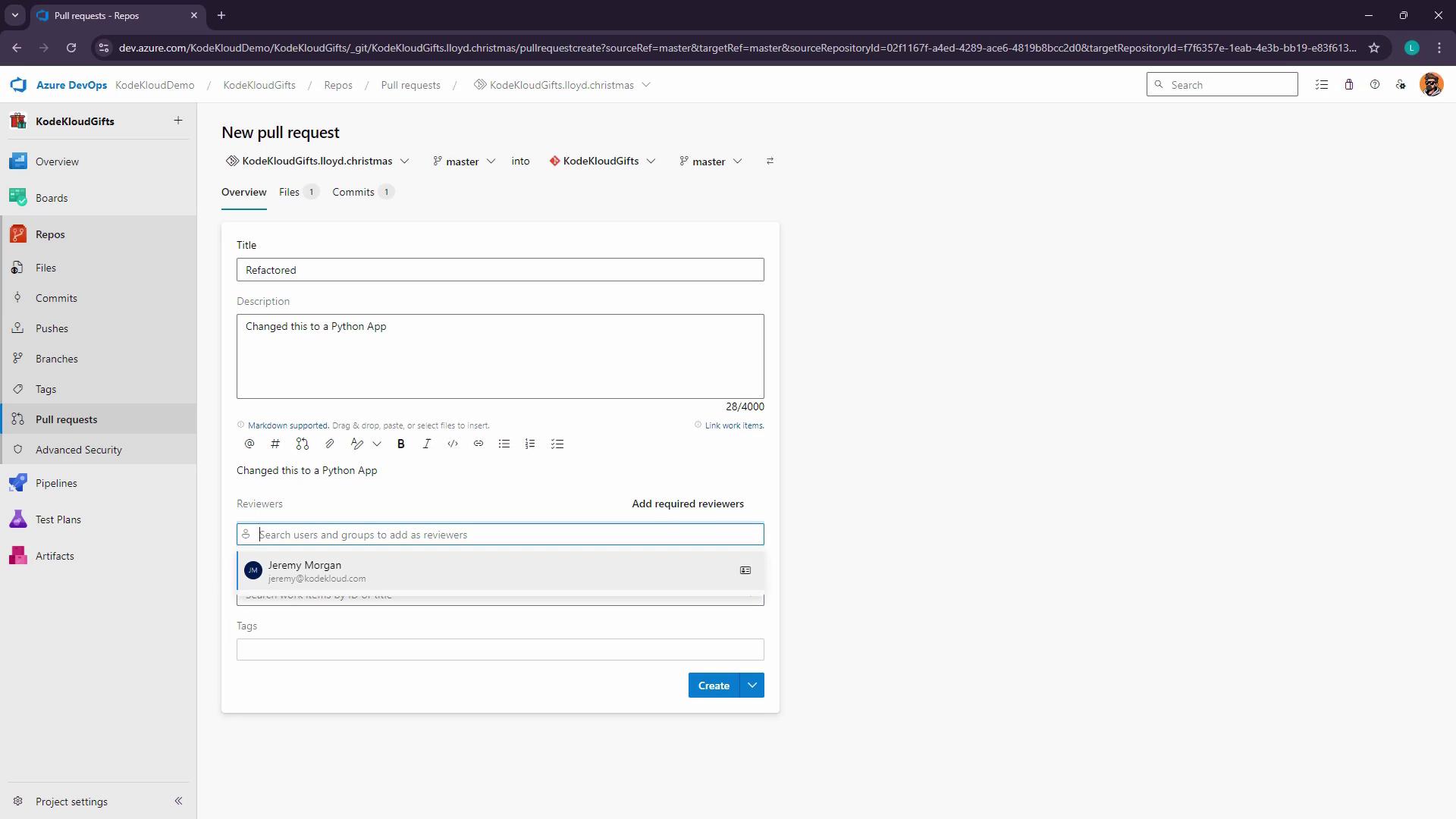

The image shows a pull request creation page on Azure DevOps, with fields for title, description, and reviewers. The description mentions a change to a Python app.

Once submitted, maintainers can review and merge your contribution.

Workflow Summary

StepCommand / ActionPurpose
ForkClick Fork in Azure DevOpsCreate isolated repository copy
Clonegit clone <fork-url>Download your fork locally
Add Upstream Remotegit remote add upstream <original-url>Keep fork in sync with the original repo
Develop & Commitgit addgit commit -mgit push origin <branch>Make and push changes to your fork
Create Pull RequestPull Requests > New Pull RequestPropose changes to the upstream repository
