Demo Utilize Dockerfile Agent

Learn how to build a custom Docker image via a Dockerfile and use it as an agent in a Jenkins Pipeline stage. This method lets you pre-install all required tools—like Node.js and cowsay—so your CI/CD steps run smoothly.

1. Using the Standard node:18-alpine Docker Agent

First, try running Node.js commands and the cowsay utility using the official node:18-alpine image:

pipeline {
  agent any
  stages {
    stage('S4-Dockerfile Agent') {
      agent {
        docker {
          image 'node:18-alpine'
          label 'ubuntu-docker-jdk17-node20'
        }
      }
      steps {
        sh 'node -v'
        sh 'npm -v'
        sh 'cowsay -f dragon This is running on Docker Container'
      }
    }
  }
}

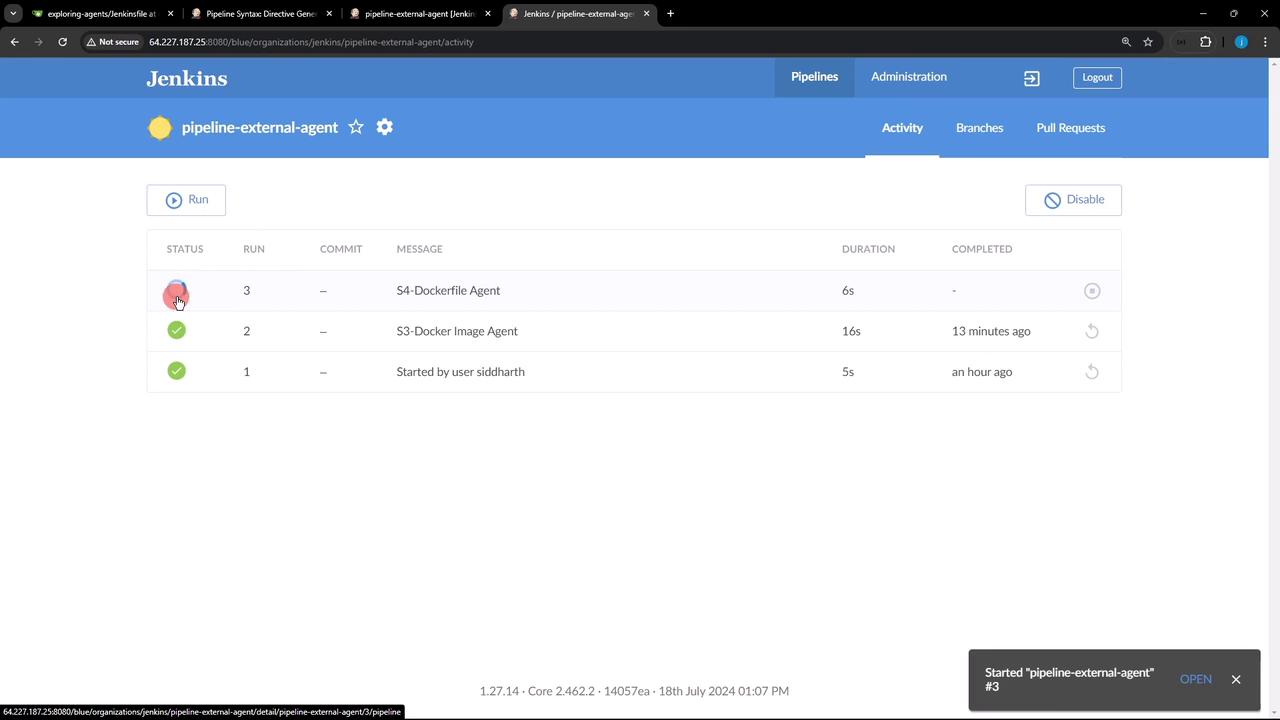

Commit and push this Jenkinsfile, then trigger a build.

2. Diagnosing the Missing Utility

Inspect the console output to confirm which utility is missing:

/home/jenkins-agent/workspace/pipeline-external-agent/tmp/durable-xyz/script.sh.copy: line 1: cowsay: not found

• Node.js commands succeed (node -v, npm -v)
• cowsay fails: the utility isn’t present in node:18-alpine.

3. Crafting a Custom Dockerfile

Create Dockerfile.cowsay at your repository root to bundle Node.js and cowsay:

FROM node:18-alpine

RUN apk update && \
    apk add --no-cache git perl && \
    cd /tmp && \
    git clone https://github.com/jasonm23/cowsay.git && \
    cd cowsay && \
    ./install.sh /usr/local

This Dockerfile:

1. Base Image: node:18-alpine
2. Dependencies: Installs git and perl via Alpine’s package manager
3. Cowsay: Clones the cowsay GitHub repository and runs its installer

4. Updating Your Jenkinsfile to Use the Custom Image

Swap the docker agent block for a dockerfile block:

pipeline {
  agent any
  stages {
    stage('S4-Dockerfile Agent') {
      agent {
        dockerfile {
          filename 'Dockerfile.cowsay'
          label 'ubuntu-docker-jdk17-node20'
        }
      }
      steps {
        sh 'node -v'
        sh 'npm -v'
        sh 'cowsay -f dragon This is running on Docker Container'
      }
    }
  }
}

Commit and push. Jenkins will now build your custom image before executing the stage.

5. Observing the Build Output

When you trigger the build, you’ll see:

docker build -t tmp-agent-image -f Dockerfile.cowsay .
#1 [internal] load build definition from Dockerfile.cowsay
#2 [internal] load metadata for docker.io/library/node:18-alpine
#3 [1/2] FROM node:18-alpine
#4 [2/2] RUN apk update && apk add --no-cache git perl && git clone https://github.com/jasonm23/cowsay.git && cd cowsay && ./install.sh /usr/local
#5 exporting to image
#5 naming to docker.io/library/tmp-agent-image:latest

Once the image builds, Jenkins runs your container and executes the steps:

node -v
v18.20.4
npm -v
10.7.0

cowsay -f dragon This is running on Docker Container
 _____
< This is running on Docker Container >
 -----
        \   ^__^
         \  (oo)\_______
            (__)\       )\/\
                ||----w |
                ||     ||

Now both Node.js and cowsay run successfully inside the container.

6. Agent Types Comparison

7. Conclusion

By leveraging a custom Dockerfile agent, you ensure each Jenkins stage has exactly the tools it needs. This strategy:

• Simplifies dependency management
• Keeps agents lightweight
• Improves reproducibility

Links and References

• Jenkins Pipeline: Docker
• Jenkins Dockerfile Agent Plugin
• cowsay GitHub Repository
