Demo Vulnerability Scan using Trivy

Before pushing your Docker image to a registry, it’s crucial to identify and remediate vulnerabilities. In this guide, we’ll walk through how to use Trivy for vulnerability scanning and integrate it into a Jenkins pipeline.

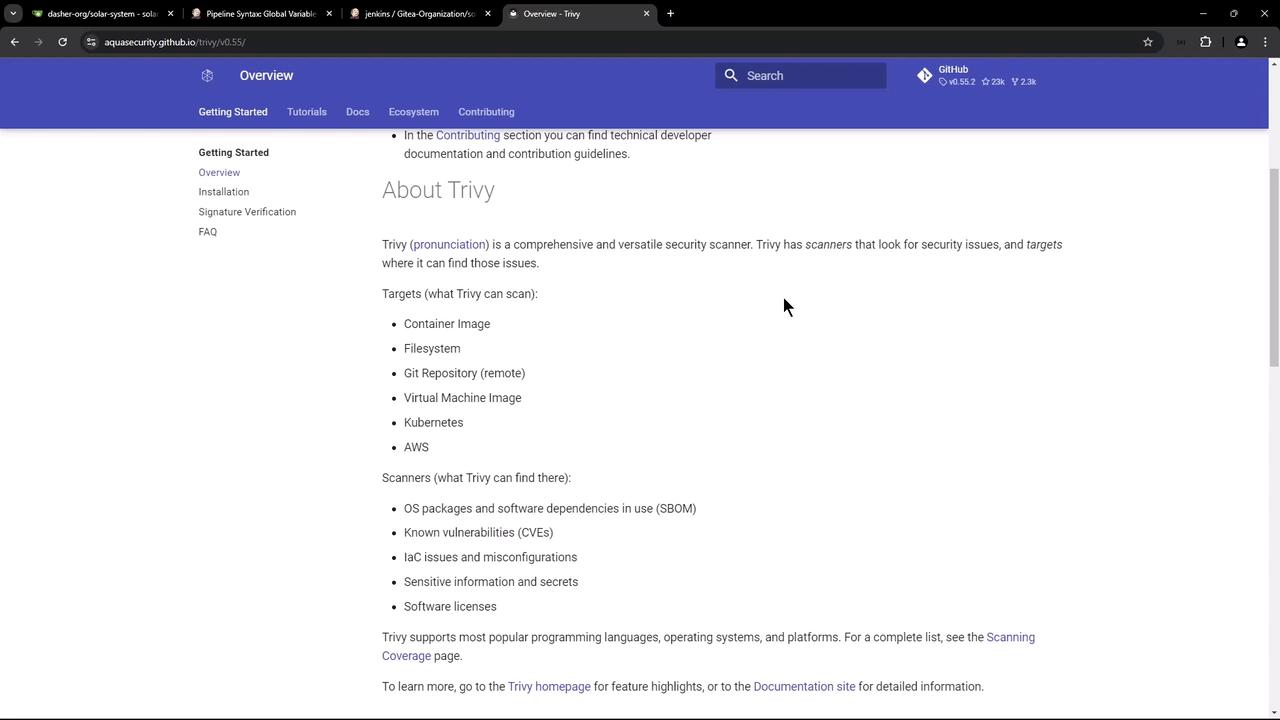

What Is Trivy?

Trivy is an open-source, all-in-one security scanner from Aqua Security. It can analyze:

• Container images
• File systems
• Git repositories
• Kubernetes manifests
• Infrastructure as Code (IaC)

Trivy detects OS package vulnerabilities, software dependency issues, IaC misconfigurations, license risks, and exposed secrets.

Learn more on the official Trivy GitHub repository.

Installing Trivy

You can install Trivy via package managers, a standalone binary, or run it in Docker.

Homebrew (macOS)

brew install trivy

Docker

docker run --rm \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v $HOME/Library/Caches/:/root/.cache \
  aquasec/trivy image python:3.4-alpine

RPM-Based Linux

sudo tee /etc/yum.repos.d/trivy.repo <<EOF
[trivy]
name=Trivy repository
baseurl=https://aquasecurity.github.io/trivy-repo/releases/$releasever/
enabled=1
gpgcheck=1
gpgkey=https://aquasecurity.github.io/trivy-repo/rpm/public.key
EOF
sudo yum -y update
sudo yum -y install trivy

Manual / From Source

# Install via script
curl -sL https://raw.githubusercontent.com/aquasecurity/trivy/main/contrib/install.sh | sh

# Or build from GitHub
git clone --depth 1 --branch v0.55.2 https://github.com/aquasecurity/trivy
cd trivy
go install ./cmd/trivy

Basic Usage

Scan a Docker image for vulnerabilities:

trivy image python:3.4-alpine

Scan a local project directory for vulnerabilities and secrets:

trivy fs --scanners vuln,secret,misconfig ./myproject

Get Trivy version and help:

trivy -v           # e.g. Version: 0.55.2
trivy image --help # Image-scan options

Integrating Trivy into a Jenkins Pipeline

Add a Trivy Vulnerability Scanner stage immediately after your Docker build. Below is an example declarative pipeline:

pipeline {
  agent any
  stages {
    stage('Build Docker Image') {
      steps {
        // your build steps...
      }
    }

    stage('Trivy Vulnerability Scanner') {
      steps {
        // Medium/Low scan does not fail build
        sh '''
          trivy image siddharth67/solar-system:$GIT_COMMIT \
            --severity LOW,MEDIUM,HIGH \
            --exit-code 0 \
            --quiet \
            --format json -o trivy-image-medium.json

          # Critical scan fails on findings
          trivy image siddharth67/solar-system:$GIT_COMMIT \
            --severity CRITICAL \
            --exit-code 1 \
            --quiet \
            --format json -o trivy-image-critical.json
        '''
      }
      post {
        always {
          // Convert JSON to HTML and JUnit XML
          sh '''
            trivy convert --format template \
              --template "/usr/local/share/trivy/templates/html.tpl" \
              --output trivy-image-medium.html trivy-image-medium.json

            trivy convert --format template \
              --template "/usr/local/share/trivy/templates/html.tpl" \
              --output trivy-image-critical.html trivy-image-critical.json

            trivy convert --format template \
              --template "/usr/local/share/trivy/templates/junit.tpl" \
              --output trivy-image-medium.xml trivy-image-medium.json

            trivy convert --format template \
              --template "/usr/local/share/trivy/templates/junit.tpl" \
              --output trivy-image-critical.xml trivy-image-critical.json
          '''

          // Publish JUnit test reports
          junit allowEmptyResults: true, testResults: 'trivy-image-*.xml'

          // Publish HTML vulnerability reports
          publishHTML([
            allowMissing: true, alwaysLinkToLastBuild: true, keepAll: true,
            reportDir: '.', reportFiles: 'trivy-image-critical.html',
            reportName: 'Critical Vulnerabilities', useWrapperFileDirectly: true
          ])
          publishHTML([
            allowMissing: true, alwaysLinkToLastBuild: true, keepAll: true,
            reportDir: '.', reportFiles: 'trivy-image-medium.html',
            reportName: 'Medium/Low Vulnerabilities', useWrapperFileDirectly: true
          ])
        }
      }
    }

    stage('Push to Registry') {
      steps {
        // your push steps...
      }
    }
  }
}

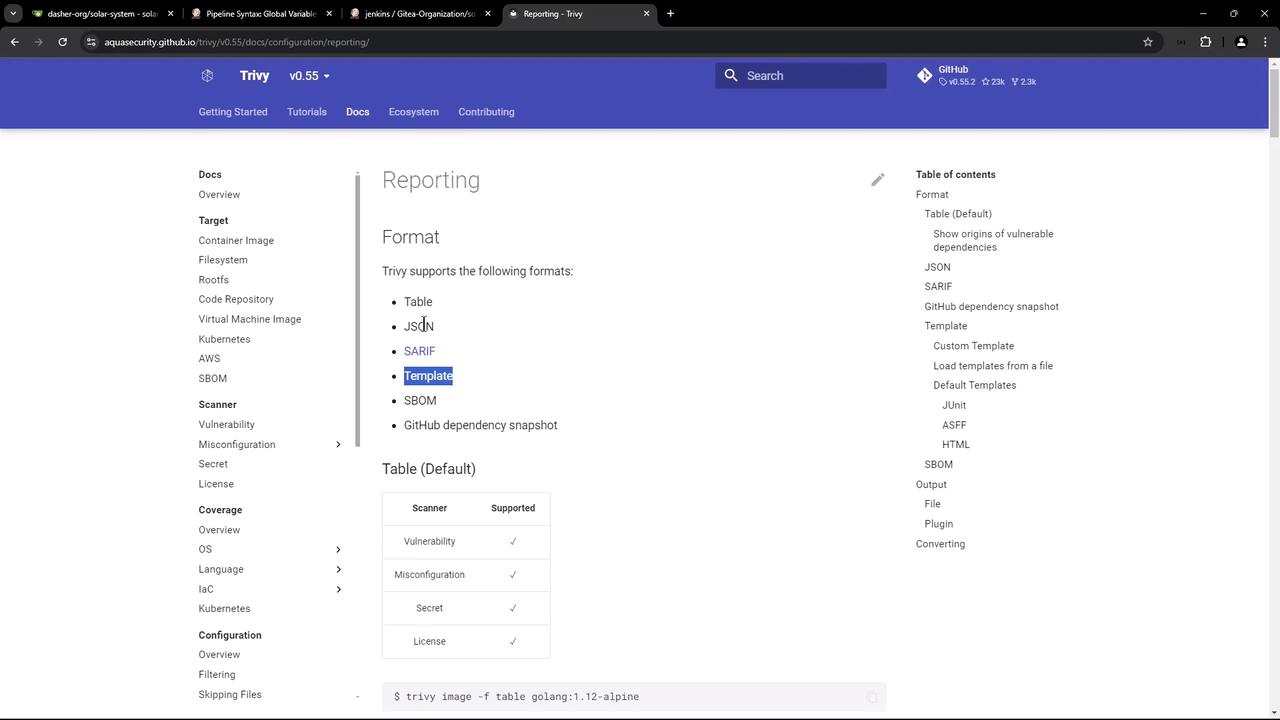

Supported Reporting Formats

Trivy supports several output formats:

Templates are installed at:

ls /usr/local/share/trivy/templates
# asff.tpl  gitlab-codequality.tpl  gitlab.tpl  html.tpl  junit.tpl

To convert a JSON output into a CycloneDX SBOM:

trivy image --format json -o result.json debian:11
trivy convert --format cyclonedx --output result.cdx result.json

Reviewing Scan Results

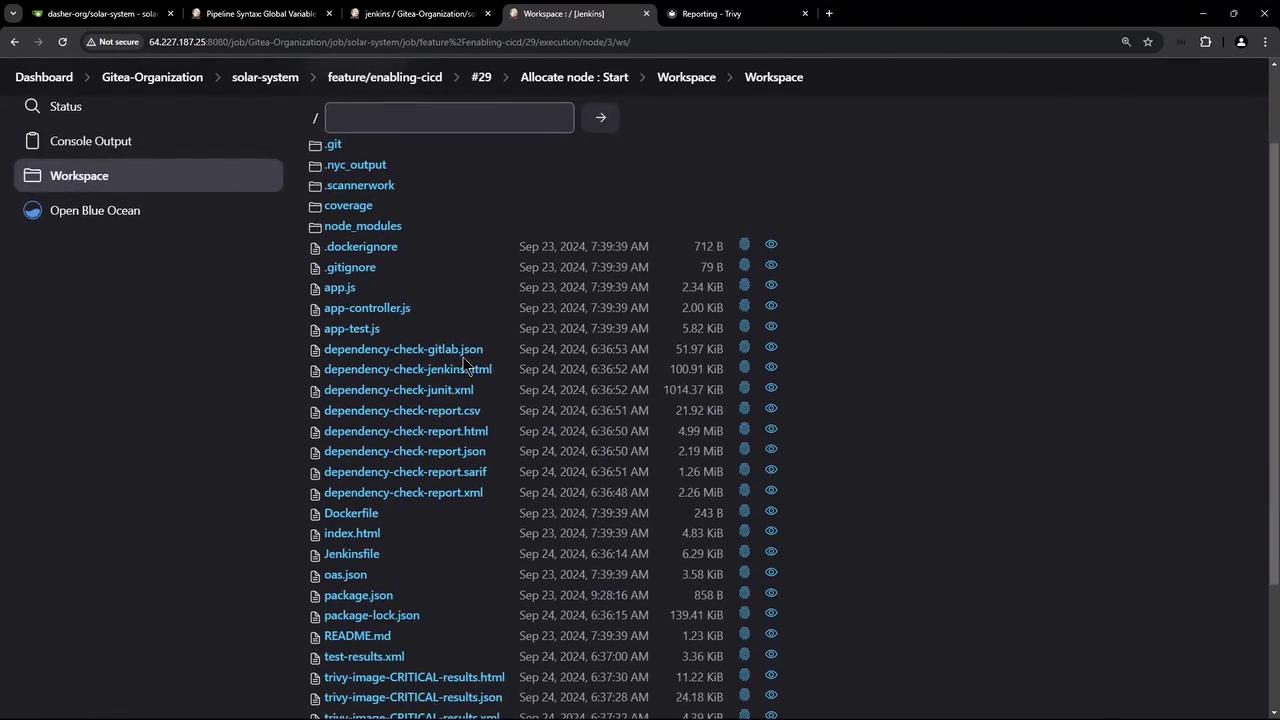

After your Jenkins job completes, the workspace will contain:

• trivy-image-medium.html / .json / .xml
• trivy-image-critical.html / .json / .xml

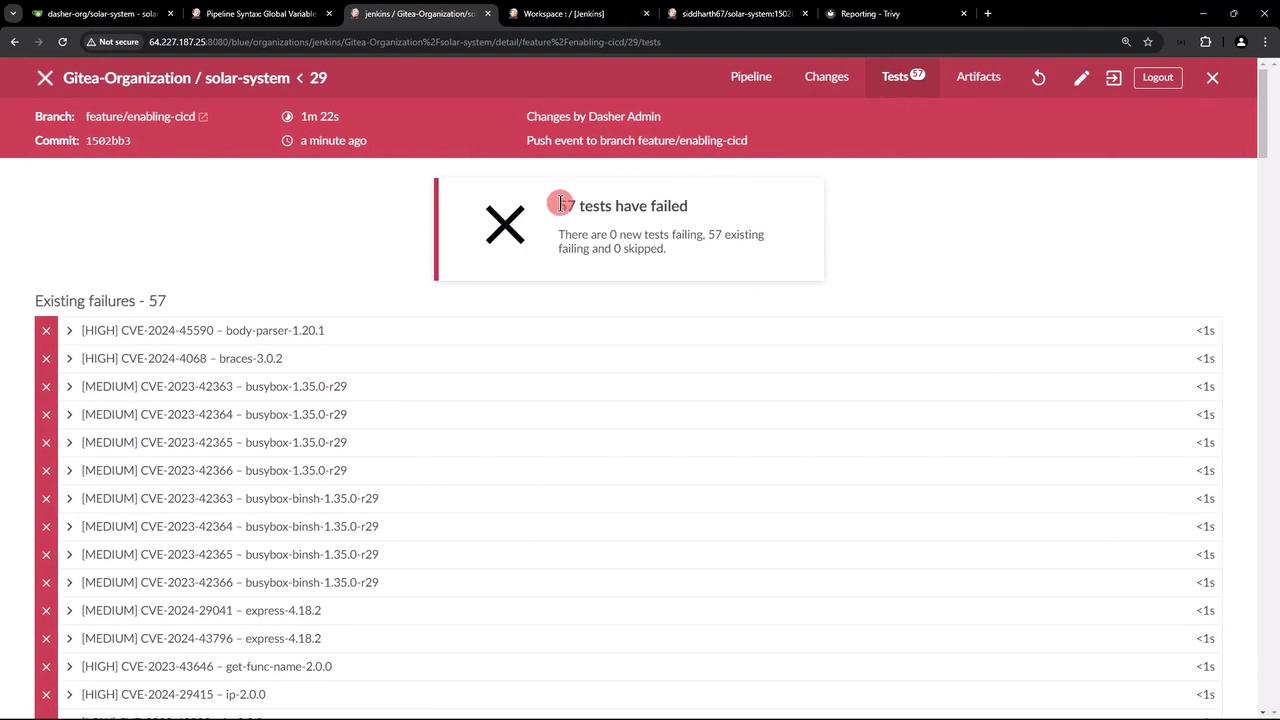

In Jenkins’ Test Results view, Trivy’s JUnit entries appear alongside other CI tests:

Adjusting Severity Thresholds

To treat HIGH severity like MEDIUM (only fail on CRITICAL), include HIGH in the non-failing scan:

steps {
  sh '''
    trivy image siddharth67/solar-system:$GIT_COMMIT \
      --severity LOW,MEDIUM,HIGH \
      --exit-code 0 \
      --quiet \
      --format json -o trivy-image-medium.json

    trivy image siddharth67/solar-system:$GIT_COMMIT \
      --severity CRITICAL \
      --exit-code 1 \
      --quiet \
      --format json -o trivy-image-critical.json
  '''
}

Summary

In this tutorial, you learned how to:

• Install Trivy on various platforms
• Execute basic vulnerability scans on images and filesystems
• Integrate Trivy into a Jenkins pipeline with pass/fail thresholds
• Convert JSON results to HTML, JUnit, or CycloneDX formats
• Publish and review vulnerability reports in Jenkins

Trivy also supports scanning IaC files, detecting sensitive data, and auditing software licenses. For advanced scenarios, visit the official Trivy documentation.
