Demo Controller Failure Freestyle Project

In this tutorial, we’ll demonstrate how a Jenkins controller failure affects a long-running Freestyle project. You will learn how to:

StepActionDescription
1Prepare Deploy JobAdd a sleep command to simulate long tasks
2Trigger Build & TestExecute upstream jobs and inspect failures
3Rerun & DeployFix test failures, queue the deploy job
4Simulate Controller FailureStop the controller during deployment
5Analyze OutcomeObserve job termination behavior
6Review Jenkins Dashboard & IconsExplore build status icons and legend

By the end, you’ll understand why Freestyle jobs do not survive controller restarts and what alternatives exist.


1. Prepare a Long-Running Deploy Job

Edit the ascii-deploy-job and insert a sleep before the actual deployment steps. This will simulate a long-running process.

#!/bin/bash
# Simulate a long-running task
sleep 3600

# Deployment steps
sudo apt-get update
sudo apt-get install cowsay -y
export PATH="$PATH:/usr/games:/usr/local/games"
cat advice.message | cowsay -f "$(ls /usr/share/cowsay/cows | shuf -n 1)"

Note

Adjust the sleep duration to suit your testing environment.

Save and apply the job configuration in Jenkins.


2. Trigger the Build and Test Jobs

  1. In Jenkins, click Build Now for ascii-build-job.
  2. ascii-build-job will automatically trigger ascii-test-job.

Test Job Failure

Because our advice quote has five words or fewer, the test script will fail. Inspect ascii-test-job’s console output:

Started by upstream project "ascii-build-job" build number 5
Running as SYSTEM
Building in workspace /var/lib/jenkins/workspace/ascii-test-job
Copied 1 artifact from "ascii-build-job" build number 5
[ascii-test-job] $ /bin/sh -xe /tmp/jenkins1567.sh
+ ls advice.json
advice.json
+ jq -r .slip.advice advice.json
+ wc -w
+ [ 4 -gt 5 ]
+ cat advice.message
Advice -  Sing in the shower.
+ echo "Advice has 5 words or less"
Advice has 5 words or less
+ exit 1
Build step 'Execute shell' marked build as failure
Finished: FAILURE

Because the test failed, ascii-deploy-job will not run.


3. Rerun and Deploy

  1. Update the advice text so it contains more than five words.
  2. Trigger ascii-build-job again.

This time:

  • ascii-test-job completes successfully.
  • ascii-deploy-job enters the queue and then starts.

Check ascii-deploy-job’s console to confirm the sleep invocation:

Started by upstream project "ascii-test-job" build number 6
Running as SYSTEM
Building in workspace /var/lib/jenkins/workspace/ascii-deploy-job
Copied 1 artifact from "ascii-test-job" build number 6
[ascii-deploy-job] $ /bin/sh -xe /tmp/jenkins9836.sh
+ sleep 3600

4. Simulate Controller Failure

While ascii-deploy-job is sleeping, simulate a controller outage.

Warning

Stopping the Jenkins controller will immediately terminate all running Freestyle jobs.

  1. SSH into the Jenkins controller host.
  2. Stop Jenkins:
    sudo systemctl stop jenkins
    sudo systemctl status jenkins

    The service should display inactive.
  3. Refresh the Jenkins UI— it will be unreachable.
  4. Start Jenkins again:
    sudo systemctl start jenkins
    sudo systemctl status jenkins

    You should see output similar to:
    ● jenkins.service - Jenkins Continuous Integration Server
       Loaded: loaded (/usr/lib/systemd/system/jenkins.service; enabled; preset: enabled)
       Active: active (running) since Mon 2024-08-19 10:51:25 UTC; 3s ago
     Main PID: 37656 (java)
        Tasks: 49
       Memory: 310.4M (peak: 310.9M)
         CPU: 15.0s
    CGroup: /system.slice/jenkins.service
            └─37656 /usr/bin/java -jar /usr/share/java/jenkins.war --webroot=/var/cache/jenkins/war

  5. Log back into the UI and open ascii-deploy-job. The build will have failed:
    [ascii-deploy-job] $ /bin/sh -xe /tmp/jenkins9836.sh
    + sleep 3600
    Build step 'Execute shell' marked build as failure
    Finished: FAILURE


5. Observations

When the Jenkins controller goes down:

  • Any running Freestyle jobs are terminated.
  • Builds do not resume after restart.

Warning

Freestyle projects cannot resume after a controller restart. Consider using Pipeline projects for better resilience and survivability.


6. Jenkins Dashboard and Icon Legend

On the Jenkins dashboard, monitor your jobs’ statuses:

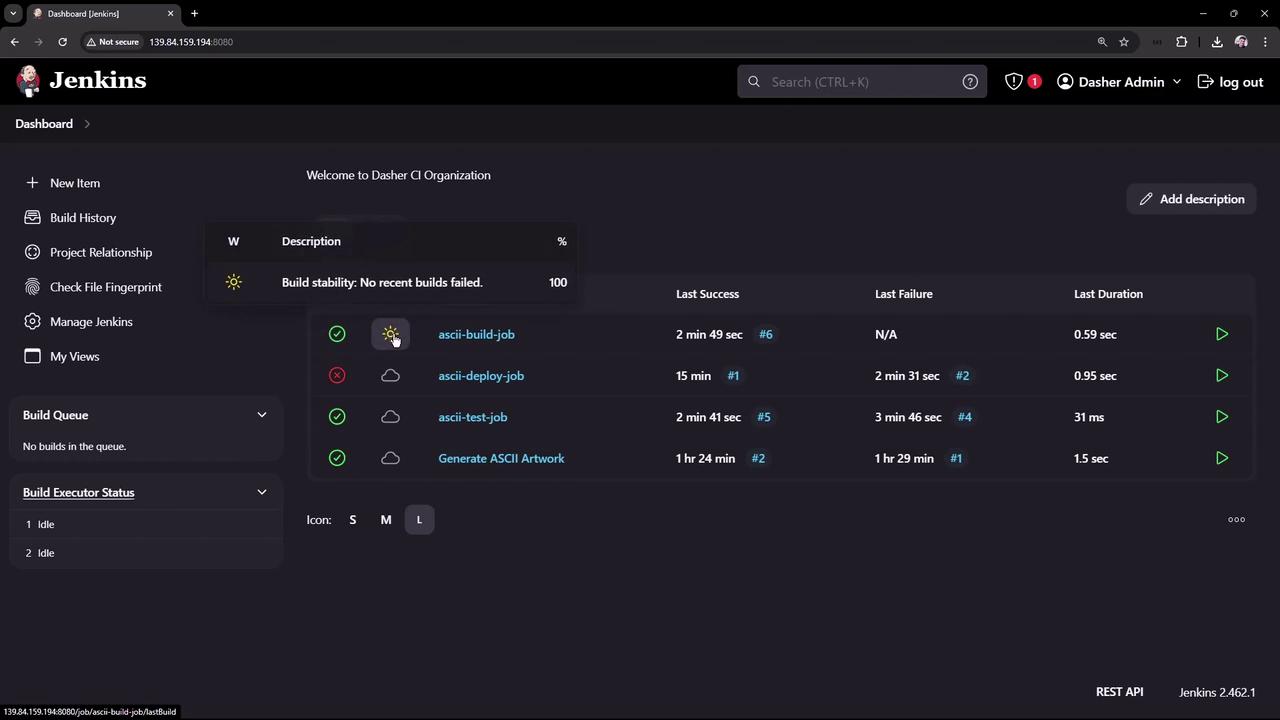

The image shows a Jenkins dashboard displaying build jobs with their statuses, last success and failure times, and durations. The interface includes options for managing builds and viewing build history.

To interpret the status icons (sun, cloud, etc.), click More Actions → Icon legend:

The image shows a Jenkins dashboard with an "Icon legend" pop-up explaining the meanings of various build status icons, such as successful, failed, and in progress.
