Demo Jenkins Fingerprints

Jenkins fingerprints provide a lightweight way to track artifact usage across jobs by storing an MD5 checksum for each file instead of the full artifact. This lets you quickly discover which builds produced or consumed a given file without wasting storage. You can review all fingerprints under Manage Jenkins → Fingerprinting or on the /fingerprints page of your Jenkins master.

Use Case

Consider a simple three-job pipeline:

You need to know, for any artifact, which builds created it and which builds later consumed it. We’ll enable fingerprinting on build-job and then view its usage graph across the pipeline.

1. Configuring Fingerprints

1. Open build-job and click Configure.
2. Scroll to Post-build Actions.
3. Click Add post-build action → Record fingerprints of files to track usage.
4. In Files to fingerprint, enter:

   advice.json


5. Click Save.

Repeat similar steps in test-job or deploy-job if you wish to fingerprint their outputs (reports.json).

2. Running the Job and Viewing Fingerprints

1. On the build-job page, click Build Now.
2. Once the build completes, click the build number (e.g., #8) under Build History.
3. In the Artifacts section, locate advice.json—it will have a fingerprint icon.
4. Click View to open the fingerprint details page.

On the fingerprint details page you’ll see:

• The MD5 checksum of advice.json.
• A list of all builds that produced or consumed that checksum (for example, build-job #8 and test-job #3).
• Timestamps and upstream/downstream relationships, giving you full visibility into your pipeline.

3. Checking Fingerprints from the Dashboard

You can also verify fingerprints for ad-hoc files:

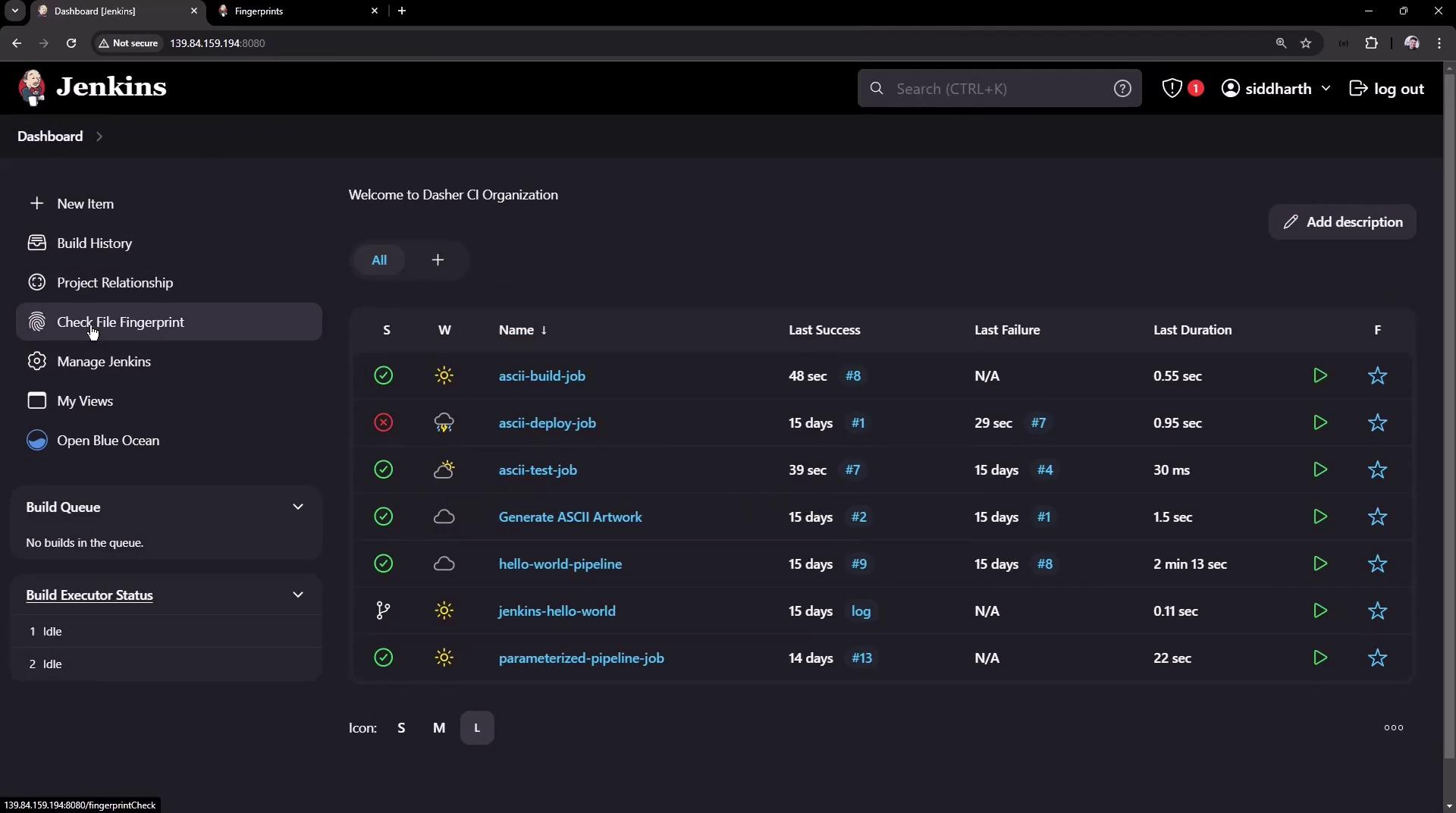

1. From the Jenkins dashboard sidebar, click Check File Fingerprints.
2. Upload any file (e.g., an archived JAR).
3. Jenkins will display:
   • The MD5 checksum.
   • Which jobs and builds produced or consumed that checksum.
   • Timestamps for each usage.
