Demo Forward Audit logs to External Server

In this guide, you’ll learn how to ship Jenkins audit trail logs from your controller to an external Elasticsearch cluster hosted on Elastic Cloud Observability. We’ll cover:

1. Setting up Elastic Cloud Observability
2. Installing the Elastic Agent on your Jenkins controller
3. Configuring the agent to read Jenkins audit logs
4. Verifying audit entries in Kibana

1. Set Up Elastic Cloud Observability

1. Sign up for an Elastic Cloud trial on elastic.co.

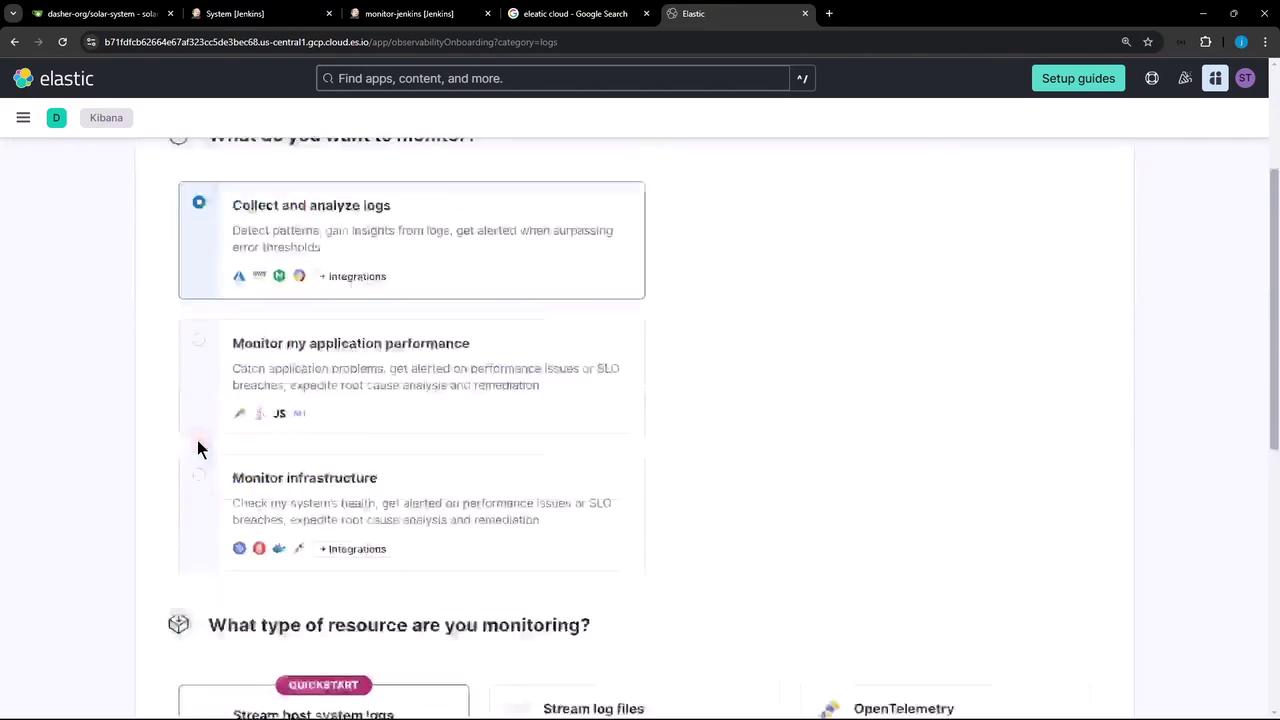

2. In the Elastic Cloud console, go to Observability → Logs and click Collect and analyze logs.

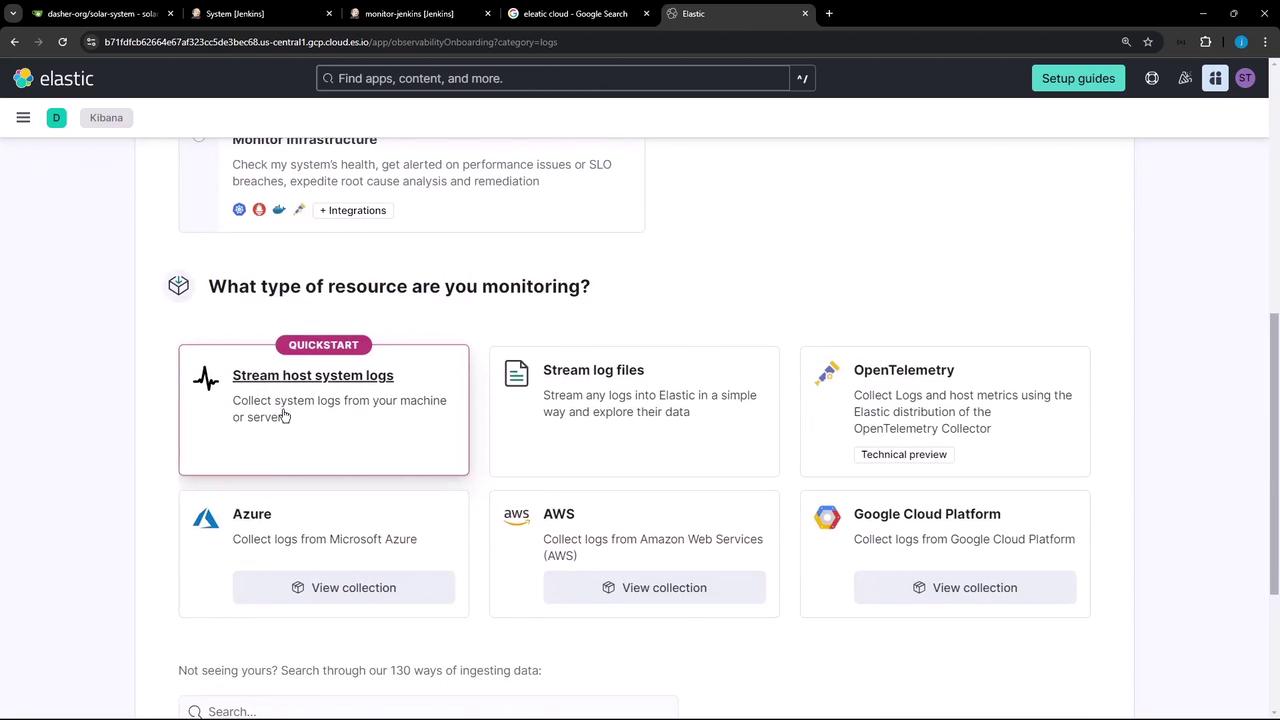

3. Choose Host system logs as your resource type.

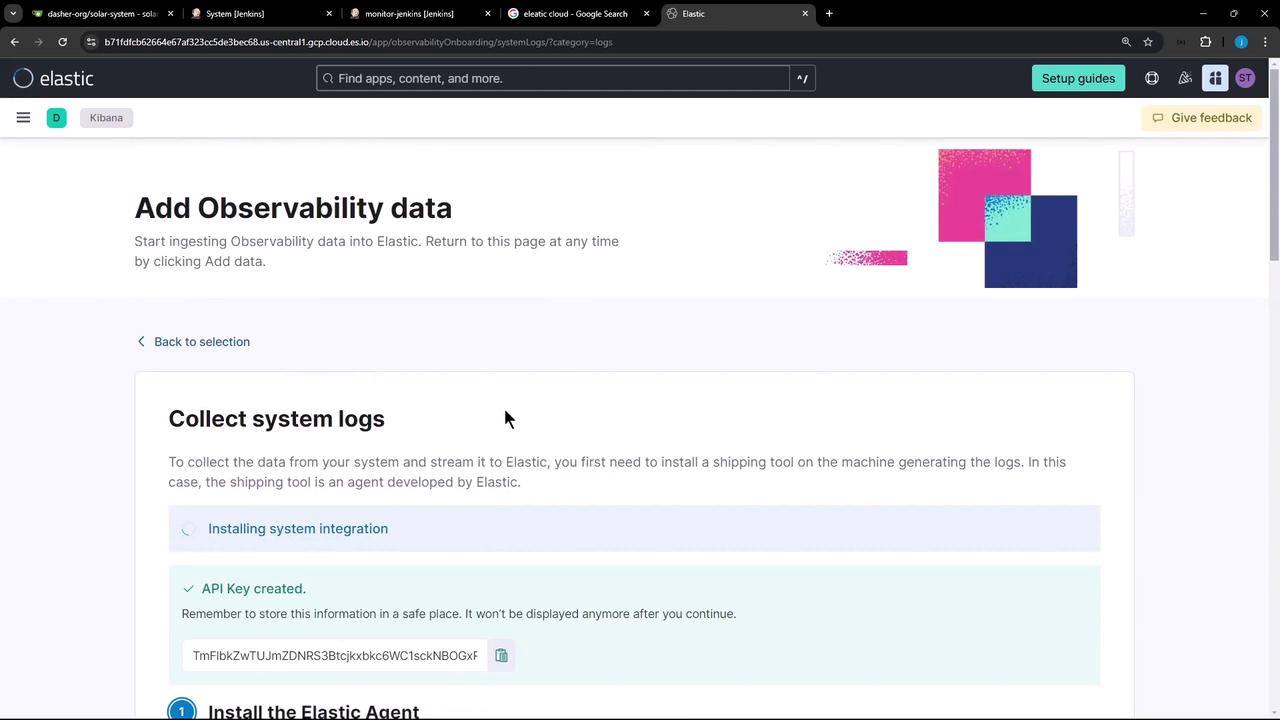

4. Follow the prompts to install the Elastic Agent and generate an API key for onboarding.

2. Install the Elastic Agent on the Jenkins Controller

On your Jenkins controller shell, download and run the provided installation script. Replace the placeholders with your API key and Cloud endpoint URL:

curl \
  https://<your-cloud-endpoint>/plugins/observabilityOnboarding/assets/standalone_agent_setup.sh \
  -o standalone_agent_setup.sh && \
sudo bash standalone_agent_setup.sh \
  YOUR_API_KEY \
  https://<your-cloud-endpoint>/internal/observability_onboarding \
  8.15.3 \
  <ENROLLMENT_ID>

This script will:

• Download and unpack the Elastic Agent
• Enroll the agent using your API key and endpoint
• Place the main config at /opt/Elastic/Agent/elastic-agent.yml

3. Configure the Agent to Stream Audit Logs

Edit the agent configuration as root:

sudo vi /opt/Elastic/Agent/elastic-agent.yml

3.1 Define the Elasticsearch Output

Locate (or add) the outputs section and update it with your Cloud URL and API key:

outputs:
  default:
    type: elasticsearch
    hosts: ['https://your-cluster-id.us-central1.gcp.cloud.es.io:443']
    api_key: 'YOUR_API_KEY'

3.2 Add Log File Inputs

Below outputs:, include inputs to capture Jenkins audit files from /var/log/jenkins/custom*:

inputs:
  - id: jenkins-audit-logs
    type: logfile
    data_stream:
      dataset: system.auth
      type: logs
    streams:
      - id: jenkins-audit-logs-stream
        type: logs
        data_stream:
          namespace: default
        paths:
          - /var/log/jenkins/custom*
        exclude_files:
          - '*.gz'
        multiline:
          pattern: '^'
          match: after
        tags: ['jenkins','audit']

  - id: system-messages
    type: logfile
    data_stream:
      dataset: system.syslog
      type: logs
    streams:
      - id: system-messages-stream
        type: logs
        data_stream:
          namespace: default
        paths:
          - /var/log/messages*
          - /var/log/syslog*
          - /var/log/system*
        exclude_files:
          - '*.gz'
        multiline:
          pattern: '^'
          match: after

3.3 Restart the Agent

Apply your changes:

sudo systemctl restart elastic-agent

4. Verify Logs in Kibana

1. In Kibana, open Observability → Logs.

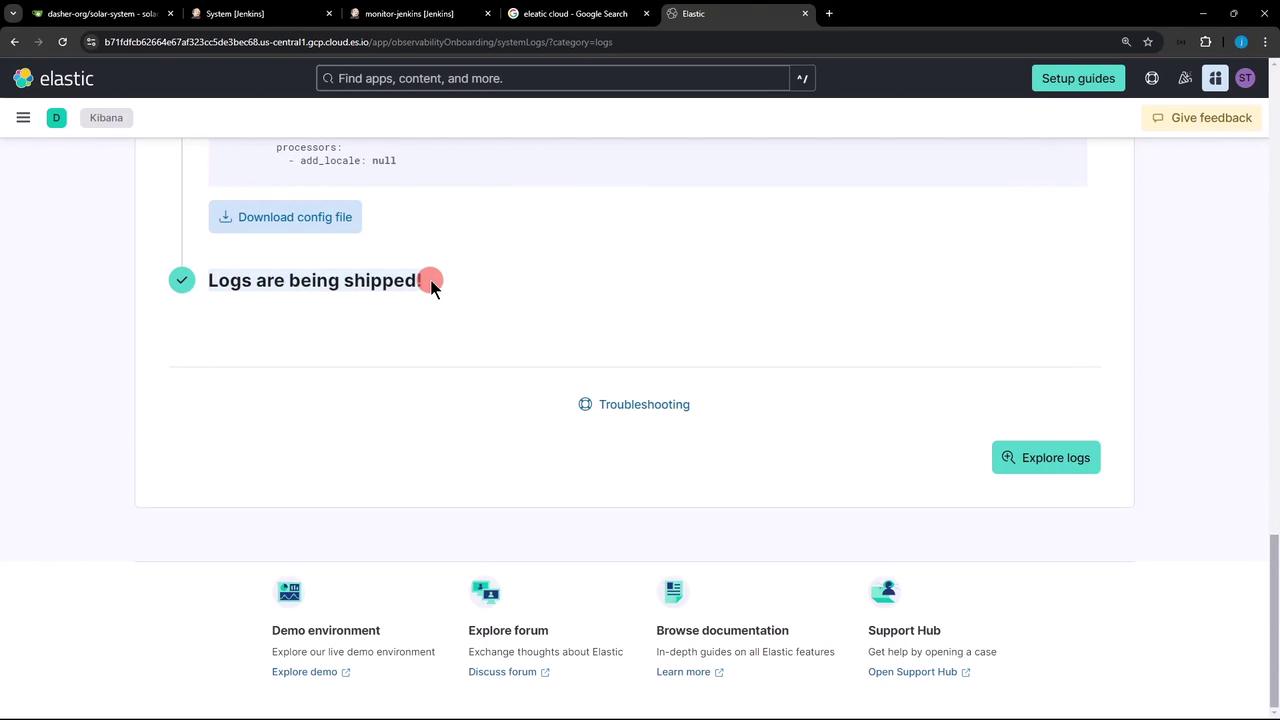

2. Refresh the interface; you should see Jenkins audit events streaming in.

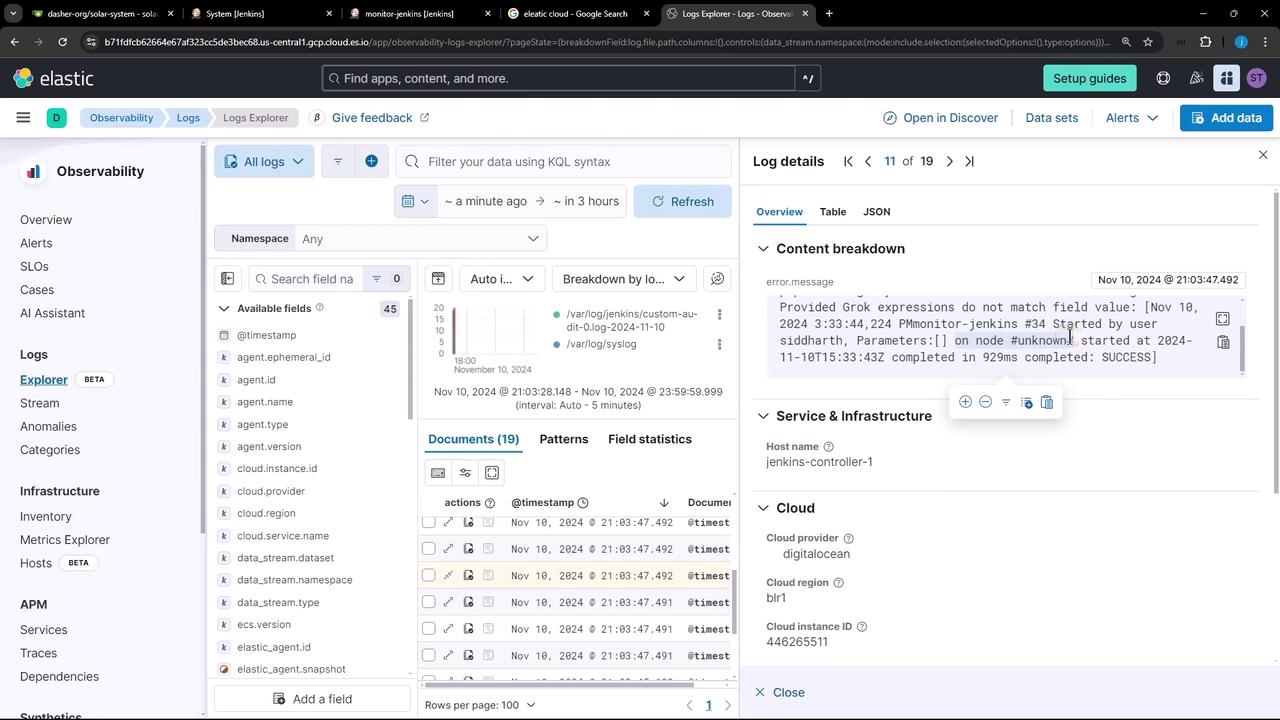

3. Click Explore logs to filter, search, and analyze your audit data.

Sample Audit Entries

pipeline logs-system.auth-1.62.1 failed with message: Provided Grok expressions do not match field value: [Nov 10, 2024 3:33:43,556 PM] job/monitor-jenkins/ #35 Started by user siddharth, Parameters:[]

Or on your controller:

Nov 10, 2024  3:30:09,212 PM job/monitor-jenkins/ #31 Started by user siddharth, Parameters:[]
Nov 10, 2024  3:33:44,394 PM monitor-jenkins #36 Started by user siddharth, Parameters:[] on node #unknown# started at 2024-11-10T15:33:43Z completed in 929ms completed: SUCCESS

Continue generating Jenkins audit events; they’ll flow automatically into your Elastic Cloud instance.
