Demo Install and Configure Audit Trail

Enhance your Jenkins security posture by tracking user activities—such as job configuration changes, system restarts, and build triggers—using the Audit Trail plugin. This guide walks you through installation, configuration, testing, and advanced logging options.

1. Install the Audit Trail Plugin

From the Jenkins dashboard, go to Manage Jenkins → Manage Plugins.
Select the Available tab and search for Audit Trail.
Check the box next to Audit Trail and click Install without restart.

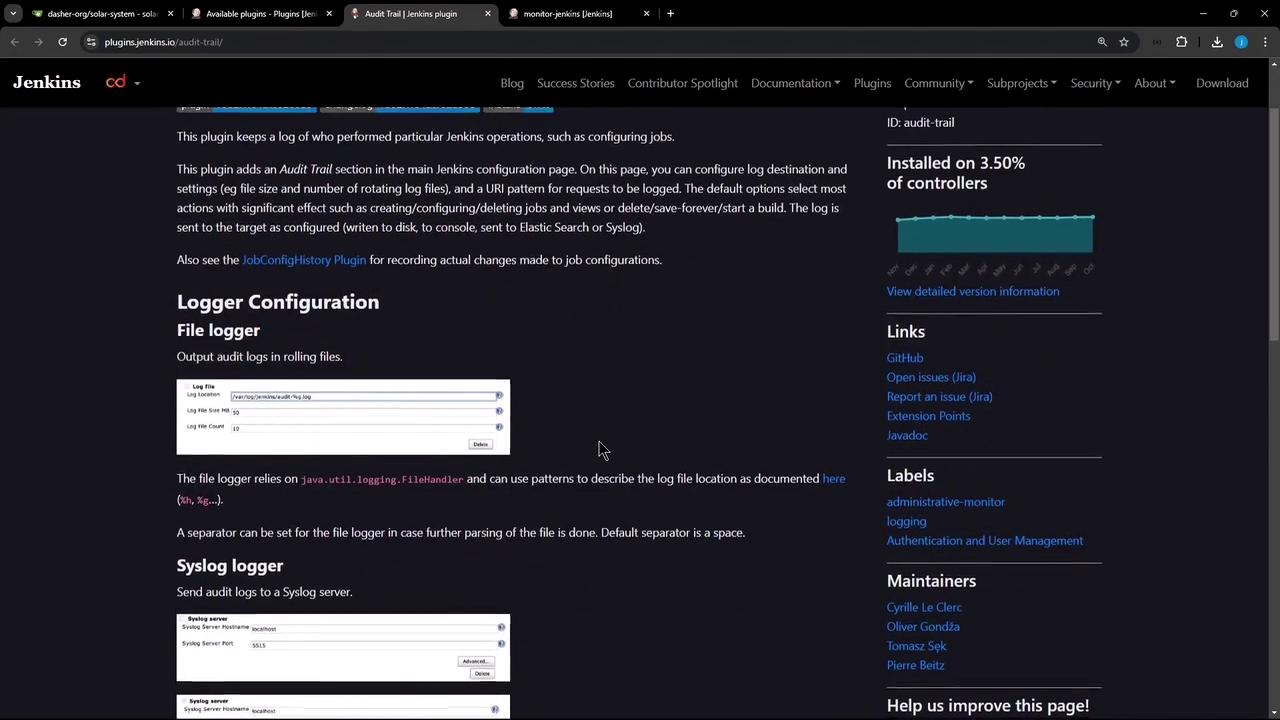

The image shows a webpage from the Jenkins plugins site, specifically detailing the "Audit Trail" plugin. It includes information on logger configuration, file logger, and syslog logger settings.

2. Configure the Audit Trail Plugin

Navigate to Manage Jenkins → Configure System.
Scroll down to the Audit Trail section.
Under Logger, choose Log file (daily rotation).
In Log file pattern, enter:
```
/var/log/jenkins/custom-audit-%g.log
```
Note
Use %g to rotate logs daily and prevent oversized files.
Keep other settings at their defaults and click Save.

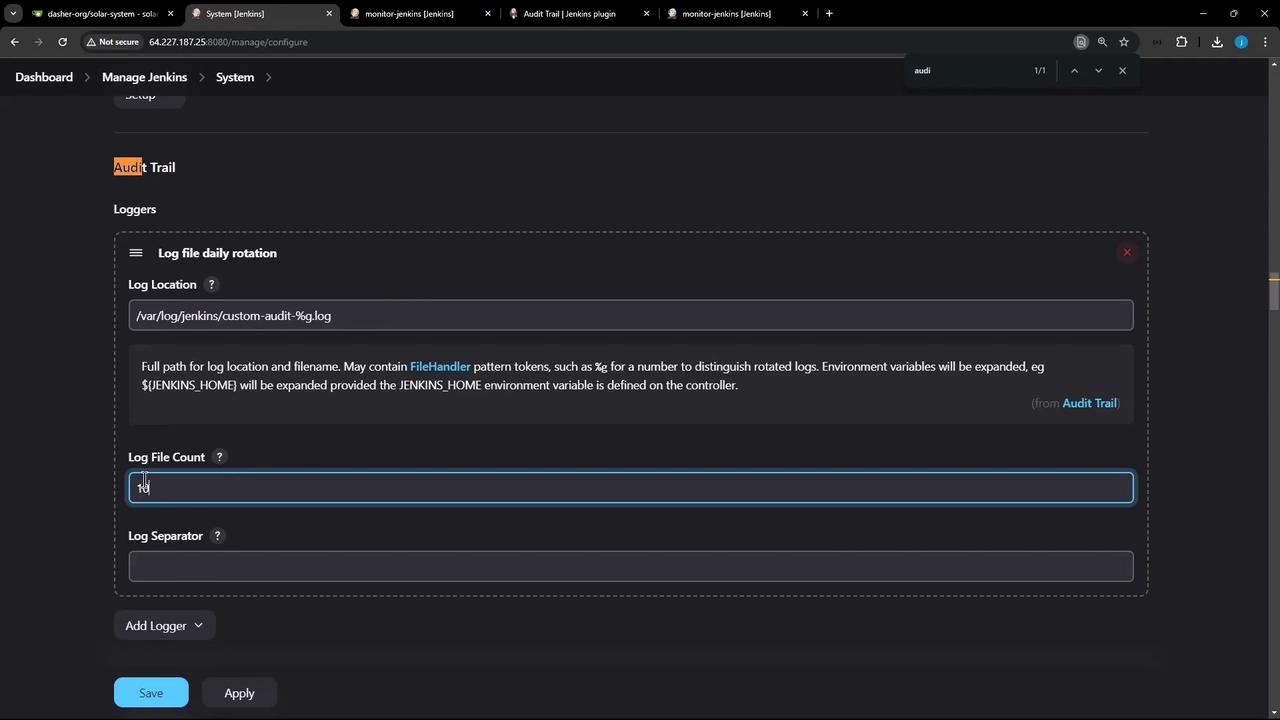

The image shows a Jenkins system configuration page focused on setting up an audit trail, including log file rotation settings.

3. Test Your Audit Trail Setup

3.1 Make a Job Configuration Change

From the dashboard, select an existing job (for example, monitor-jenkins).
Click Configure, tweak a build step or description, then click Apply → Save.
Trigger a new build and wait for it to finish.

3.2 Inspect the Audit Logs

cd /var/log/jenkins
ls
cat custom-audit-0.log-2024-11-10
# Nov 10 10:29:36,662 PM job/monitor-jenkins/configSubmit by siddharth from 124.123.186.17
# Nov 10 10:29:37,069 PM job/monitor-jenkins/#29 Started by user siddharth, Parameters:[]
# Nov 10 2024 2:29:39,042 PM monitor-jenkins #29 Started by user siddharth, Parameters:[] on node #unknown# started at 2024-11-10T14:29:34Z completed in 4361ms complete: SUCCESS

Note

Ensure the Jenkins service account has write permissions to /var/log/jenkins.

3.3 Customize URL Patterns

Return to Manage Jenkins → Configure System.

In URL Patterns to Log, add:

*/(configSubmit|doDelete|postBuildResult|enable|disable|cancelQueue|stop|toggleLogKeep|doWipeOutWorkspace|createItem|createView|toggleOffline|cancelQuietDown|quietDown|restart|exit)

Click Save, perform another job action, then verify:

cd /var/log/jenkins
ls
cat custom-audit-0.log-2024-11-10
# Nov 10, 2024 2:29:30,662 PM /job/monitor-jenkins/configSubmit by siddharth from 124.123.186.17
# Nov 10, 2024 2:29:34,672 PM job/monitor-jenkins/#29 Started by user siddharth, Parameters:[]
ll
# total 12
# drwxr-xr-x 2 jenkins jenkins 4096 Nov 10 14:30 ./
# drwxrwxr-x 10 root    syslog   4096 Nov 10 12:00 ../
# -rw-r--r-- 1 jenkins jenkins 2560 Nov 10 14:30 custom-audit-0.log-2024-11-10
# -rw-r--r-- 1 jenkins jenkins    0 Nov 10 14:30 custom-audit-0.log-2024-11-10.lck

4. Additional Logging Options

Beyond file-based logs, Audit Trail supports:

Logger Type	Use Case	Configuration Location
Syslog	Forward audit events to syslog	Manage Jenkins → Configure System → Audit Trail
Console	View events directly in Jenkins log	Manage Jenkins → Configure System → Audit Trail
Elasticsearch	Index and search logs externally	Manage Jenkins → Configure System → Audit Trail

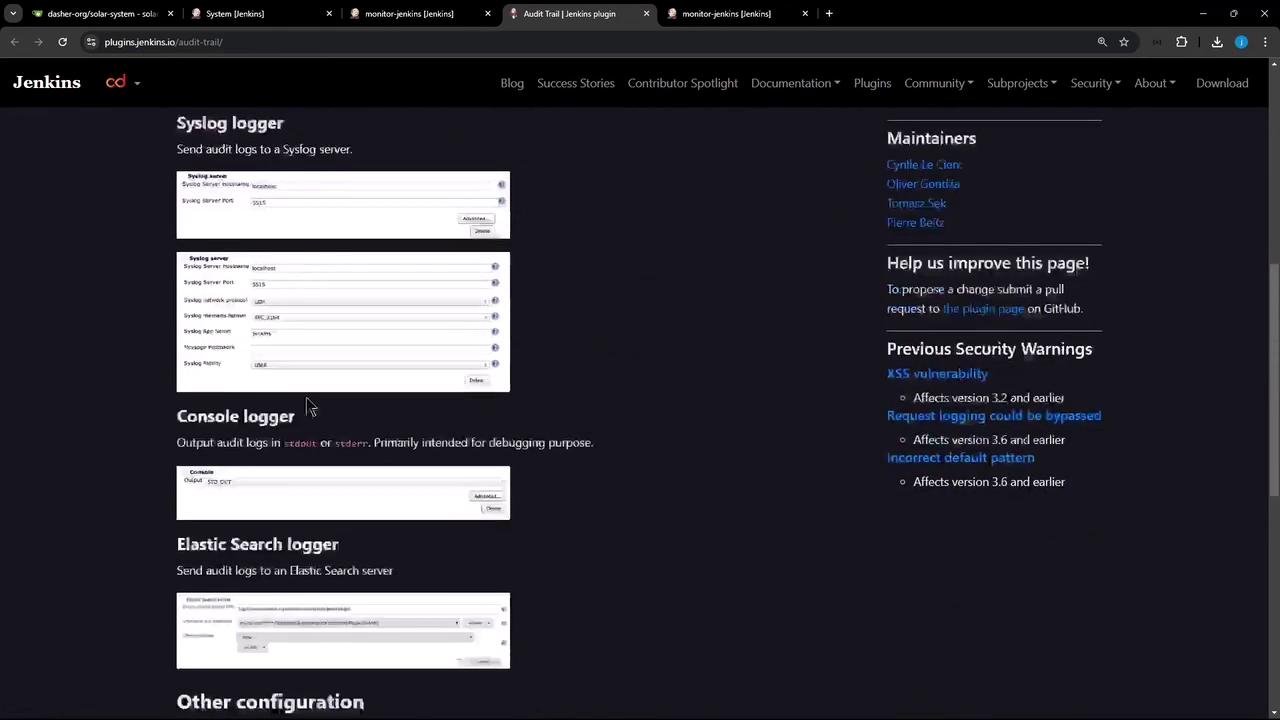

The image shows a webpage from the Jenkins plugin site, detailing configuration options for Syslog, Console, and Elastic Search loggers. It includes fields for setting server details and mentions previous security warnings.
