Brief Overview on Kubernetes

Kubernetes is an open-source container orchestration platform originally developed by Google and now maintained by the Cloud Native Computing Foundation (CNCF). It automates deployment, scaling, and management of containerized applications across clusters of machines—physical or virtual.

Kubernetes Cluster Architecture

A Kubernetes cluster consists of nodes that run containerized workloads. Nodes are classified as:

Node Type	Role
Control Plane Node	Manages the cluster’s desired state and runs the API server, controller manager, scheduler, etcd
Worker Node	Hosts application workloads and runs kubelet, kube-proxy, and a container runtime

Control Plane Components

API Server
The central REST endpoint through which all cluster operations are performed.
Controller Manager
Ensures the cluster’s actual state matches the desired state by running built-in controllers (e.g., Node Controller, Replication Controller).
Scheduler
Assigns Pods to nodes based on resource requirements, affinity/anti-affinity rules, and other constraints.
etcd
A highly available, distributed key-value store that persists all cluster data.

Warning

etcd is the single source of truth for your cluster. Ensure you have regular backups and secure access controls.

Pods

A Pod is the smallest deployable unit in Kubernetes. It encapsulates one or more containers sharing:

A common network namespace (IP address, port space)
Shared storage volumes

In most scenarios, a Pod runs a single container. Pods are ephemeral: if one is terminated, Kubernetes removes it by default and does not recreate it unless managed by a higher-level controller.

Note

Use Deployments or ReplicaSets to ensure Pods are automatically recreated after failures.

Example: Define and create a simple Pod

apiVersion: v1
kind: Pod
metadata:
  name: sample-pod
spec:
  containers:
  - name: nginx
    image: nginx:latest

kubectl apply -f sample-pod.yaml

Deployments

Deployments provide declarative updates for Pods and ReplicaSets. You specify the desired state—such as the number of replicas and container images—and Kubernetes continuously works to achieve and maintain that state, handling rolling updates and rollbacks.

Example: Create a Deployment

kubectl create deployment web-server --image=nginx:latest --replicas=3

Services

A Service exposes a set of Pods as a network service. It provides stable IPs, DNS names, and load balancing.

Service Type	Description	Example Command
ClusterIP	Internal-only service accessible within the cluster	`kubectl expose deployment web-server --port=80 --target-port=80`
NodePort	Exposes the service on each node’s IP at a static port	`kubectl expose deployment web-server --type=NodePort --port=80`
LoadBalancer	Provisions an external load balancer (cloud provider required)	`kubectl expose deployment web-server --type=LoadBalancer --port=80`
ExternalName	Maps the service to an external DNS name via the `externalName` field	See ExternalName Service

LoadBalancer

A LoadBalancer service automatically provisions and configures an external load balancer—e.g., AWS ELB or GCP Load Balancing. This simplifies external traffic routing but may incur additional costs for each exposed service.

Warning

LoadBalancer services often incur per-hour or per-GB data processing fees. Review your cloud provider’s pricing before use.

Ingress

Ingress provides HTTP and HTTPS routing into the cluster. It allows you to:

Expose multiple services under a single IP or domain
Define host- and path-based routing rules
Terminate TLS/SSL connections

When using Ingress, Services are typically configured as ClusterIP so that the Ingress controller handles all external traffic.

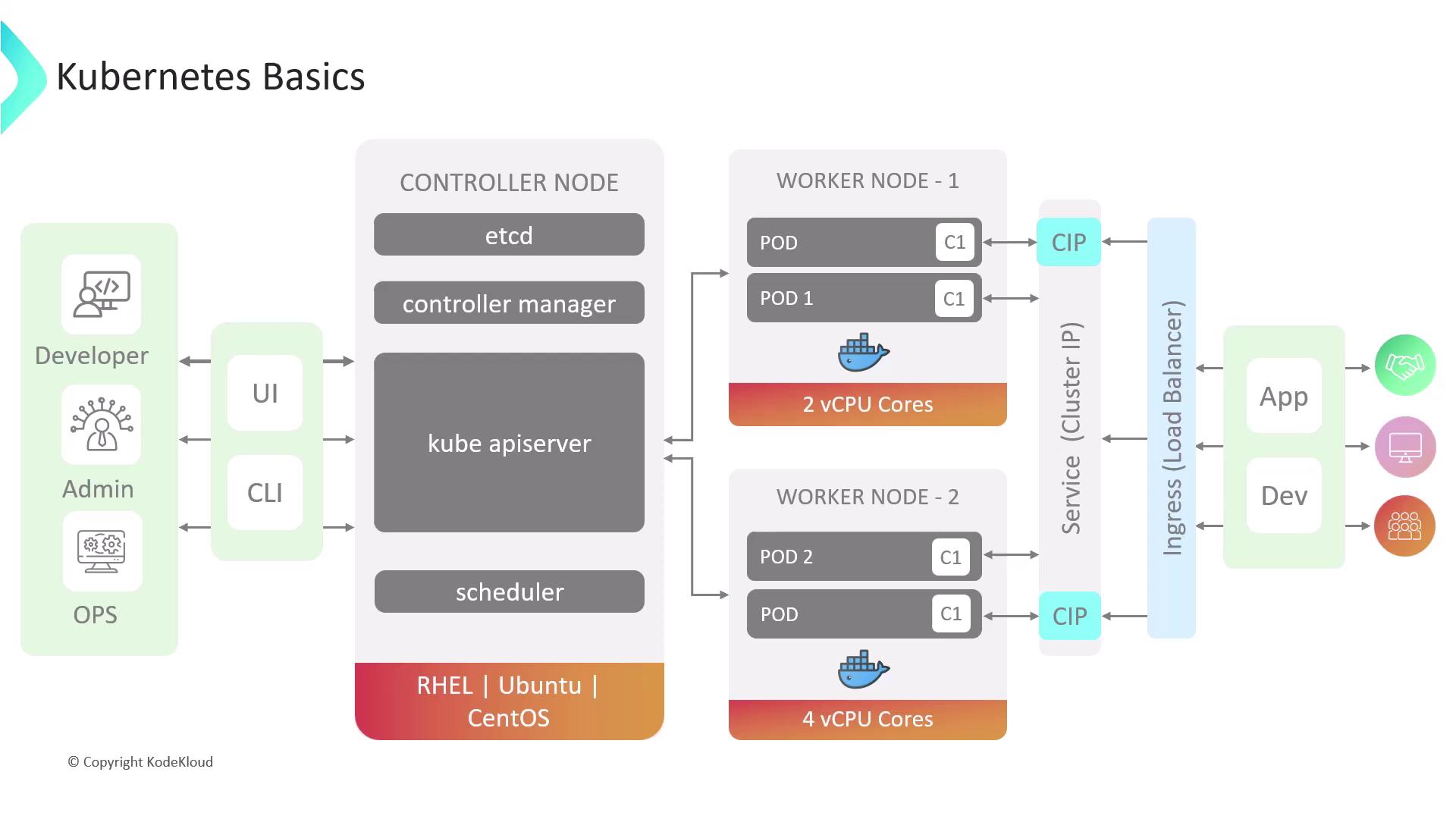

The image is a diagram illustrating the basics of Kubernetes architecture, showing the interaction between controller nodes, worker nodes, and various components like pods, services, and ingress.
