Demo DAST and Manual Input

In this guide, we’ll extend our Jenkins pipeline with two new stages:

1. A manual approval checkpoint after deploying the app via GitOps (Argo CD sync).
2. A Dynamic Application Security Testing (DAST) step using OWASP ZAP.

What Is DAST?

Dynamic Application Security Testing (DAST) probes a live application for vulnerabilities like SQL injection and XSS. Instead of scanning source code (SAST), DAST injects malicious payloads at runtime to uncover weaknesses in a running service.

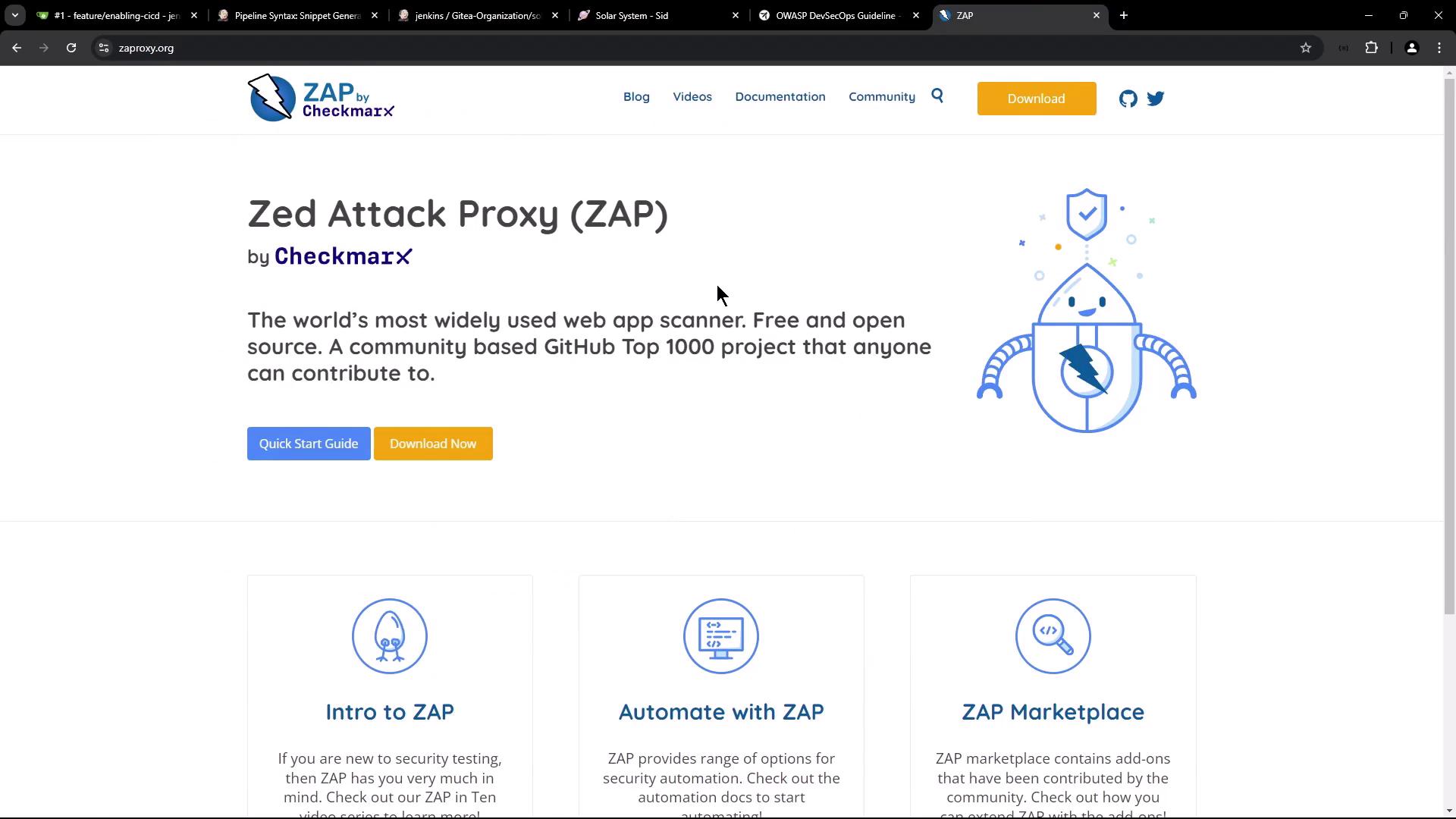

OWASP Zed Attack Proxy (ZAP)

OWASP ZAP is an open-source, community-driven web application scanner. It supports passive, active, and API scans.

ZAP Scan Modes

We’ll run the API scan against our service’s OpenAPI definition.

zap-api-scan.py Usage

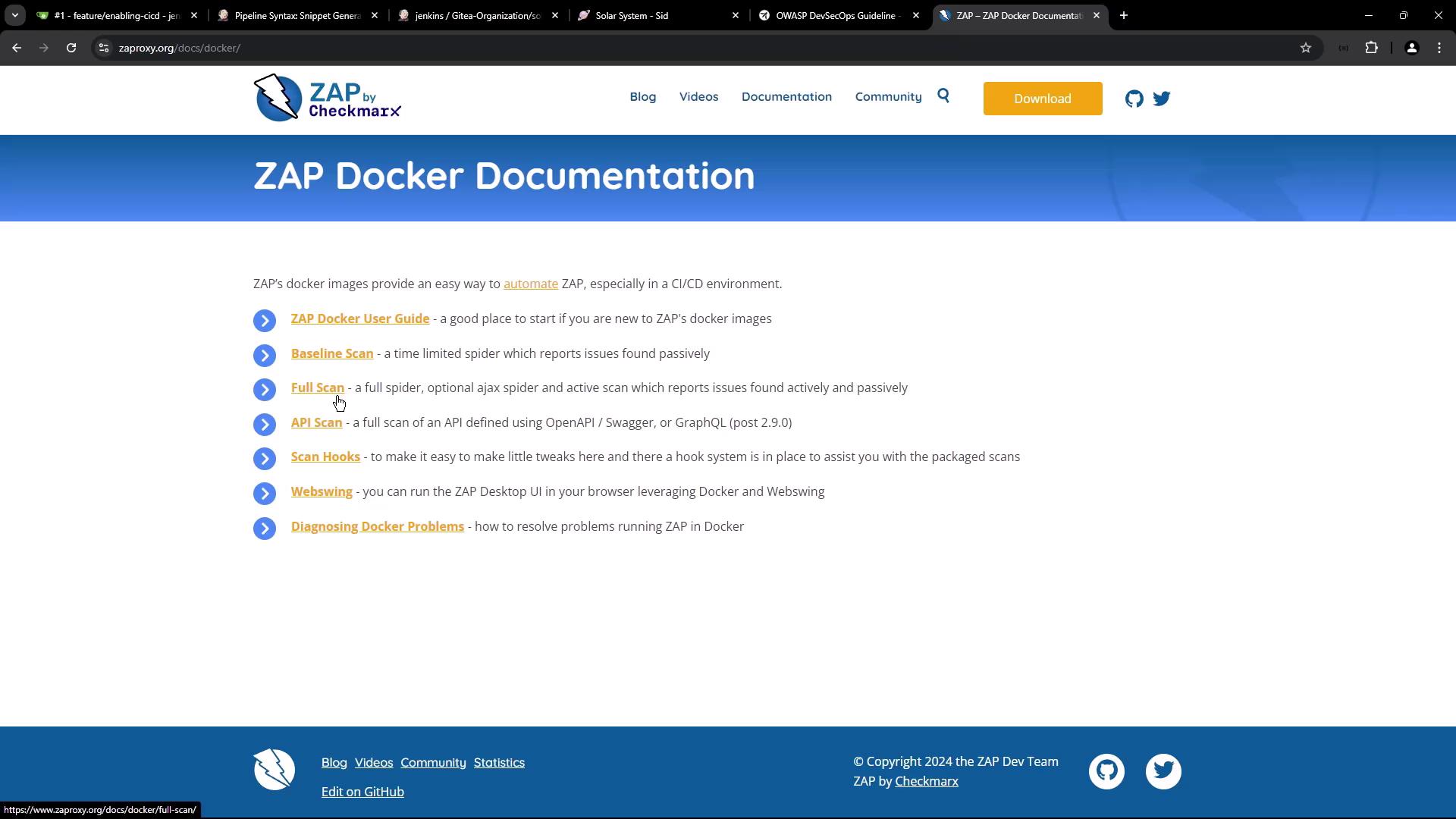

Install or use the Docker image ghcr.io/zaproxy/zaproxy to invoke zap-api-scan.py:

zap-api-scan.py -t <target> -f <format> [options]

Key options:

-t <target>       API spec URL/file (OpenAPI, SOAP) or GraphQL endpoint
-f <format>       openapi | soap | graphql
-r <report_html>  Full HTML report
-w <report_md>    Markdown report
-J <report_json>  JSON report
-x <report_xml>   XML report
-c <config_file>  Custom INFO/IGNORE/FAIL rules
-g <gen_file>     Generate default config (WARN by default)
-a                Include alpha passive scan rules
-d                Debug output
-P <port>         Proxy listen port
-D <delay>        Delay (s) before passive scan
-I                Treat default rules as INFO
-l                Ignore warnings (post 2.9.0)

For full details, see the OWASP ZAP documentation.

Integrating with Jenkins

Add the following stages to your Jenkinsfile:

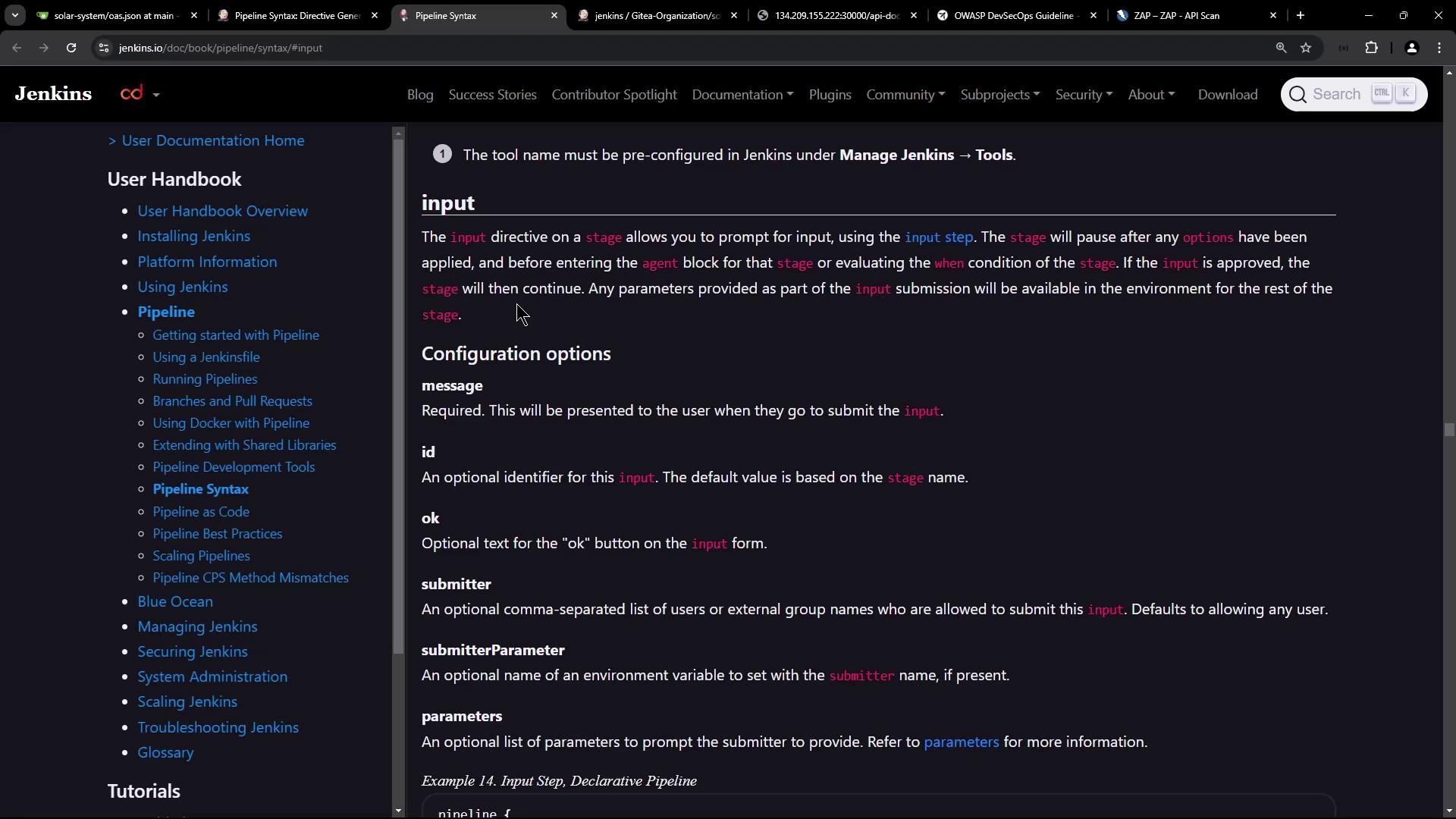

1. App Deployed? (Manual Approval)

This stage pauses the pipeline until an operator merges your PR and syncs Argo CD.

stage('App Deployed?') {
  when {
    branch 'PR*'
  }
  steps {
    timeout(time: 1, unit: 'DAYS') {
      input message: 'Has the PR been merged and Argo CD synced?',
            ok: 'Yes, proceed with DAST'
    }
  }
}

2. DAST – OWASP ZAP

Once approved, execute ZAP against your live API:

stage('DAST - OWASP ZAP') {
  when {
    branch 'PR*'
  }
  steps {
    sh '''
      chmod 777 $(pwd)
      docker run -v $(pwd):/zap/wrk/:rw \
        ghcr.io/zaproxy/zaproxy zap-api-scan.py \
        -t http://<K8S_IP>:30000/api/docs/ \
        -f openapi \
        -r zap_report.html \
        -w zap_report.md \
        -J zap_report.json \
        -x zap_report.xml
    '''
  }
}

Sample OpenAPI Definition

Our service exposes /api/docs/ with this minimal spec:

{
  "openapi": "3.0.0",
  "info": { "title": "Solar System API", "version": "1.0" },
  "paths": {
    "/": {
      "get": {
        "responses": { "200": { "description": "", "content": { "text/plain": { "schema": { "type": "string", "example": "Example" } } } } }
      }
    },
    "/live": {
      "get": {
        "responses": { "200": { "description": "", "content": { "text/plain": { "schema": { "type": "string", "example": "Example" } } } } }
      }
    }
  }
}

Running the Pipeline

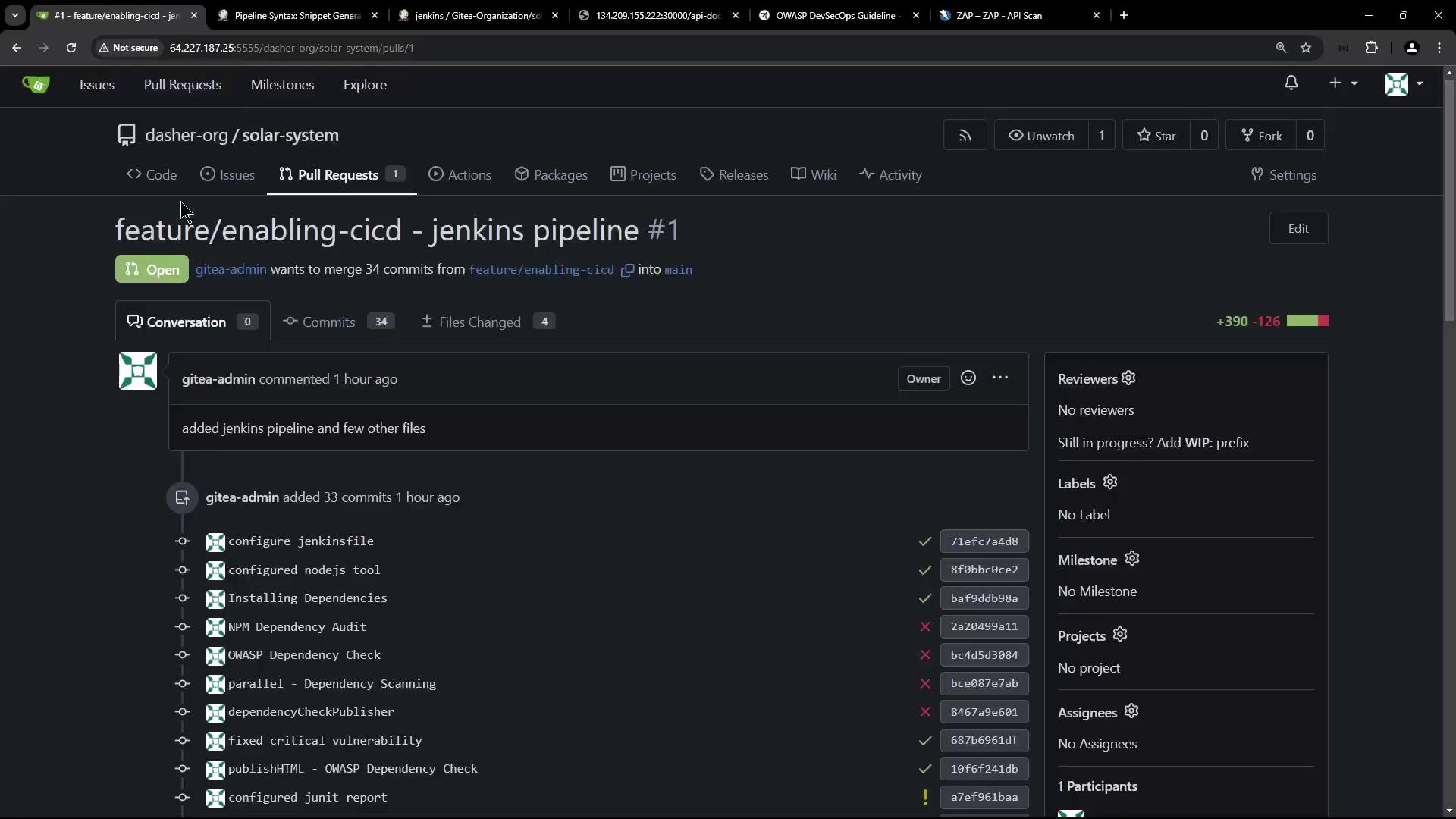

1. Commit your Jenkinsfile changes and open a PR.
2. Jenkins triggers a new build:

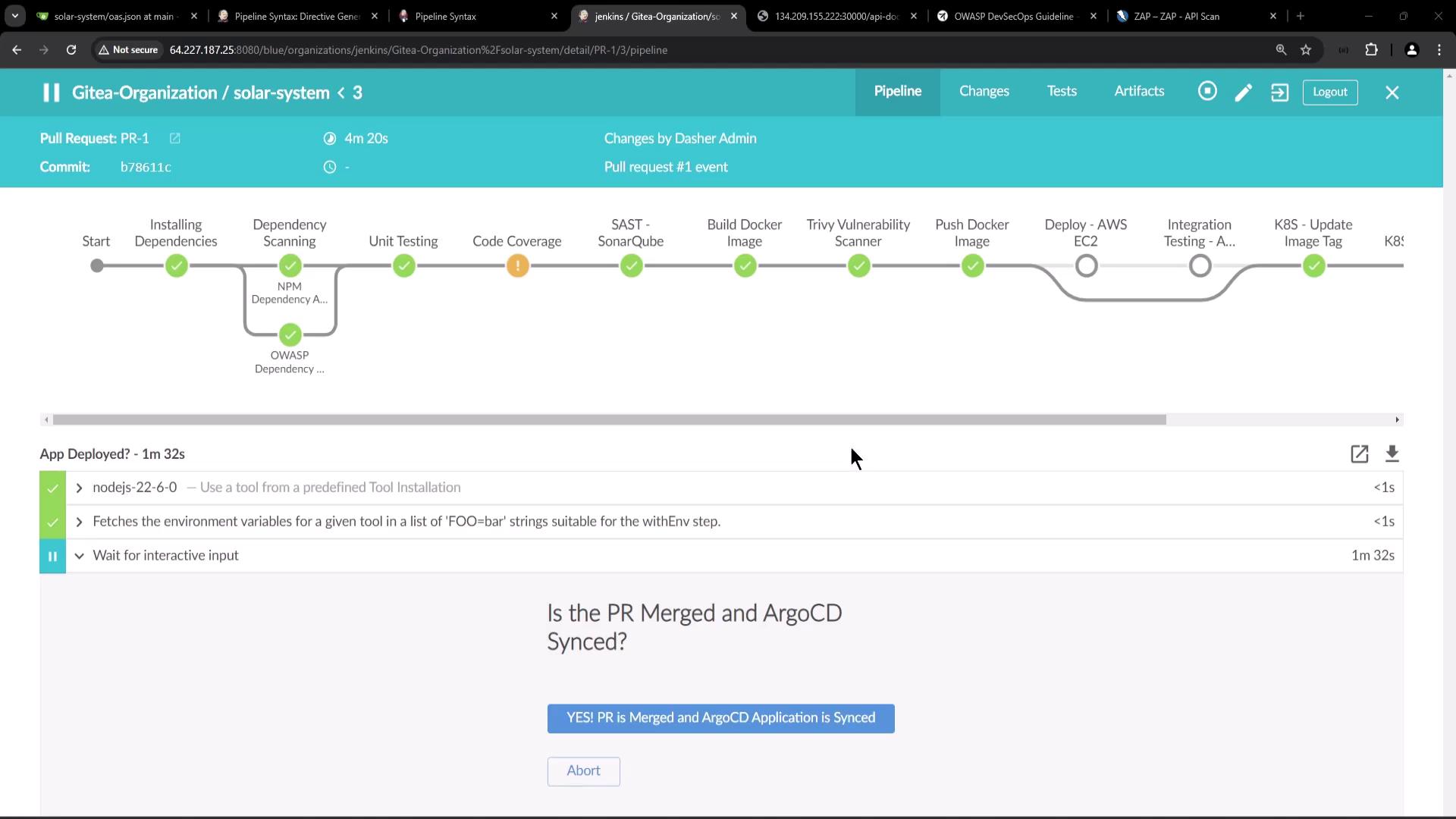

3. App Deployed? waits for merge and Argo CD sync.

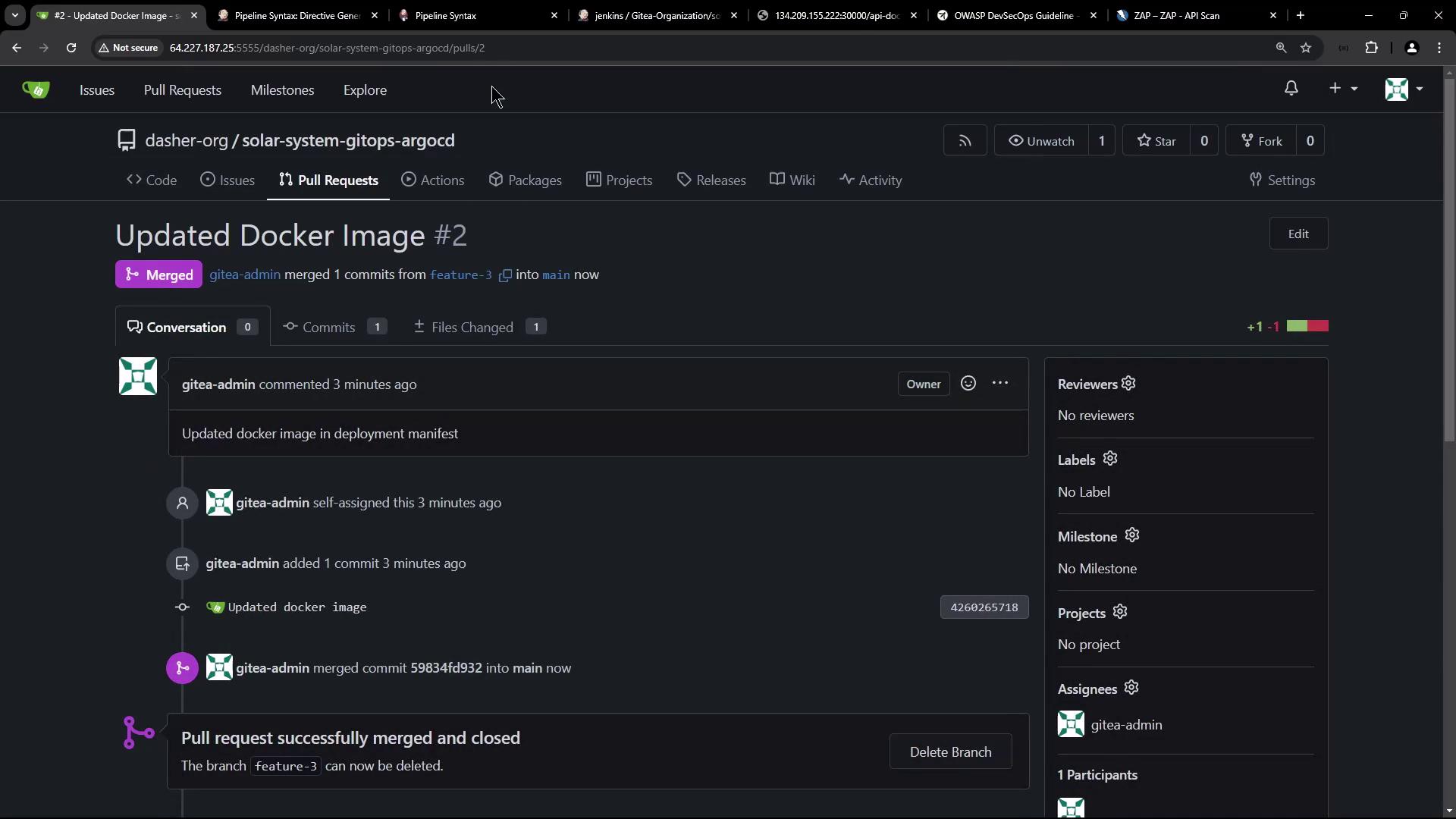

4. Merge the PR:

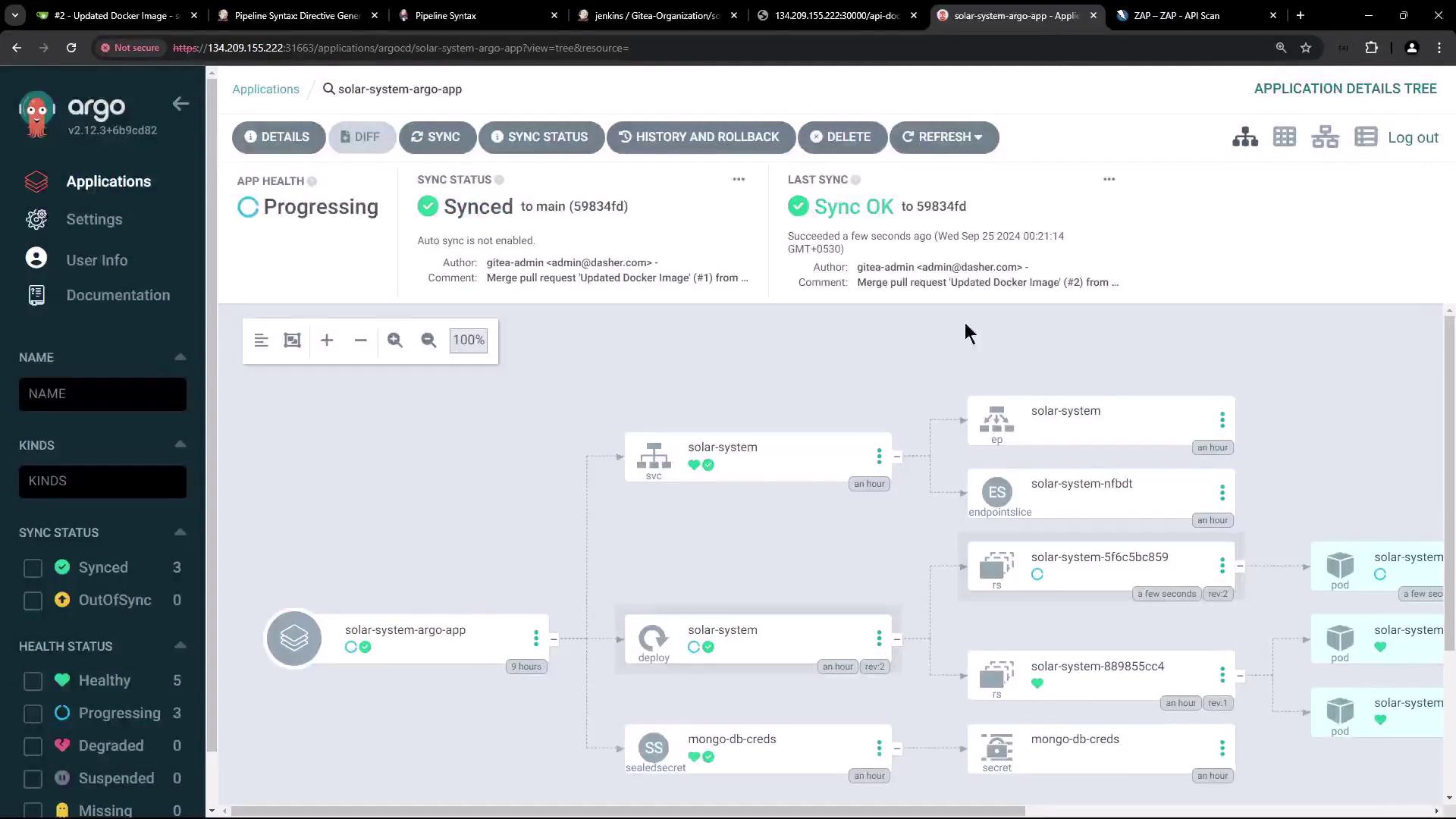

5. Sync your app in Argo CD:

kubectl -n solar-system get pods
# Example:
# NAME                                  READY   STATUS      RESTARTS   AGE
# solar-system-5f66cbc859-wdlwp         1/1     Running     0          27s
# solar-system-5f66cbc859-wrs24         1/1     Running     0          21s

6. Approve and let the pipeline proceed to the DAST stage. ZAP will scan and generate reports.

References

• Dynamic Application Security Testing (DAST)
• OWASP ZAP Docs
• Jenkins Pipeline Syntax: input
• GitOps Overview
• Argo CD Docs
