Demo Kubernetes Deploy Raise PR

In this guide, we’ll automate creating a pull request on GitHub/Gitea using a Jenkins pipeline. You’ll learn how to:

• Explore the Pull Request REST API
• Test curl calls in Swagger UI
• Integrate the command into a Jenkinsfile
• Enforce branch protection and sync with Argo CD

Exploring the Pull Request REST API

Most Git hosting platforms expose a REST API for every UI action. To create a pull request via API:

1. Navigate to your repository in the web UI.

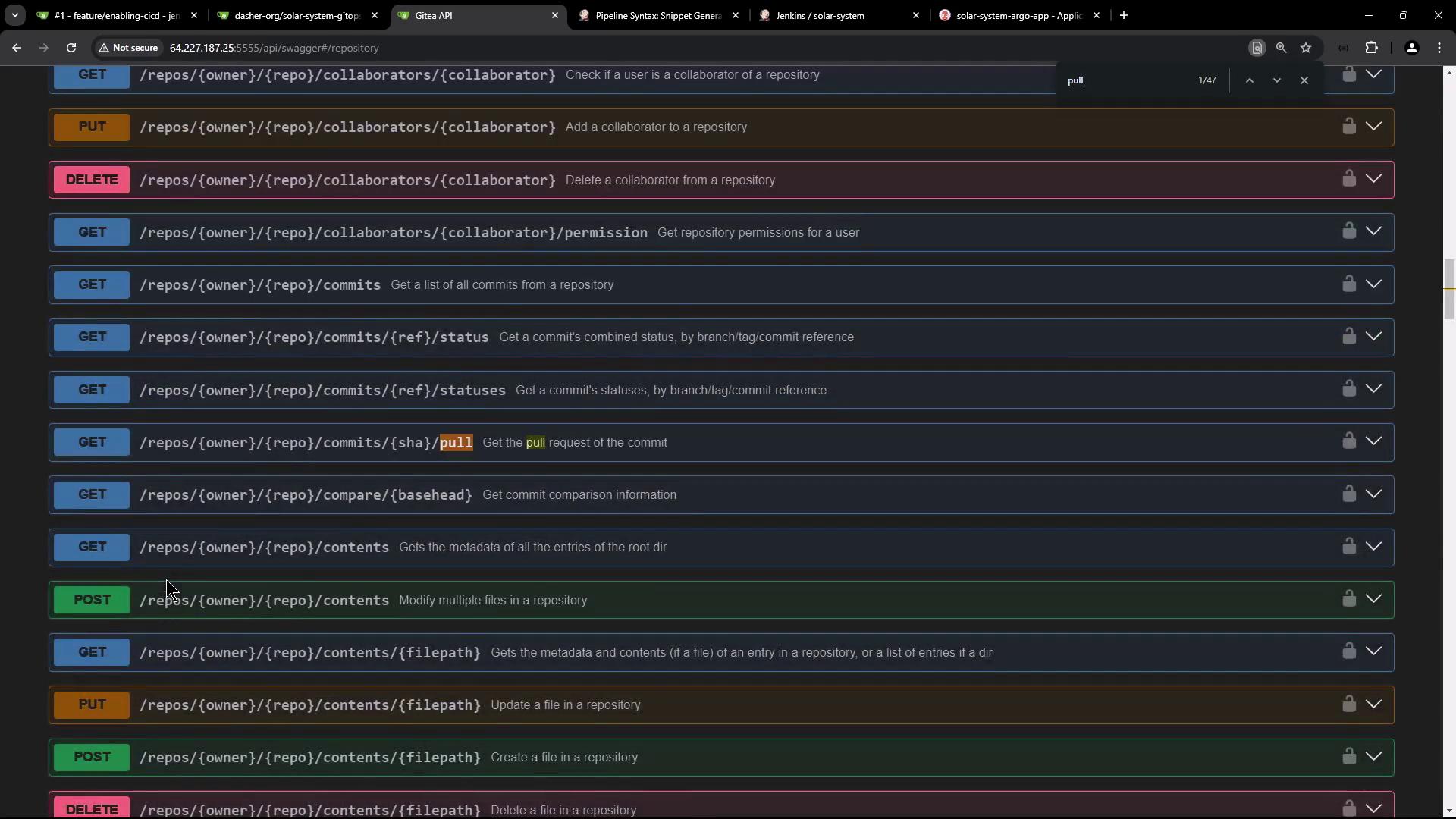

2. Open the embedded API (Swagger) documentation.
3. Locate Pulls (GitHub) or Pull Requests (Gitea) under Repository.

Creating a Pull Request via Swagger UI

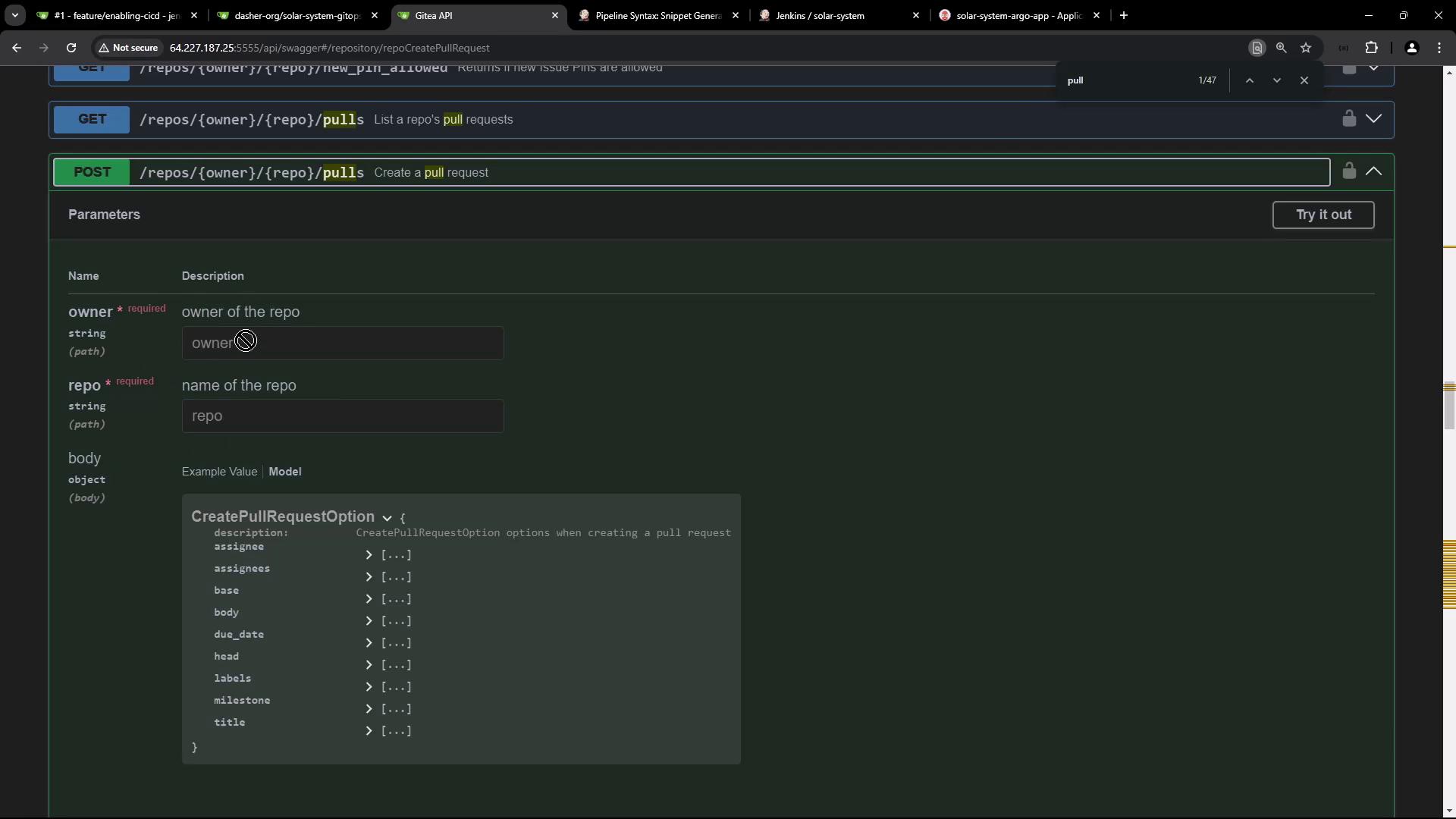

Search for pull and expand the POST /repos/{owner}/{repo}/pulls endpoint to view required parameters: owner, repo, head, base, title, etc.

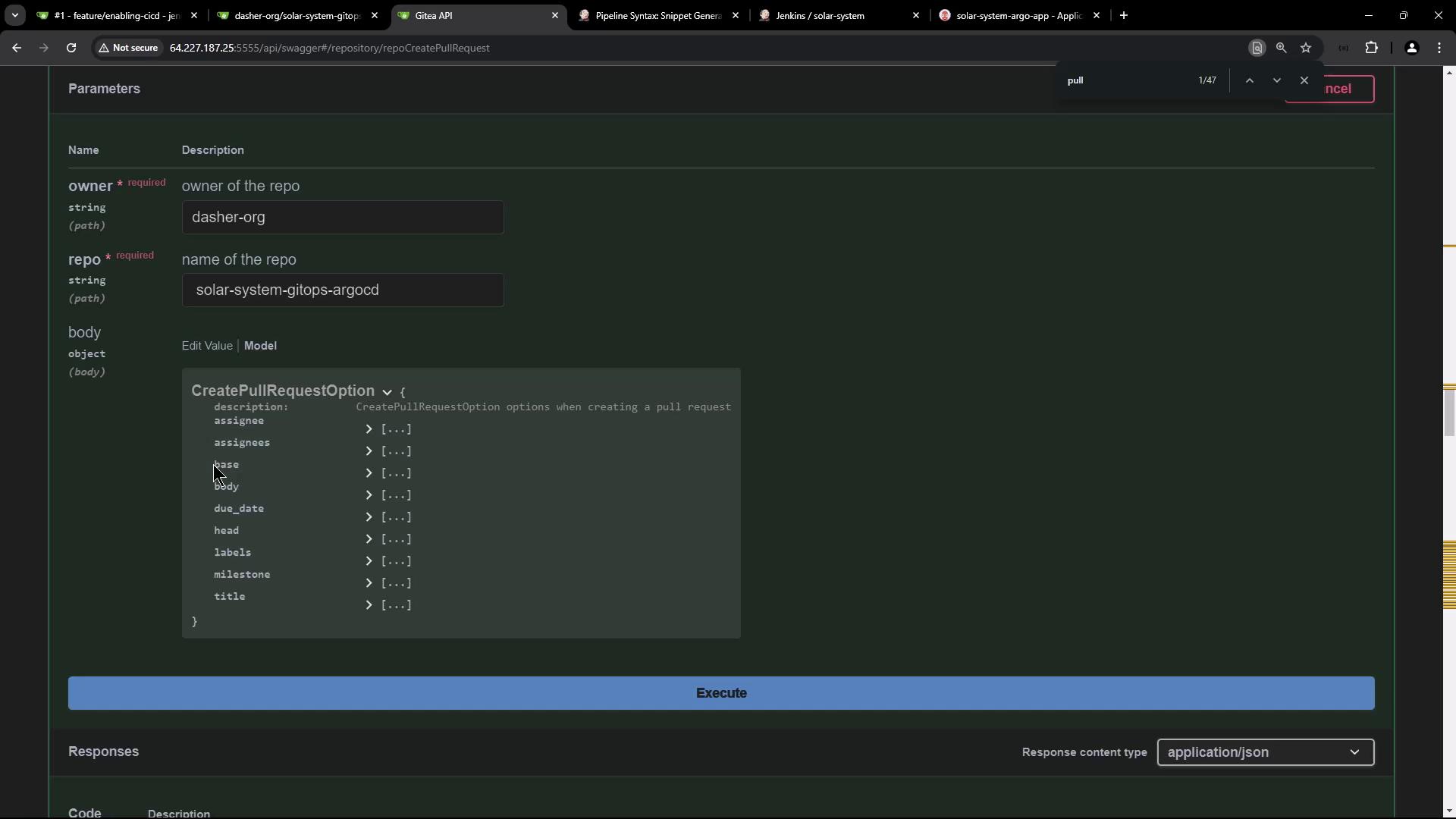

Click Try it out and fill in:

• owner: dasher-org
• repo: solar-system-gitops-argocd
• head: feature branch (e.g., feature-123)
• base: main
• title, body, assignees, labels

Request Body Schema

{
  "assignee": "string",
  "assignees": ["string"],
  "base": "string",
  "body": "string",
  "due_date": "2024-09-24T17:50:33.424Z",
  "head": "string",
  "labels": [0],
  "milestone": 0,
  "title": "string"
}

Executing Try it out generates this curl command:

curl -X POST "http://64.227.187.25:5555/api/v1/repos/dasher-org/solar-system-gitops-argocd/pulls" \
  -H "accept: application/json" \
  -H "Content-Type: application/json" \
  -d '{
    "assignee": "string",
    "assignees": ["string"],
    "base": "string",
    "body": "string",
    "due_date": "2024-09-24T17:50:33.424Z",
    "head": "string",
    "labels": [],
    "milestone": 0,
    "title": "string"
  }'

Authorize via Swagger’s Authorize lock icon or add:

-H "Authorization: token YOUR_TOKEN_HERE"

Example with a real token:

curl -X POST "http://64.227.187.25:5555/api/v1/repos/dasher-org/solar-system-gitops-argocd/pulls" \
  -H "accept: application/json" \
  -H "Authorization: token $GITEA_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "assignee": "gitea-admin",
    "assignees": ["gitea-admin"],
    "base": "main",
    "body": "Updated Docker image in deployment manifest",
    "head": "feature-123",
    "title": "Updated Docker Image"
  }'

Integrating into a Jenkins Pipeline

Add the validated curl call to your Jenkinsfile. Store GITEA_TOKEN in Jenkins Credentials:

pipeline {
  agent any
  environment {
    GITEA_TOKEN = credentials('gitea-token')
  }
  stages {
    stage('Build Docker Image') {
      steps { /* ... */ }
    }
    stage('Trivy Vulnerability Scan') {
      steps { /* ... */ }
    }
    stage('Push Docker Image') {
      steps { /* ... */ }
    }
    stage('Deploy to AWS EC2') {
      steps { /* ... */ }
    }
    stage('Integration Testing - AWS EC2') {
      steps { /* ... */ }
    }
    stage('K8S - Update Image Tag') {
      steps { /* ... */ }
    }
    stage('K8S - Raise PR') {
      when { branch 'PR*' }
      steps {
        sh """
          curl -X POST \
            "http://64.227.187.25:5555/api/v1/repos/dasher-org/solar-system-gitops-argocd/pulls" \
            -H "accept: application/json" \
            -H "Authorization: token $GITEA_TOKEN" \
            -H "Content-Type: application/json" \
            -d '{
              "assignee": "gitea-admin",
              "assignees": ["gitea-admin"],
              "base": "main",
              "body": "Updated Docker image in deployment manifest",
              "head": "feature-${BUILD_ID}",
              "title": "Updated Docker Image"
            }'
        """
      }
    }
  }
  post {
    always { /* notifications, cleanup */ }
  }
}

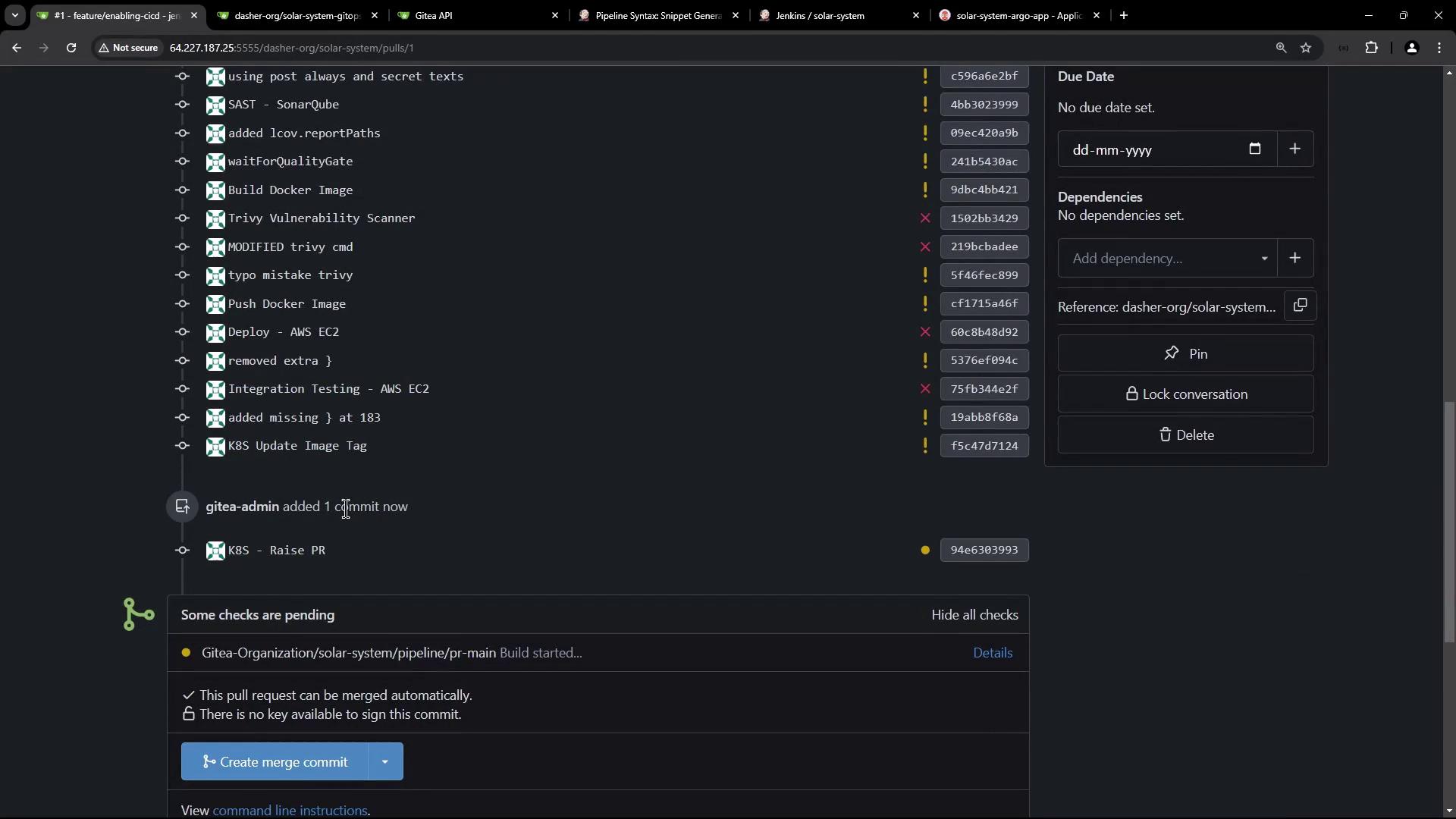

The when { branch 'PR*' } condition runs this stage only on branches matching PR*. After you push, Jenkins will auto-create a PR:

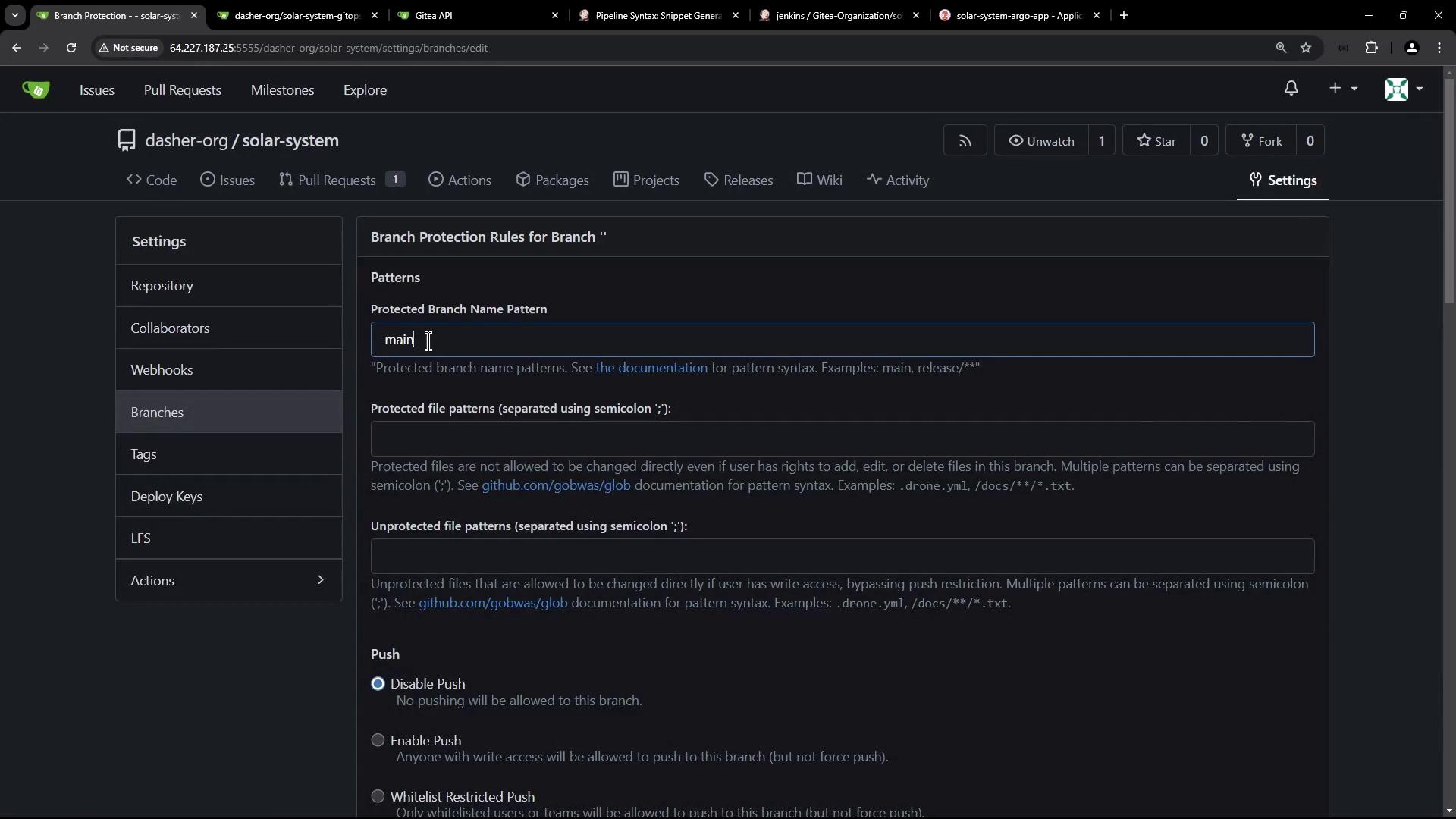

Enforcing Branch Protection

To require successful Jenkins builds before merging:

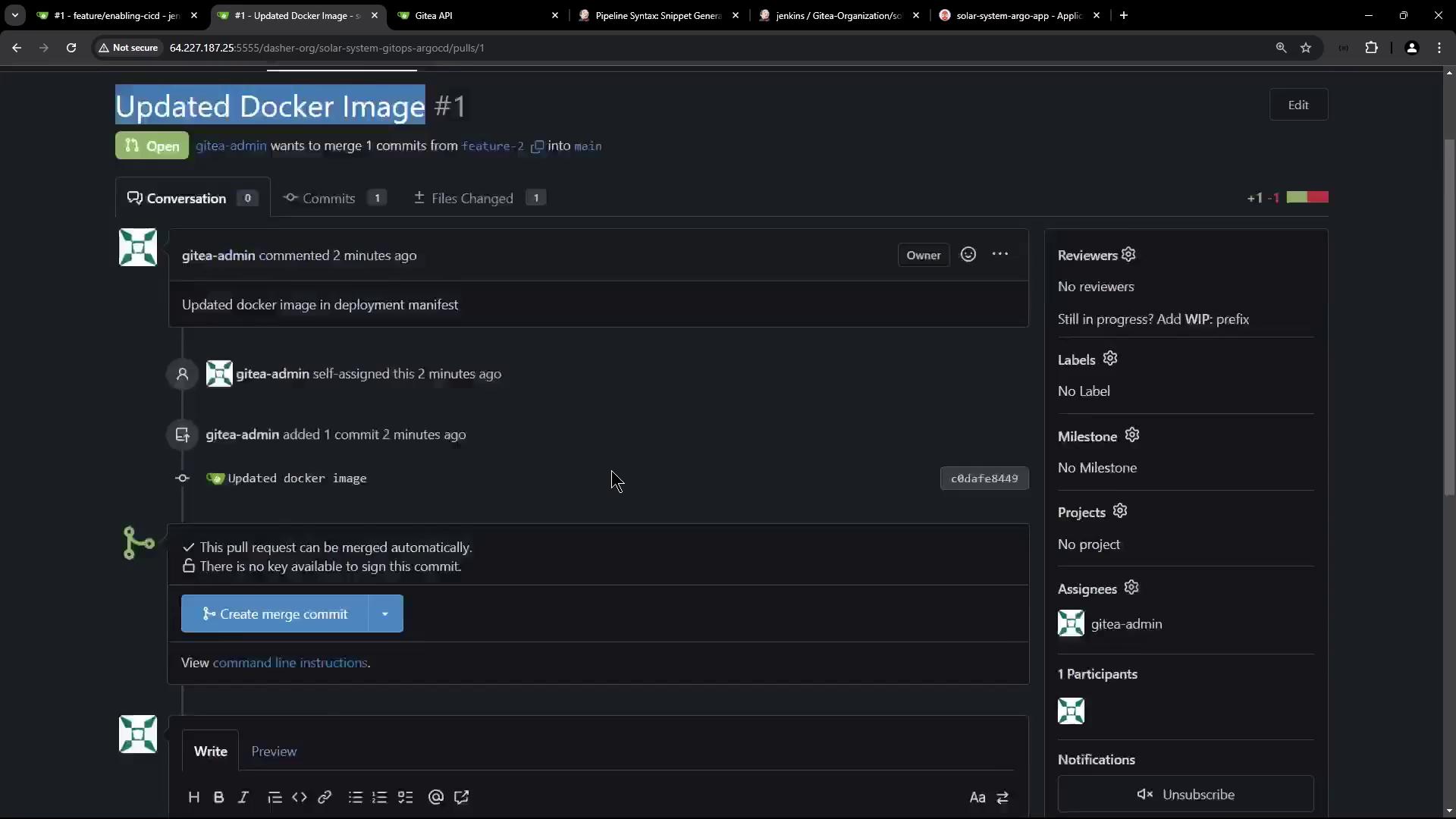

Verifying the Pull Request and Merge

Review and merge your PR into main:

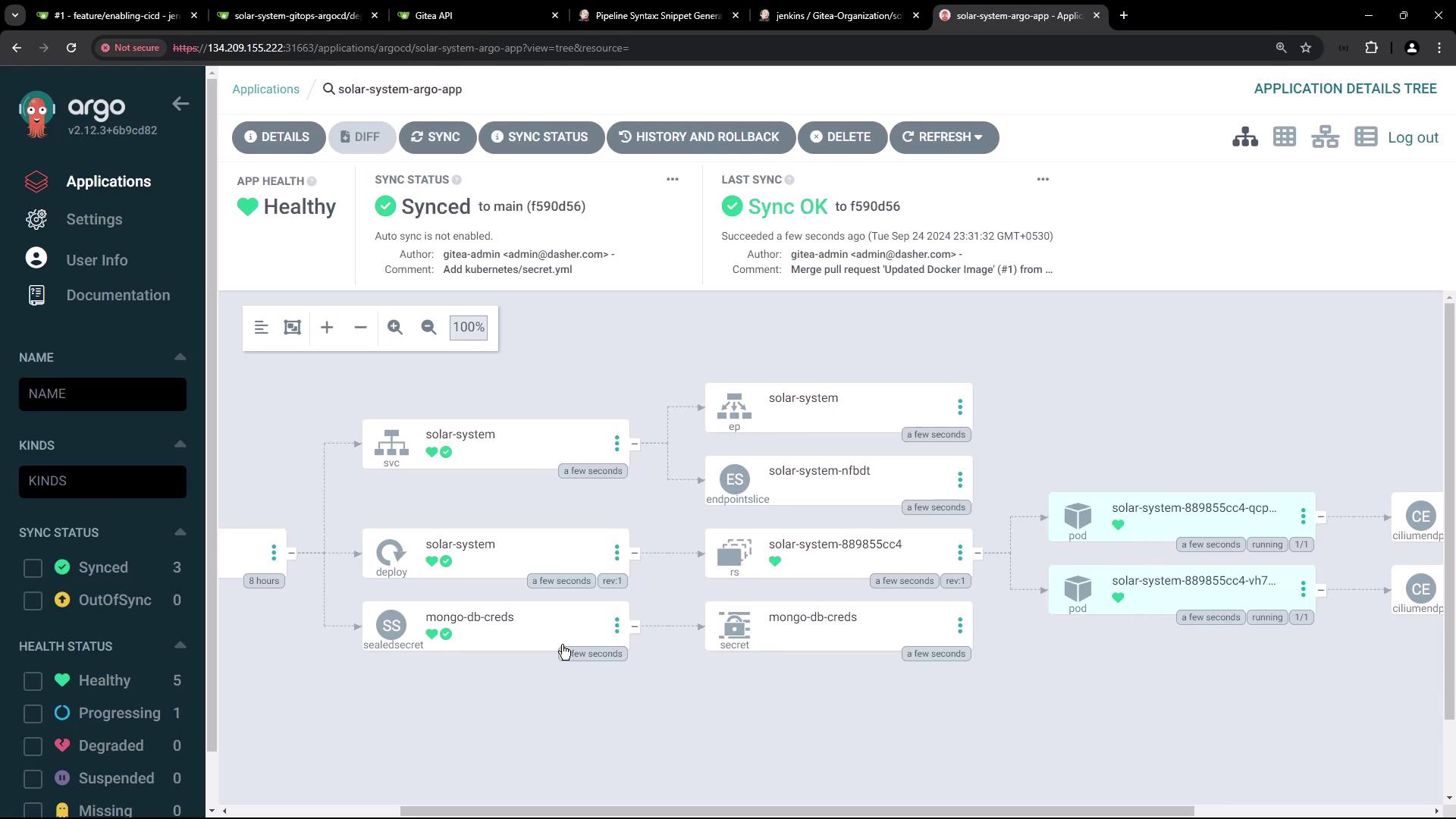

Argo CD will detect the updated image tag (within ~3 minutes) and sync:

- image: siddharth67/solar-system:3e906e3be95342b1916f202c034344fb267dca
+ image: siddharth67/solar-system:946c630393e77939c920a6fab782e4c53d27

Accessing the Application

After sync completes, list Kubernetes resources:

kubectl get all -n solar-system

Locate the NodePort service and browse to:

http://<NODE_IP>:30000

You should see the Solar System app connected to MongoDB.

Inspecting the Sealed Secret

Bitnami Sealed Secrets decrypts your sealed YAML into a regular Secret:

apiVersion: v1
kind: Secret
metadata:
  name: mongo-db-creds
  namespace: solar-system
  annotations:
    sealedsecrets.bitnami.com/cluster-wide: 'true'
type: Opaque
data:
  MONGO_USERNAME: "++++++++"
  MONGO_PASSWORD: "++++++++"
  MONGO_URI: "++++++++"

Retrieve it with:

kubectl get secret mongo-db-creds -n solar-system -o yaml

This workflow automates PR creation, image updates, and GitOps-driven deployment using Jenkins and Argo CD.
