Demo Deploy to Prod

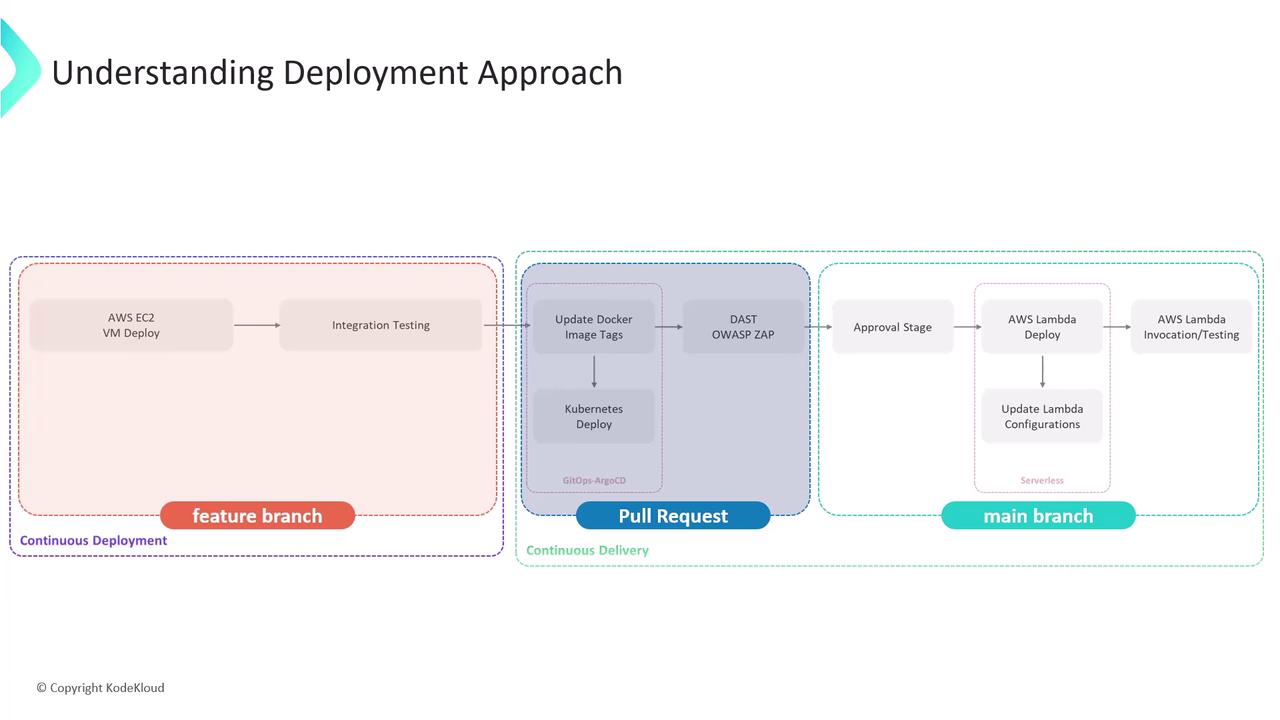

In this lesson, we'll extend our CI/CD pipeline to include a manual approval gate before deploying to AWS Lambda. Previously, we covered:

• Deploying to AWS EC2 VMs
• Running integration tests
• Opening a pull request for Kubernetes via Argo CD
• Performing a DAST scan with OWASP ZAP

Now, on the main branch, we'll pause for an admin’s go‐ahead, update Lambda configuration, and run function tests. All stages trigger only on new pushes to main.

1. Add a Manual Approval Stage in Jenkinsfile

Edit your Jenkinsfile on the feature branch. After the AWS S3 upload, insert a Deploy to Prod? stage that runs only on main and waits up to one day for an admin to confirm.

1.1. Current CI Stages

stage('Integration Testing - AWS EC2') {
    // existing steps
}

stage('K8S - Update Image Tag') {
    // existing steps
}

stage('K8S - Raise PR') {
    // existing steps
}

stage('App Deployed?') {
    // existing steps
}

stage('DAST - OWASP ZAP') {
    // existing steps
}

stage('Upload - AWS S3') {
    // existing steps
}

post {
    always {
        // cleanup or notifications
    }
}

1.2. New Approval Stage

stage('Deploy to Prod?') {
    when {
        branch 'main'
    }
    steps {
        timeout(time: 1, unit: 'DAYS') {
            input message: 'Deploy to Production?',
                  ok: 'YES! Let us try this on Production',
                  submitter: 'admin'
        }
    }
}

2. Testing the Approval Mechanism

1. Commit and push your updated Jenkinsfile.

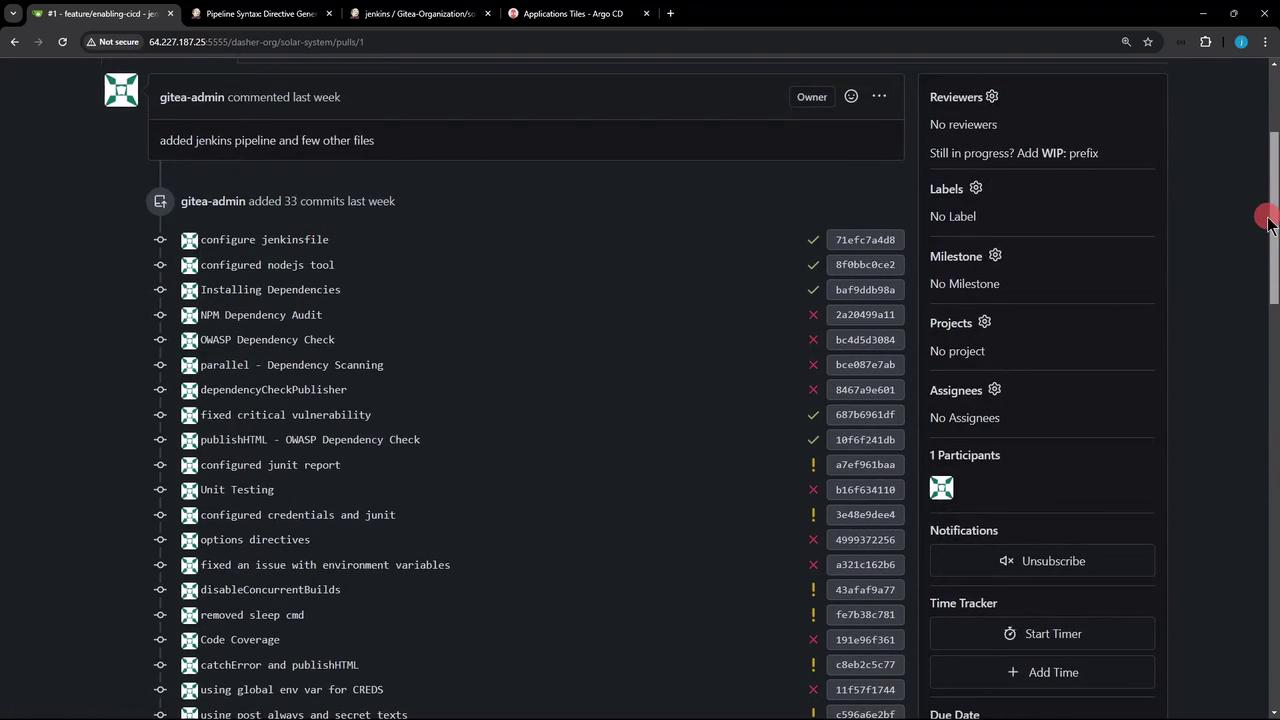

2. Open a pull request, merge it into main.
3. Jenkins will start a fresh pipeline on main.

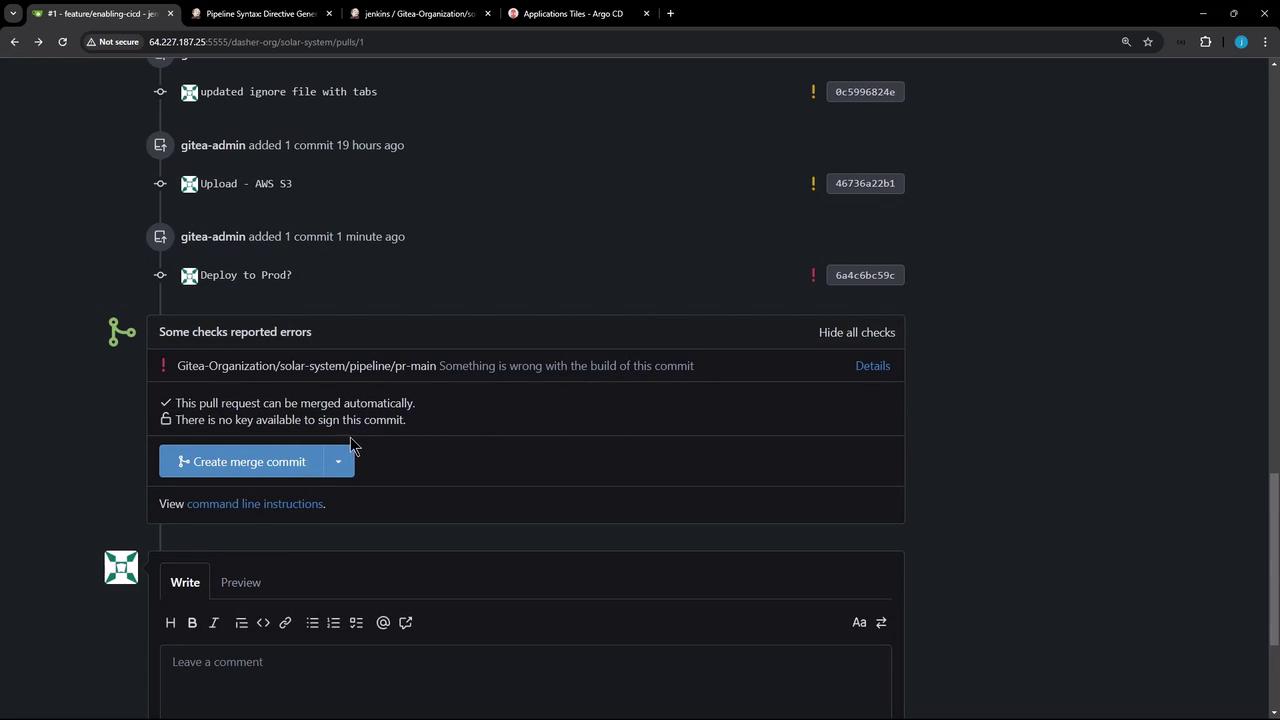

Even if a prior build was aborted, merging triggers a new run:

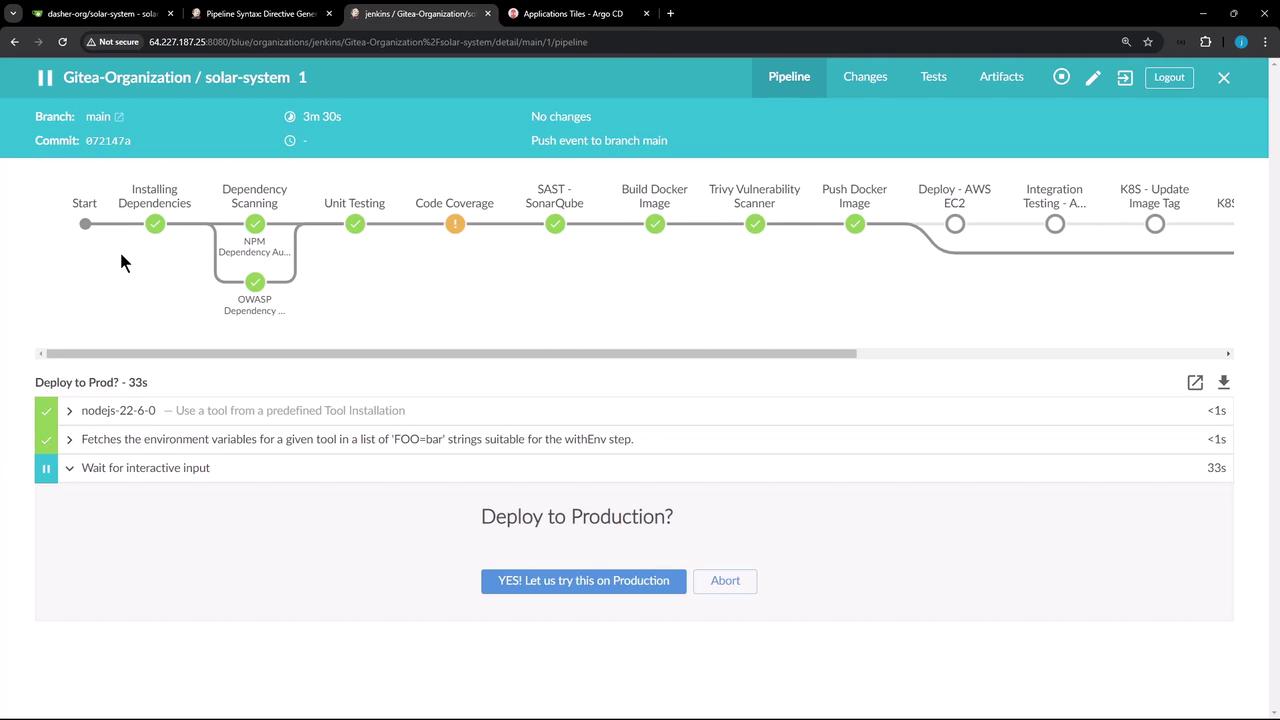

In Jenkins Blue Ocean, all CI stages skip except the approval prompt:

3. Adjusting Stage Conditions for AWS S3

If you’d like the AWS S3 upload to run on both PRs and main, update the when clause:

stage('Upload - AWS S3') {
    when {
        anyOf {
            branch 'PR*'
            branch 'main'
        }
    }
    steps {
        withAWS(credentials: 'aws-s3-ec2-lambda-creds', region: 'us-east-2') {
            sh '''
                ls -ltr
                mkdir reports-$BUILD_ID
                cp -rf coverage/ reports-$BUILD_ID/
                cp dependency* test-results.xml trivy* zap* reports-$BUILD_ID/
                ls -ltr reports-$BUILD_ID/
            '''
            s3Upload(file: "reports-$BUILD_ID",
                     bucket: "solar-system-jenkins-reports-bucket",
                     path: "jenkins-$BUILD_ID/")
        }
    }
}

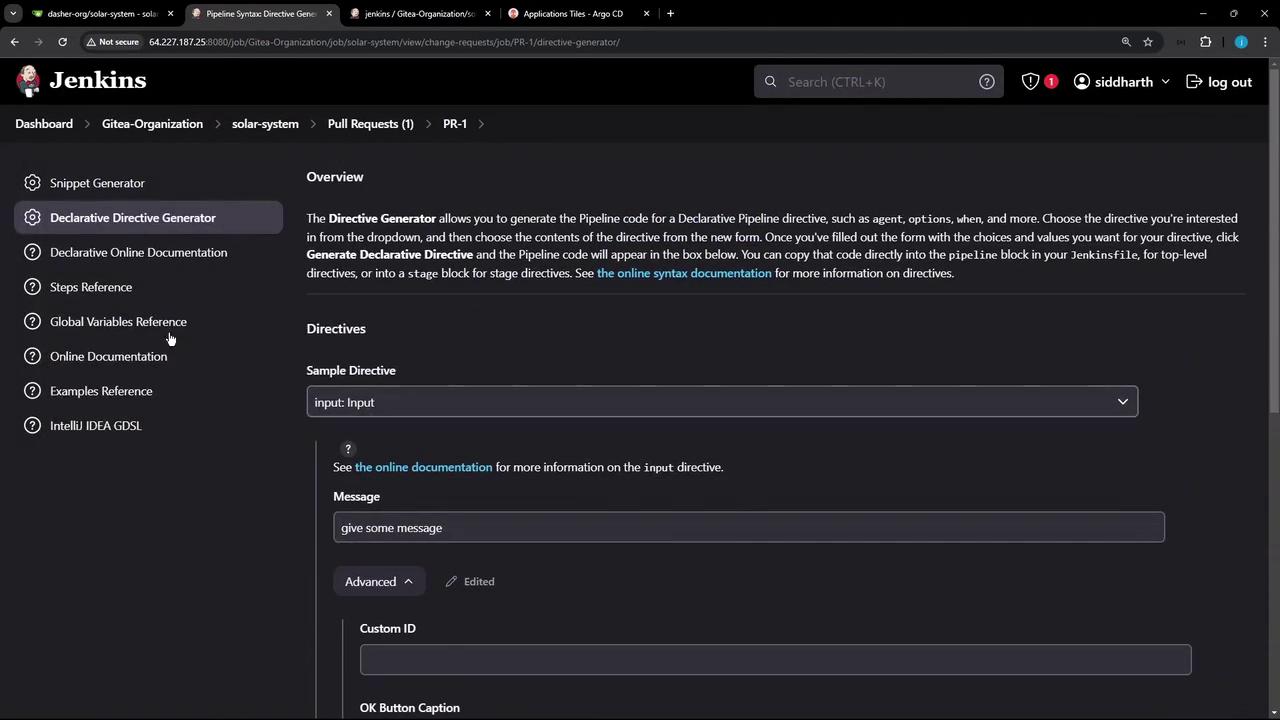

Use the Declarative Directive Generator to craft complex allOf/anyOf logic:

4. Verifying Submitter Restrictions

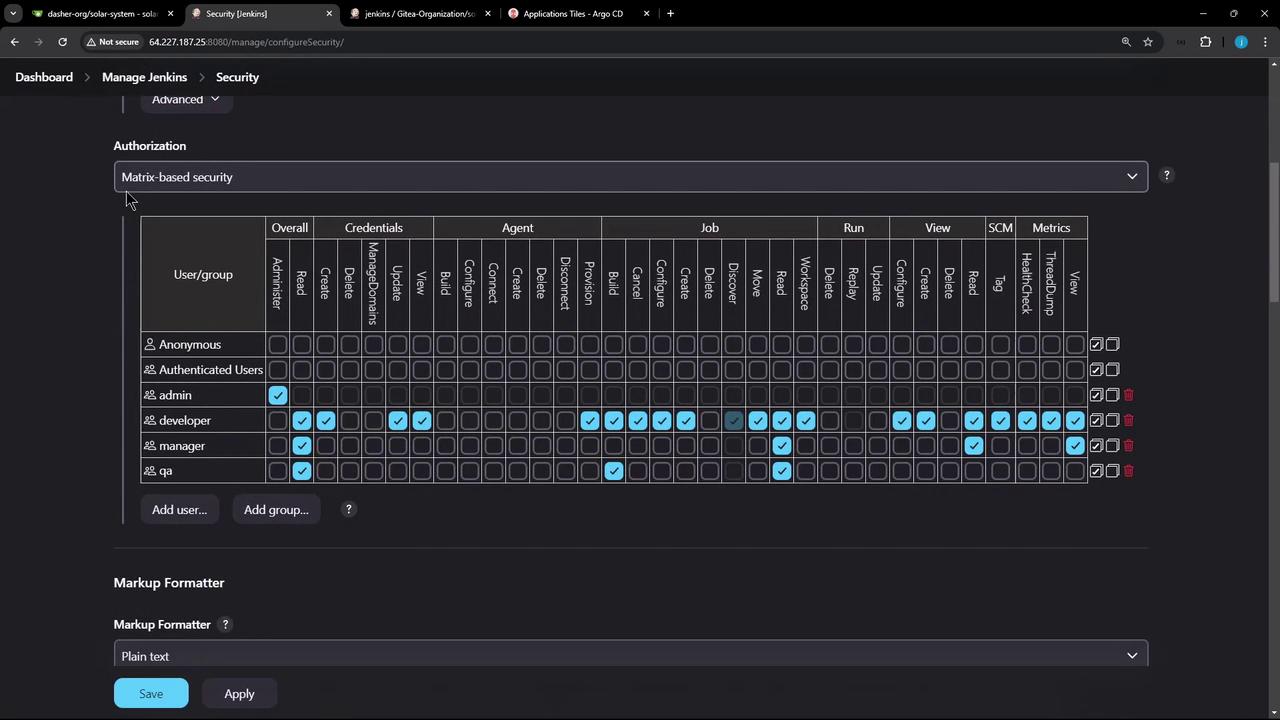

Our security uses a mock realm with matrix-based authorization. The admin group has full rights; developers are read-only:

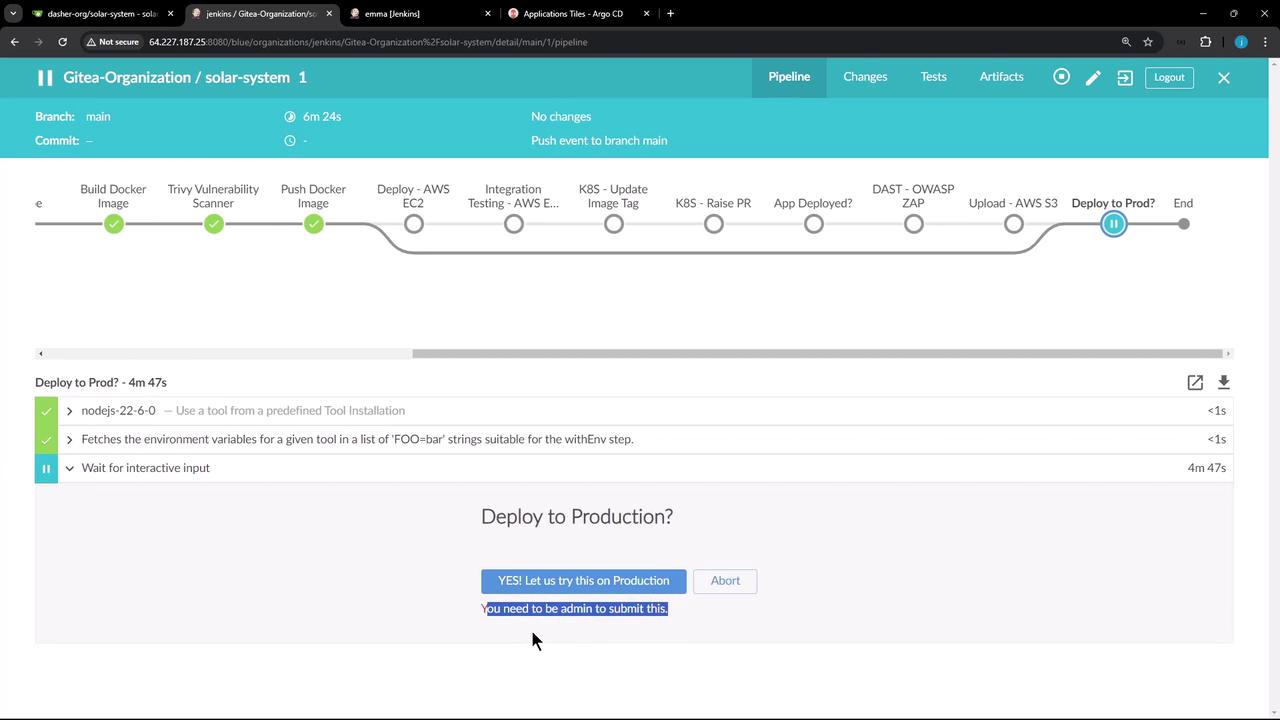

When a non-admin (for example, EMA) tries to approve, they’ll be blocked:

That’s it for adding an approval gate! Next, we’ll cover deploying your application to AWS Lambda and running automated function tests.

Links and References

• Jenkins Pipeline Syntax
• AWS Lambda Documentation
• OWASP ZAP
• Argo CD
