Demo Preversing Stash in Declarative Pipeline

In this tutorial, you’ll learn how to share artifacts between stages—and even across restarts—in a Declarative Jenkins Pipeline using stash and unstash. This is especially useful when stages run on different agents or when you need to resume a job from a later stage.

Table of Contents

1. Creating the Pipeline
2. Running on a Different Agent
3. Sharing Files with stash/unstash
4. Restarting from a Later Stage
5. Preserving Stashes Across Builds
6. References

Creating the Pipeline

1. In Jenkins, click New Item.
2. Enter stash-pipeline-demo, select Pipeline, and click OK.

3. Paste this basic pipeline script. It has two stages on the same agent, so quote.txt is created and read successfully.

pipeline {
  agent any
  stages {
    stage('Generate Motivational Quote') {
      steps {
        script {
          def quotes = [
            "Believe you can and you're halfway there.",
            "The only way to do great work is to love what you do.",
            "Don't watch the clock; do what it does. Keep going.",
            "Success is not the key to happiness. Happiness is the key to success.",
            "The only limit to our realization of tomorrow will be our doubts of today."
          ]
          def quote = quotes[new Random().nextInt(quotes.size())]
          writeFile file: 'quote.txt', text: quote
        }
        sh 'echo Generate Motivational Quote Success!'
        sh 'cat quote.txt'
      }
    }
    stage('Display Motivational Quote') {
      steps {
        sh 'cat quote.txt'
      }
    }
  }
}

Running on a Different Agent

If you assign the first stage to a different agent, the file won’t persist on the controller:

pipeline {
  agent any
  stages {
    stage('Generate Motivational Quote') {

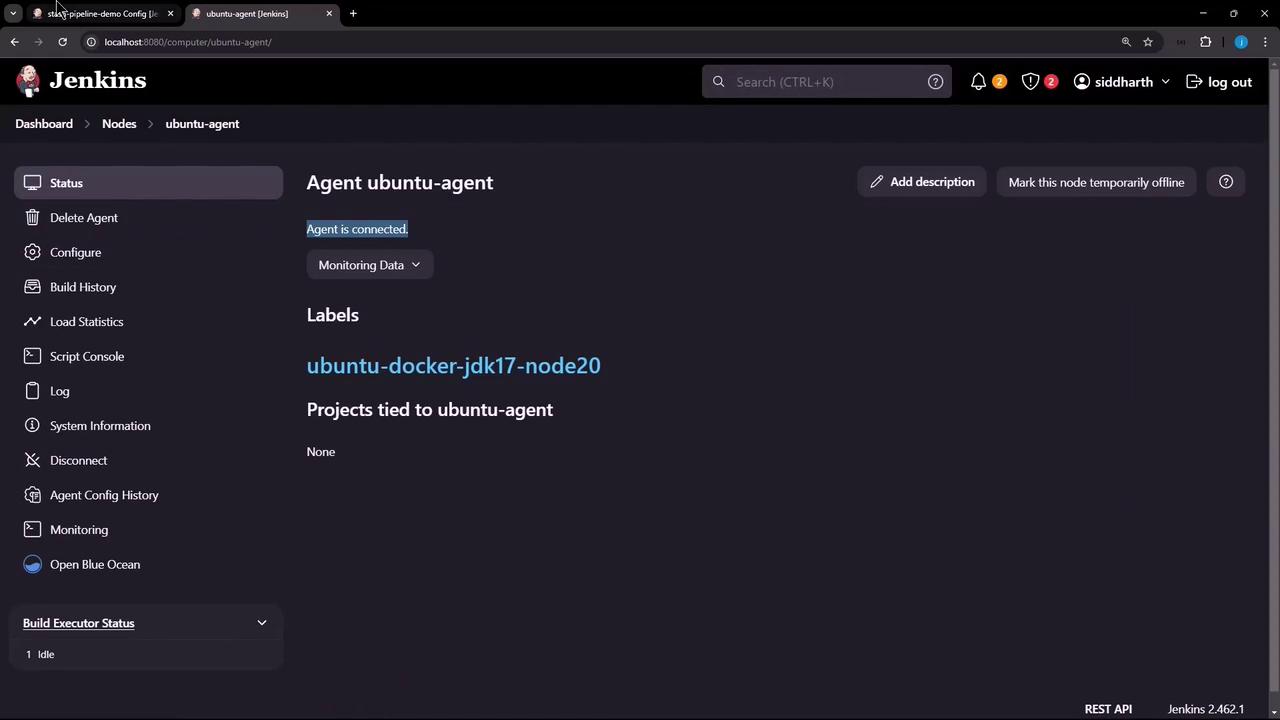

      agent { label 'ubuntu-docker-jdk17-node20' }
      steps {
        /* same script to generate quote.txt */
        sh 'cat quote.txt'
      }
    }
    stage('Display Motivational Quote') {
      steps {
        sh 'cat quote.txt'
        sh 'rm quote.txt'
      }
    }
  }
}

Run this build—the first stage completes on the Ubuntu agent, but the second fails because quote.txt doesn’t exist on the controller:

+ echo Generate Motivational Quote Success!
Generate Motivational Quote Success!
+ cat quote.txt
Success is not the key to happiness. Happiness is the key to success.
+ cat quote.txt
cat: quote.txt: No such file or directory

Sharing Files with stash/unstash

To transfer quote.txt from one agent to another, use the stash and unstash steps:

pipeline {
  agent any
  stages {
    stage('Generate Motivational Quote') {
      agent { label 'ubuntu-docker-jdk17-node20' }
      steps {
        /* generate quote.txt as before */
        stash name: 'quote', includes: 'quote.txt'
      }
    }
    stage('Display Motivational Quote') {
      steps {
        unstash 'quote'
        sh 'cat quote.txt'
        sh 'rm quote.txt'
      }
    }
  }
}

After running, you’ll see:

[Pipeline] stash
Stashed 1 file(s)
...
[Pipeline] unstash
[Pipeline] sh
+ cat quote.txt
The only way to do great work is to love what you do.
+ rm quote.txt

Restarting from a Later Stage

By default, restarting the pipeline at Display Motivational Quote fails since the stash from the previous run isn’t retained:

Stage "Generate Motivational Quote" skipped due to this build restarting at stage "Display Motivational Quote"
[Pipeline] unstash
ERROR: No such saved stash 'quote'
Finished: FAILURE

Preserving Stashes Across Builds

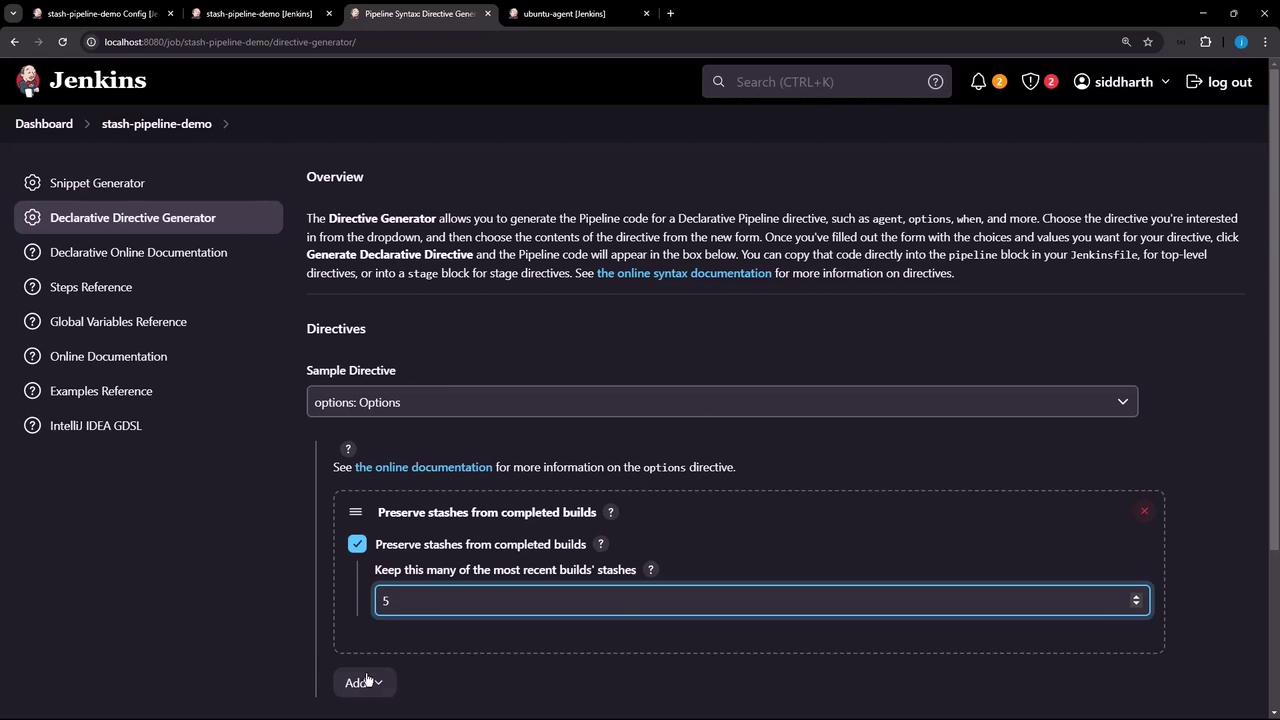

Use the preserveStashes option in your pipeline to keep stashes from recent builds. You can generate this snippet with the Declarative Directive Generator:

pipeline {
  agent any
  options {
    preserveStashes(buildCount: 5)
  }
  stages {
    stage('Generate Motivational Quote') {
      agent { label 'ubuntu-docker-jdk17-node20' }
      steps {
        /* generate and stash quote.txt */
      }
    }
    stage('Display Motivational Quote') {
      steps {
        unstash 'quote'
        sh 'cat quote.txt'
        sh 'rm quote.txt'
      }
    }
  }
}

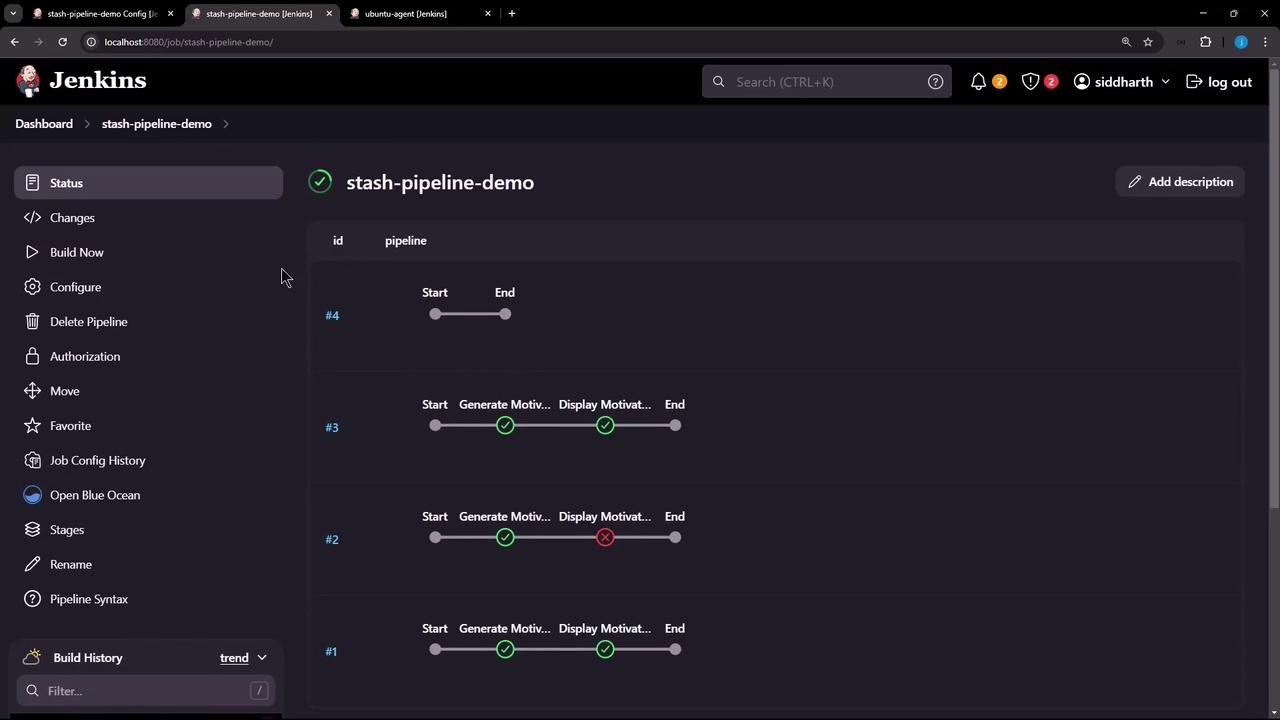

After a few runs, restart from Display Motivational Quote—it now succeeds:

+ cat quote.txt
Believe you can and you're halfway there.
+ rm quote.txt

With preserveStashes, you can confidently resume your Declarative pipelines without losing critical artifacts.

References

• Jenkins Pipeline Syntax
• stash step
• unstash step
• Declarative Pipeline Options
