Demo Scripted Pipeline K8S Agent

In this tutorial, we’ll show you how to run Jenkins scripted pipelines inside Kubernetes pods using podTemplate and node(POD_LABEL). This approach dynamically spins up isolated build environments, improving resource usage and build consistency.

Table of Contents

1. Scripted podTemplate Basics
2. Advanced Pod Template with Multiple Containers
3. Generating a podTemplate with Snippet Generator
4. Complete Scripted Pipeline Example
5. Observing Pod Creation and Logs
6. Common Pitfalls
7. Links and References

Scripted podTemplate Basics {#scripted-podtemplate-basics}

A minimal scripted pipeline using a Kubernetes agent:

podTemplate {
  node(POD_LABEL) {
    // pipeline steps...
  }
}

• podTemplate: Defines the pod configuration.
• node(POD_LABEL): Executes steps inside the dynamically created pod.

Advanced Pod Template with Multiple Containers {#advanced-pod-template}

You can run different build tools side by side. For example, a Maven container and a Golang container:

podTemplate(
  agentContainer: 'maven',
  agentInjection: true,
  containers: [
    containerTemplate(
      name: 'maven',
      image: 'maven:3.9.9-eclipse-temurin-17'
    ),
    containerTemplate(
      name: 'golang',
      image: 'golang:1.16.5',
      command: 'sleep',
      args: '99d'
    )
  ]
) {
  node(POD_LABEL) {
    stage('Build Maven Project') {
      git 'https://github.com/jenkinsci/kubernetes-plugin.git'
      container('maven') {
        sh 'mvn -B -ntp clean install'
      }
    }
    stage('Build Go Project') {
      git url: 'https://github.com/hashicorp/terraform.git', branch: 'main'
      container('golang') {
        sh '''
          mkdir -p /go/src/github.com/hashicorp
          ln -s `pwd` /go/src/github.com/hashicorp/terraform
          cd /go/src/github.com/hashicorp/terraform
          make
        '''
      }
    }
  }
}

This defines two containerTemplate entries and injects Maven as the default container.

Generating a podTemplate with Snippet Generator {#snippet-generator}

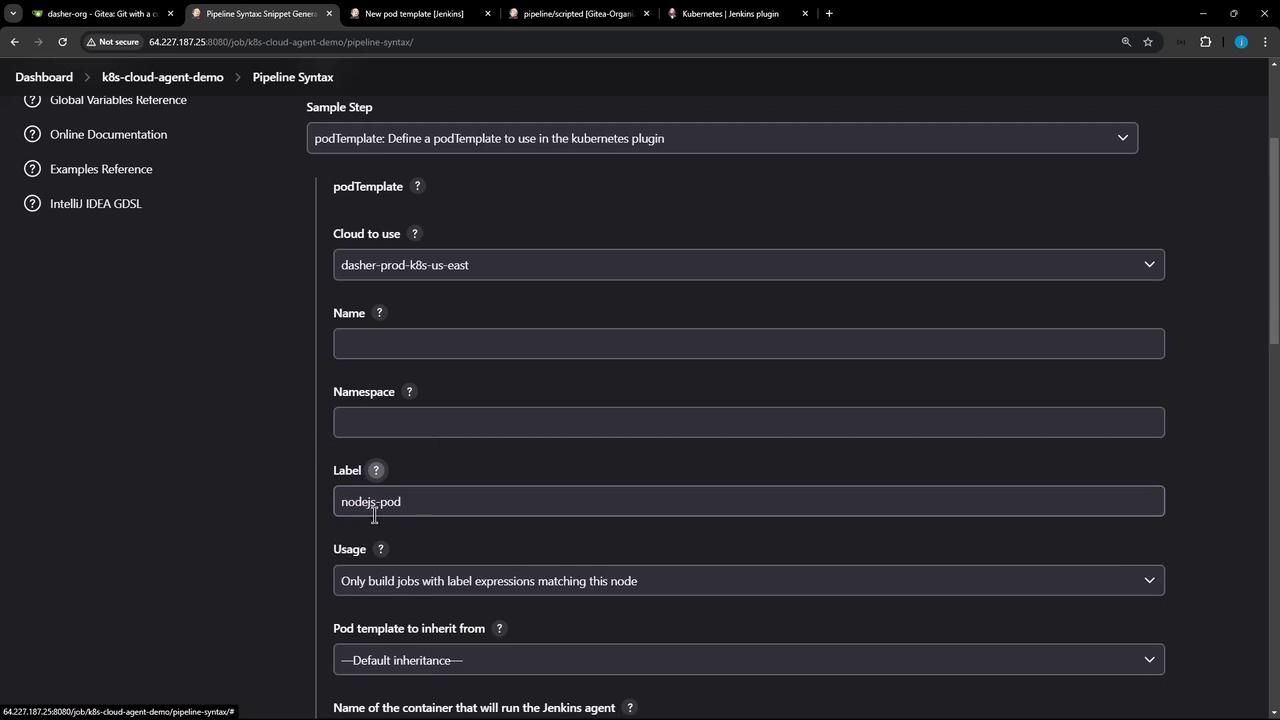

Use Jenkins’ Snippet Generator to bootstrap your podTemplate:

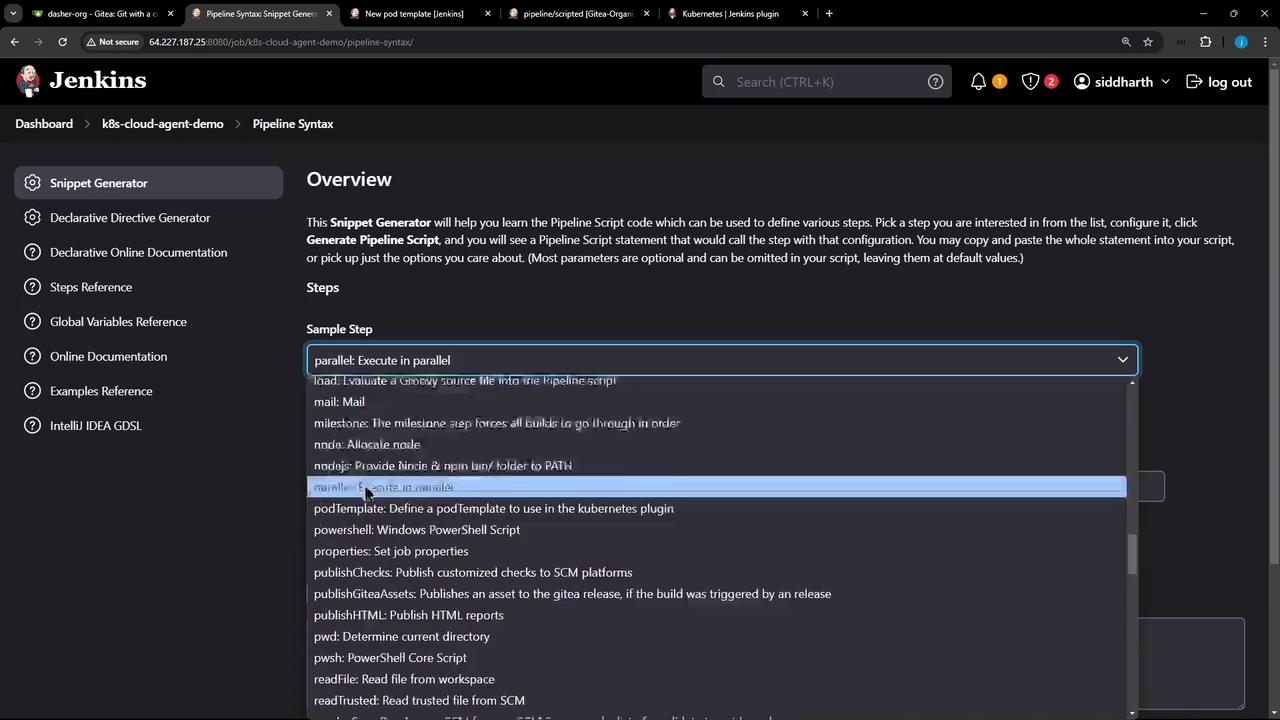

1. Go to Manage Jenkins ▶️ Snippet Generator
2. Select podTemplate under Sample Steps
3. Choose your Kubernetes cloud, then set:
   • Name (optional)
   • Namespace
   • Label (e.g., nodejs-pod)

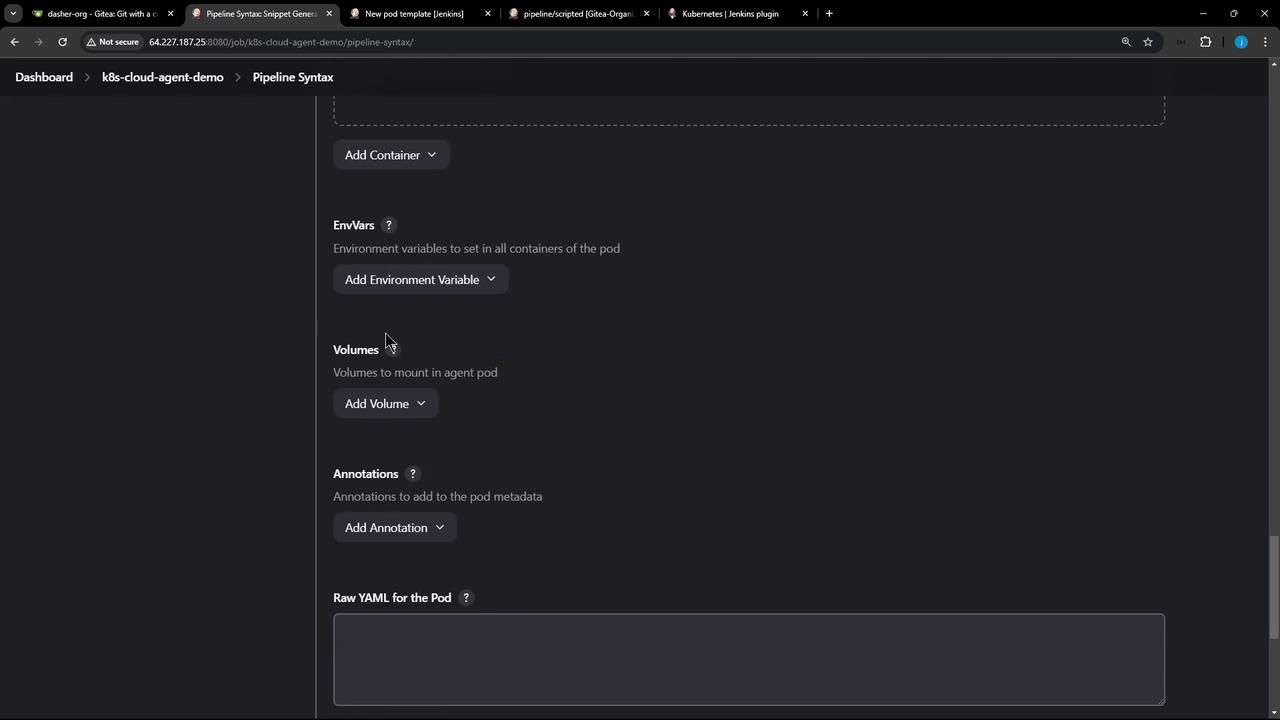

4. Click Add Container Template, and fill in:

Trim the generated block to include only necessary fields:

podTemplate(
  cloud: 'dasher-prod-k8s-us-east',
  label: 'nodejs-pod',
  containers: [
    containerTemplate(
      name: 'node-18',
      image: 'node:18-alpine',
      command: 'sleep',
      args: '9999999',
      privileged: true,
      ttyEnabled: true
    )
  ]
) {
  // your scripted pipeline here
}

Full Scripted Pipeline Example {#full-scripted-pipeline}

Here’s a complete Jenkinsfile mixing a static Ubuntu agent for checkout and dependency install, then a Kubernetes pod for unit tests:

node('ubuntu-docker-jdk17-node20') {
  // Setup environment
  env.NODEJS_HOME = tool('nodejs-22-6-0')
  env.PATH = "${env.NODEJS_HOME}/bin:${env.PATH}"
  env.MONGO_URI = "mongodb+srv://supercluster.d83jj.mongodb.net/superData"

  properties([])

  stage('Checkout') {
    checkout scm
  }

  wrap([$class: 'TimestampedBuildWrapper']) {
    stage('Install Dependencies') {
      cache(maxCacheSize: 550, caches: [
        arbitraryFileCache(
          cacheName: 'npm-dependency-cache',
          cacheValidityDecidingFile: 'package-lock.json',
          includes: ['**/*'],
          path: 'node_modules'
        )
      ])
      sh 'node -v'
      sh 'npm install --no-audit'
      stash includes: 'node_modules/', name: 'npm-cache'
    }
  }

  stage('Unit Testing') {
    podTemplate(
      cloud: 'dasher-prod-k8s-us-east',
      label: 'nodejs-pod',
      containers: [
        containerTemplate(
          name: 'node-18',
          image: 'node:18-alpine',
          command: 'sleep',
          args: '9999999',
          privileged: true,
          ttyEnabled: true
        )
      ]
    ) {
      node('nodejs-pod') {
        container('node-18') {
          checkout scm
          unstash 'npm-cache'
          withCredentials([usernamePassword(
            credentialsId: 'mongo-db-credentials',
            usernameVariable: 'MONGO_USERNAME',
            passwordVariable: 'MONGO_PASSWORD'
          )]) {
            sh 'node -v'
            sh 'npm test'
          }
        }
      }
    }
  }
}

Commit and push:

git checkout -b pipeline/scripted
git add Jenkinsfile
git commit -m "Add scripted pipeline with Kubernetes pod for unit tests"
git push -u origin pipeline/scripted

Observing Pod Creation and Logs {#observing-pods}

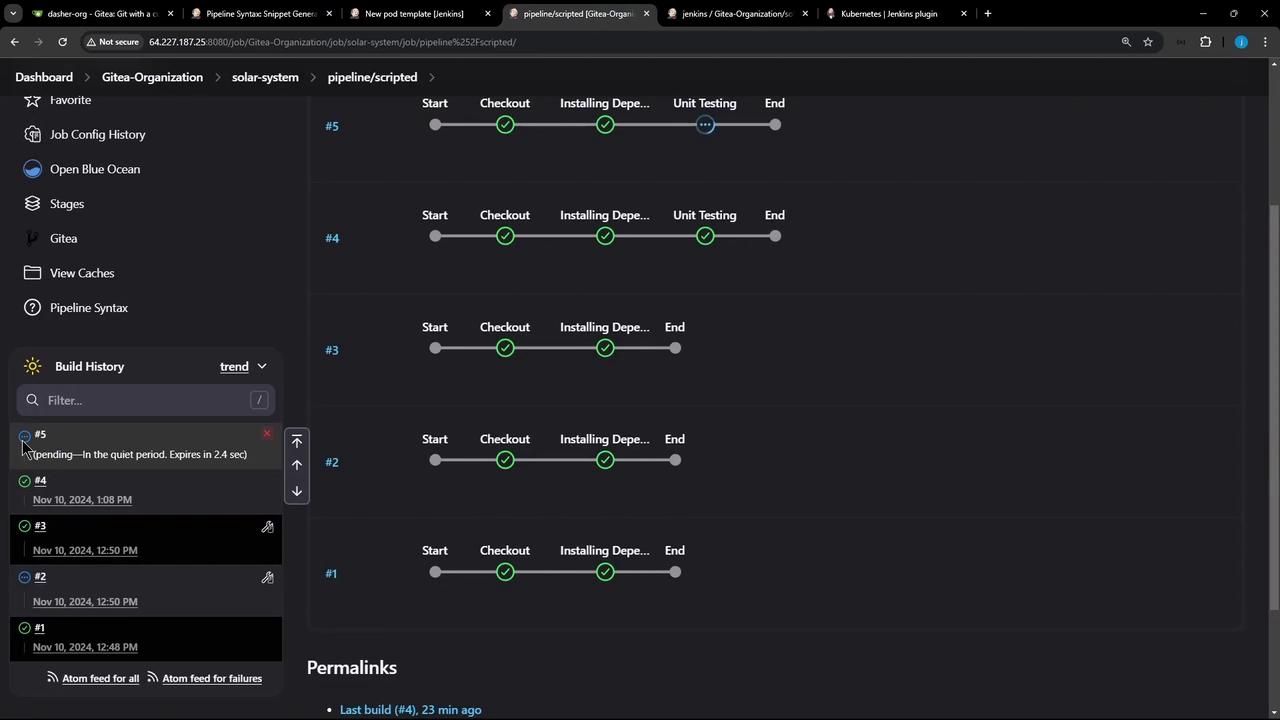

Once the pipeline runs, the nodejs-pod appears in Blue Ocean or the classic UI:

Inspect the generated pod YAML in the console log:

[Pipeline] { (Unit Testing)
[Pipeline] node
Created pod: dasher-prod-k8s-us-east jenkins/nodejs-pod-xxxxx-yyyyy
...
spec:
  containers:
    - name: node-18
      image: node:18-alpine
      command: ["sleep"]
      args: ["9999999"]
      securityContext:
        privileged: true
      tty: true
      volumeMounts:
        - mountPath: "/home/jenkins/agent"
          name: "workspace-volume"

Common Pitfalls {#common-pitfalls}

1. Missing checkout scm inside the node('nodejs-pod') block results in an empty workspace.
2. Always stash and unstash dependencies when switching agents (e.g., node_modules).
3. Verify container images include all required tools (Node.js, Mongo CLI, etc.).
