In this tutorial, you’ll learn how to set up a basic Jenkins pipeline for the Solar System repository. We’ll add a Jenkinsfile at the repo root, push it in a feature branch, and let Jenkins automatically detect and run the pipeline via webhooks.

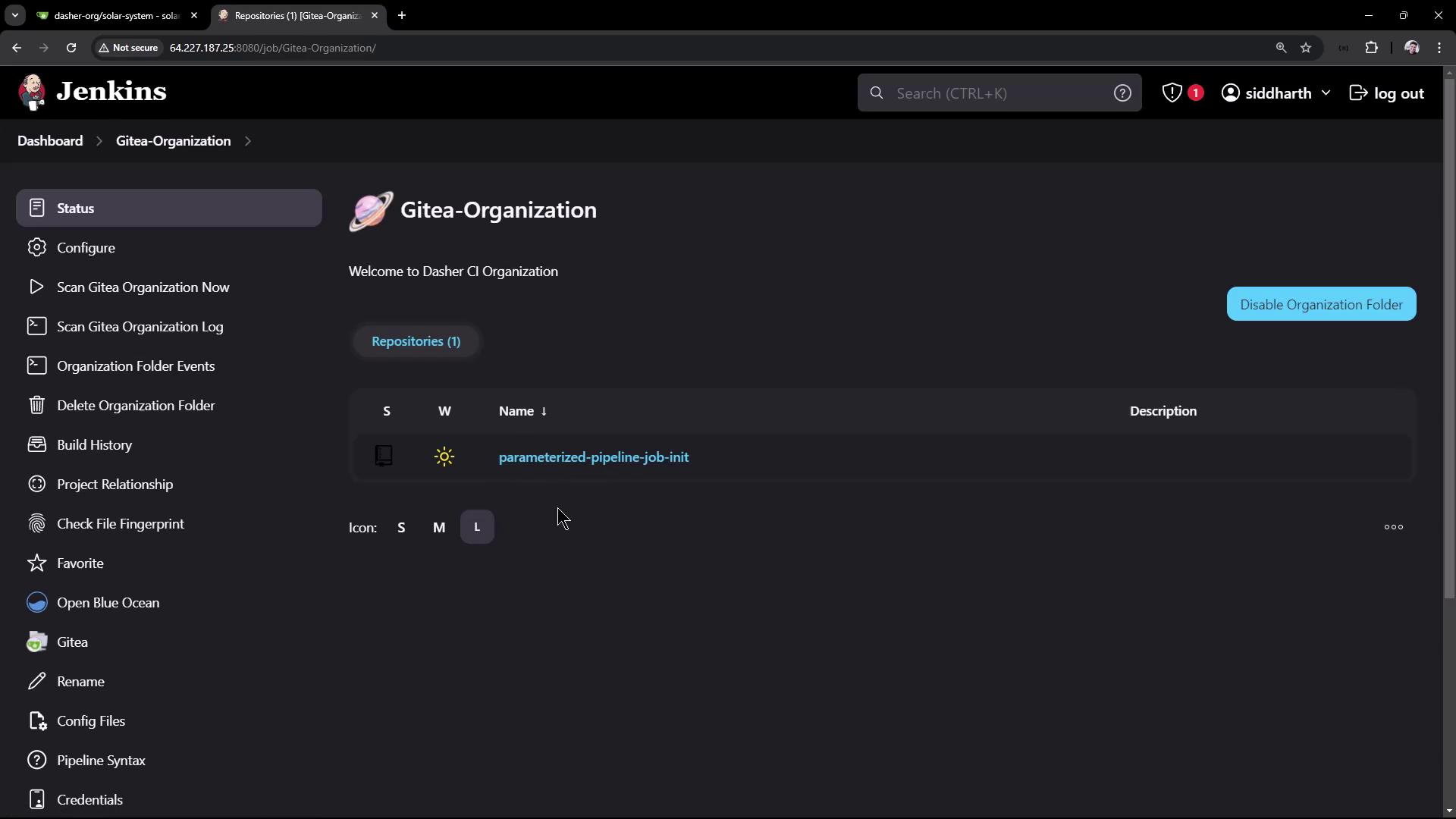

The image shows a Jenkins dashboard for a Gitea organization, displaying options like configuring, scanning, and managing repositories. A specific repository named "parameterized-pipeline-job-init" is listed.
  • A running Jenkins instance with the Gitea plugin installed.
  • A Gitea organization folder configured in Jenkins.
  • Access to your Gitea server and the Solar System repository.

​
Why the Solar System Repo Isn’t Yet in Jenkins

By default, Jenkins scans your Gitea organization folder for repositories containing a Jenkinsfile. Since Solar System has no pipeline file or webhooks configured, it won’t appear in Jenkins:

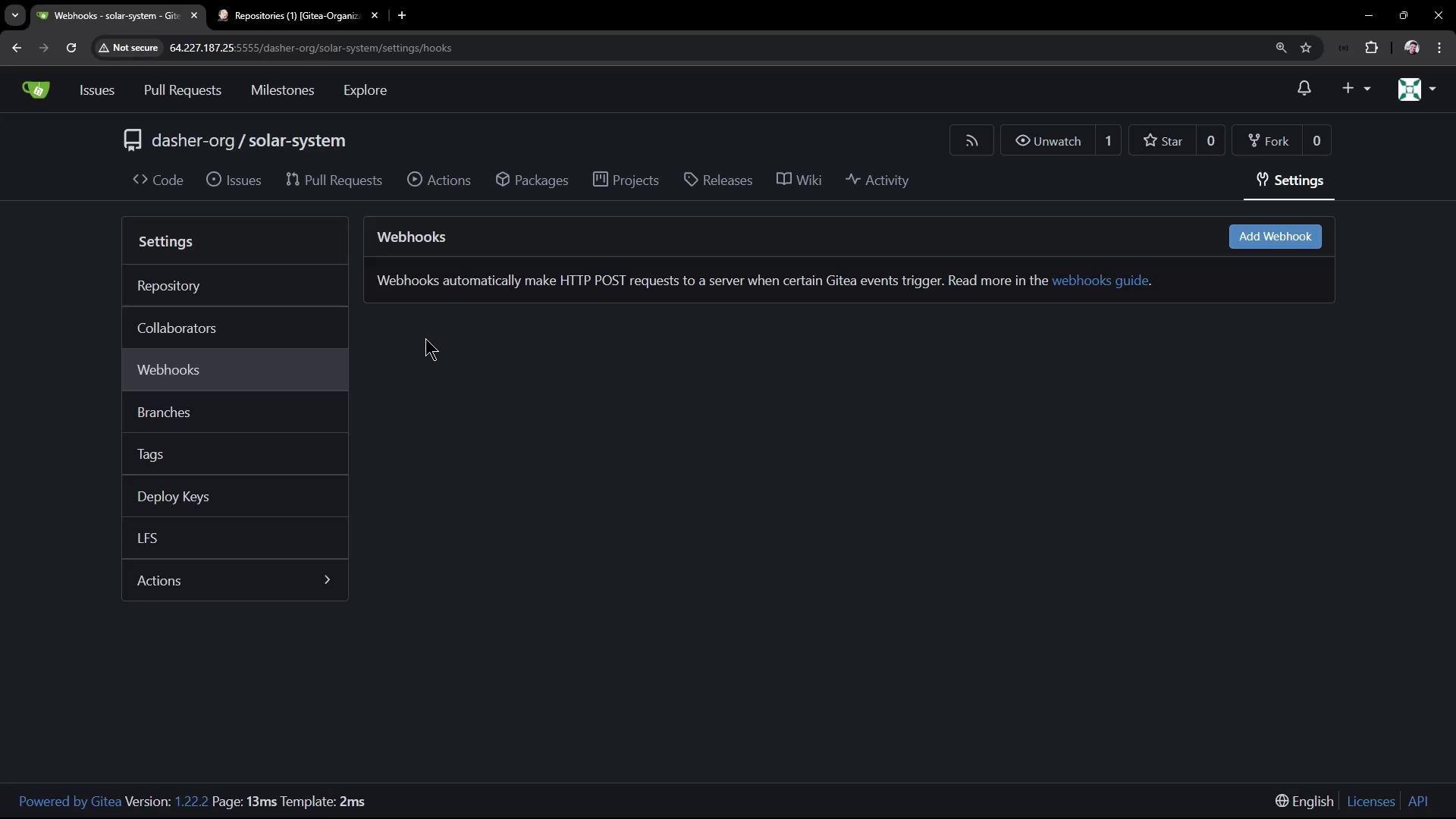

The image shows a Gitea web interface focused on the "Webhooks" settings page for a repository named "solar-system." It includes options for adding webhooks and a sidebar with various repository settings.

​
1. Clone and Create a Feature Branch

Start by cloning the repo and creating a branch for CI/CD:
git clone <YOUR_SPRINGBOARD_GITEA_URL>/your-org/solar-system.git
cd solar-system
git checkout -b feature/enabling-cicd

​
2. Add a Basic Jenkinsfile

Open the project in your editor:

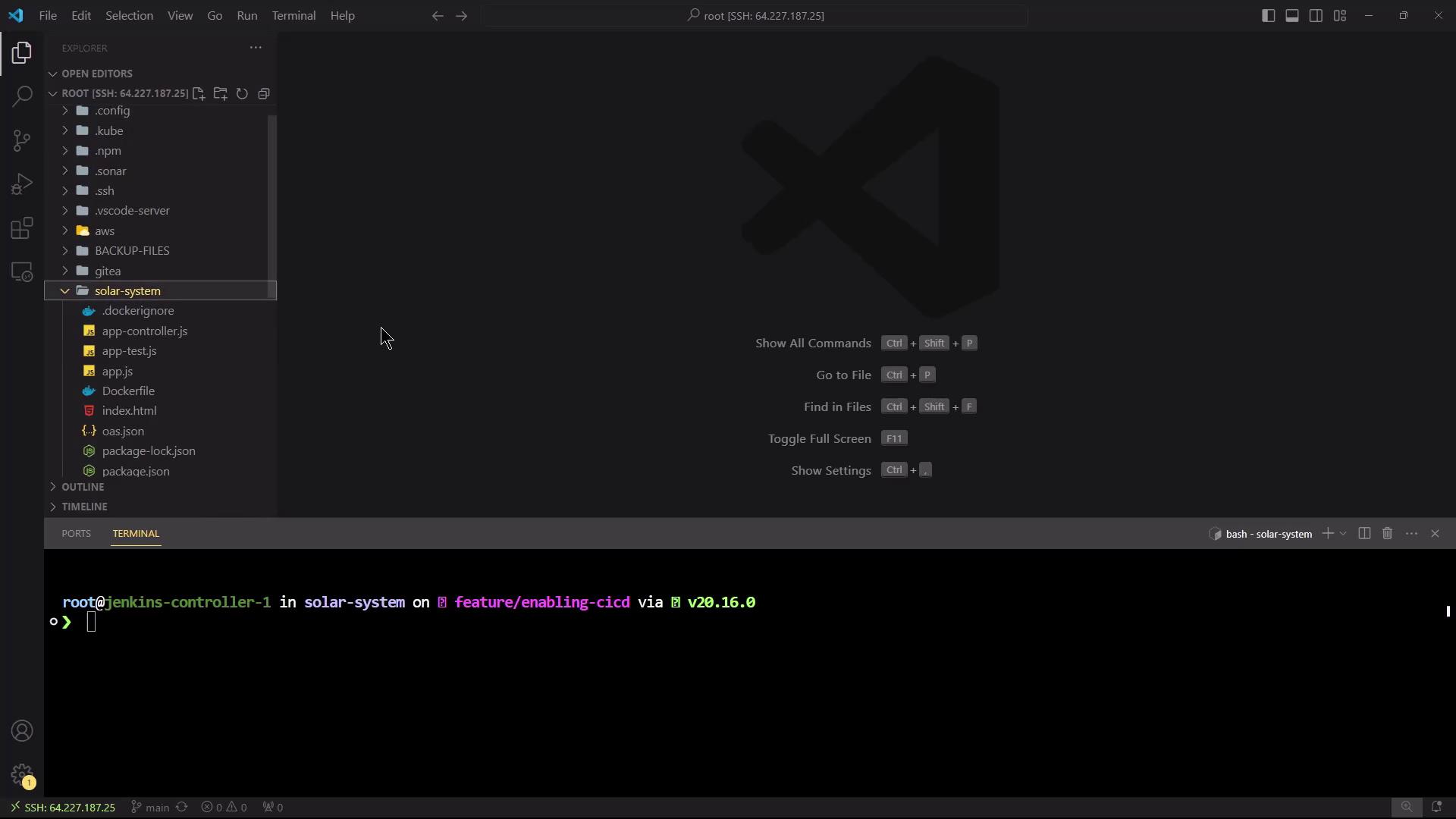

The image shows a Visual Studio Code interface with a file explorer on the left, displaying a project directory named "solar-system," and a terminal at the bottom with a command prompt.
Create a file named Jenkinsfile in the repository root:
pipeline {
  agent any

  stages {
    stage('VM Node Version') {
      steps {
        sh '''
          node -v
          npm -v
        '''
      }
    }
  }
}
This declarative pipeline runs on any agent and has one stage that prints the Node.js and npm versions. Commit and push:
git add Jenkinsfile
git commit -m "Add Jenkinsfile for basic pipeline"
git push --set-upstream origin feature/enabling-cicd

​
3. Confirm Branch and Webhooks in Gitea

After pushing, head to Gitea to verify your branch and watch Jenkins webhooks auto-generate:

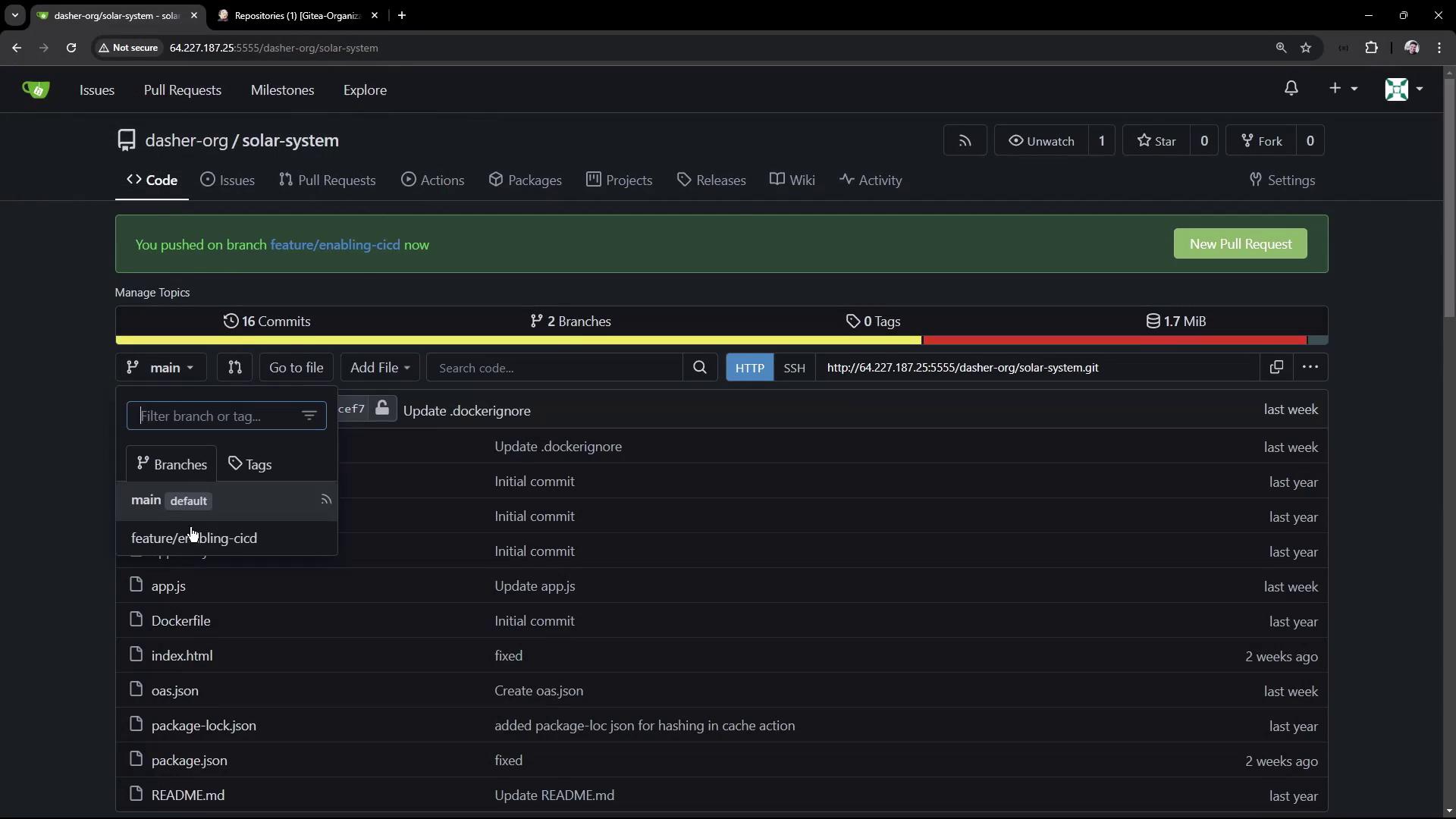

The image shows a Git repository interface with branches and commit history displayed. The "feature/enabling-cicd" branch is currently selected, and there are options to switch branches or view commit details.
You should see two new webhooks for Jenkins delivery:

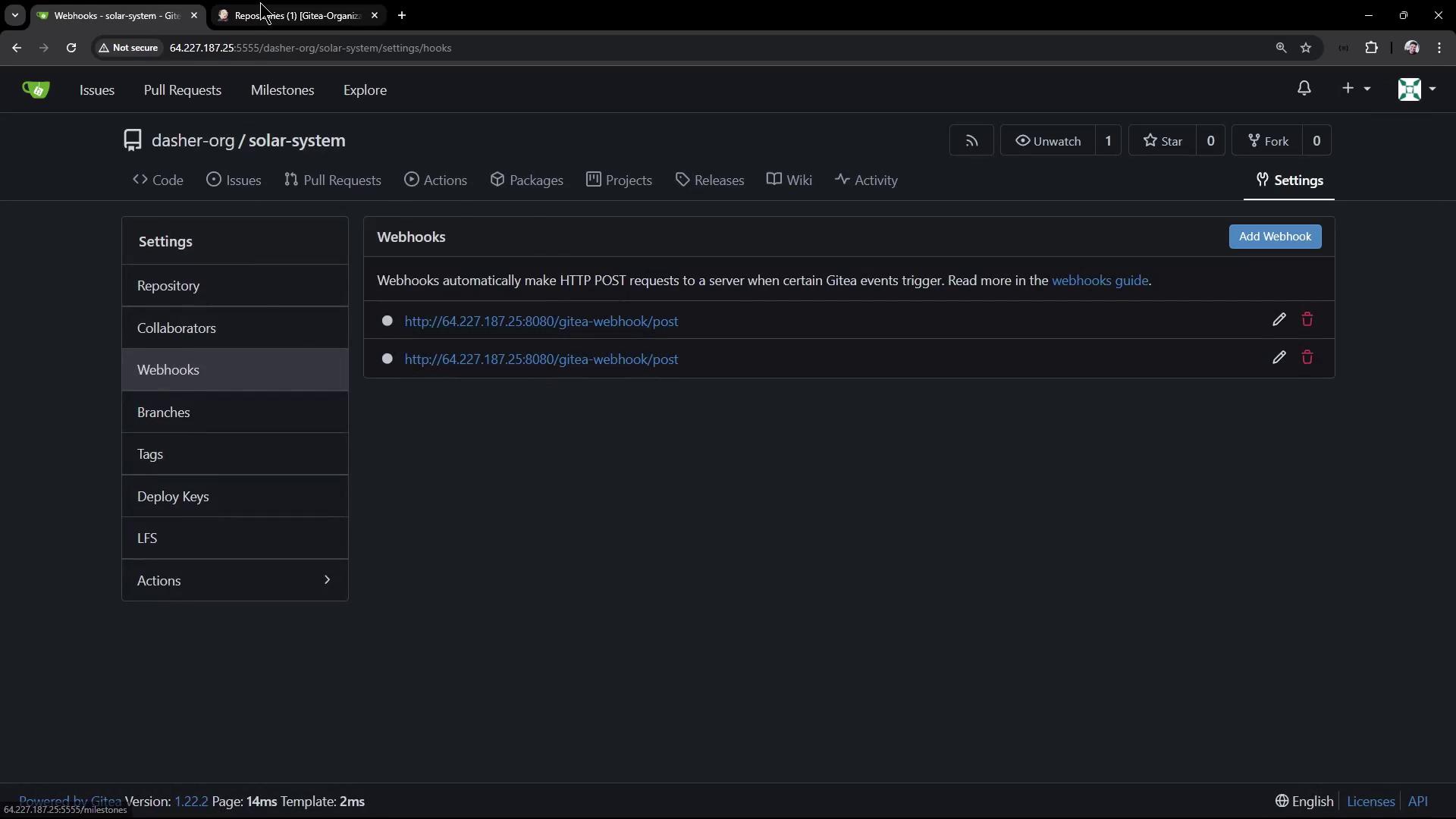

The image shows a Gitea repository settings page focused on webhooks, with two webhook URLs listed. The interface includes options for adding, editing, and deleting webhooks.

​
4. Trigger a Jenkins Scan

Jenkins periodically scans the organization folder for new repositories or branches. You can also kick off a manual scan:

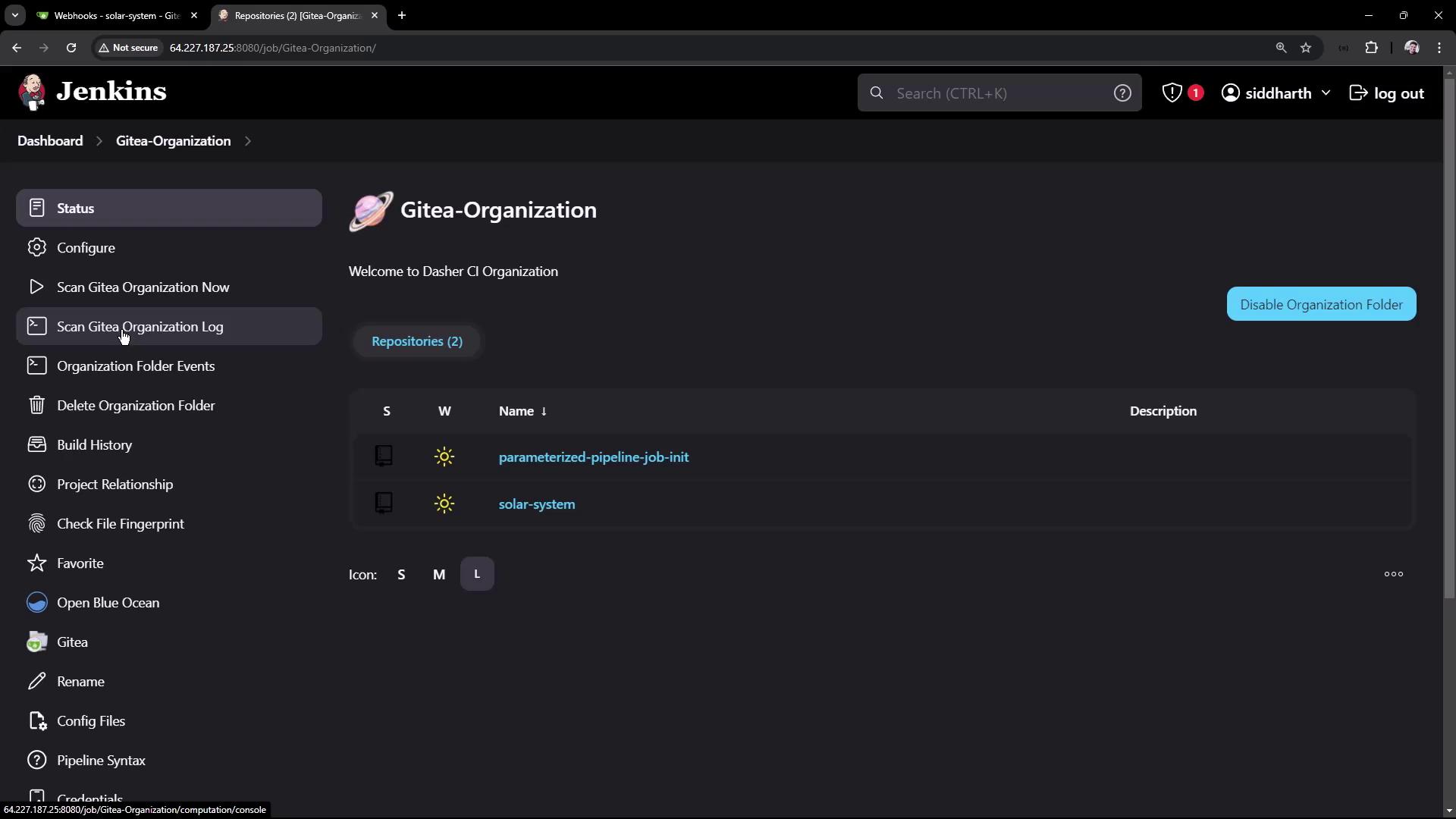

The image shows a Jenkins dashboard for a Gitea organization, displaying options like "Scan Gitea Organization Log" and listing repositories such as "parameterized-pipeline-job-init" and "solar-system."
Once scanned, you’ll see the feature/enabling-cicd branch:

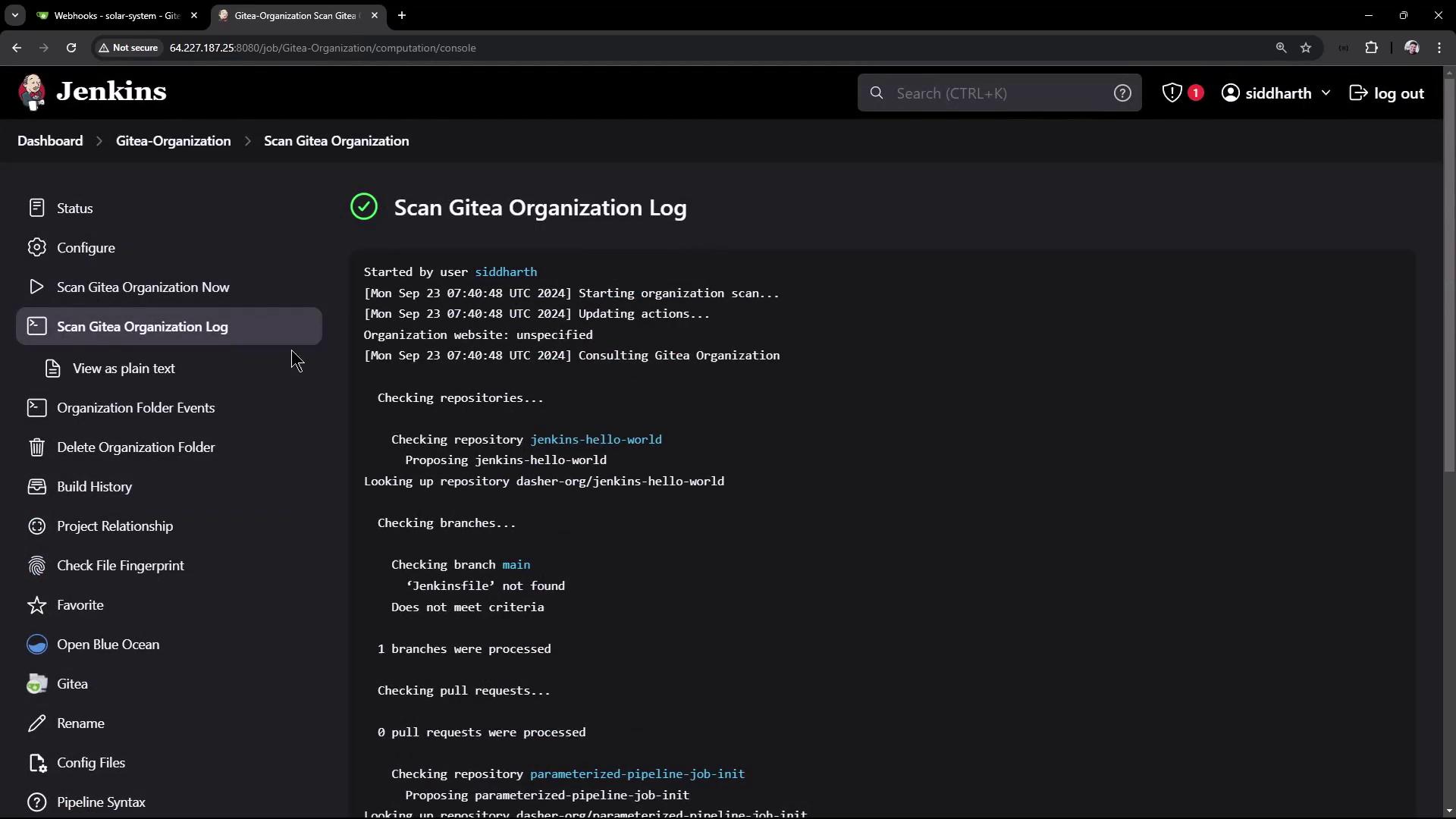

The image shows a Jenkins interface displaying a log for scanning a Gitea organization, detailing repository and branch checks.

​
5. View the Multibranch Pipeline

Jenkins creates a multibranch job for solar-system:

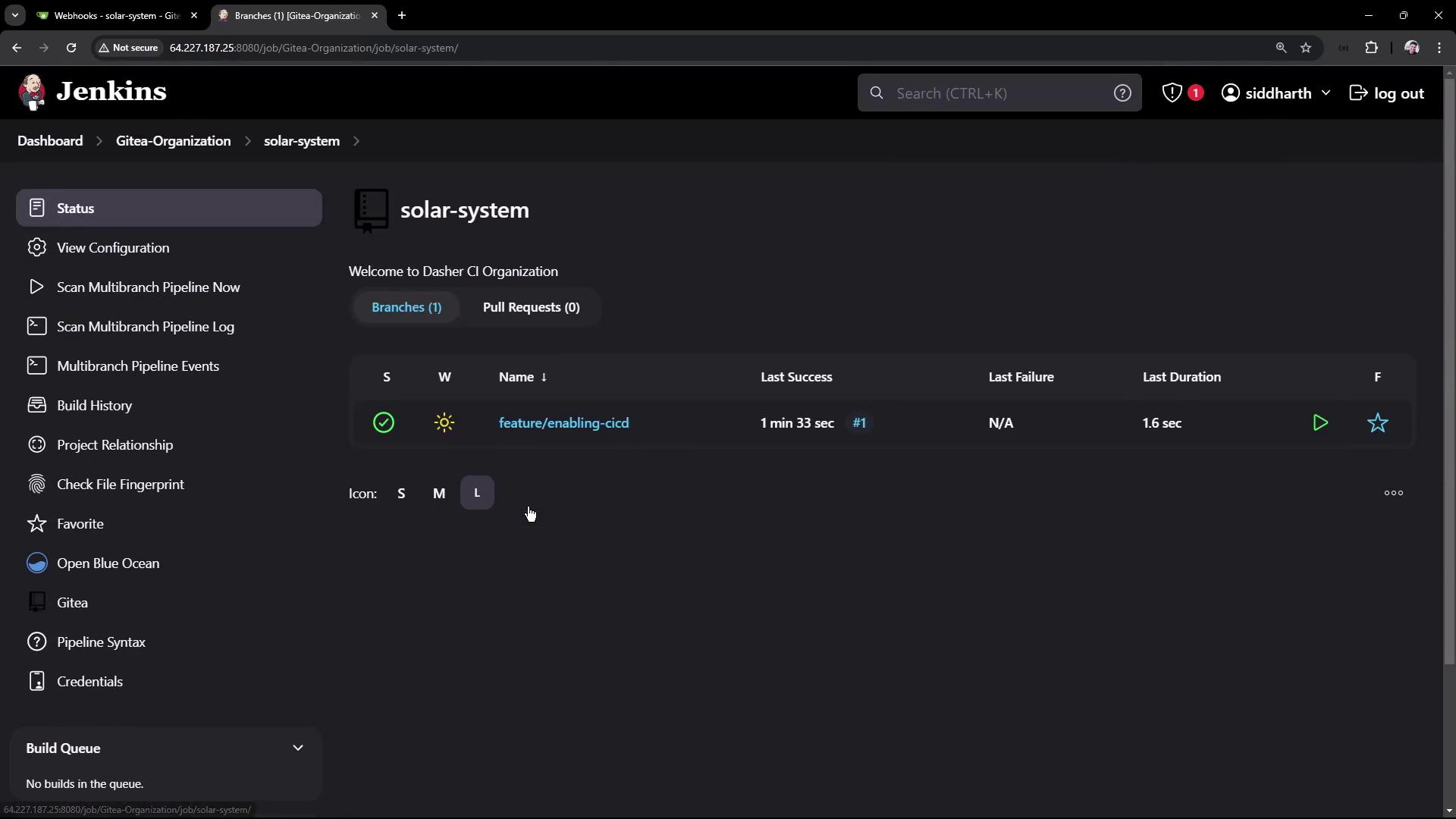

The image shows a Jenkins dashboard for a project named "solar-system," displaying the status of a branch called "feature/enabling-cicd" with details about the last successful build.
Click on the build to inspect stages:

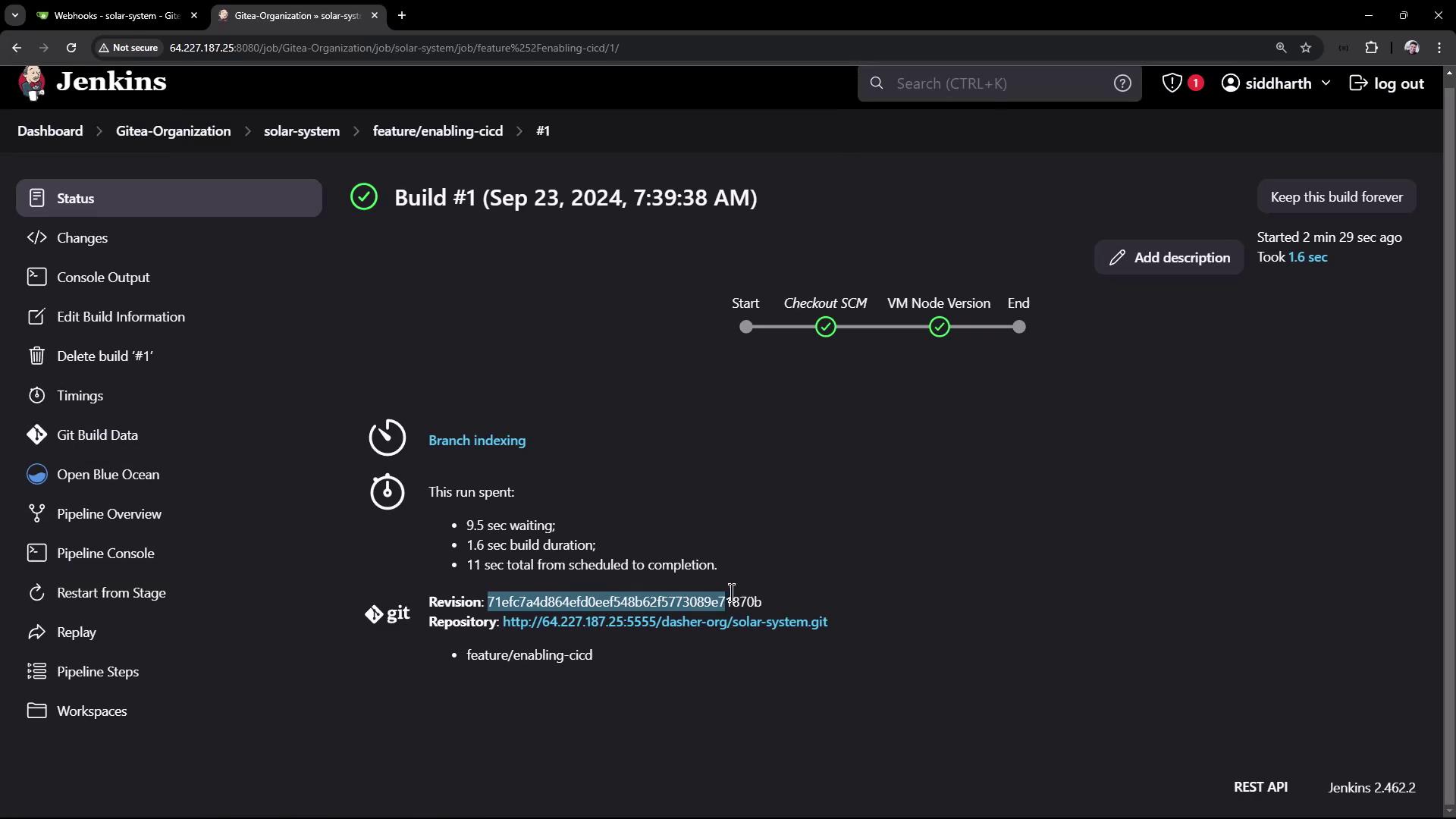

The image shows a Jenkins build interface for "Build #1" with details about the build process, including timing and repository information. The build is marked as successful with a green checkmark.
You can also view the pipeline overview:

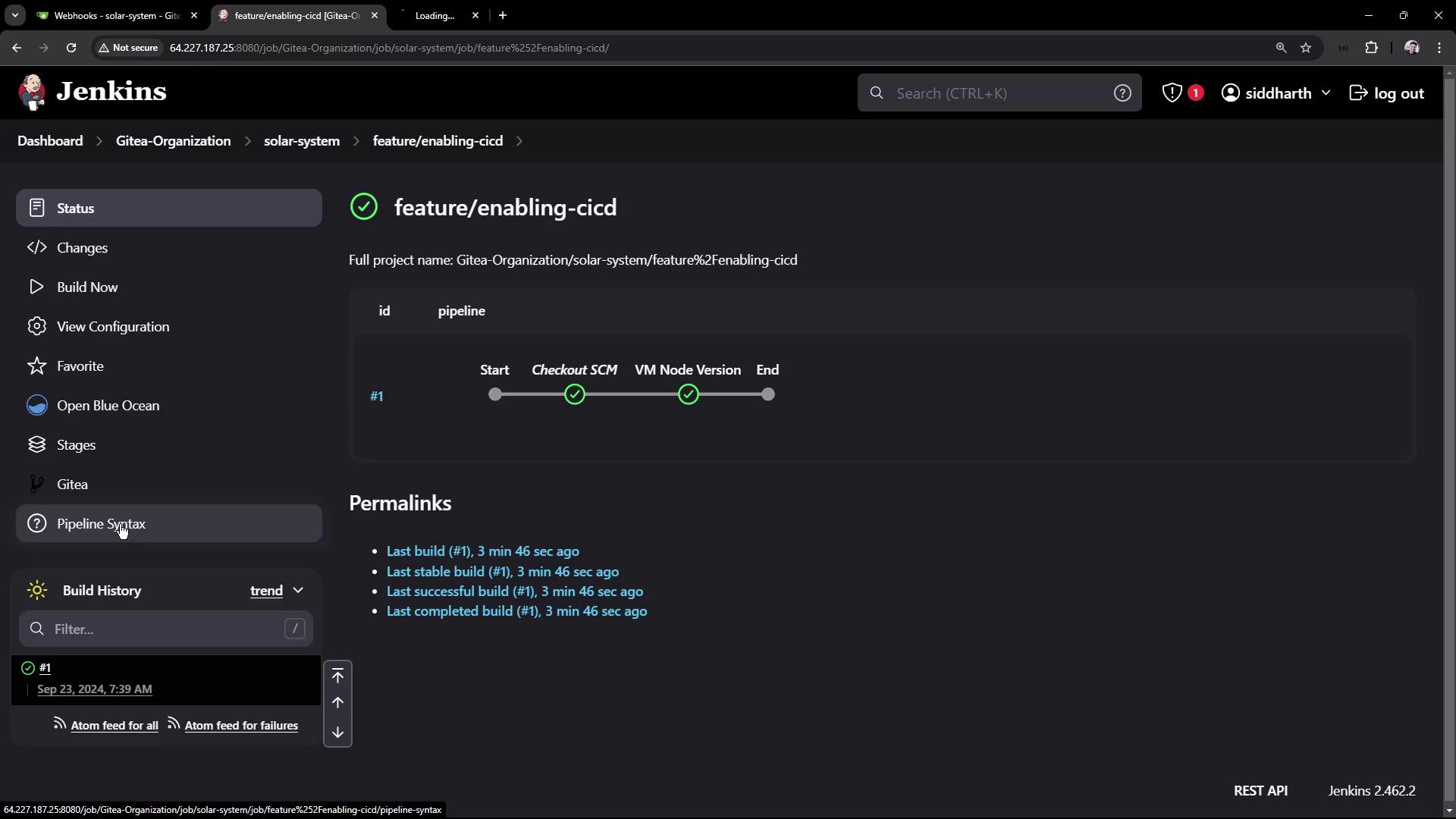

The image shows a Jenkins dashboard displaying the status of a CI/CD pipeline for a project named "feature/enablingcicd," with stages like "Checkout SCM" and "VM Node Version" marked as completed.

​
Pipeline Stages Overview

Stage NamePurposeScript
Checkout SCMClone the repositoryImplicit in Declarative
VM Node VersionDisplay Node.js and npm versionsnode -v
npm -v

​
6. Use a Jenkins-Managed Node.js Tool

By default, the pipeline uses the host’s Node.js. To leverage a managed tool:
  1. In Jenkins, go to Pipeline Syntax → Declarative Directive Generator.
  2. Select tools and pick your Node.js installation (e.g., nodejs-22-6-0).
  3. Copy the snippet and update your Jenkinsfile:
pipeline {
  agent any

  tools {
    nodejs 'nodejs-22-6-0'
  }

  stages {
    stage('VM Node Version') {
      steps {
        sh '''
          node -v
          npm -v
        '''
      }
    }
  }
}
Commit and push the change:
git add Jenkinsfile
git commit -m "Use Jenkins-managed Node.js tool"
git push
Jenkins will automatically run a new build with the managed Node.js:

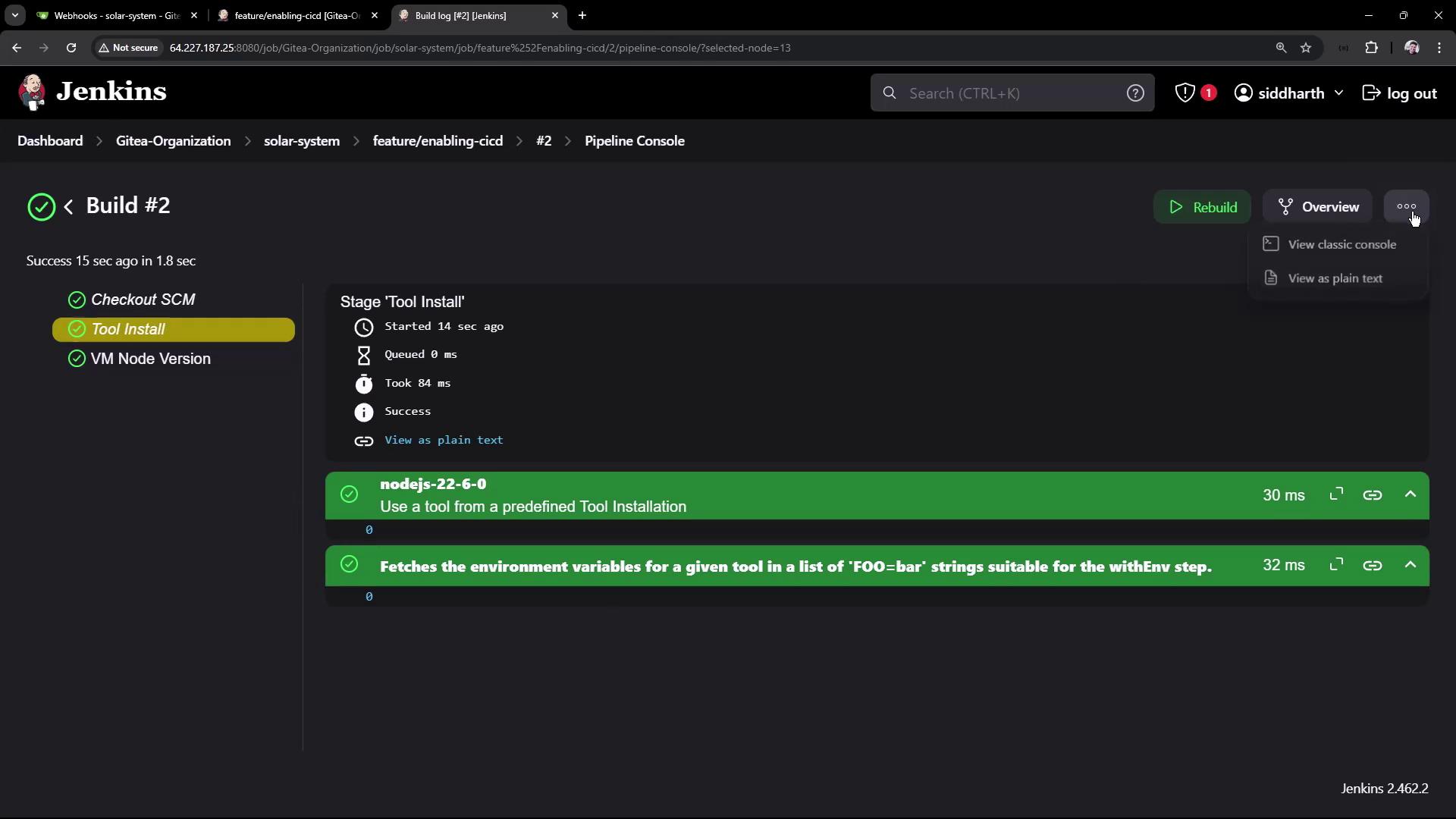

The image shows a Jenkins build interface displaying the successful completion of a build process with stages like "Checkout SCM," "Tool Install," and "VM Node Version." The "Tool Install" stage details the installation of Node.js and fetching environment variables.
+ node -v
v22.6.0
+ npm -v
10.8.2

​
Conclusion

You’ve now:
  • Added a Jenkinsfile to the Solar System repo
  • Created webhooks in Gitea
  • Triggered Jenkins to scan and build your feature branch
  • Configured Jenkins to use a managed Node.js tool
Next, you can extend this pipeline with dependency installation, unit tests, and deployment stages.
