Demo Create Organization Folder Project

In this step-by-step tutorial, you'll learn how to use Jenkins' Organization Folder project type with Gitea-hosted repositories. You'll:

1. Migrate a GitHub repository to Gitea
2. Install and configure the Gitea plugin in Jenkins
3. Create and configure an Organization Folder
4. Observe automatic multibranch pipeline creation and webhook-triggered builds

1. Migrate the Solar System Repository to Gitea

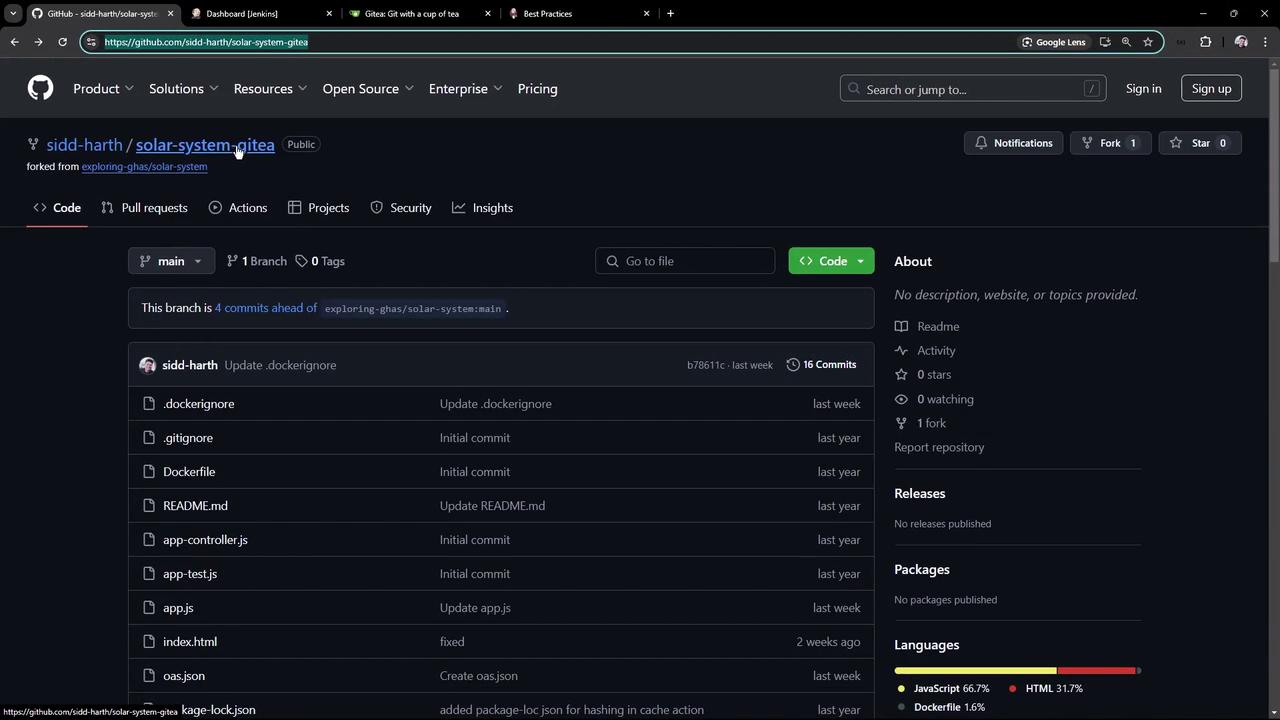

First, copy the clone URL of the Solar System repository from GitHub:

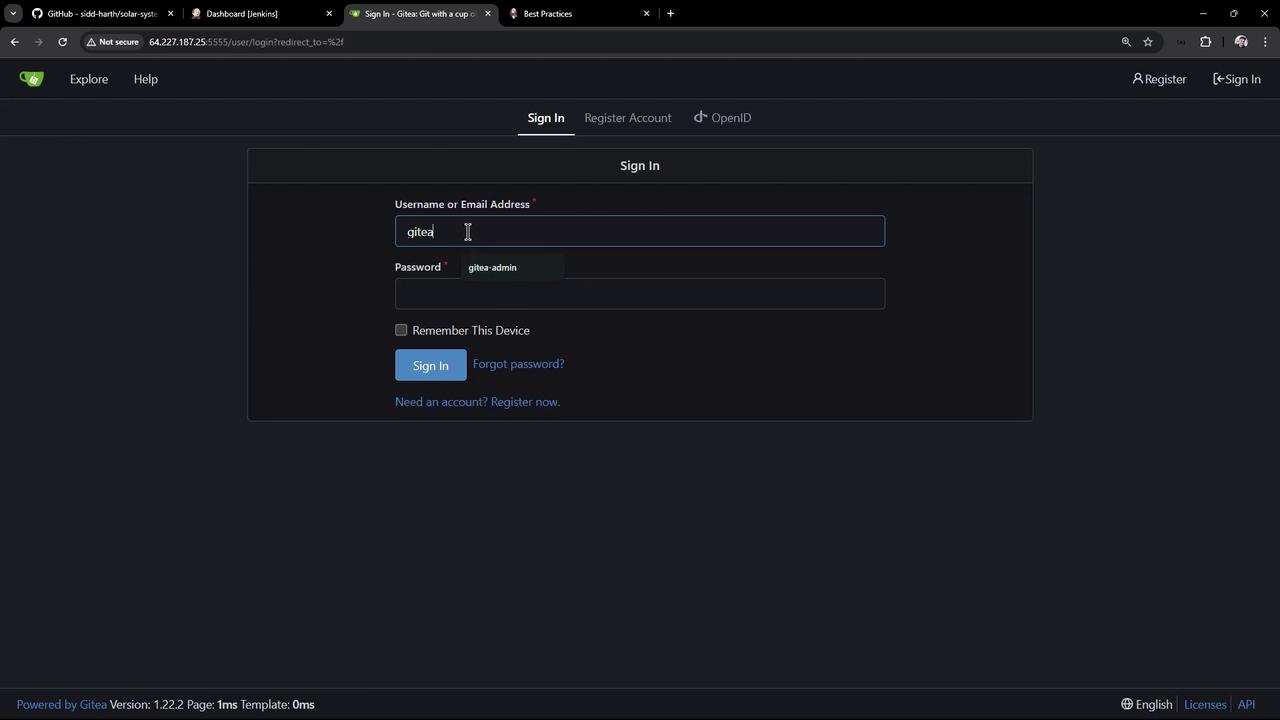

Sign in to your Gitea instance:

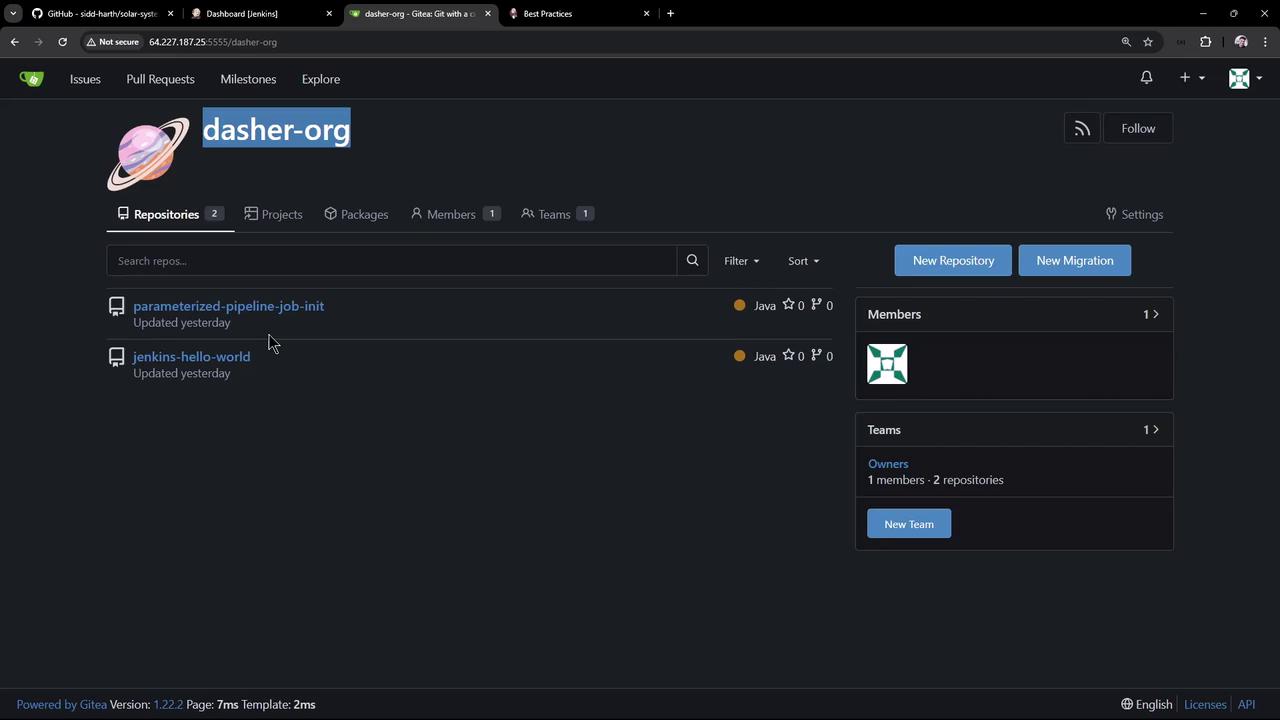

Go to your organization (e.g., dasher-org) and click + → New Migration:

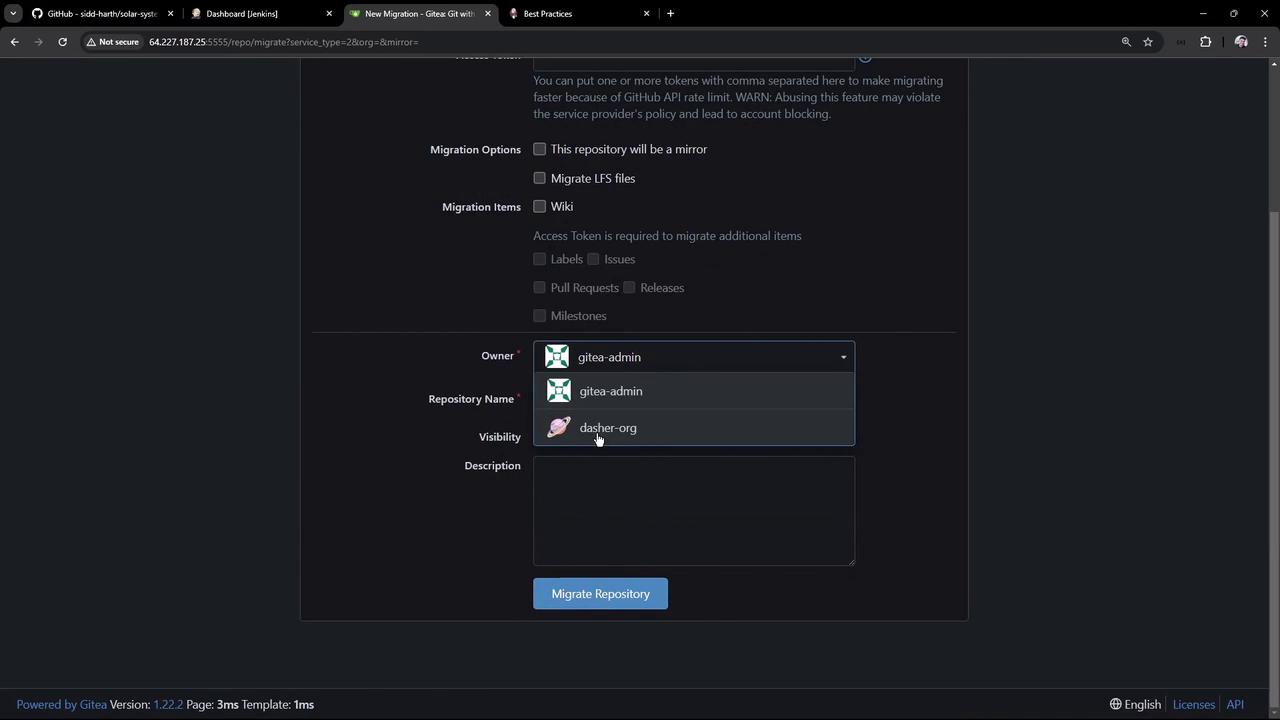

Paste the GitHub URL, set the owner to dasher-org, and name the repo solar-system:

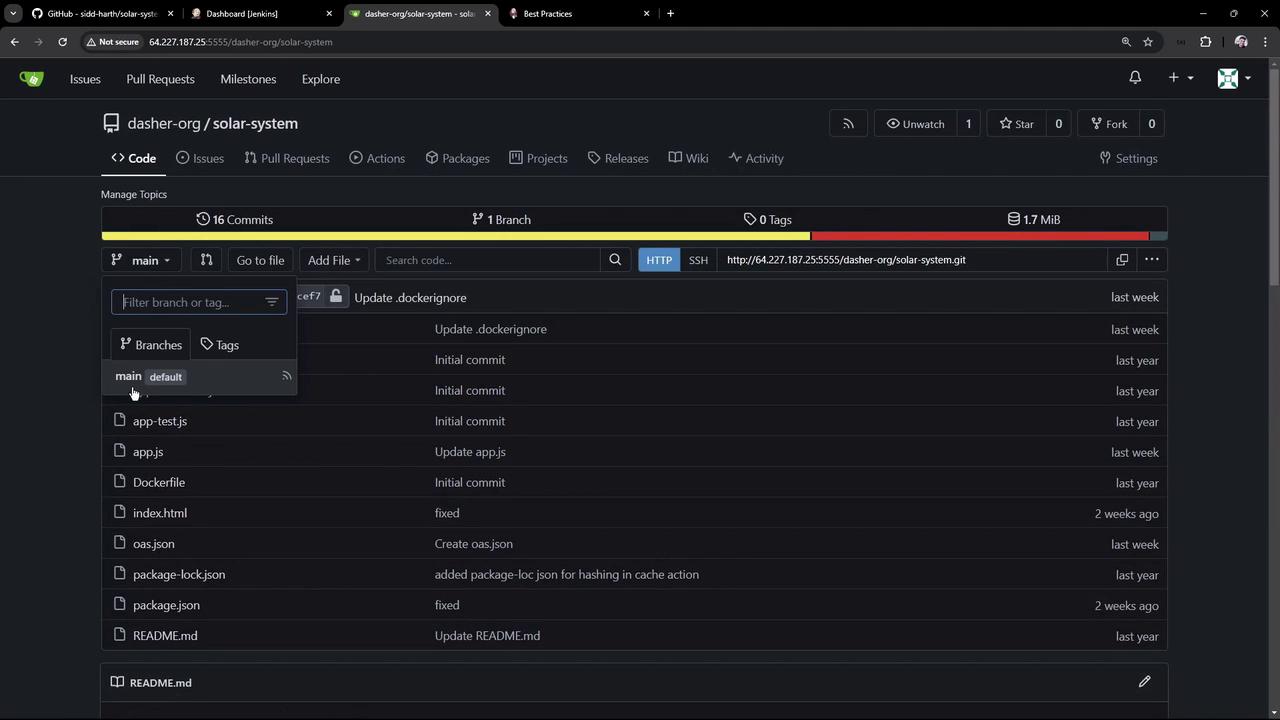

Once migration completes, verify the new repository by visiting its Gitea page:

2. Why Use an Organization Folder?

Manually creating a separate Pipeline job for each repository or branch can quickly become a maintenance headache. With the Organization Folder, Jenkins automatically scans your SCM, creates or removes jobs based on your configuration, and keeps everything in sync.

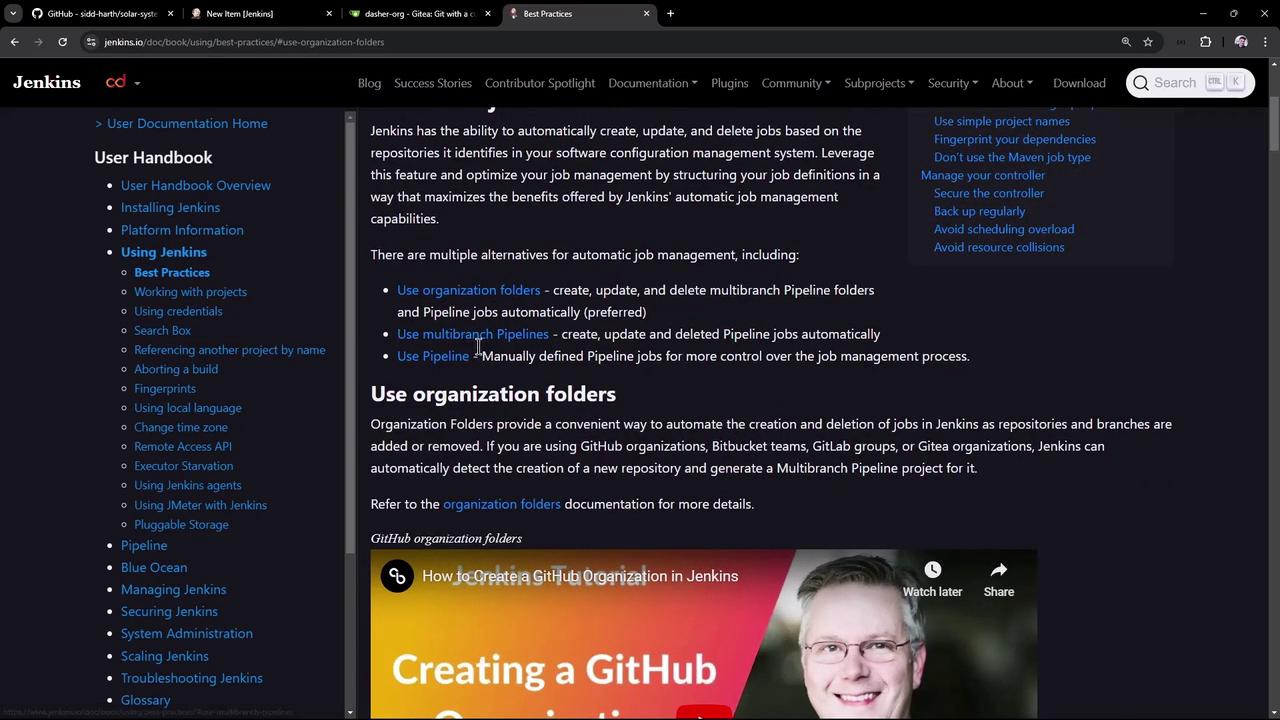

For further details, see the Jenkins documentation:

3. Create an Organization Folder in Jenkins

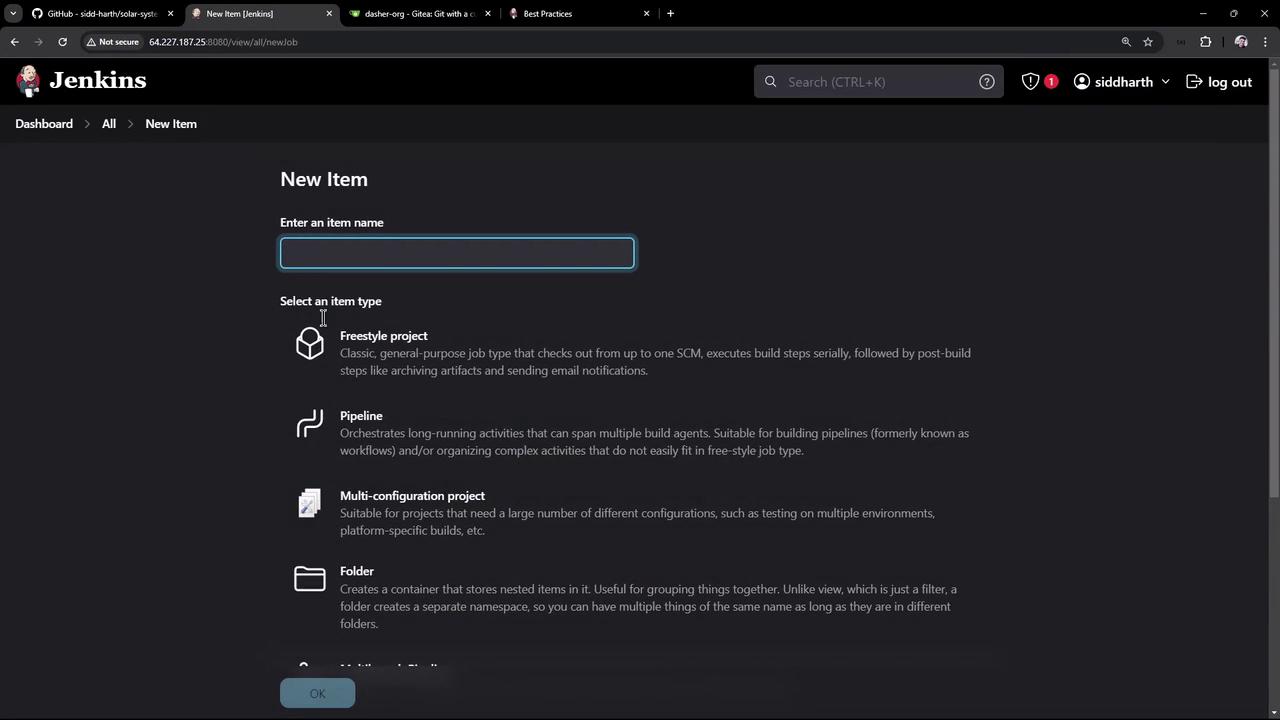

1. From the Jenkins dashboard, click New Item.
2. Enter GitHub Organization (or any descriptive name).
3. Select Organization Folder and click OK:

4. Install and Configure the Gitea Plugin

Install the Plugin

1. Navigate to Manage Jenkins → Manage Plugins.

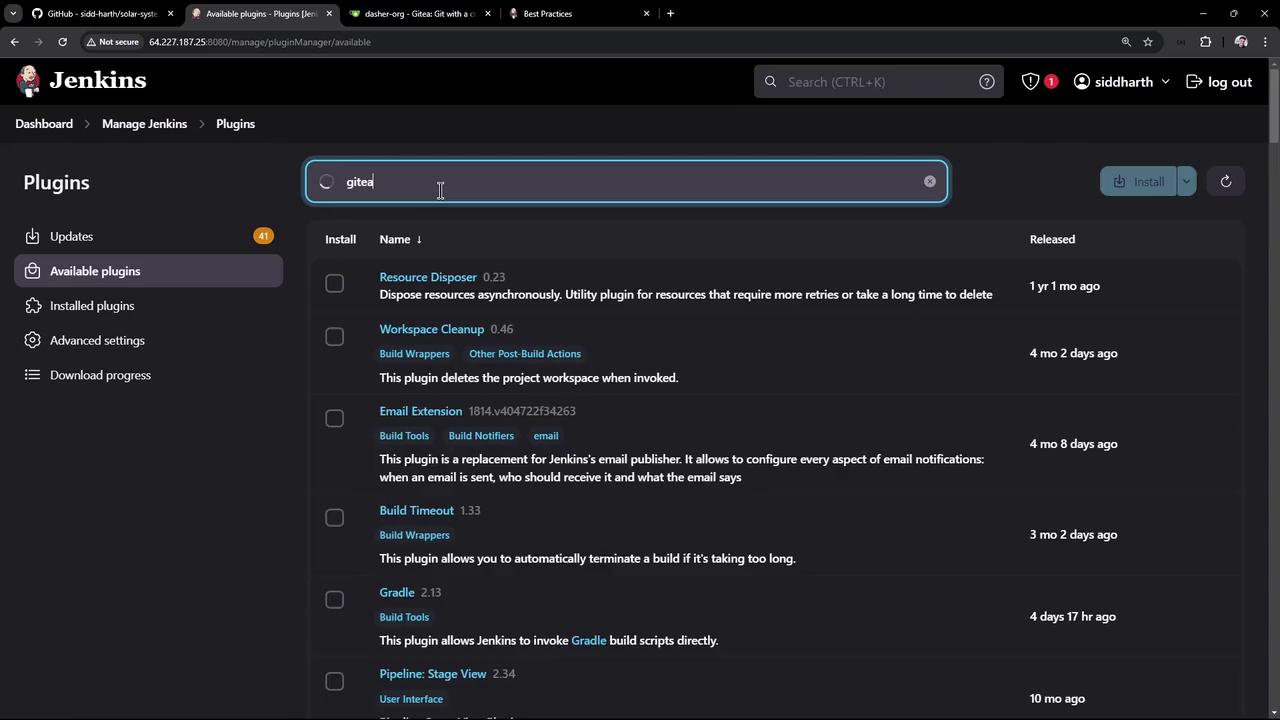

2. In the Available tab, search for Gitea plugin.
3. Select and install it, checking Restart Jenkins when installation is complete and no jobs are running:

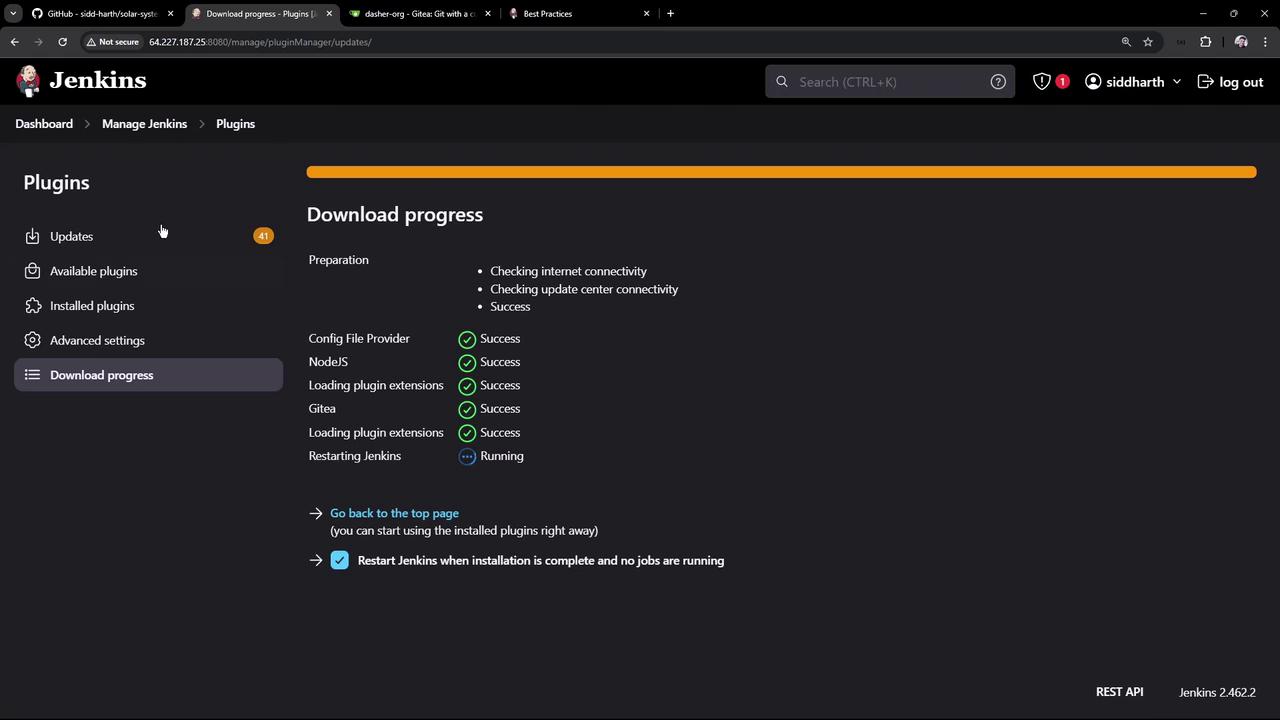

Wait for the installation to finish:

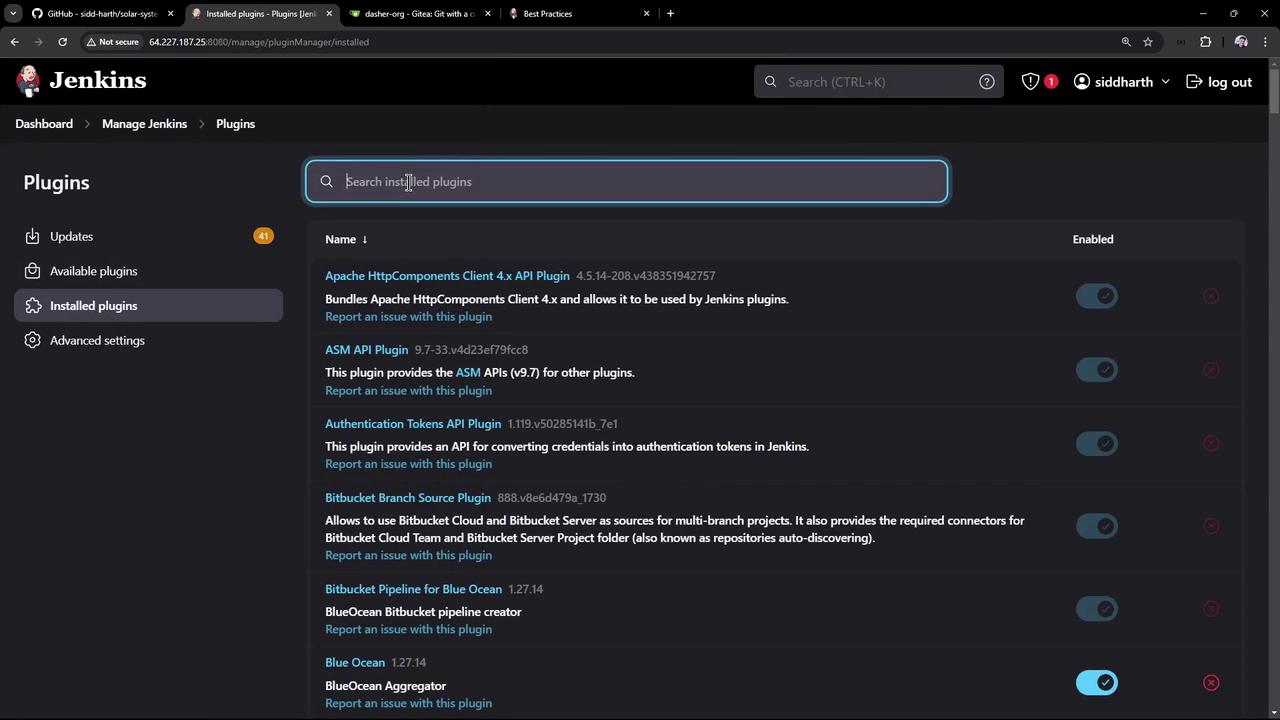

After Jenkins restarts, verify the plugin is listed under Installed:

Configure Gitea Server

1. Go to Manage Jenkins → Configure System.

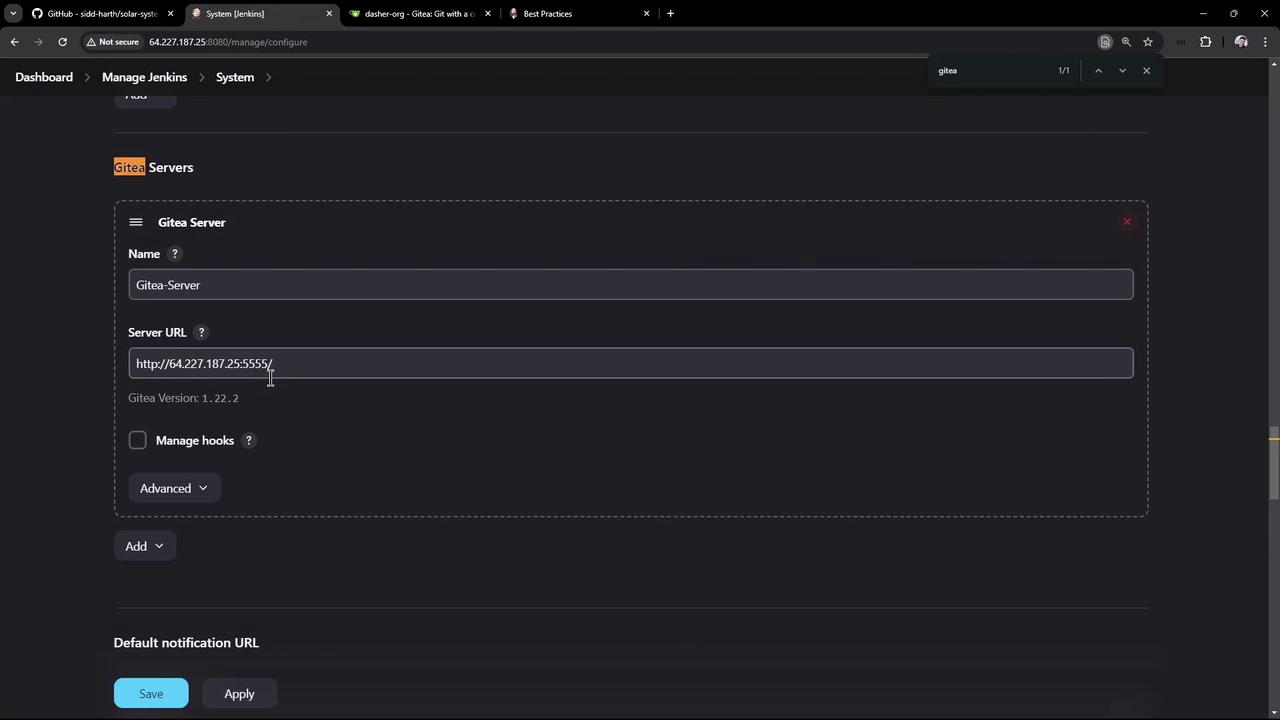

2. Scroll to Gitea Servers and click Add Gitea Server.
3. Enter:
   • Name: Gitea server
   • API URL: https://<your-gitea-url>/api/v1

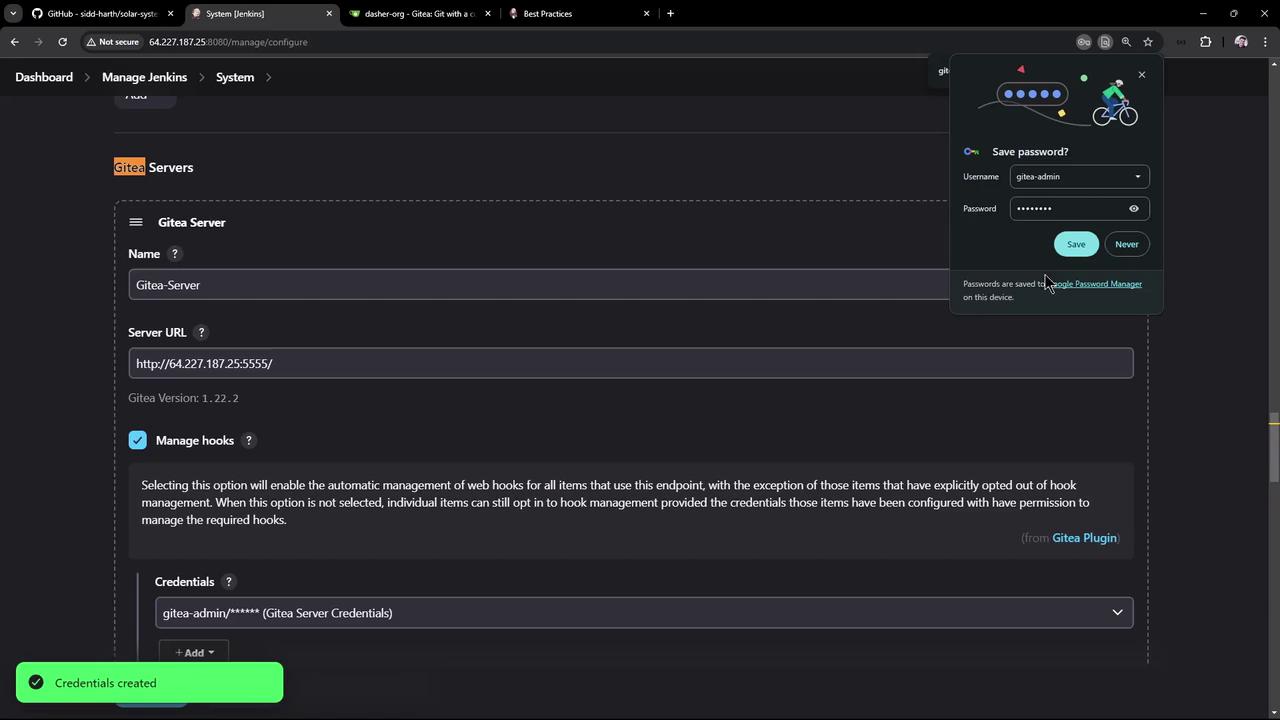

4. Check Manage hooks to enable automatic webhook creation.

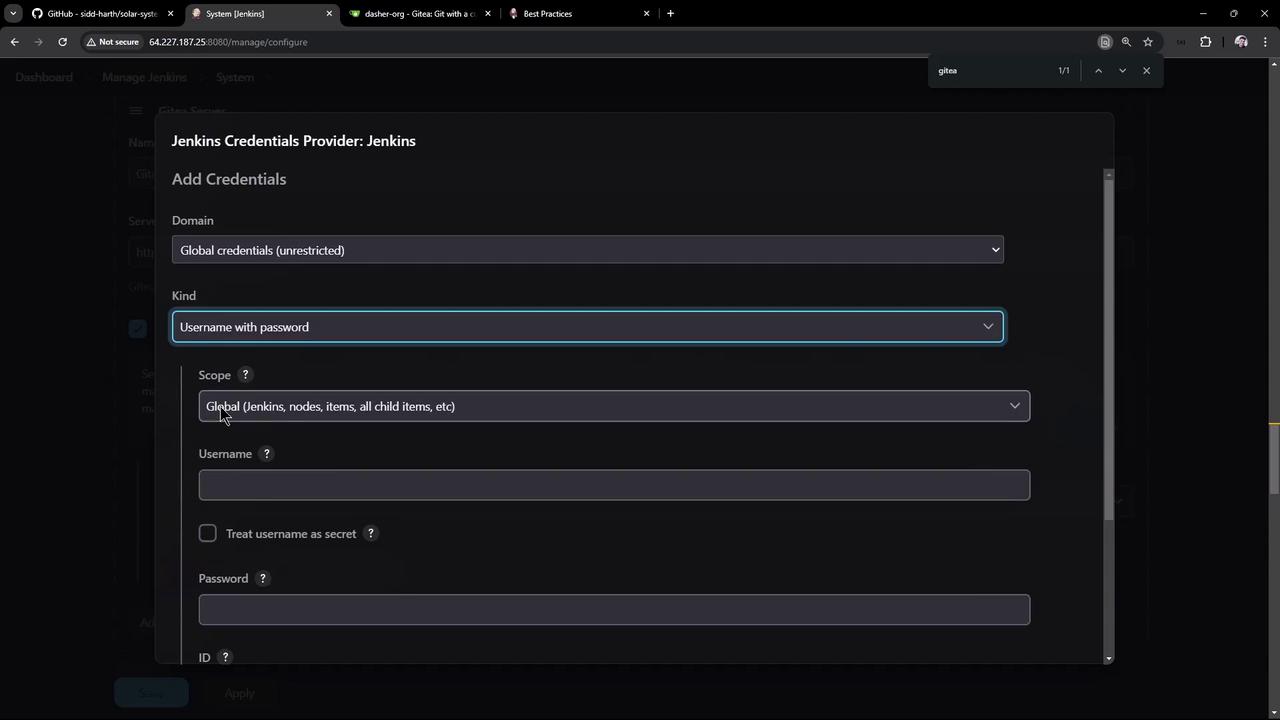

5. Next to Credentials, click Add, select Username with password, and enter your Gitea credentials (scope: Global):

6. Click Apply and Save:

5. Configure the Organization Folder

1. Open the GitHub Organization item and click Configure.

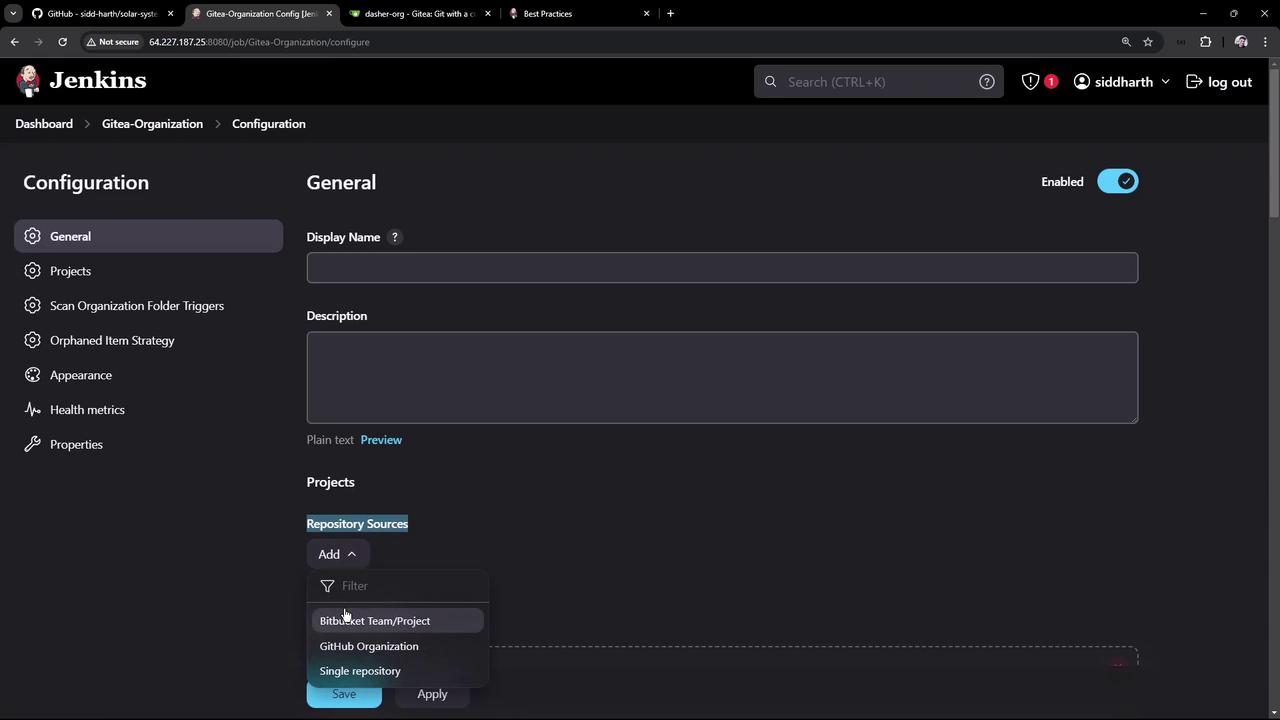

2. Under Repository Sources, click Add Source → GitHub Organization.
3. Select:
   • GitHub Server: your configured server
   • Credentials: the admin credential you added
   • Owner: dasher-org

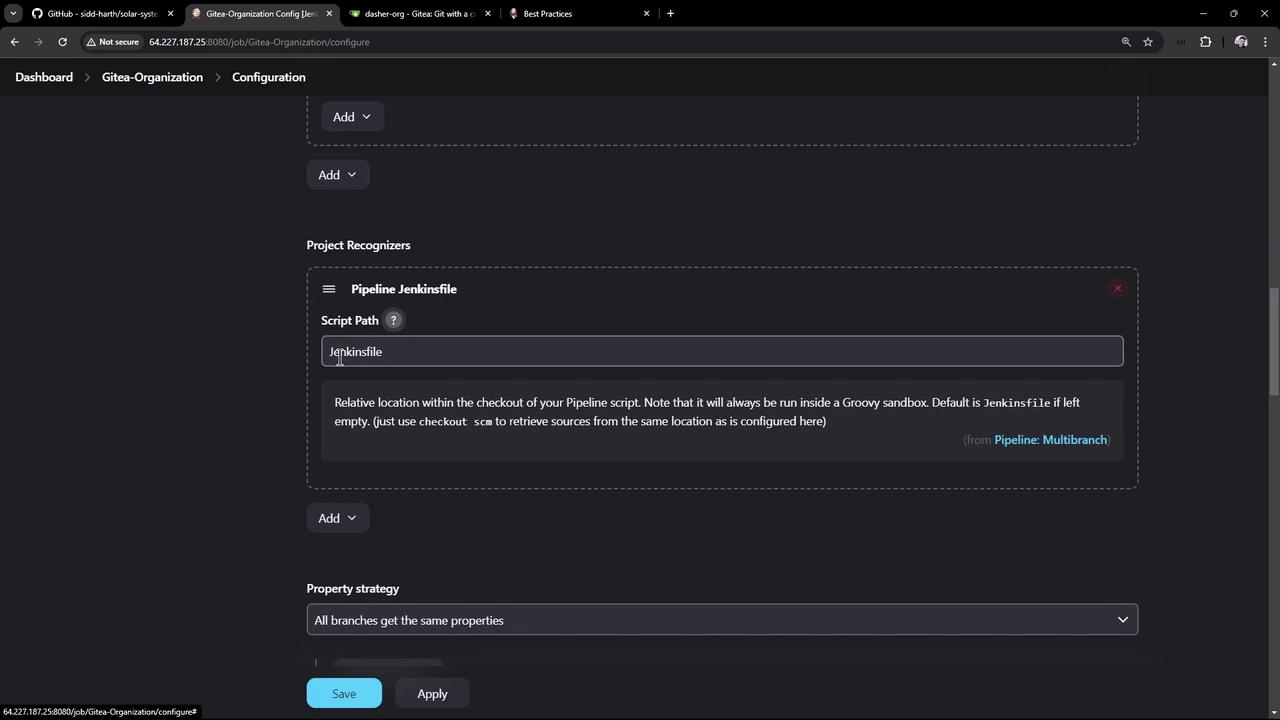

4. Leave discovery and project recognizer settings at default (looks for Jenkinsfile):

5. Click Save. Jenkins begins scanning the organization immediately.

6. Organization Scan and Job Creation

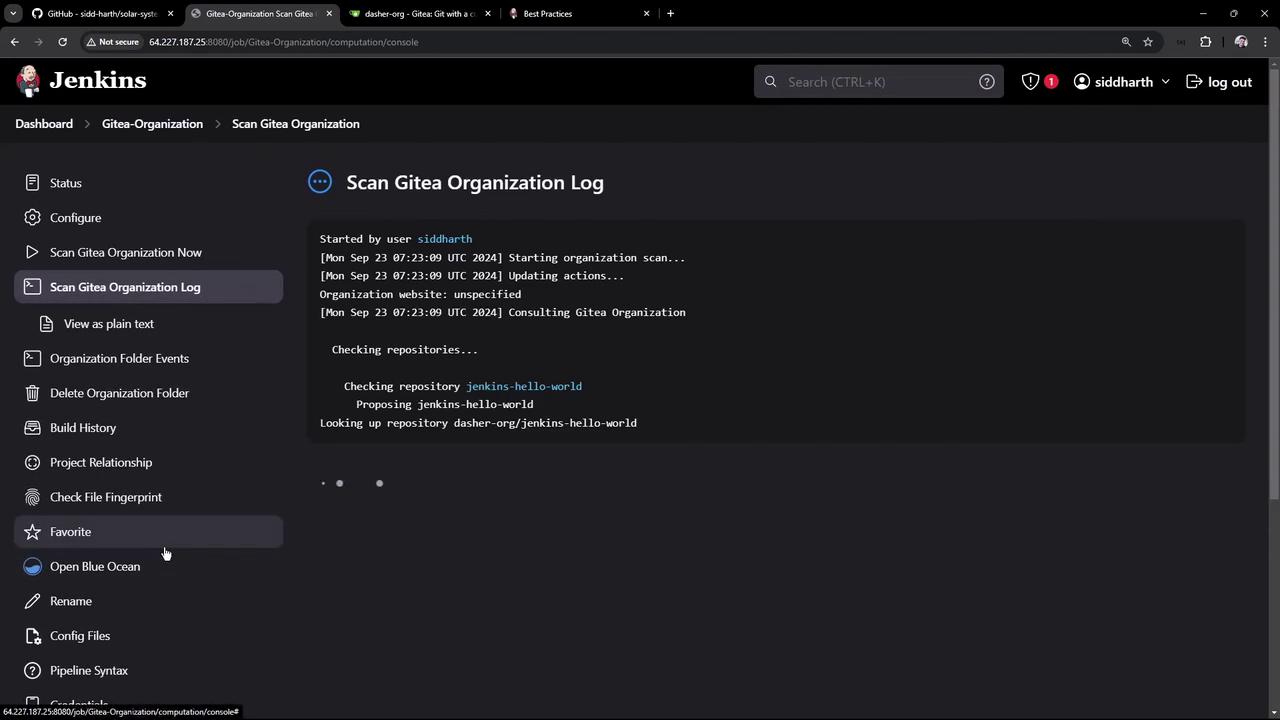

During the scan, Jenkins inspects each repository and its branches for a Jenkinsfile. Only those that match will have jobs created or updated.

Example scan output:

Checking repository parameterized-pipeline-job-init
Proposing parameterized-pipeline-job-init
Looking up repository dasher-org/parameterized-pipeline-job-init

Checking branches...
Checking branch main
'Jenkinsfile' found
Met criteria

1 branches were processed (query completed)

Checking repository solar-system
Proposing solar-system
Looking up repository dasher-org/solar-system

Checking branches...
Checking branch main
'Jenkinsfile' not found
Does not meet criteria

1 branches were processed
Checking pull requests...
0 pull requests were processed

3 repositories were processed
[Mon Sep 23 07:23:10 UTC 2024] Finished organization scan. Scan took 1.8 sec
Finished: SUCCESS

In this example:

• parameterized-pipeline-job-init → multibranch pipeline created
• solar-system → skipped (no Jenkinsfile)

7. Inspecting Branch Pipelines

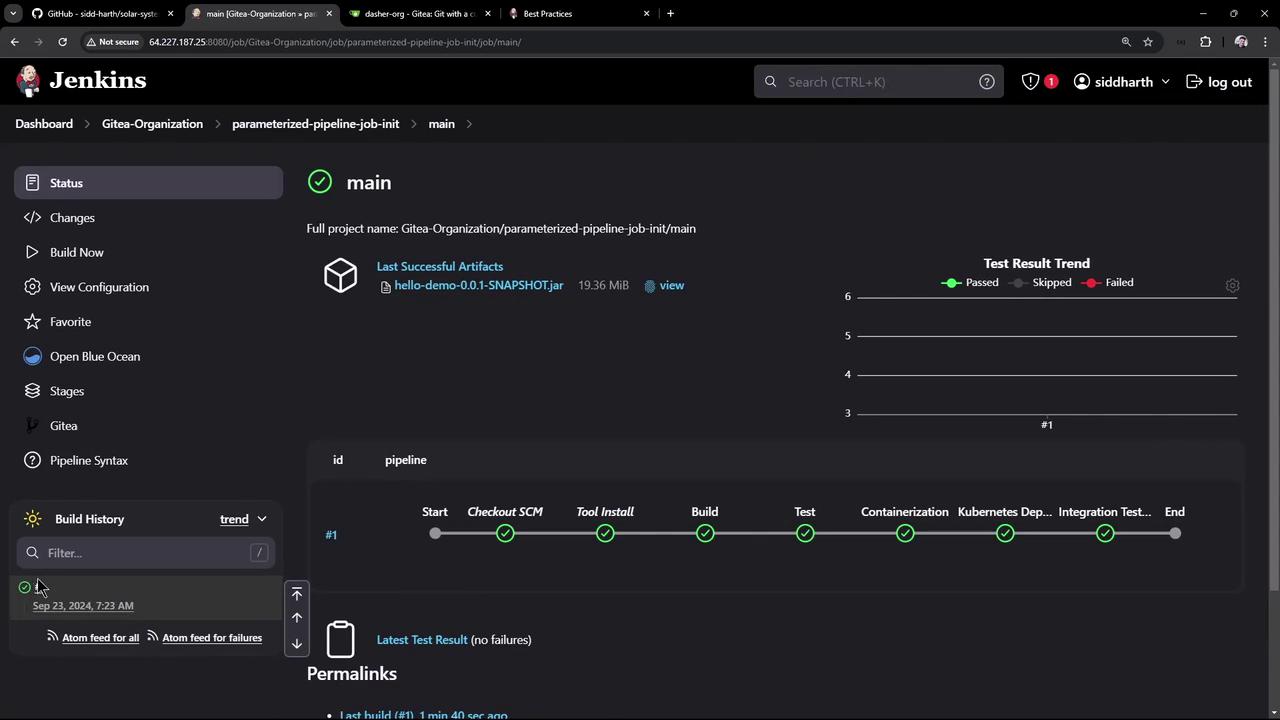

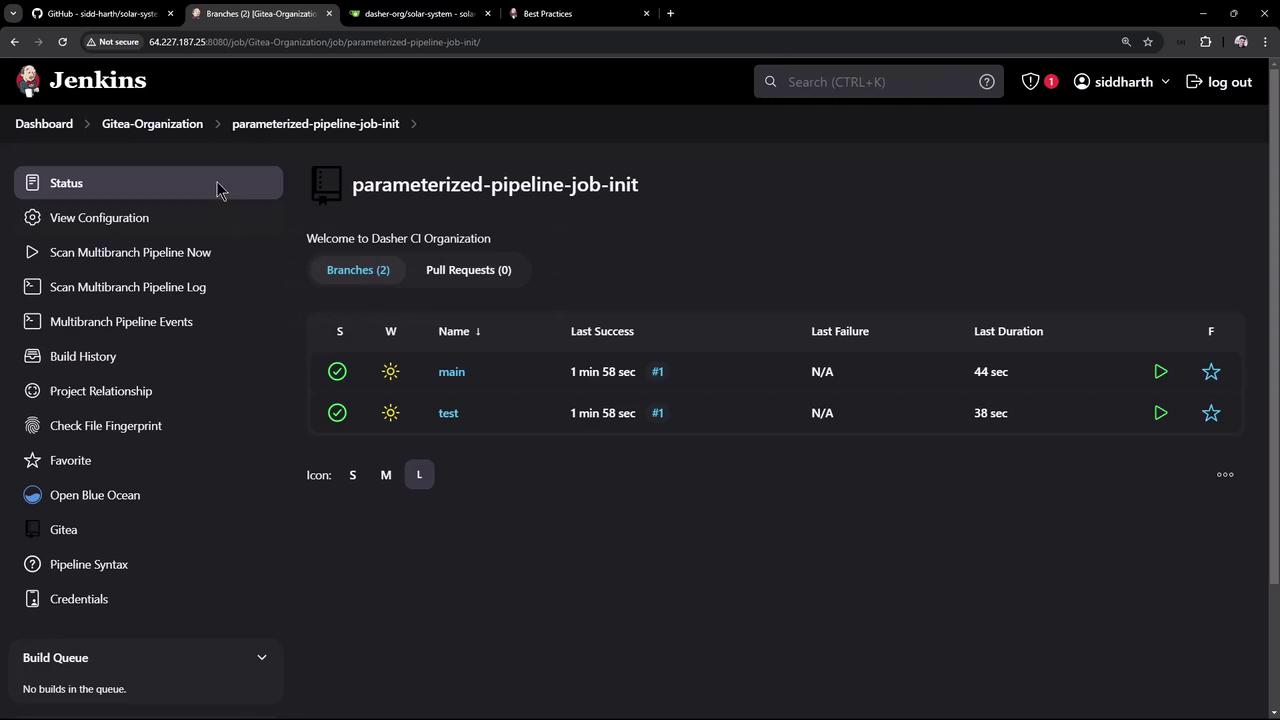

Click the parameterized-pipeline-job-init item to view branch-level pipelines:

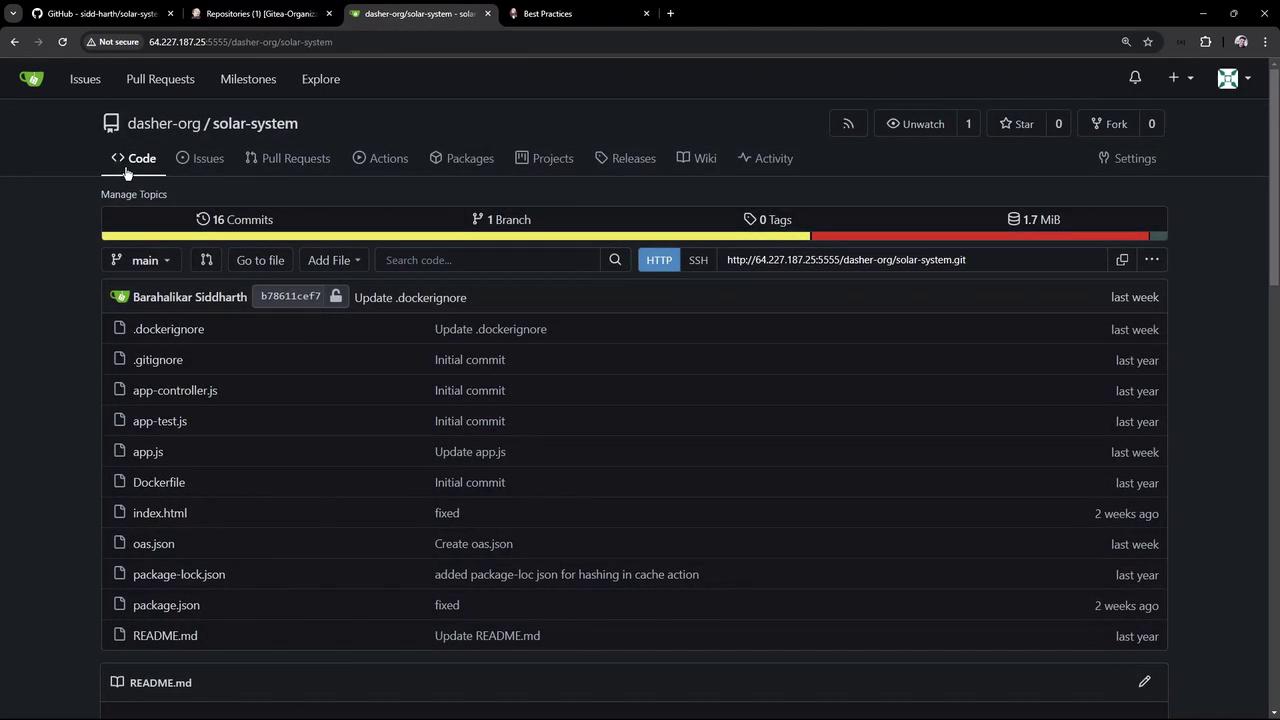

Repository details such as files and commit history are pulled from Gitea:

8. Webhook Configuration and Automatic Triggers

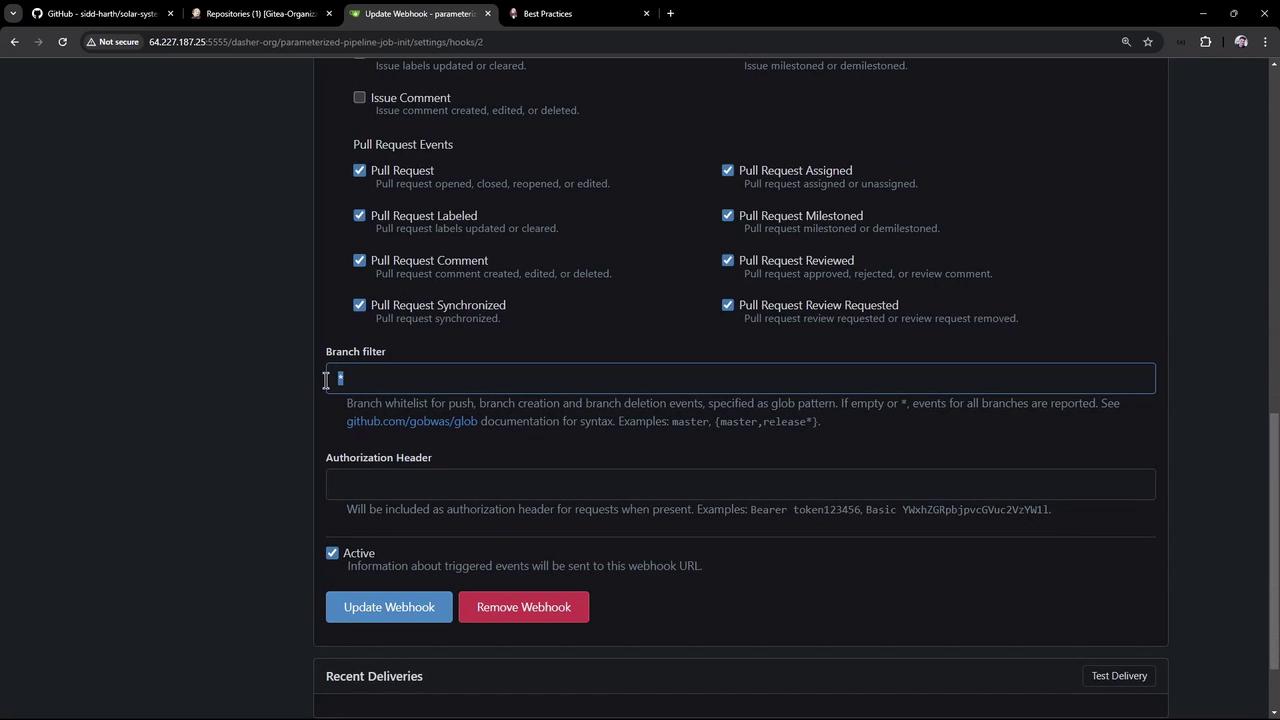

By enabling Manage hooks, Jenkins automatically adds webhooks to each repository. These webhooks trigger builds on push, branch/tag creation, and pull request events.

For example, edit the README in the main branch:

git checkout main
# edit README.md
git add README.md
git commit -m "Edited README"
git push origin main

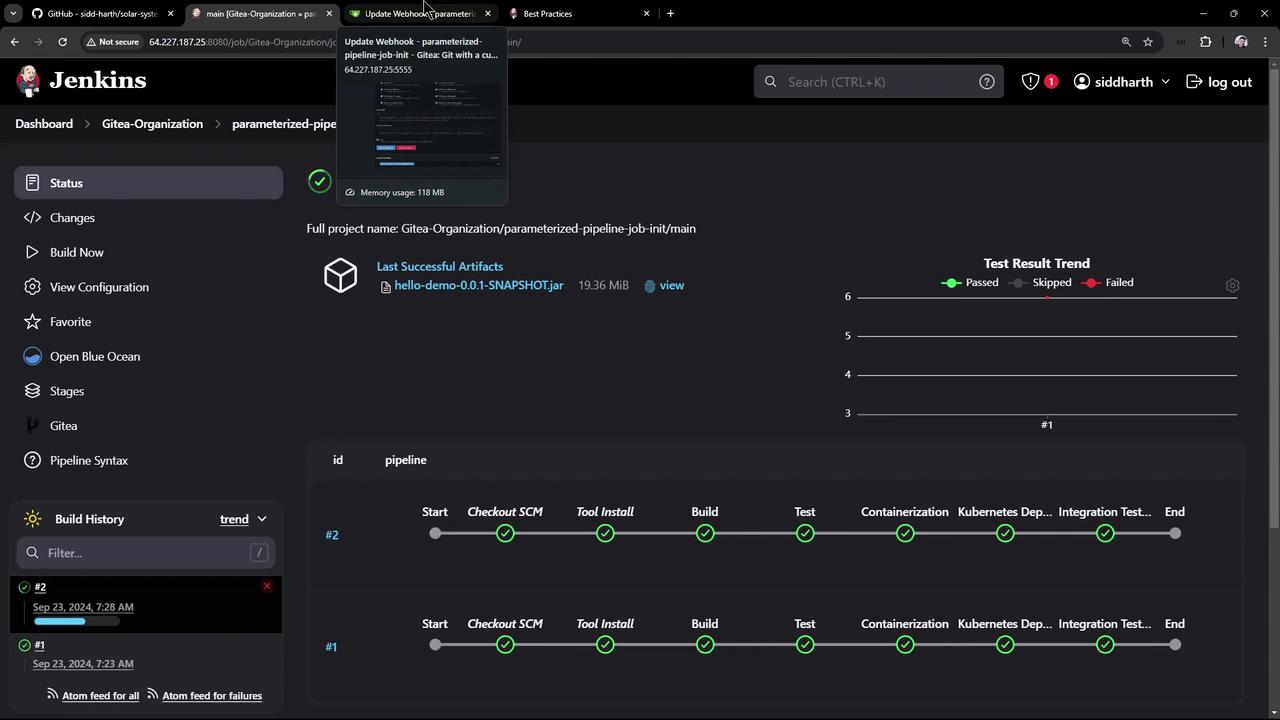

The webhook notifies Jenkins, triggering a new build:

Conclusion

After adding a Jenkinsfile to the solar-system repository, Jenkins picks it up in the next scan and automatically creates a pipeline:

Links and References

• Jenkins Documentation
• Gitea Documentation
• Gitea Plugin for Jenkins
