DIY Database

In this lesson you’ll combine schema design and SQL to build a small relational database from scratch. The goal is a simple backend for a food delivery app called Feline Foods where customers order a single meal-deal combo for delivery. We’ll design the entity-relationship model, choose data types, implement the schema in MySQL, load sample data, and run queries that show how the tables relate. Design the ERD Start by sketching the entities and their attributes. We have three tables: customers, combos, and orders.

Customers
- customer_id — unique identifier, primary key
- name
- address
- contact
Combos
- combo_id — unique identifier, primary key
- name
- price
Orders
- order_id — unique identifier, primary key
- customer_id — foreign key to customers(customer_id)
- combo_id — foreign key to combos(combo_id)
- order_time

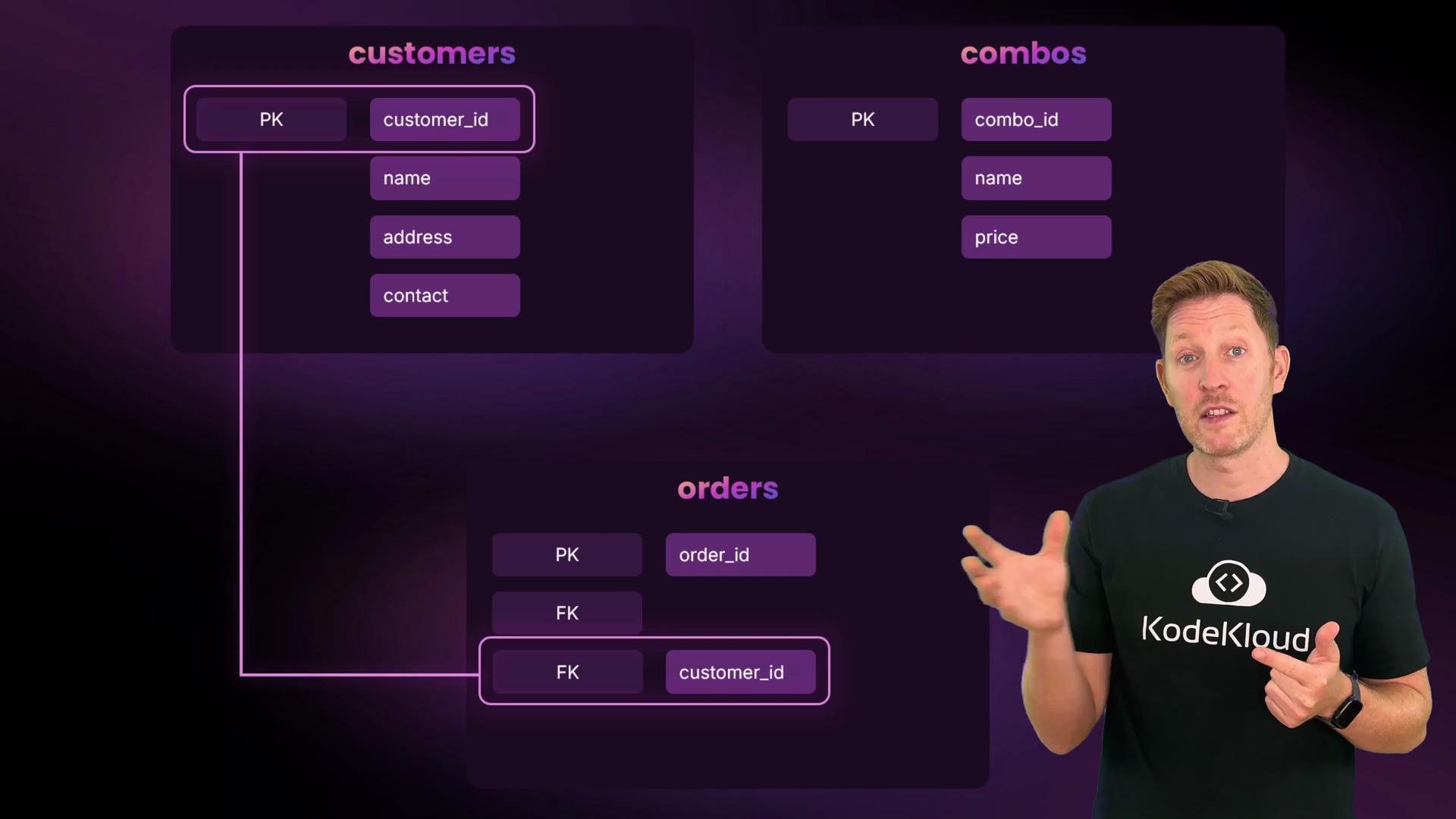

The image shows a person in a "KodeKloud" t-shirt standing next to a diagram illustrating three database tables: "customers," "combos," and "orders," with their respective primary and foreign keys.

Choose types for each column Use types that match the data and common best practices for small transactional systems:

IDs: INT with AUTO_INCREMENT for simple unique identifiers.
Names: VARCHAR(100) — variable length and index-friendly.
Address: TEXT — can be long and is rarely filtered by equality.
Price: DECIMAL — exact storage for currency, e.g., DECIMAL(4,2).
Order time: DATETIME.
Contact: VARCHAR(20) — phone numbers stored as strings.

Table: Columns and chosen types

Table	Column	Type / Constraint	Notes
customers	`customer_id`	`INT PRIMARY KEY AUTO_INCREMENT`	Unique customer identifier
customers	`name`	`VARCHAR(100) NOT NULL`	Human names
customers	`address`	`TEXT NOT NULL`	Free-form address
customers	`contact`	`VARCHAR(20) NOT NULL`	Phone numbers stored as text
combos	`combo_id`	`INT PRIMARY KEY AUTO_INCREMENT`	Unique combo identifier
combos	`name`	`VARCHAR(100) NOT NULL`	Combo name
combos	`price`	`DECIMAL(4,2) NOT NULL`	Currency: up to `99.99`
orders	`order_id`	`INT PRIMARY KEY AUTO_INCREMENT`	Unique order identifier
orders	`customer_id`	`INT`	FK -> `customers(customer_id)`
orders	`combo_id`	`INT`	FK -> `combos(combo_id)`
orders	`order_time`	`DATETIME`	Timestamp when the order was placed

Store phone numbers as VARCHAR because they may include leading zeros, country codes, plus signs, or formatting characters (dashes, spaces, parentheses). Numeric types will drop leading zeros and lose formatting.

Define relationships

One customer can place zero or many orders (1:N).
One combo can appear in zero or many orders (1:N).
Each order belongs to exactly one customer and one combo.
No separate join table is necessary — the orders table models the association.

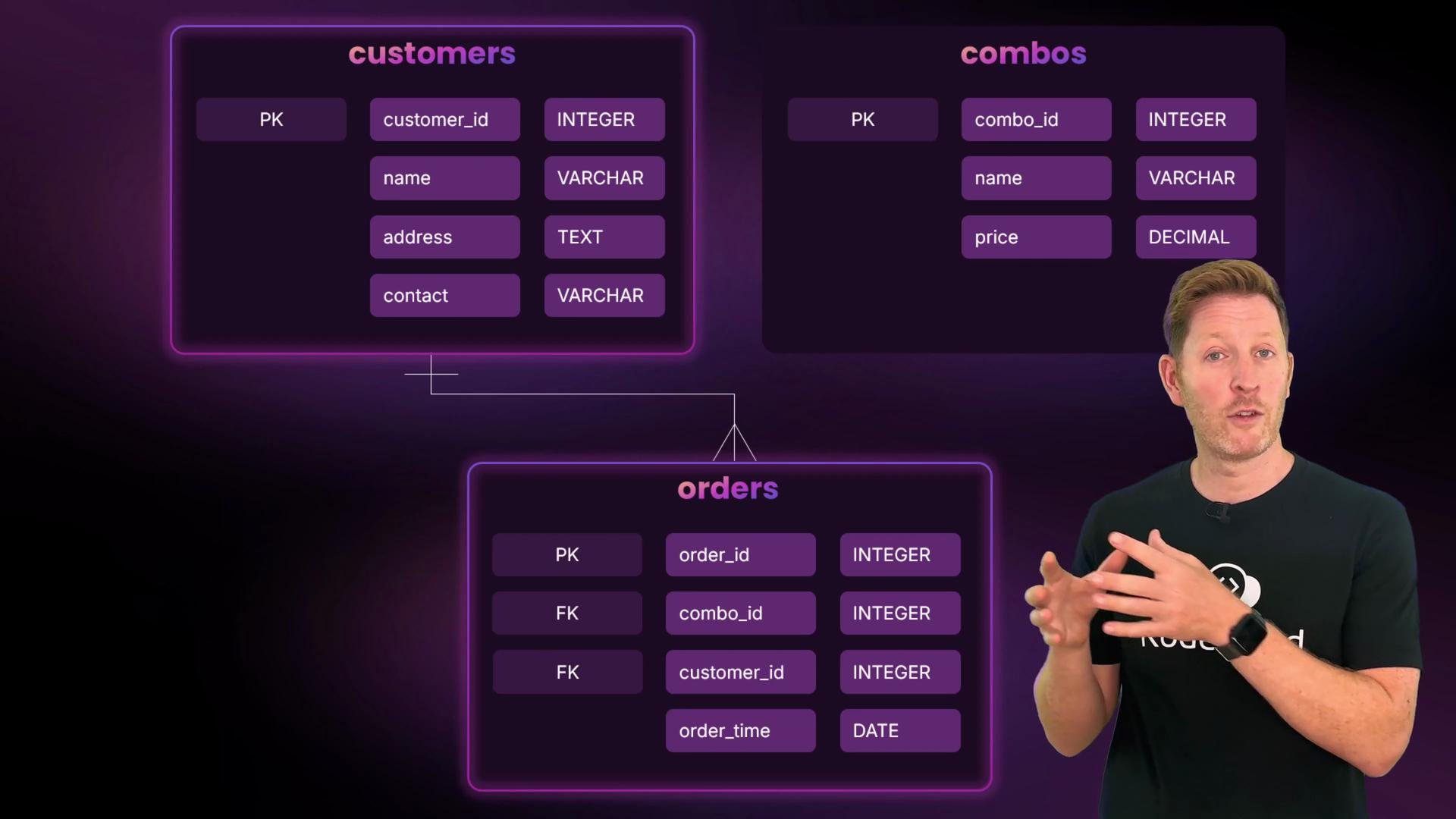

The image shows a database schema diagram with tables for "customers," "combos," and "orders," alongside a person gesturing as if explaining the content.

Build the schema in MySQL Create and switch to a new database:

CREATE DATABASE felinefoods;
SHOW DATABASES;
USE felinefoods;
SELECT DATABASE();

Example mysql session (illustrative):

mysql> CREATE DATABASE felinefoods;
Query OK, 1 row affected (0.00 sec)

mysql> SHOW DATABASES;
+---------------------+
| Database            |
+---------------------+
| employees           |
| felinefoods         |
| information_schema  |
| mysql               |
| performance_schema  |
+---------------------+
5 rows in set (0.00 sec)

mysql> USE felinefoods;
Database changed

mysql> SELECT DATABASE();
+-------------+
| DATABASE()  |
+-------------+
| felinefoods |
+-------------+
1 row in set (0.00 sec)

Create the three tables with appropriate types and foreign key constraints:

CREATE TABLE customers (
    customer_id INT PRIMARY KEY AUTO_INCREMENT,
    name VARCHAR(100) NOT NULL,
    address TEXT NOT NULL,
    contact VARCHAR(20) NOT NULL
);

CREATE TABLE combos (
    combo_id INT PRIMARY KEY AUTO_INCREMENT,
    name VARCHAR(100) NOT NULL,
    price DECIMAL(4,2) NOT NULL
);

CREATE TABLE orders (
    order_id INT PRIMARY KEY AUTO_INCREMENT,
    customer_id INT,
    combo_id INT,
    order_time DATETIME,
    FOREIGN KEY (customer_id) REFERENCES customers(customer_id),
    FOREIGN KEY (combo_id) REFERENCES combos(combo_id)
);

Expected confirmation from MySQL:

Query OK, 0 rows affected (0.00 sec)

Foreign key constraints require a storage engine that supports them (e.g., InnoDB). If you get errors creating FKs, ensure your tables use ENGINE=InnoDB or the server default supports foreign keys.

Populate the tables with sample data Insert some customers, combos, and orders. Use proper quoting and valid datetime strings:

INSERT INTO customers (name, address, contact)
VALUES
  ('Kody',  '42 Feline Farm',   '555-0100'),
  ('Fluffy','12 Catnip Close',  '555-0111'),
  ('Paws',  '99 Whisker Way',   '555-0120');

INSERT INTO combos (name, price)
VALUES
  ('Fish & Chips',  8.50),
  ('Sushi Bento',  12.80),
  ('Pasta Combo',  10.00);

INSERT INTO orders (customer_id, combo_id, order_time)
VALUES
  (1, 3, '2025-08-10 12:30:00'),
  (2, 2, '2025-08-10 13:15:00'),
  (3, 1, '2025-08-11 10:00:00');

Sample output confirming inserts:

Query OK, 3 rows affected (0.00 sec)
Records: 3  Duplicates: 0  Warnings: 0

Referential integrity Because orders.customer_id and orders.combo_id are foreign keys, every row in orders must reference existing rows in customers and combos. This prevents orphaned references and keeps your data consistent. Reading the data A simple SELECT on the orders table shows only IDs and FK references:

SELECT * FROM orders;

Sample output:

+----------+-------------+----------+---------------------+
| order_id | customer_id | combo_id | order_time          |
+----------+-------------+----------+---------------------+
|        1 |           1 |        3 | 2025-08-10 12:30:00 |
|        2 |           2 |        2 | 2025-08-10 13:15:00 |
|        3 |           3 |        1 | 2025-08-11 10:00:00 |
+----------+-------------+----------+---------------------+
3 rows in set (0.00 sec)

Join tables to produce meaningful results Use JOINs to show which customer ordered which combo and how much it cost:

SELECT
  o.order_id,
  c.name AS customer_name,
  cb.name AS combo_name,
  cb.price,
  o.order_time
FROM orders o
JOIN customers c ON o.customer_id = c.customer_id
JOIN combos cb ON o.combo_id = cb.combo_id
ORDER BY o.order_time;

Result example:

+----------+---------------+-------------+-------+---------------------+
| order_id | customer_name | combo_name  | price | order_time          |
+----------+---------------+-------------+-------+---------------------+
|        1 | Kody          | Pasta Combo | 10.00 | 2025-08-10 12:30:00 |
|        2 | Fluffy        | Sushi Bento | 12.80 | 2025-08-10 13:15:00 |
|        3 | Paws          | Fish & Chips|  8.50 | 2025-08-11 10:00:00 |
+----------+---------------+-------------+-------+---------------------+
3 rows in set (0.00 sec)

Wrap-up and next steps You now have a compact, working relational schema for Feline Foods: customers, combos, and orders linked by foreign keys. The design enforces referential integrity, uses VARCHAR for phone numbers, DECIMAL for currency, and DATETIME for timestamps. Consider these extensions to make the model more production-ready:

Add indexes on frequently queried columns (e.g., customers(name), orders(order_time)).
Add order_status, delivery_instructions, or delivery_address to orders.
Normalize or denormalize further depending on read/write patterns.
Add constraints for data quality (e.g., CHECK on price >= 0).

Links and references

MySQL Documentation: https://dev.mysql.com/doc/
MySQL CREATE TABLE: https://dev.mysql.com/doc/refman/en/create-table.html
DECIMAL type details: https://dev.mysql.com/doc/refman/en/precision-math.html
