Tables Keys and ERDs

Earlier we cleaned up Kodi’s vet records by adding column headings, fixing data types, and improving structure. Structure alone, however, doesn’t solve every problem. Kodi and her friends built a video-sharing site called MeowTube and started tracking uploads in a single spreadsheet. At first that flat-file approach was fine — but as the site grows, the spreadsheet’s limitations become obvious.

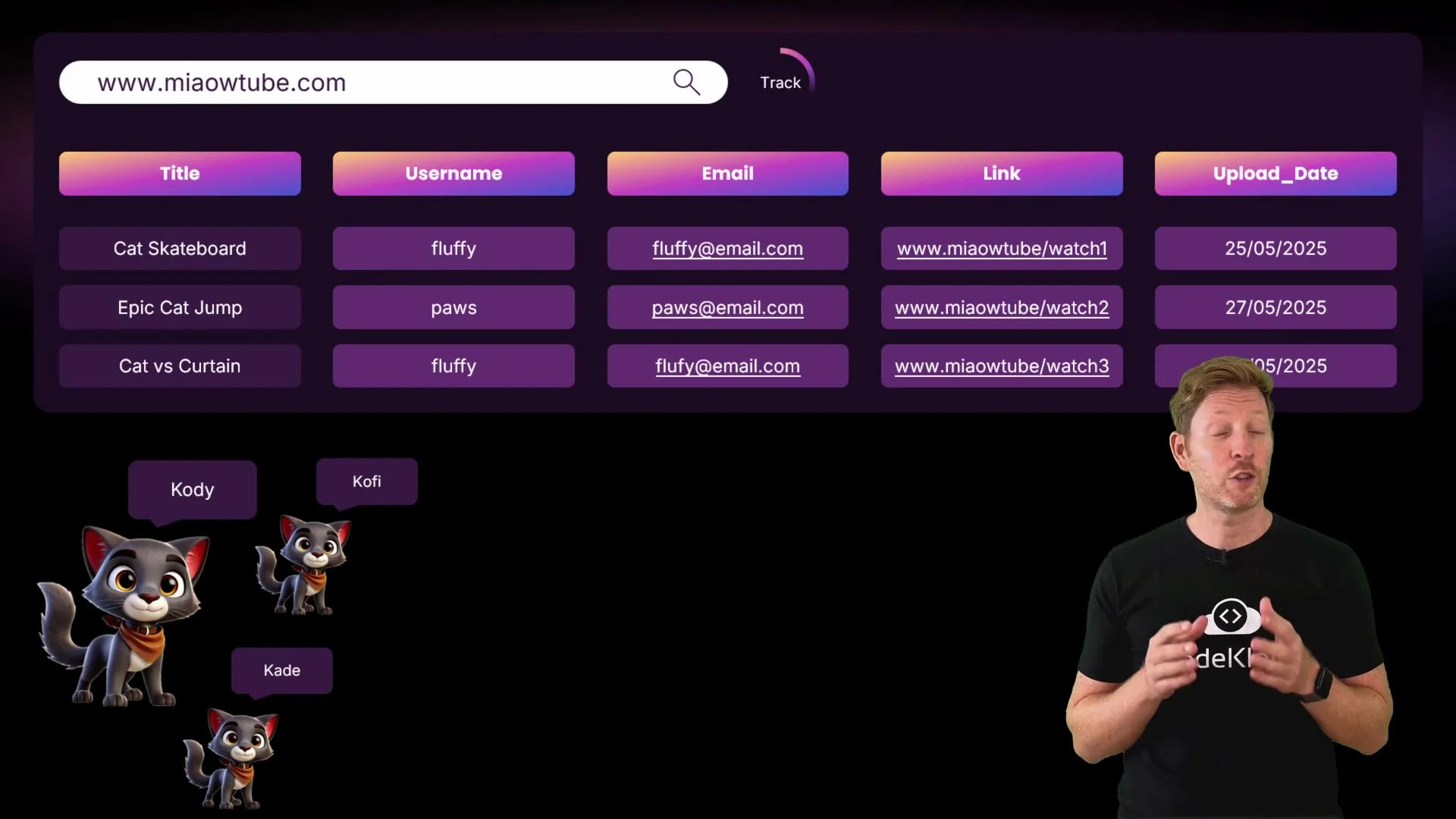

The image shows a screenshot of a website interface with a list of video titles, usernames, emails, links, and upload dates, alongside illustrations of cartoon cats and a person speaking or presenting.

Each row currently stores: video title, uploader username, email, link, and upload date. That design leads to repeated user details. For example, rows 1 and 3 both belong to Fluffy and duplicate his username and email. This repetition is called data redundancy. Problems that arise from redundancy:

Updating a user’s email requires changing every row that contains it.
Missed updates produce inconsistent records (stale or conflicting email addresses).
Duplicating private contact information across many rows increases exposure risk.

With a few records the work is manual but manageable. With thousands of rows it becomes error-prone and insecure. Kodi and the team need a better design that separates personal data from video records, enforces consistency, and preserves relationships between entities. In this article we will:

explain the limitations of a flat-file approach,
introduce primary and foreign keys for linking data, and
interpret a simple Entity Relationship Diagram (ERD).

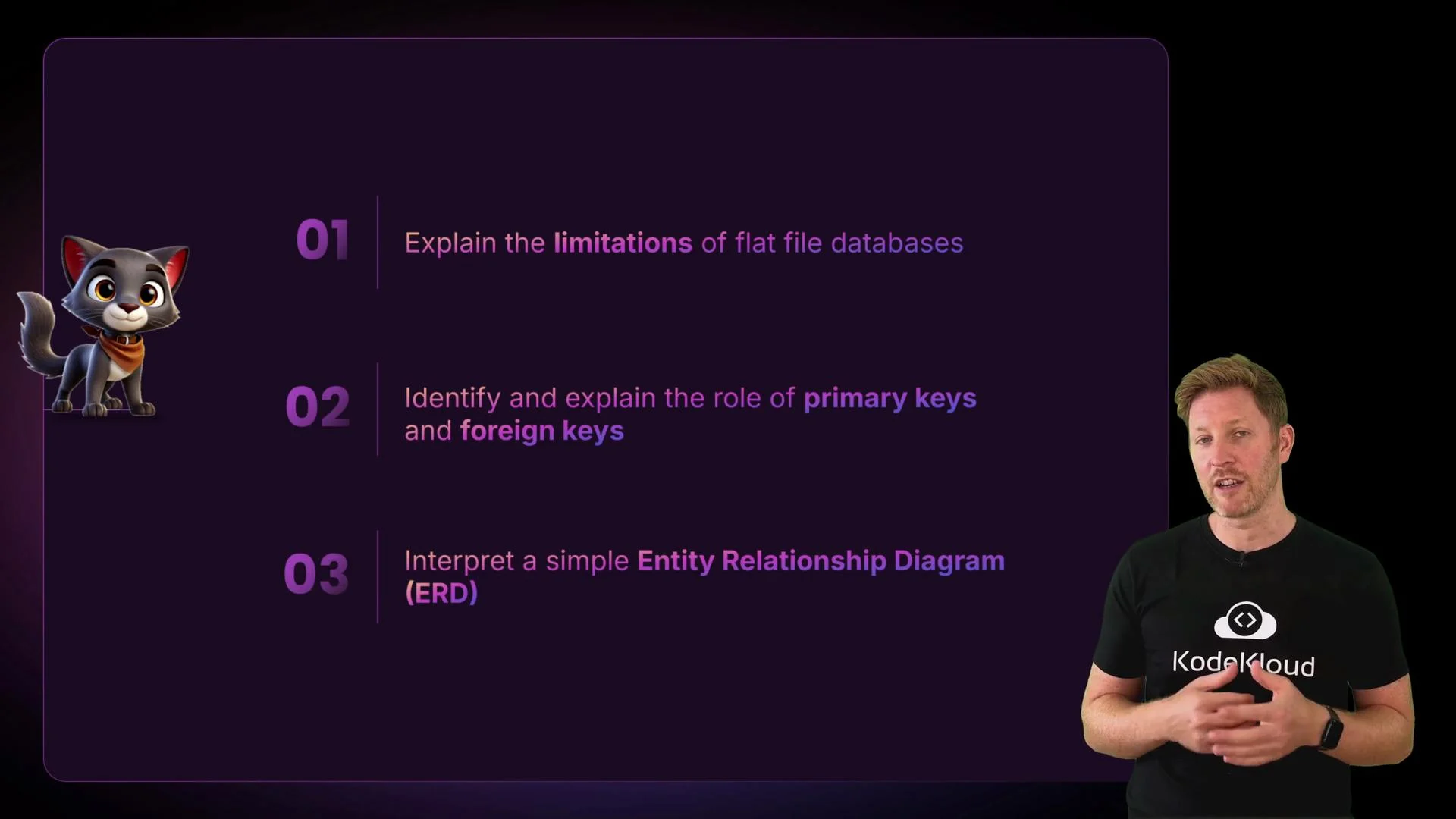

The image shows a person in a KodeKloud shirt standing next to a presentation slide with a cartoon character. The slide lists three topics: limitations of flat file databases, primary and foreign keys, and interpreting an Entity Relationship Diagram.

What Kodi has is a flat file: one unsplit table containing all data. Flat files are simple and fast to set up for small datasets, but they struggle with consistency, security, and scalability. A better option for MeowTube is a relational database. Relational approach overview:

Split related data into separate tables (for example, a videos table and a users table).
Replace repeated user fields in videos with a reference to the users table.

This raises a question: how do we link a video to its uploader without repeating user details? The answer is primary keys and foreign keys. Primary keys (PK)

Every table should have a primary key.
PK values must be unique for every row and cannot be NULL.
A common PK is a simple auto-incrementing integer (e.g., user_id, video_id).
Composite primary keys (multiple columns) are possible but out of scope here.

Example: add video_id to the videos table and user_id to the users table. Then store user_id in videos instead of username/email. What is a foreign key (FK)? A foreign key is a field (or set of fields) in one table that references a primary key in another table. In our example, the user_id column in videos is a foreign key pointing to users.user_id.

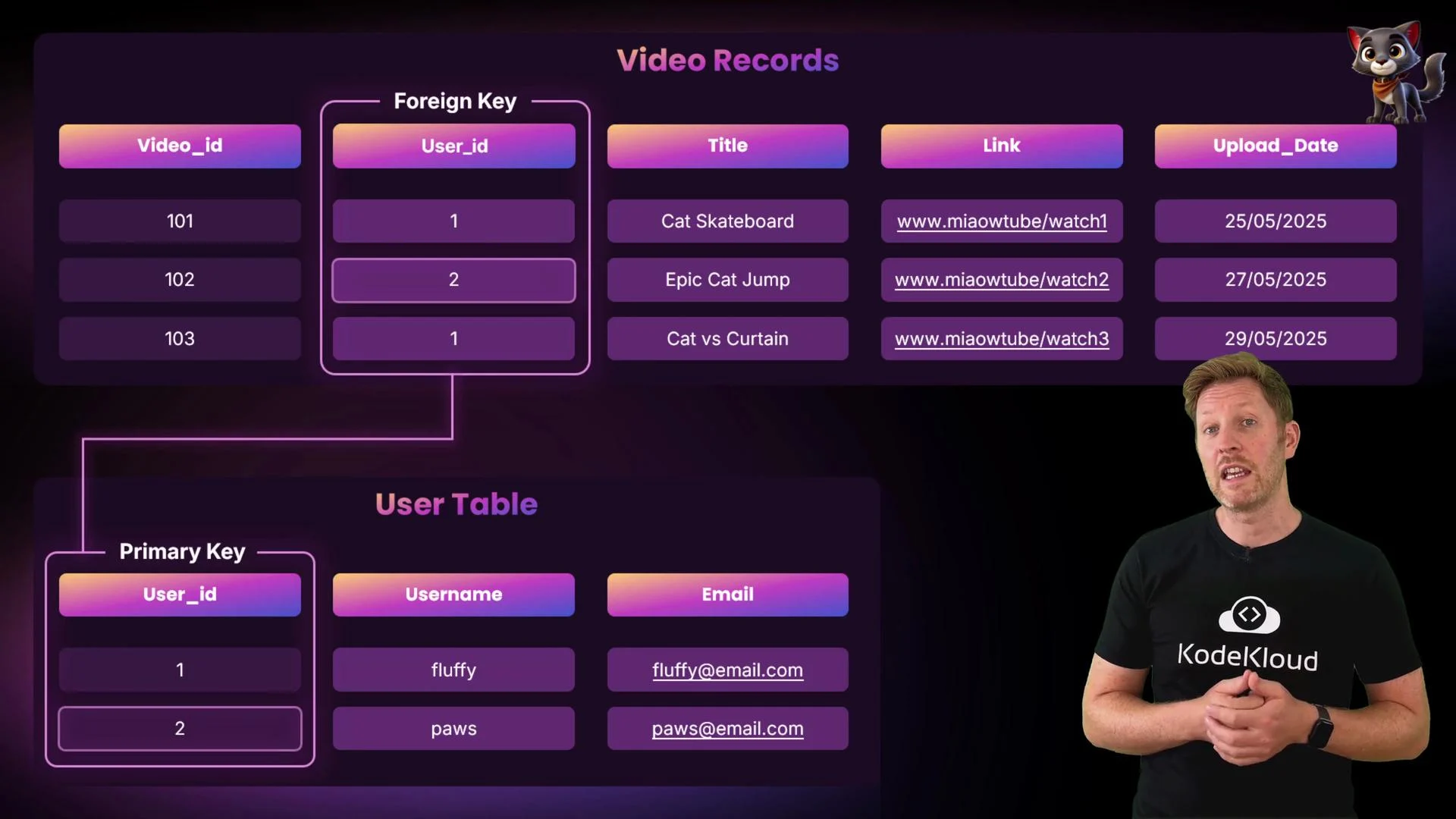

The image shows a database schema diagram with tables for video records and user information, featuring video details and user data, alongside a person wearing a "KodeKloud" t-shirt.

Key points about foreign keys:

A foreign key references the primary key of another table.
It creates and enforces relationships between tables (e.g., which user uploaded which video).
The FK value should match a value in the referenced table’s PK (unless the FK is allowed to be NULL).
Foreign keys help maintain referential integrity: you generally cannot create a videos row that points to a non-existent users record.

Benefits in practice:

Store personal details once in users; videos contains only user_id.
Updating a user’s email is a single change in users, and all their video records remain correct.
Data duplication is reduced, making the database safer and easier to maintain.

ERDs — visualizing structure and relationships As you add tables, an Entity Relationship Diagram (ERD) helps you see how entities connect. In an ERD:

Each box (entity) represents a table.
Attributes (fields) are listed inside entities.
- The primary key is typically listed first and marked PK.
- Foreign keys are listed below and marked FK.
Lines between entities show relationships; symbols at line ends indicate cardinality.

Crow’s Foot notation (common ERD symbols) describes cardinality:

Symbol meaning	Common description
Single line with vertical bar	exactly one
Crow’s Foot	many
Circle + vertical bar	zero or one
Circle + crow’s foot	zero or many
Vertical bar + crow’s foot	one or many

In our MeowTube example:

Each video is uploaded by exactly one user (one side).
Each user can upload zero or many videos (many side with a crow’s foot).
This is a one-to-many relationship.

Inside entity boxes you may also see data types (e.g., integer for IDs, date for upload_date, text for title or email). Simple ERDs show entity-to-entity lines; more detailed diagrams can show the specific attribute-to-attribute links. Quick comparison table: primary key vs foreign key

Key type	Purpose	Example
Primary Key (PK)	Uniquely identifies rows in the same table	`user_id` in the `users` table
Foreign Key (FK)	References a PK in another table to create a relationship	`videos.user_id` referencing `users.user_id`

Pop quiz time. Which of the following statements is true? A. Flat files use foreign keys to reduce data redundancy.
B. A foreign key links a record in one table to a record in another.
C. Crow’s Foot notation is used to label column data types. Pause for a moment to think. The correct answer is B. A foreign key links a record in one table to a record in another — that is how relational databases avoid repeating data while preserving relationships.

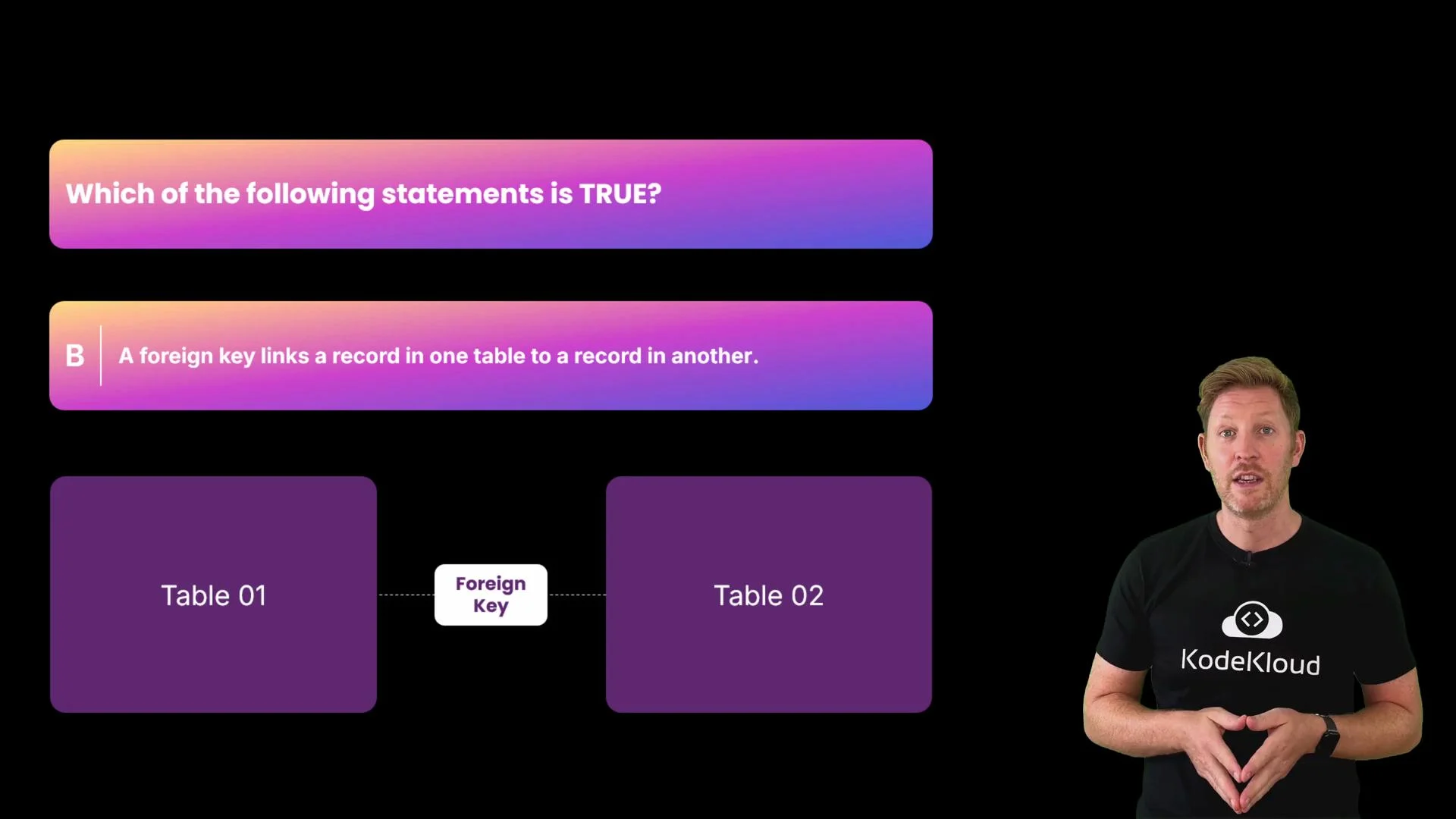

The image shows a question about foreign keys, stating that a foreign key links a record in one table to a record in another. There are two tables labeled "Table 01" and "Table 02," with a foreign key connecting them, and a person wearing a "KodeKloud" t-shirt is standing beside the text.

Clarifications on the incorrect options:

Flat files generally do not enforce primary or foreign key constraints; without these constraints, duplication and inconsistency are common.
Crow’s Foot notation indicates relationship cardinality between entities, not column data types.

Recap

Flat-file databases keep all data in a single table, which can cause redundancy, inconsistency, and security issues.
Relational databases split data into linked tables to improve consistency, security, and scalability.
A primary key uniquely identifies records in a table.
A foreign key connects one table to another by referencing a primary key.
ERDs visually represent entities and relationships; Crow’s Foot shows cardinality (one-to-one, one-to-many, many-to-many).

Using primary and foreign keys reduces redundancy and makes updates safer: change user details once in the users table, and all related rows remain correct.

Next up, we’ll look at how databases perform operations: how they store, query, and manipulate data using SQL and other database tools. Further reading and references
