End of Section 3 and Promote to PROD namespace

Welcome to the wrap-up of our DevSecOps pipeline. We have:

Secured the developer workstation with Talisman Git Hooks
Run mutation tests, unit tests, and integration tests
Performed static analysis (SAST) and dynamic analysis (DAST) using OWASP ZAP
Scanned dependencies with Dependency Check and Trivy
Validated manifests via OPA Conftest and Kubesec
Configured automatic rollbacks in Kubernetes deployments
Sent build notifications to Slack for real-time visibility

Security Measures Summary

Below is a quick overview of the tools and their purposes:

Security Measure	Tool	Purpose
Git pre-commit Hook	Talisman	Prevents accidental secrets or high-risk files
Static Application Security	SAST	Detects code vulnerabilities early
Dynamic Application Security	DAST (OWASP ZAP)	Scans running applications for flaws
Dependency Scanning	Dependency Check, Trivy	Identifies vulnerable or outdated libraries
Policy as Code	OPA Conftest	Ensures infrastructure policies compliance
Manifest Linting	Kubesec	Validates Kubernetes manifest best practices

Adding a Manual Approval Stage

To ensure an architect or manager authorizes production deployments, we introduce a Promote to PROD stage with a two-day timeout. The snippet below shows how to integrate this into your Jenkinsfile:

stage('OWASP ZAP - DAST') {
    steps {
        withKubeConfig([credentialsId: 'kubeconfig']) {
            sh 'bash zap.sh'
        }
    }
}

stage('Promote to PROD') {
    steps {
        timeout(time: 2, unit: 'DAYS') {
            input message: 'Approve deployment to Production Environment/Namespace?'
        }
    }
}

stage('Testing Slack') {
    steps {
        // This intentional failure triggers our Slack notification
        sh 'exit 1'
    }
}

post {
    always {
        junit 'target/surefire-reports/*.xml'
        jacoco execPattern: 'target/jacoco.exec'
        mutation mutationStatsFile: '**/target/pit-reports/**/mutations.xml'
        dependencyCheckPublisher pattern: 'target/dependency-check-report.xml'
        publishHTML allowMissing: false, alwaysLinkToLastBuild: true, keepAll: true,
                    reportDir: 'owasp-zap-report', reportFiles: 'zap_report'
        // Send a Slack notification with the current build result
        sendNotification currentBuild.result
    }
}

Manual Approval Gate

The pipeline will pause at the Promote to PROD stage until an approver selects Proceed or Abort. Aborting will stop the pipeline and notify the team via Slack.

Once committed and pushed, the pipeline executes all stages and halts at our manual approval gate:

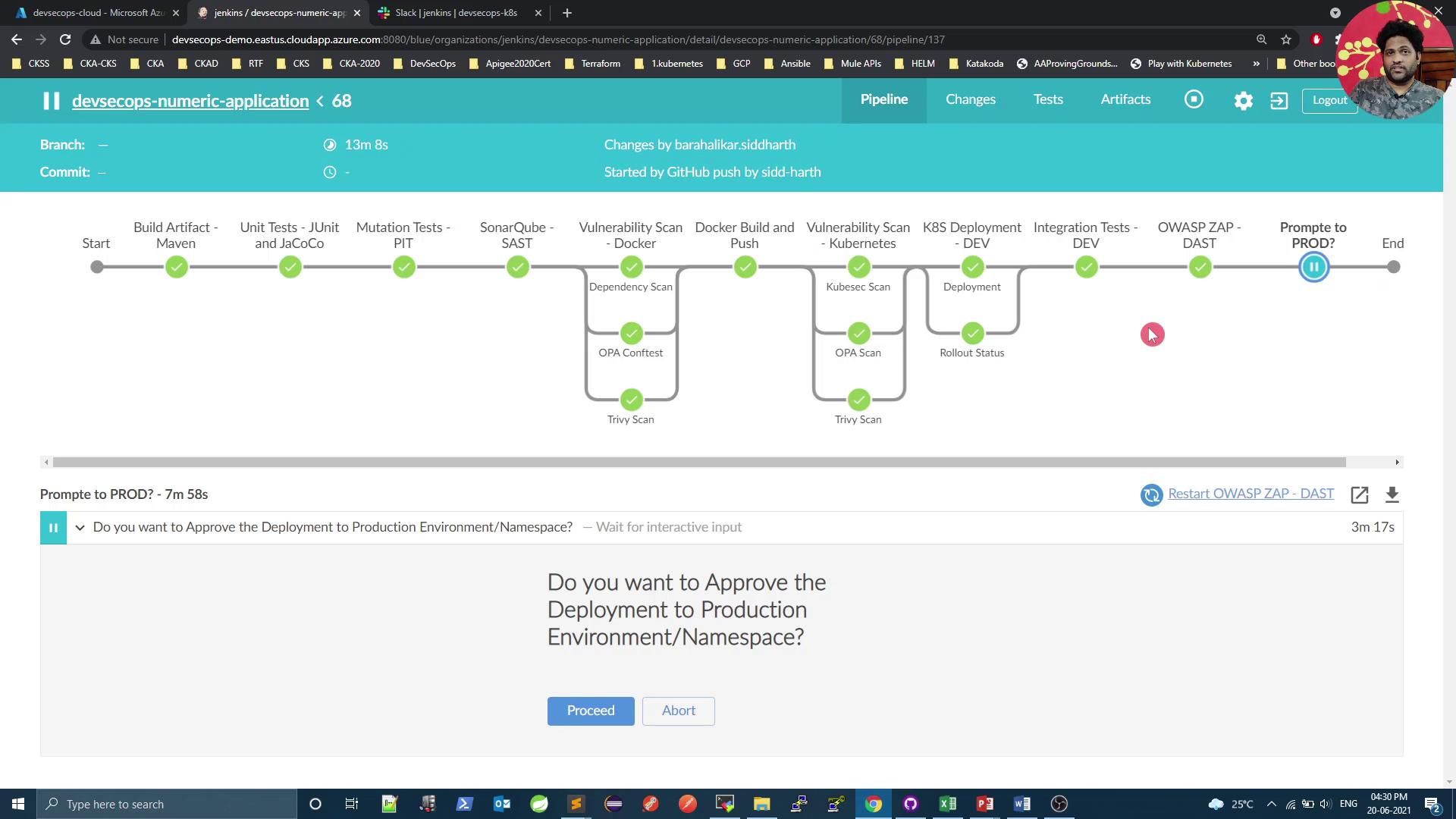

The image shows a Jenkins pipeline for a "devsecops-numeric-application" with various stages like build, tests, scans, and deployment. It includes a prompt asking for approval to deploy to the production environment.

At this point, the designated approver clicks Proceed to deploy or Abort to cancel. If aborted, the stage turns gray, the pipeline stops, and a Slack alert is sent.

The screenshot below shows the completed pipeline with all checks passing and the approval prompt still active:

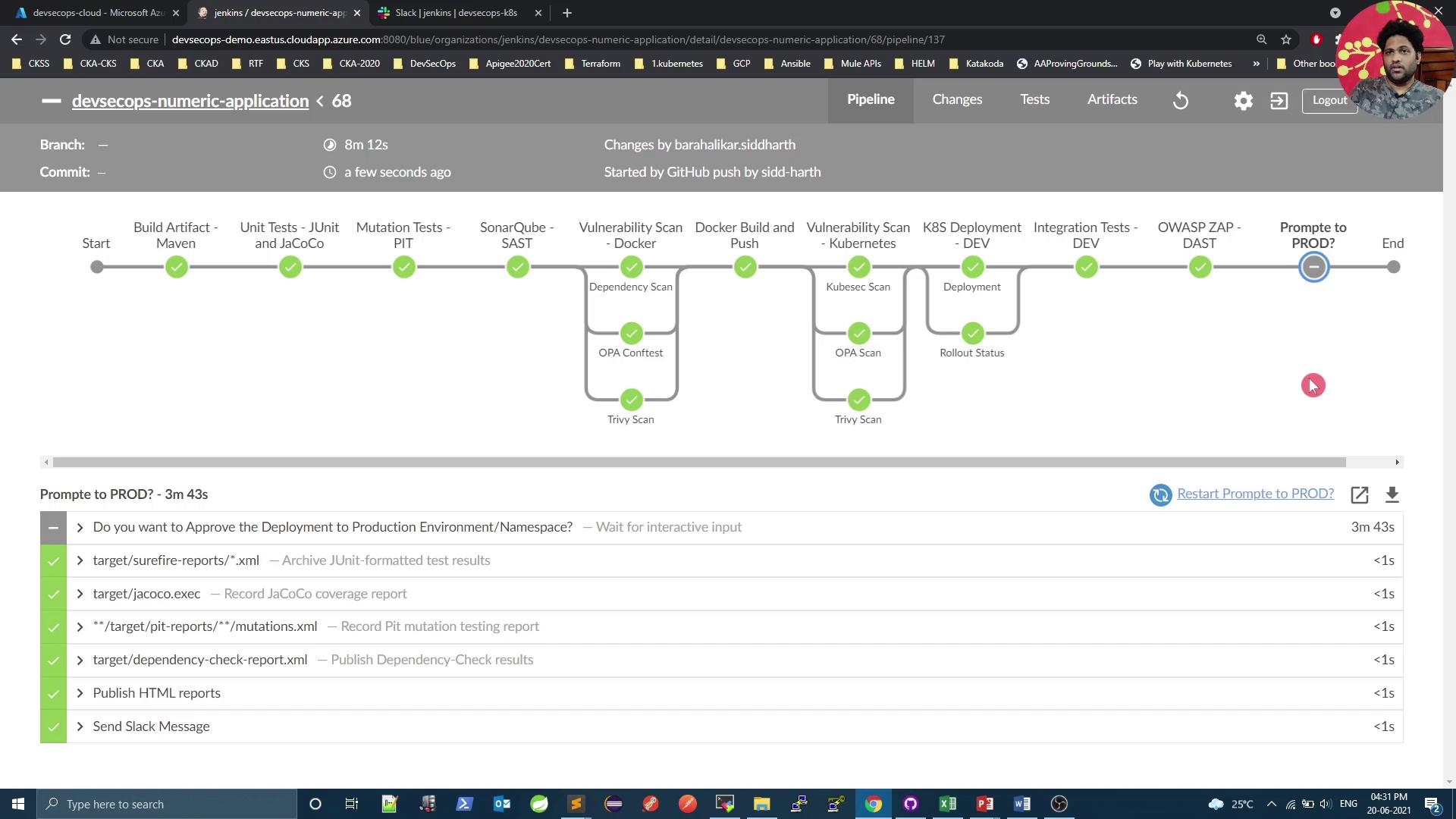

The image shows a Jenkins pipeline for a "devsecops-numeric-application," detailing various stages such as build, testing, scanning, deployment, and integration. Each stage is marked with a green check, indicating successful completion, and there's a prompt for production deployment.

In the next section, we'll add cluster benchmarking with Kubebench, enforce pod-to-pod security using KubeScan, perform a Kubernetes cluster vulnerability audit, and then finalize the production rollout.
