Ensure your container images are free from known security vulnerabilities by using the built-in image scanning feature of Docker Trusted Registry (DTR). Image scanning inspects OS packages, libraries, and dependencies to uncover issues before deployment. You can enable scanning in the DTR UI under System > Security.

Note

Image scanning requires Docker Trusted Registry v2.6 or later. Verify your version under System > Settings before enabling this feature.

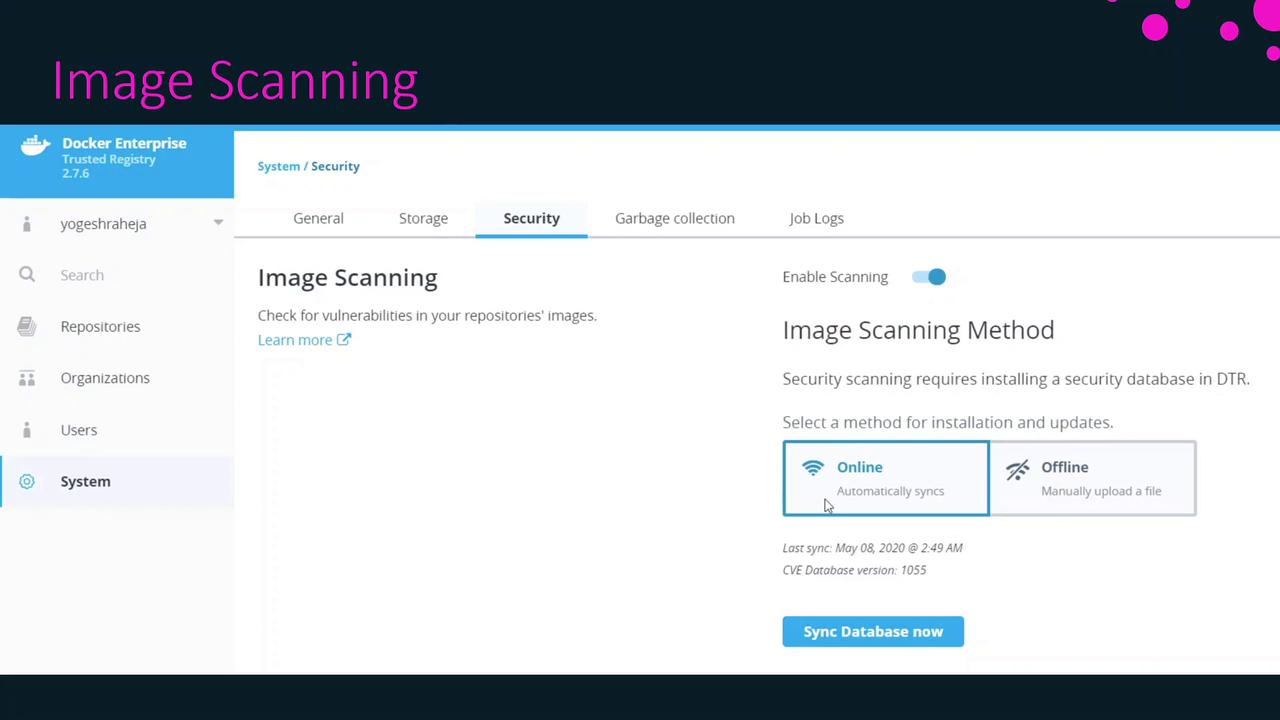

The image shows a Docker Enterprise interface focused on image scanning for security vulnerabilities, with options for online and offline scanning methods. The "Enable Scanning" toggle is on, and there's a button to sync the database.

By default, DTR pulls vulnerability data from the US National Vulnerability Database (NVD), but you can also upload a custom database file if your organization maintains its own feeds. After enabling scanning and syncing the database, you’re ready to run vulnerability assessments on your image tags.

Initiate a Manual Scan

To perform an on-demand scan for a specific image tag:

Navigate to the Repositories view in DTR.
Select your repository and open the Tags tab.
Click Start a Scan next to the tag you want to analyze.

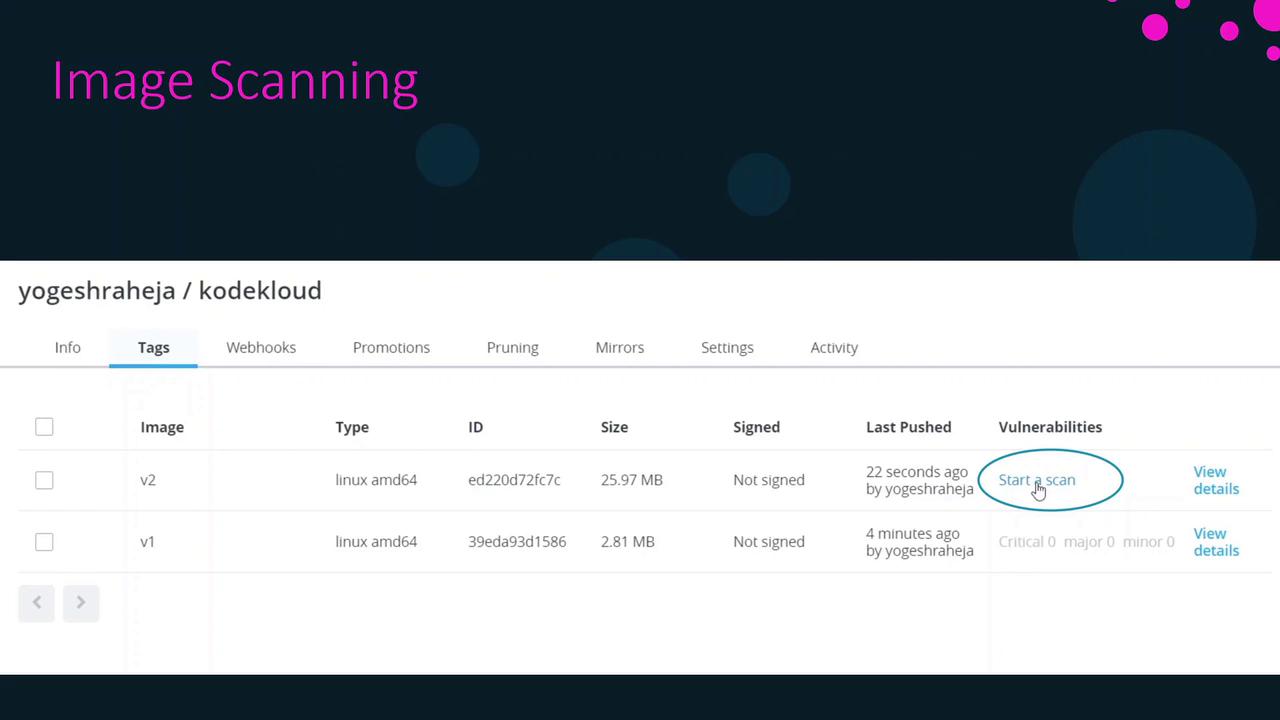

The image shows a software interface for image scanning, displaying details of two images with options to start a scan and view vulnerabilities.

Configure Scan Triggers

DTR supports two scan modes. Choose the one that best fits your CI/CD workflow:

Scan Mode	Description
Manual	You must start each scan yourself via the UI or API.
On Push	Scans automatically run whenever a new tag is pushed.

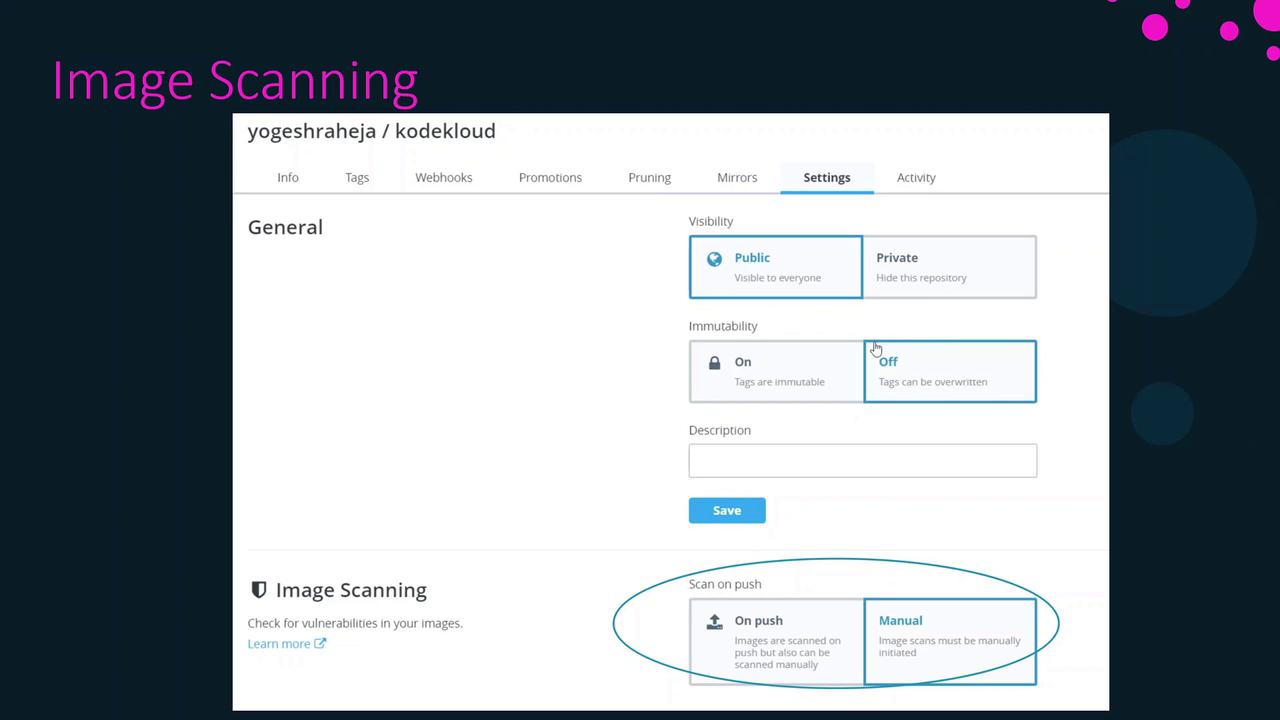

The image shows a software interface for image scanning settings, including options for visibility, immutability, and scan on push preferences.

Warning

Enabling On Push scanning can increase resource usage and may impact registry performance during peak push events.

Review the Scan Report

Once a scan completes, DTR categorizes findings by severity and lists the affected components along with the version in which each issue was introduced. The main severity levels are:

Severity	Description
Critical	Highest impact—immediate remediation needed
Major	Significant risk—plan to upgrade/patch
Minor	Low risk—monitor and remediate as needed

For example, your Dockerfile might look like this:

FROM alpine:3.10

ENV NODE_VERSION=8.9.4
ENV YARN_VERSION=1.3.2

RUN addgroup -g 1000 node \
 && adduser -u 1000 -G node -s /bin/sh node \
 && apk add --no-cache --virtual .build-deps \
      yarn curl gnupg tar

CMD ["node"]

In this snippet:

NODE_VERSION=8.9.4 or YARN_VERSION=1.3.2 may contain known vulnerabilities.
The apk add command pulls in packages that should be checked against the latest security advisories.

After identifying risky packages, look for patched releases or apply vendor fixes before rebuilding the image.

Summary

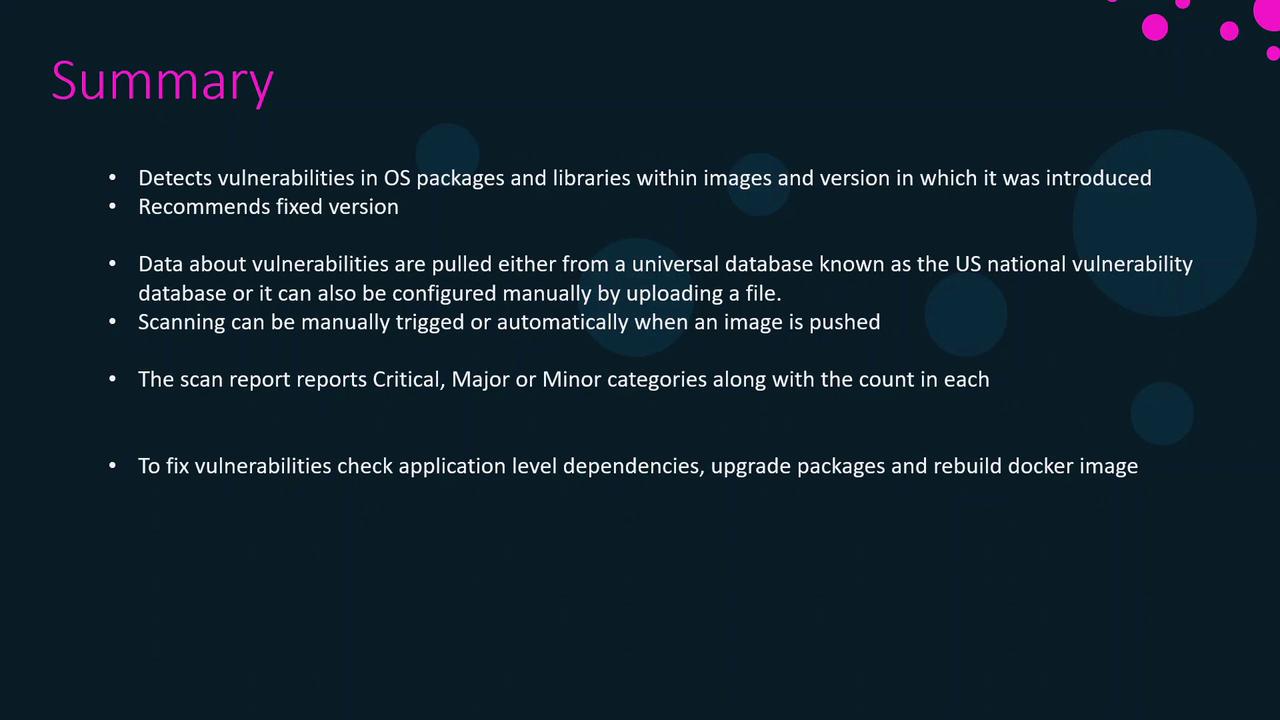

The image is a summary slide detailing a process for detecting vulnerabilities in OS packages and libraries, recommending fixes, and categorizing scan reports. It also mentions using a vulnerability database and suggests steps to fix vulnerabilities.

Key benefits of DTR image scanning:

Detects vulnerabilities in OS packages, libraries, and dependencies
Retrieves data from the US NVD or your custom feed
Offers Manual and On Push scan modes
Classifies findings by severity (Critical, Major, Minor)
Provides version details to trace when issues were introduced
Recommends updated releases or patches for remediation

Next steps: integrate automated scans into your CI/CD pipelines, review reports regularly, and update vulnerable components to keep your container images secure.
