Troubleshooting JavaScript Actions using Workflow Commands

Learn how to debug custom JavaScript GitHub Actions step by step. We’ll use workflow commands and the @actions/core toolkit to inspect annotations, logs, summaries, and properly handle failures. By the end, you’ll be able to:

• Read inputs and set outputs
• Log at different levels (info, notice, warning, error)
• Mask secrets and export environment variables
• Generate job summaries
• Fail actions with descriptive exit codes

Table of Contents

1. Importing and Cloning the Repository
2. Reviewing action.yaml
3. Examining package.json
4. Business Logic in index.js
5. Building the Action
6. Testing with a Workflow
7. Enabling Actions and Running the Workflow
   7.1 Viewing Annotations
   7.2 Inspecting Logs
8. Error Scenario: Invalid Phone Number
9. Setting Failure Exit Codes
10. Conclusion
11. Links & References

1. Importing and Cloning the Repository

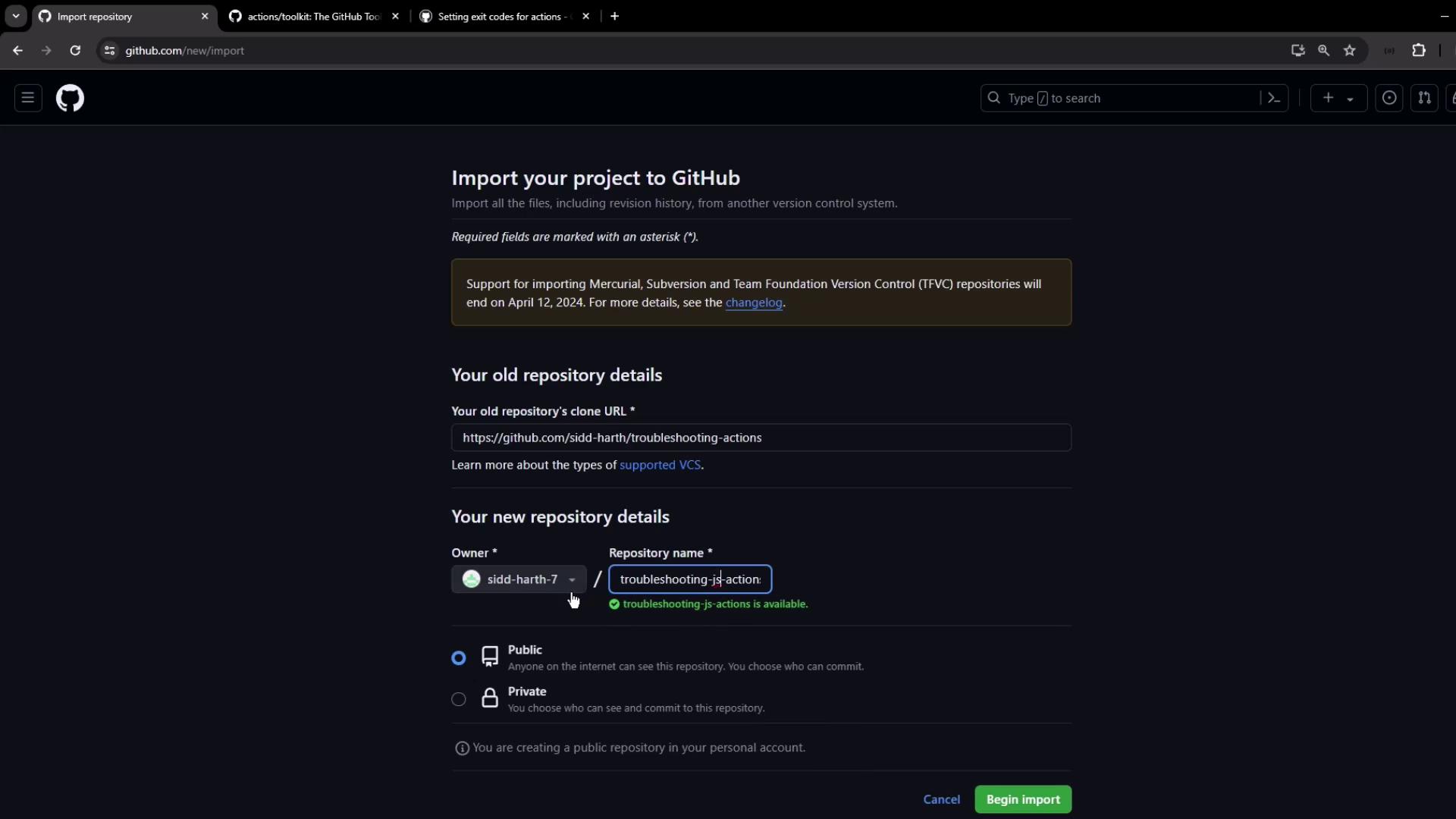

First, import the sample project into your GitHub account. Choose TroubleshootingJS-Actions, set visibility to Public, and click Import.

Then clone it locally:

git clone https://github.com/your-org/TroubleshootingJS-Actions.git
cd TroubleshootingJS-Actions

2. Reviewing action.yaml

Open action.yaml, the manifest that defines inputs, outputs, and runtime:

name: 'Demo - Troubleshooting Custom JavaScript Actions'
description: 'Use @actions/core methods for logging, secrets, and summaries'
inputs:
  name:
    description: 'User name'
    required: true
    default: 'Siddharth'
  phone:
    description: 'User phone number'
    required: true
    default: '0123456789'
  country:
    description: 'User country'
    required: true
    default: 'india'
outputs:
  customized_greeting:
    description: 'Greeting passed to next steps'
runs:
  using: 'node20'
  main: 'dist/index.js'

3. Examining package.json

The package.json file lists dependencies for your action bundle:

{
  "name": "troubleshooting-custom-action",
  "version": "1.0.0",
  "main": "index.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
  "dependencies": {
    "@actions/core": "^1.10.0",
    "@vercel/ncc": "^0.38.0"
  }
}

• @actions/core: Toolkit for inputs, outputs, logging, secret masking
• @vercel/ncc: Bundles your JavaScript into a single file

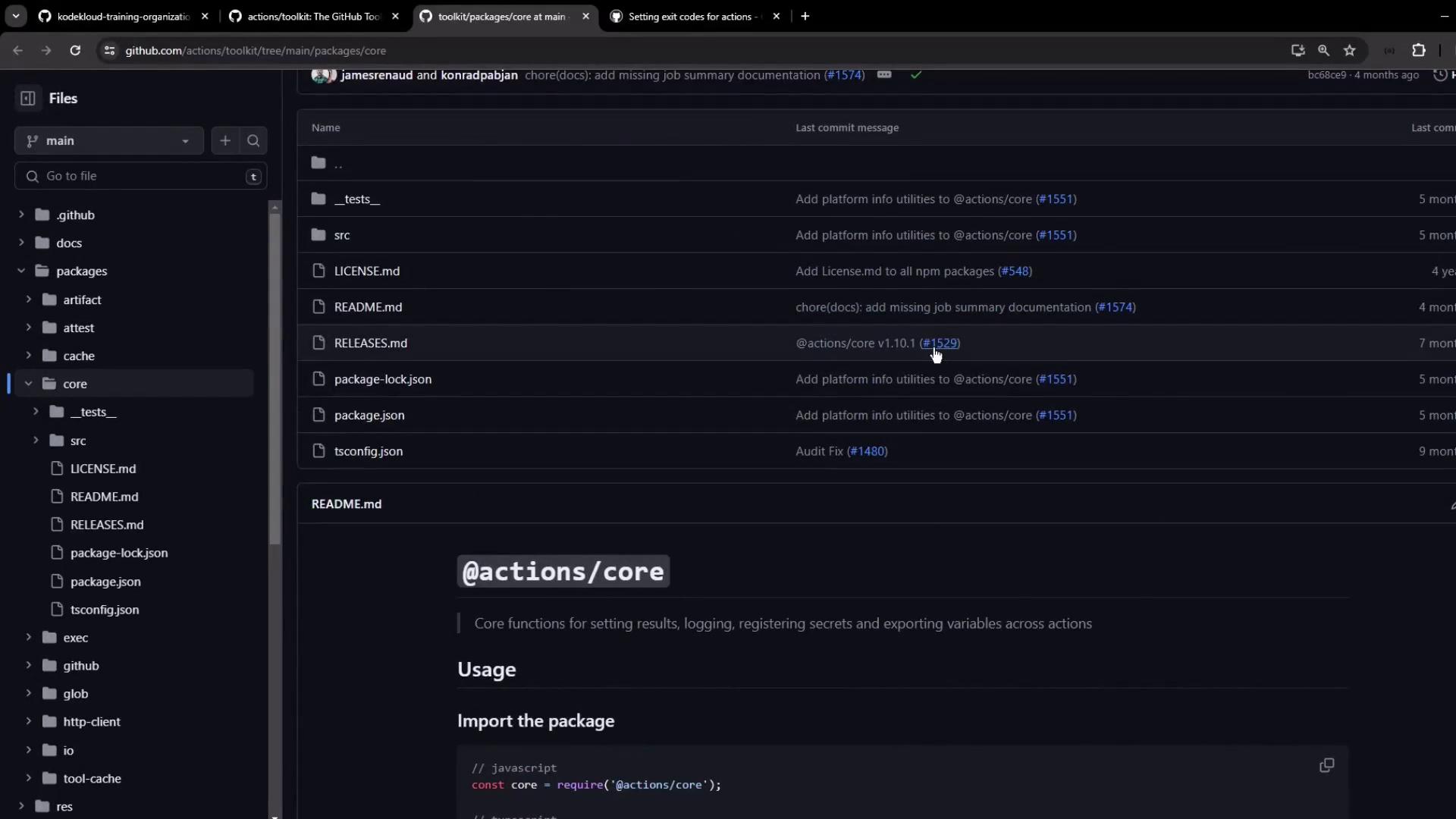

Refer to the actions toolkit documentation for examples such as:

const core = require('@actions/core');
core.getInput('name', { required: true });
core.setOutput('customized_greeting', 'Hello World');
core.exportVariable('ENV_VAR', 'value');

4. Business Logic in index.js

The main script reads inputs, logs messages, masks secrets, exports variables, and builds a summary:

const core = require('@actions/core');

try {
  // 1. Read inputs
  const nameInput = core.getInput('name', { required: true });
  const phoneInput = core.getInput('phone', { required: true });
  const country   = core.getInput('country', { required: true });

  // 2. Debug logging
  if (core.isDebug()) {
    core.info('Running in debug mode');
    core.debug('Debug-level message');
  }
  core.info('---------- START ----------');

  // 3. Prepare greeting
  const greeting = `Hello ${nameInput}, your phone number is ${phoneInput}`;

  // 4. Log at different levels
  core.info(`Info: ${greeting}`);
  core.notice(`Notice: ${greeting}`);
  core.warning(`Warning: ${greeting}`);
  core.error(`Error: ${greeting}`);
  core.info('---------- END ------------');

  // 5. Set output
  core.setOutput('customized_greeting', greeting);

  // 6. Validate phone and export variable
  if (phoneInput.length !== 10) {
    core.error(`Invalid phone number: ${phoneInput}`);
    // core.setFailed('Invalid phone number provided!');
  } else {
    const prefix = country.toLowerCase() === 'india' ? '+91'
                  : country.toLowerCase() === 'canada' ? '+1' : '';
    core.exportVariable('JS_ACTION_PHONE_VAR', `${prefix}${phoneInput}`);
  }

  // 7. Mask secret and write summary
  core.setSecret(phoneInput);
  core.summary
    .addHeading('Action Summary')
    .addCodeBlock("const core = require('@actions/core');", 'js')
    .addTable([
      [{ data: 'Name', header: true }, { data: 'Country', header: true }, { data: 'Phone', header: true }],
      [nameInput, country, phoneInput]
    ])
    .addQuote('Phone number has been masked')
    .addLink('View Repository', 'https://github.com/sidd-harth/troubleshooting-actions')
    .write();
} catch (error) {
  core.setFailed(error.message);
}

5. Building the Action

Install dependencies and bundle into dist/index.js:

npm install
npx ncc build index.js --license licenses.txt

This creates dist/index.js with all required modules included.

6. Testing with a Workflow

Create .github/workflows/test.yml to trigger the action manually:

on:
  workflow_dispatch:
    inputs:
      name:
        description: 'User name'
        required: true
        default: 'Sid'
      phone:
        description: 'User phone'
        required: true
        default: '9876543210'
      country:
        description: 'User country'
        required: true
        default: 'india'
        type: choice
        options: [india, canada, others]

jobs:
  custom-action:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v3
      - name: Run Troubleshooting Action
        id: action_step
        uses: ./
        with:
          name:   ${{ inputs.name }}
          phone:  ${{ inputs.phone }}
          country:${{ inputs.country }}
      - name: Display Outputs
        run: |
          echo "Greeting: ${{ steps.action_step.outputs.customized_greeting }}"
          echo "Phone Var: $JS_ACTION_PHONE_VAR"

7. Enabling Actions and Running the Workflow

Imported repositories have Actions disabled by default. Enable them before running:

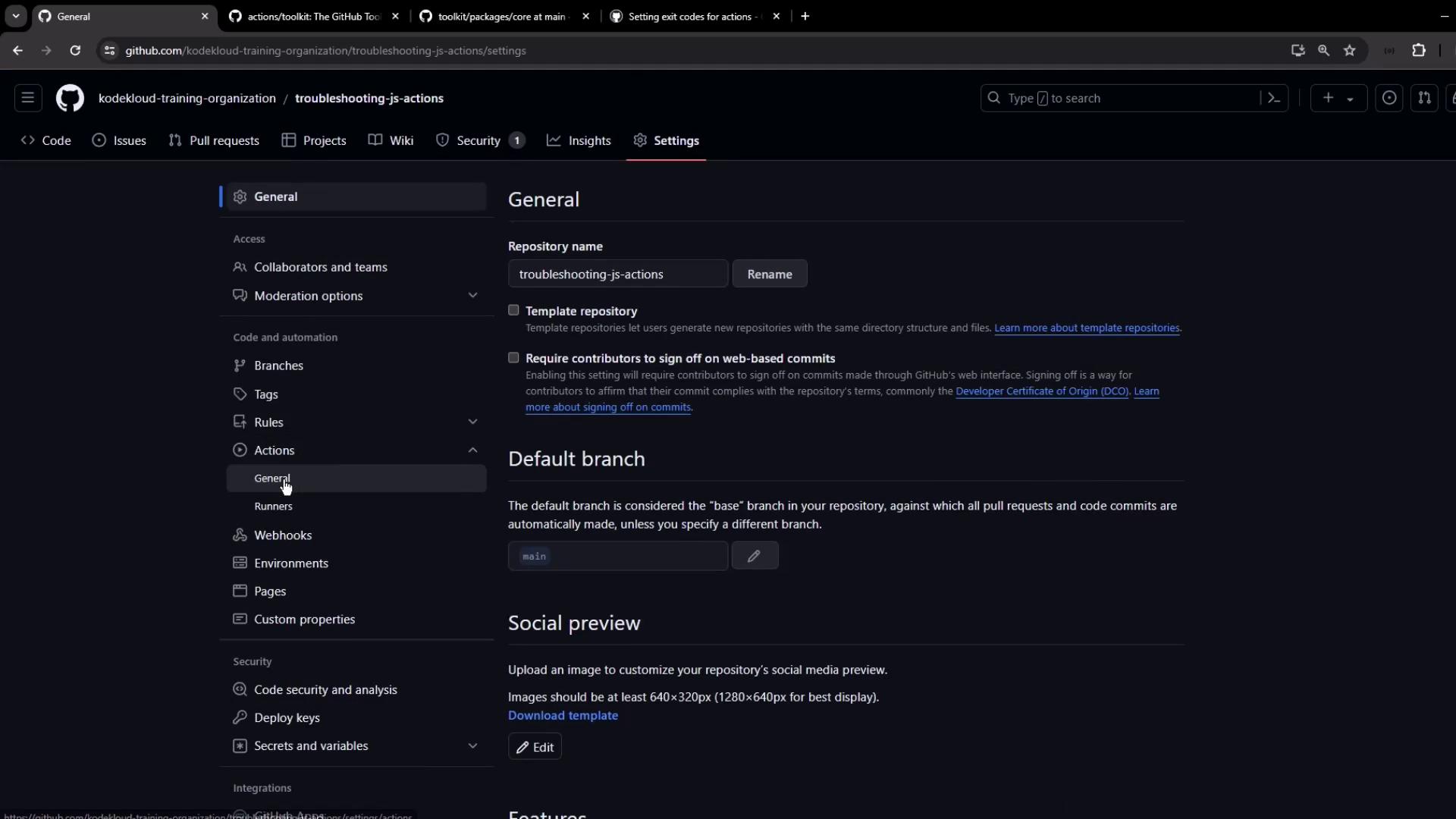

1. Go to Settings → Actions → General

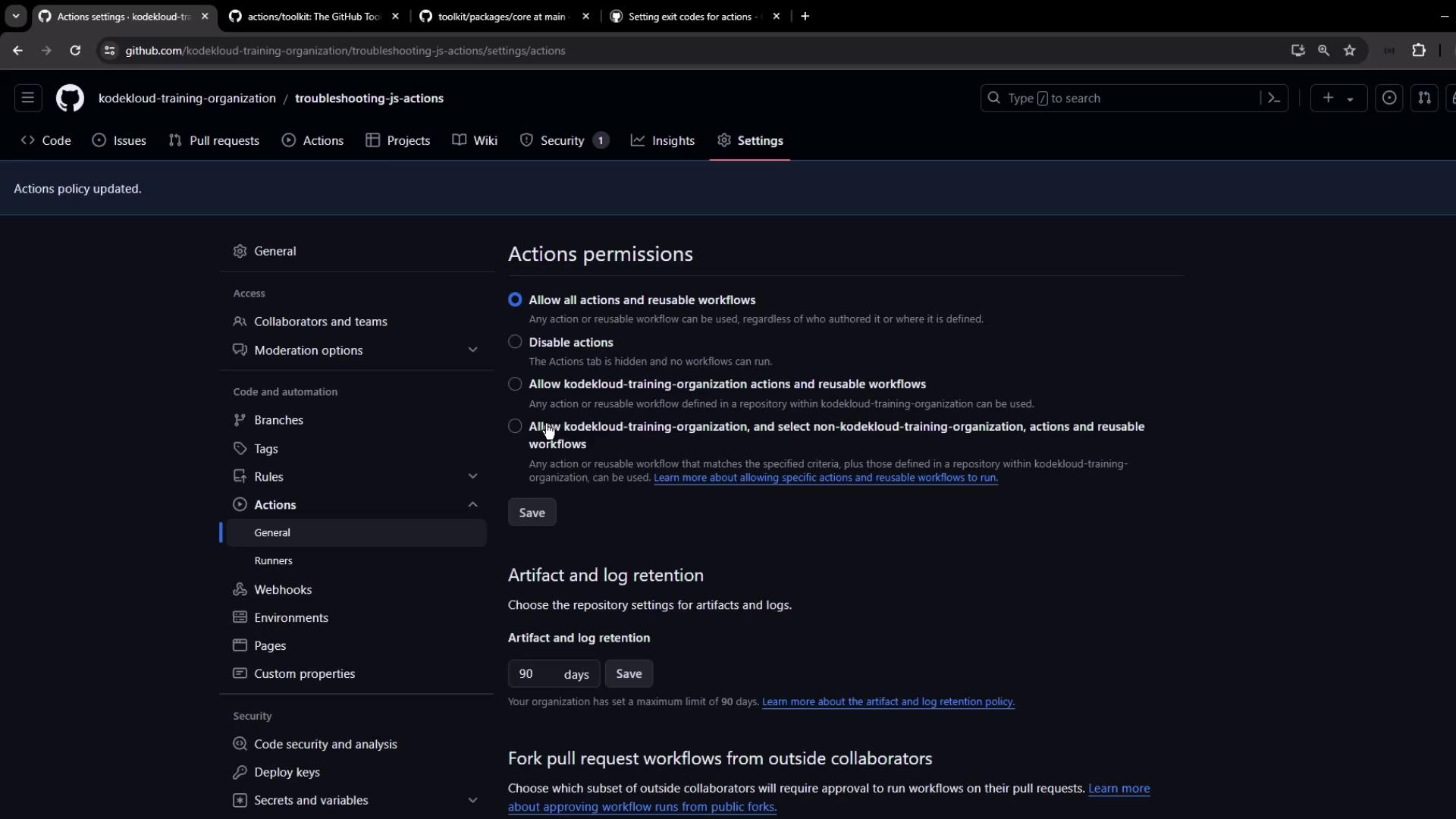

2. Under Actions permissions, select Allow all actions and reusable workflows

Once enabled, trigger the workflow via Actions → Run workflow with default inputs. The job should succeed.

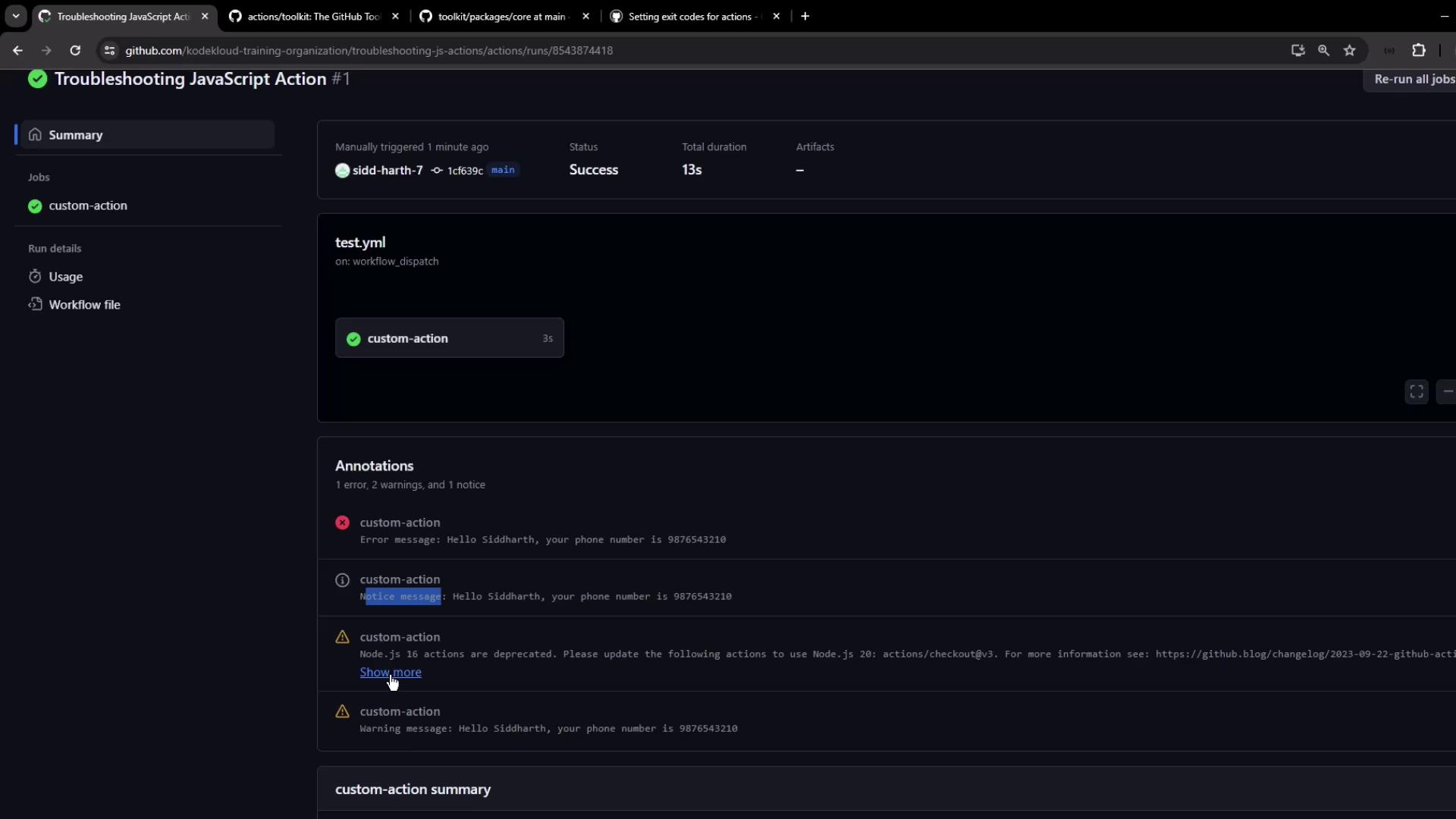

7.1 Viewing Annotations

GitHub UI displays annotations from different logging levels:

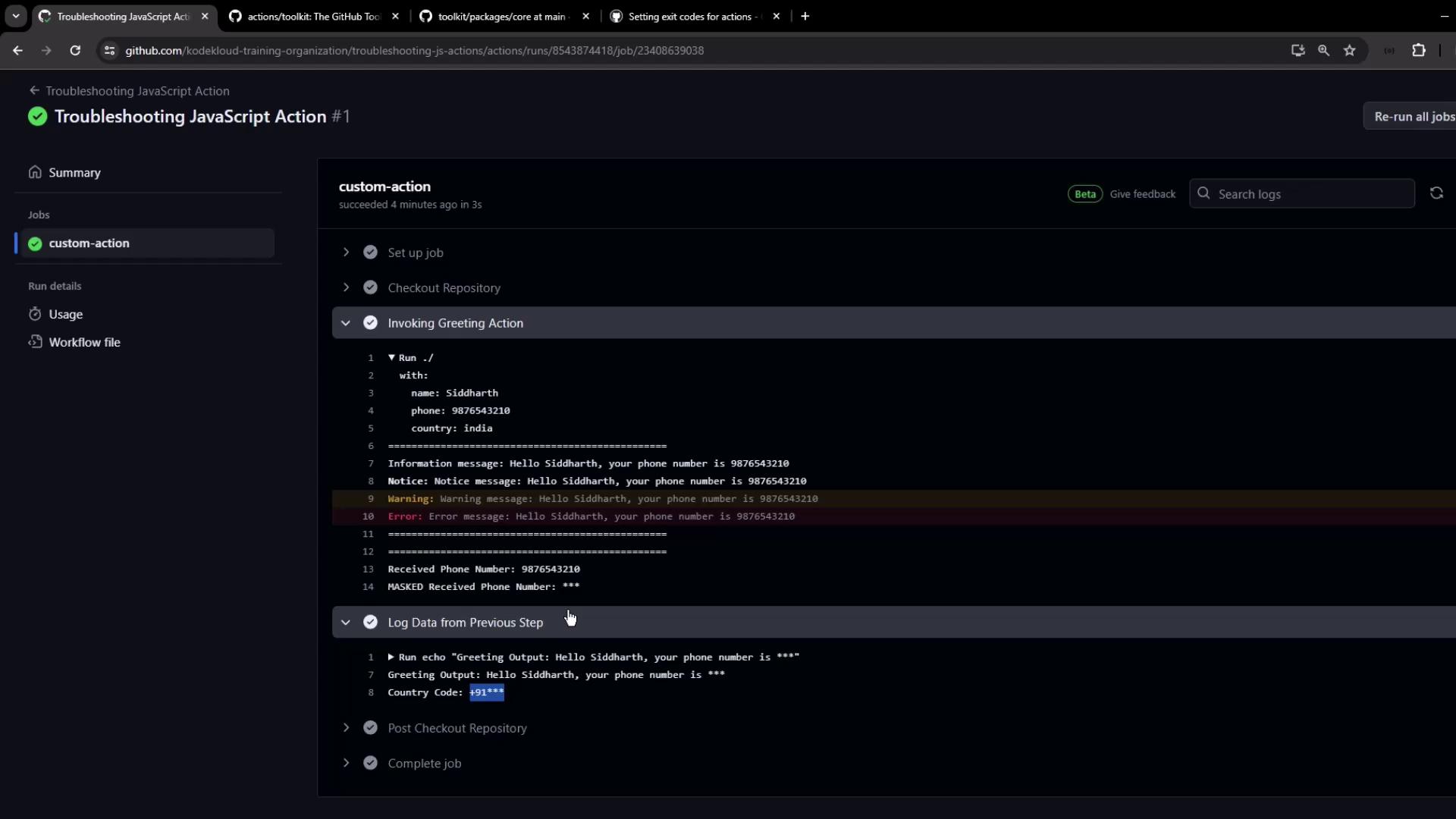

7.2 Inspecting Logs

Detailed logs show messages and confirm that secrets are masked:

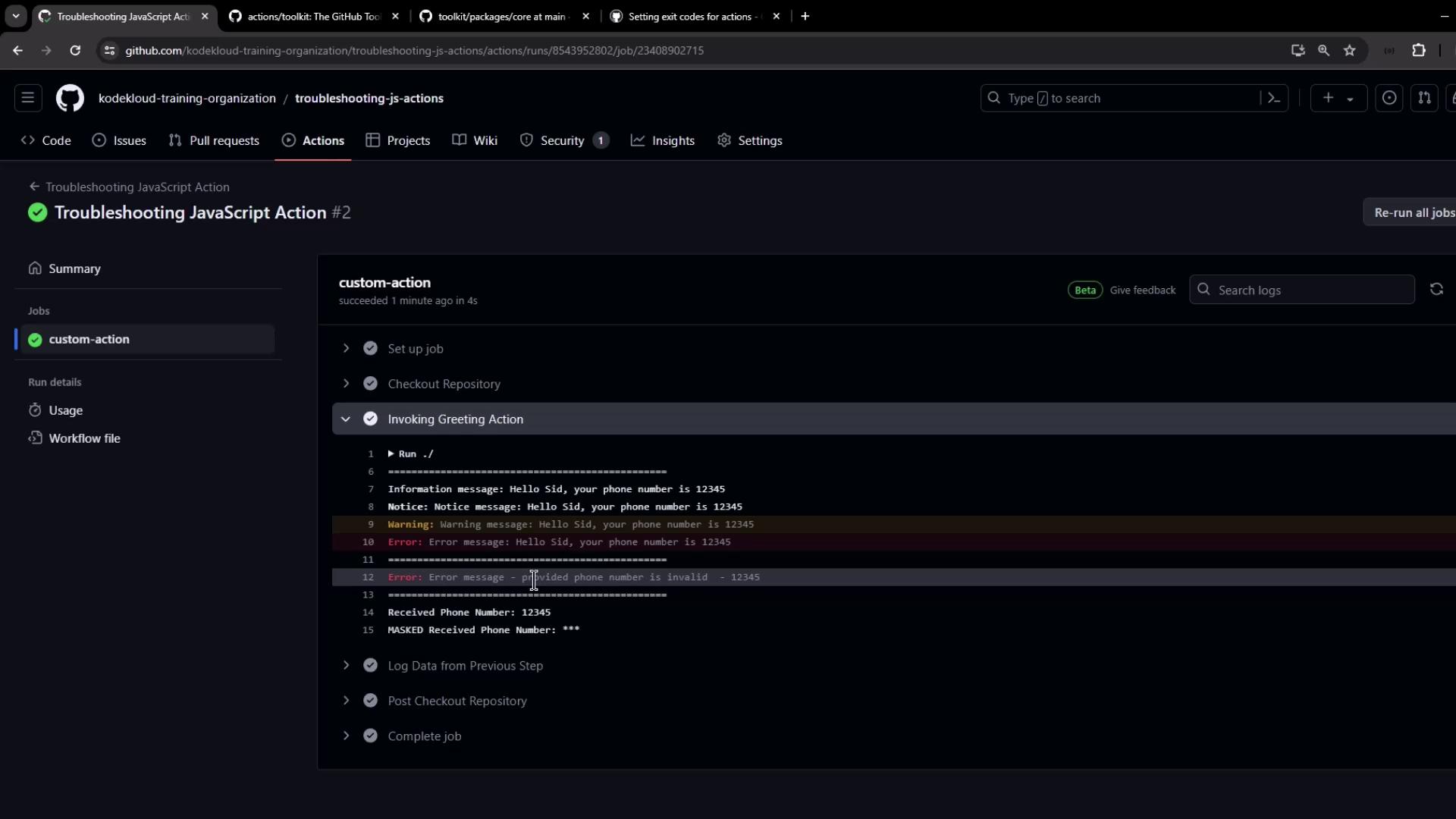

8. Error Scenario: Invalid Phone Number

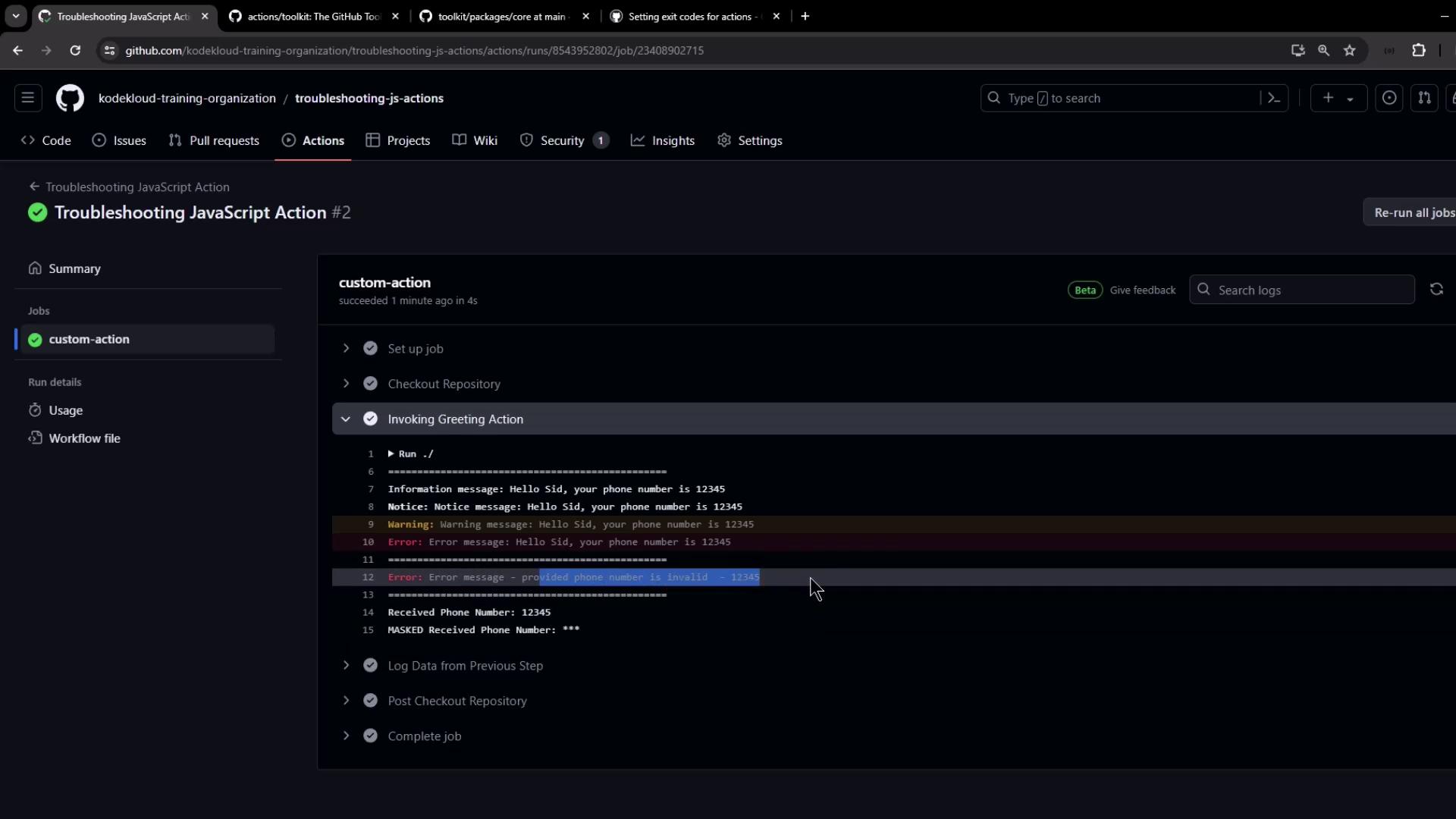

If the phone number is shorter than 10 digits, you’ll see the logged error but the job remains green (until you opt to fail it):

9. Setting Failure Exit Codes

To mark the step as failed and stop downstream jobs, uncomment core.setFailed():

if (phoneInput.length !== 10) {
  core.error(`Invalid phone number: ${phoneInput}`);
  core.setFailed('Invalid phone number provided!');
} else {
  // Export logic...
}

Rebuild and commit, then rerun. A short number now causes the action to fail and skip subsequent steps.

After failure is enabled, the logs will clearly indicate a non-zero exit:

10. Conclusion

You’ve covered essential patterns for debugging JavaScript Actions:

• Use @actions/core for inputs, outputs, logs, secrets, and summaries
• Bundle with ncc for single-file distribution
• Write workflows to validate functionality
• View annotations and logs directly in the GitHub UI
• Fail actions properly with core.setFailed()

Apply these techniques to create maintainable, self-documented, and debuggable GitHub Actions.

11. Links & References

• GitHub Actions Toolkit – core

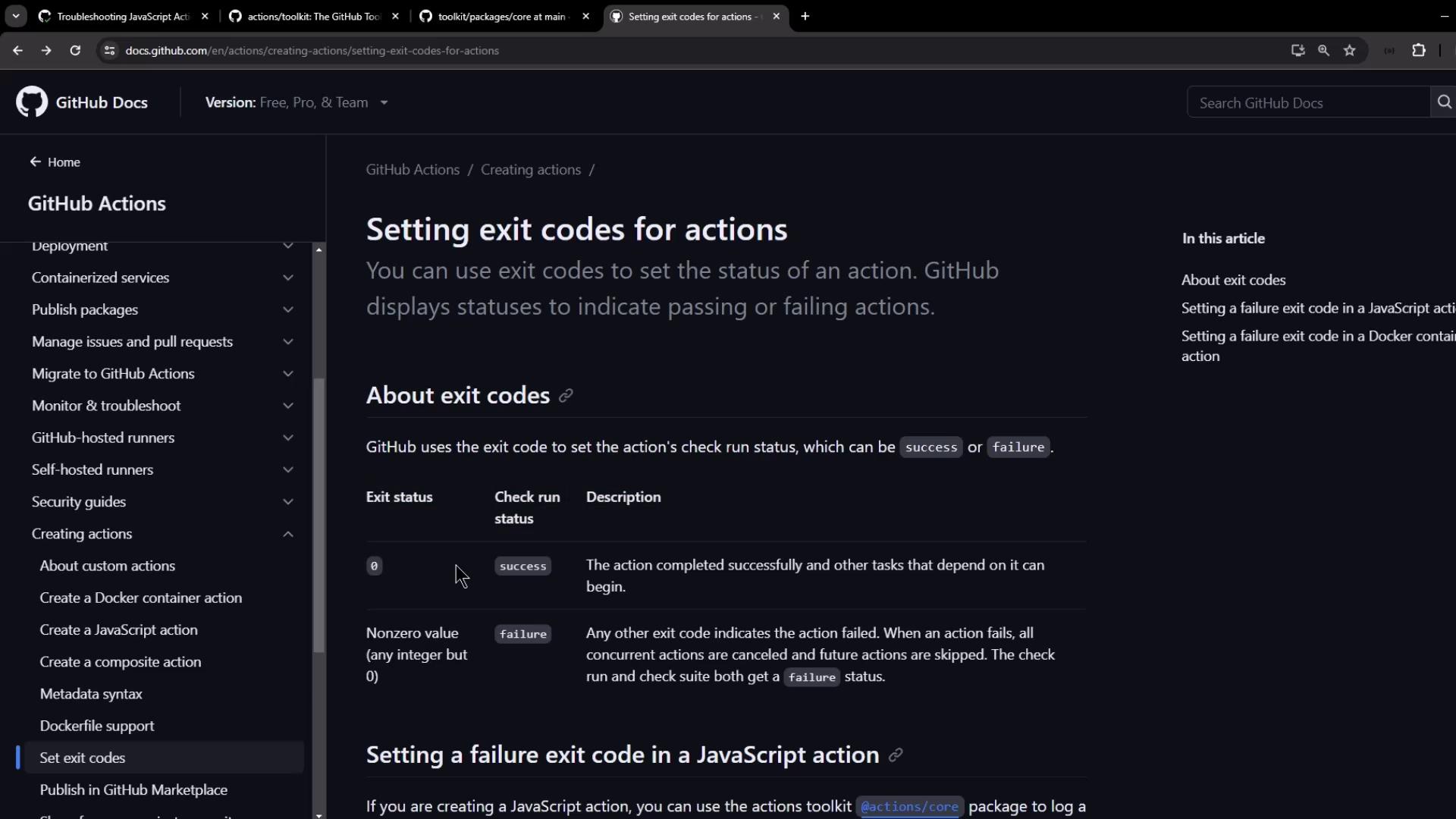

• GitHub Actions Exit Codes
• ncc Bundler by Vercel
• GitHub Workflow Syntax
• Node.js v20
