Prepare a Job for reporting

In this lesson, we’ll extend our existing GitHub Actions workflow by adding a reporting job that:

1. Downloads unit-test and code-coverage artifacts
2. Merges them into a directory named after the current commit SHA
3. Prepares the reports for upload to an AWS S3 bucket

Our workflow already defines the following jobs:

• unit-testing
• code-coverage
• docker
• dev-deploy
• dev-integration-testing
• prod-deploy
• prod-integration-testing

We’ll insert a new job, reports-s3, right after code-coverage. It uses needs to depend on both unit-testing and code-coverage.

name: Solar System Workflow

on:
  workflow_dispatch:
  push:
    branches:
      - main
      - 'feature/*'

env:
  MONGO_URI: 'mongodb+srv://supercluster.d83jj.mongodb.net/superData'
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}
  MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}

jobs:
  unit-testing:     ...  # existing definition
  code-coverage:    ...  # existing definition

  reports-s3:
    name: AWS S3 – Upload Reports
    needs: [unit-testing, code-coverage]
    runs-on: ubuntu-latest
    continue-on-error: true

    steps:
      - name: Download Mocha Test Artifact
        uses: actions/download-artifact@v3
        with:
          name: Mocha-Test-Result

      - name: Download Code Coverage Artifact
        uses: actions/download-artifact@v3
        with:
          name: Code-Coverage-Result

      - name: Merge Test Files
        run: |
          echo "Listing workspace contents..."
          ls -ltr
          echo "Creating reports directory..."
          mkdir reports-${{ github.sha }}
          mv cobertura-coverage.xml reports-${{ github.sha }}/
          mv test-results.xml       reports-${{ github.sha }}/
          echo "Final contents:"
          ls -ltr reports-${{ github.sha }}/

      - name: Upload to AWS S3
        # TODO: Replace with official AWS S3 upload action or AWS CLI
        run: echo "Uploading reports to S3..."

Previous Jobs: Archiving Artifacts

Below are the essential steps for uploading artifacts in your unit-testing and code-coverage jobs:

unit-testing

jobs:
  unit-testing:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Repository
        uses: actions/checkout@v4

      - name: Setup Node.js
        uses: actions/setup-node@v3
        with:
          node-version: ${{ matrix.nodejs_version }}

      - name: Install Dependencies
        run: npm install

      - name: Run Unit Tests
        id: nodejs-unit-testing
        run: npm test

      - name: Archive Test Result
        if: always()
        uses: actions/upload-artifact@v3
        with:
          name: Mocha-Test-Result
          path: test-results.xml

code-coverage

  code-coverage:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Repository
        uses: actions/checkout@v4

      - name: Setup Node.js
        uses: actions/setup-node@v3
        with:
          node-version: 18

      - name: Install Dependencies
        run: npm install

      - name: Run Coverage
        continue-on-error: true
        run: npm run coverage

      - name: Archive Coverage Report
        uses: actions/upload-artifact@v3
        with:
          name: Code-Coverage-Result
          path: coverage
          retention-days: 5

Workflow Graph and Logs

Once merged, your GitHub Actions graph will show the new AWS S3 – Upload Reports job with arrows from unit-testing and code-coverage. All upstream jobs complete before reports-s3 starts, and downstream jobs run in parallel.

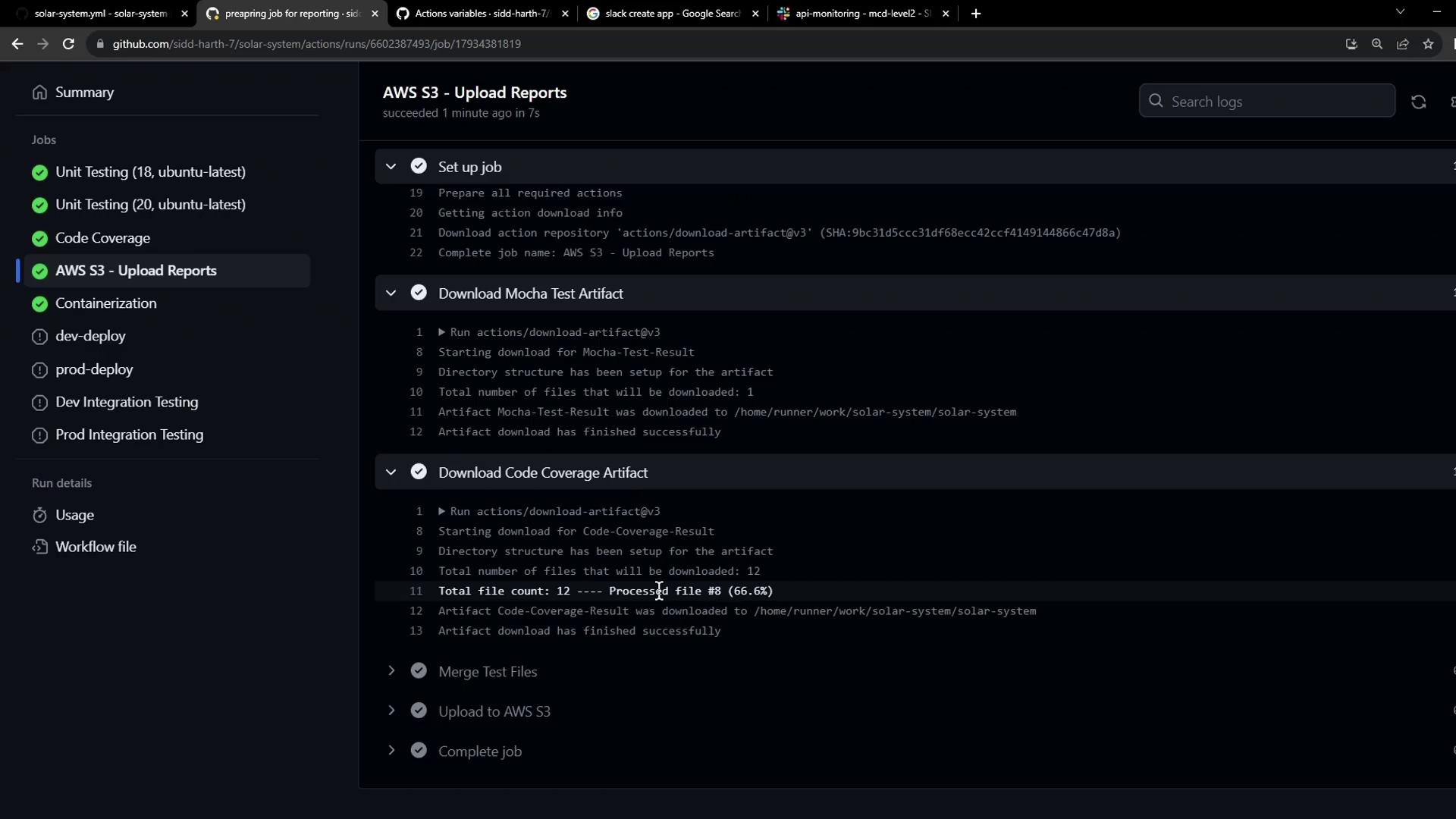

In the logs, you’ll observe:

1. Download Mocha Test Artifact – via actions/download-artifact@v3.
2. Download Code Coverage Artifact – similarly.
3. Merge Test Files – creation of reports-<SHA> and movement of cobertura-coverage.xml and test-results.xml.
4. Upload to AWS S3 – placeholder echo until we configure an S3 action.

That completes adding the reports-s3 job. Next, we’ll configure the actual AWS S3 upload step.
