GitHub Actions Certification

Reusable Workflows and Reporting

Step 3 Using Inputs in Reusable Workflow

In this guide, you’ll learn how to pass inputs into GitHub Actions reusable workflows to handle configuration values—such as MongoDB credentials—without relying on environment variables in the caller workflow.

Warning

Environment variables defined in a caller workflow do not propagate into a called reusable workflow. Attempting to pass sensitive data like database URIs via env: will result in empty values.

For example, this command fails to set MONGO_URI:

kubectl -n development create secret generic mongo-db-creds \
  --from-literal=MONGO_URI= \
  --from-literal=MONGO_USERNAME=superuser \
  --from-literal=MONGO_PASSWORD=*** \
  --save-config \
  --dry-run=client \
  -o yaml | kubectl apply -f -

This is a documented limitation of reusable workflows.

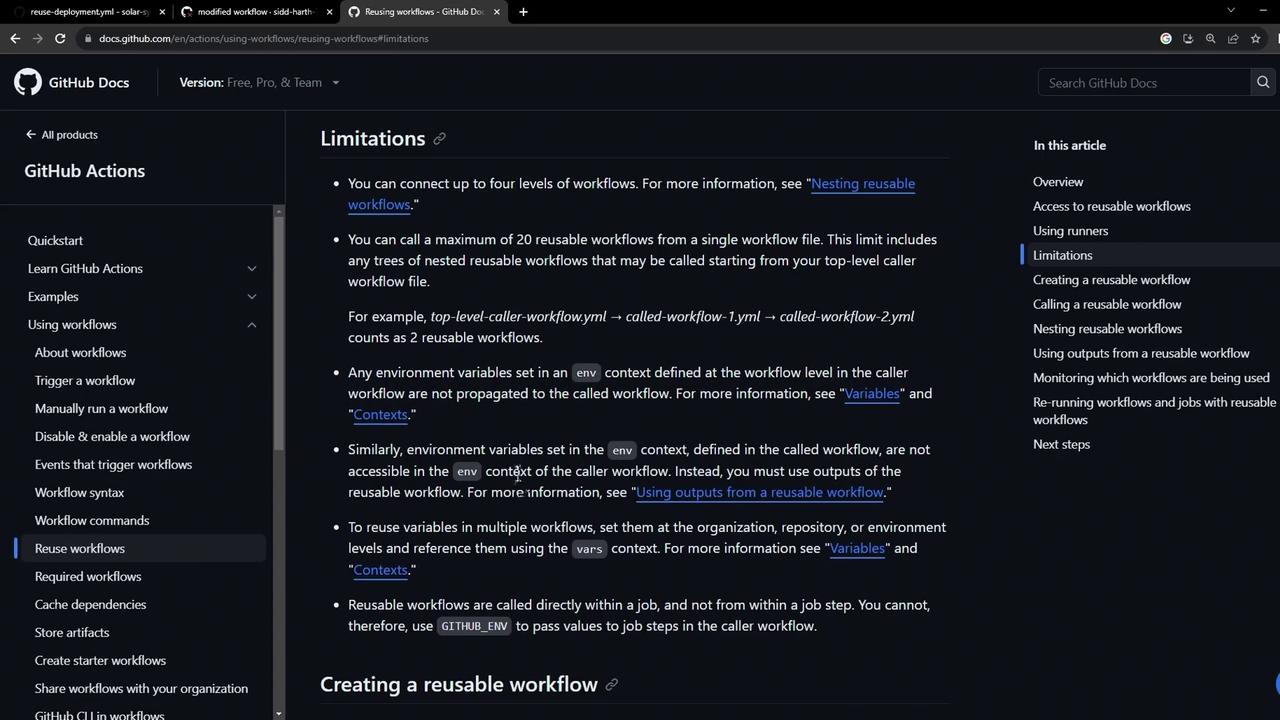

The image shows a GitHub Docs page about GitHub Actions, specifically focusing on the limitations of reusing workflows. It includes navigation menus and detailed text on workflow limitations.


1. Define a Basic Reusable Workflow

Create a workflow—e.g. .github/workflows/reuse-deployment.yml—that declares the required secrets under workflow_call. This allows callers to supply kubeconfig and database passwords securely:

name: Deployment - Reusable Workflow

on:
  workflow_call:
    secrets:
      k8s-kubeconfig:
        required: true
      mongodb-password:
        required: true

jobs:
  reuse-deploy:
    environment:
      name: development
      url: https://${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
    outputs:
      APP_INGRESS_URL: ${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Repo
        uses: actions/checkout@v4

      - name: Install kubectl CLI
        uses: azure/setup-kubectl@v3
        with:
          version: '1.26.0'

      - name: Set Kubeconfig file
        uses: azure/k8s-set-context@v3
        with:
          method: kubeconfig
          kubeconfig: ${{ secrets.k8s-kubeconfig }}

      - name: Fetch Kubernetes Cluster Details
        run: |
          kubectl version --short
          echo "-------------------------------------------"
          kubectl get nodes

      - name: Save Nginx Ingress Controller IP as an Output
        id: set-ingress-host-address
        run: |
          IP=$(kubectl -n ingress-nginx get svc ingress-nginx-controller \
            -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
          echo "APP_INGRESS_HOST=$IP" >> $GITHUB_OUTPUT

      - name: Replace Tokens in Manifests
        uses: cschijden/replace-tokens@v1
        with:
          tokenPrefix: __
          tokenSuffix: __
          files: ["kubernetes/development/*.yaml"]
        env:
          NAMESPACE: ${{ vars.NAMESPACE }}
          REPLICAS: ${{ vars.REPLICAS }}
          IMAGE: ${{ vars.DOCKERHUB_USERNAME }}/solar-system:${{ github.sha }}
          INGRESS_IP: ${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}

      - name: Inspect Rendered Manifests
        run: cat kubernetes/development/*.yaml

      - name: Create MongoDB Secret
        run: |
          kubectl -n ${{ vars.NAMESPACE }} create secret generic mongo-db-creds \
            --from-literal=MONGO_URI=${{ env.MONGO_URI }} \
            --from-literal=MONGO_USERNAME=${{ vars.MONGO_USERNAME }} \
            --from-literal=MONGO_PASSWORD=${{ secrets.mongodb-password }} \
            --save-config

      - name: Deploy to Development Environment
        run: kubectl apply -f kubernetes/development

2. Store MongoDB URI as a Repository Variable

Go to Settings > Actions > Secrets and variables > Variables and add:

  • Name: MONGO_URI
  • Value: mongodb+srv://supercluster.d8jj.mongodb.net/superData

Now the workflow can reference env.MONGO_URI without relying on the caller’s env: block.

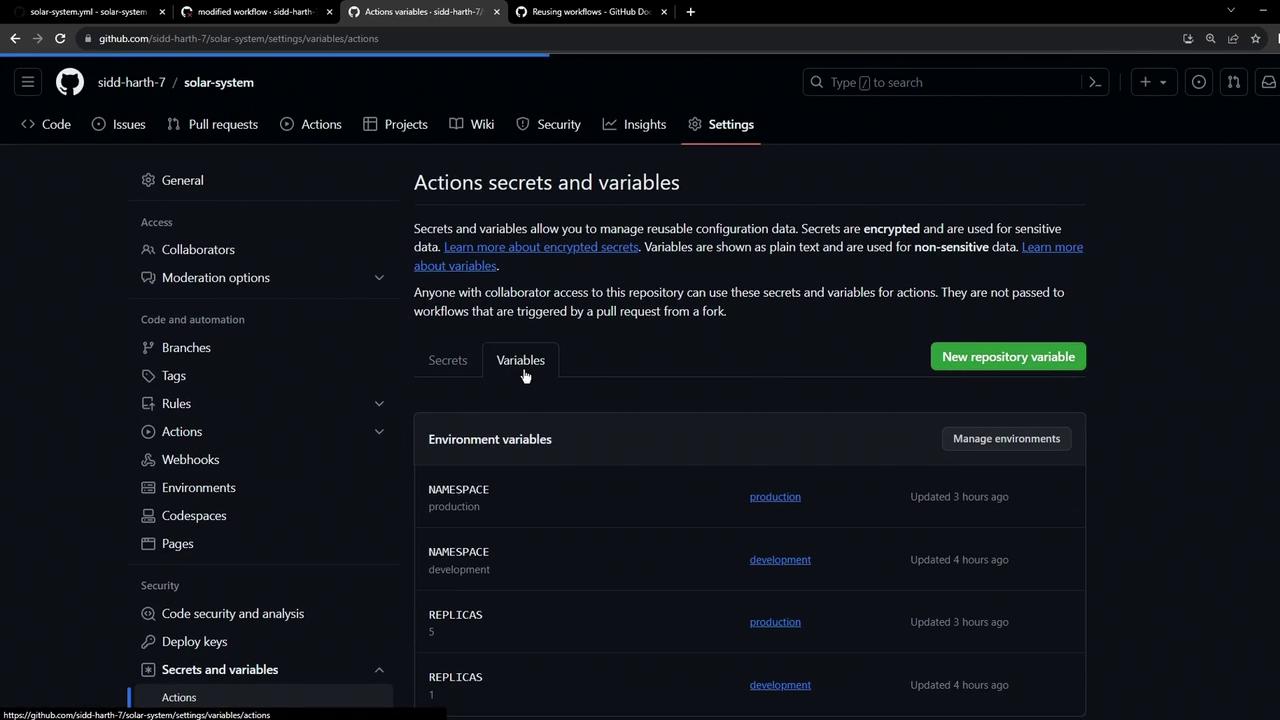

The image shows a GitHub repository settings page focused on "Actions secrets and variables," displaying environment variables and options to manage them. The interface includes sections for secrets, variables, and various repository settings.


3. Add workflow_call Inputs

Enhance your reusable workflow by defining typed inputs for maximum flexibility:

name: Deployment - Reusable Workflow

on:
  workflow_call:
    inputs:
      mongodb-uri:
        description: MongoDB connection string
        required: true
        type: string
      kubectl-version:
        description: kubectl CLI version
        required: false
        default: v1.26.0
        type: string
      k8s-manifest-dir:
        description: Path to Kubernetes manifests
        required: true
        default: kubernetes/
        type: string
      environment:
        description: Deployment environment name
        required: true
        default: dev
        type: string
    secrets:
      k8s-kubeconfig:
        required: true
      mongodb-password:
        required: true

Inputs Reference Table

Input NameTypeRequiredDefaultDescription
mongodb-uristringYesMongoDB connection string
kubectl-versionstringNov1.26.0Version of kubectl to install
k8s-manifest-dirstringYeskubernetes/Directory containing manifests
environmentstringYesdevName of the target environment

Update steps to reference inputs instead of hard-coded values:

jobs:
  reuse-deploy:
    environment:
      name: ${{ inputs.environment }}
      url: https://${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
    runs-on: ubuntu-latest
    steps:
      # ...
      - name: Install kubectl CLI
        uses: azure/setup-kubectl@v3
        with:
          version: ${{ inputs.kubectl-version }}
      # ...
      - name: Replace Tokens in Manifests
        uses: cschijden/replace-tokens@v1
        with:
          files: ["${{ inputs.k8s-manifest-dir }}*.yaml"]
        env:
          INGRESS_IP: ${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
      # ...
      - name: Create MongoDB Secret
        run: |
          kubectl -n ${{ vars.NAMESPACE }} create secret generic mongo-db-creds \
            --from-literal=MONGO_URI=${{ inputs.mongodb-uri }} \
            --from-literal=MONGO_USERNAME=${{ vars.MONGO_USERNAME }} \
            --from-literal=MONGO_PASSWORD=${{ secrets.mongodb-password }} \
            --save-config \
            --dry-run=client -o yaml | kubectl apply -f -
      # ...
      - name: Deploy to ${{ inputs.environment }}
        run: kubectl apply -f "${{ inputs.k8s-manifest-dir }}"

4. Call the Reusable Workflow with Inputs

In your caller workflow (e.g. .github/workflows/dev-deploy.yml), pass inputs via with: and secrets as before:

dev-deploy:
  if: contains(github.ref, 'feature/')
  needs: docker
  uses: ./.github/workflows/reuse-deployment.yml
  with:
    mongodb-uri: ${{ vars.MONGO_URI }}
    kubectl-version: v1.27.0        # optional override
    environment: development
    k8s-manifest-dir: kubernetes/development/
  secrets:
    k8s-kubeconfig: ${{ secrets.KUBECONFIG }}
    mongodb-password: ${{ secrets.MONGO_PASSWORD }}

prod-deploy:
  if: github.ref == 'refs/heads/main'
  needs: docker
  uses: ./.github/workflows/reuse-deployment.yml
  with:
    mongodb-uri: ${{ vars.MONGO_URI }}
    environment: production
    k8s-manifest-dir: kubernetes/production/
  secrets:
    k8s-kubeconfig: ${{ secrets.KUBECONFIG }}
    mongodb-password: ${{ secrets.MONGO_PASSWORD }}

After pushing, the dev-deploy run shows the inputs and secrets correctly applied:

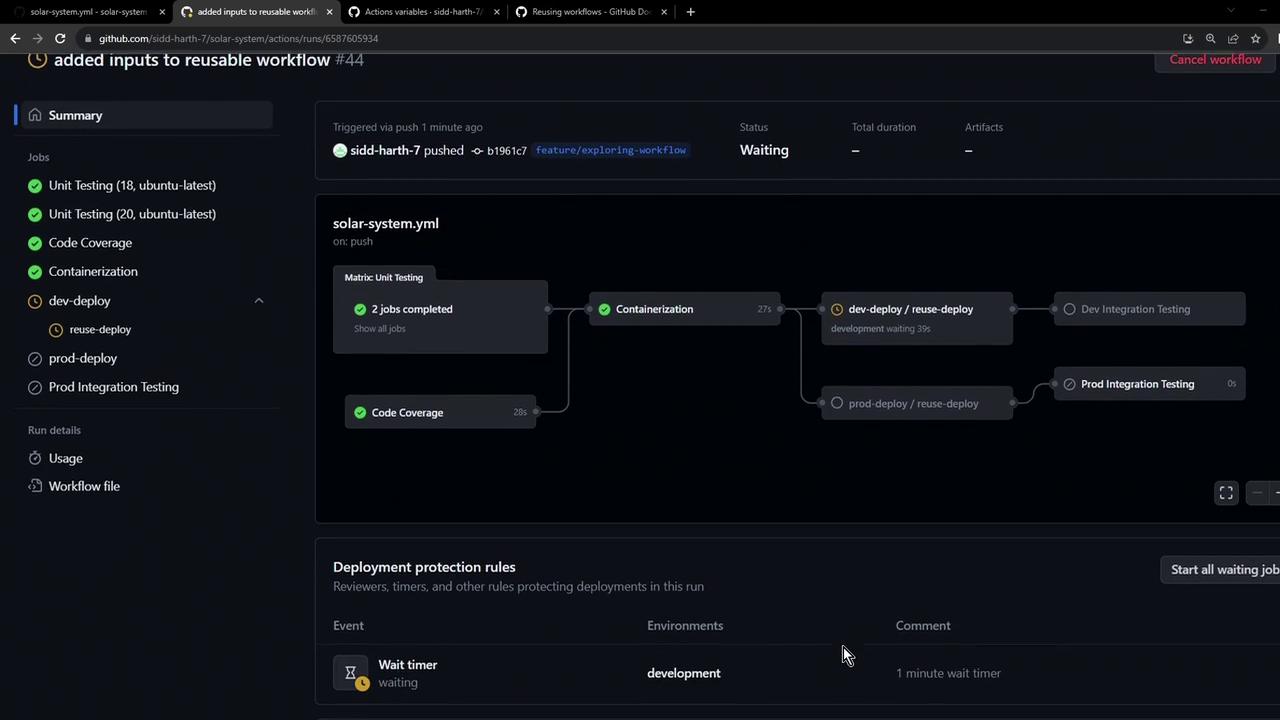

The image shows a GitHub Actions workflow interface with a series of jobs and their statuses, including unit testing, code coverage, and deployment steps. The workflow is in progress, with some jobs completed and others waiting.

You’ll see:

  • mongodb-uri sourced from the repository variable.
  • kubectl-version defaulting to v1.26.0 unless overridden.
  • The manifest directory and environment matching the with: values.

The MongoDB secret creation now succeeds:

kubectl -n development create secret generic mongo-db-creds \
  --from-literal=MONGO_URI=mongodb+srv://supercluster.d8jj.mongodb.net/superData \
  --from-literal=MONGO_USERNAME=superuser \
  --from-literal=MONGO_PASSWORD=*** \
  --save-config \
  --dry-run=client \
  -o yaml | kubectl apply -f -

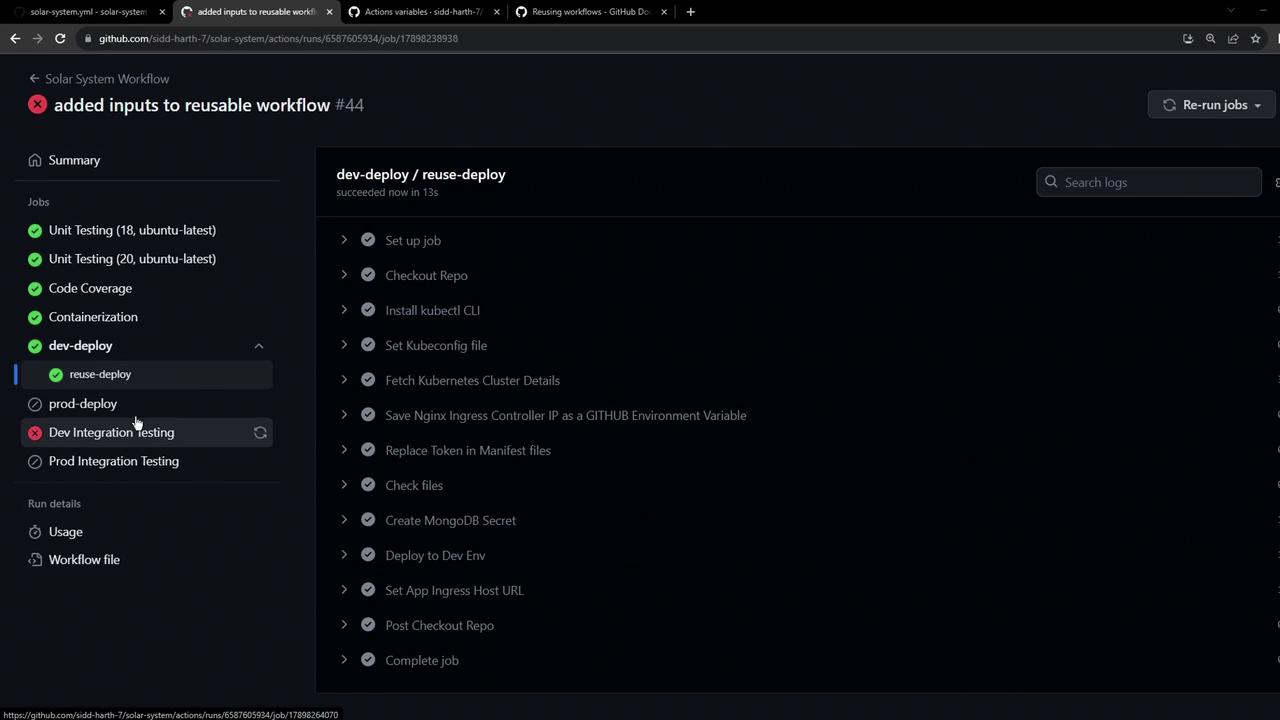

The image shows a GitHub Actions workflow interface with a list of jobs and their statuses, including unit testing, code coverage, and deployment tasks. Some jobs are marked as successful, while others have failed.

Note

If you need outputs (like APP_INGRESS_URL) in the caller workflow, use outputs in the reusable workflow and capture them via the needs context.
