GitHub Actions Certification

Reusable Workflows and Reporting

Step 4 Using Outputs in Reusable Workflow

In this lesson, we’ll walk through exposing outputs from a reusable workflow so downstream jobs—in this case, dev-integration-testing—can access the application URL generated during deployment.

Troubleshooting the Integration Test Failure

When dev-integration-testing runs without the exposed URL, you might see:

echo $URL
# shell: /usr/bin/bash -e {0}
# env:
#   MONGO_URI: mongodb+srv://...
URL: [
Error: Process completed with exit code 1.

The root cause is that APP_INGRESS_URL isn’t available to the test job. To fix this, we need to define and export outputs in our reusable workflow.

1. Define Workflow-Level Outputs

Edit .github/workflows/reuse-deployment.yml and add an outputs section under on.workflow_call:

name: Deployment - Reusable Workflow
on:
  workflow_call:
    inputs:
      environment:
        description: Deployment environment (dev or prod)
        required: true
        default: dev
        type: string
      mongodb-uri:
        description: MongoDB connection URI
        required: true
        type: string
      k8s-manifest-dir:
        description: Path to Kubernetes manifests
        required: true
        type: string
      kubectl-version:
        description: kubectl version
        required: false
        default: v1.24.0
        type: string
    secrets:
      k8s-kubeconfig:
        required: true
      mongodb-password:
        required: true
    outputs:
      application-url:
        description: The application ingress URL
        value: ${{ jobs.reuse-deploy.outputs.APP_INGRESS_URL }}

2. Map Job Outputs to Workflow Outputs

Inside the reuse-deploy job, expose the ingress host address:

jobs:
  reuse-deploy:
    runs-on: ubuntu-latest
    environment:
      name: ${{ inputs.environment }}
      url: https://${{ steps.set-ingress-host.outputs.ingress_host }}
    outputs:
      APP_INGRESS_URL: ${{ steps.set-ingress-host.outputs.ingress_host }}
    steps:
      - name: Checkout repository
        uses: actions/checkout@v4

      - name: Install kubectl
        uses: azure/setup-kubectl@v3
        with:
          version: ${{ inputs.kubectl-version }}

      - name: Configure kubeconfig
        uses: azure/k8s-set-context@v3
        with:
          kubeconfig: ${{ secrets.k8s-kubeconfig }}

      - name: Deploy manifests
        run: |
          kubectl apply -f ${{ inputs.k8s-manifest-dir }}
          echo "Deployment complete."

      - name: Extract ingress host
        id: set-ingress-host
        run: |
          host=$(kubectl get ingress \
            -n ${{ inputs.environment }} \
            -o jsonpath='{.status.loadBalancer.ingress[0].hostname}')
          echo "ingress_host=$host" >> $GITHUB_OUTPUT

Note

Make sure the id in the step (here: set-ingress-host) matches when you reference steps.<id>.outputs.

3. Consume Outputs in the Caller Workflow

In your main workflow (e.g., .github/workflows/ci.yml), invoke the reusable workflow and pass its outputs to integration tests:

jobs:
  docker:
    runs-on: ubuntu-latest
    # Build and push image
    steps: …

  dev-deploy:
    needs: docker
    uses: ./.github/workflows/reuse-deployment.yml
    with:
      mongodb-uri: ${{ vars.MONGO_URI }}
      environment: development
      k8s-manifest-dir: kubernetes/development
    secrets:
      k8s-kubeconfig: ${{ secrets.KUBECONFIG }}
      mongodb-password: ${{ secrets.MONGO_PASSWORD }}

  dev-integration-testing:
    needs: dev-deploy
    runs-on: ubuntu-latest
    steps:
      - name: Run integration tests
        env:
          URL: ${{ needs.dev-deploy.outputs.application-url }}
        run: |
          echo "Testing $URL"
          curl -s -k https://$URL/live | jq -r '.status' | grep -qi live

  prod-deploy:
    if: github.ref == 'refs/heads/main'
    needs: docker
    uses: ./.github/workflows/reuse-deployment.yml
    with:
      mongodb-uri: ${{ vars.MONGO_URI }}
      environment: production
      k8s-manifest-dir: kubernetes/production
    secrets:
      k8s-kubeconfig: ${{ secrets.KUBECONFIG }}
      mongodb-password: ${{ secrets.MONGO_PASSWORD }}

  prod-integration-testing:
    if: github.ref == 'refs/heads/main'
    needs: prod-deploy
    runs-on: ubuntu-latest
    steps:
      - name: Validate production URL
        env:
          URL: ${{ needs.prod-deploy.outputs.application-url }}
        run: |
          echo "Production URL: $URL"
          curl -s -k https://$URL/live | jq -r '.status' | grep -qi live
JobConsumes Output
dev-deployGenerates application-url via reusable wf
dev-integration-testingUses ${{ needs.dev-deploy.outputs.application-url }}
prod-deployGenerates application-url for production
prod-integration-testingUses ${{ needs.prod-deploy.outputs.application-url }}

4. Verify the Workflow Summary

After committing and pushing, the GitHub Actions summary will show all jobs passing, including the integration tests with the correct URLs.

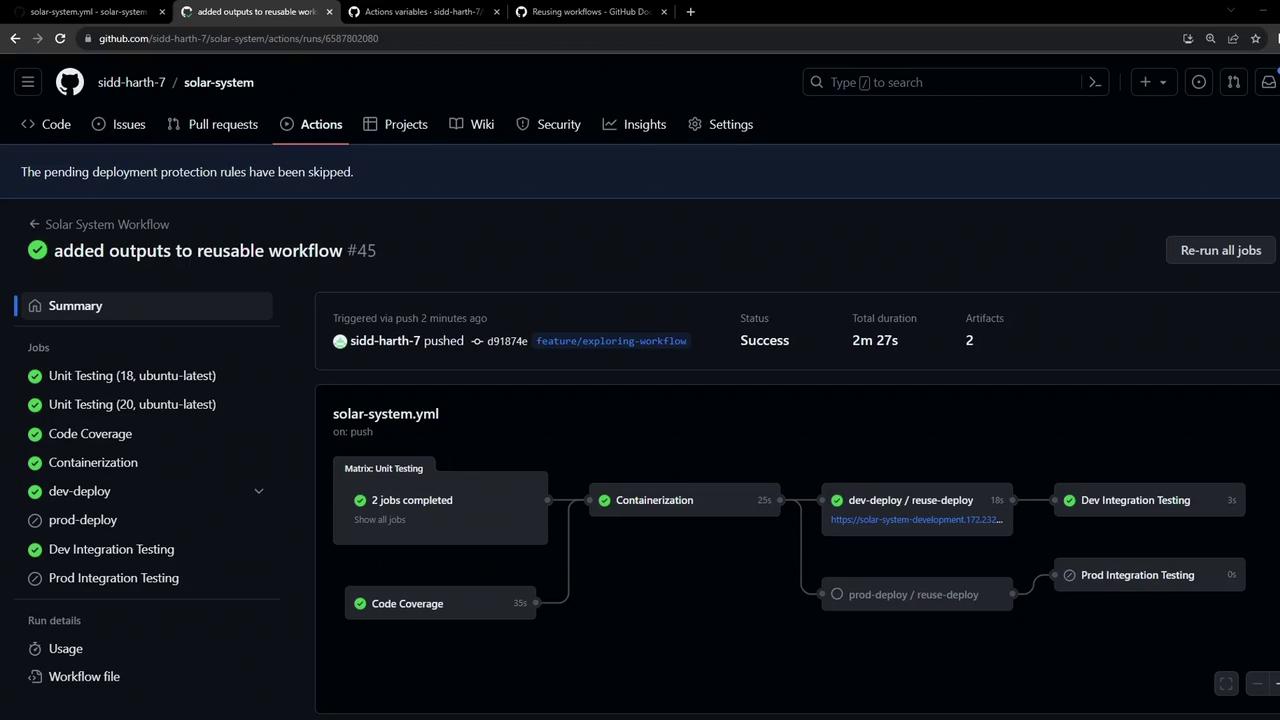

The image shows a GitHub Actions workflow summary for a project, indicating successful completion of various jobs like unit testing, code coverage, and deployment. The workflow is titled "Solar System Workflow" and includes details such as the trigger, status, and duration.

A snippet from dev-integration-testing logs confirms the URL is passed correctly:

# env: URL: solar-system-development.172.232.87.200.nip.io
# Testing solar-system-development.172.232.87.200.nip.io
curl -s -k https://solar-system-development.172.232.87.200.nip.io/live | jq -r '.status'…

With this setup, your workflows remain modular, DRY, and easy to manage by:

  • Defining inputs, secrets, and outputs in a reusable workflow.
  • Mapping job-level outputs to workflow-level outputs.
  • Accessing those outputs in downstream jobs.
