GitHub Actions Certification

Self Hosted Runner

Running Workflow on Self Hosted Runner

Leverage your own infrastructure for faster, customizable CI/CD by configuring GitHub Actions to run on a self-hosted runner. In this guide, we’ll:

  1. Verify your runner registration
  2. Start the runner service
  3. Update a workflow to target your self-hosted runner
  4. Commit and push changes
  5. Trigger and monitor the job
  6. Inspect logs both in GitHub and on the runner VM

Prerequisites

  • A GitHub repository with Actions enabled
  • A VM (or physical server) where the self-hosted runner is installed
  • Network access between GitHub and your runner

1. Verify Your Self-Hosted Runner

Navigate to Settings > Actions > Runners in your repository to ensure your runner is registered and idle:

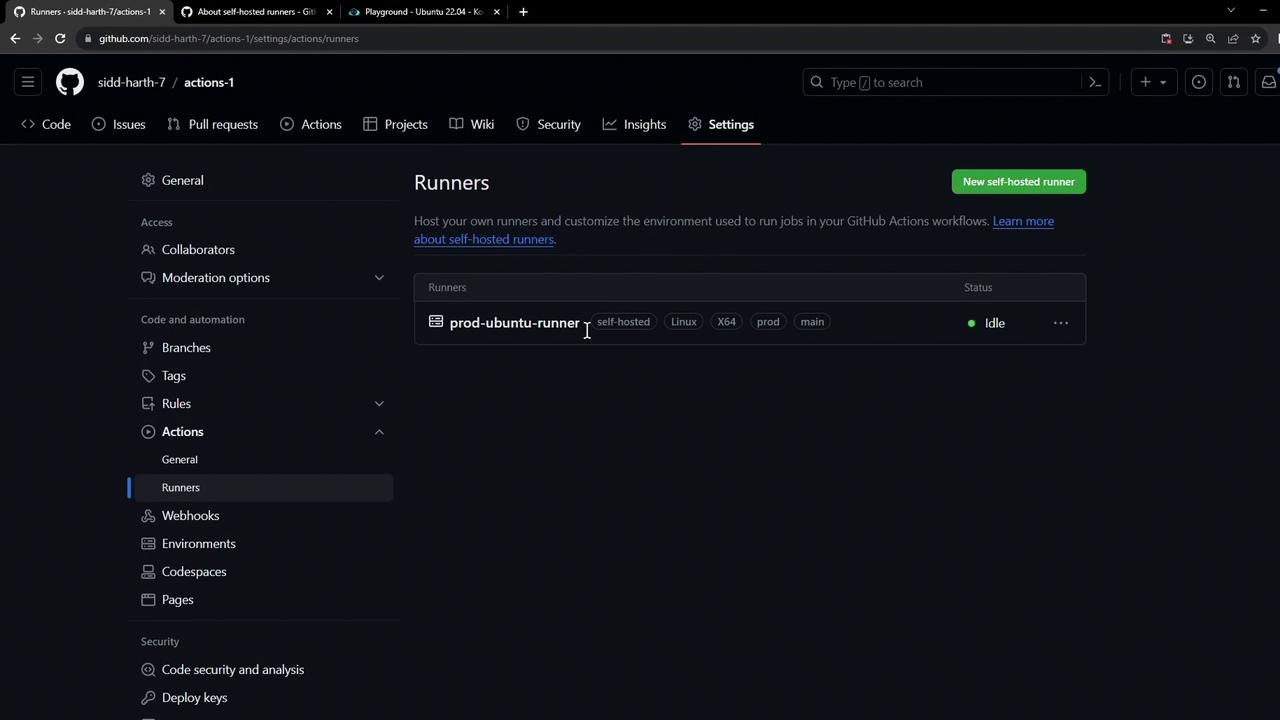

The image shows a GitHub settings page for a repository, specifically the "Runners" section under "Actions," displaying a self-hosted runner named "prod-ubuntu-runner" with an idle status.

2. Start the Runner Service

On your runner VM, start the runner process:

cd ~/actions-runner
./run.sh

You should see:

Current runner version: '2.310.2'
2023-10-24 14:51:44Z: Listening for Jobs

3. Update Your Workflow to Target the Self-Hosted Runner

Open the .github/workflows directory and locate your workflow YAML:

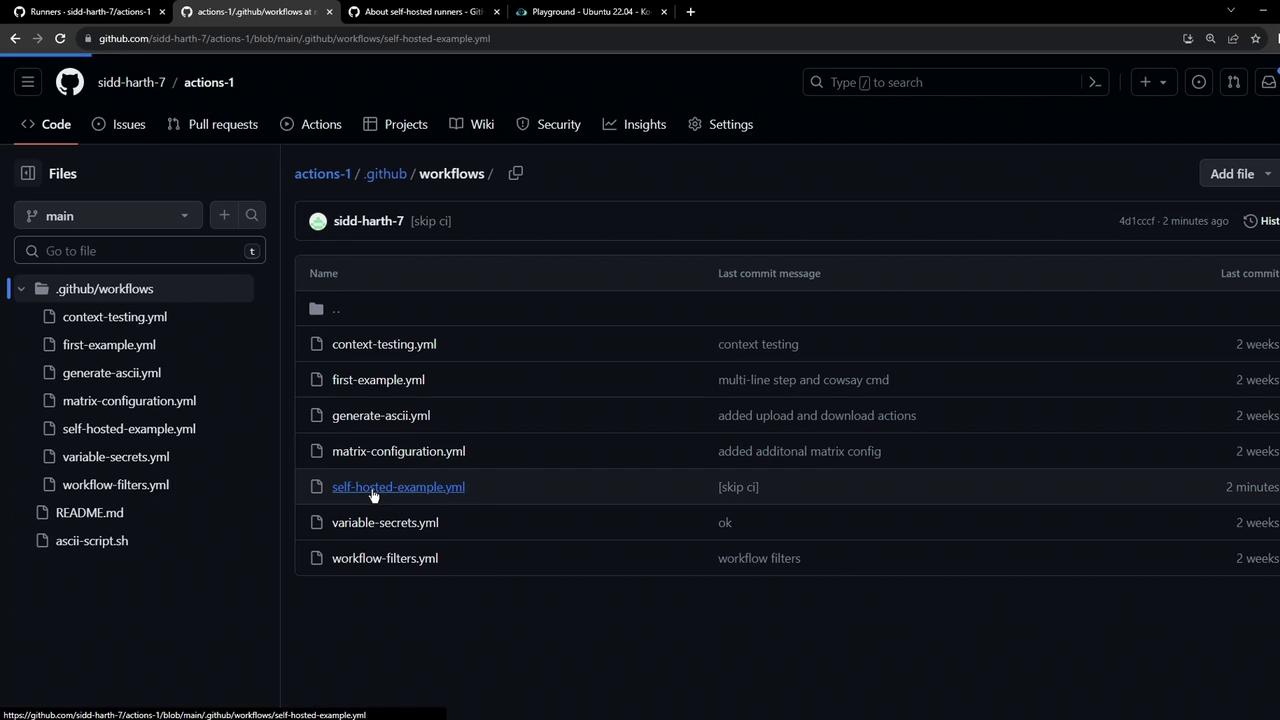

The image shows a GitHub repository interface with a list of YAML workflow files under the ".github/workflows" directory. The files include "context-testing.yml," "first-example.yml," and others, with their last commit messages and times displayed.

Original Workflow (GitHub-hosted runner)

name: Testing Self-Hosted Runner
on:
  workflow_dispatch:
jobs:
  testing:
    runs-on: ubuntu-latest
    steps:
      - name: Echo Content
        run: |
          echo "Ok"
          sleep 15s

Updated Workflow (Self-Hosted Runner)

Replace runs-on: ubuntu-latest with the labels assigned to your runner (e.g., self-hosted, linux, prod):

name: Testing Self-Hosted Runner
on:
  workflow_dispatch:
jobs:
  testing:
    runs-on: [self-hosted, linux, prod]
    steps:
      - name: Echo Content
        run: |
          echo "Ok"
          sleep 15s

Note

All labels under runs-on must exactly match those on your self-hosted runner. A mismatch (for instance, using production instead of prod) will leave the job pending until a matching runner is available or times out.

4. Commit and Push Your Changes

Commit the updated workflow file directly to your main branch (or a feature branch):

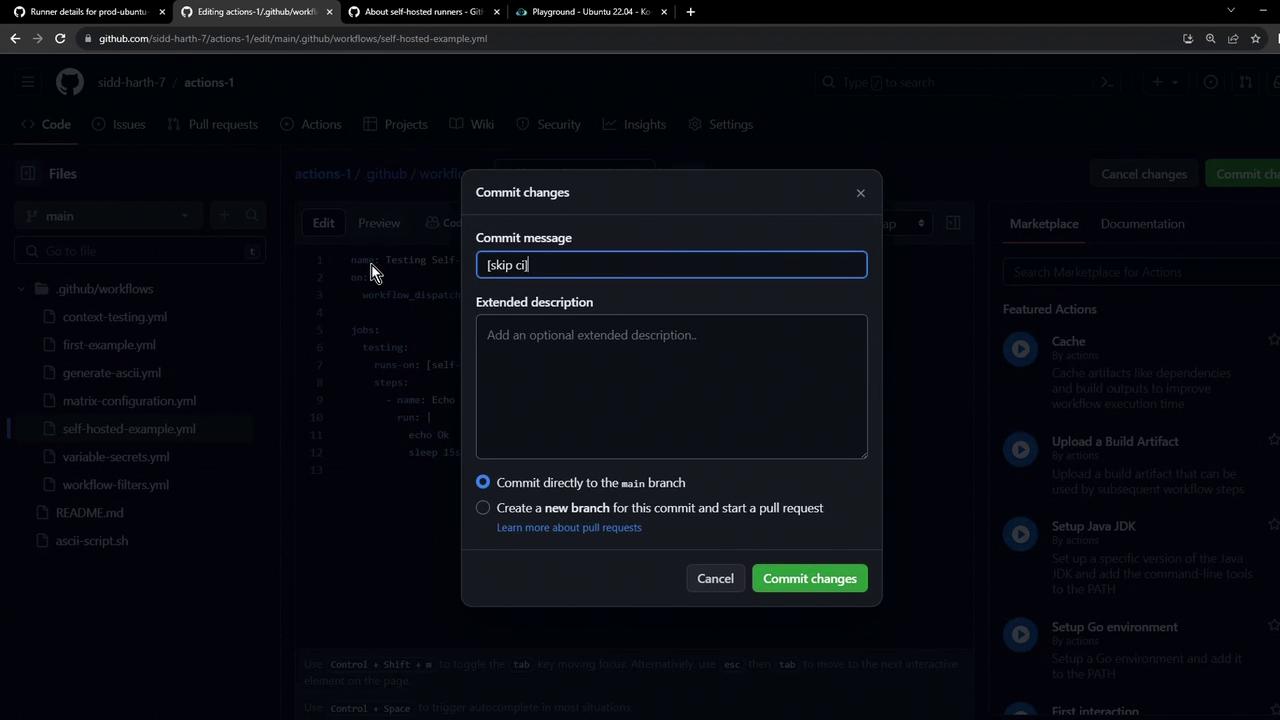

The image shows a GitHub interface with a "Commit changes" dialog box open, where a user is entering a commit message and choosing to commit directly to the main branch.

5. Trigger the Workflow

  1. Open the Actions tab in your repository.
  2. Select Testing Self-Hosted Runner.
  3. Click Run workflow to invoke workflow_dispatch.

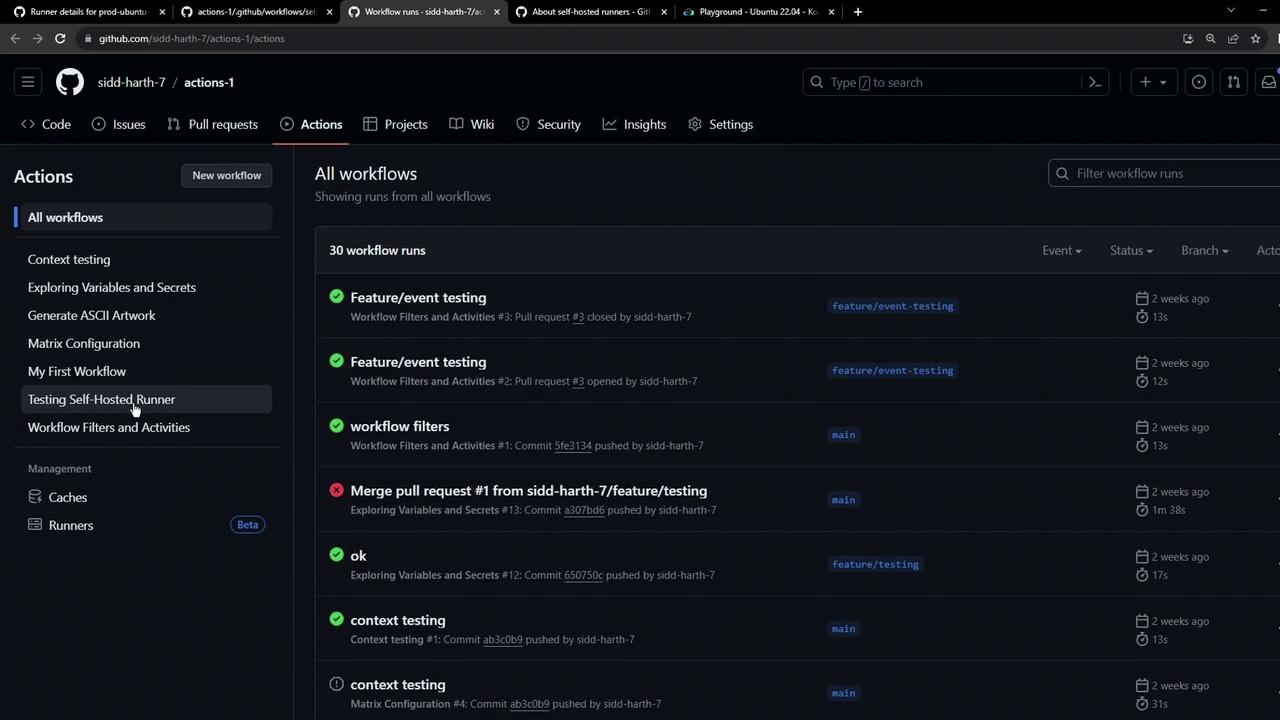

The image shows a GitHub Actions interface with a list of workflow runs, including details like event type, status, branch, and timestamps. The sidebar displays various workflow options and management tools.

The job status will change to in progress as soon as a matching self-hosted runner picks it up.

6. Monitor Jobs and Inspect Logs

For live details on the runner and active jobs, visit the self-hosted runner’s configuration page:

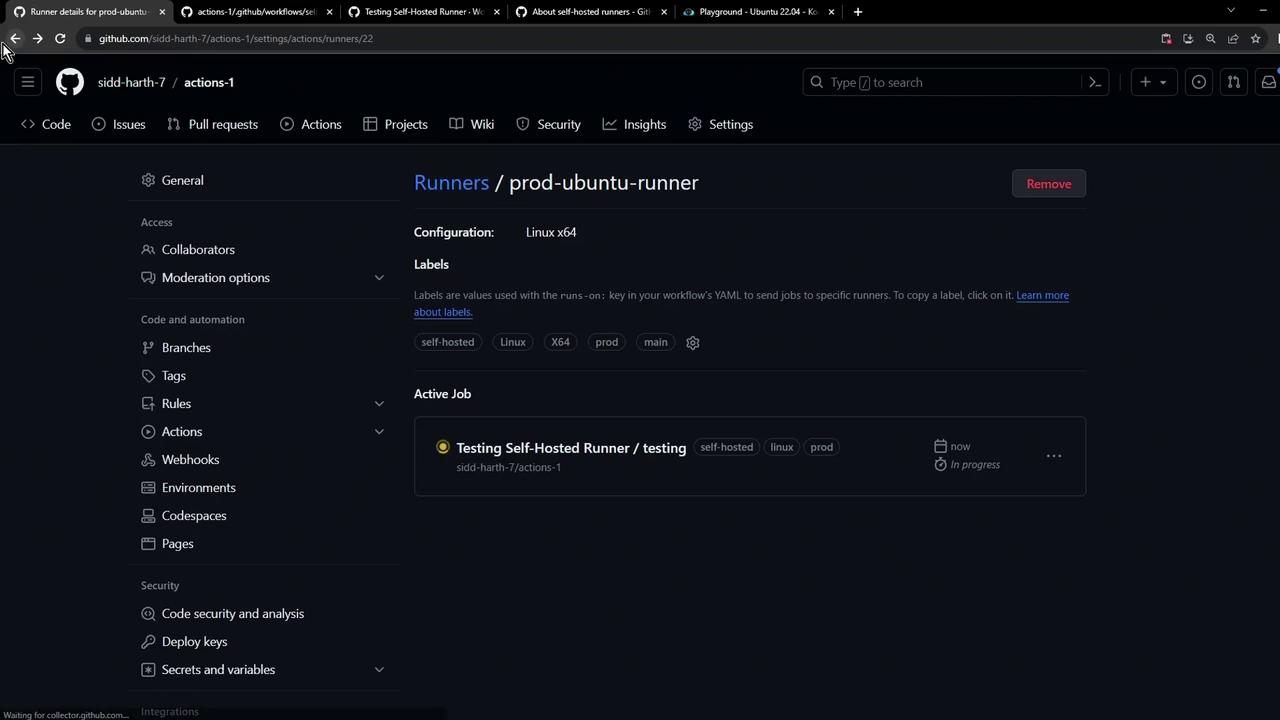

The image shows a GitHub Actions settings page for a self-hosted runner named "prod-ubuntu-runner" with configuration details and an active job in progress.

On your VM, the runner’s logs will reflect job execution:

root@ubuntu-host ~/actions-runner ➜ ./run.sh
Current runner version: '2.310.2'
2023-10-24 14:51:44Z: Listening for Jobs
2023-10-24 15:23:57Z: Running job: testing
2023-10-24 15:24:16Z: Job testing completed with result: Succeeded

Warning

Ensure your self-hosted runner has proper security controls. Exposing it directly to the internet or granting it excessive permissions can pose risks.

Best Practices for Self-Hosted Runners

LabelDescription
self-hostedRequired for all self-hosted runner jobs
linux/mac/windowsOS-specific label matching your runner
prod/stagingEnvironment-specific label for segregation
