Types of Runners

Runners are the virtual machines or servers that execute the jobs defined in your GitHub Actions workflows. Each time you trigger a workflow, GitHub either provisions a fresh VM (GitHub-hosted) or dispatches the job to one of your own machines (self-hosted). Choosing the right runner depends on your performance requirements, compliance needs, and budget.

GitHub-Hosted Runners

GitHub-hosted runners give you a quick, zero-maintenance experience. They come preconfigured with common tools and support Ubuntu, Windows, and macOS environments.

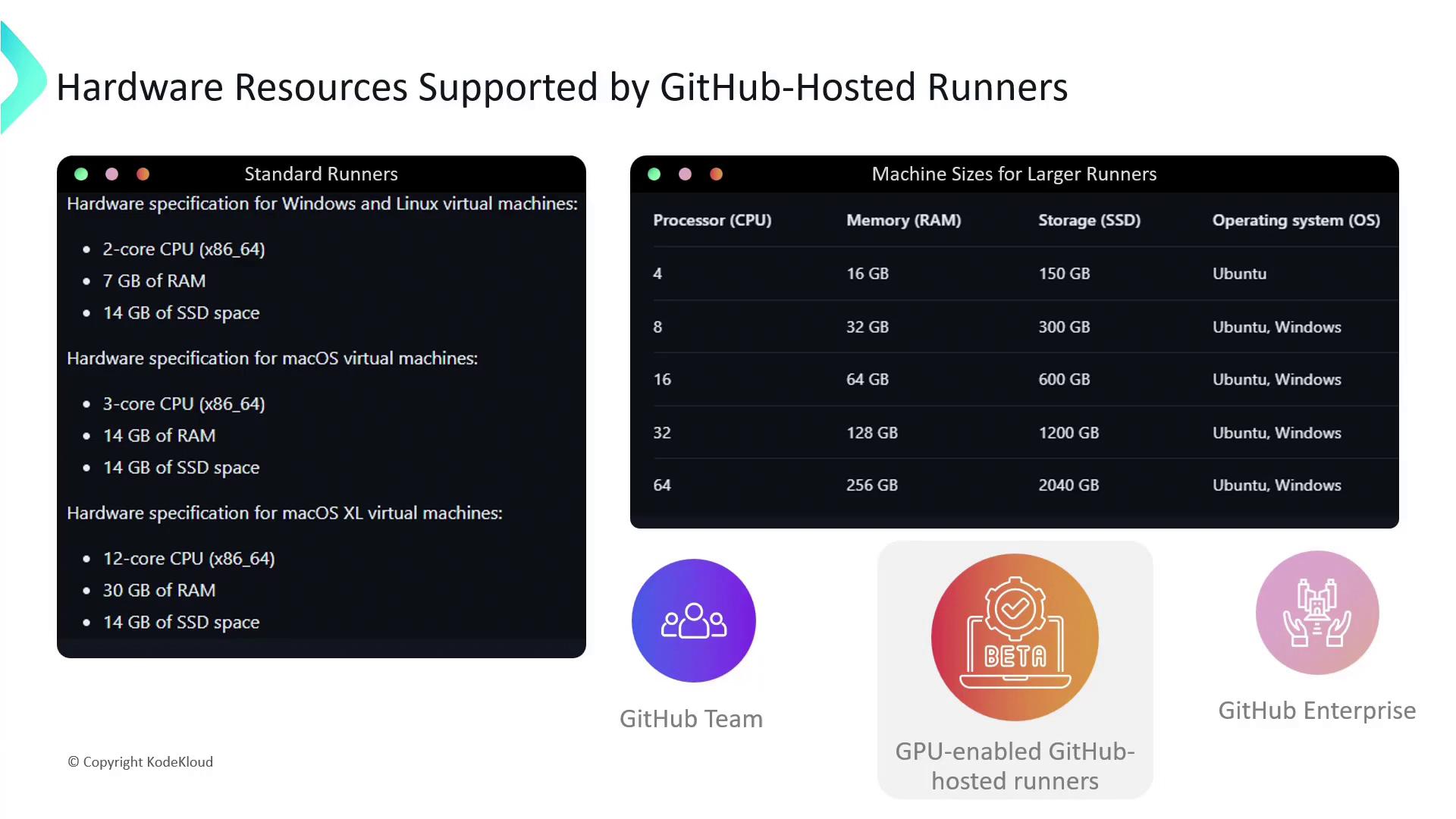

Tiers of GitHub-Hosted Runners

1. Standard Runners
   • 2-core CPU, ~7 GB RAM, 14 GB SSD
   • Ideal for typical CI/CD tasks with moderate resource needs
2. Larger Managed Runners (GitHub Team & Enterprise Cloud only)
   • 4-core CPU, ~16 GB RAM, larger SSD
   • For parallel builds, integration tests, and heavier workloads
3. GPU-Enabled Runners (Beta)
   • GPU resources in beta for machine learning, data processing
   • Request access via GitHub Support if on Team or Enterprise Cloud

For a quick demonstration, here’s a matrix workflow that runs tests across Linux, macOS, and Windows:

name: Cross-Platform Tests
on: [push, pull_request]

jobs:
  test:
    runs-on: ${{ matrix.os }}
    strategy:
      matrix:
        os: [ubuntu-latest, macos-latest, windows-latest]
    steps:
      - name: Checkout Code
        uses: actions/checkout@v3
      - name: Set up Node.js
        uses: actions/setup-node@v3
        with:
          node-version: '16'
      - name: Run Tests
        run: npm test

Self-Hosted Runners

Self-hosted runners are machines that you own or provision in your cloud environment. They allow complete customization of OS, hardware specs, installed software, and network configuration.

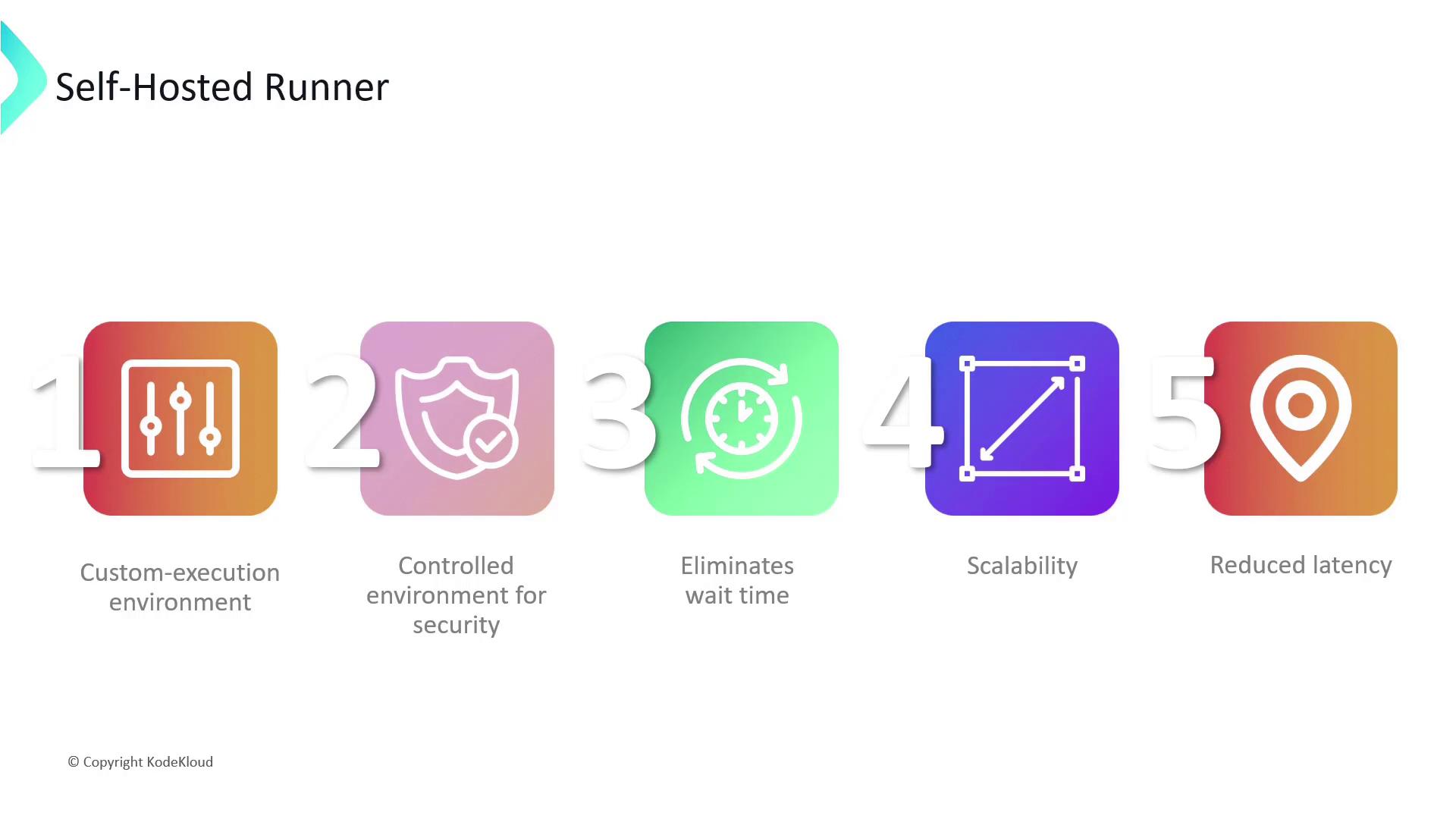

Benefits of Self-Hosted Runners

• Custom Execution Environment: Install any dependencies, SDKs, or drivers your build needs.
• Security & Compliance: Run within your VPC/firewall and meet corporate policies.
• No Queue Times: Dedicated runners eliminate waiting for GitHub-hosted capacity.
• Autoscaling: Integrate with Kubernetes or autoscale groups to match workflow demand.
• Reduced Latency: Place runners in the same region as your artifact stores or environments.

You can register self-hosted runners at the repository, organization, or enterprise level. Below is how to set one up at the repository level.

Setting Up a Self-Hosted Runner

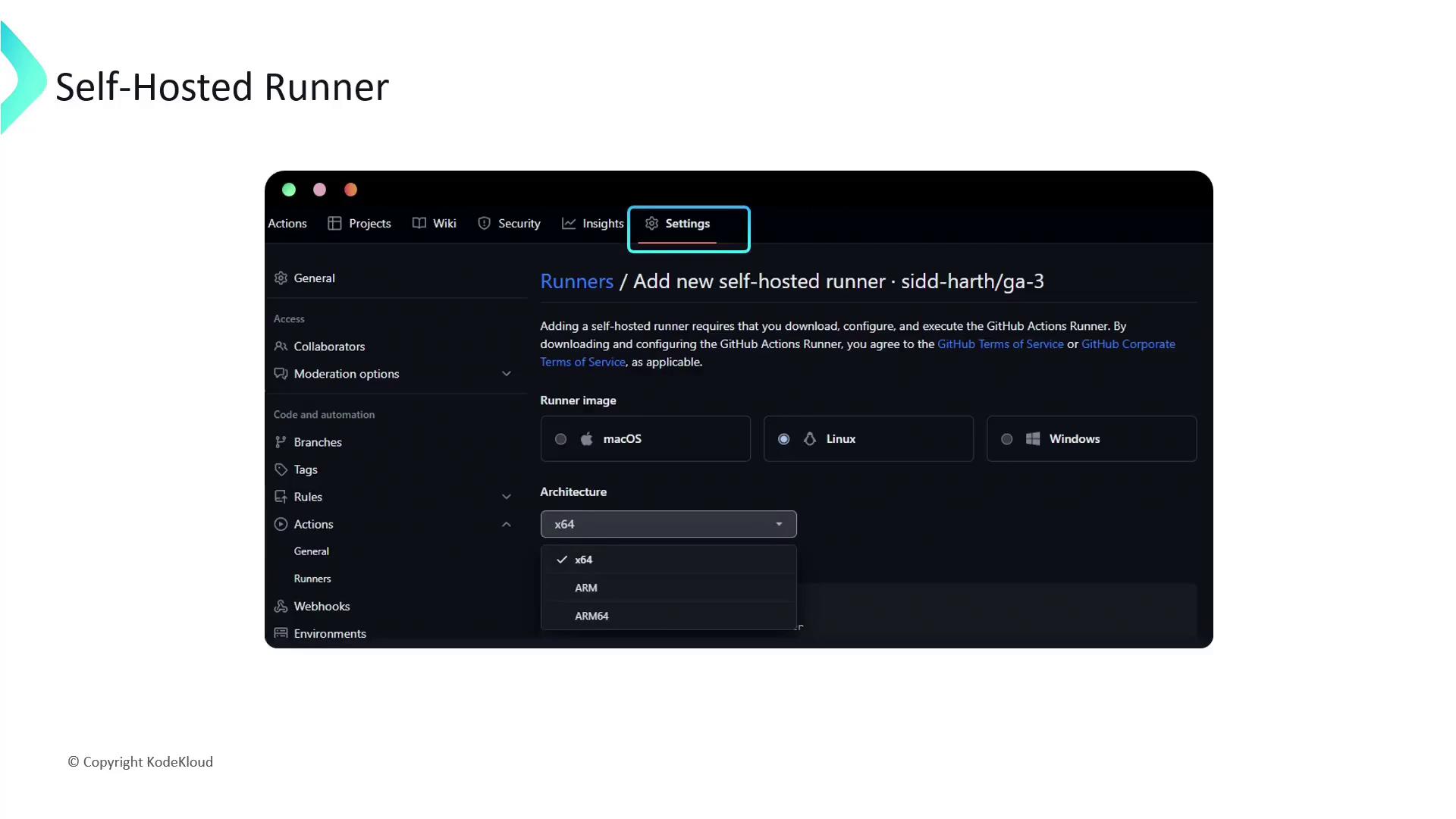

1. Add a New Runner in GitHub

In your repository, navigate to Settings → Actions → Runners and click New self-hosted runner.

Choose your OS and architecture, then follow the on-screen instructions to download the runner application.

2. Install and Configure the Runner

Run these commands on your machine:

# Create and enter a directory for the runner
mkdir actions-runner && cd actions-runner

# Download the runner package (update version as needed)
curl -o actions-runner.tar.gz \
  https://github.com/actions/runner/releases/download/v2.309.0/actions-runner-linux-x64-2.309.0.tar.gz

# Extract the files
tar xzf actions-runner.tar.gz

# Configure with your repo URL and token
./config.sh --url https://github.com/sidd-harth/repository \
            --token AP3V5NDFAQIMO

# Follow the prompts:
# • Runner group: [press Enter for Default]
# • Runner name: linux-gpu-runner
# • Labels: gpu
# After setup, you’ll see:
# Start the runner
./run.sh
# Expected output:
# √ Connected to GitHub
# Listening for Jobs...

3. Target Your Self-Hosted Runner in Workflows

Add the labels you chose to the runs-on field:

jobs:
  build:
    runs-on: [self-hosted, Linux, gpu]
    steps:
      - name: Checkout Code
        uses: actions/checkout@v3
      # …additional steps…

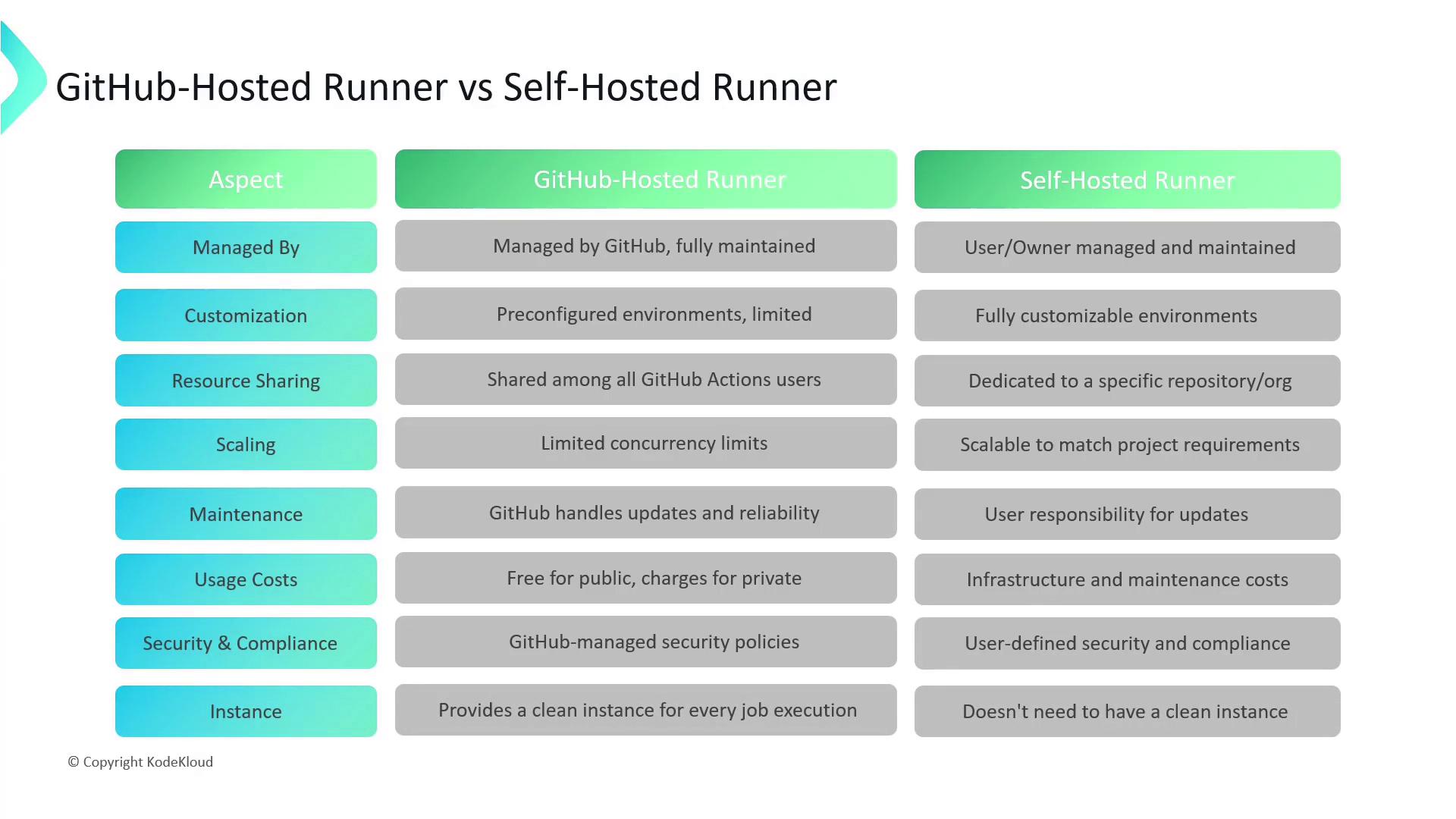

Comparing GitHub-Hosted vs. Self-Hosted Runners
