GitHub Actions

Reusable Workflows and Reporting

Step 1 Configure new Reusable Workflow

In this lesson, you’ll learn how to refactor your GitHub Actions workflows by extracting common deployment steps into a reusable workflow. This approach reduces duplication, ensures consistency, and simplifies maintenance across multiple repositories.

1.1 The “Solar System” Workflow: Before Refactoring

Imagine you have a single workflow handling everything from testing to deploying in both development and production. The deployment steps for dev-deploy and prod-deploy are identical—this is a maintenance headache:

name: Solar System Workflow

on:
  workflow_dispatch:
    branches:
      - main
      - 'feature/*'

env:
  MONGO_URI: 'mongodb+srv://supercluster.d83jj.mongodb.net/superData'
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}
  MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}

jobs:
  unit-testing:
    # ...
  code-coverage:
    # ...
  docker:
    # ...
  dev-deploy:
    # duplicate deployment steps
  dev-integration-testing:
    # ...
  prod-deploy:
    # duplicate deployment steps
  prod-integration-testing:
    # ...

As your organization grows, you might copy these same steps into every project, leading to even more duplication.

1.2 Review Official Documentation

Before you begin, consult the GitHub Actions guide on reusing workflows. It details supported triggers, inputs, outputs, and known limitations:

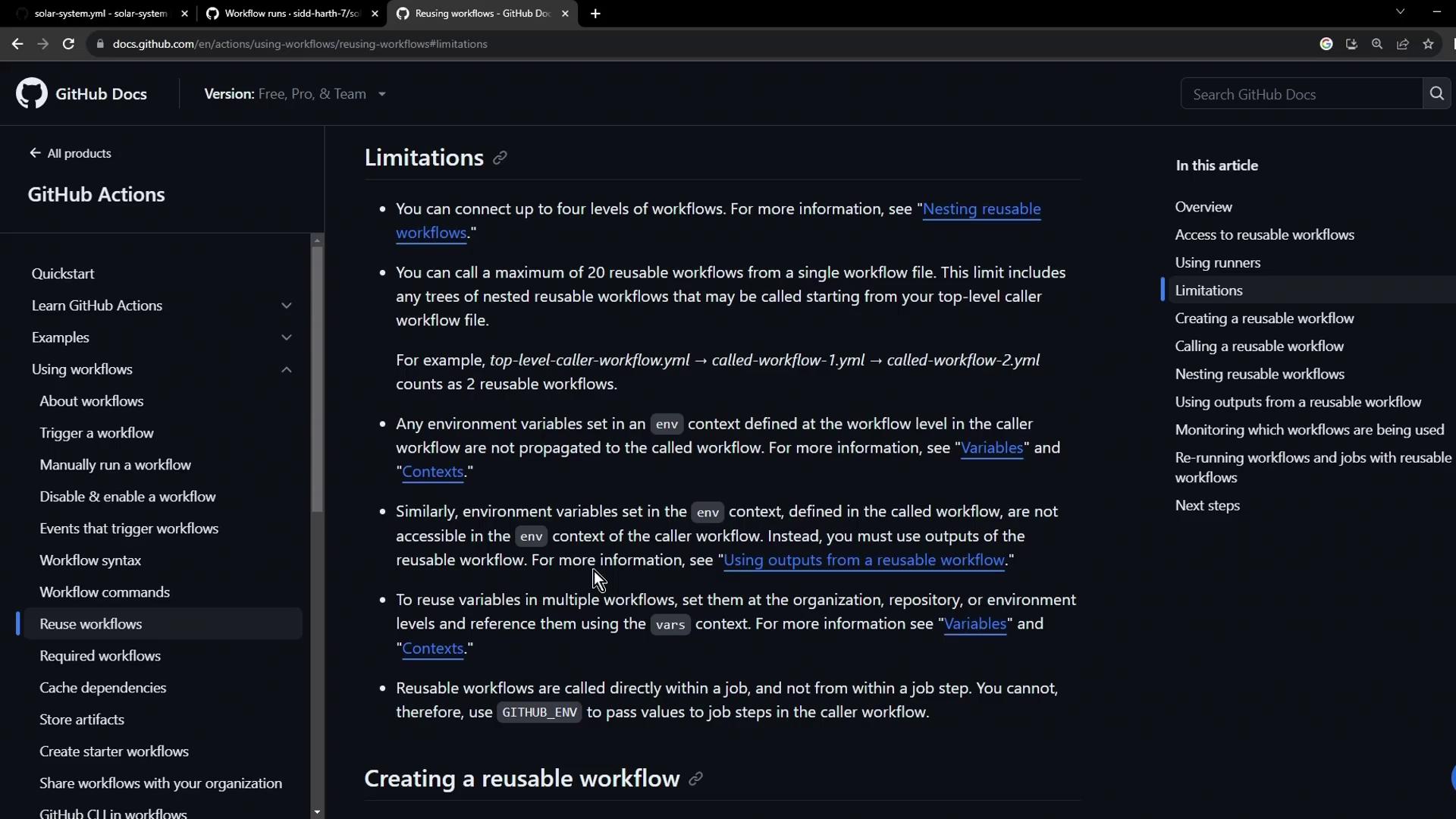

The image shows a GitHub Docs page about GitHub Actions, specifically focusing on the limitations of reusing workflows. It includes a navigation menu on the left and a list of related topics on the right.

Note

See Reusing workflows for all details on workflow_call triggers and scopes.

1.3 Create the Reusable Deployment Workflow

Create a new file .github/workflows/reuse-deployment.yml that declares a workflow_call trigger. Define all required inputs and secrets up front:

Inputs and Secrets

NameDescriptionRequiredType
namespaceKubernetes namespacetruestring
kubeconfigKubeconfig file contentstruestring
SecretDescriptionRequired
KUBECONFIGKubernetes kubeconfig secrettrue

Workflow Definition

# .github/workflows/reuse-deployment.yml
name: Deployment - Reusable Workflow

on:
  workflow_call:
    inputs:
      namespace:
        description: 'Kubernetes namespace'
        required: true
        type: string
      kubeconfig:
        description: 'Kubeconfig file contents'
        required: true
        type: string
    secrets:
      KUBECONFIG:
        description: 'Kubernetes kubeconfig secret'
        required: true

jobs:
  reuse-deploy:
    runs-on: ubuntu-latest
    environment:
      name: ${{ inputs.namespace }}
      url: https://${{ steps.set-ingress-host.outputs.APP_INGRESS_URL }}
    outputs:
      APP_INGRESS_URL: ${{ steps.set-ingress-host.outputs.APP_INGRESS_URL }}
    steps:
      - name: Checkout code
        uses: actions/checkout@v4

      - name: Install kubectl
        uses: azure/setup-kubectl@v3
        with:
          version: '1.26.0'

      - name: Set kubeconfig
        run: |
          echo "${{ secrets.KUBECONFIG }}" > kubeconfig
          export KUBECONFIG=$PWD/kubeconfig

      - name: Fetch cluster details
        run: |
          kubectl version --short
          echo "----------"
          kubectl get nodes

      - name: Replace tokens in manifests
        uses: cschleiden/replace-tokens@v1
        with:
          tokenPrefix: '_'
          tokenSuffix: '_'
          files: 'kubernetes/${{ inputs.namespace }}/*.yaml'
        env:
          NAMESPACE: ${{ inputs.namespace }}
          REPLICAS: ${{ vars.REPLICAS }}
          DOCKER_IMAGE: ${{ vars.DOCKER_IMAGE }}
          GITHUB_SHA: ${{ github.sha }}

      - name: Create MongoDB Secret
        run: |
          kubectl -n ${{ inputs.namespace }} create secret generic mongo-db-creds \
            --from-literal=MONGO_URI=${{ env.MONGO_URI }} \
            --from-literal=MONGO_USERNAME=${{ vars.MONGO_USERNAME }} \
            --from-literal=MONGO_PASSWORD=${{ secrets.MONGO_PASSWORD }} \
            --save-config \
            --dry-run=client \
            -o yaml | kubectl apply -f -

      - name: Deploy to ${{ inputs.namespace }}
        run: |
          kubectl apply -f kubernetes/${{ inputs.namespace }}

      - name: Set Ingress Host URL
        id: set-ingress-host
        run: |
          HOST=$(kubectl -n ${{ inputs.namespace }} get ingress \
            -o jsonpath='{.items[0].spec.tls[0].hosts[0]}')
          echo "APP_INGRESS_URL=$HOST" >> $GITHUB_OUTPUT

This reusable workflow:

  • Defines required inputs and secrets.
  • Contains a single reuse-deploy job that checks out the code, configures kubectl, replaces tokens, creates secrets, deploys manifests, and outputs the ingress URL.

1.4 Invoke the Reusable Workflow

In your original workflow file (.github/workflows/solar-system.yml), replace the inline dev-deploy and prod-deploy jobs with calls to the reusable workflow:

# .github/workflows/solar-system.yml
name: Solar System Workflow

on:
  workflow_dispatch:
    branches:
      - main
      - 'feature/*'

env:
  MONGO_URI: 'mongodb+srv://supercluster.d83jj.mongodb.net/superData'
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}
  MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}

jobs:
  unit-testing:
    # ...
  code-coverage:
    # ...
  docker:
    # ...

  dev-deploy:
    if: contains(github.ref, 'feature/')
    needs: docker
    uses: ./.github/workflows/reuse-deployment.yml
    with:
      namespace: development
      kubeconfig: ${{ secrets.KUBECONFIG }}
    secrets:
      KUBECONFIG: ${{ secrets.KUBECONFIG }}

  dev-integration-testing:
    needs: dev-deploy
    # ...

  prod-deploy:
    if: github.ref == 'refs/heads/main'
    needs: docker
    uses: ./.github/workflows/reuse-deployment.yml
    with:
      namespace: production
      kubeconfig: ${{ secrets.KUBECONFIG }}
    secrets:
      KUBECONFIG: ${{ secrets.KUBECONFIG }}

  prod-integration-testing:
    needs: prod-deploy
    # ...

Workflow Run Summary

After pushing these changes to a feature branch, the GitHub Actions UI will show the reusable workflow invocations:

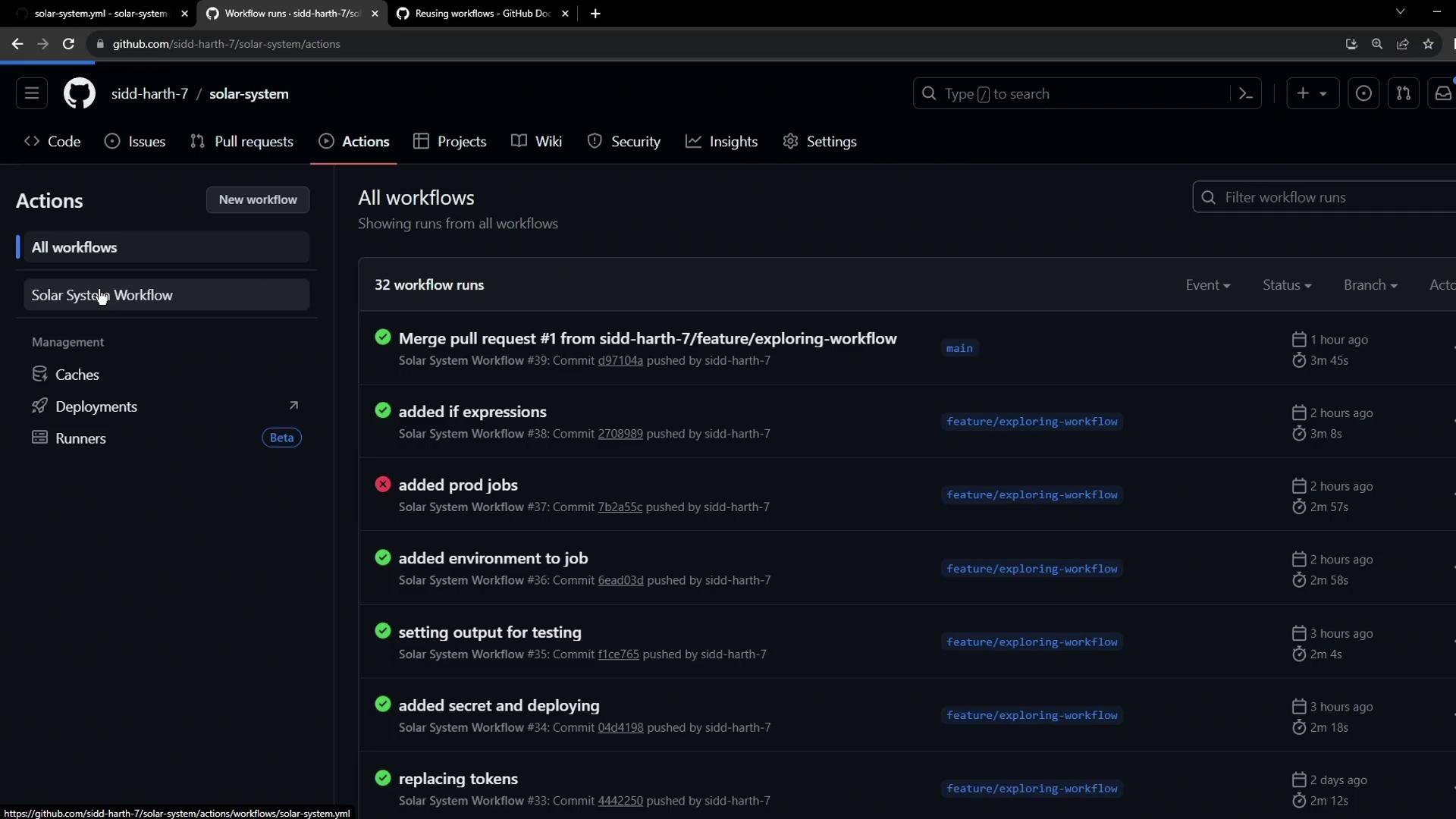

The image shows a GitHub Actions page displaying a list of workflow runs for a project named "solar-system," with various statuses and branches.

Notice each deployment job now references reuse-deployment.yml.

Job Names and Statuses

The UI prefixes the reusable-job name under dev-deploy and prod-deploy so you can easily identify the steps executed:

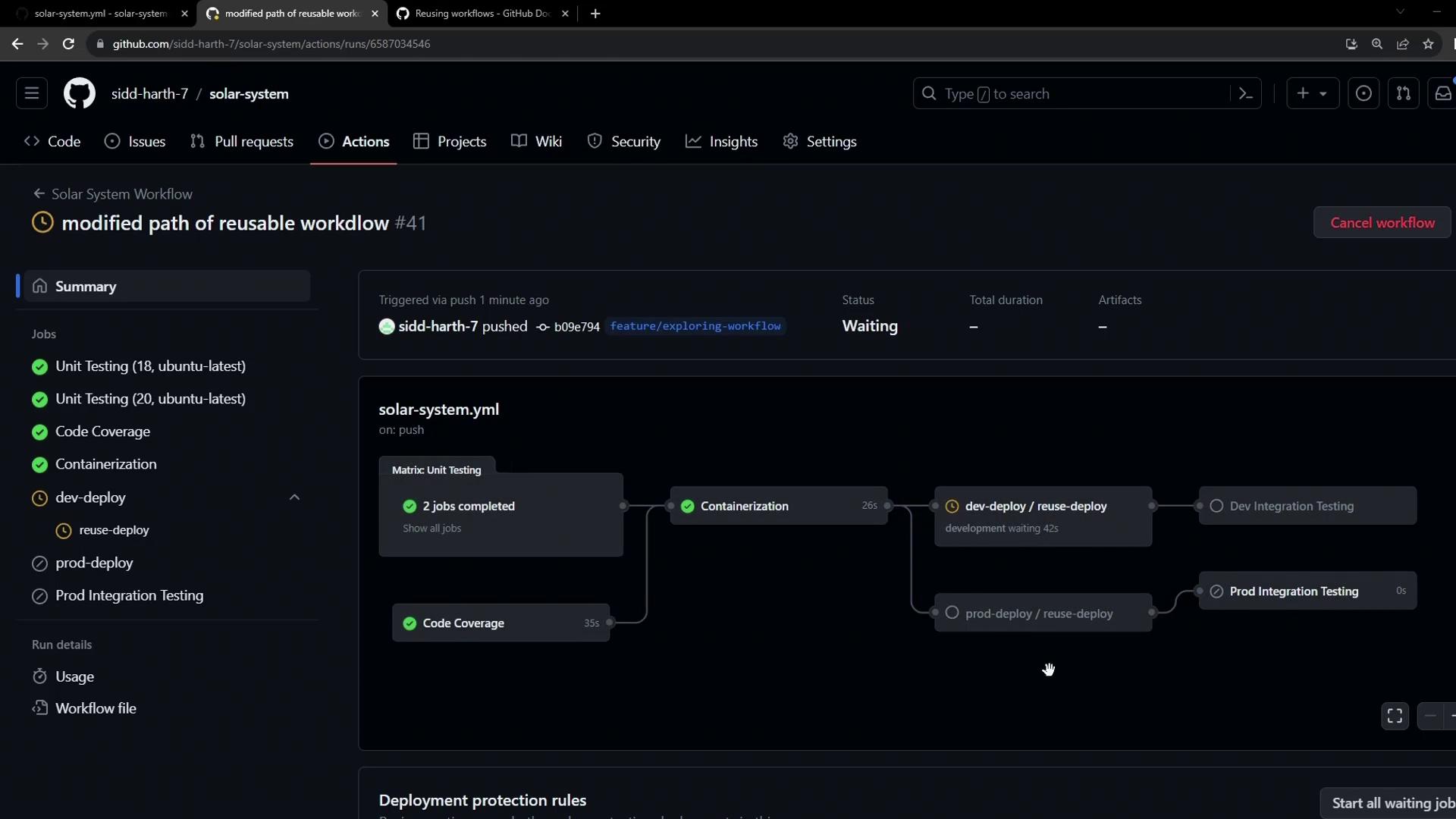

The image shows a GitHub Actions workflow interface with a series of jobs and their statuses, including unit testing, code coverage, and deployment steps. The workflow is titled "modified path of reusable workflow" and is currently in a waiting state.

Missing Inputs or Secrets

If you forget to pass a required input or secret, the job will fail. For example, omitting kubeconfig will cause the Set kubeconfig step to error out:

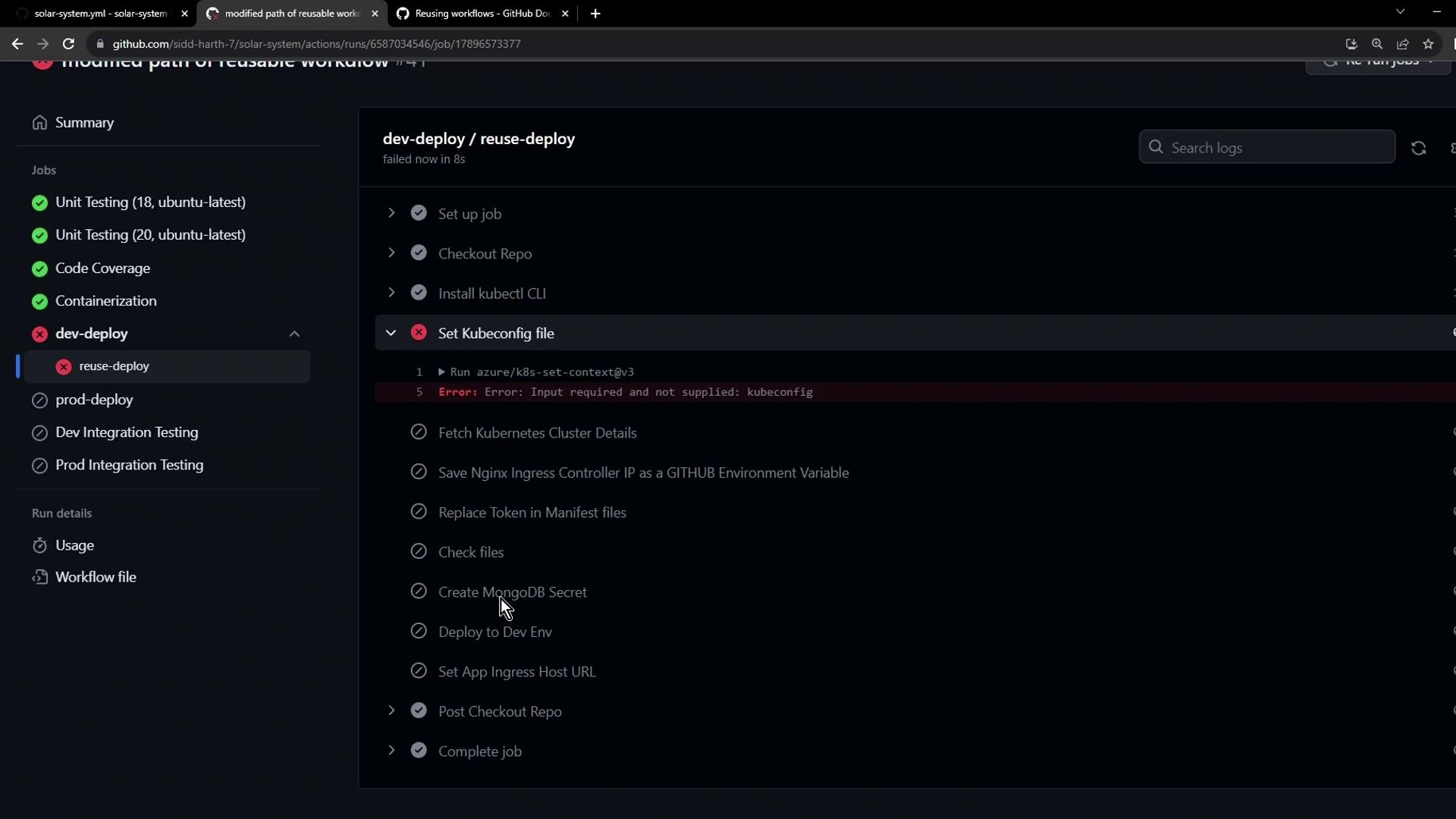

The image shows a GitHub Actions workflow run with several jobs, where the "dev-deploy" job has failed due to a missing "kubeconfig" input.

Always verify that every input and secret listed under on.workflow_call is provided when invoking the reusable workflow.


In the next lesson, we’ll cover advanced patterns for sharing secrets and artifacts across reusable workflows.
