Publish Image to Gitlab Container Registry

In this guide, you’ll learn how to authenticate with GitLab’s integrated Container Registry and publish your Docker images—both manually and via GitLab CI/CD pipelines. The Container Registry is available for every GitLab project, offering a secure, private registry alongside your code.

Authentication Methods

GitLab supports several registry authentication methods:

• Personal Access Tokens
• Deploy Tokens
• Project Access Tokens
• Group Access Tokens

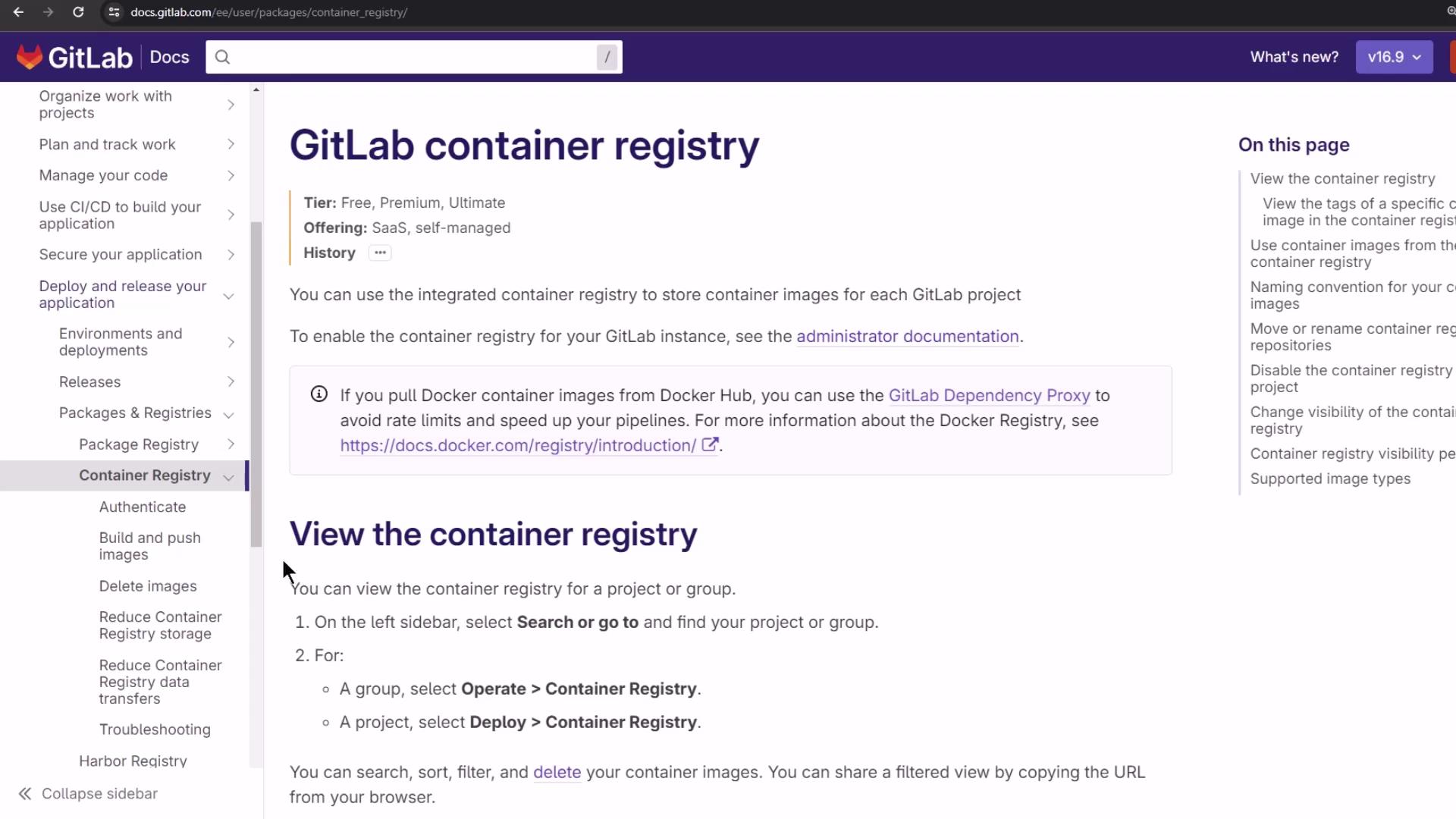

Refer to the official GitLab Container Registry guide for details on creating and managing tokens.

Logging in with a Token

Locally, you can log in using any valid token:

TOKEN=<your_token>
docker login registry.example.com -u <username> --password-stdin <<< "$TOKEN"

Within a GitLab CI/CD job, leverage predefined variables for seamless authentication:

docker login $CI_REGISTRY -u $CI_REGISTRY_USER --password-stdin <<< "$CI_REGISTRY_PASSWORD"
docker login $CI_REGISTRY -u $CI_REGISTRY_USER --password-stdin <<< "$CI_JOB_TOKEN"
docker login $CI_REGISTRY -u $CI_DEPLOY_USER --password-stdin <<< "$CI_DEPLOY_PASSWORD"

Building and Pushing Images Manually

If you prefer to build and push outside of CI/CD, follow these steps:

docker build -t registry.gitlab.com/<group>/<project>/<image-name> .
docker push registry.gitlab.com/<group>/<project>/<image-name>

Replace <group>, <project>, and <image-name> with your specific values.

GitLab CI/CD Job: publish_gitlab_container_registry

Below is an example publish_gitlab_container_registry job that:

1. Loads a prebuilt image archive
2. Authenticates to the registry
3. Tags the image
4. Pushes it upstream

publish_gitlab_container_registry:
  stage: containerization
  needs:
    - docker_build
    - docker_test
  image: docker:24.0.5
  services:
    - docker:24.0.5-dind
  script:
    - docker load -i image/solar-system-image-$CI_PIPELINE_ID.tar
    - echo "Registry: $CI_REGISTRY | User: $CI_REGISTRY_USER | Repo: $CI_REGISTRY_IMAGE"
    - docker login $CI_REGISTRY -u "$CI_REGISTRY_USER" -p "$CI_REGISTRY_PASSWORD"
    - docker tag $DOCKER_USERNAME/solar-system:$IMAGE_VERSION $CI_REGISTRY_IMAGE/ss-image:$IMAGE_VERSION
    - docker images
    - docker push $CI_REGISTRY_IMAGE/ss-image:$IMAGE_VERSION

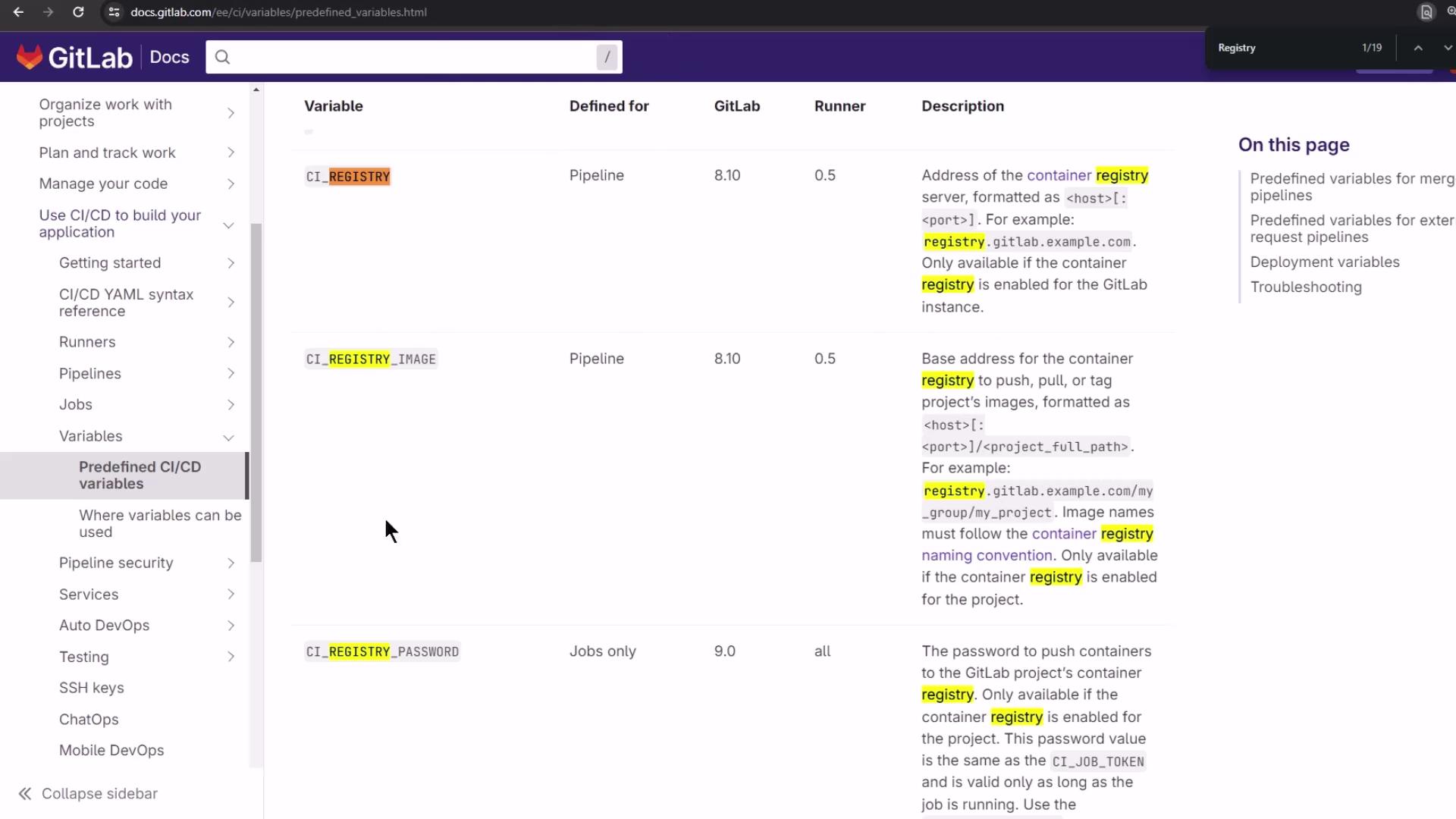

Predefined CI/CD Variables

Viewing the Registry Before and After Push

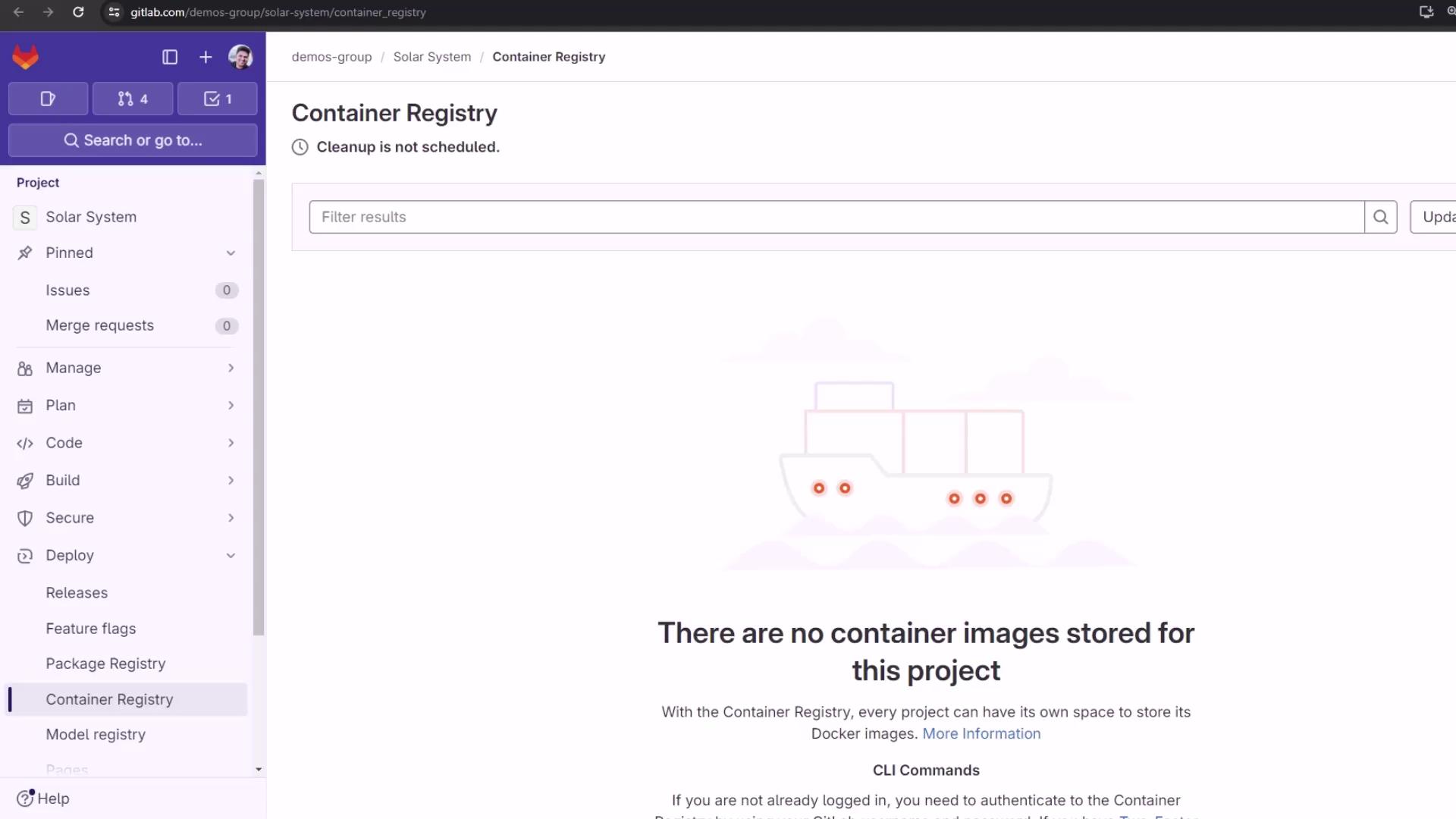

Before any push, the Container Registry is empty:

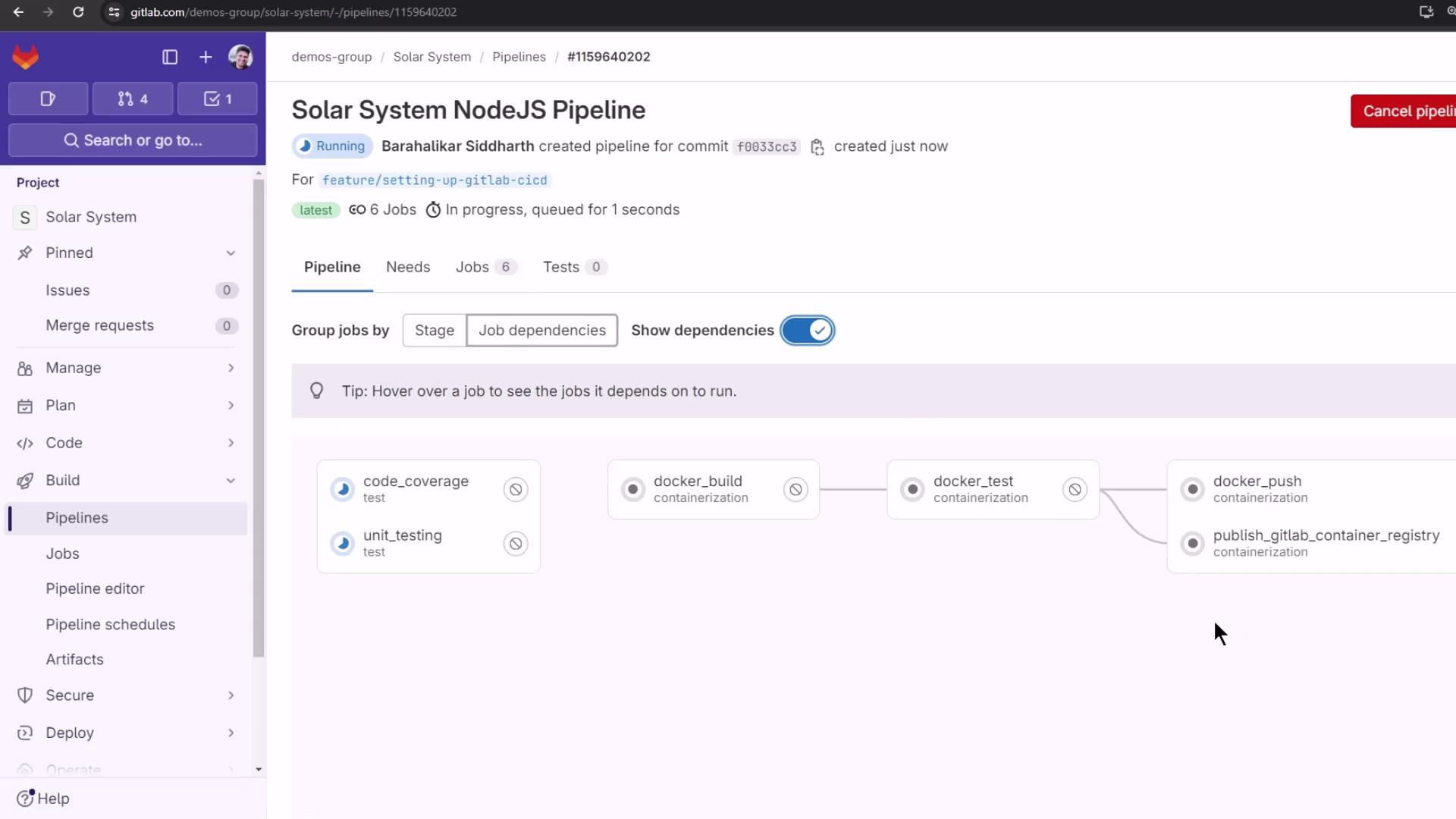

After committing your .gitlab-ci.yml and running the pipeline, the publish_gitlab_container_registry job executes in parallel with other containerization steps:

Troubleshooting Login Errors

If you encounter a syntax error using --password-stdin, switch to the -p flag:

-script:
-  - docker login $CI_REGISTRY -u "$CI_REGISTRY_USER" --password-stdin <<< "$CI_REGISTRY_PASSWORD"
+script:
+  - docker login $CI_REGISTRY -u "$CI_REGISTRY_USER" -p "$CI_REGISTRY_PASSWORD"

Verifying a Successful Push

Once the job completes, your logs should look like this:

$ docker load -i image/solar-system-image-$CI_PIPELINE_ID.tar
$ echo "Registry: $CI_REGISTRY = $CI_REGISTRY_USER = $CI_REGISTRY_IMAGE"
$ docker login $CI_REGISTRY --username="$CI_REGISTRY_USER" --password="$CI_REGISTRY_PASSWORD"
WARNING! Using --password via the CLI is insecure. Use --password-stdin.
$ docker tag $DOCKER_USERNAME/solar-system:$IMAGE_VERSION $CI_REGISTRY_IMAGE/ss-image:$IMAGE_VERSION
$ docker images
$ docker push $CI_REGISTRY_IMAGE/ss-image:$IMAGE_VERSION

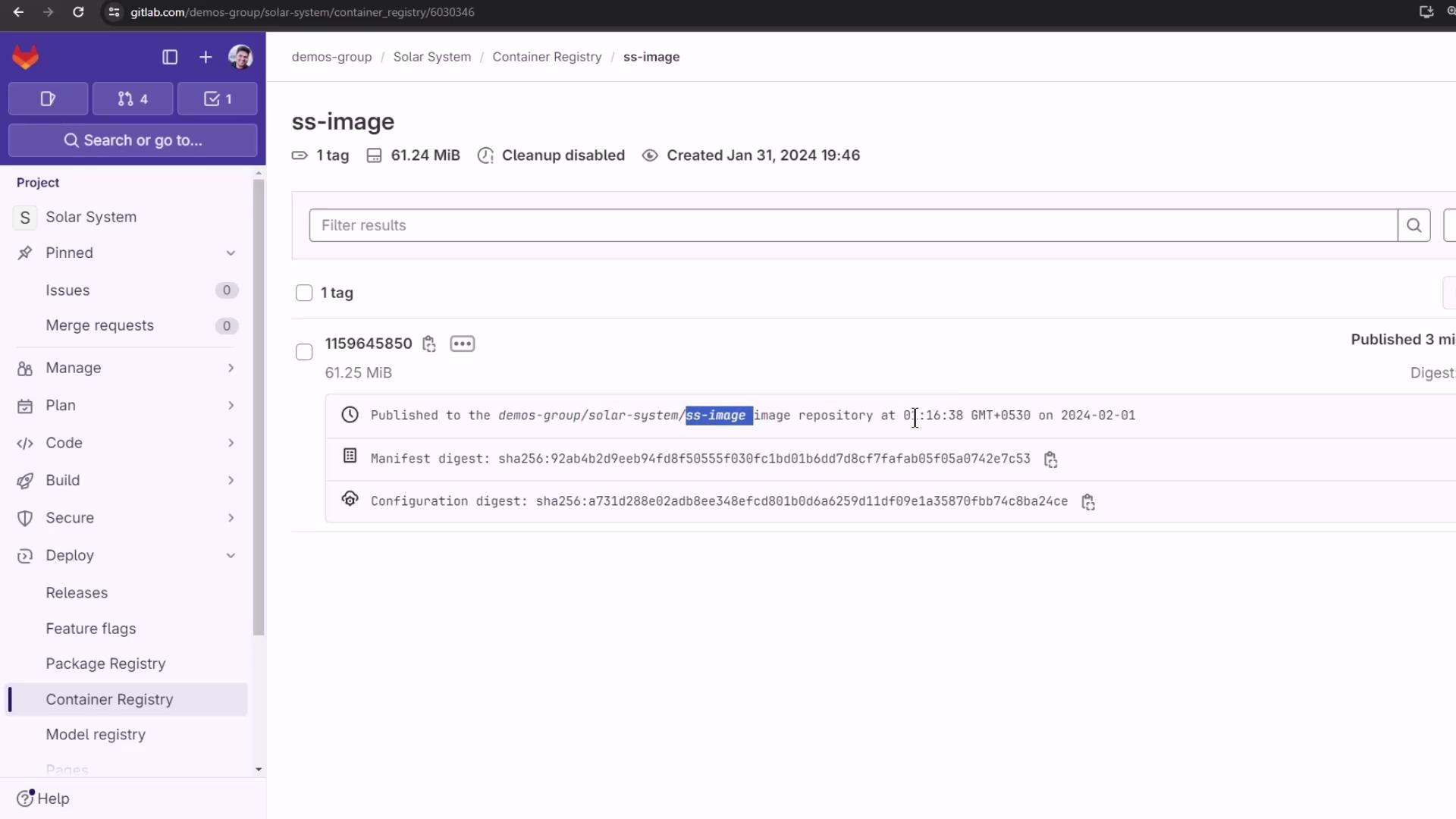

Returning to the Container Registry now reveals the newly published image:

Here you can inspect tags, image sizes, and manifest digests. You’ve successfully published your Docker image to GitLab’s Container Registry!
