Anchors Reuse Configuration Deployment Jobs

In this tutorial, you’ll learn how to leverage YAML anchors in GitLab CI/CD to DRY (Don’t Repeat Yourself) up your pipeline, creating reusable templates for deployment jobs. By defining anchors once and merging them across multiple jobs, you avoid boilerplate and simplify maintenance.

What Are YAML Anchors?

YAML anchors let you define a named block of configuration that can be duplicated or inherited later. In GitLab CI/CD, you typically combine anchors with hidden jobs (names starting with a dot) to build templates.

Basic Anchor Example

# Define a reusable scripts list
.default_scripts: &default_scripts
  - ./default-script1.sh
  - ./default-script2.sh

job1:
  script:
    - *default_scripts       # Reuse the list of default scripts
    - ./job-script.sh

Merging Entire Job Configurations

You can reuse a full job template by defining it as a hidden job and then merging it into other jobs:

.job_template: &job_configuration
  image: ruby:2.6
  services:
    - postgres
    - redis

test1:
  <<: *job_configuration
  script:
    - echo "Running test1"

test2:
  <<: *job_configuration
  script:
    - echo "Running test2"

Here, test1 and test2 inherit image: ruby:2.6 and the two services from the hidden .job_template.

Combining Multiple Anchors

You can break a job template into smaller anchors—for example, separate anchors for script, services, or tags—and then merge only the pieces you need:

.job_template: &job_configuration
  script:
    - echo "Test project"
  tags:
    - dev

.postgres_services:
  services: &postgres_configuration
    - postgres
    - ruby

.mysql_services:
  services: &mysql_configuration
    - mysql
    - ruby

test_postgres:
  <<: *job_configuration
  services: *postgres_configuration
  tags:
    - postgres

test_mysql:
  <<: *job_configuration
  services: *mysql_configuration

In this example, test_postgres inherits the base script and tags, then overrides services.

Real-World Pipeline: Reusing Deployment Configuration

Both k8s_dev_deploy and k8s_stage_deploy share:

• alpine:3.7 as the job image
• No dependencies
• Identical before_script steps to install kubectl and gettext

Define a hidden job template with an anchor:

.prepare_deployment_environment: &kubernetes_deploy_job
  image:
    name: alpine:3.7
  dependencies: []
  before_script:
    - wget "https://storage.googleapis.com/kubernetes-release/release/$(wget -q -O - \
       https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl"
    - chmod +x ./kubectl
    - mv ./kubectl /usr/bin/kubectl
    - apk add --no-cache gettext
    - envsubst -V

Dev Deploy Job

k8s_dev_deploy:
  <<: *kubernetes_deploy_job
  stage: dev-deploy
  needs:
    - docker_push
  script:
    - export KUBECONFIG=$DEV_KUBE_CONFIG
    - kubectl version -o yaml
    - kubectl config get-contexts
    - kubectl get nodes
    - export INGRESS_IP=$(kubectl -n ingress-nginx \
        get services ingress-nginx-controller \
        -o jsonpath="{.status.loadBalancer.ingress[0].ip}")
    - echo $INGRESS_IP
    - kubectl -n $NAMESPACE create secret generic mongo-db-creds \
        --from-literal=MONGO_URI=$MONGO_URI \
        --from-literal=MONGO_USERNAME=$MONGO_USERNAME \
        --from-literal=MONGO_PASSWORD=$MONGO_PASSWORD \
        --save-config --dry-run=client -o yaml | kubectl apply -f -

Stage Deploy Job

k8s_stage_deploy:
  <<: *kubernetes_deploy_job
  stage: stage-deploy
  when: manual
  script:
    - temp_kube_config_file=$(printenv KUBECONFIG)
    - cat $temp_kube_config_file
    - kubectl config get-contexts
    - kubectl config use-context demos-group/solar-system:kk-gitlab-agent
    - kubectl get po -A
    - export INGRESS_IP=$(kubectl -n ingress-nginx \
        get services ingress-nginx-controller \
        -o jsonpath="{.status.loadBalancer.ingress[0].ip}")
    - echo $INGRESS_IP
    - kubectl -n $NAMESPACE create secret generic mongo-db-creds \
        --from-literal=MONGO_URI=$MONGO_URI \
        --from-literal=MONGO_USERNAME=$MONGO_USERNAME \
        --from-literal=MONGO_PASSWORD=$MONGO_PASSWORD \
        --save-config --dry-run=client -o yaml | kubectl apply -f -

Now both deployment jobs inherit the same image, dependencies, and before_script steps without duplication.

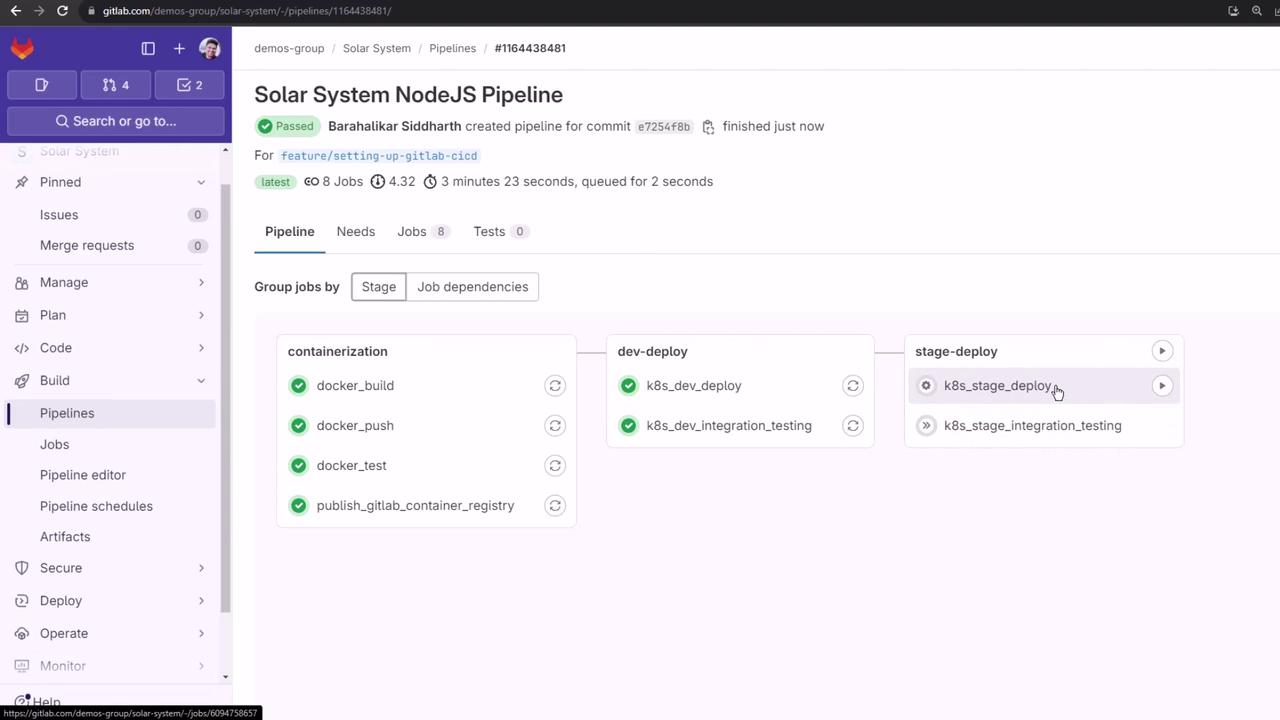

Visualizing the Pipeline

On the CI/CD > Pipelines page or the Visualization tab, confirm that:

• k8s_dev_deploy runs immediately after docker_push thanks to needs:
• k8s_stage_deploy is manual (when: manual)
• Both jobs share the anchored configuration

Further Reading & References

• GitLab CI/CD YAML Anchors
• GitLab Pipeline Configuration
• Kubernetes Official Documentation

That’s how you can use YAML anchors in GitLab CI/CD to keep your deployment jobs DRY and maintainable.
