GitOps with FluxCD

Flux Overview

FluxCD Features

FluxCD is a GitOps operator that automates Kubernetes deployments by reconciling your cluster state with your Git repository. In this guide, we dive into FluxCD’s powerful capabilities, from automated deployments to multi-cluster management.

Table of Contents

  1. Automated Deployment
  2. Git Provider Integrations
  3. Reconciliation Modes
  4. Alerting & Event Handling
  5. Resource Management
  6. Observability
  7. Configuration & Templating
  8. CLI-First Experience
  9. Multi-Tenancy & Cross-Cluster
  10. Drift Detection
  11. Web-Based UI

1. Automated Deployment

FluxCD continuously monitors your Git repositories for changes and instantly applies updates to your Kubernetes clusters.

2. Git Provider Integrations

FluxCD supports real-time commit detection via webhooks from:

  • GitHub
  • GitLab
  • Bitbucket

You can also source configurations from any Git server, S3-compatible bucket, container registry, or external CI system.

3. Reconciliation Modes

FluxCD offers two modes:

  • Automatic: Applies changes immediately when they appear in Git.
  • Manual: Requires an explicit command to reconcile.

Note

Automatic mode is ideal for rapid, continuous deployments, while manual mode gives you complete control over when changes are applied.

4. Alerting & Event Handling

FluxCD can notify external systems when events occur—such as failed reconciliations or drifts—keeping you aware of the cluster’s health in real time.

5. Comprehensive Resource Management

Beyond Deployments, FluxCD can manage Secrets, ConfigMaps, CRDs, and custom infrastructure resources, ensuring all dependencies are declared and reconciled.

6. Observability

FluxCD exposes Prometheus metrics and provides pre-built Grafana dashboards, giving you immediate visibility into your GitOps workflows.

7. Flexible Configuration & Templating

Choose from multiple tools to define your manifests:

ToolUse CaseReference
KustomizeOverlay-based patches and customizationhttps://kustomize.io/
HelmPackage reusable chartshttps://helm.sh/
JsonnetData templating and configuration as codehttps://jsonnet.org/
YAMLSimple, declarative manifestshttps://yaml.org/

8. CLI-First with CI/CD Support

The Flux CLI powers day-to-day operations and integrates seamlessly into existing CI pipelines for end-to-end GitOps automation.

9. Multi-Tenancy & Cross-Cluster Management

Manage multiple environments or teams from a single Git repository—across one or many clusters—with strict isolation and Git-based policies.

10. Drift Detection

FluxCD continually compares the live cluster state to the Git source and alerts you if any configuration drifts are detected.

11. Web-Based UI

For those preferring a graphical interface, FluxCD integrates with the Weave GitOps UI, offering a visual management plane.

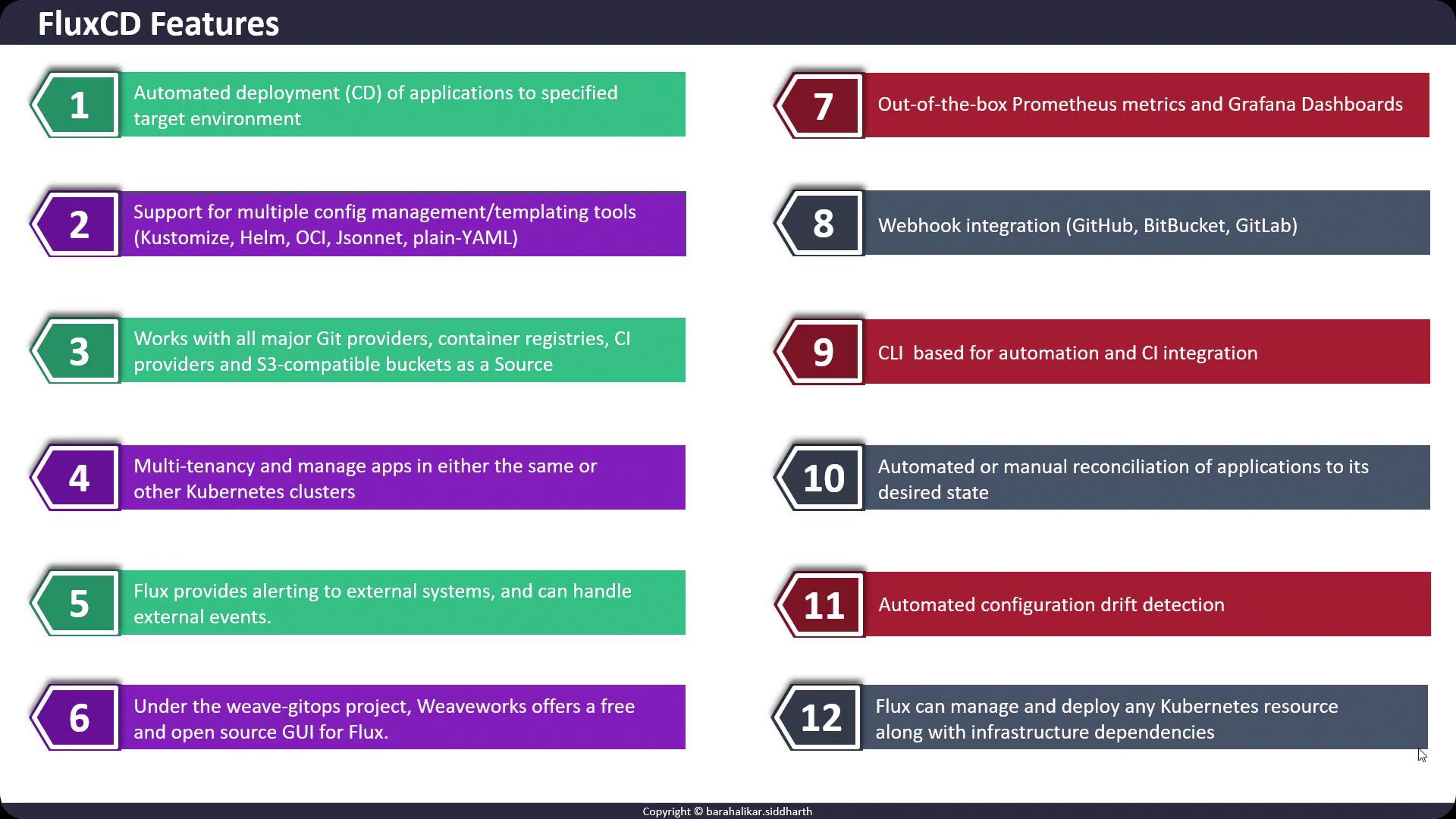

The image lists features of FluxCD, including automated deployment, support for multiple config tools, integration with Git providers, and automated configuration drift detection.
