Vault Namespace

Vault Namespaces provide isolated, virtual Vault environments within a single cluster. They enable multi-tenancy by letting you delegate administration, manage policies, auth methods, secrets engines, tokens, and identities per namespace—without running multiple clusters or storage backends.

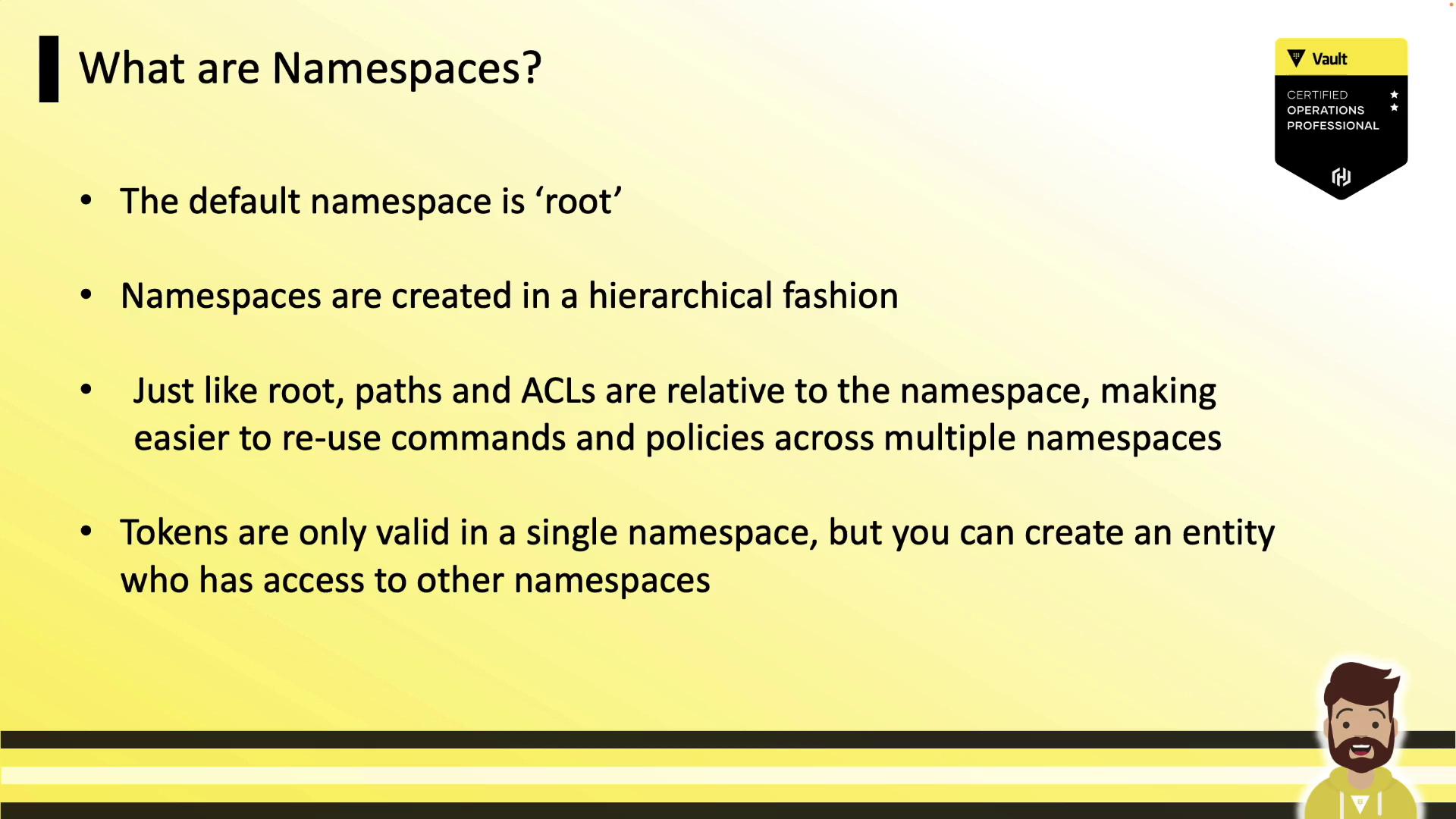

What Is a Namespace?

A Vault namespace is a child environment inside the root namespace. Each namespace acts like a standalone Vault, offering:

• Fully isolated policies, auth methods, and secrets engines
• Delegation of administration to namespace-specific admins
• Centralized cluster management (storage backend, audit devices, upgrades)
• Hierarchical namespaces, with support for nested child namespaces
• Namespace-scoped tokens (valid only within the issuing namespace)

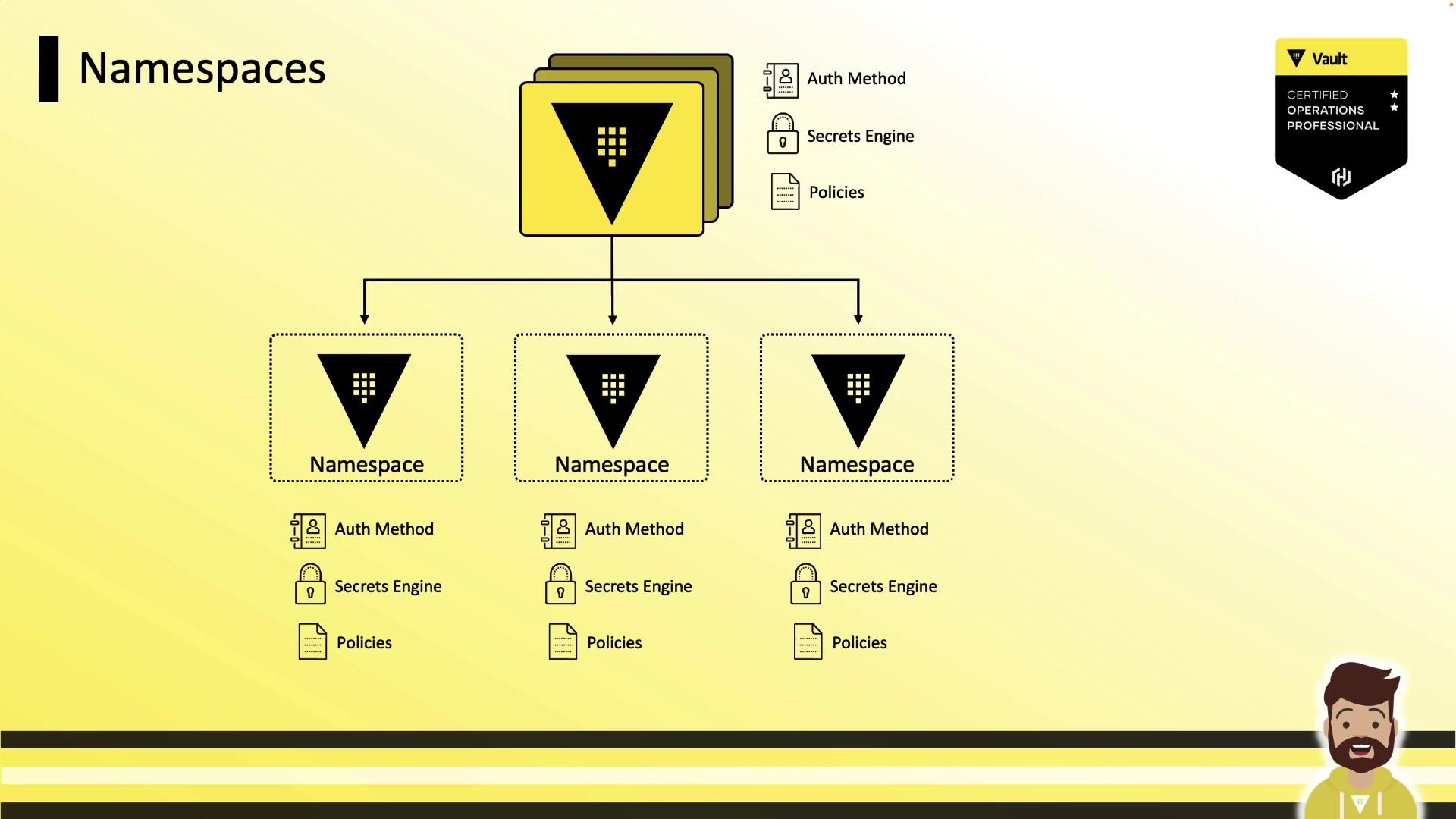

Namespace Hierarchy

Namespaces are organized in a tree structure under the root. You can enable auth methods, secrets engines, and policies at any level—paths and ACLs are always relative to the namespace where they’re defined. This makes policy reuse straightforward.

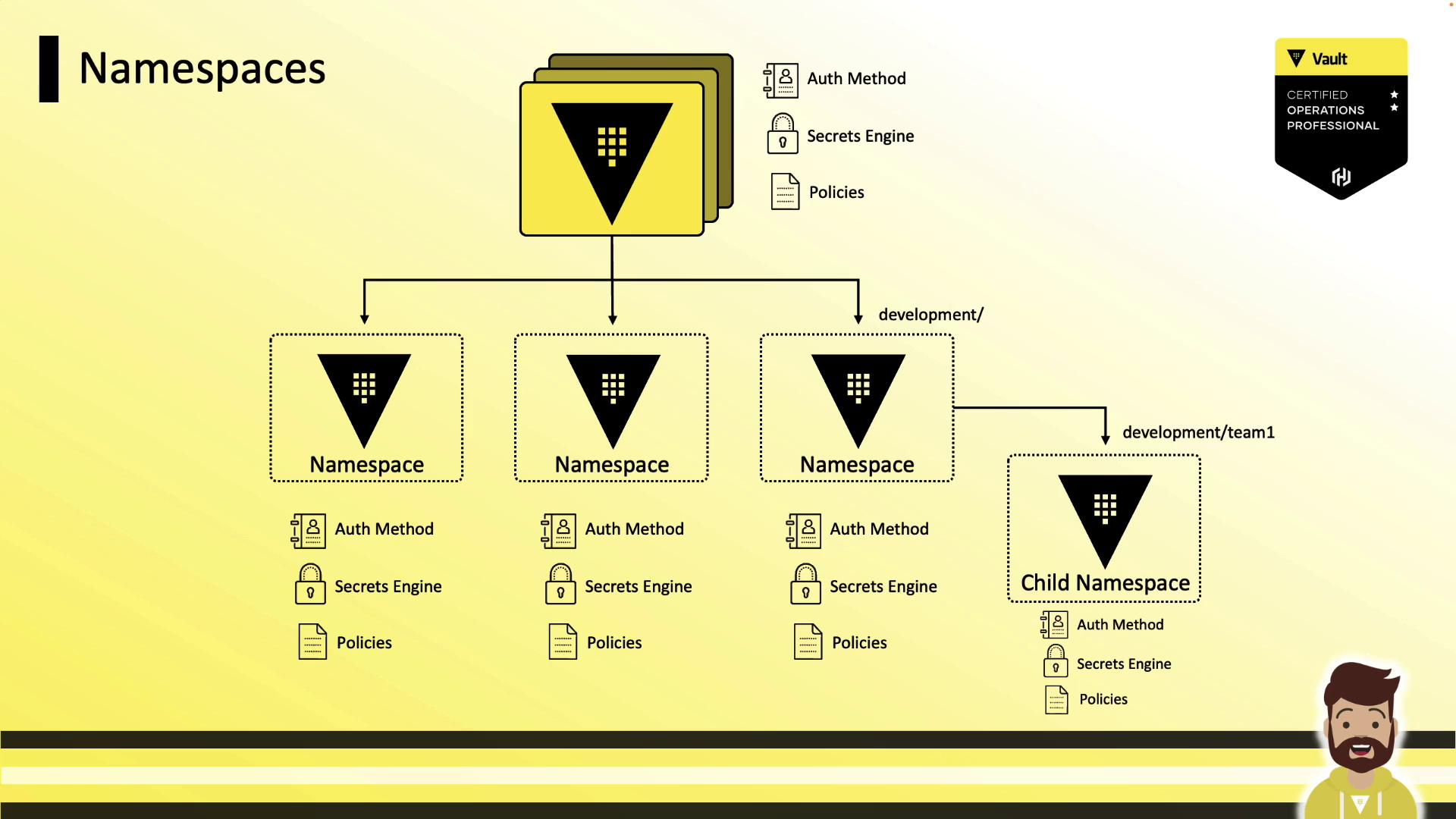

Each namespace can spawn child namespaces indefinitely:

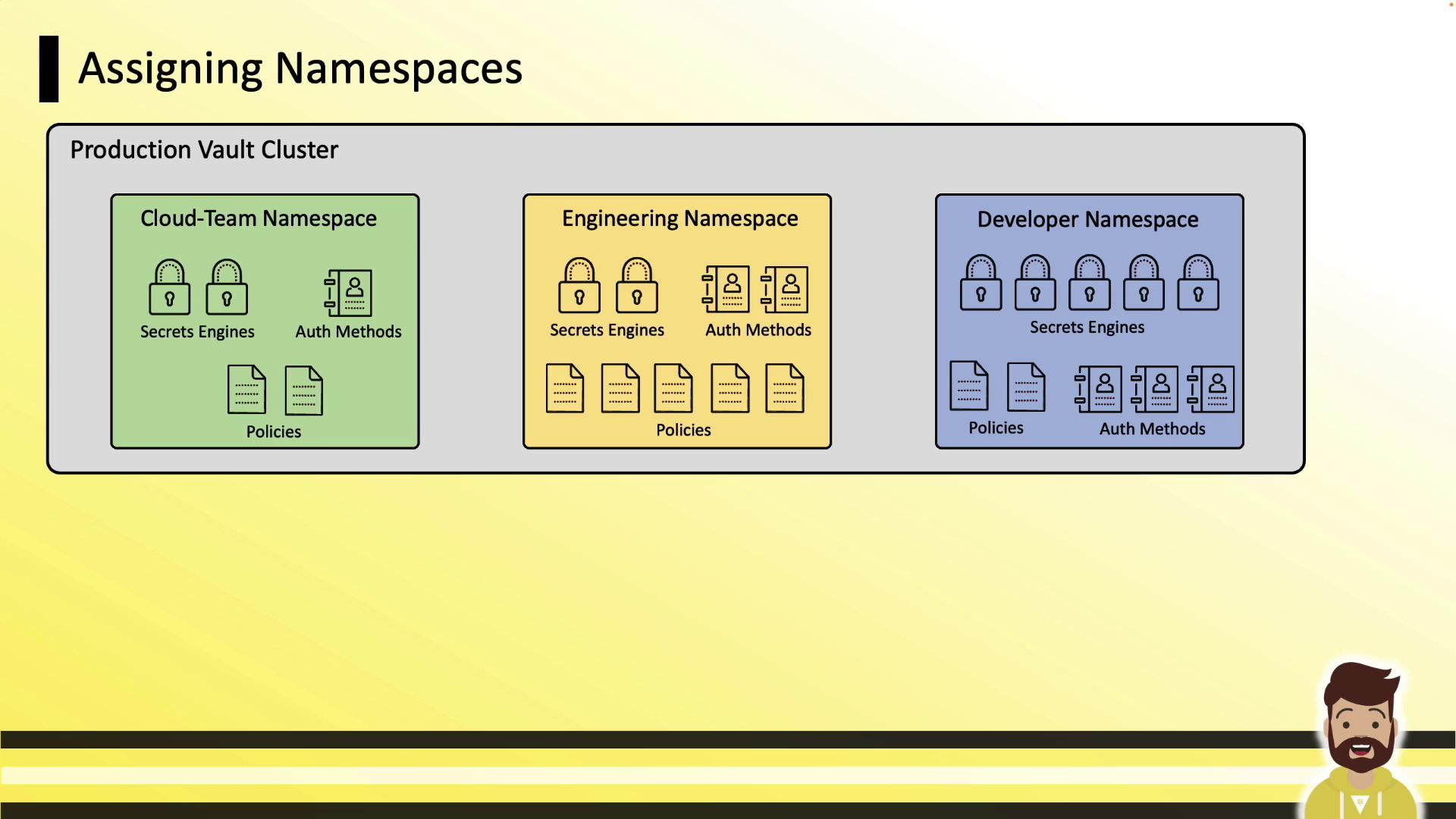

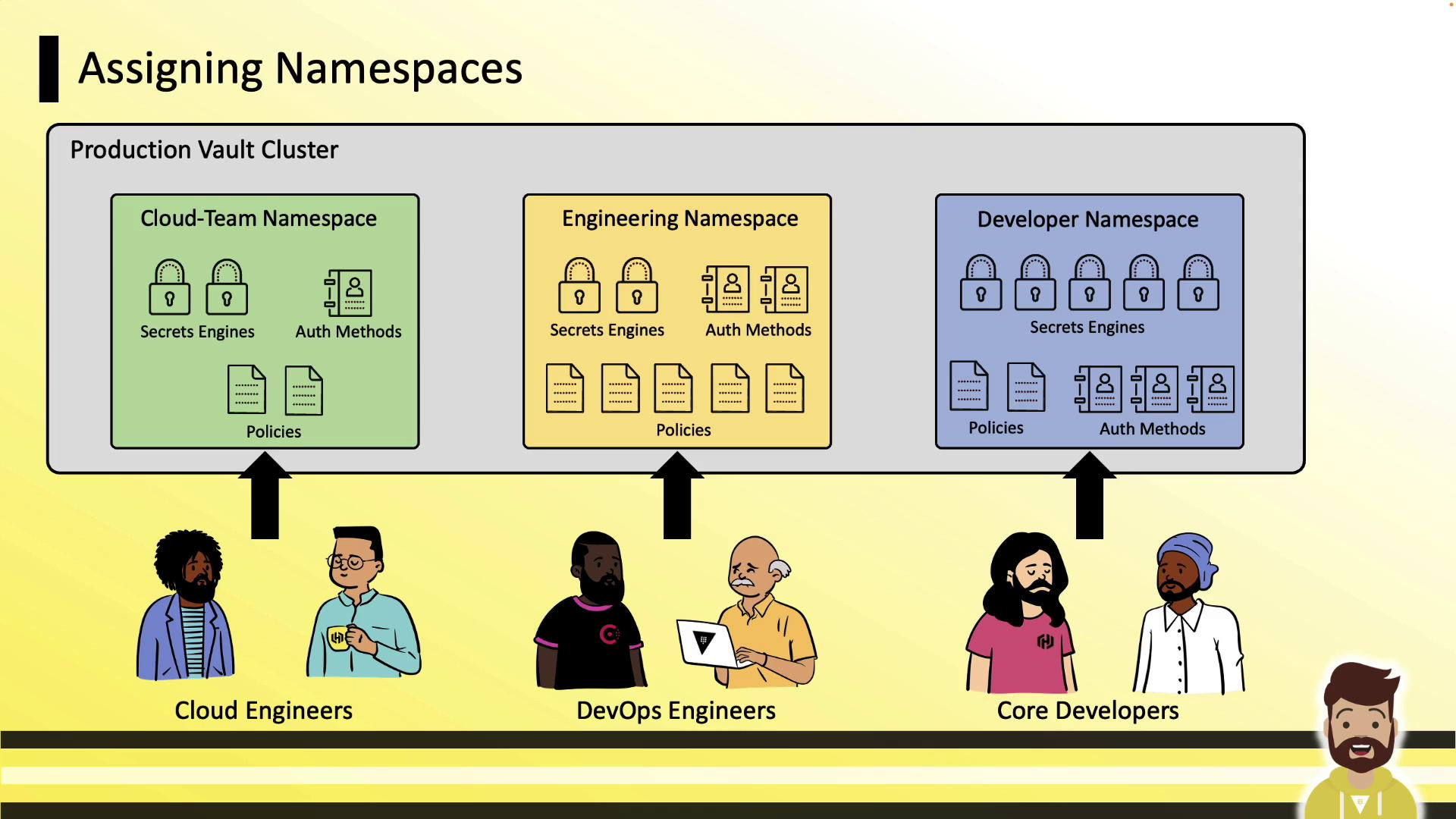

Assigning Namespaces to Teams

In a production Vault cluster, you might create separate namespaces for Cloud, Engineering, and Developer teams. Each namespace starts empty—no auth methods or engines are enabled by default.

Teams then manage only their assigned namespace:

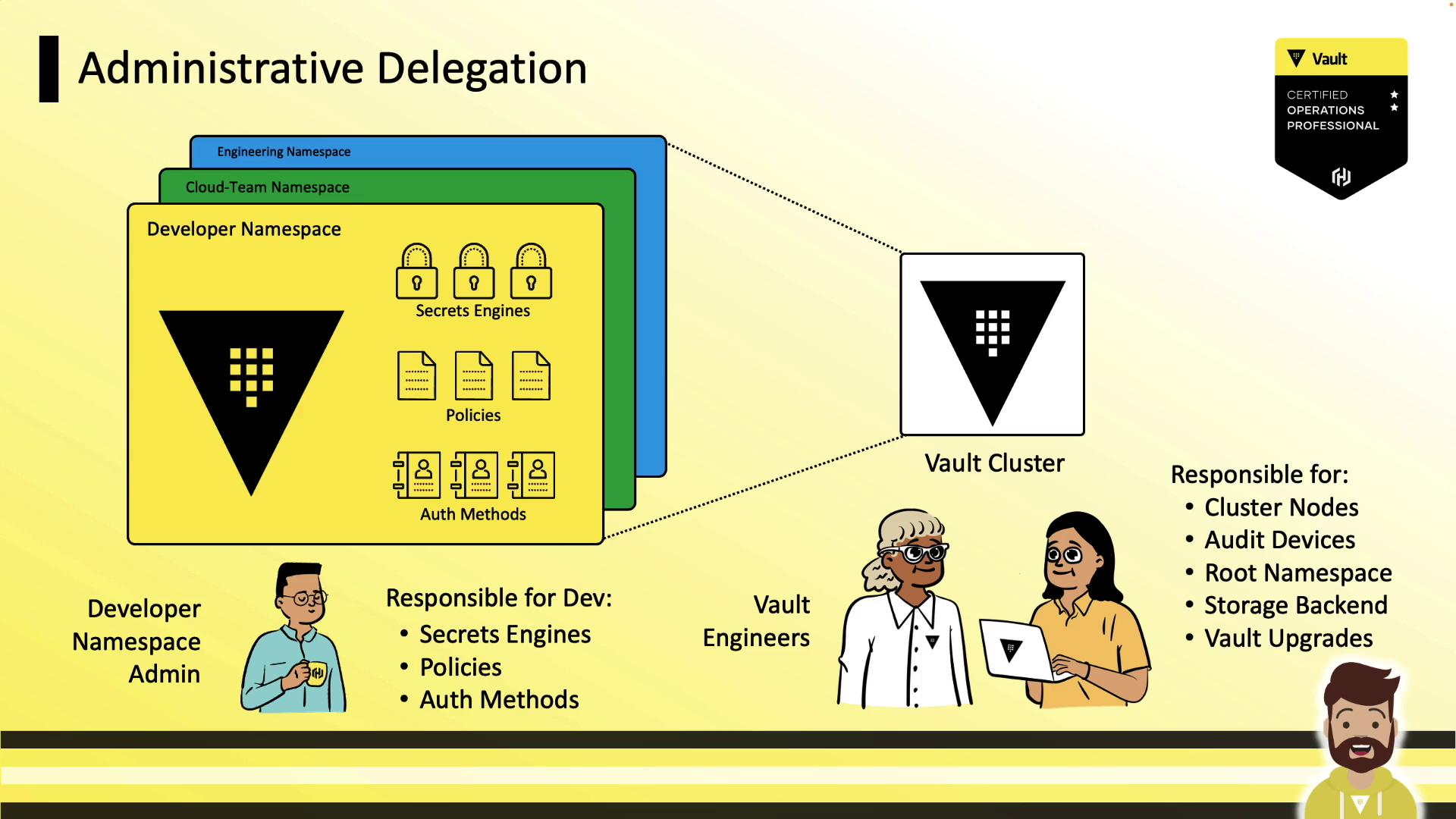

Administrative Delegation

Vault engineers handle cluster-wide tasks (storage backend, root namespace, upgrades). Namespace admins (e.g., developers) gain autonomy to configure auth methods, secrets engines, policies, and tokens—without tickets.

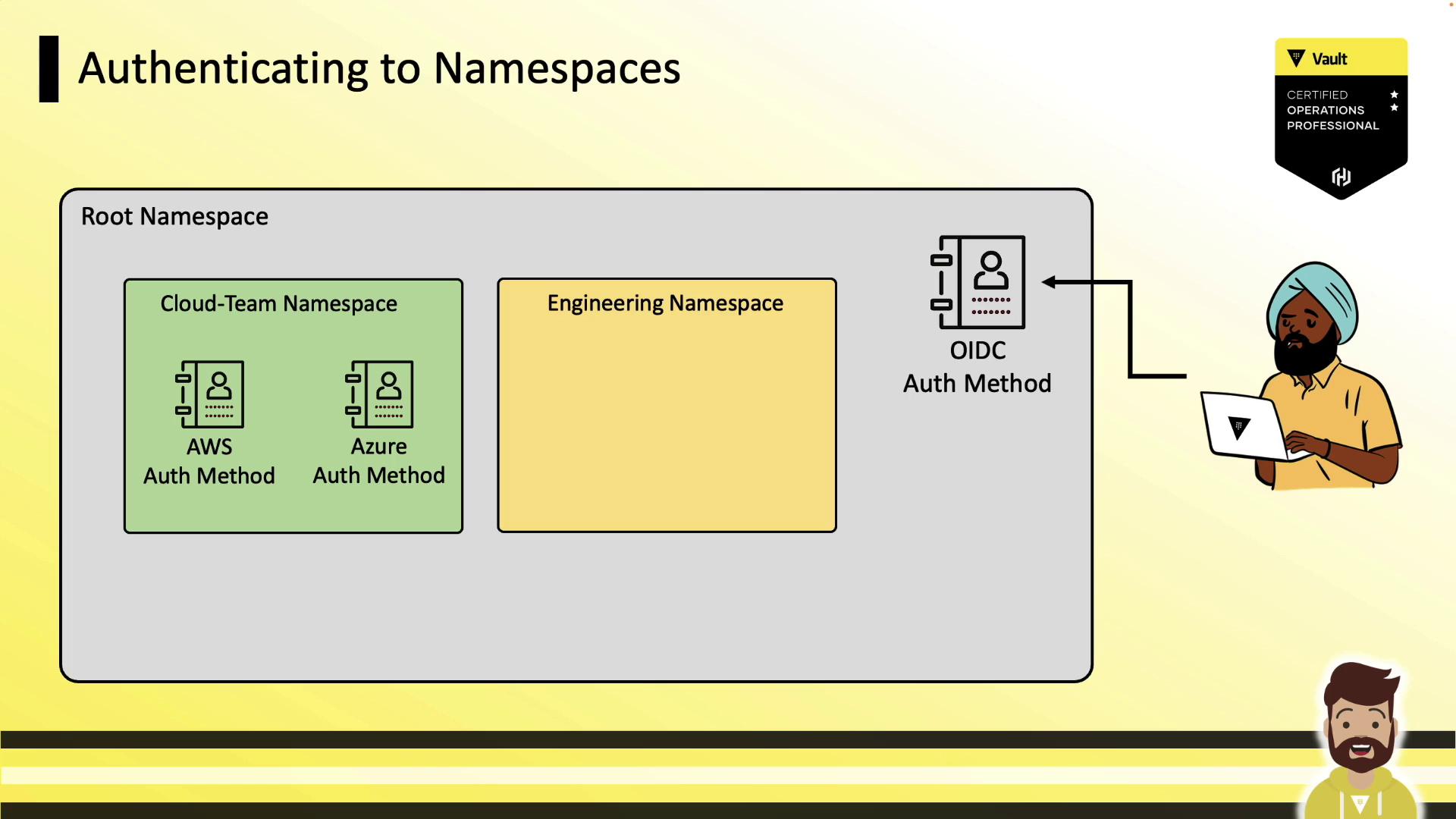

Authenticating to Namespaces

Users authenticate either at the root or directly into child namespaces—wherever relevant auth methods are enabled.

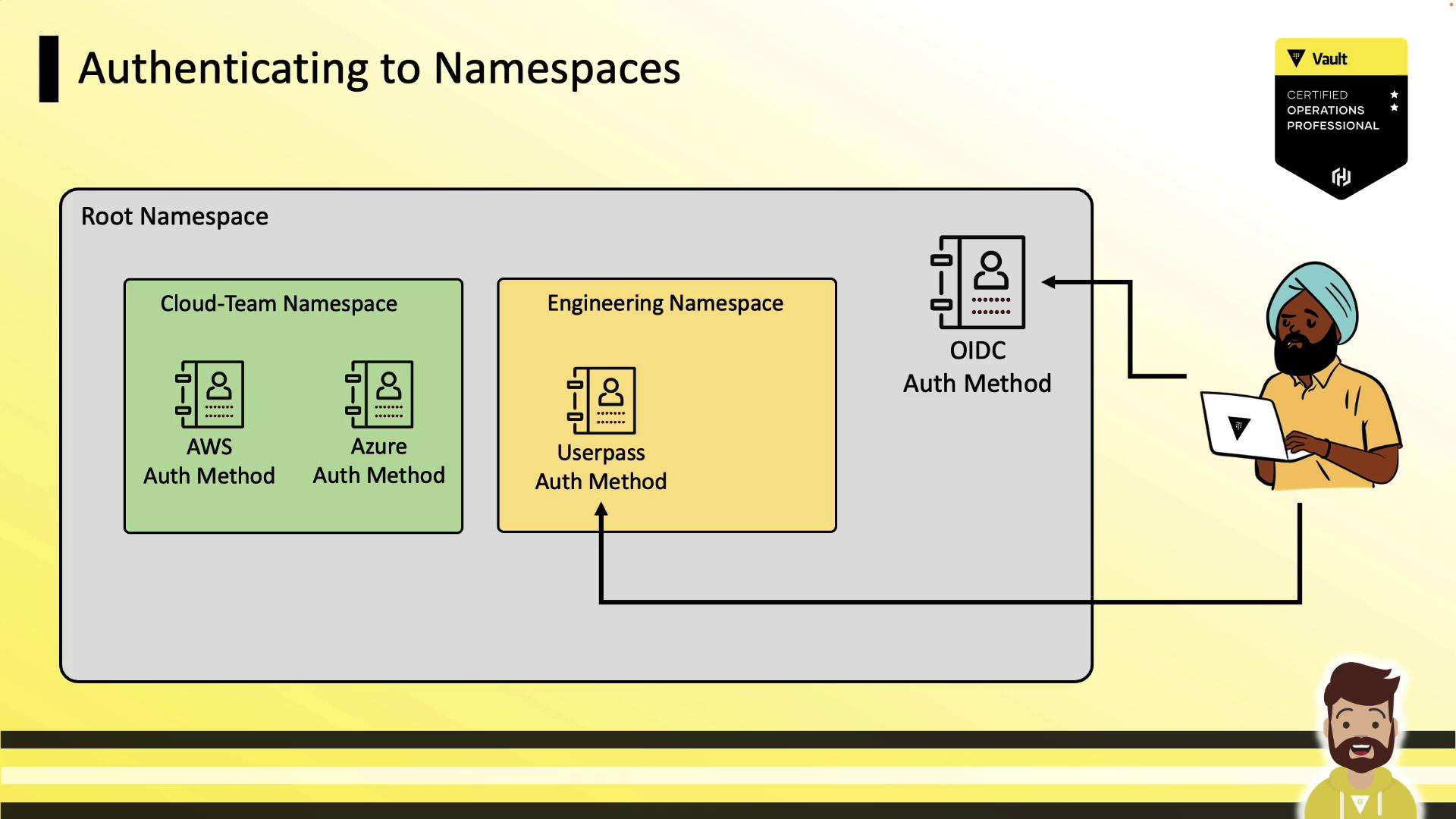

If a child namespace has its own auth method enabled (e.g., userpass), users can log in directly there:

Common Namespace CLI Commands

$ vault namespace create cloud-team
Key     Value
---     -----
id      n57y6
path    cloud-team/

$ vault namespace list
$ vault namespace delete cloud-team

Using an Environment Variable

Set VAULT_NAMESPACE so all CLI requests default to that namespace:

export VAULT_NAMESPACE=cloud-team
vault kv get kv/data/sql/prod

Using the -namespace Flag

Override the namespace for a single command:

vault kv get -namespace=cloud-team kv/data/sql/prod

Nested Namespace Example

Combine both methods to target child namespaces:

export VAULT_NAMESPACE=cloud-team
vault kv get -namespace=team-one kv/data/sql/prod

Using Namespaces in the API

You can specify namespaces either via a header or in the URL path.

1. X-Vault-Namespace Header

curl \
  --header "X-Vault-Token: hvs.a83b50ed2aa548212" \
  --header "X-Vault-Namespace: development/" \
  --request GET \
  https://vault.example.com:8200/v1/kv/data/sql/prod

2. Namespace in the URL Path

curl \
  --header "X-Vault-Token: hvs.CAESIA7Y-LwSxnE926onQwdxIUf7" \
  --request GET \
  https://vault.example.com:8200/v1/development/kv/data/sql/prod

For nested namespaces, extend the path:
v1/development/team-one/kv/data/sql/prod

Writing Policies for Namespaces

Policy paths are relative to their namespace:

Inside cloud-team:

path "database/creds/prod-db" {
  capabilities = ["read"]
}

From the root namespace to access a secret in cloud-team:

path "cloud-team/database/creds/prod-db" {
  capabilities = ["read"]
}

Include further segments for deeper hierarchies.

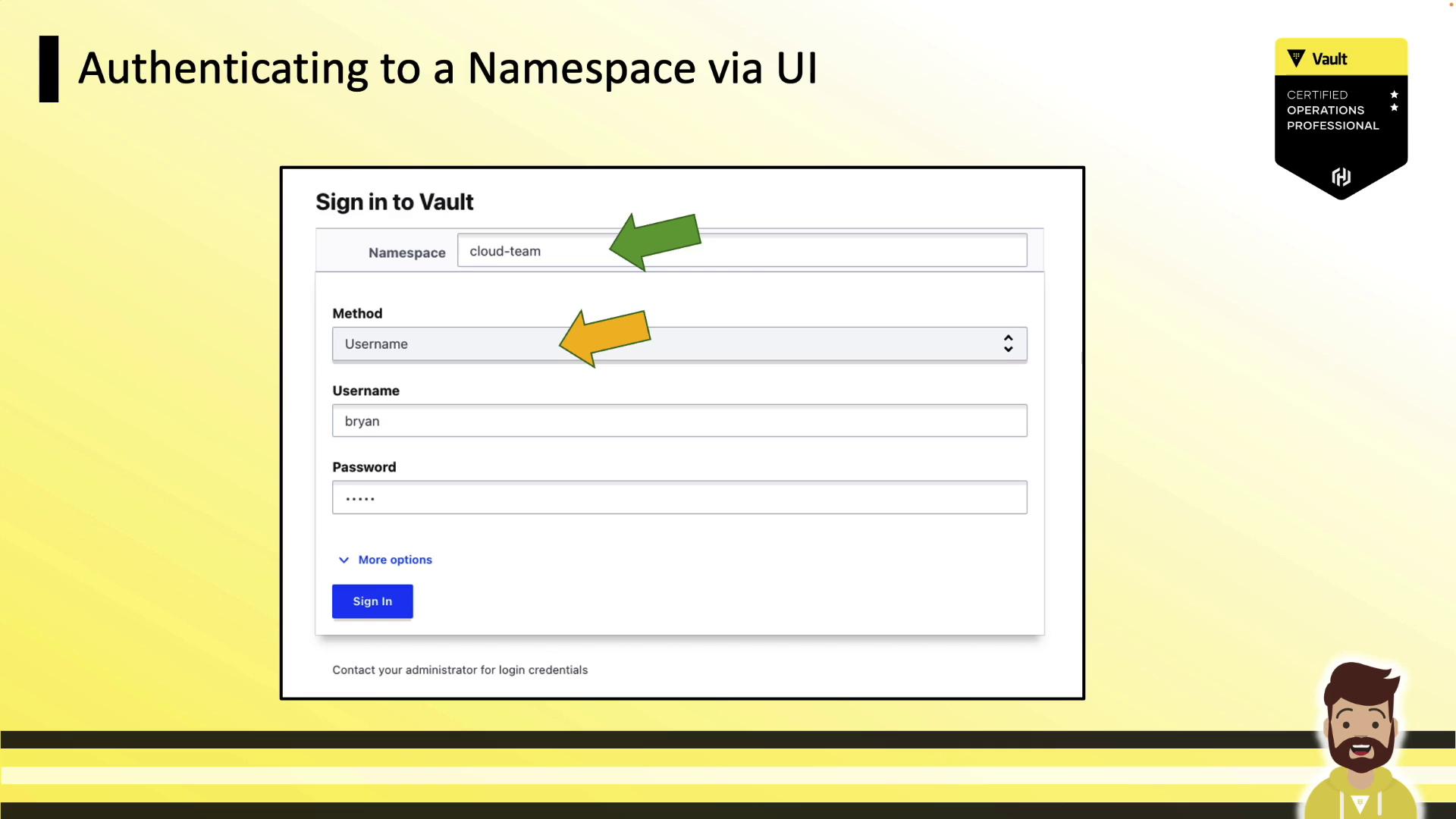

Authenticating via the UI

When signing in, specify your namespace (default is root), choose the auth method, and enter your credentials:

Conclusion

Vault Namespaces streamline multi-tenant deployments, enabling delegated management and isolated environments within a single cluster. Master the CLI, API, and UI workflows for effective namespace administration and be prepared for your Vault certification.

References

• Vault Enterprise Namespaces
• Vault CLI Documentation
• Vault HTTP API
