Controller Failure Freestyle Project

In this article, we demonstrate how a controller failure can impact a long-running Freestyle project in Jenkins. We simulate a long-running job using a sleep command to mimic work in progress and then introduce a controller failure during its execution. Follow along to see how the process unfolds.

Simulating a Long-Running Job

The example simulates a long-running build by inserting a sleep command for 3600 seconds before deploying. During the sleep period, we simulate a controller failure. Use the following script to reproduce the procedure:

sleep 3600
# Deploy
sudo apt-get install cowsay -y
export PATH="$PATH:/usr/games:/usr/local/games"
cat advice.message | cowsay -f $(ls /usr/share/cowsay/cows | shuf -n 1)

After applying these changes and saving them, trigger the build job. The build begins execution and queues the test job. As the test job runs, the Jenkins interface displays a dynamic visualization. In this scenario, the test job fails because one of the conditions to trigger the deploy job—a stable build of the test job—is not met. Review the build logs below to understand the failure:

Started by upstream project "ascii-build-job" build number 5
originally caused by:
  Started by user Dasher Admin
Running as SYSTEM
Building in workspace /var/lib/jenkins/workspace/ascii-test-job
Copied 1 artifact from "ascii-build-job" build number 5
[ascii-test-job] $ /bin/sh -xe /tmp/jenkins156712682140079493978.sh
+ ls advice.json
advice.json
+ cat advice.json
+ jq -r '.slip.advice'
+ wc -w
+ [ 4 -gt 5 ]
+ cat advice.message
+ echo Advice -  Slate in the shower.
Advice -  Slate in the shower. has 5 words or less
+ exit 1
Build step 'Execute shell' marked build as failure
Skipped archiving because build is not successful
Finished: FAILURE

After re-triggering the build job, the test job passes in a subsequent run, and build number five completes successfully—causing the deploy job to be queued.

Simulating a Controller Failure

When the deploy job starts, it executes the same sleep command for 3600 seconds. To simulate a controller failure manually, stop the Jenkins server with the following command:

systemctl stop jenkins

After stopping Jenkins, attempting to refresh the Jenkins webpage will result in an "unreachable" error. To restart Jenkins, execute:

systemctl start jenkins

Wait a few moments for Jenkins to come back online. Verify the server status using:

systemctl status jenkins

An example output is as follows:

● jenkins.service - Jenkins Continuous Integration Server
   Loaded: loaded (/usr/lib/systemd/system/jenkins.service; enabled; preset: enabled)
   Active: active (running) since Mon 2024-08-19 10:51:25 UTC; 3s ago
 Main PID: 37656 (java)
    Tasks: 49 (limit: 4607)
   Memory: 310.4M (peak: 310.9M)
      CPU: 15.008s
   CGroup: /system.slice/jenkins.service
           └─37656 /usr/bin/java -Djava.awt.headless=true -jar /usr/share/java/jenkins.war --webroot=/var/cache/jenkins/war

Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.575+0000 [id=31] INFO  jenkins.InitReac...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.612+0000 [id=33] INFO  jenkins.InitReac...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.613+0000 [id=32] INFO  jenkins.InitReac...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.619+0000 [id=32] INFO  c.a.s.j.p.d.cache...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.619+0000 [id=31] INFO  jenkins.InitReac...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.632+0000 [id=47] INFO  jenkins.InitReac...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.640+0000 [id=30] INFO  jenkins.InitReac...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.612+0000 [id=30] INFO  hudson.lifecycle...
Aug 19 10:51:25 jenkins-controller-1 jenkins[37656]: 2024-08-19 10:51:25.746+0000 [id=47] INFO  c.a.s.j.p.d.cache...

After you log in again (due to Jenkins security protocols), you will notice that the deploy job has been terminated and is marked as a failure. This outcome occurs because Freestyle Projects stop the build execution permanently if a controller failure—whether manual or accidental—happens during a running build.

The following snippet reaffirms this behavior:

Building in workspace /var/lib/jenkins/workspace/ascii-deploy-job
Copied 1 artifact from "ascii-test-job" build number 5
[ascii-deploy-job] $ /bin/sh -xe /tmp/jenkins98367258698972721042.sh
+ sleep 3600
Build step 'Execute shell' marked build as failure
Finished: FAILURE

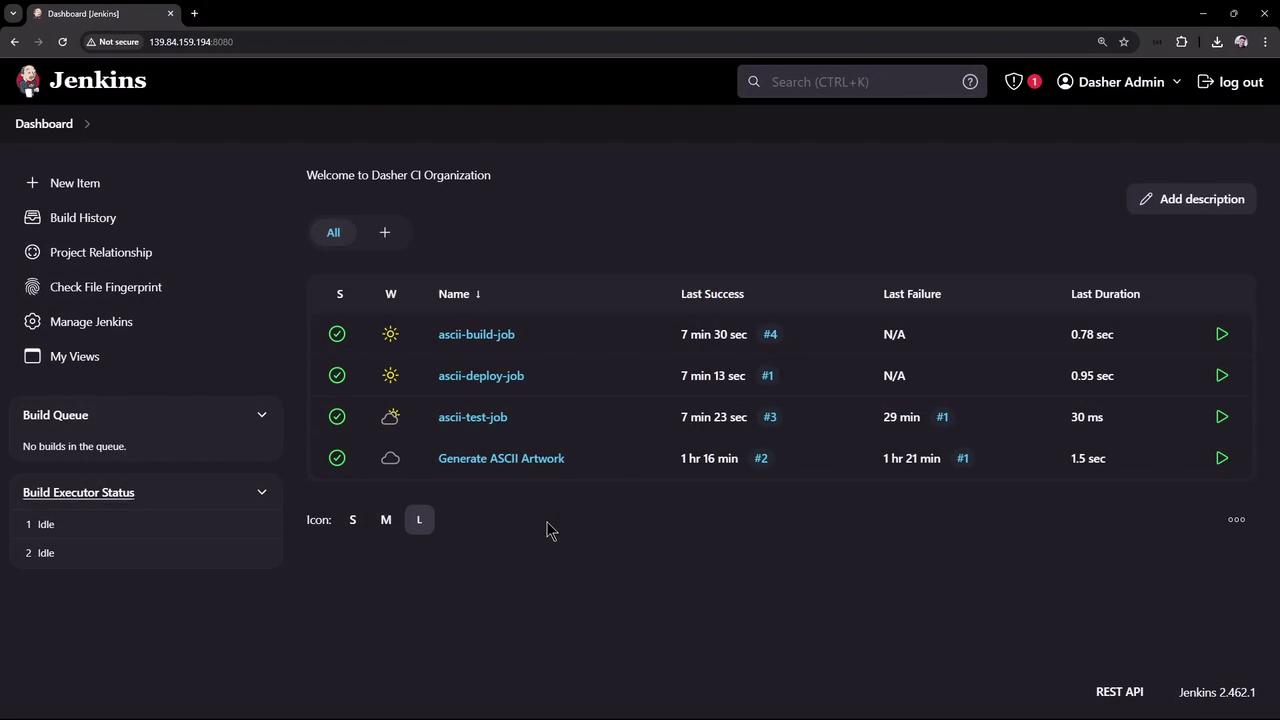

Understanding the Jenkins Dashboard

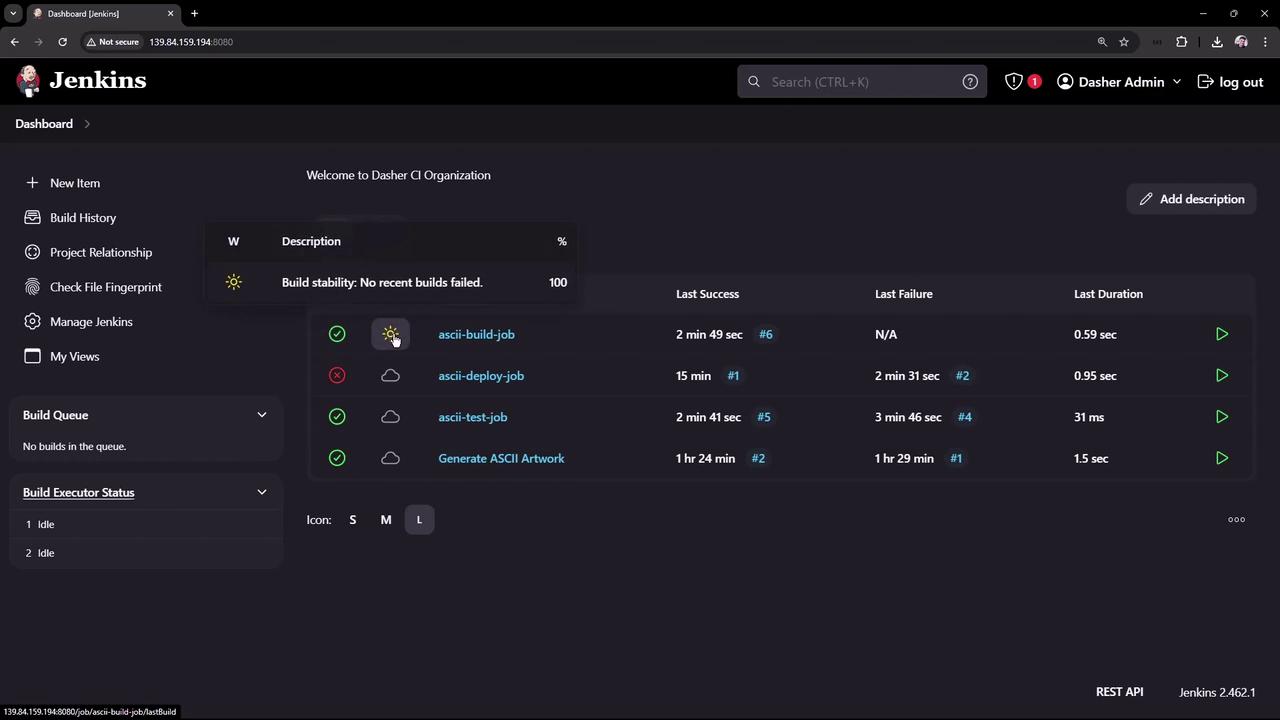

For newcomers, the Jenkins dashboard might be overwhelming at first, especially when you encounter various icons like the sun or clouds. These icons provide quick visual feedback about build statuses and overall project health. Click on “More Actions” in the dashboard to view an icon legend with detailed descriptions.

Conclusion

This article has explored how Freestyle Projects in Jenkins handle controller failures. As demonstrated, if a controller failure occurs during a running build, the job is terminated and does not resume automatically. In future discussions, we will examine how Pipeline Projects can overcome this challenge by supporting build continuity and recovery.

Thank you for reading!
