Kubernetes and Cloud Native Security Associate (KCSA)

Kubernetes Threat Model

Persistence

In this lesson, we explore how attackers establish persistence in Kubernetes clusters to maintain unauthorized access over time. Persistence enables an attacker to remain in a compromised environment despite reboots, upgrades, or resource rotations.

Note

Persistence in Kubernetes refers to an attacker’s ability to survive pod restarts, node reboots, or configuration changes by planting backdoors or manipulating resources.

The image illustrates the concept of persistence in Kubernetes, showing an attacker gaining access to a system, with icons representing reboots, updates, and interruptions.

Attackers typically leverage misconfigurations, stolen Kubernetes Secrets, or vulnerable container images to achieve persistence.

Example Scenario

Consider a multi-tier web application running NGINX for the front end, Node.js for business logic, and MySQL as the data store. An initial breach may occur when a container vulnerability is exploited. Once inside, the attacker focuses on persistence to survive your cleanup efforts.

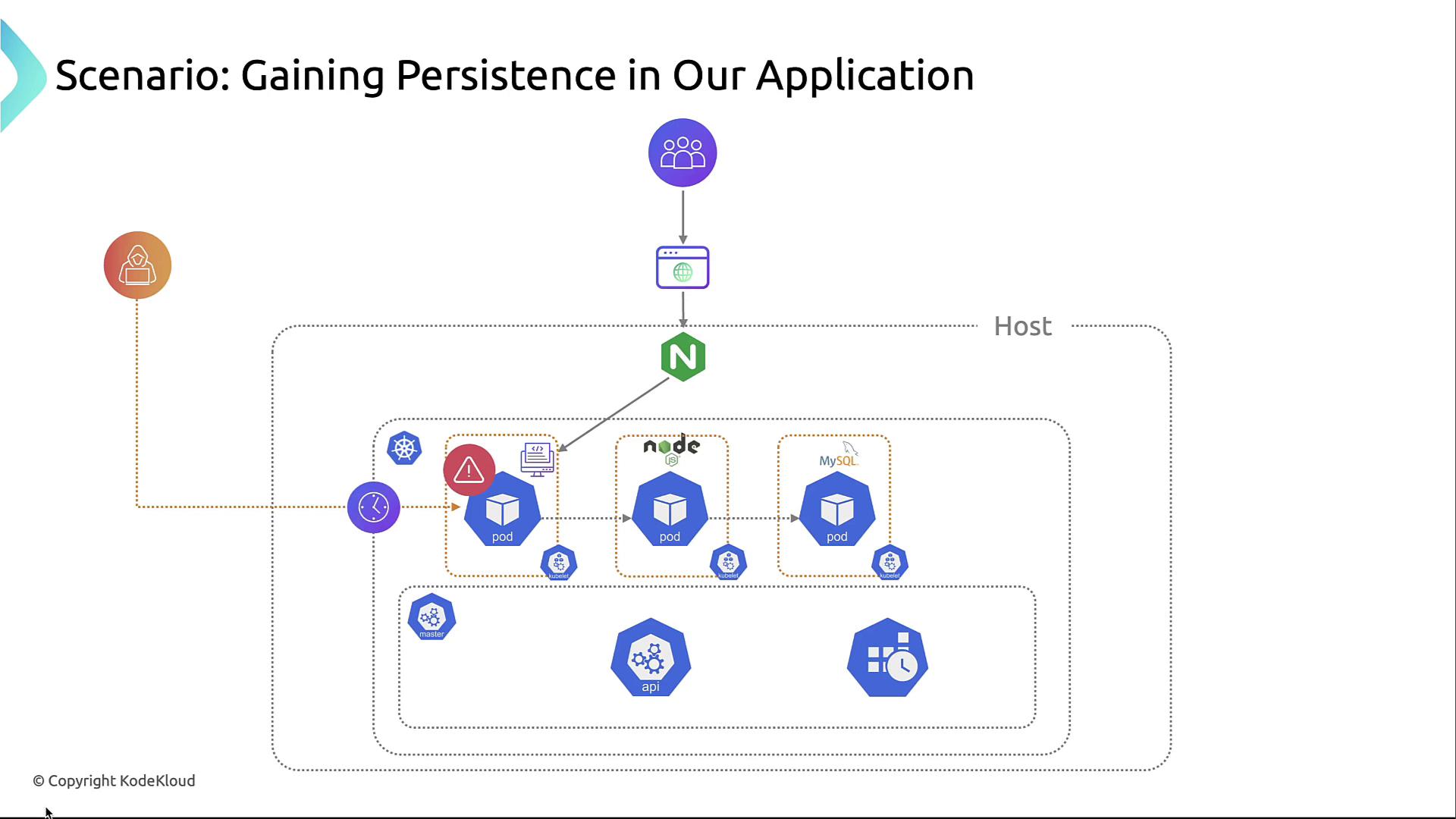

The image is a diagram illustrating a scenario of gaining persistence in an application, featuring components like Nginx, Node.js, MySQL, and Kubernetes pods. It shows interactions between users, a host, and various application components.

Attack Vectors for Persistence

The CNCF Financial Users Group defines the following key persistence vectors:

The image is a flowchart titled "Attack Vectors for Persistence," detailing various methods to establish foothold and persistence in a system. It includes different paths and strategies for exploiting containers and Kubernetes resources.

Vector IDNameDescription
1Foothold with No ResilienceTransient access inside a container; lost on pod restart or delete.
2Foothold with Resilience to Container RestartChanges on mounted volumes or configs survive container restarts.
3Foothold with Resilience to Node RestartHost-level scripts or always-restart containers survive node reboots.
4Foothold via Kubernetes API & PKICompromise service account tokens or certificates to control the API.
5Leveraging Privileged WorkloadsAbuse privileged pods or hostPath mounts to access the node.

1. Foothold with No Resilience

This initial compromise lives only as long as the container does.

  • Running a Malicious Process: Execute a backdoor binary inside the pod.
  • Using Native Tools: Leverage apt, yum, pip, or scripting runtimes (python, node) to fetch and run code.
  • Container Hopping: Identify other pods with matching runtimes and pivot laterally.

2. Foothold with Resilience to Container Restart

Persistence here relies on writable volumes or config files:

  • Volume-Backed Config Tweaks: Edit configs (e.g., NGINX settings) stored on a PersistentVolumeClaim.
  • Forcing a Restart: Trigger a pod restart (kubectl rollout restart deployment/nginx) to pick up malicious changes.

3. Foothold with Resilience to Node Restart

Attackers move outside the pod sandbox:

  • Always-Restart Containers: Launch a Docker container on the host with --restart=always.
  • Init Scripts & Cron Jobs: Append malicious commands to /etc/rc.local or create entries in /etc/cron.d/.
  • Host File System Implants: Drop binaries or scripts directly onto the host for execution.

Warning

Host-level persistence bypasses Kubernetes controls. Monitor for unexpected containers on nodes and unauthorized changes to init files or cron entries.

4. Foothold via Kubernetes API & PKI

Compromising API credentials grants cluster-wide power:

  • Service Account Token Theft: Steal or mount tokens from /var/run/secrets/kubernetes.io/serviceaccount.
  • Certificate Forgery: Extract or fabricate client certificates to impersonate admins.

5. Leveraging Privileged Workloads

Privileged pods break out of the container isolation:

  • Privileged Mode: Pods with securityContext.privileged: true can manipulate the host.
  • HostPath Mounts: Access and modify host directories like /etc or /var/lib/kubelet.

Mitigations for Persistent Threats

Defending against persistence requires a layered approach:

1. Role-Based Access Control (RBAC)

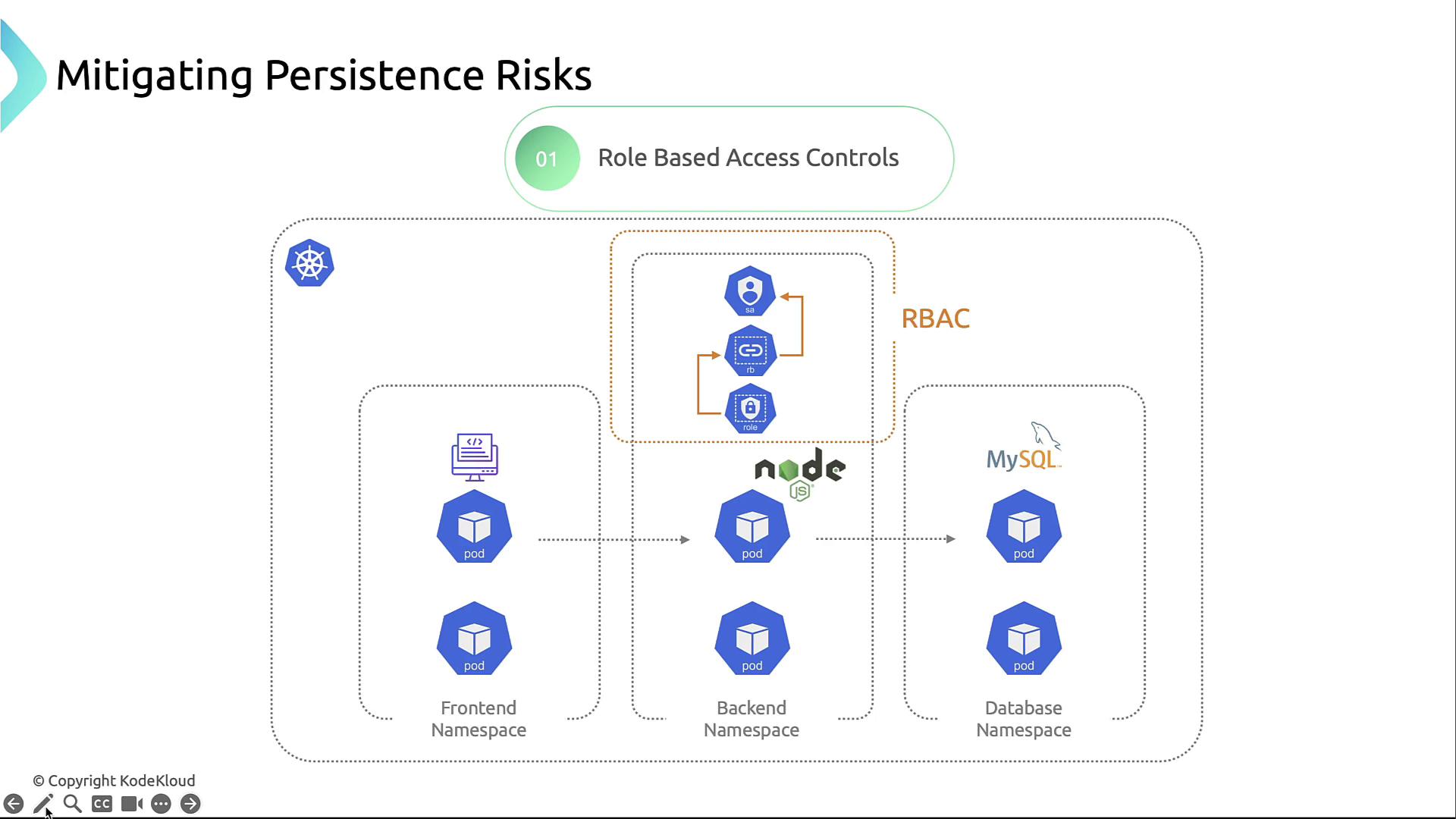

The image illustrates a Kubernetes architecture for mitigating persistence risks using Role-Based Access Controls (RBAC), showing different namespaces (Frontend, Backend, Database) with pods and services like Node.js and MySQL.

  • Grant the least privilege to service accounts.
  • Regularly audit ClusterRole and Role bindings.

2. Secrets Management

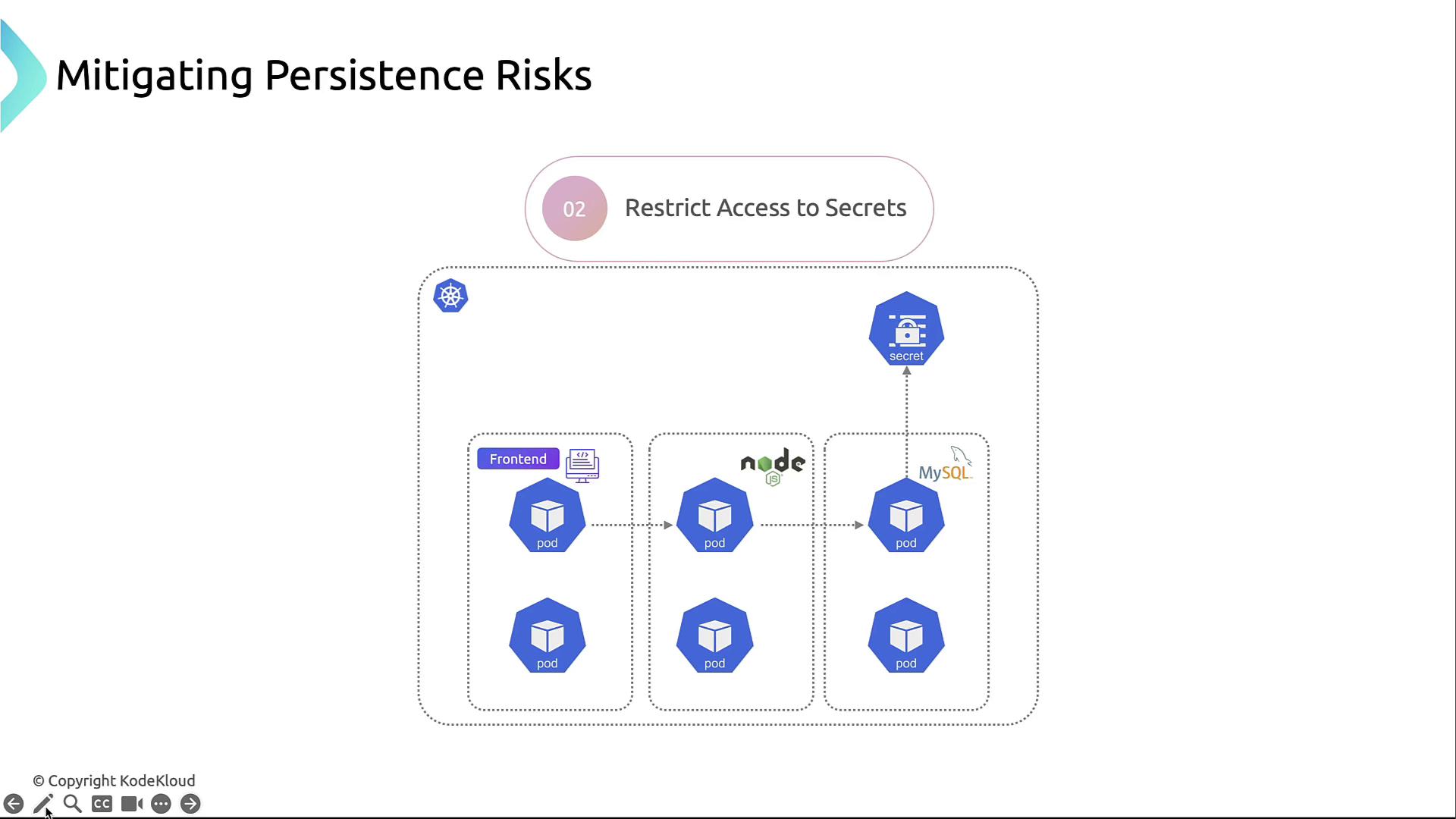

The image is a diagram illustrating a Kubernetes setup for mitigating persistence risks by restricting access to secrets, featuring pods, a frontend, Node.js, and MySQL components.

  • Store credentials in Kubernetes Secrets.
  • Restrict secrets to only the pods that require them.

3. Pod Security Standards

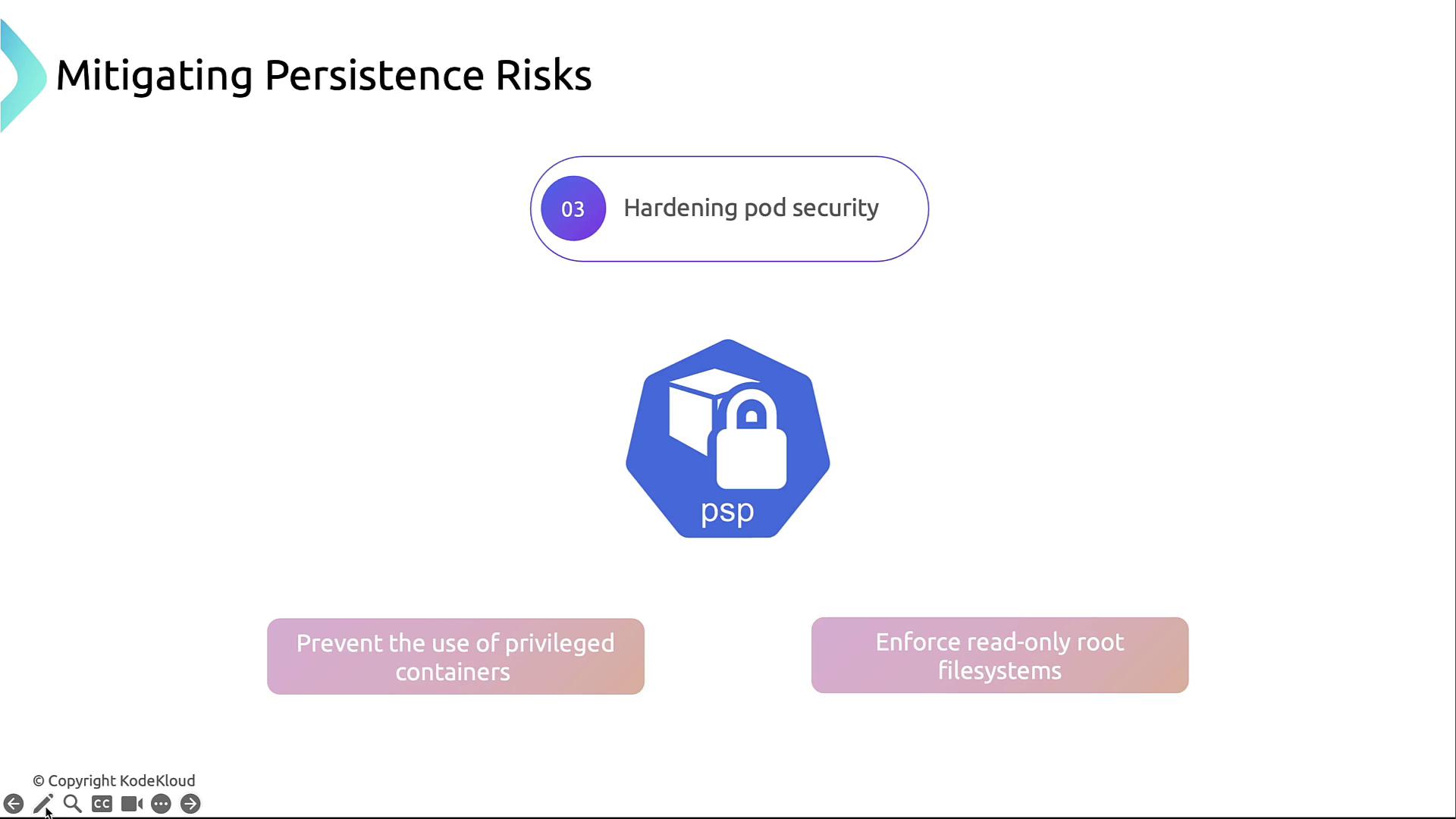

The image is about mitigating persistence risks by hardening pod security, featuring a "psp" icon and emphasizing preventing privileged containers and enforcing read-only root filesystems.

  • Enforce Pod Security Admission (PSA) or Pod Security Policies (PSP).
  • Disallow privileged containers and hostPath mounts.
  • Set readOnlyRootFilesystem: true where possible.

4. Regular Updates & Patching

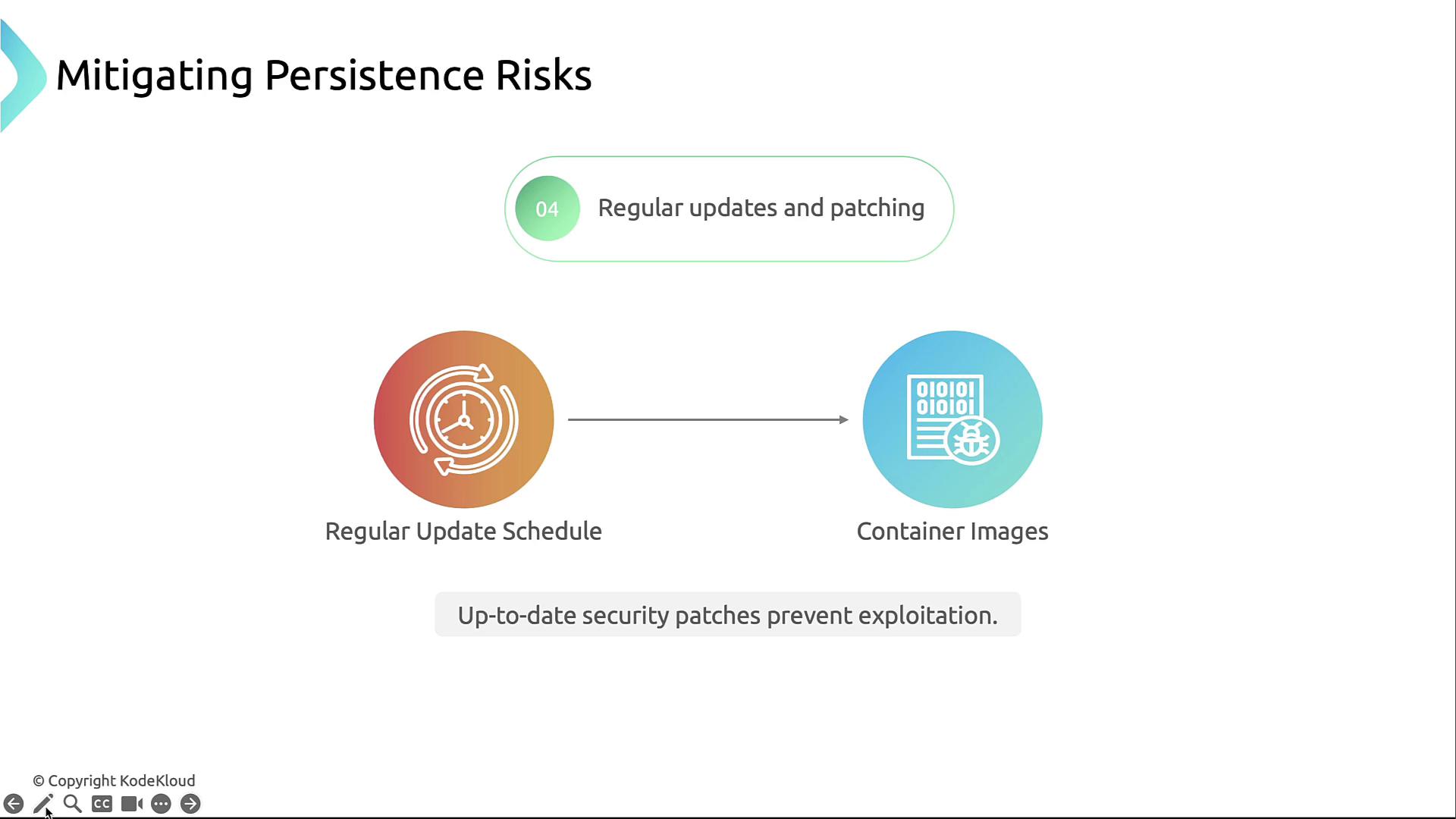

The image illustrates the concept of mitigating persistence risks through regular updates and patching, emphasizing a regular update schedule for container images to prevent exploitation.

  • Use image scanning tools to detect vulnerabilities.
  • Automate rolling updates for base images:
kubectl set image deployment/nginx nginx=nginx:1.21.6

5. Monitoring & Auditing

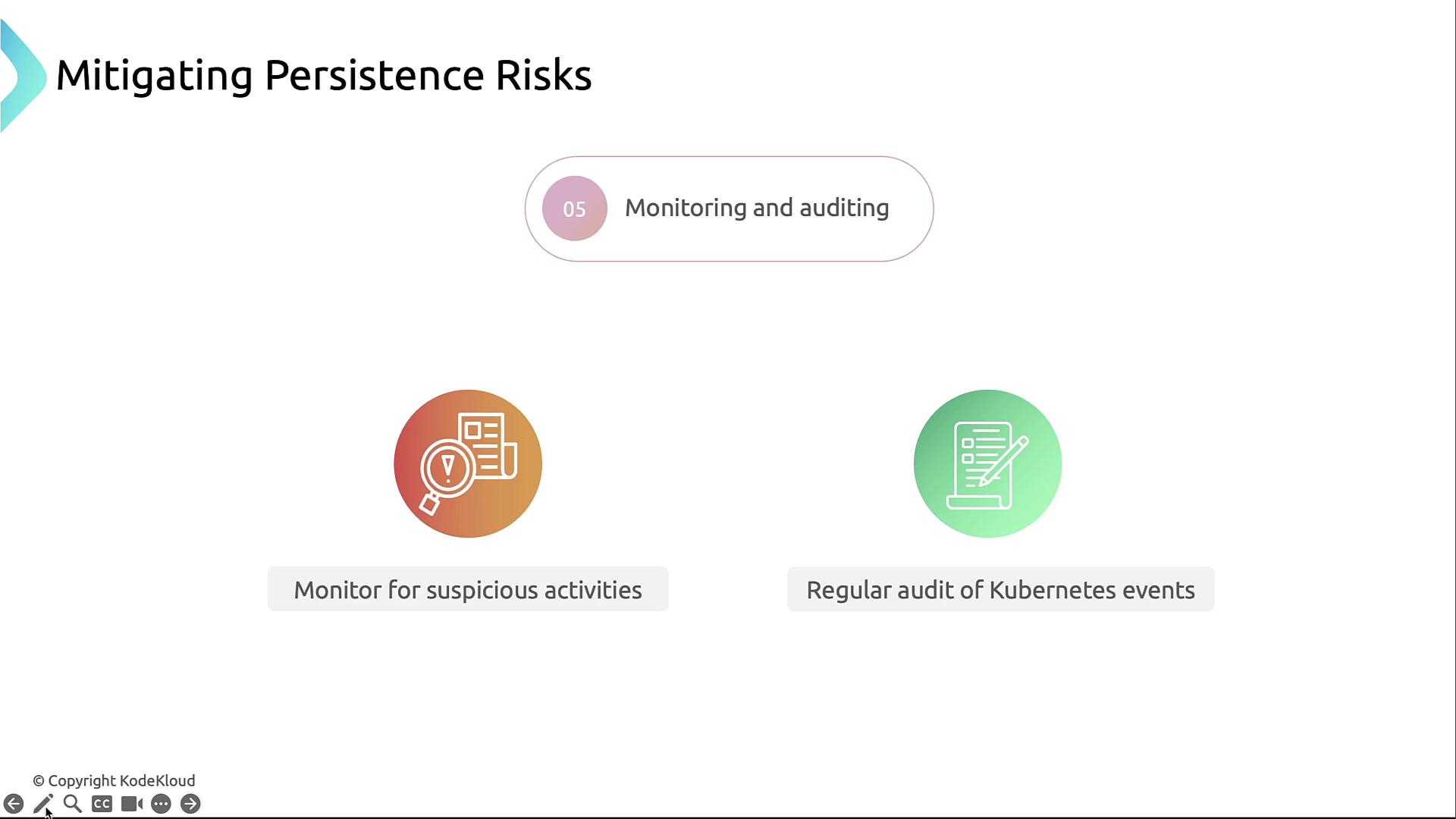

The image is about mitigating persistence risks through monitoring and auditing, highlighting the need to monitor for suspicious activities and regularly audit Kubernetes events.

  • Centralize logs (e.g., using Elasticsearch, Fluentd, Kibana).
  • Alert on unexpected pod restarts, new privileged pods, or RBAC changes.
  • Periodically review the audit log via kubectl logs -n kube-system.

Persistent threats allow attackers to survive cleanup, exfiltrate data, and hijack resources. Key defenses include:

The image is a summary slide highlighting three key points about security: persistence in clusters, attackers leveraging secrets and misconfigurations, and restricting RBAC permissions to prevent unauthorized access.

  • Enforce strict RBAC and Pod Security Standards
  • Secure and rotate Secrets regularly
  • Keep images and nodes up to date
  • Monitor, audit, and alert on suspicious actions
