Turning up Security on Database Services Part 1

Welcome, future solutions architects. In this lesson, we explore design attributes for enhancing security in database services within AWS. We begin by examining the strengths of SQL and then move into securing AWS services like Amazon RDS by leveraging built-in security controls.

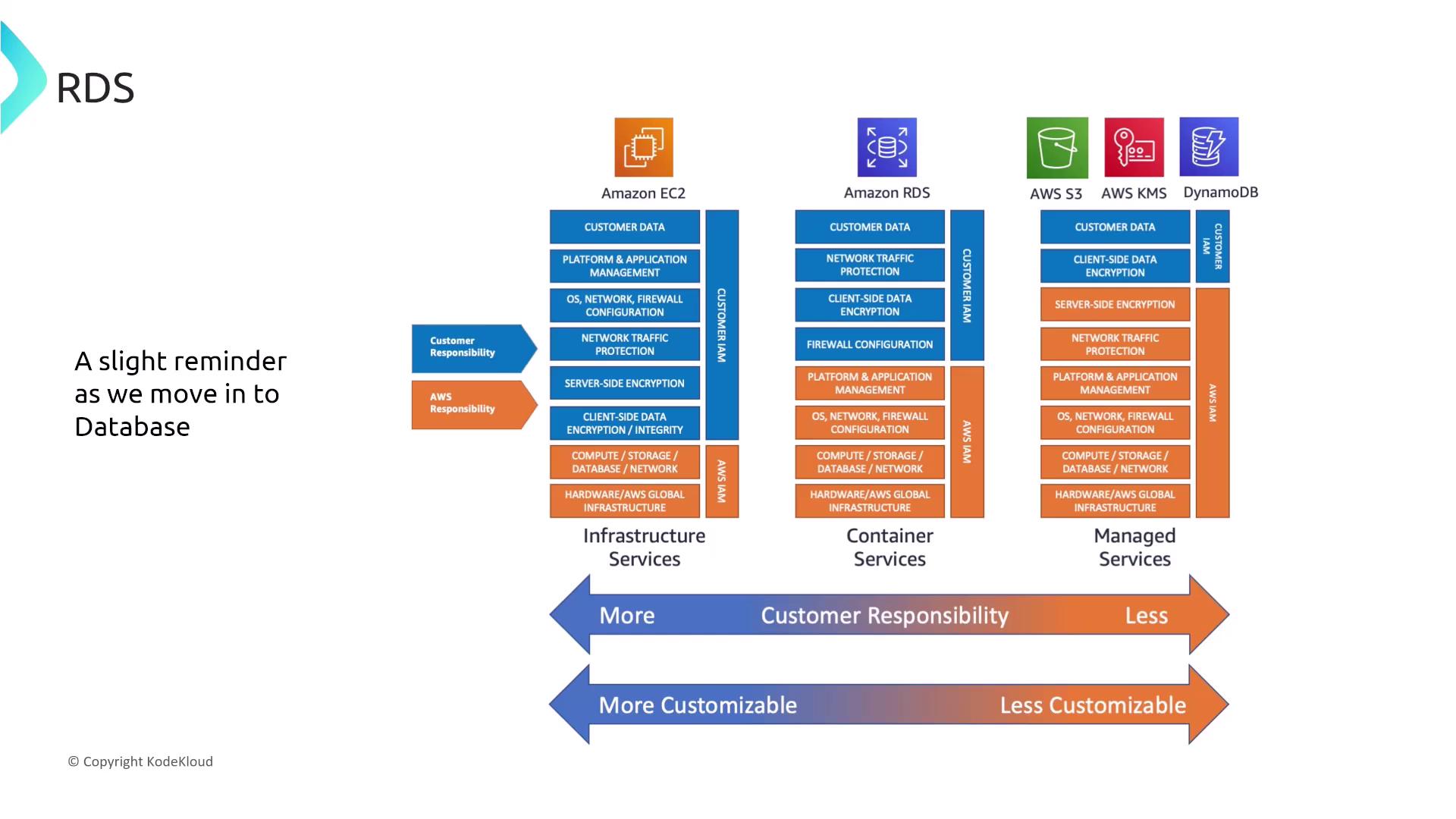

Remember the shared responsibility model: platform services like RDS reduce your operational overhead and share security responsibilities compared to managing your own servers on EC2. This difference is even more pronounced with highly managed services such as DynamoDB, where much of the security is handled for you.

The standard conversation for securing managed services typically centers on controlling IAM access and monitoring logs with CloudWatch (particularly CloudWatch Logs), CloudTrail for API calls, and Config for tracking configuration changes. As services become increasingly managed, many security tasks are abstracted away.

We have already covered networking, storage, and compute—each a component of infrastructure-based or infrastructure-managed services. Now, our focus shifts to database services, which primarily fall into the platform services category or even the highly managed group when advanced use cases like machine learning are involved.

Amazon RDS and IAM Authentication

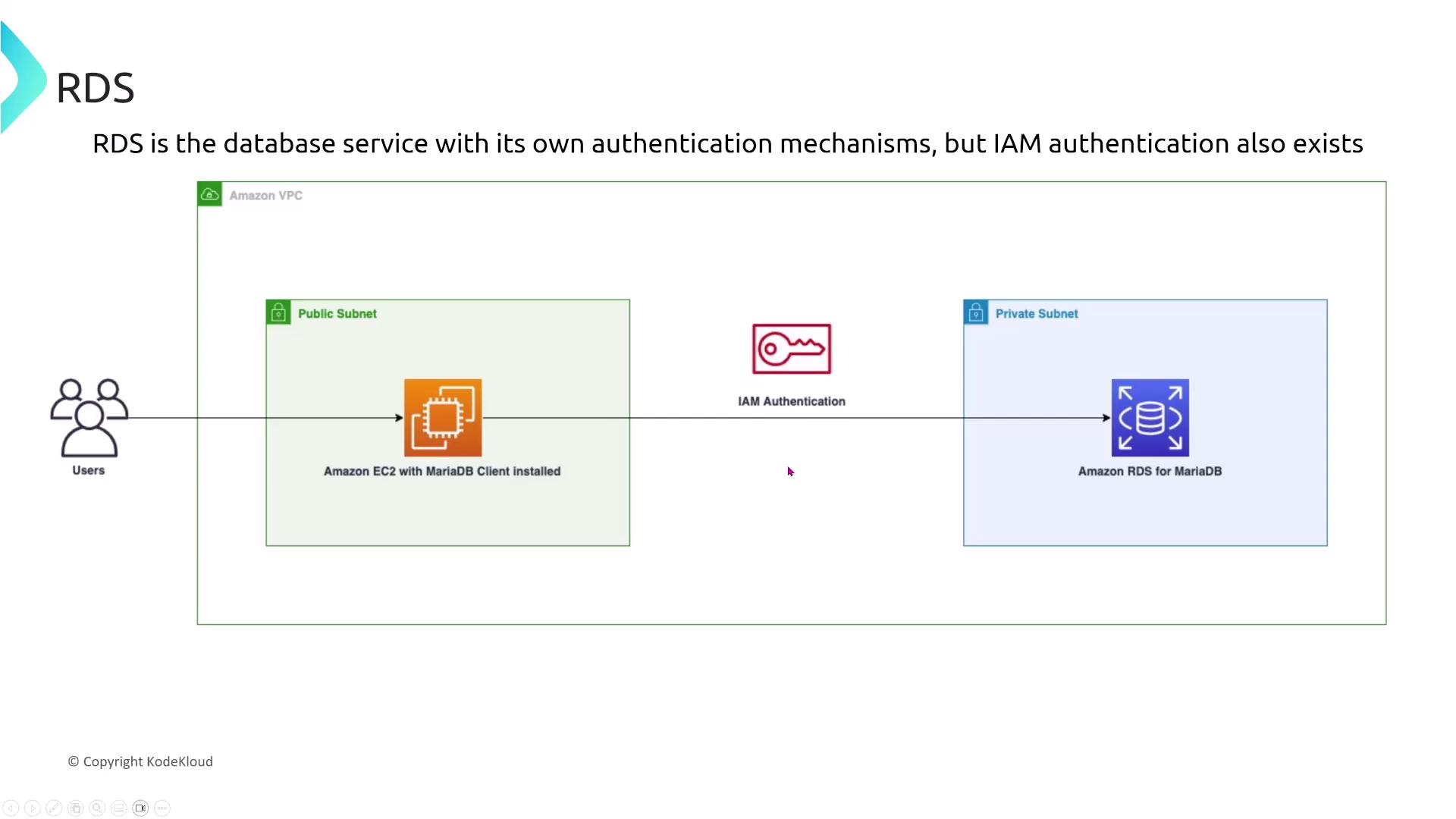

Amazon RDS supports multiple authentication methods. A notable option is IAM authentication, which allows you to use your IAM user credentials to log in to an RDS database (supported for engines such as MariaDB, MSSQL, or Oracle). This avoids the need to manage separate database-specific credentials, especially when every database instance maintains its own user store.

To use IAM authentication, enable the option during the database launch or modification process, then create an IAM policy that grants RDS DB connect permissions linked to the corresponding database user. Even though you might consider modifying the RDS instance or creating an IAM role directly, the technically correct approach is to craft an IAM policy with the necessary connection permissions.

Consider this real-world case study question:

MariaDB on RDS wants to leverage AWS IAM for database authentication. What steps are needed?

• Options include modifying the instance to enable IAM authentication, creating an IAM role with permissions, or generating IAM access keys for a MariaDB user password.
• The correct approach is to create an IAM policy that grants RDS DB connect permissions and associate it with the database user.

Authentication Methods Across Database Engines

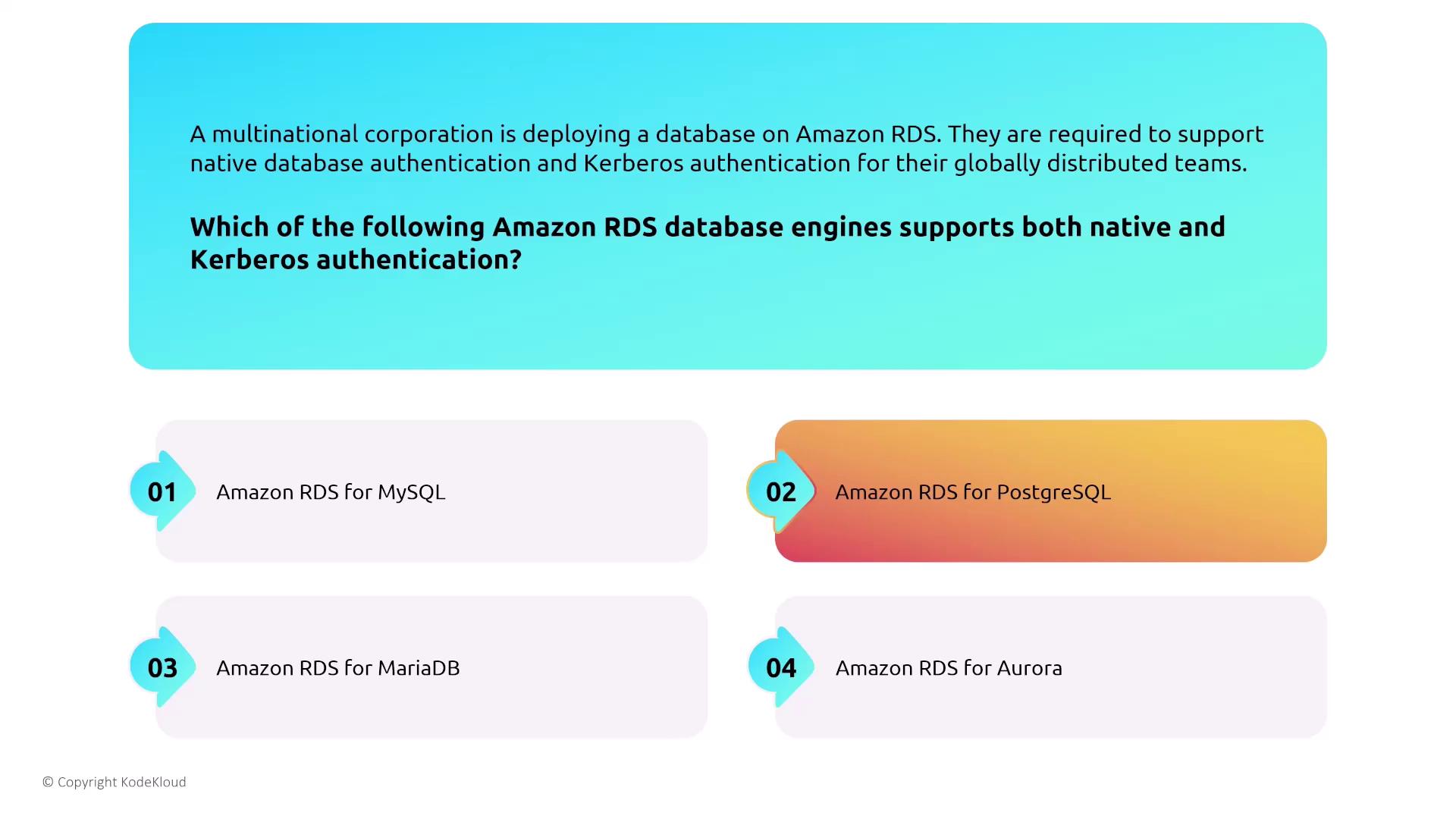

Different RDS engines offer different authentication methods. For example, MySQL and MariaDB support native authentication but do not offer Kerberos. On the other hand, MSSQL, PostgreSQL, and Oracle support both native and Kerberos authentication. In multinational scenarios requiring both authentication types, PostgreSQL (or MSSQL/Oracle if available) stands out as a strong candidate.

Secrets Management and Credential Rotation

Amazon RDS is integrated with AWS Secrets Manager, which automates the rotation of database credentials. This presents a significant advantage over storing credentials as secure strings in Systems Manager, which does not support the auto-rotation feature. When you require automatic password rotation without modifying your application, Secrets Manager is the clear choice.

RDS and VPC Considerations

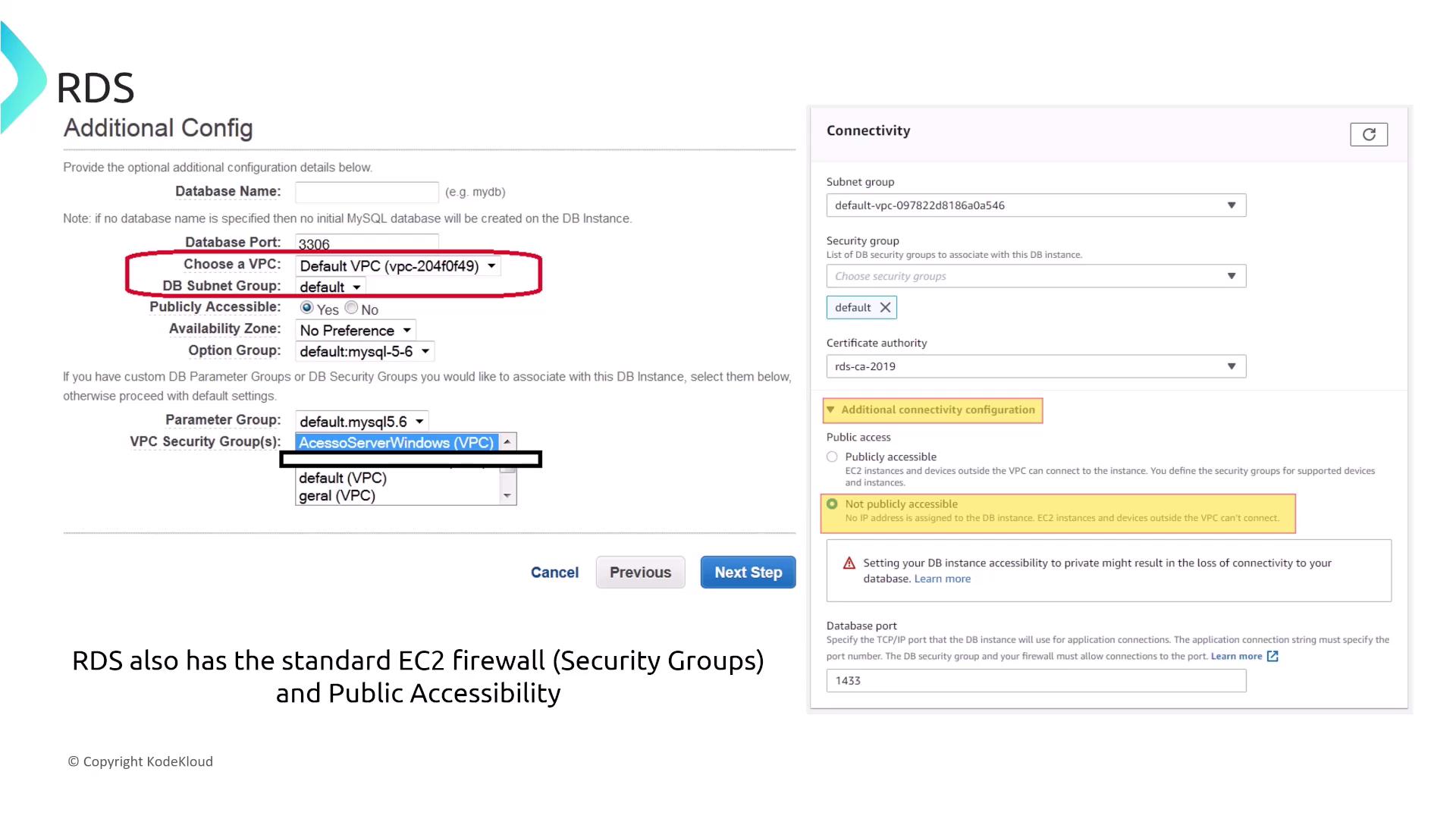

While RDS is fully managed, it operates on virtualized infrastructure much like EC2. Therefore, you must consider standard EC2 security practices such as firewalls, VPC isolation, and the impact of deploying your database across public versus private subnets. Key considerations include:

• Which DB security groups to use
• Whether to attach an SSL/TLS certificate
• Whether the instance is publicly accessible (assigned a public IP) or remains in a private subnet

For example, if a database is deployed in a public subnet without a public IP address, the associated Internet Gateway cannot reach it. This detail is crucial: even in a public subnet, absence of a public IP maintains isolation from direct internet access—a vital aspect of securing your database.

Consider this scenario question:

Global financial firms use Amazon RDS to host transactional databases accessed worldwide. To ensure that only legitimate traffic reaches their RDS instance, which security measure should be implemented?

A web application firewall (WAF) is unsuitable for typical database traffic (e.g., ports 1433 or 3306), and AWS SHIELD is designed for DDoS protection rather than access control. The best approach is to configure RDS security groups to allow only specific IP addresses or CIDR blocks.

Choosing the Right RDS Instance Type for Performance and Security

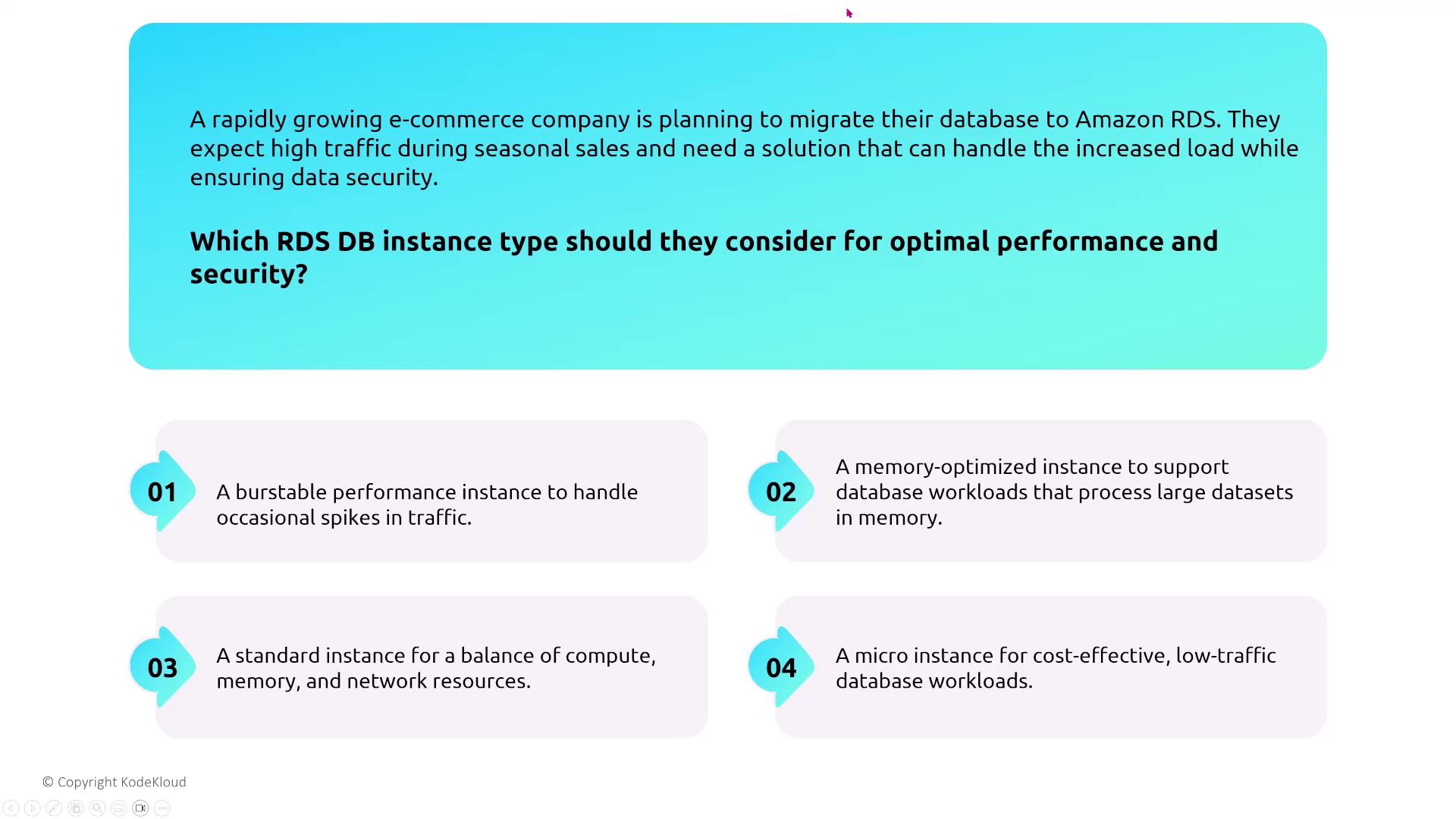

For rapidly growing e-commerce businesses migrating to RDS, instance type selection has implications for both performance and security. Burstable instances may not sustain prolonged high loads effectively, whereas memory-optimized instances are engineered for workloads that demand large in-memory data sets. In such contexts, a memory-optimized instance is typically the recommended option.

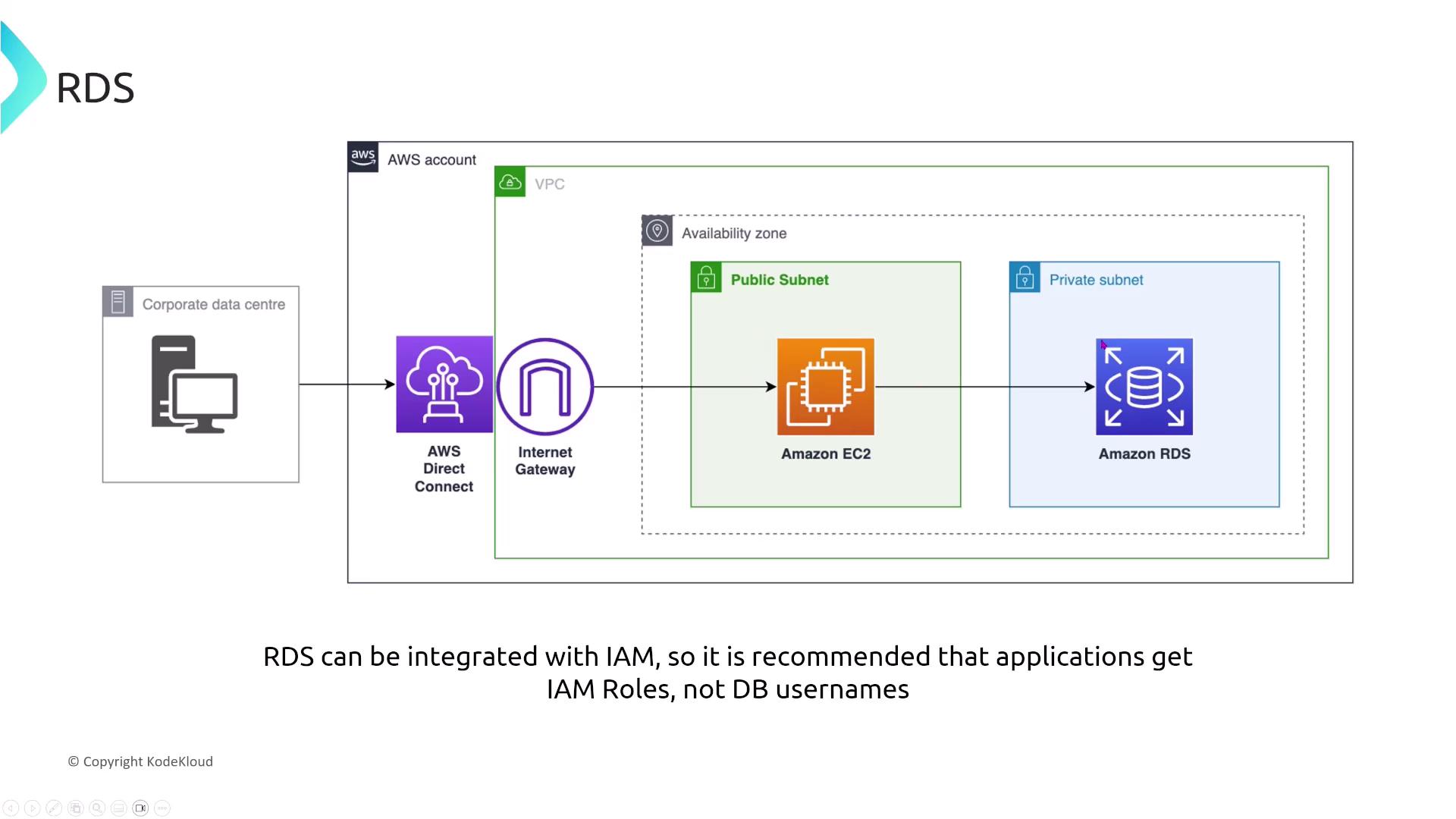

Additionally, when integrating with IAM, it is best practice to assign roles to EC2 instances rather than embedding sensitive database credentials directly in application code. Using IAM roles ensures secure access to RDS without the risks associated with hardcoding credentials.

Consider this scenario:

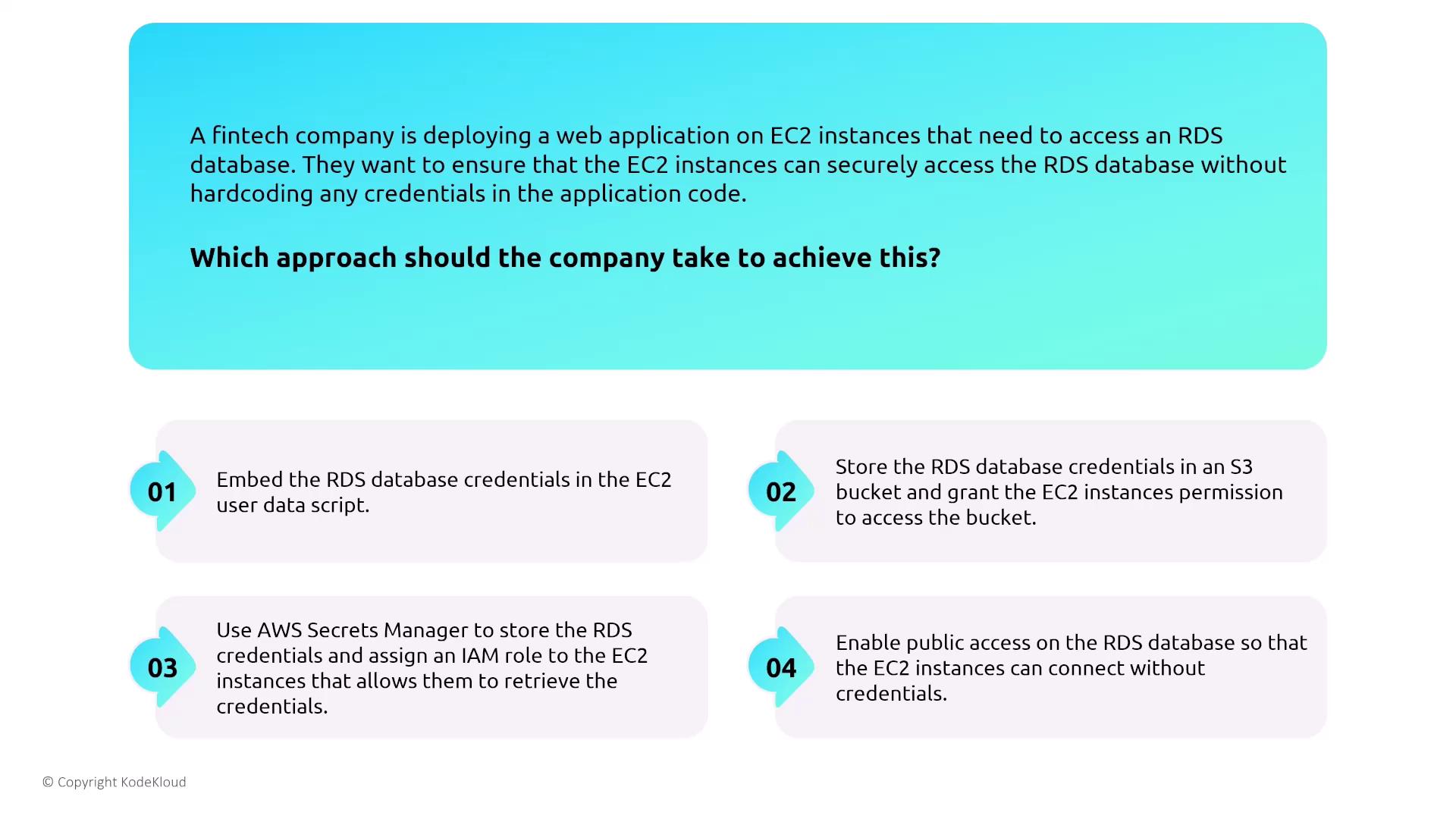

Fintech companies deploying web applications on EC2 need to access an RDS database securely without hardcoding credentials. Which approach meets this requirement?

The best practice is to store RDS credentials in AWS Secrets Manager and assign an appropriate role to retrieve them. This setup supports automatic password rotation while eliminating hardcoded credentials.

Monitoring and Performance Insights

Monitoring is essential for managing any transactional database. Amazon RDS integrates with CloudWatch to track metrics such as:

• Number of active database connections
• IO operations (which can reveal disk throughput bottlenecks)
• Freeable memory (a key performance indicator)

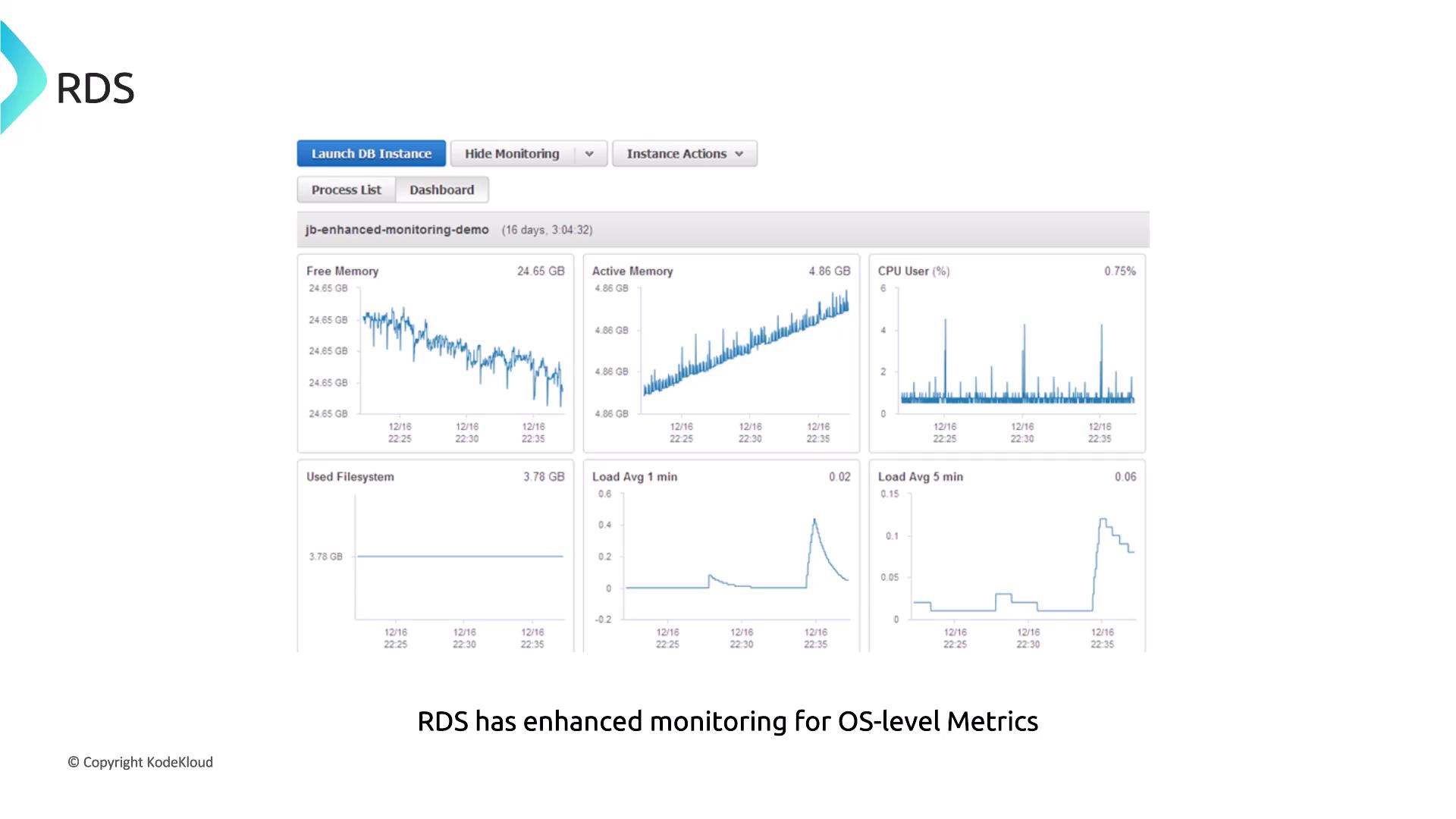

Enhanced monitoring provides real-time OS-level metrics—covering CPU usage, memory consumption, and load averages—and includes a process list. For deeper analysis of slow queries or SQL performance, leverage RDS Performance Insights to visualize load distribution by SQL statements, hosts, or users.

Consider this question:

Fintech is using RDS for its primary database and is experiencing performance issues. They are considering enhanced monitoring to gain detailed OS-level insights. What does enhanced monitoring provide over standard CloudWatch metrics?

Enhanced monitoring delivers real-time access to operating system-level metrics for the RDS instance, offering granularity that standard CloudWatch metrics lack.

Below is an example SQL code snippet relevant to performance tuning and troubleshooting. Note that similar blocks have been consolidated for clarity:

WITH cte AS (
  SELECT id FROM authors LIMIT ?
)
UPDATE authors s
SET email = ?
FROM cte
WHERE s.id = cte.id;

SELECT count(*)
FROM authors
WHERE id < (SELECT max(id) - ? FROM authors)
  AND id > (SELECT max(id) - ? FROM authors);

DELETE FROM authors
WHERE id < (SELECT max(id) - ? FROM authors)
  AND id > (SELECT max(id) - ? FROM authors);

-- Optional union example for aggregated queries
SELECT count(*)
FROM authors
WHERE id < (SELECT max(id) - ? FROM authors)
  AND id > (SELECT max(id) - ? FROM authors)
UNION
SELECT ...;

DELETE FROM authors
WHERE id < (SELECT max(id) - ? FROM authors)
  AND id > (SELECT max(id) - ? FROM authors)
UNION
SELECT ...;

Accessing and Analyzing RDS Logs

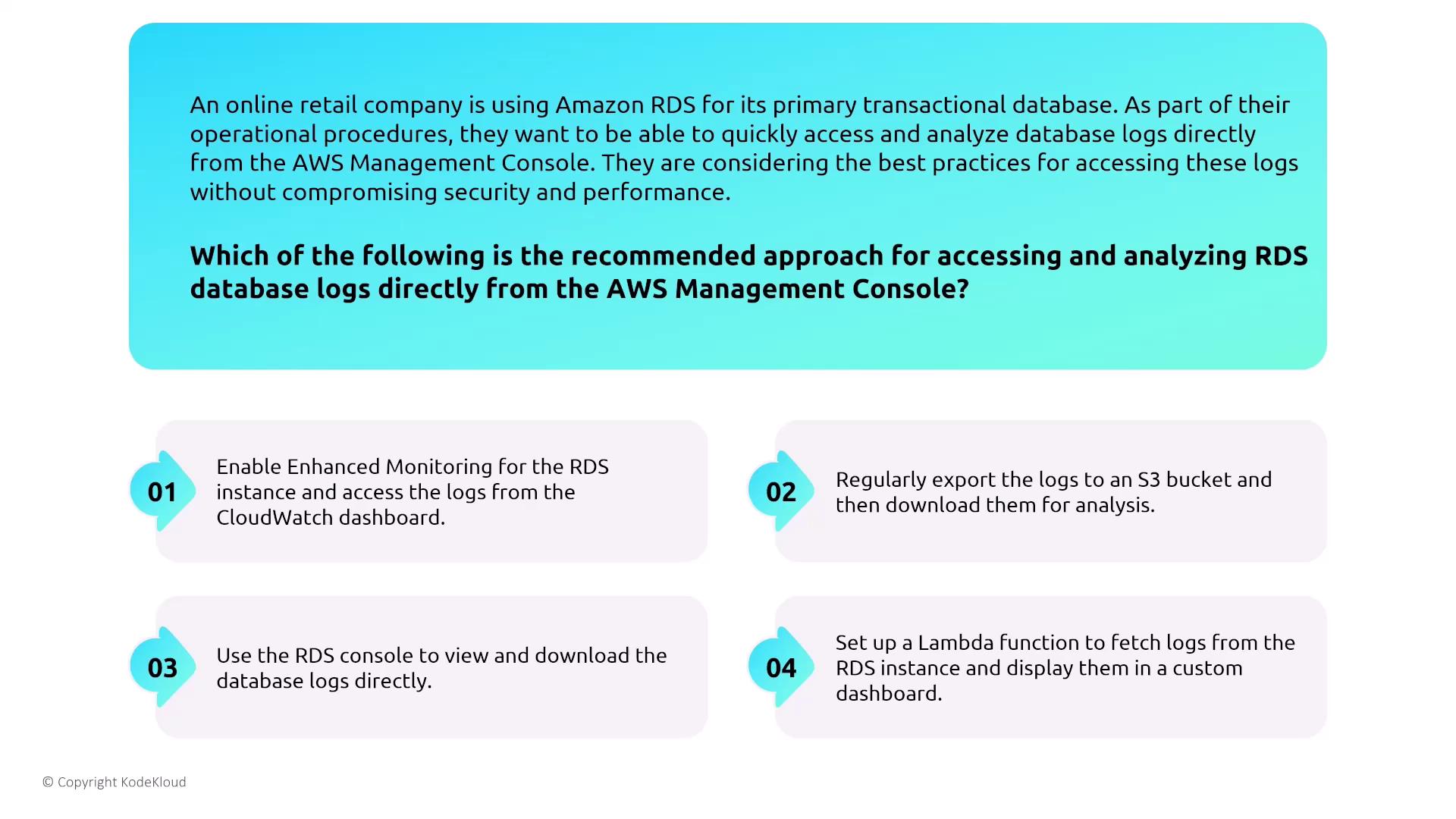

Amazon RDS provides convenient access to various database logs directly through the AWS Management Console. You can view and download logs for immediate analysis or export them to an S3 bucket for long-term storage and analysis. For most use cases, accessing logs via the RDS console is the fastest approach.

RDS Event Notifications

Event notifications play a vital role in security detection and operational awareness. RDS can send real-time notifications for critical events (for example, when a DB instance stops) by using event subscriptions that deliver messages to an SNS topic. This method is more efficient than polling APIs or solely relying on CloudWatch alarms.

Below is an example of an RDS event notification payload:

{
  "metaData": {
    "version": "2014-07-01",
    "sent": "2021-08-10T05:12:52.000+0000",
    "source": {
      "accountId": "",
      "region": "us-east-1",
      "source": "aws.rds",
      "sourceIdentifier": "dbtest1",
      "sourceArn": "arn:aws:rds:us-east:dbtest1",
      "sourceType": "DB_INSTANCE",
      "eventID": "RDS-EVENT-0087",
      "time": "2021-08-10T05:12:52Z"
    },
    "tags": {
      "name": "dbtest1"
    }
  },
  "keyData": {
    "programName": "RDS",
    "eventName": "RDS Event Notification - [notification]"
  },
  "baseData": {
    "occurred": "2021-08-10T05:12:00.000+0000",
    "State": "Alarm",
    "summary": "RDS DB Instance Event - DB identifier: dbtest1 EventID: RDS-EVENT-0087",
    "message": "Message: DB instance stopped"
  }
}

For example, if a core banking application requires real-time notifications for significant RDS events, the ideal solution is to configure RDS event subscriptions that forward these events to an SNS topic.

RDS Recommendations and Trusted Advisor

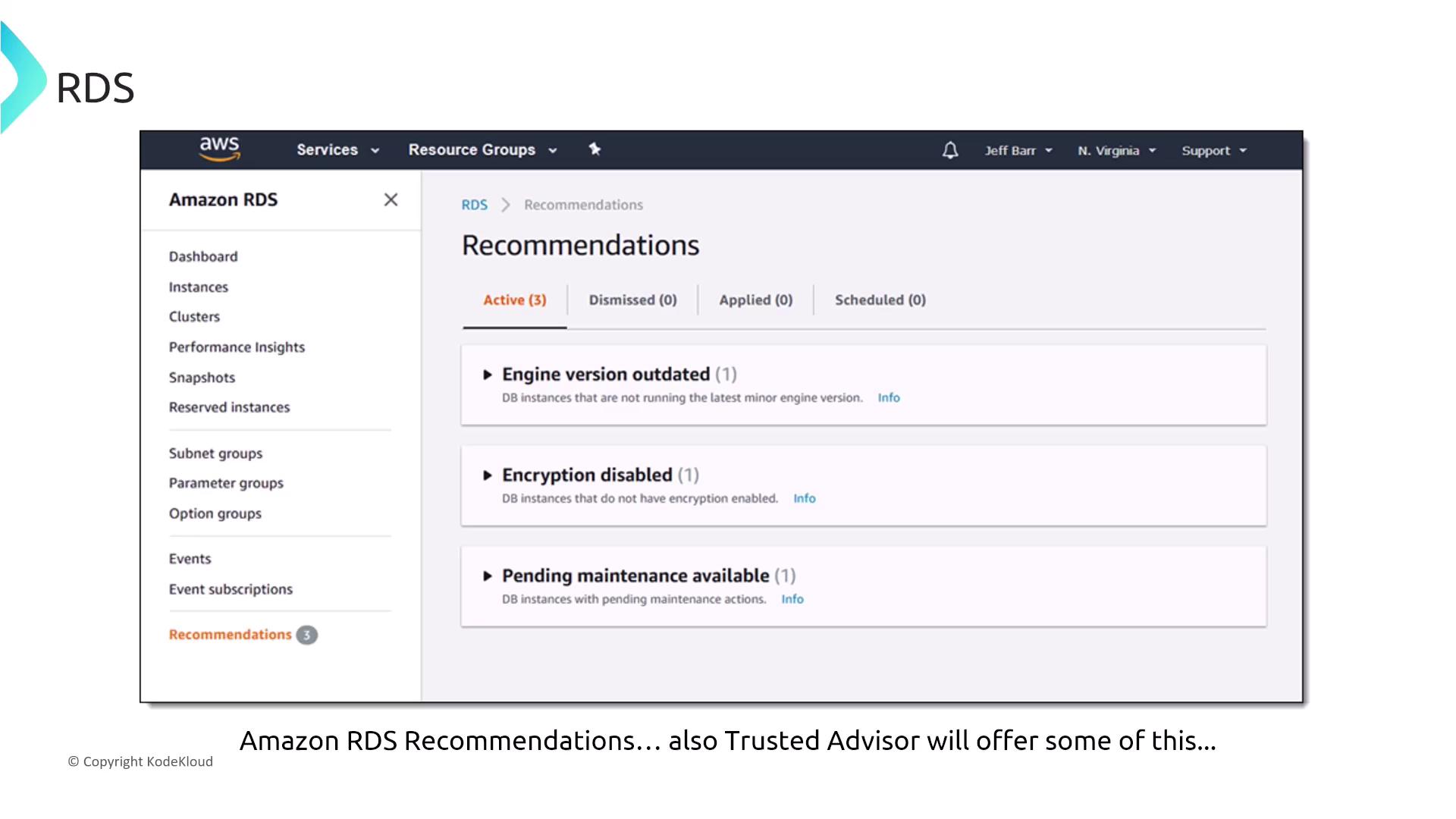

AWS Trusted Advisor and RDS Recommendations offer valuable insights into optimization in performance, security, and cost. While Trusted Advisor may highlight underutilized instances or configurations that need attention, it does not directly change instance configurations.

For example, a healthcare company using RDS for storing patient records may receive cost-optimization recommendations from Trusted Advisor, although no direct modifications to the database instances are made.

Encryption: Data at Rest and in Transit

Each Amazon RDS database engine supports encryption of data at rest. You can enable disk encryption with AWS Key Management Service (KMS) during instance creation. Certain engines, such as Oracle and MSSQL, also offer Transparent Data Encryption (TDE).

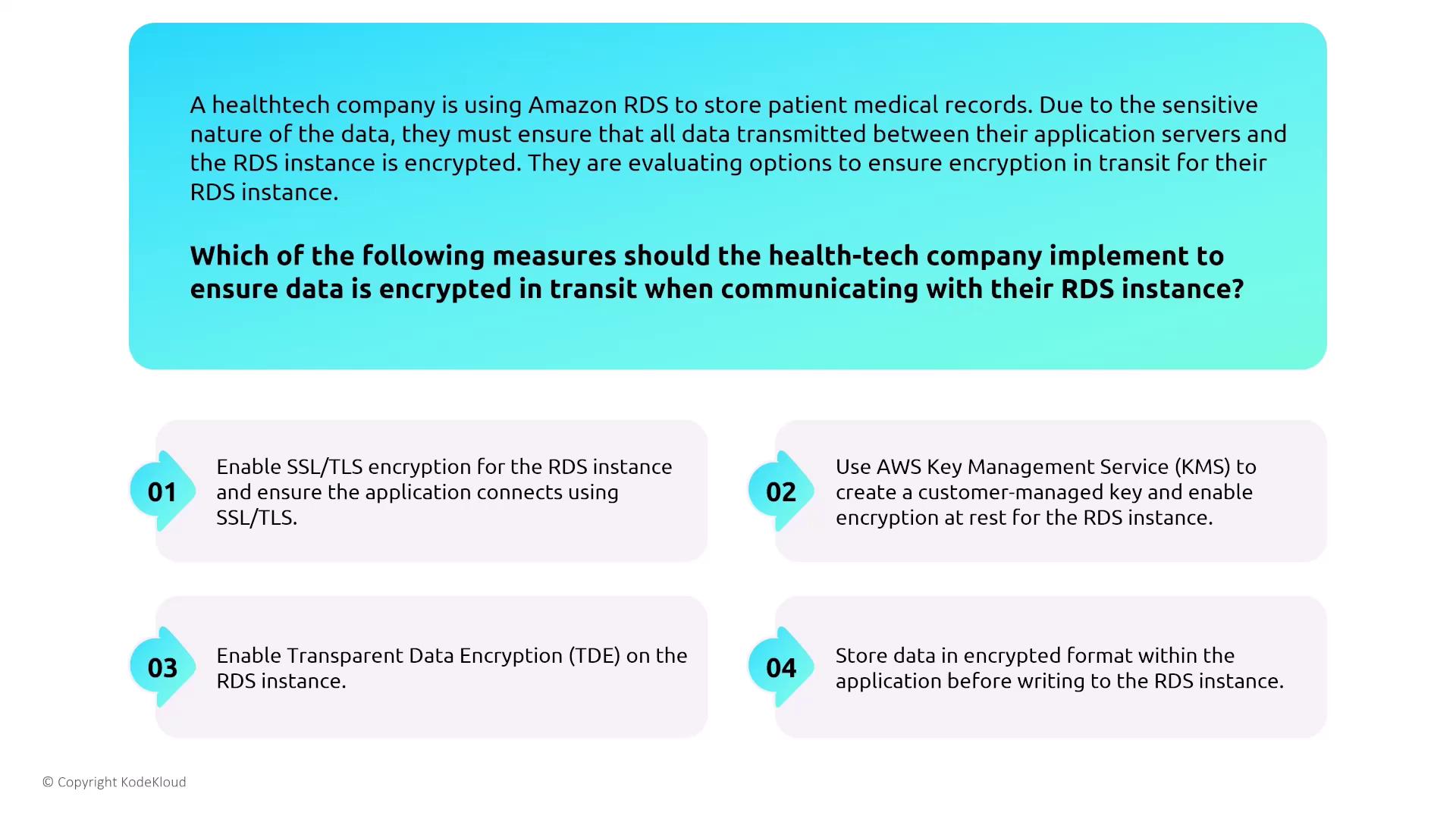

In addition to encryption at rest, it is essential to secure data in transit. Enabling SSL/TLS encryption ensures that all communications between your client and the RDS instance are secure. Each database engine manages transit encryption through specific SSL parameters and certificates.

For a fintech startup with stringent security requirements for sensitive financial data, the recommended strategy is to enable encryption at rest (using KMS or TDE where applicable) and enforce SSL/TLS for all client connections to secure data in transit.

This lesson has covered several key aspects of securing database services on AWS—from authentication and IAM integration to monitoring, event notifications, and encryption. By understanding and applying these best practices, you can ensure that your database services are both high-performing and secure.
