CloudFormation Demo

In this lesson, you’ll learn how to work with AWS CloudFormation by using a YAML template to deploy an EC2 instance. While CloudFormation supports both YAML and JSON, this demo focuses on YAML for its readability and simplicity.

We'll walk through creating a file named stack.yaml that configures our CloudFormation stack. This template includes sections for defining resources such as EC2 instances and security groups, along with parameters and outputs to customize and retrieve important deployment details.

Defining the EC2 Instance

To start, we define an EC2 instance as a resource. First, we assign the resource a logical name ("Ec2Instance") and specify its type as AWS::EC2::Instance, as outlined in the AWS documentation.

Resources:
  Ec2Instance:

Next, add the resource's Type and Properties. CloudFormation uses the Type field to identify the resource, and the Properties section allows you to specify configuration details for your instance such as security groups, tags, and AMI details. The example below highlights a standard configuration excerpt:

Type: AWS::EC2::Instance
Properties:
  AdditionalInfo: String
  Affinity: String
  AvailabilityZone: String
  BlockDeviceMappings:
    - BlockDeviceMapping:
  CpuOptions:
    CpuOptions:
  CreditSpecification:
    CreditSpecification:
  DisableApiTermination: Boolean
  EbsOptimized: Boolean
  ElasticGpuSpecifications:
    - ElasticGpuSpecification:
  ElasticInferenceAccelerators:
    - ElasticInferenceAccelerator:
  InstanceId: String
  InstanceType: String
  IamInstanceProfile: String

Following that, here’s a detailed configuration that specifies essential properties like the AMI, key pair, and tags:

Resources:
  Ec2Instance:
    Type: AWS::EC2::Instance
    Properties:
      ImageId: ami-041feb57c611358bd
      KeyName: main
      Tags:
        - Key: Name
          Value: myEc2Instance

For the appropriate AMI, navigate to the EC2 console, launch an instance, and choose a suitable Amazon Machine Image.

Documentation Tip

Refer to the AWS CloudFormation User Guide for a full list of configurable properties.

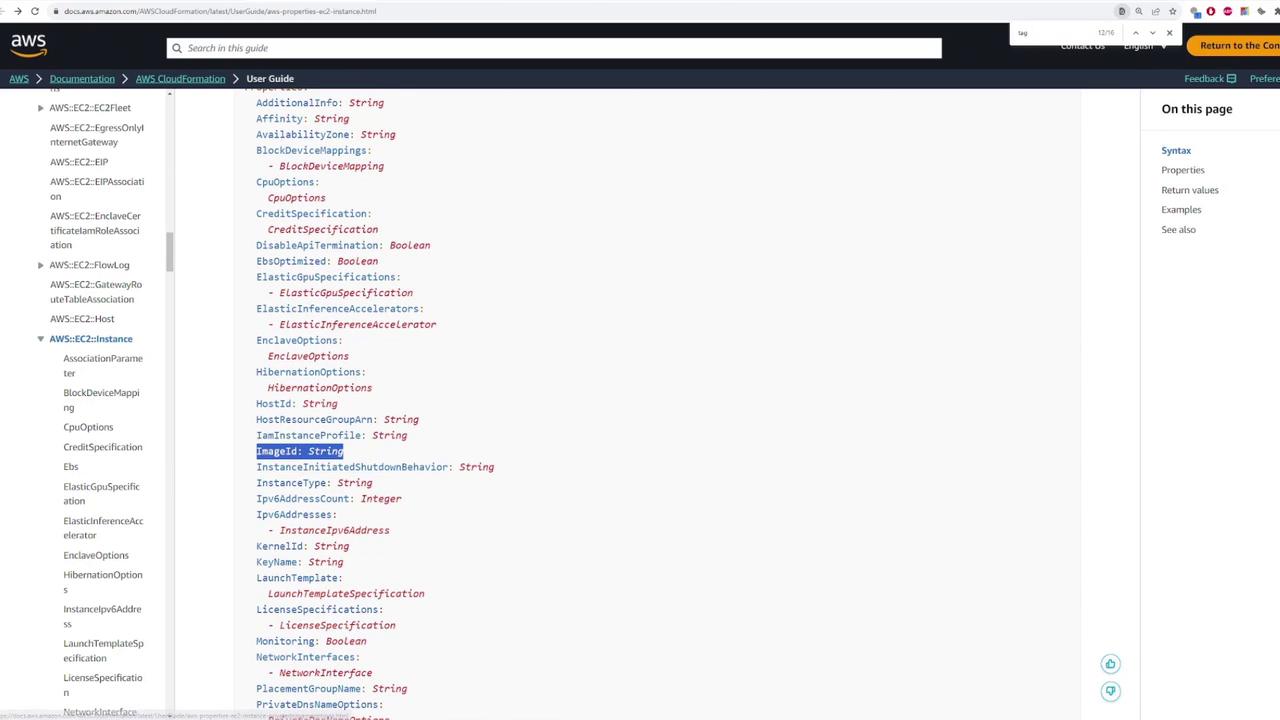

Below is an image from the AWS documentation that illustrates the properties of an EC2 instance:

The image shows a webpage from the AWS documentation, specifically the EC2 instance properties section, with a list of parameters and their data types. The left sidebar contains a navigation menu for different AWS services.

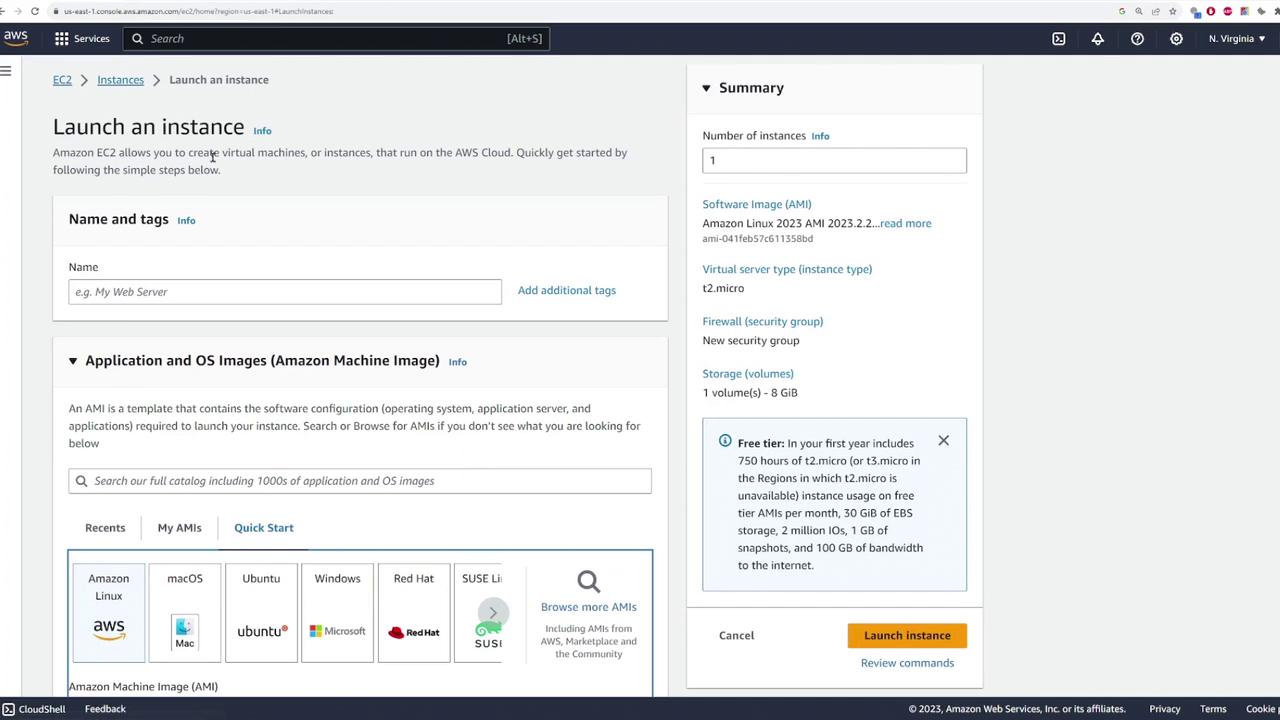

The next image shows the EC2 console for instance selection:

The image shows the AWS EC2 console for launching an instance, with options for selecting the instance name, Amazon Machine Image (AMI), and instance type. A summary section on the right provides details about the selected configuration.

Adding a Security Group

To enhance your deployment, you can add a security group resource that controls access to your instance. Begin by defining the security group with a logical name ("InstanceSecurityGroup"), its type (AWS::EC2::SecurityGroup), and a description.

Resources:
  Ec2Instance:
    Type: AWS::EC2::Instance
    Properties:
      ImageId: ami-041feb57c611358bd
      KeyName: main
      Tags:
        - Key: Name
          Value: myEc2Instance
  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Enable SSH access via port 22

Then, specify the ingress rules for this security group. In the example below, TCP port 22 is opened for SSH access from any IP address:

Properties:
  ImageId: ami-041feb57c611358bd
  KeyName: main
  Tags:
    - Key: Name
      Value: myEc2Instance
InstanceSecurityGroup:
  Type: AWS::EC2::SecurityGroup
  Properties:
    GroupDescription: Enable SSH access via port 22
    SecurityGroupIngress:
      - IpProtocol: tcp
        FromPort: 22
        ToPort: 22
        CidrIp: 0.0.0.0/0

Port Range Tip

If you intend to allow access over a range of ports, modify FromPort and ToPort accordingly. For a single port, both values remain the same.

Finally, integrate the security group reference into the EC2 instance. CloudFormation enables you to refer to other resources using the !Ref intrinsic function:

Resources:
  Ec2Instance:
    Type: AWS::EC2::Instance
    Properties:
      SecurityGroups:
        - !Ref InstanceSecurityGroup
      ImageId: ami-041feb57c611358bd
      KeyName: main
      Tags:
        - Key: Name
          Value: myEc2Instance
  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Enable SSH access via port 22
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: 0.0.0.0/0

Adding Parameters for Dynamic Input

To provide flexibility during deployment, you can introduce parameters for customizable values such as the EC2 instance name and key pair. The example below creates parameters for the key pair and instance name. By setting the type of KeyName to AWS::EC2::KeyPair::KeyName, CloudFormation displays a dropdown list of available key pairs.

Parameters:
  KeyName:
    Description: The EC2 key pair
    Type: AWS::EC2::KeyPair::KeyName
  Ec2Name:
    Type: String
Resources:
  Ec2Instance:
    Type: AWS::EC2::Instance
    Properties:
      SecurityGroups:
        - !Ref InstanceSecurityGroup
      ImageId: ami-041feb57c611358bd
      KeyName: !Ref KeyName
      Tags:
        - Key: Name
          Value: !Ref Ec2Name
  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Enable SSH access via port 22
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: 0.0.0.0/0

Adding Outputs

Outputs enable you to extract and display key information after the stack is deployed. In this template, the public IP address of the EC2 instance is output using the !GetAtt function to access the PublicIp attribute.

Outputs:
  PublicIp:
    Description: Server Public IP
    Value: !GetAtt Ec2Instance.PublicIp

Complete CloudFormation Template

Below is the final version of the CloudFormation template combining parameters, resources, and outputs:

Parameters:
  KeyName:
    Description: The EC2 key pair
    Type: AWS::EC2::KeyPair::KeyName
  Ec2Name:
    Type: String
Resources:
  Ec2Instance:
    Type: AWS::EC2::Instance
    Properties:
      SecurityGroups:
        - !Ref InstanceSecurityGroup
      ImageId: ami-041feb57c611358bd
      KeyName: !Ref KeyName
      Tags:
        - Key: Name
          Value: !Ref Ec2Name
  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Enable SSH access via port 22
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: 0.0.0.0/0
Outputs:
  PublicIp:
    Description: Server Public IP
    Value: !GetAtt Ec2Instance.PublicIp

Deploying the CloudFormation Stack

To deploy your CloudFormation stack:

  1. Open the AWS CloudFormation console.
  2. Click Create stack and choose to upload your template file.
  3. Select the stack.yaml file.
  4. Enter a stack name (e.g., "my-deployment").
  5. Specify the parameters:
    • For the EC2 instance name, enter a desired value (for example, "this is the server").
    • For the key pair, select the appropriate key from the dropdown.
  6. Click Next to configure additional options such as tags, rollback settings, or notifications.
  7. Review and submit the stack for deployment.

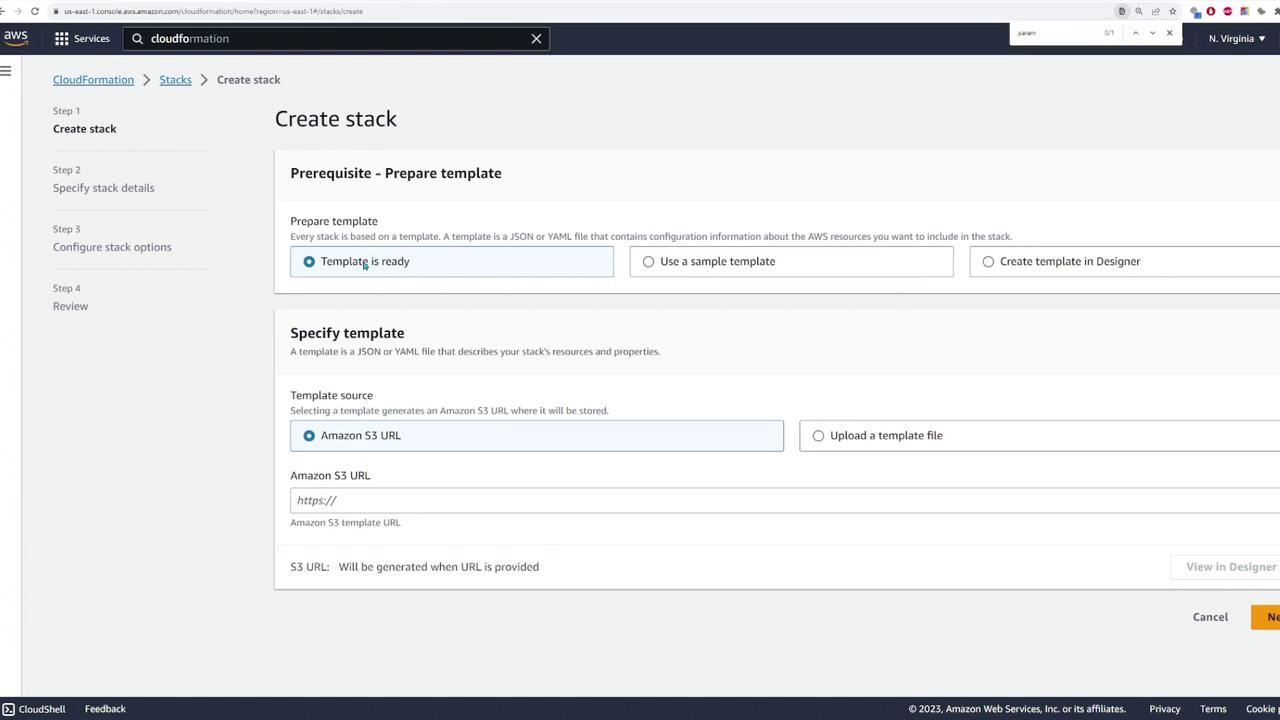

The image below illustrates the AWS CloudFormation console during stack creation:

The image shows the AWS CloudFormation console where a user is in the process of creating a stack. It includes options to prepare and specify a template using an Amazon S3 URL or by uploading a template file.

After deployment, the stack status will change to "CREATE_COMPLETE". You can review the events and check resource details, including obtaining the EC2 instance's public IP address from the Outputs tab.

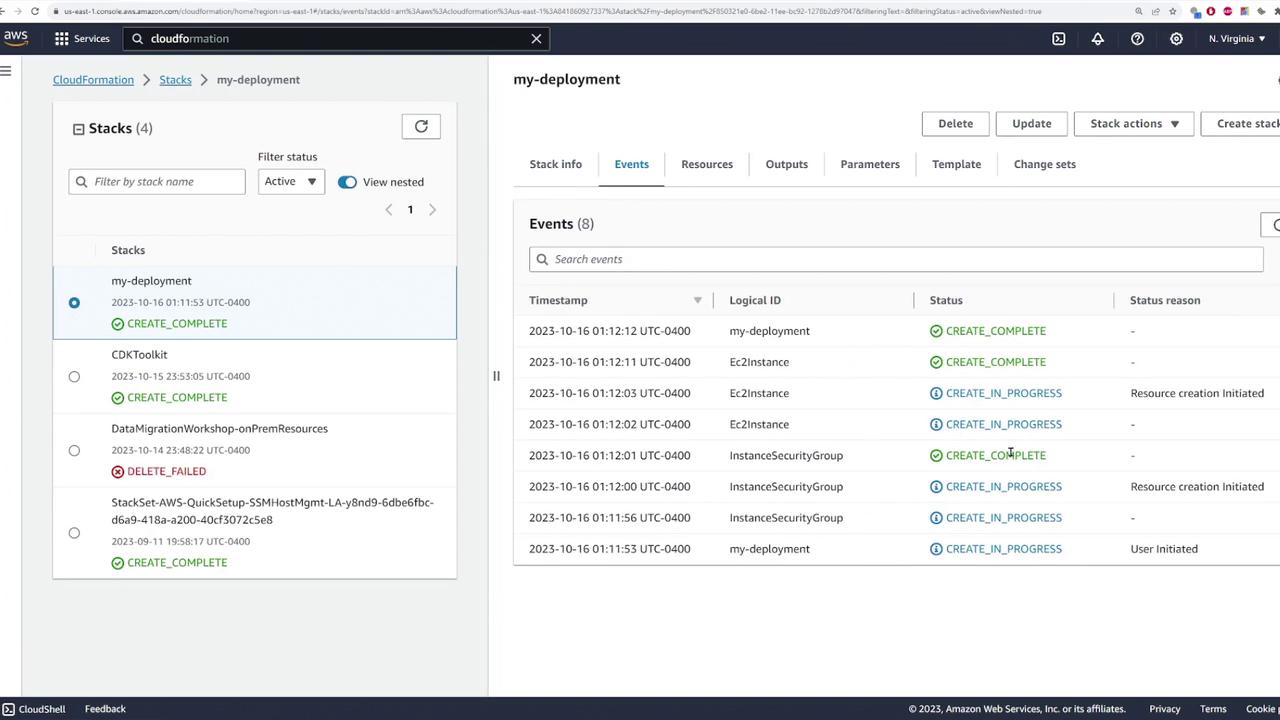

The following image shows the stack deployment events in the CloudFormation console:

The image shows an AWS CloudFormation console with a list of stack deployments and their statuses. The "my-deployment" stack is highlighted, showing event details such as timestamps, logical IDs, and status updates.

Updating or Deleting the Stack

If you need to make changes, update the stack using the template designer within the AWS CloudFormation console. To delete a stack, simply select it in the console and click Delete. This action removes all resources created by the stack.

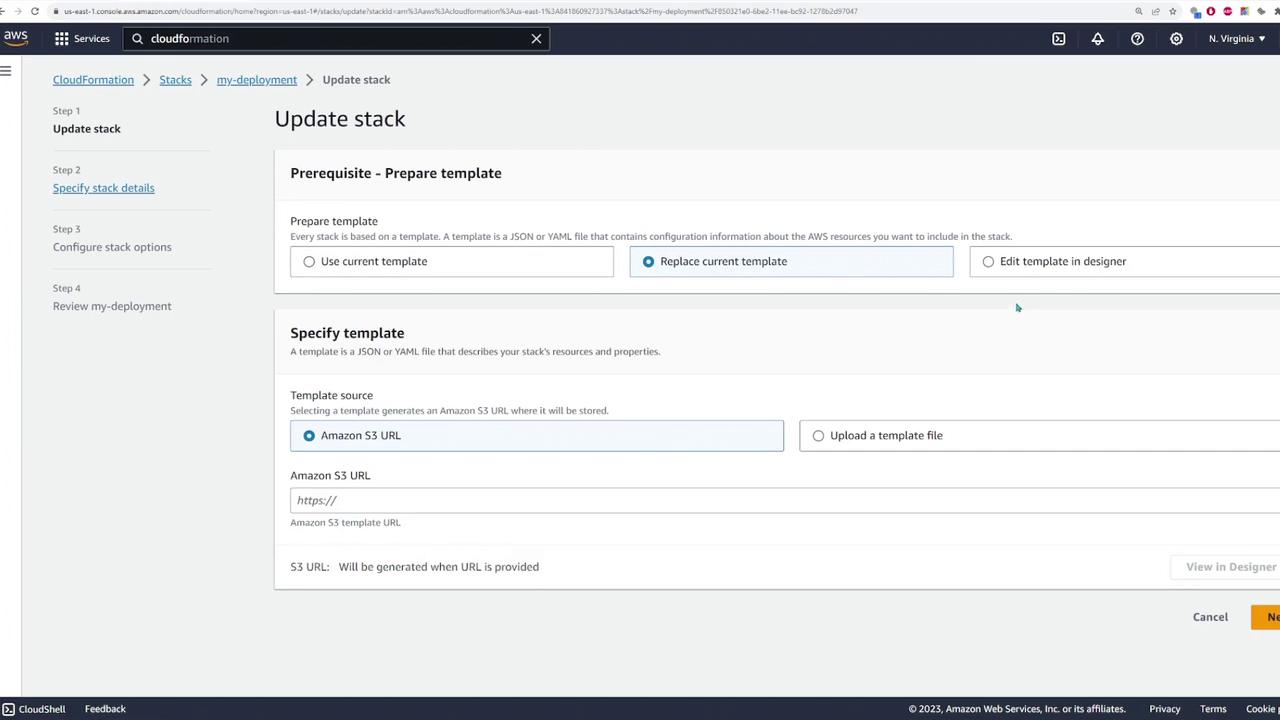

The image below shows the update interface in the AWS CloudFormation console:

The image shows an AWS CloudFormation interface for updating a stack, with options to prepare and specify a template using an Amazon S3 URL or by uploading a file.

That concludes this lesson on AWS CloudFormation. Enjoy automating your infrastructure and check back for more detailed tutorials in our upcoming lessons!
