Exploring Deployment Strategies

In this article, we dive deep into various deployment strategies—an essential subject for anyone preparing for certification exams or striving to excel in DevOps. Deployment strategies provide a systematic approach to releasing new software versions while managing risks and ensuring minimal service disruption.

A deployment strategy is a carefully orchestrated plan used to safely introduce updates to a live production environment. Instead of simply "pushing a button," real-world deployments involve mitigating risks, reducing potential downtime, and ensuring continuous delivery of services. Here are three primary reasons to adopt well-defined deployment strategies:

1. Risk Management: Limit the impact of potential issues by isolating problematic updates.
2. Increased Uptime: Ensure that deployments occur without interrupting ongoing services.
3. Continuous Delivery: Enable frequent, reliable updates that maintain the quality and performance of live applications.

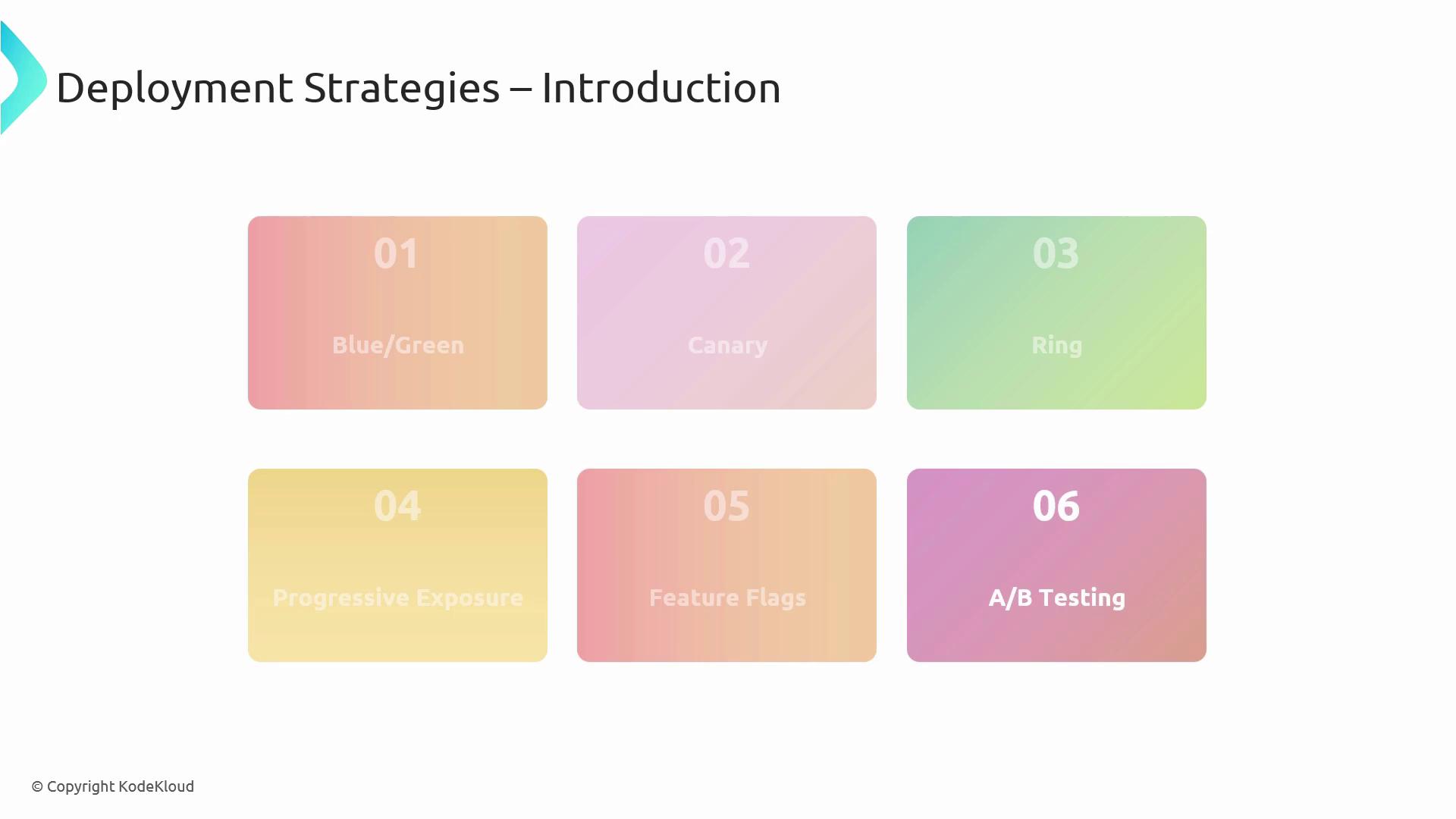

In this guide, we explore six key deployment strategies:

• Blue/Green Deployments
• Canary Deployments
• Ring Deployments
• Progressive Exposure
• Feature Flags
• A/B Testing

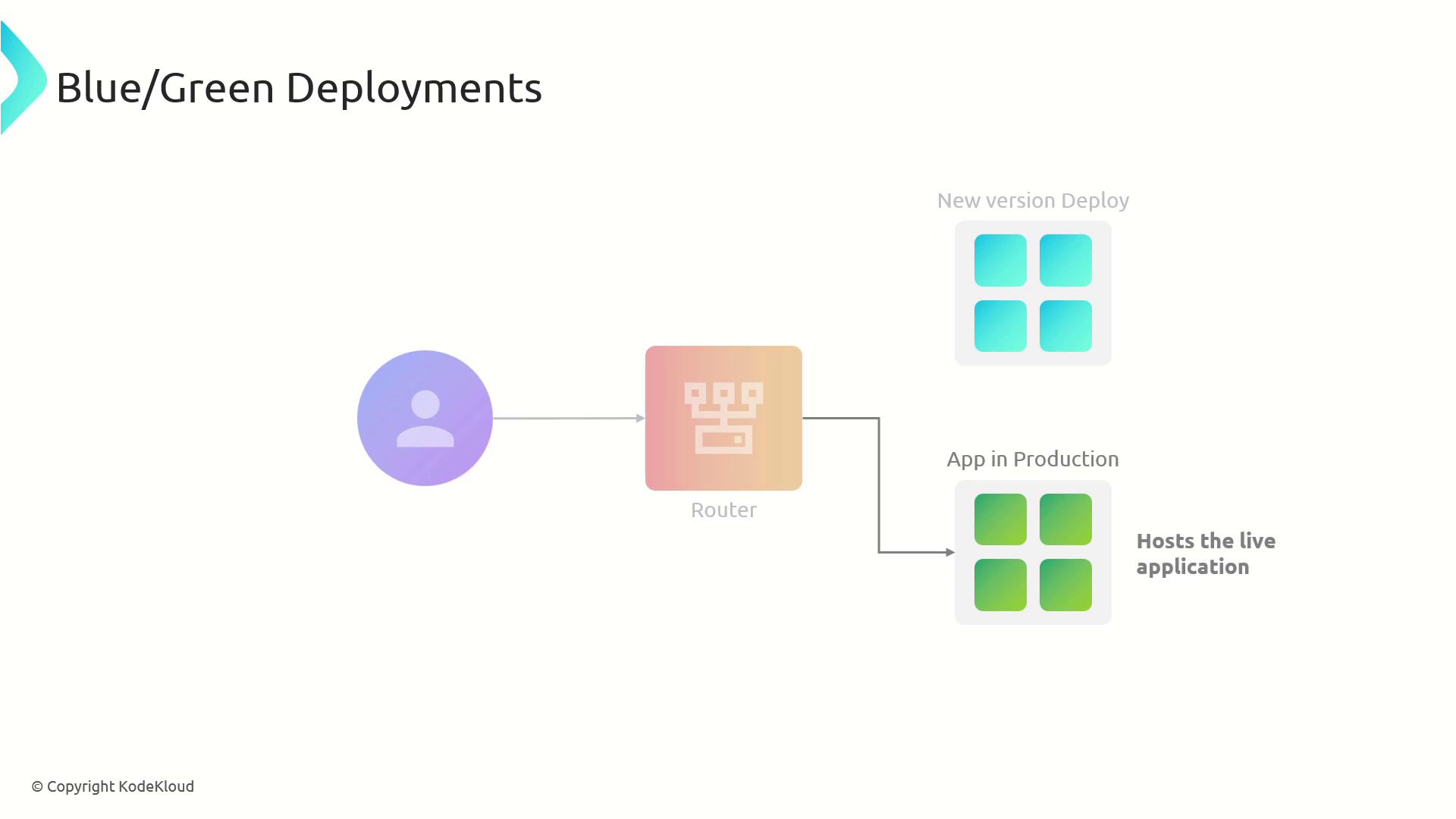

Blue/Green Deployments

Blue/Green deployments utilize two identical production environments. One environment is active (green) serving actual user traffic, while the other (blue) is prepared with the new release.

Here's how Blue/Green deployment works:

• The production environment (green) is live with the current version.
• The new release is deployed on the blue environment.
• A traffic router redirects user requests from the green environment to the blue environment almost instantly when the new version is ready.

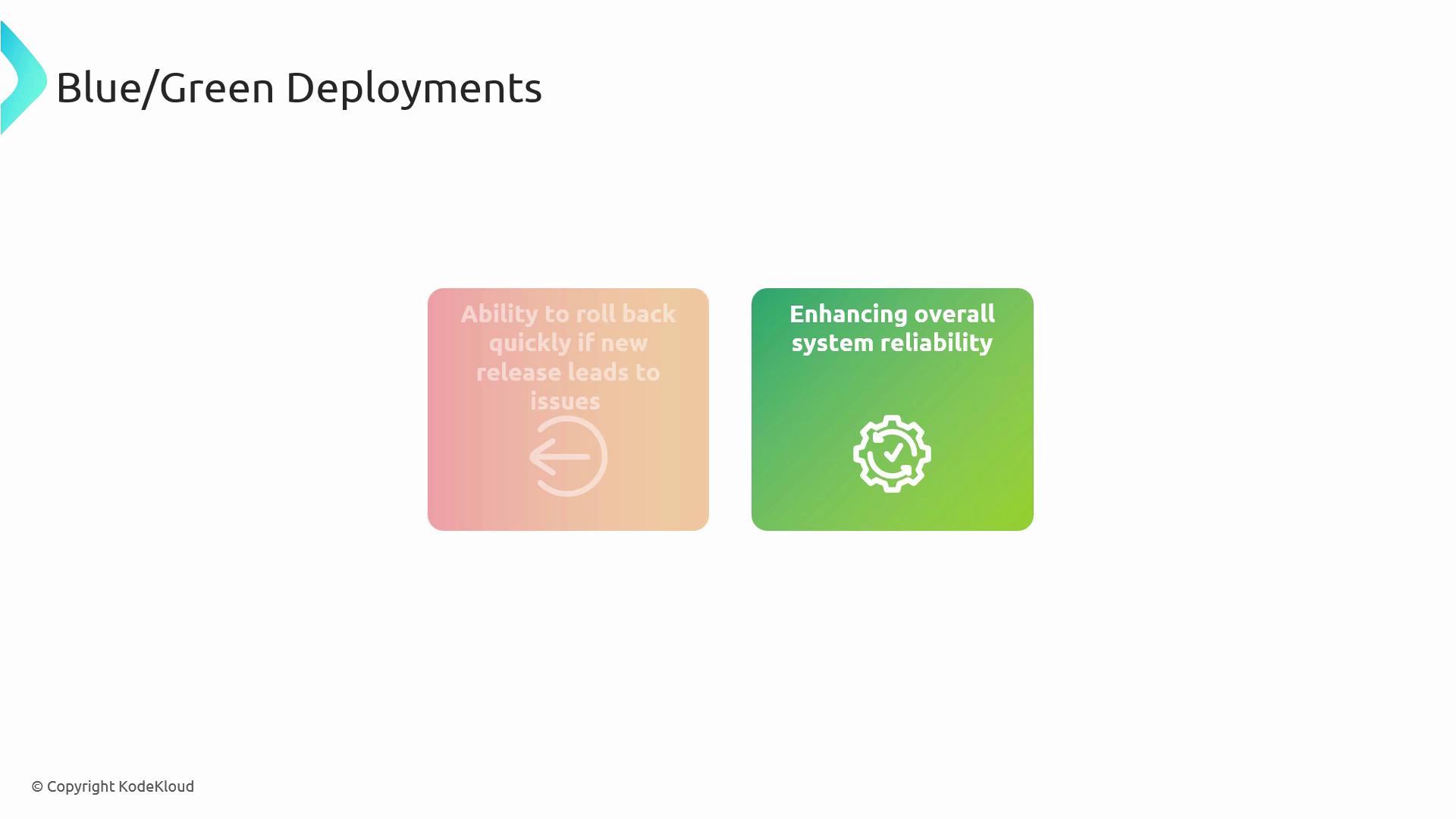

A significant advantage of this approach is its rapid rollback capability. If any issues arise with the new release, traffic can be quickly switched back to the stable green environment.

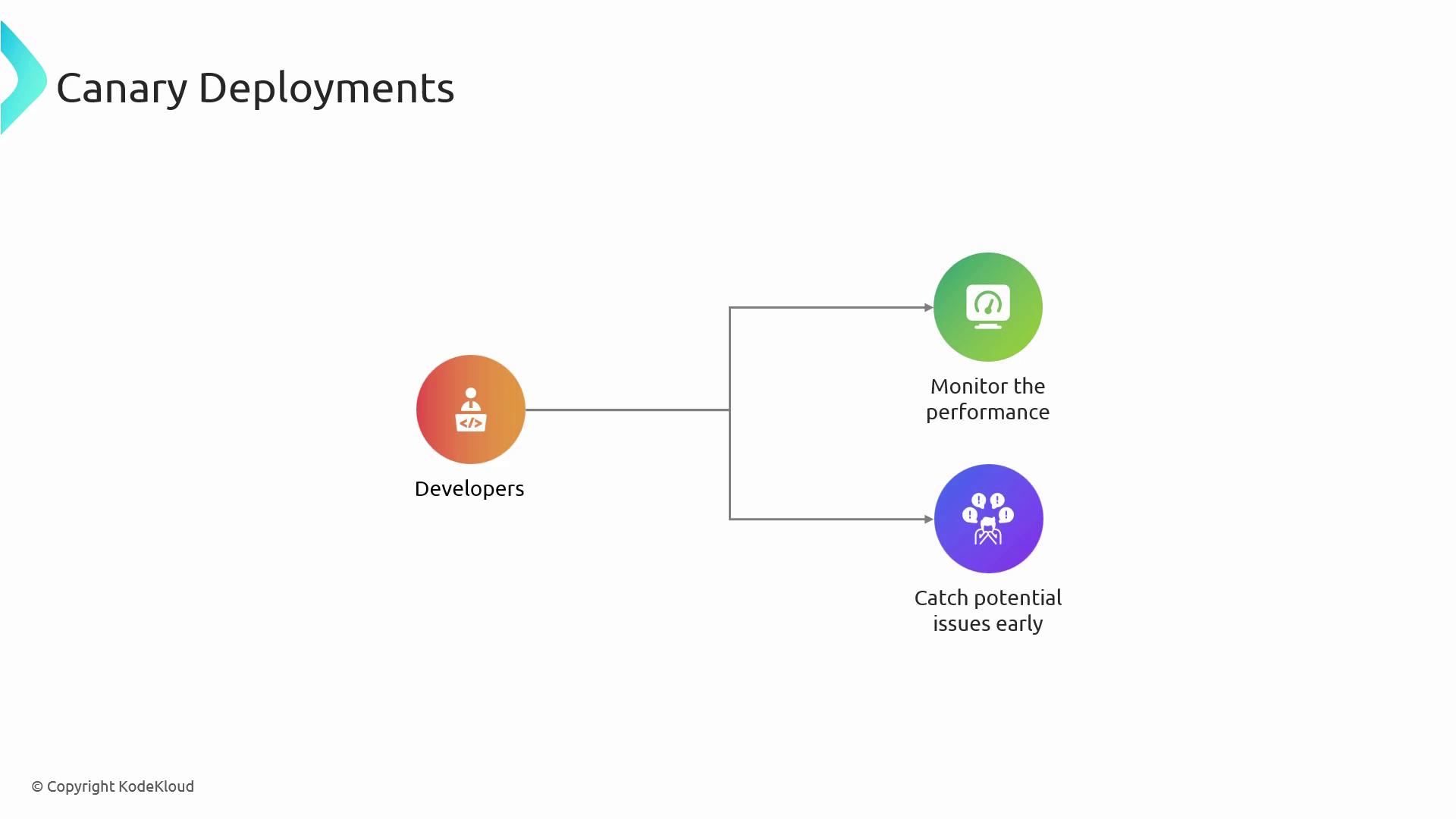

Canary Deployments

Canary deployments introduce a new version gradually by first deploying it to a small subset of users. This strategy draws its name from the "canary in a coal mine" concept, where a minimal group is exposed to changes before a full-scale release. This controlled process helps detect issues early while minimizing risk.

If the new version performs well, it can be rolled out to a larger audience. In case of problems, only a small fraction of users are affected, simplifying troubleshooting and resolution.

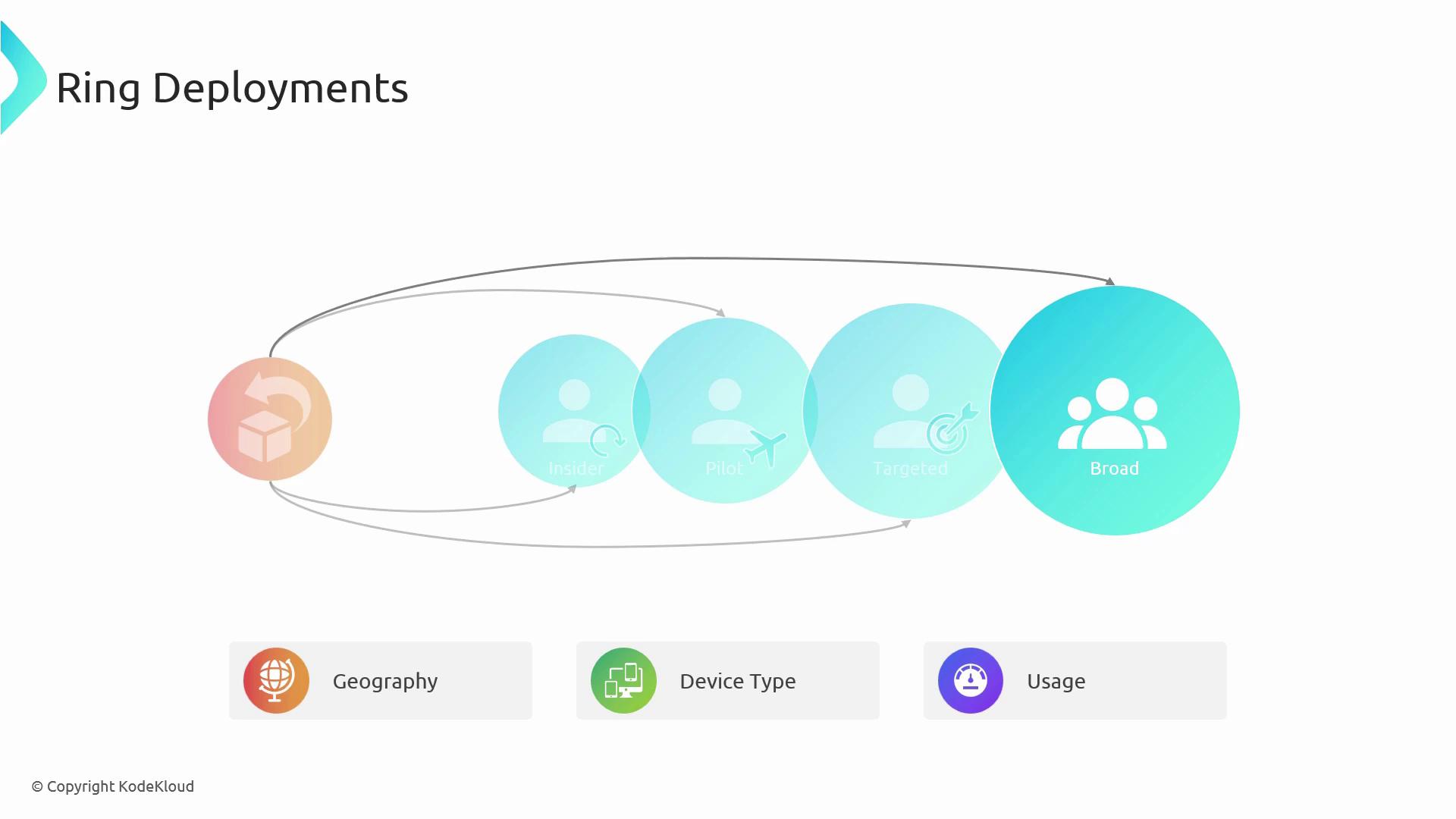

Ring Deployments

Ring deployments take the idea behind canary deployments one step further by organizing the release into structured segments or "rings." These segments might be defined based on user geography, device type, or usage patterns. The process starts with a low-risk, small group and progressively extends the rollout to larger rings as confidence in the release grows.

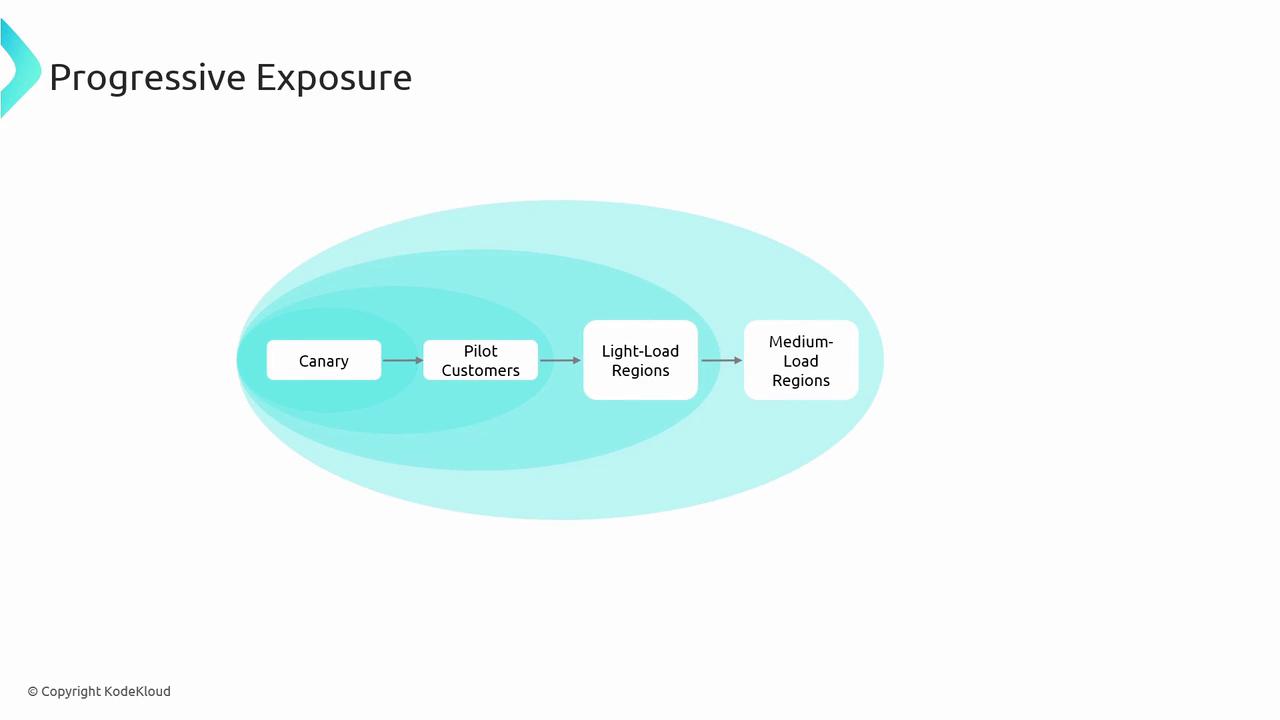

Progressive Exposure

Progressive exposure combines elements of both canary and ring deployments. This method incrementally exposes new features or updates to a growing segment of users while closely monitoring performance and user feedback in real time. This measured approach is particularly valuable when rolling out complex features that require thorough testing under diverse conditions.

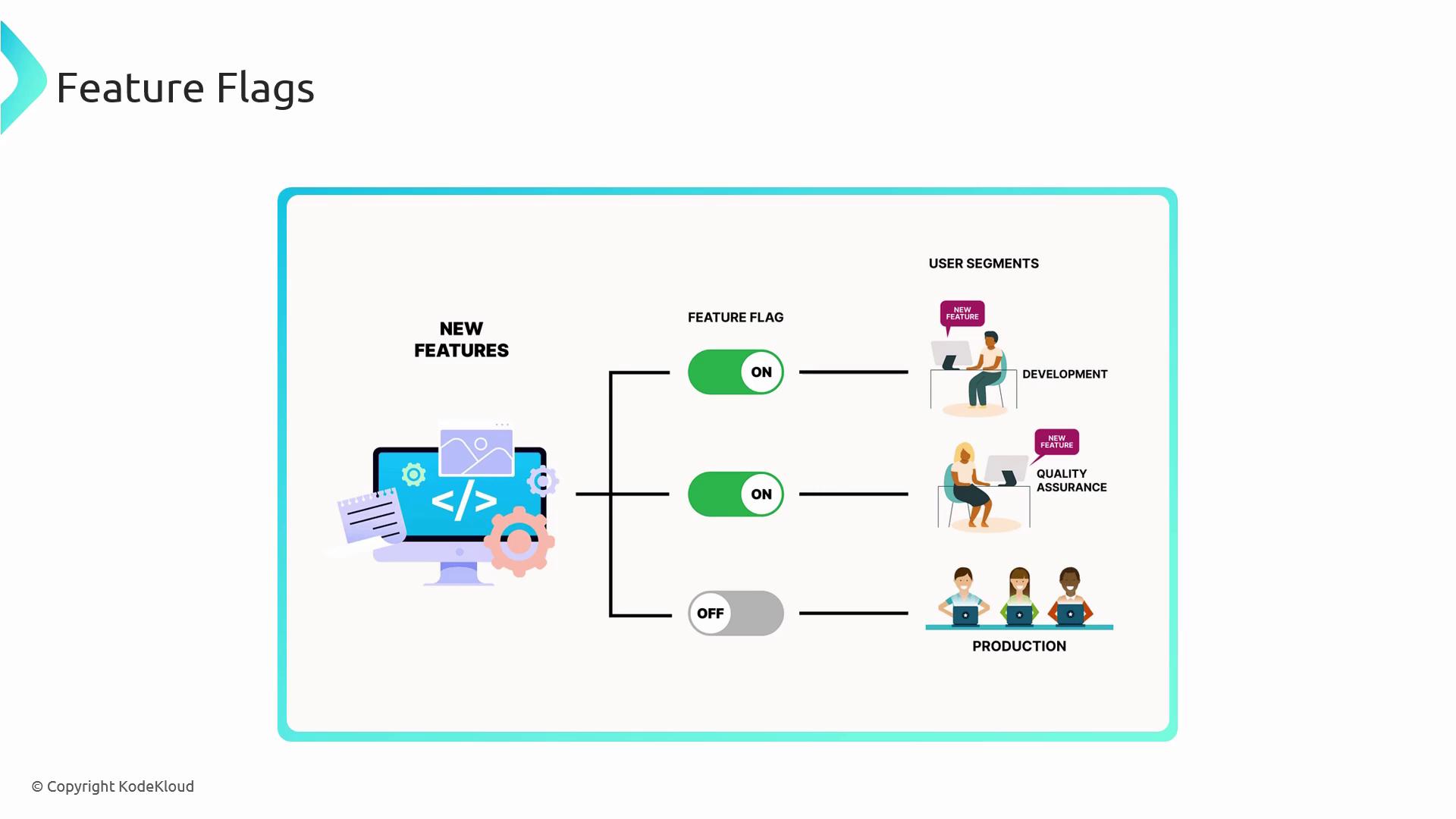

Feature Flags

Feature flags allow teams to toggle features on and off without deploying new code. This technique provides granular control over the user experience, enabling practices such as A/B testing, canary releases, and phased rollouts.

The primary benefits of using feature flags include:

• Note

  Risk Mitigation: Instantly disable a feature if it underperforms, reducing the chances of widespread issues.

• Note

  Enhanced Agility: Respond quickly to user feedback and performance data without the need for a full rollback.

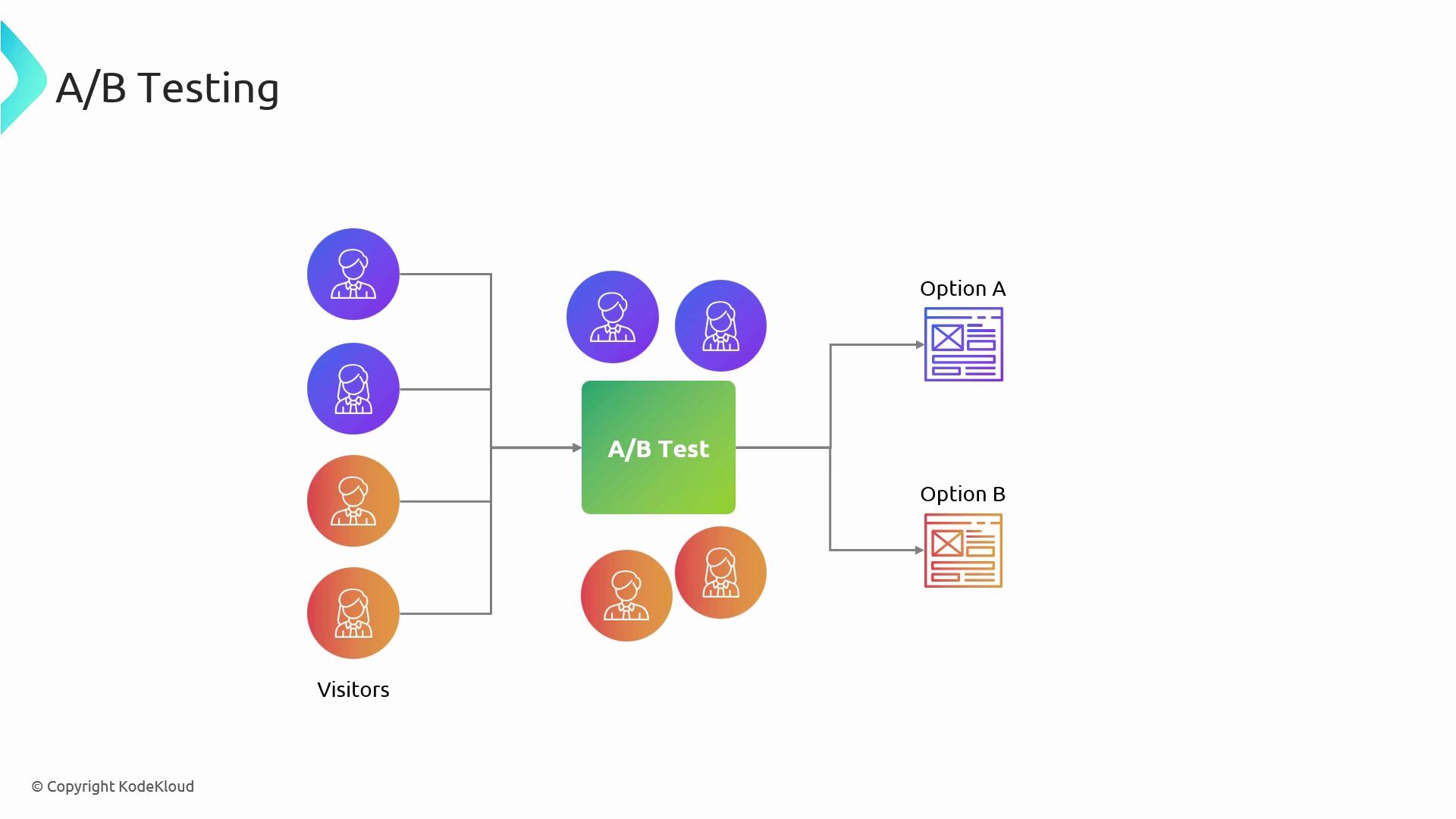

A/B Testing

A/B testing is a strategy that involves comparing two versions of a feature to determine which one performs better against key metrics like user engagement or conversion rates. By splitting the audience into two distinct groups—each experiencing a different version—you can gather data-driven insights to make informed decisions that improve the overall user experience and business outcomes.

By understanding and applying these deployment strategies, you can select the most appropriate approach for each update scenario, ensuring a smoother, more reliable release process. In many cases, a blend of these strategies is employed to tailor the deployment process to the specific needs and risks associated with the update.

For further reading on deployment practices and modern DevOps strategies, consider exploring these resources:

• Kubernetes Documentation
• Docker Hub
• Terraform Registry

Happy deploying!
