AZ-400: Designing and Implementing Microsoft DevOps Solutions

Maintain Pipelines

Design and implement a retention strategy for pipeline artifacts and dependencies

In this guide, you’ll learn how to set up and manage retention policies in Azure Pipelines. Proper artifact and dependency retention reduces storage costs, ensures regulatory compliance, and keeps your CI/CD workflows running smoothly.

Artifacts vs. Dependencies

Artifacts
Outputs generated by your build and release processes—binaries, Docker images, test results, logs, deployment packages, and more.

Dependencies
External libraries and packages required at build time—NuGet, npm modules, Maven dependencies, etc.
Think of dependencies as ingredients and artifacts as the final dishes.

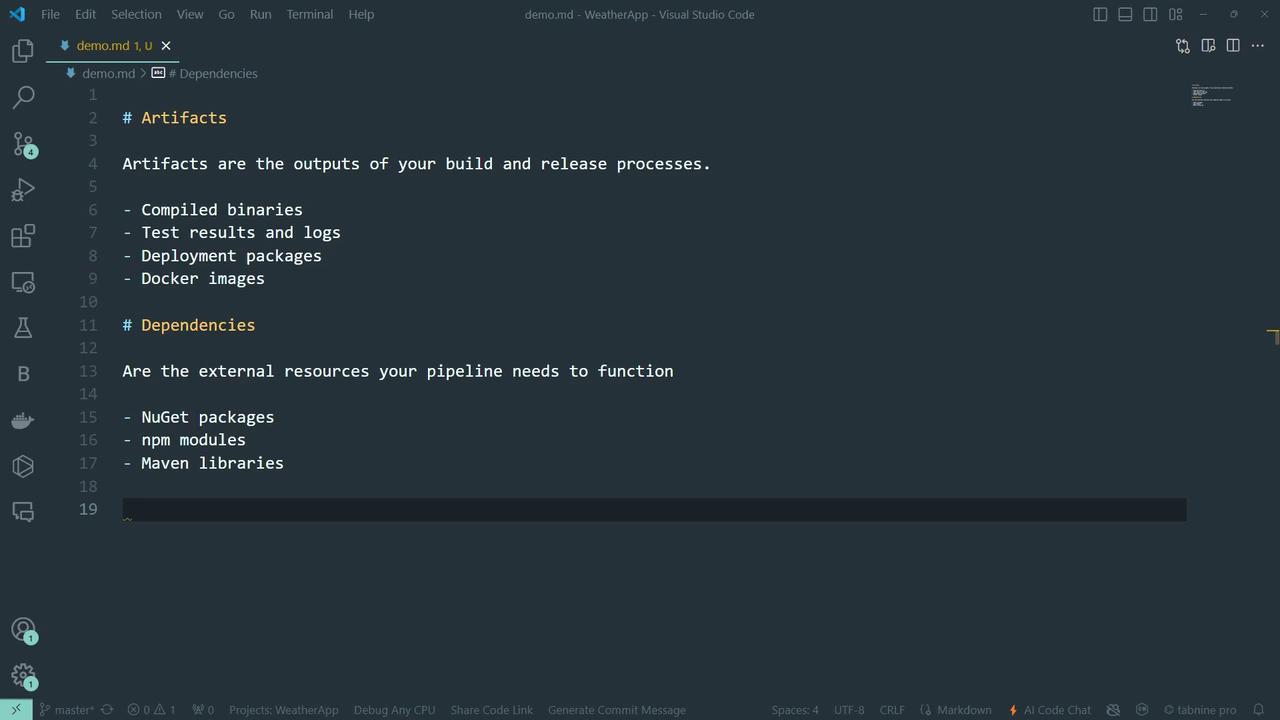

The image shows a Visual Studio Code editor with a markdown file open, describing "Artifacts" and "Dependencies" related to build and release processes. It lists examples like compiled binaries, Docker images, NuGet packages, and npm modules.

Why Retention Matters

Retention policies in Azure DevOps automatically purge old runs, artifacts, and attachments based on configurable rules. Key benefits include:

  • Lower cloud storage costs
  • Compliance with data retention regulations
  • Cleaner, more efficient pipeline environments

Note

You can scope retention settings to specific branches, tags, or pipeline triggers.

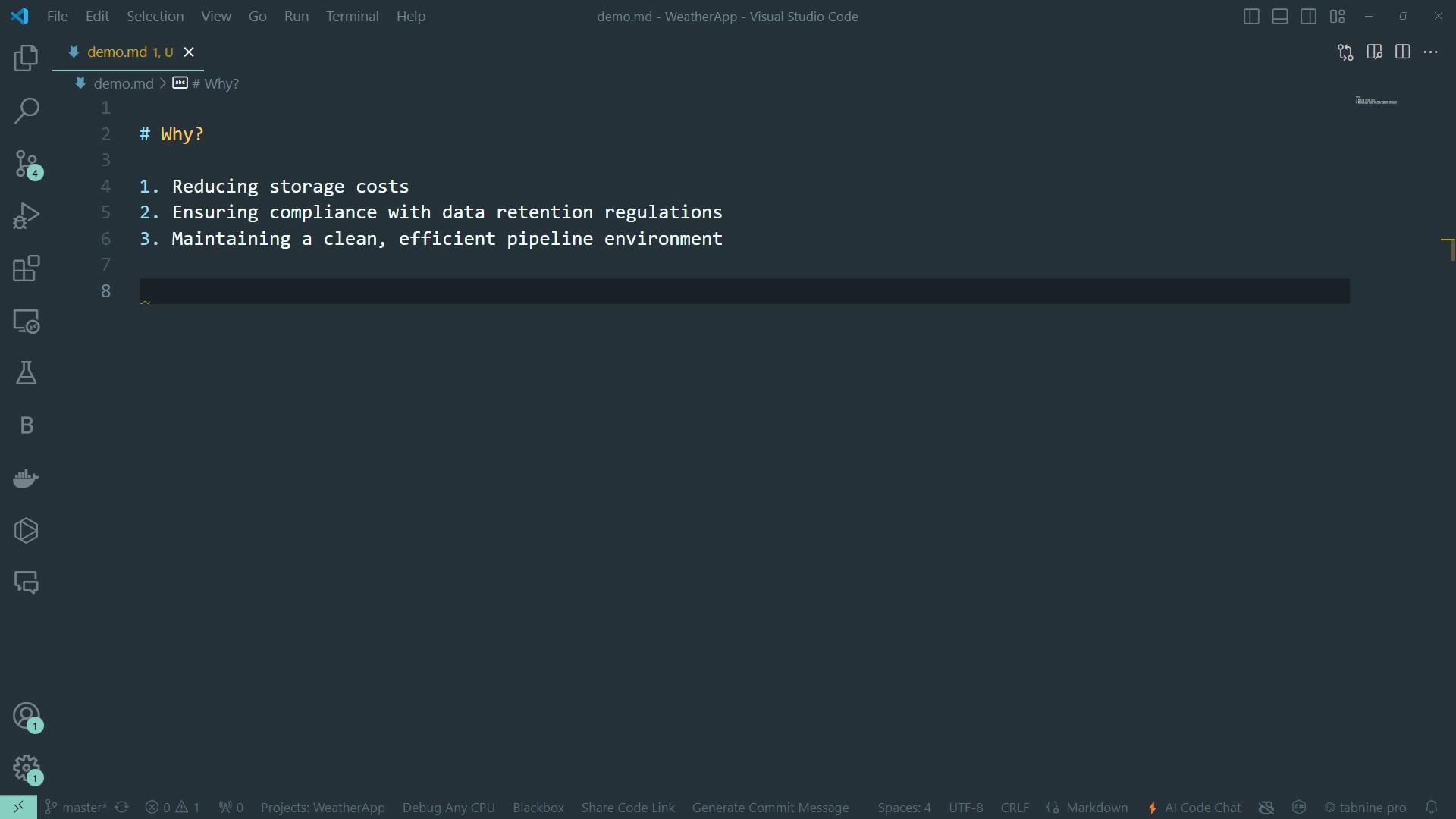

The image shows a Visual Studio Code editor with a markdown file open, listing reasons for a task: reducing storage costs, ensuring compliance with data retention regulations, and maintaining a clean, efficient pipeline environment.

Configure Retention in the Azure DevOps UI

  1. Go to your Azure DevOps project.
  2. Select Project settings > Pipelines > Settings.
  3. Under Retention, adjust:
    • Days to keep runs
    • Pull request runs
    • Number of recent runs

Warning

If Days to keep runs is shorter than any artifact-level setting, the pipeline-level setting takes precedence.

Define Retention in Your Pipeline YAML

Embed retention rules directly in YAML for repeatable CI configurations:

trigger:
  branches: [ main ]

pool:
  vmImage: ubuntu-latest

variables:
  retentionDays: 30

jobs:
- job: Build
  displayName: Build and Publish Artifact
  steps:
    - script: echo "Compiling source code..."
      displayName: Compile Code
    - task: PublishBuildArtifacts@1
      inputs:
        pathToPublish: '$(Build.ArtifactStagingDirectory)'
        artifactName: 'drop'

- job: Cleanup
  displayName: Clean Up and Create Retention Lease
  dependsOn: Build
  pool: server
  steps:
    - task: DeleteFiles@1
      inputs:
        SourceFolder: '$(Build.SourcesDirectory)'
        Contents: '**/*.tmp'
      displayName: Remove Temporary Files
    - task: PowerShell@2
      inputs:
        targetType: 'inline'
        script: |
          $uri = "$(System.CollectionUri)$(System.TeamProject)/_apis/build/retention/leases?api-version=6.0"
          $lease = @{
            daysValid    = $(retentionDays)
            definitionId = $(System.DefinitionId)
            runId        = $(Build.BuildId)
            ownerId      = "User:$(Build.RequestedForId)"
          } | ConvertTo-Json
          Invoke-RestMethod -Uri $uri -Method Post -Body $lease `
            -ContentType "application/json" `
            -Headers @{ Authorization = "Bearer $(System.AccessToken)" }
      displayName: Create Retention Lease

Other Retention Management Methods

MethodDescriptionExample Command or Script
Azure DevOps UICentralized retention settings in Project SettingsN/A
PowerShell ScriptsUse the [Retention Leases API]Invoke-RestMethod -Uri .../leases?api-version=6.0
Azure CLIManage leases from the command lineaz pipelines runs lease create --days 30

Best Practices for Balancing Retention and Cost

  • Review and prune retention policies quarterly.
  • Tag production releases for extended retention.
  • Automate variable templates to standardize retentionDays.

Tip

Centralize retention variables in a template to keep your pipelines DRY and maintainable.

Watch Video

Watch video content
