If Expressions and Pull Request

In this guide, we’ll set up a GitHub Actions CI/CD workflow that uses conditional if expressions to deploy an application to development on feature branches and to production only from the main branch. Pull requests will gate production releases behind review and environment protection rules.

Table of Contents

• Environment Variables
• Job Overview
• Dev Deploy Job
• Dev Integration Testing Job
• Prod Deploy Job
• Prod Integration Testing Job
• Workflow Execution & Pull Request Flow
• Links and References

Environment Variables

Define shared environment variables at the top of your workflow file:

env:
  MONGO_URI: 'mongodb+srv://supercluster.d83jj.mongodb.net/superData'
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}
  MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}

Job Overview

Below is a summary of each job, its trigger condition, and dependencies:

Dev Deploy Job

The dev-deploy job runs on any branch matching feature/. It depends on the docker job:

jobs:
  dev-deploy:
    if: contains(github.ref, 'feature/')
    needs: docker
    environment:
      name: development
      url: https://${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
    outputs:
      APP_INGRESS_URL: ${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Repo
        uses: actions/checkout@v4

      # Add Kubernetes deployment steps here, for example:
      # - name: Apply Manifests
      #   run: kubectl apply -f kubernetes/development

Dev Integration Testing Job

After deployment to development, run integration tests to verify application health:

  dev-integration-testing:
    name: Dev Integration Testing
    if: contains(github.ref, 'feature/')
    needs: dev-deploy
    runs-on: ubuntu-latest
    steps:
      - name: Test Application Health
        run: |
          curl https://${{ needs.dev-deploy.outputs.APP_INGRESS_URL }}/health

Prod Deploy Job

Production deployments trigger only on the main branch. This job also sets up Kubernetes credentials and applies manifests:

  prod-deploy:
    if: github.ref == 'refs/heads/main'
    needs: docker
    environment:
      name: production
      url: https://${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
    outputs:
      APP_INGRESS_URL: ${{ steps.set-ingress-host-address.outputs.APP_INGRESS_HOST }}
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Repo
        uses: actions/checkout@v4

      - name: Set up Kubernetes Credentials
        uses: azure/setup-kubectl@v3
        with:
          method: kubeconfig
          kubeconfig: ${{ secrets.KUBECONFIG }}

      - name: Fetch Kubernetes Cluster Details
        run: |
          kubectl version --short
          kubectl get nodes

      - name: Save Nginx Ingress IP
        id: set-ingress-host
        run: |
          echo "APP_INGRESS_HOST=$(kubectl -n ingress-nginx get service ingress-nginx-controller \
            -o jsonpath='{.status.loadBalancer.ingress[0].ip}')"
          echo "::set-output name=APP_INGRESS_HOST::$APP_INGRESS_HOST"

      - name: Replace Tokens in Manifests
        uses: cscheidlen/replace-tokens@v1
        with:
          tokenPrefix: '_{'
          tokenSuffix: '}_'
          files: ["kubernetes/production/*.yaml"]
        env:
          NAMESPACE: ${{ vars.NAMESPACE }}
          REPLICAS: ${{ vars.REPLICAS }}
          IMAGE: ${{ secrets.DOCKERHUB_USERNAME }}/solar-system:${{ github.sha }}
          INGRESS_IP: ${{ steps.set-ingress-host.outputs.APP_INGRESS_HOST }}

      - name: Deploy to Production
        run: kubectl apply -f kubernetes/production

Prod Integration Testing Job

Once production is deployed, run a final health check:

  prod-integration-testing:
    name: Prod Integration Testing
    if: github.ref == 'refs/heads/main'
    needs: prod-deploy
    runs-on: ubuntu-latest
    steps:
      - name: Validate Production Health
        env:
          URL: ${{ needs.prod-deploy.outputs.APP_INGRESS_URL }}
        run: |
          echo "Testing URL: $URL"
          curl https://$URL/live -s -k | jq -r .status | grep -i live

Workflow Execution & Pull Request Flow

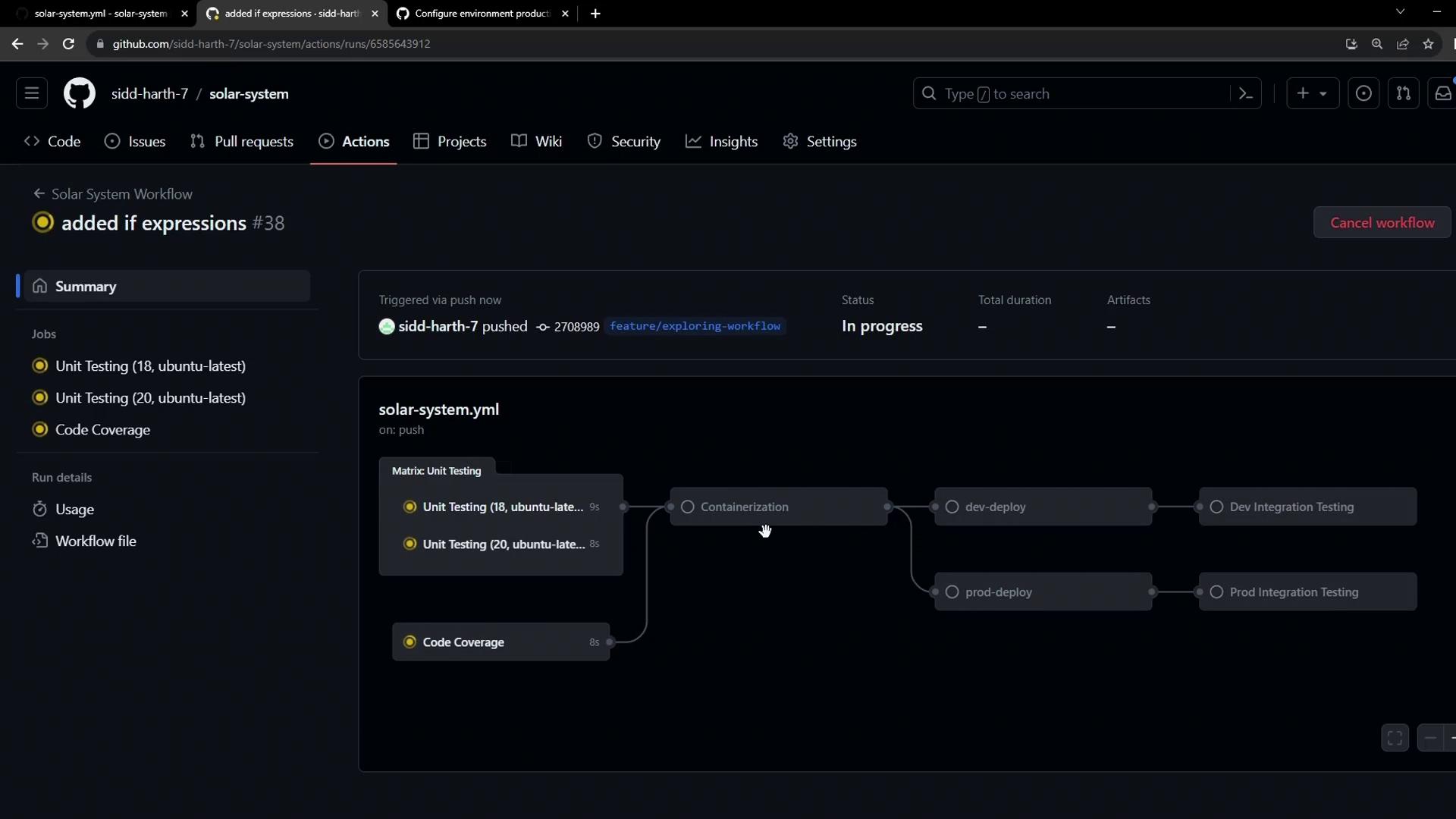

1. Feature Branch Push
   • docker builds and pushes the image.
   • dev-deploy and dev-integration-testing run automatically.
   • Production jobs are skipped on feature branches.

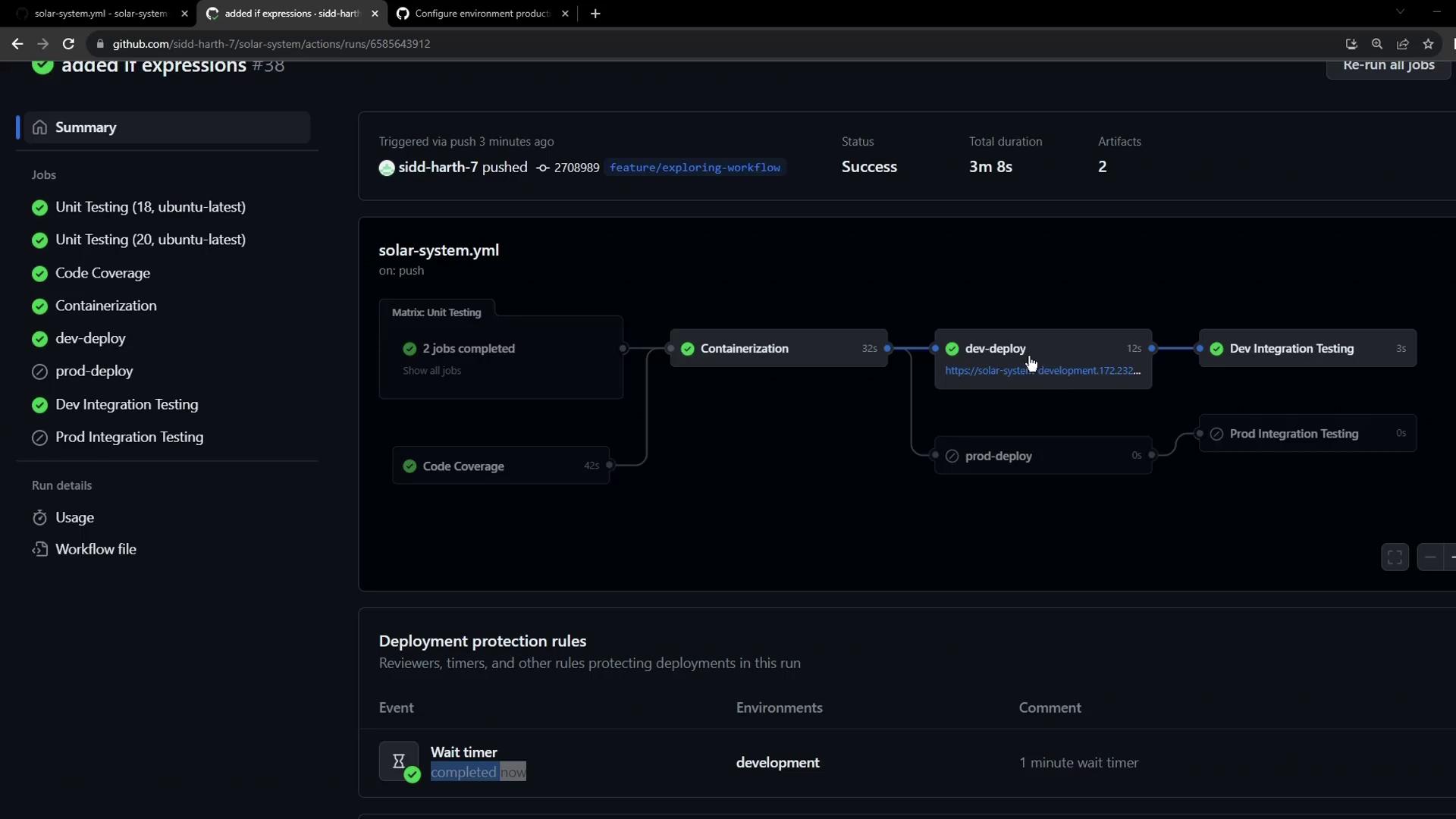

2. Review Feature Deployments
   • The workflow summary marks all dev jobs as successful.

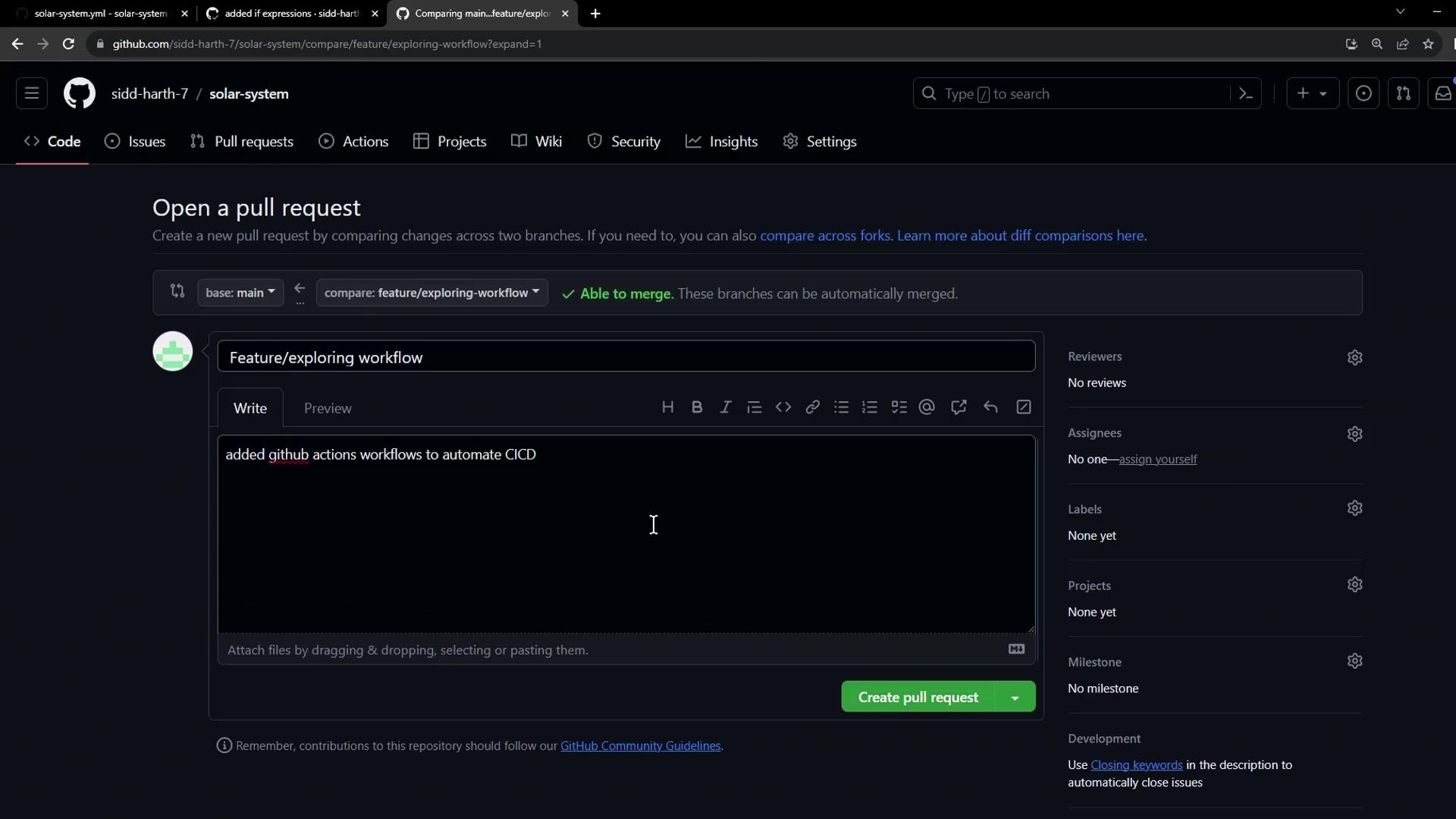

3. Open Pull Request
   • Create a PR from feature/* into main to prepare a production release.

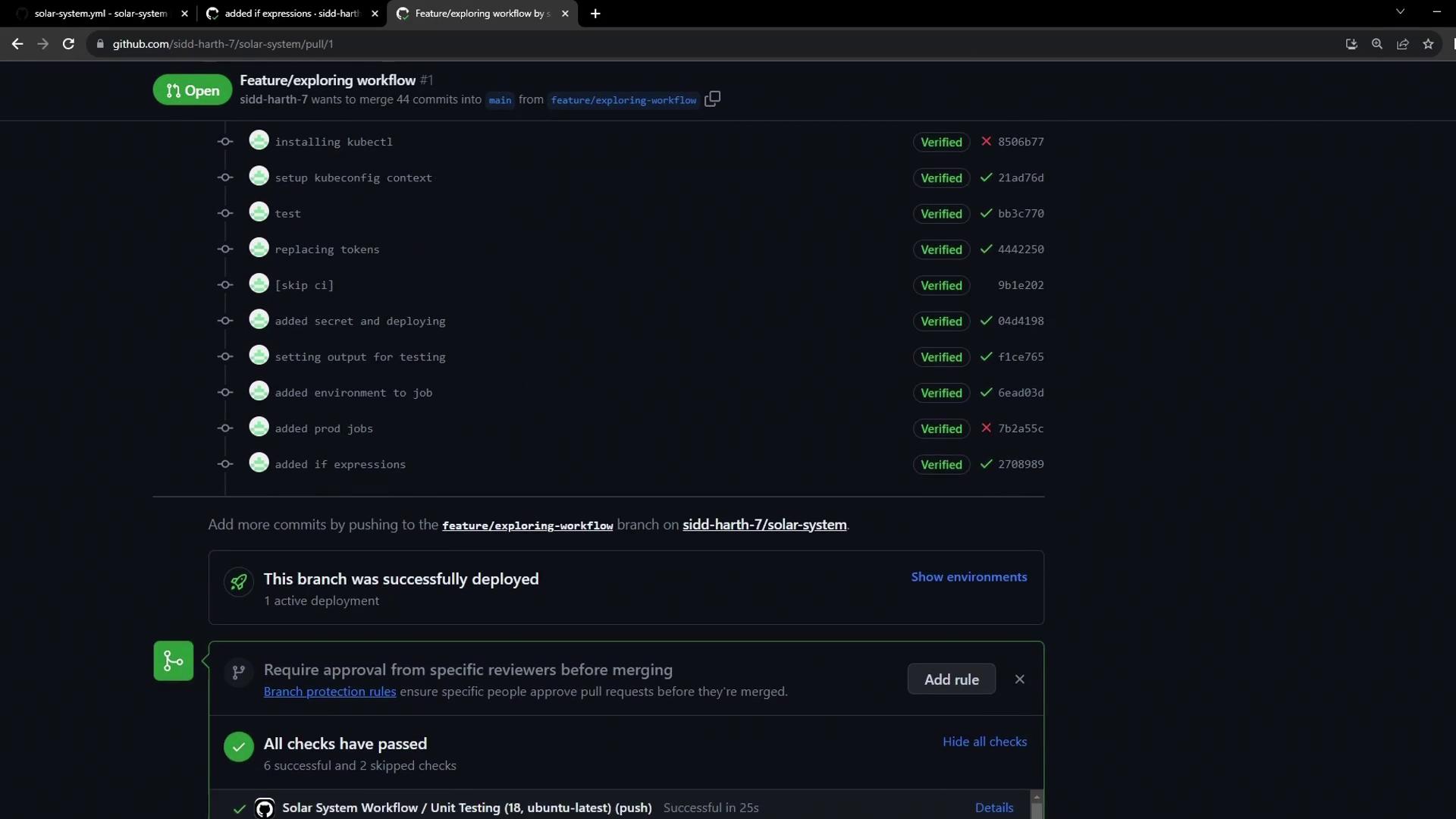

4. Confirm Previous Deployments
   • The PR page lists all commits and verifies the dev deployment.

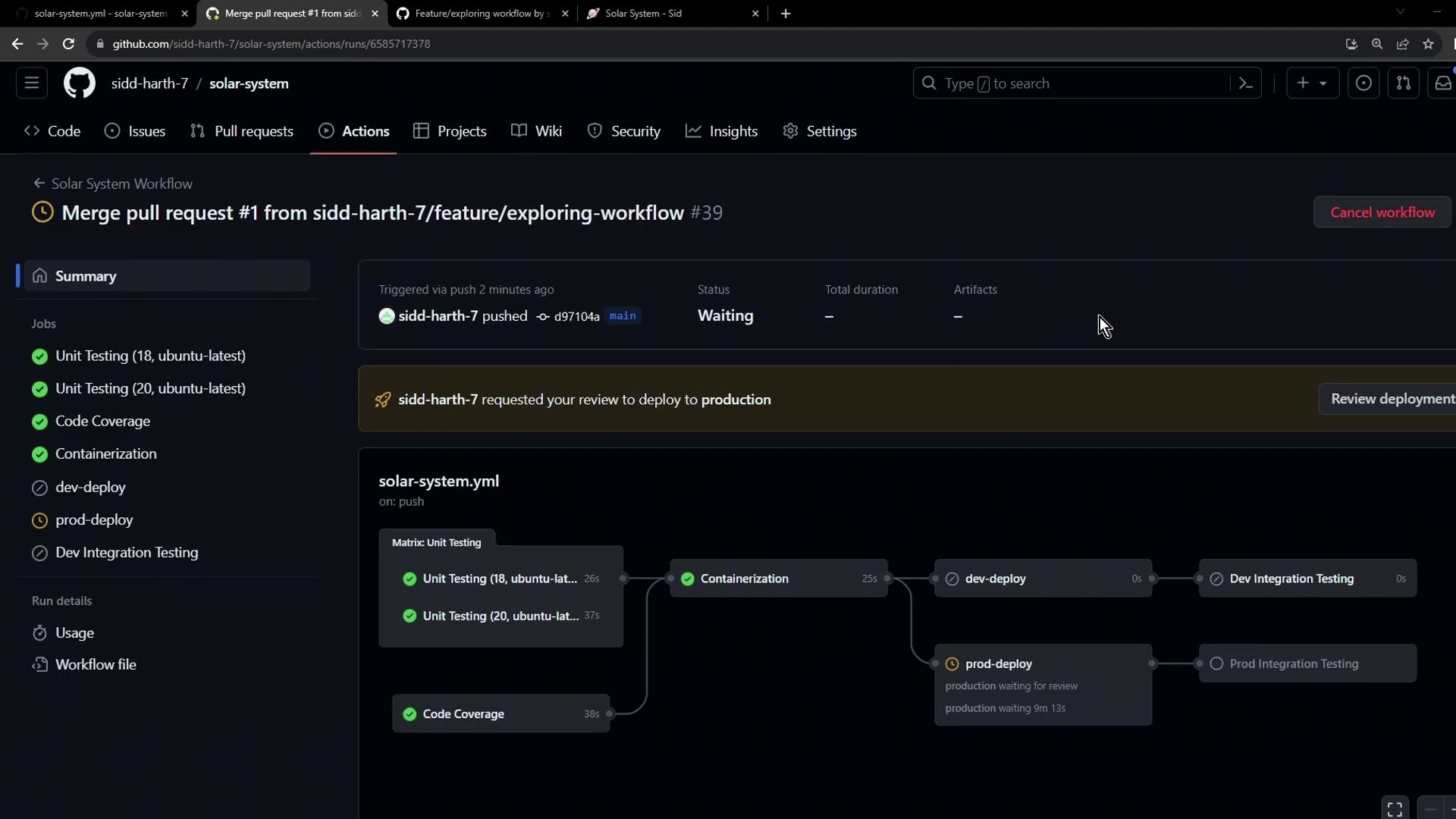

5. Merge to Main
   • Merging triggers a new workflow: dev jobs skip, prod job awaits manual approval or timer.

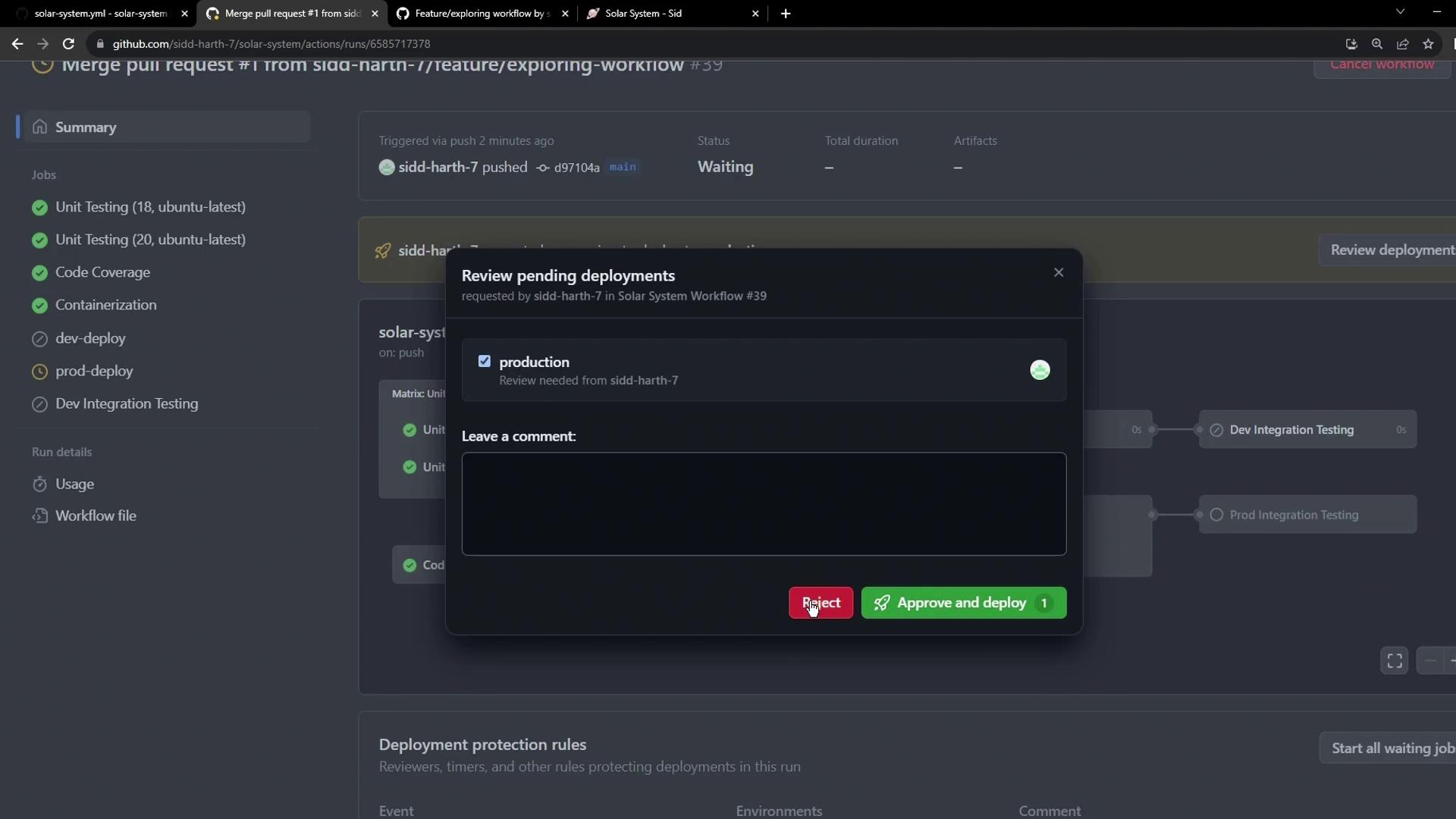

6. Approve or Reject
   • A reviewer approves the production deployment via the Actions UI.

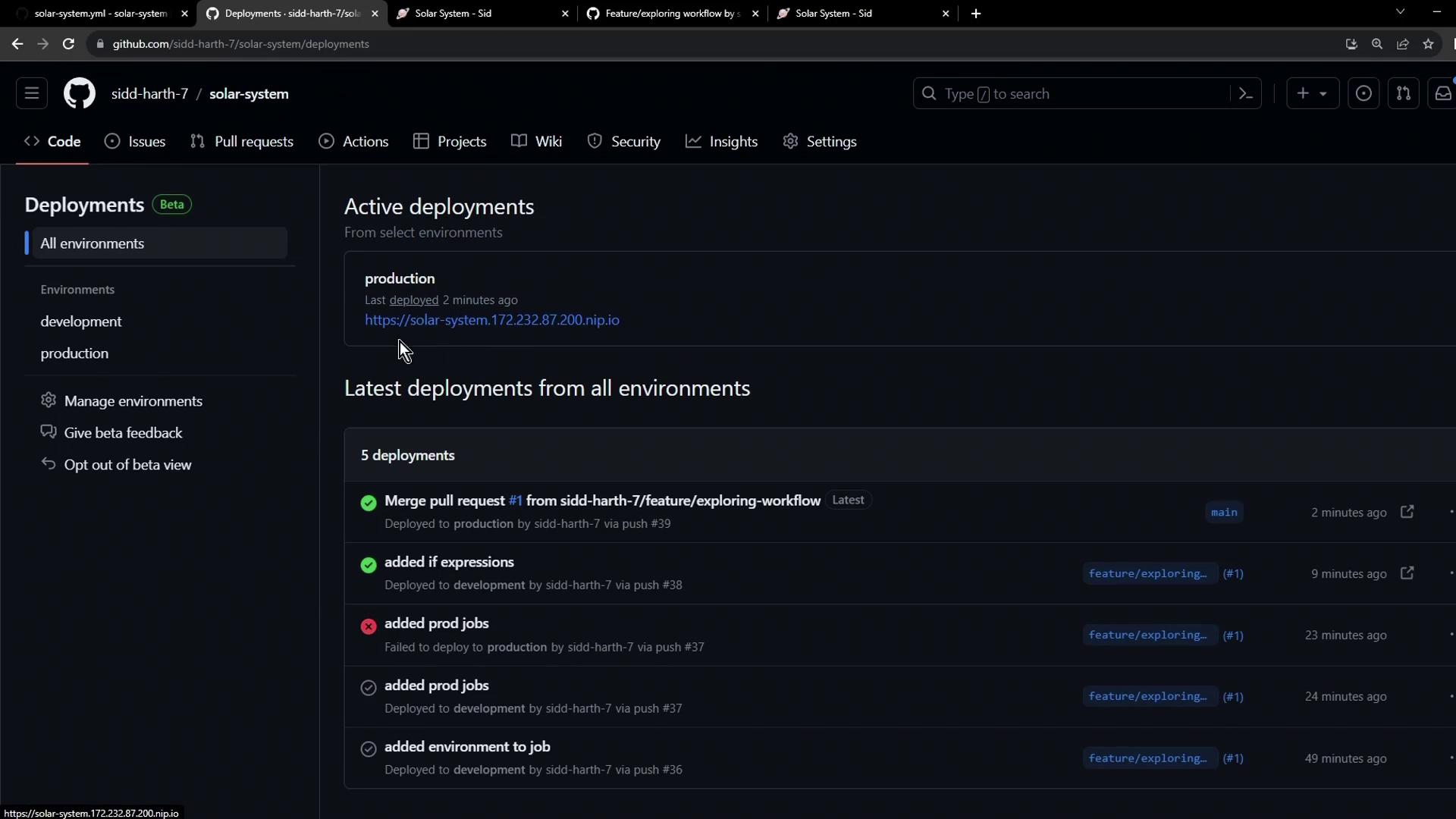

7. Production Deployment Complete
   • Once approved, the production deployment proceeds and can be monitored in the Deployments UI.

By leveraging conditional if expressions, pull requests, and environment protection rules, you can build a robust, secure CI/CD pipeline that separates development and production deployments seamlessly.
