Continuous Integration with GitHub Actions

Workflow Docker Login

In this guide, you’ll learn how to extend your GitHub Actions pipeline to authenticate with Docker Hub (or any OCI registry) before building and pushing a Docker image. We assume you already have unit tests and code coverage set up; our focus here is adding a containerization job that logs into Docker.

1. Current Workflow and Dockerfile

1.1. GitHub Actions Workflow

The following workflow runs on pushes to main or feature/* branches, and can be triggered manually via workflow_dispatch:

name: Solar System Workflow

on:
  push:
    branches:
      - main
      - 'feature/*'
  workflow_dispatch:

env:
  MONGO_URI: 'mongodb+srv://supercluster.d83jj.mongodb.net/superData'
  MONGO_USERNAME: ${{ vars.MONGO_USERNAME }}
  MONGO_PASSWORD: ${{ secrets.MONGO_PASSWORD }}

jobs:
  unit-testing:
    # … your unit testing steps
  code-coverage:
    # … your coverage steps

1.2. Dockerfile

Keep this Dockerfile at the repository root to build your Node.js image:

FROM node:18-alpine3.17
WORKDIR /usr/app

COPY package*.json /usr/app/
RUN npm install

COPY . .
ENV MONGO_URI=uriPlaceholder
ENV MONGO_USERNAME=usernamePlaceholder
ENV MONGO_PASSWORD=passwordPlaceholder

EXPOSE 3000
CMD ["npm", "start"]

2. Add the Containerization Job

Insert a new job named containerization after your existing steps. It will:

  1. Checkout the repository
  2. Authenticate with Docker Hub (or any registry)
jobs:
  # … unit-testing and code-coverage as before

  containerization:
    name: Containerization
    runs-on: ubuntu-latest
    needs: [unit-testing, code-coverage]
    steps:
      - name: Checkout Repository
        uses: actions/checkout@v4

      - name: Docker Login
        uses: docker/login-action@v2
        with:
          username: ${{ vars.DOCKERHUB_USERNAME }}
          password: ${{ secrets.DOCKERHUB_PASSWORD }}

Note

The docker/login-action supports Docker Hub, GitHub Container Registry, AWS ECR, Google GCR, Azure ACR, and more. It performs docker login in the workflow and handles logout post-job.

3. Configure Secrets and Variables

You’ll need:

  • Secrets for sensitive data: DOCKERHUB_PASSWORD, MONGO_PASSWORD
  • Variables for non-sensitive values: DOCKERHUB_USERNAME, MONGO_USERNAME
TypePurposeExample
SecretPassword or tokenDOCKERHUB_PASSWORD
VariableNon-sensitive stringDOCKERHUB_USERNAME
  1. In your repo, go to Settings → Secrets and variables.
  2. Under Actions secrets, add DOCKERHUB_PASSWORD.
  3. Under Actions variables, add DOCKERHUB_USERNAME.

The image shows a GitHub repository settings page for managing "Actions secrets and variables," with options to add new repository secrets and manage existing ones. It lists two repository secrets: "DOCKERHUB_PASSWORD" and "MONGO_PASSWORD."

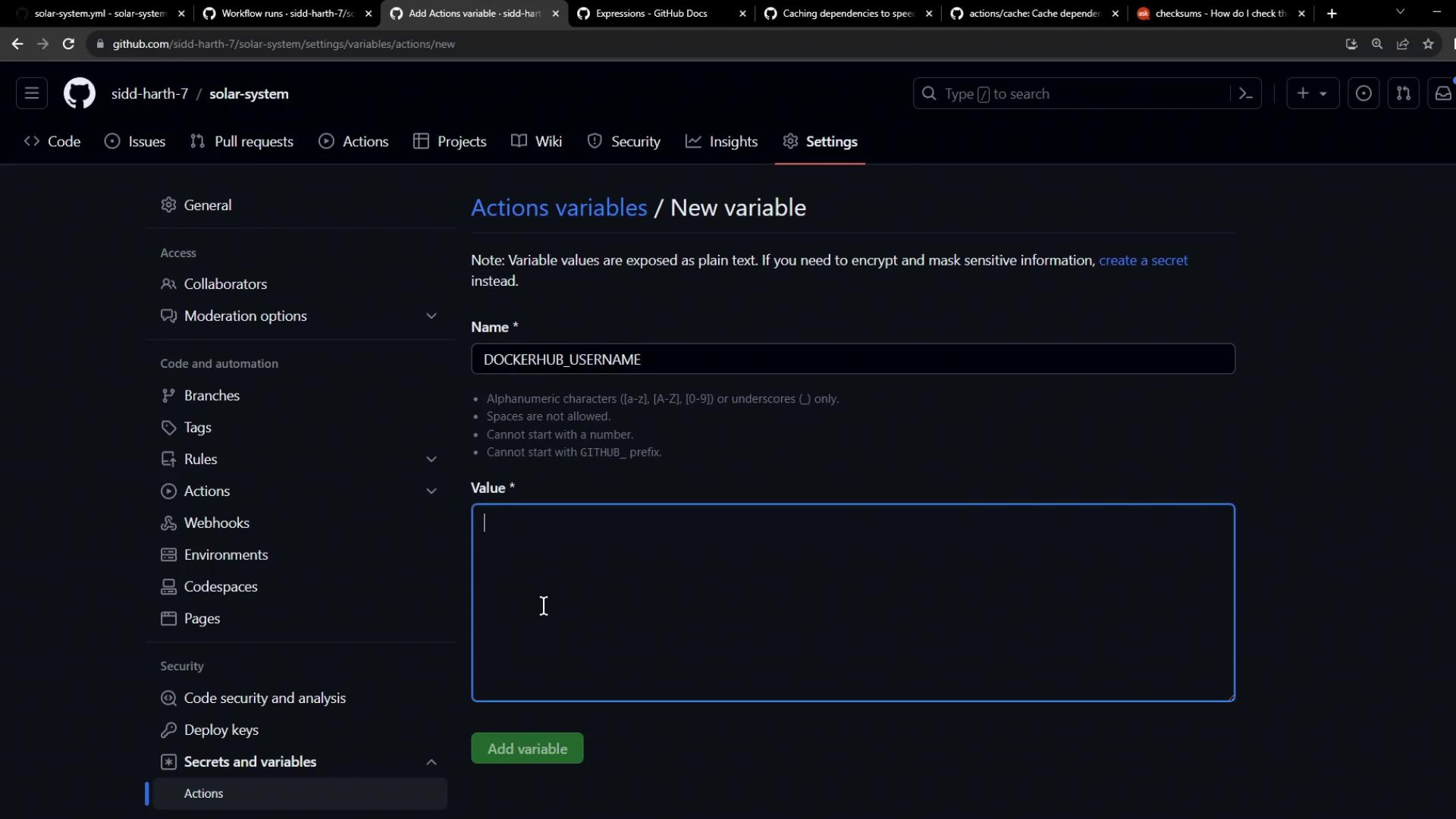

The image shows a GitHub settings page where a new action variable named "DOCKERHUB_USERNAME" is being added. The interface includes fields for the variable name and value, with guidelines for naming conventions.

4. Observe Your Workflow Run

After committing and pushing these changes:

  1. Open the Actions tab in GitHub.
  2. Select your workflow; you’ll see builds triggered by your push.

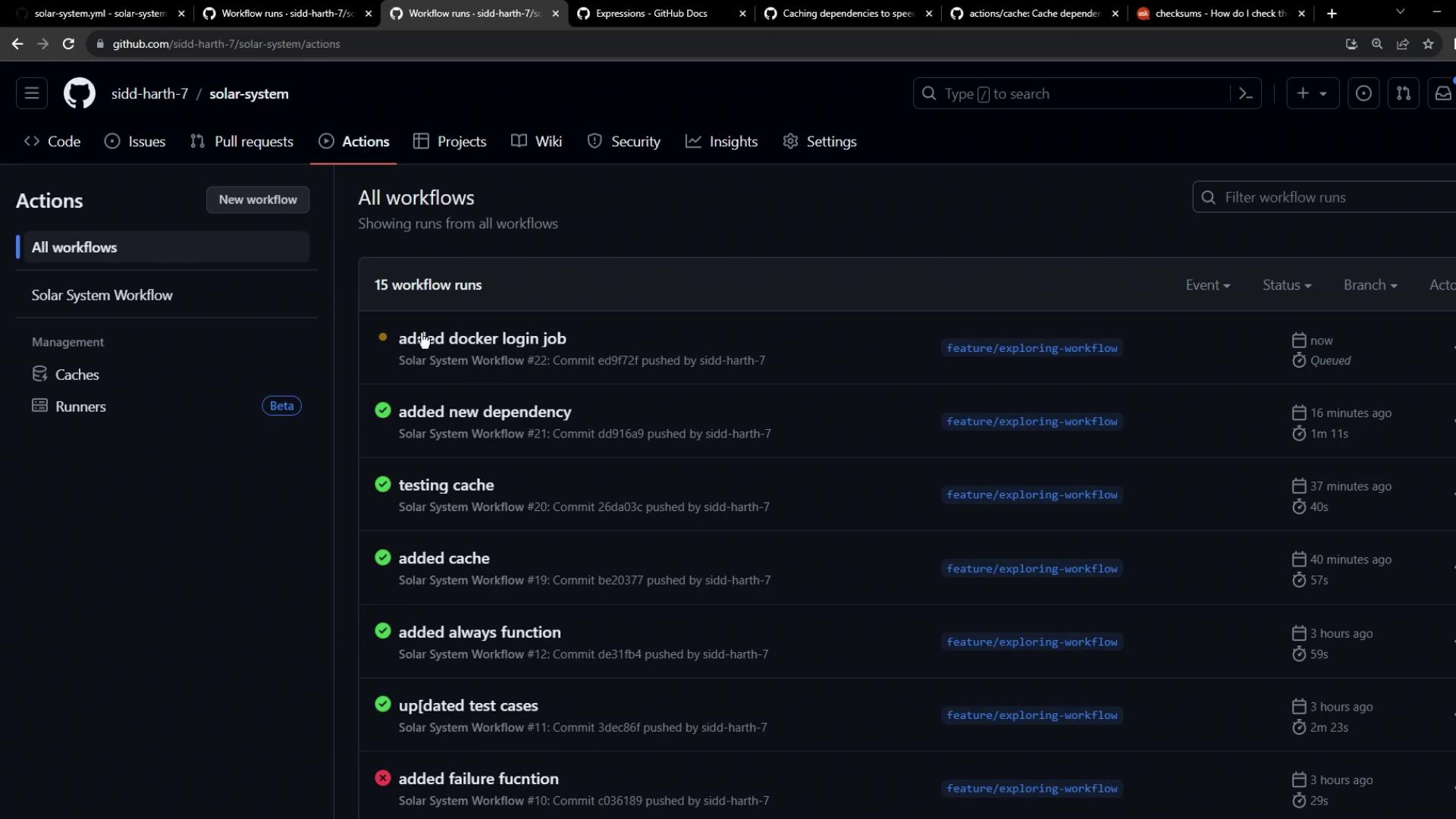

The image shows a GitHub Actions page displaying a list of workflow runs for a project named "solar-system," with various statuses and timestamps.

  1. Click on a run to view job dependencies. Notice Containerization waits for unit-testing and code-coverage:

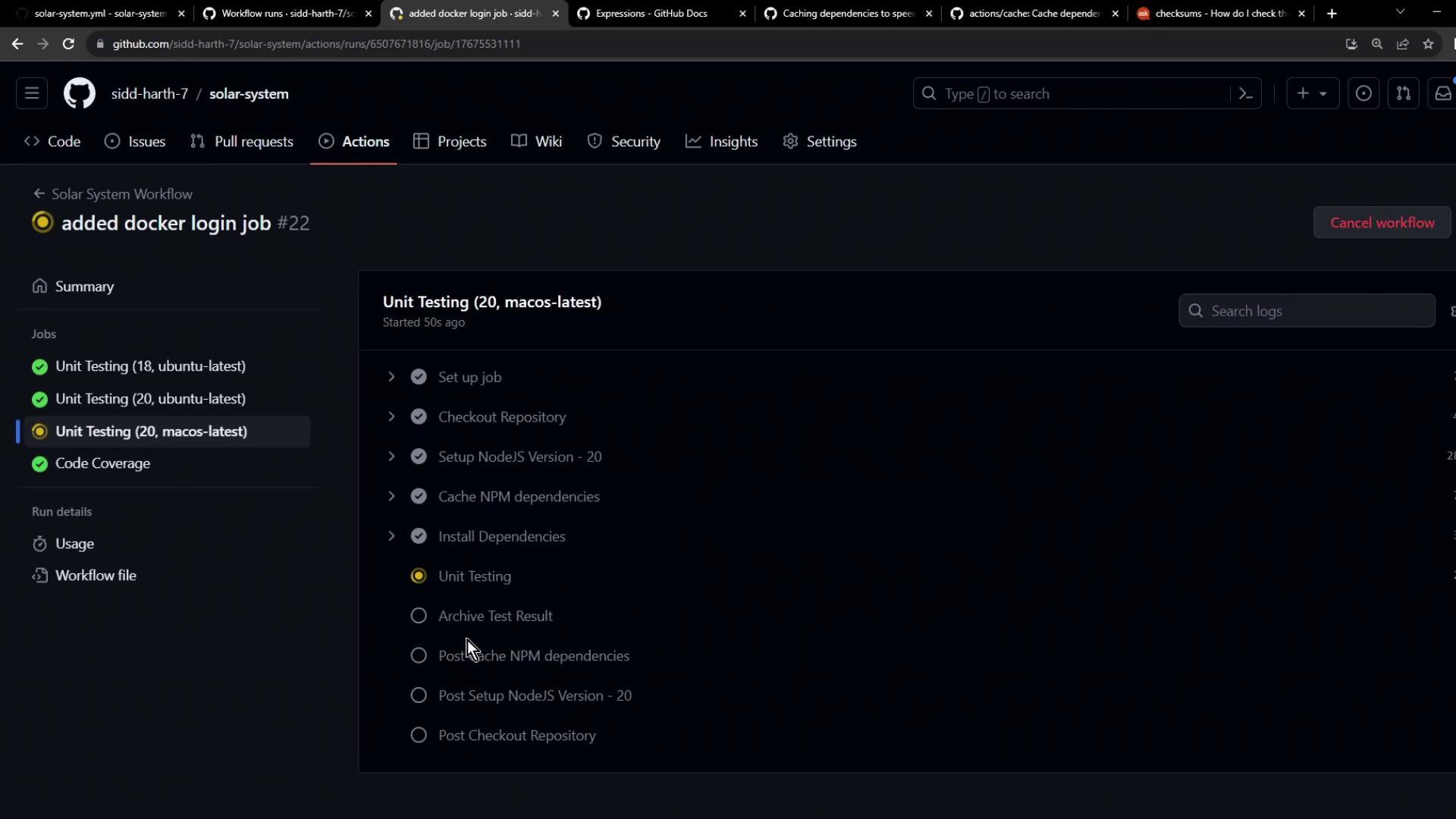

The image shows a GitHub Actions workflow interface with a list of jobs, including unit testing and code coverage, for a project named "solar-system." The current job highlighted is "Unit Testing (20, macos-latest)."

  1. Once earlier jobs pass, the Docker login step executes:

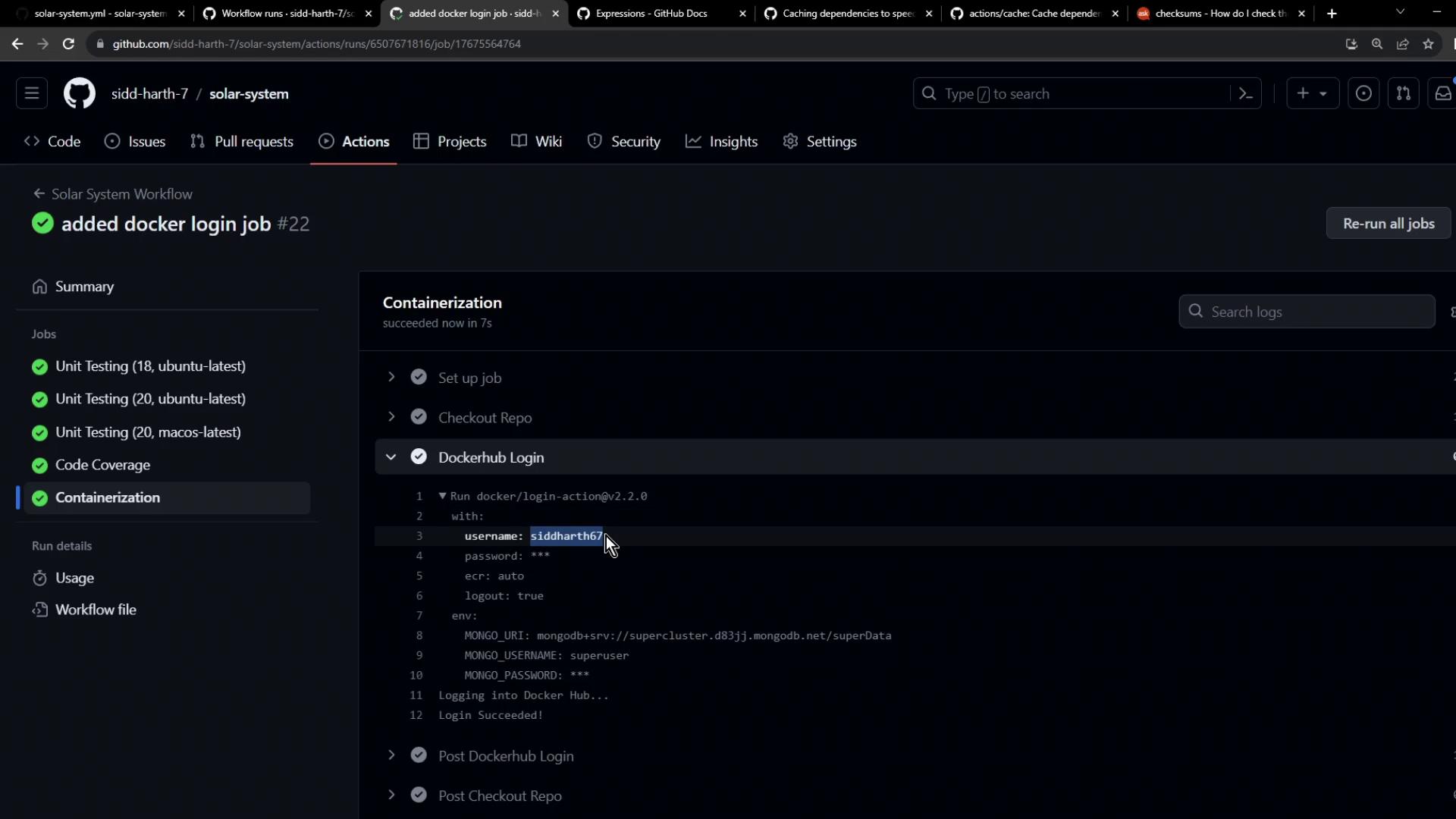

The image shows a GitHub Actions workflow interface with a successful containerization job, including unit testing and Dockerhub login steps.

Your workflow is now authenticated to Docker Hub. In the next lesson, we’ll build, tag, and push the Docker image.
