GitHub Actions

GitHub Actions Core Concepts

Additional Matrix Configuration

In this guide, we’ll dive deeper into GitHub Actions’ matrix strategy. You’ll learn how to:

  • Exclude unsupported combinations
  • Include custom combinations
  • Control failure behavior (fail-fast)
  • Limit parallel jobs (max-parallel)

By default, if any matrix job fails, GitHub Actions cancels all in-progress or queued jobs. Also, all combinations run in parallel unless you configure otherwise.

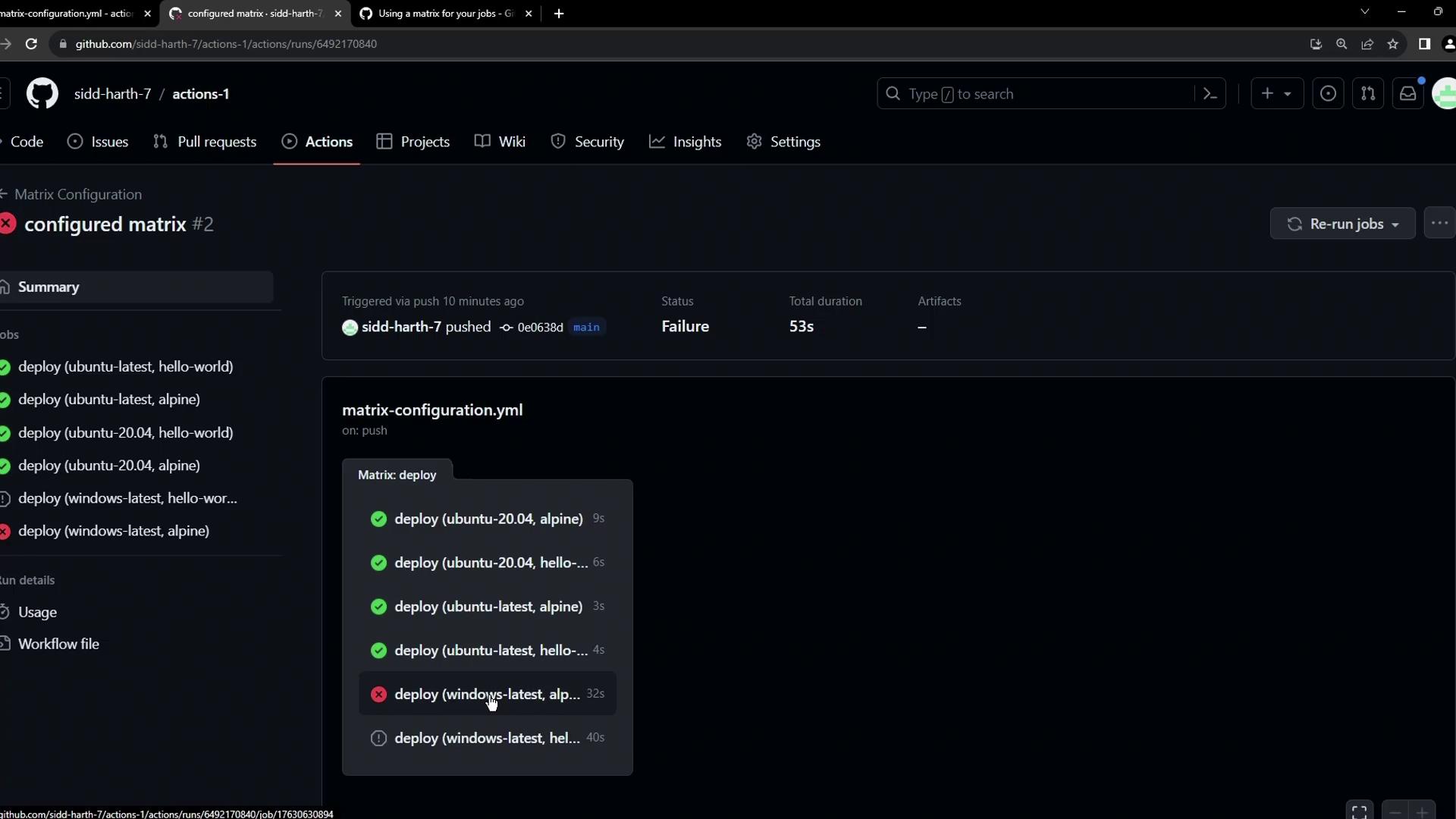

The image shows a GitHub Actions workflow summary with multiple deployment jobs, where most have succeeded except for one failure in the "windows-latest, alpine" deployment.

1. Excluding Specific Combinations

To prevent certain OS–image pairs (like Alpine on Windows) from running, use the exclude keyword under strategy.matrix:

# .github/workflows/deploy.yml
on:
  workflow_dispatch:
jobs:
  deploy:
    runs-on: ${{ matrix.os }}
    strategy:
      matrix:
        os: [ubuntu-latest, ubuntu-20.04, windows-latest]
        images: [hello-world, alpine]
        exclude:
          - os: windows-latest
            images: alpine
    steps:
      - name: Echo Docker Details
        run: docker info
      - name: Run Image on ${{ matrix.os }}
        run: docker run ${{ matrix.images }}

With this configuration, GitHub Actions will skip the windows-latest + alpine job, reducing the total from six to five.

Note

Excluding unsupported combinations helps save build minutes and avoids predictable failures.

2. Including Additional Combinations

Use include to add custom pairs beyond the default matrix. For instance, to run amd64/alpine only on Ubuntu 20.04:

# .github/workflows/deploy.yml
on:
  workflow_dispatch:
jobs:
  deploy:
    runs-on: ${{ matrix.os }}
    strategy:
      matrix:
        os: [ubuntu-latest, ubuntu-20.04, windows-latest]
        images: [hello-world, alpine]
        exclude:
          - os: windows-latest
            images: alpine
        include:
          - os: ubuntu-20.04
            images: amd64/alpine
    steps:
      - name: Echo Docker Details
        run: docker info
      - name: Run Image on ${{ matrix.os }}
        run: docker run ${{ matrix.images }}

This ensures amd64/alpine builds only on Ubuntu 20.04, while still excluding Alpine on Windows.

3. Controlling Failure Behavior and Parallelism

By default, fail-fast: true cancels all remaining jobs if one fails. You can disable this and control concurrency:

# .github/workflows/deploy.yml
on:
  workflow_dispatch:
jobs:
  deploy:
    runs-on: ${{ matrix.os }}
    strategy:
      fail-fast: false       # Continue running all matrix jobs even on failure
      max-parallel: 2        # Limit to 2 concurrent jobs
      matrix:
        os: [ubuntu-latest, ubuntu-20.04, windows-latest]
        images: [hello-world, alpine]
        exclude:
          - os: windows-latest
            images: alpine
        include:
          - os: ubuntu-20.04
            images: amd64/alpine
    steps:
      - name: Echo Docker Details
        run: docker info
      - name: Run Image on ${{ matrix.os }}
        run: docker run ${{ matrix.images }}

This setup runs only two jobs at a time. As each finishes, the next queued jobs start.

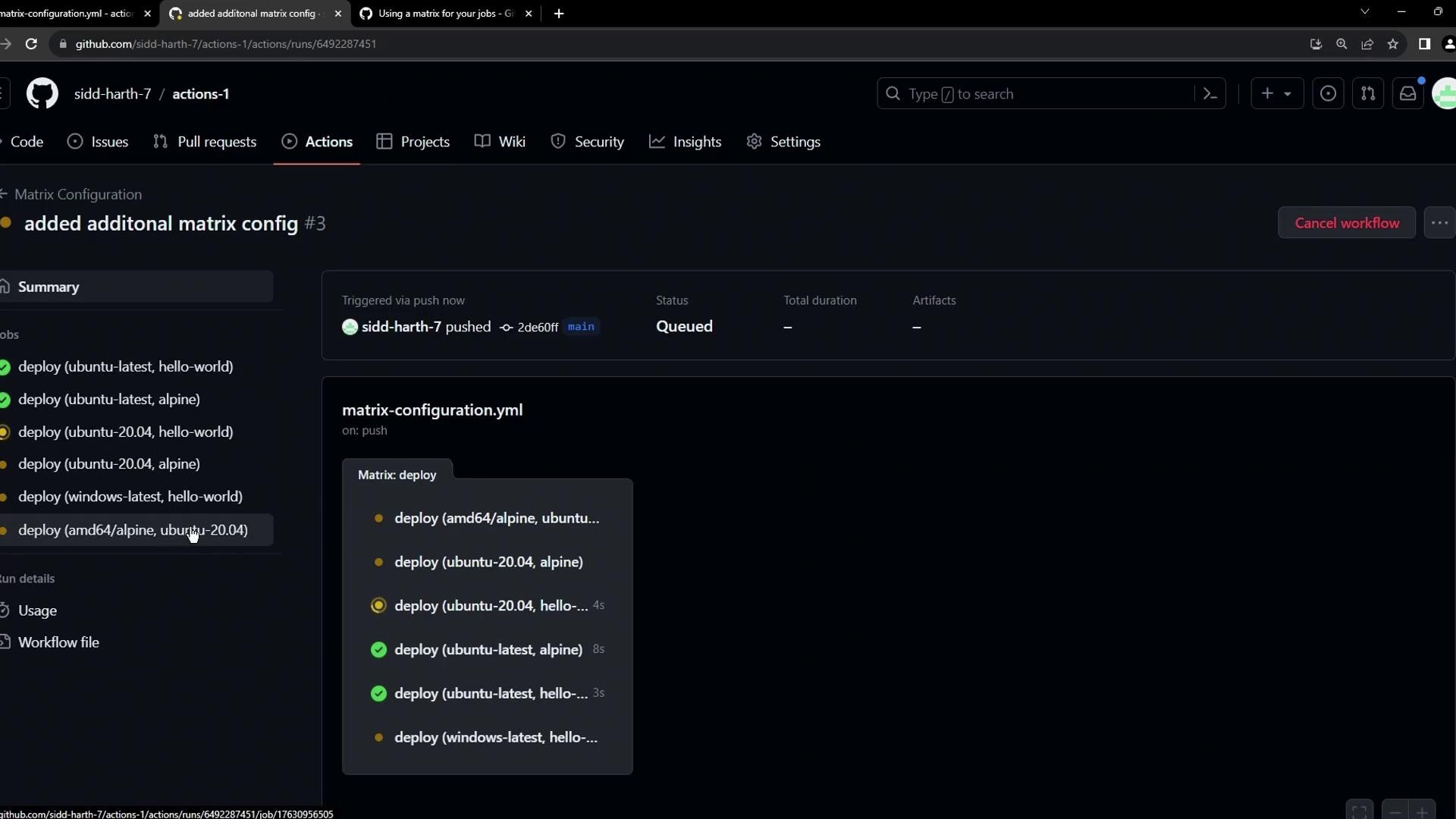

The image shows a GitHub Actions interface with a matrix configuration for deploying various environments, including Ubuntu and Windows. The workflow is queued, and different deployment jobs are listed with their statuses.

Notice Alpine is excluded on Windows, and amd64/alpine is included only on Ubuntu 20.04:

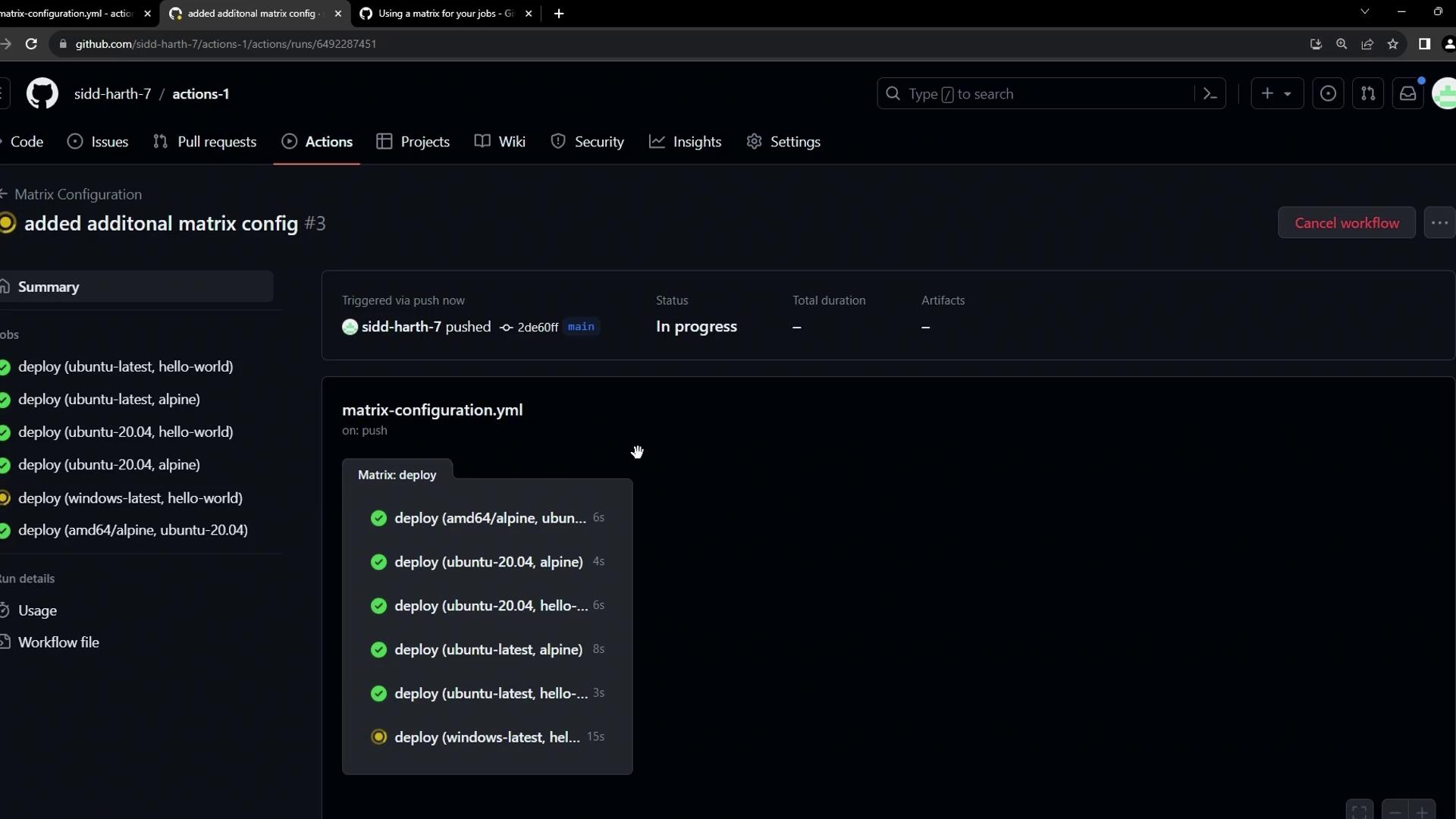

The image shows a GitHub Actions workflow interface with a matrix configuration for deployment jobs, indicating various operating systems and environments being tested. The workflow is currently in progress.

Matrix Strategy Options at a Glance

OptionDescription
matrixDefines axes (e.g., OS, images) to combine
excludeOmits specific combinations
includeAdds custom combinations beyond the default
fail-fasttrue (default) cancels on first failure; false runs all jobs regardless
max-parallelLimits how many matrix jobs run concurrently
