GitHub Copilot Certification

Prompt Engineering with Copilot

How User Prompts Work with Copilot

GitHub Copilot streamlines your development by transforming natural-language prompts into code suggestions. In this guide, we’ll break down Copilot’s near-instantaneous, six-stage workflow—from context capture to decision-making—so you can craft better prompts and boost productivity with your AI coding assistant.

Copilot Workflow Overview

Below is a quick summary of the six stages in Copilot’s continuous loop:

StageDescription
Developer ExperienceCaptures file context, cursor position, and project scope
Data TransmissionSends only the prompt and surrounding code to GitHub
AI ProcessingAnalyzes syntax, semantics, and patterns with Codex/GPT
Suggestion GenerationPredicts and ranks code completions
Real-Time FeedbackShows ghost-text suggestions in your editor
Developer DecisionAccepts, rejects, or cycles through suggestions

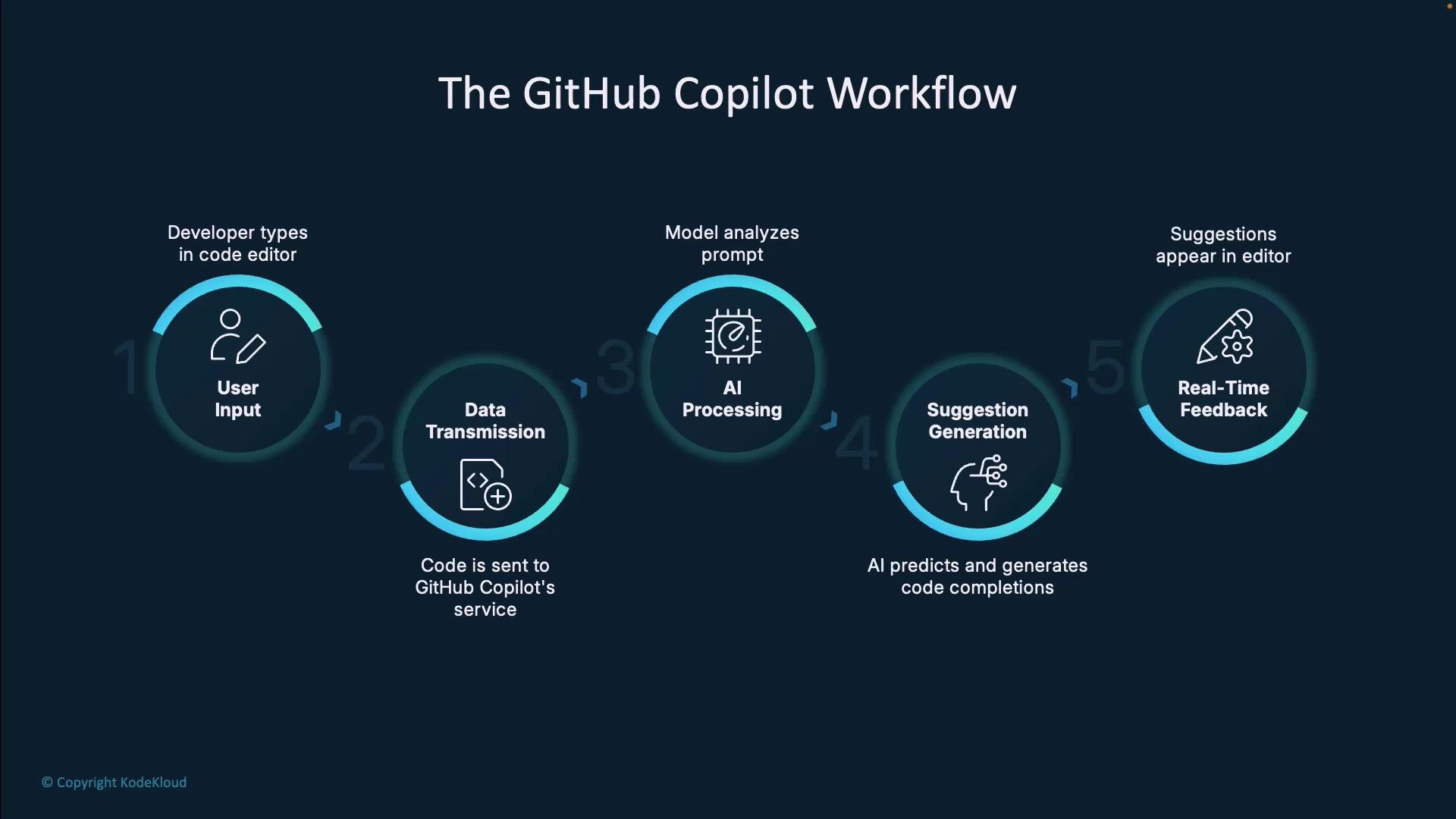

The image illustrates the GitHub Copilot workflow, detailing steps from user input to real-time feedback, including data transmission, AI processing, and suggestion generation.


Step 1: Developer Experience

All interactions begin in your IDE—VS Code, JetBrains, or another supported environment. As you type code or comments, the Copilot extension continuously captures:

  • File name, cursor location, and language mode
  • Surrounding code structure (functions, imports, classes)
  • Open files and repository hierarchy

This real-time context (both syntax and semantics) forms the foundation for accurate, relevant suggestions.


Step 2: Data Transmission

Once your local context is ready, Copilot securely sends a prompt—the code lines around your cursor—to GitHub’s cloud services. Only the minimal snippet needed for the request is transmitted, not your entire repository.

Privacy

Copilot does not upload your full codebase. It only sends the most relevant lines to preserve confidentiality and reduce latency.

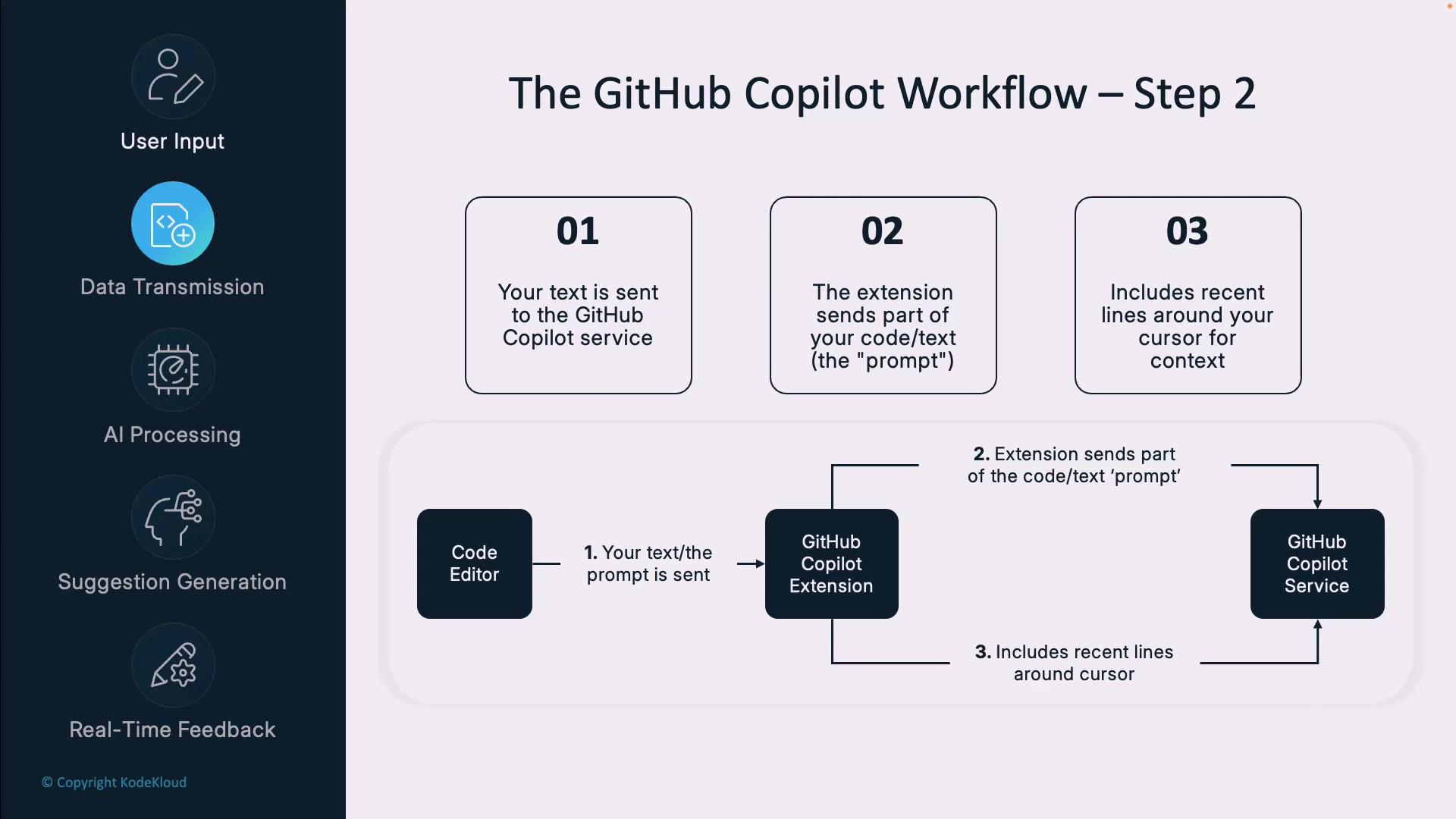

The image illustrates the GitHub Copilot workflow, specifically Step 2, detailing the process of sending text to the service, including the prompt and context lines. It also shows a sidebar with stages like user input, data transmission, AI processing, suggestion generation, and real-time feedback.


Step 3: AI Processing

On GitHub’s backend, an AI model powered by OpenAI’s Codex/GPT technology parses your prompt:

  • Detects the programming language, frameworks, and libraries
  • Recognizes data structures, algorithms, and naming conventions
  • Infers semantic intent and coding patterns from open-source examples

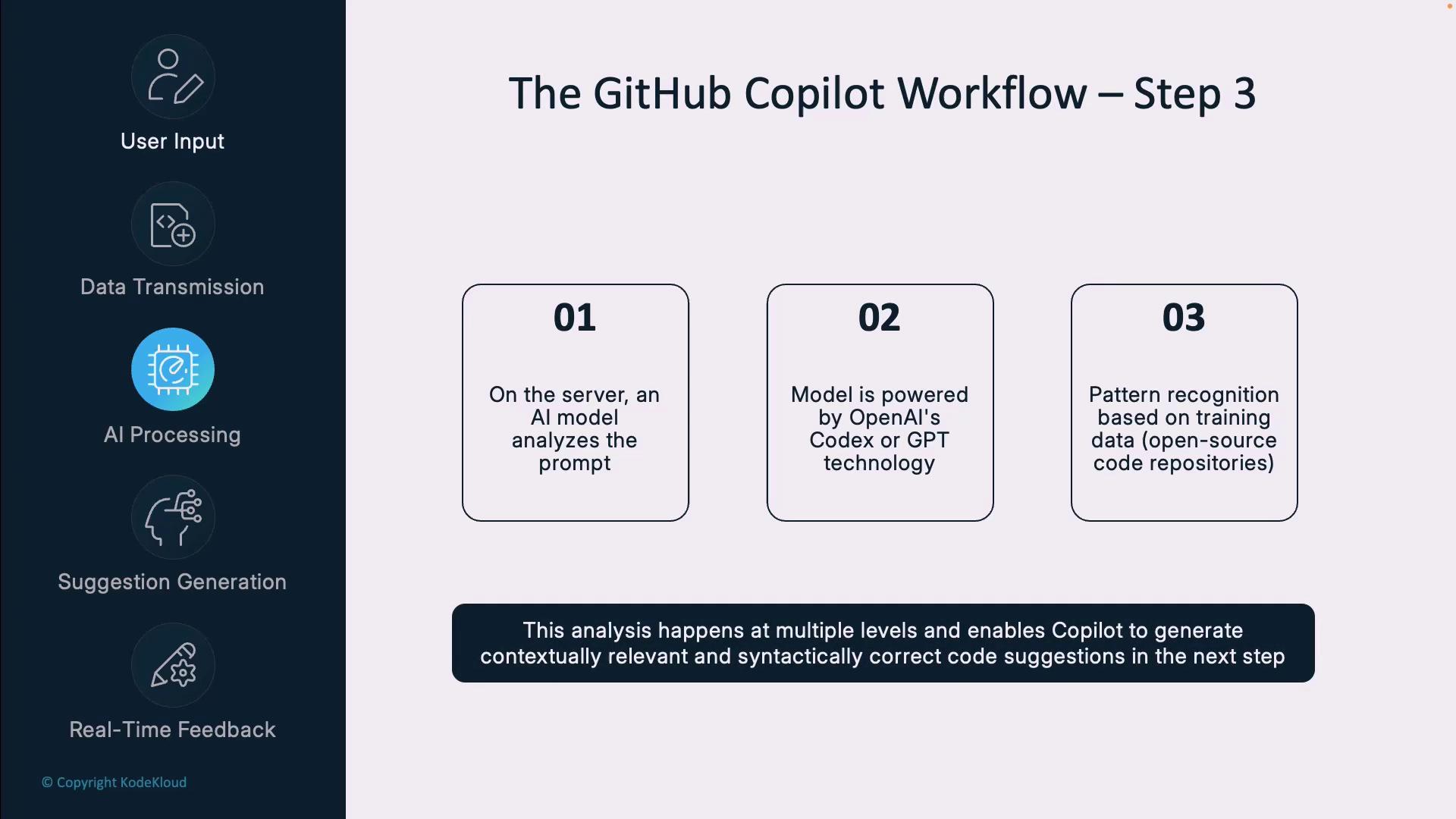

The image outlines the GitHub Copilot workflow, specifically Step 3, detailing AI model analysis, OpenAI's Codex or GPT technology, and pattern recognition using open-source code repositories. It also includes a sidebar with stages like user input, data transmission, AI processing, suggestion generation, and real-time feedback.

This multi-layer analysis powers contextually relevant code completions.


Step 4: Suggestion Generation

Based on the processed context, Copilot generates multiple code continuations. It ranks options by confidence, style, and best practices before returning them to your editor.

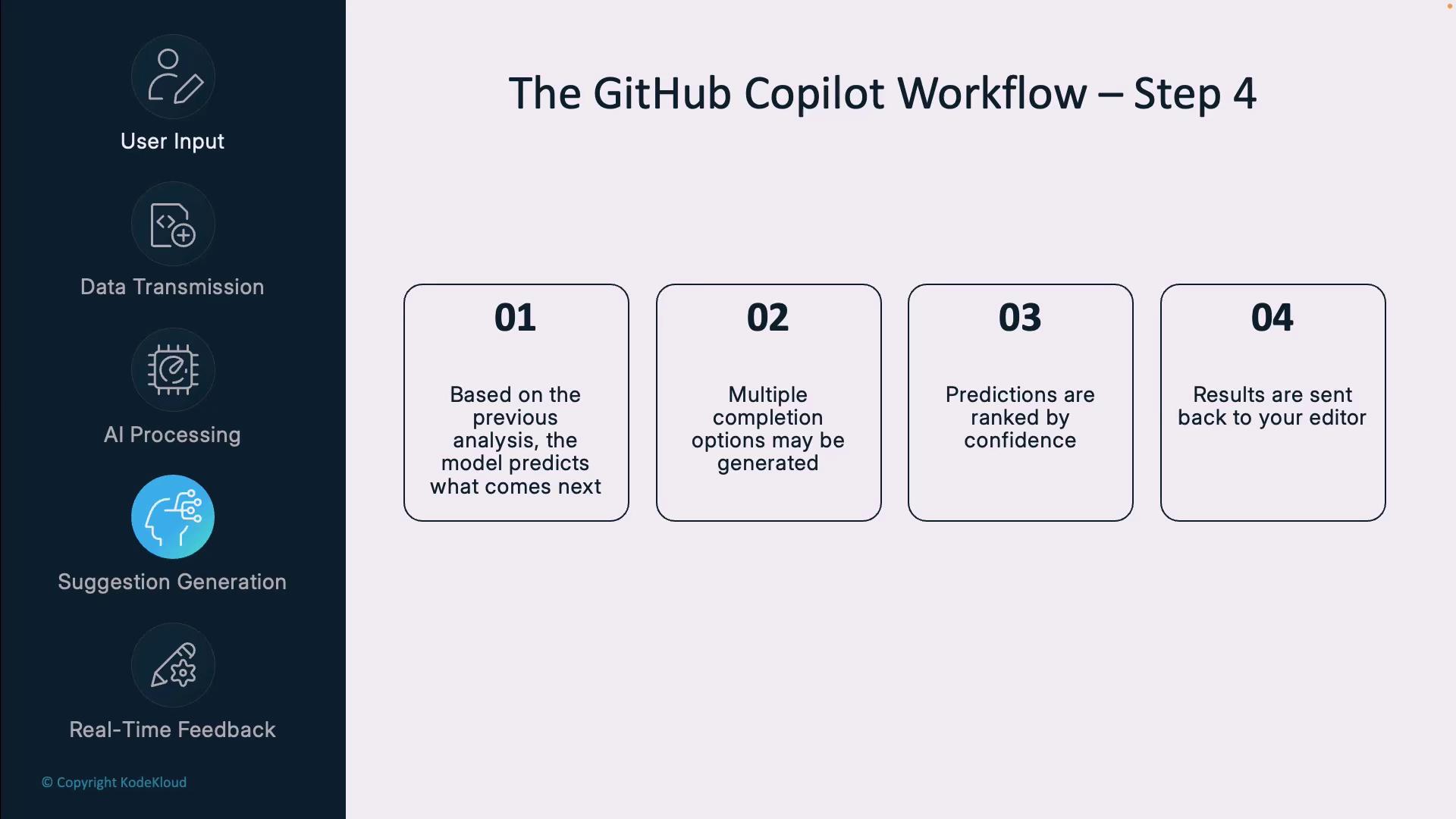

The image illustrates Step 4 of the GitHub Copilot Workflow, detailing the process of suggestion generation, including prediction, option generation, ranking by confidence, and result transmission. It also lists stages like user input, data transmission, AI processing, and real-time feedback.

These ranked suggestions appear in milliseconds, ready for your review.


Step 5: Real-Time Feedback

In your editor, Copilot renders suggestions as ghost text. You can:

  • Press Tab or Enter to accept
  • Keep typing to ignore or reject
  • Use shortcuts to cycle through alternatives

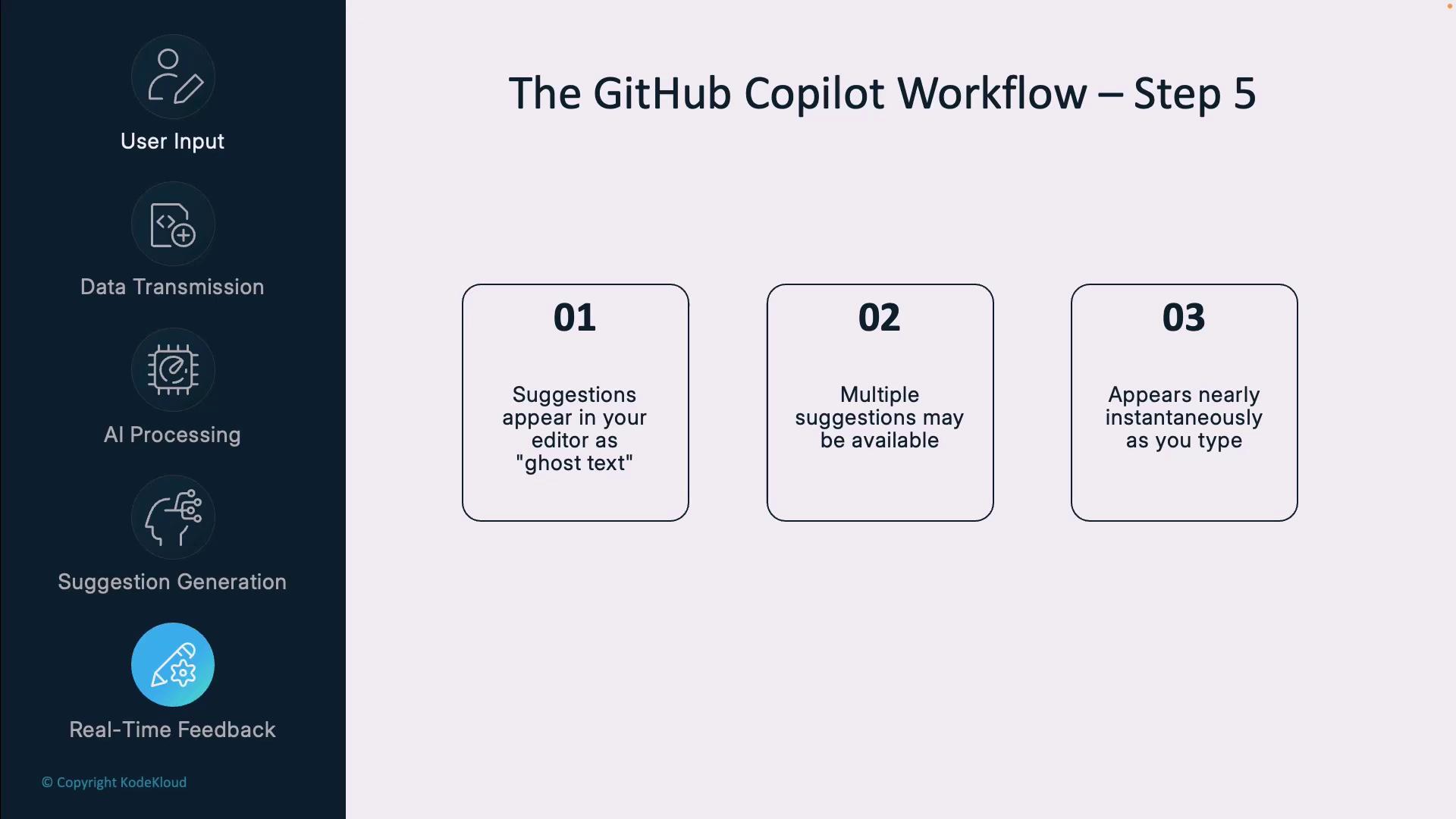

The image outlines Step 5 of the GitHub Copilot Workflow, highlighting that suggestions appear as "ghost text," multiple suggestions may be available, and they appear nearly instantaneously. It also lists stages like User Input, Data Transmission, AI Processing, Suggestion Generation, and Real-Time Feedback.

This inline, non-blocking feedback seamlessly integrates into your coding flow.


Step 6: Developer Decision

You remain in full control. After previewing suggestions, you can:

  • Accept (Tab/Enter) to insert code
  • Reject by typing custom code
  • Cycle through other options if needed

Every action restarts the loop, keeping Copilot aligned with your evolving context.

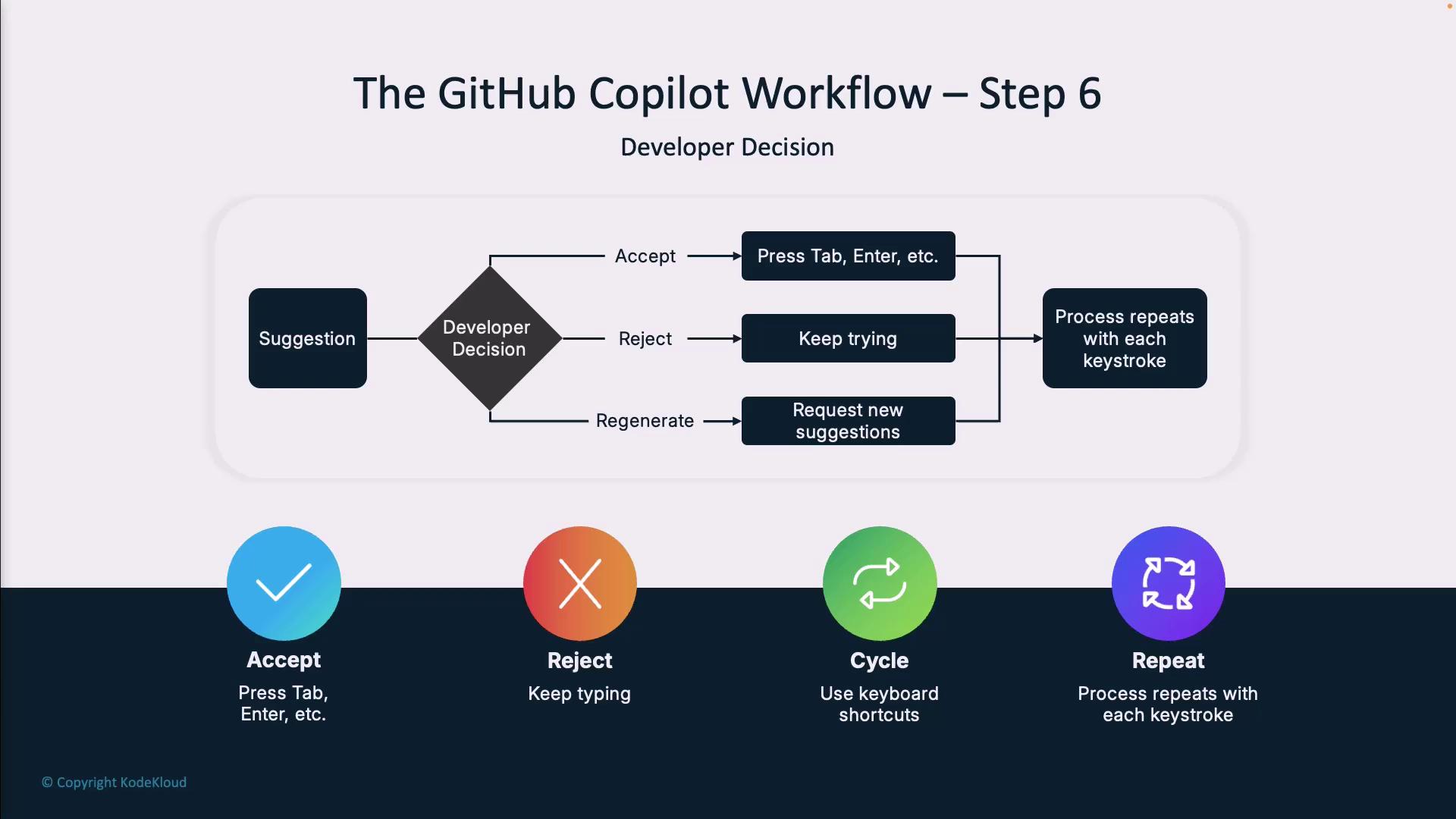

The image illustrates the GitHub Copilot workflow, focusing on the developer's decision-making process when accepting, rejecting, or regenerating code suggestions. It includes a flowchart and icons representing actions like accepting, rejecting, cycling, and repeating suggestions.


Writing Effective Prompts

To maximize Copilot’s assistance:

  • Be specific about desired functionality
  • Add contextual comments before snippets
  • Mention edge cases or constraints
  • Use the correct file extension and language syntax

Example:

// Create a function that validates email addresses using regex and returns a boolean.
// It should return null for empty inputs.

Common Prompt Patterns

Pattern TypeDescriptionExample
Function DescriptionOutline expected behavior// function that sorts an array of objects by a specified property
Bug Fix RequestDescribe an error and desired fix// the following code throws an exception when the input is null\nFix it to handle null inputs gracefully.
Code RefactoringAsk for modern syntax or optimizations// refactor this function to use async/await instead of promises
Test GenerationGenerate unit tests// write unit tests for the following function

Security Best Practices

Warning

Never include sensitive data (API keys, passwords) in your prompts. Use environment variables or secret managers and follow your organization’s AI data-sharing policies.

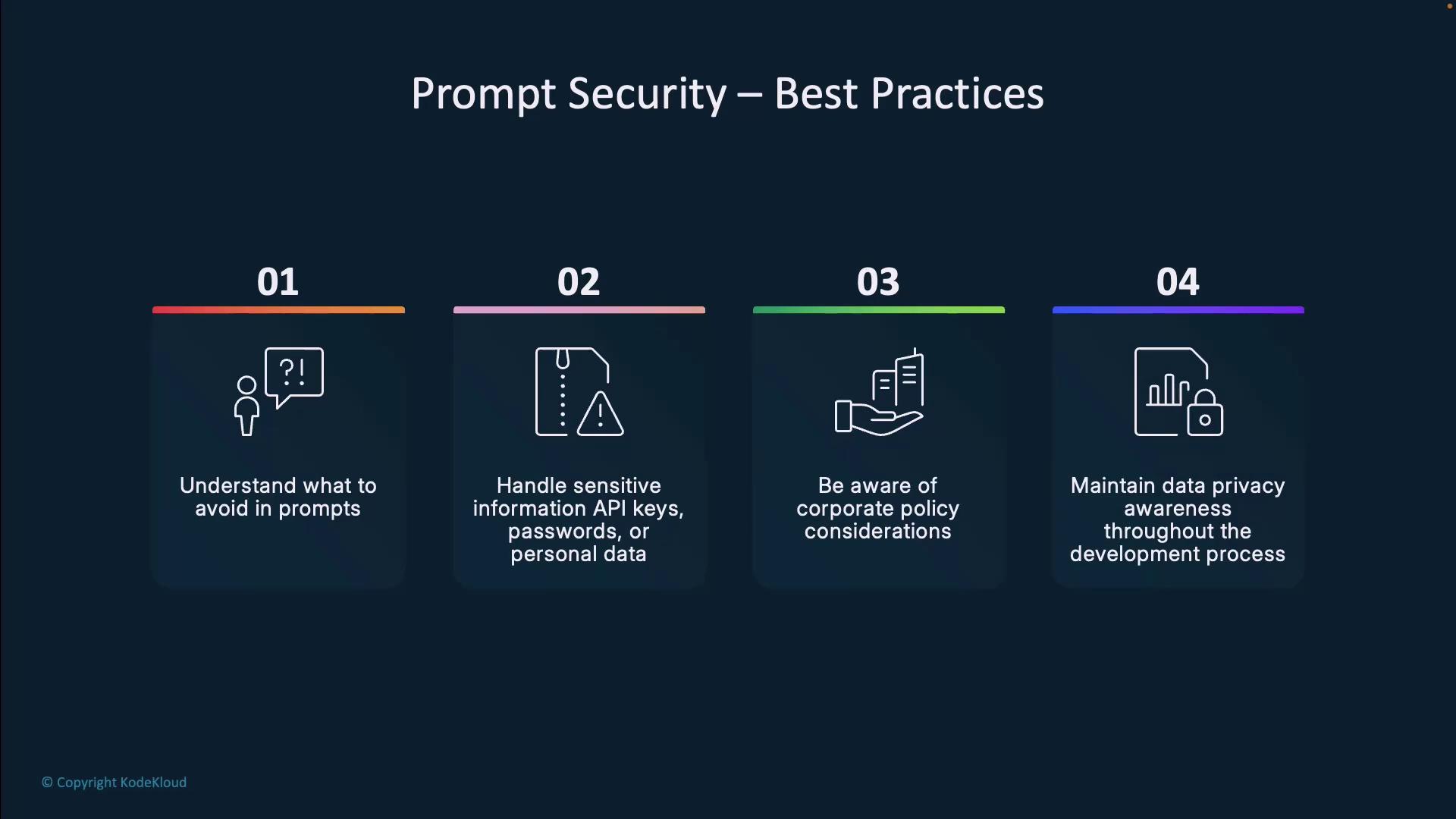

The image outlines four best practices for prompt security: avoiding certain prompts, handling sensitive information, being aware of corporate policies, and maintaining data privacy awareness.


Continuous Improvement

Copilot evolves on two levels:

  1. Global model updates from GitHub/OpenAI ensure broad enhancements.
  2. On-the-fly adaptation to your repo’s style, naming conventions, and frameworks.

Your acceptance/rejection patterns help Copilot learn your preferences over time—all without retaining your code for model training.


Key Takeaways

  1. A secure, multi-stage pipeline transforms prompts into code suggestions.
  2. Copilot enforces privacy, security, and ethics at every step.
  3. Inline feedback loops drive continuous system and style improvements.
  4. Mastering this workflow helps you engineer precise prompts and boost productivity.

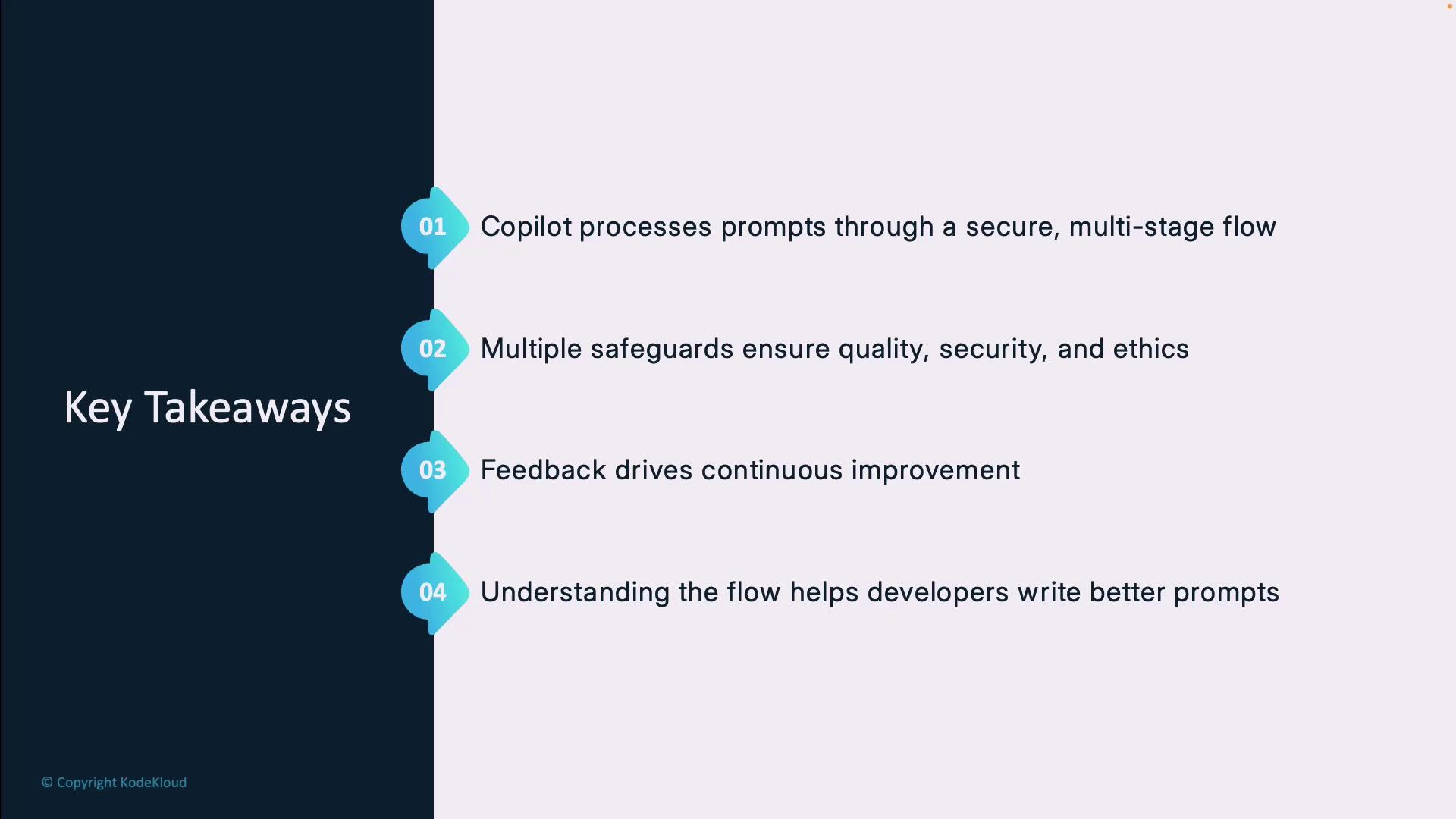

The image lists four key takeaways about Copilot, highlighting secure processing, safeguards for quality and ethics, the importance of feedback, and understanding the flow for better prompt writing.
