Masking Variables using Project Settings

In this tutorial, you’ll learn how to secure your GitLab CI/CD pipeline by masking sensitive variables—such as passwords—within your project’s settings. By keeping secrets out of your repository and hiding them from job logs, you reduce the risk of accidental exposure.

Why Mask Variables?

Hardcoding credentials in .gitlab-ci.yml can lead to leaks if your repo is public or if someone gains read access. Masked variables let you:

• Store secrets outside the codebase
• Prevent values from appearing in pipeline output
• Manage credentials centrally

Example: Hardcoded Password in .gitlab-ci.yml

docker_push:
  stage: docker
  needs:
    - docker_testing
  variables:
    PASSWORD: %3cUrePaSswd
  script:
    - echo "docker login --username=$USERNAME --password=$PASSWORD"
    - echo "docker push $REGISTRY/$IMAGE:$VERSION"

Embedding PASSWORD directly in the YAML exposes it in your repository and logs—a significant security risk.

Storing a Masked Variable in Project Settings

Follow these steps to add a masked variable in GitLab:

1. Go to Settings > CI/CD in your project.
2. Expand the Variables section.
3. Click Add variable.

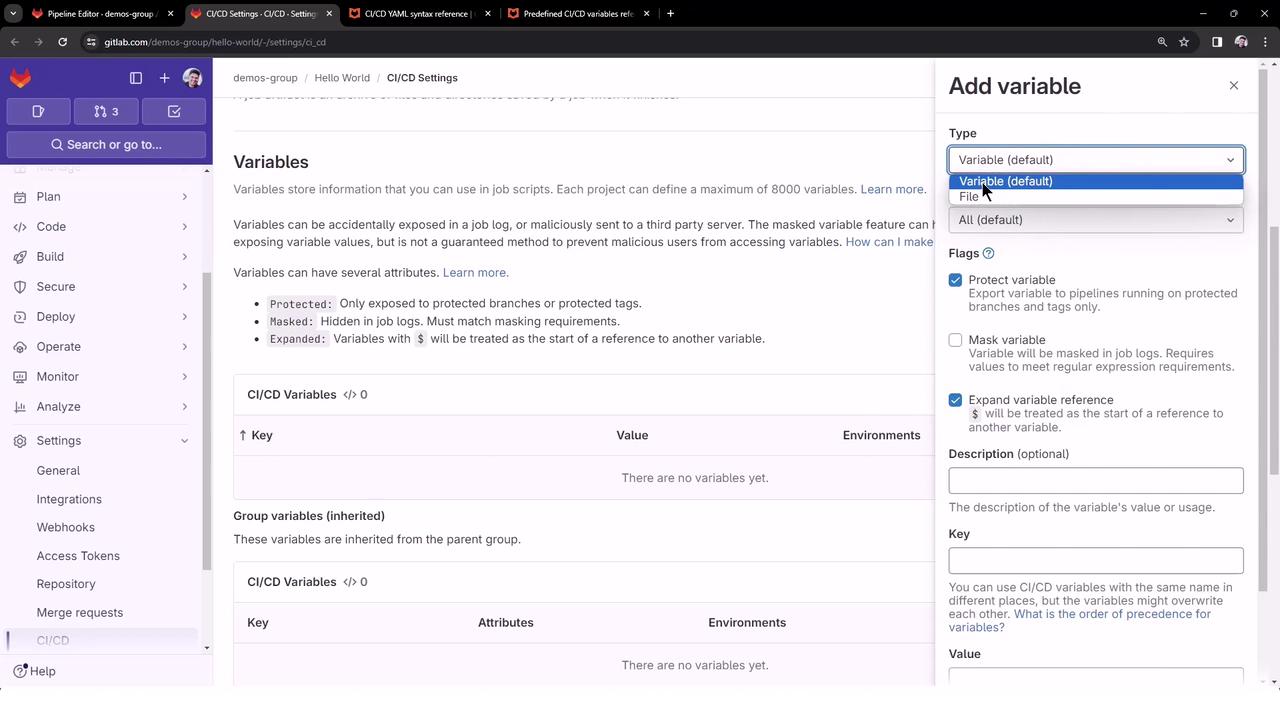

Configure the variable:

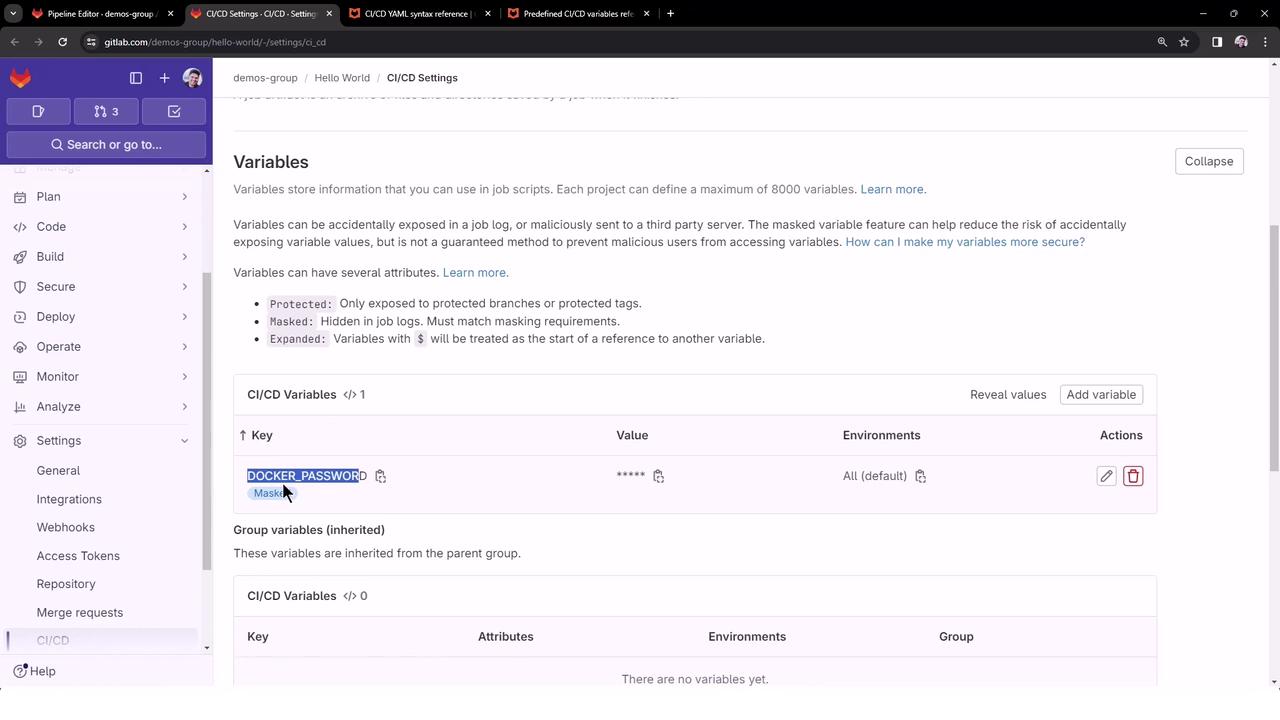

Once saved, your variable appears in the list with a masked flag.

Referencing the Variable in .gitlab-ci.yml

You no longer need to define PASSWORD at the job level. Simply call the masked variable:

docker_push:
  stage: docker
  needs:
    - docker_testing
  script:
    - echo "docker login --username=$USERNAME --password=$DOCKER_PASSWORD"
    - echo "docker push $REGISTRY/$IMAGE:$VERSION"

The global variable $DOCKER_PASSWORD is automatically injected into the job environment.

Simplifying the Pipeline for Demos

To run only specific jobs (e.g., docker_push and deploy_ec2), hide others by prefixing their names with a dot (.). Hidden jobs appear in the editor but are skipped at runtime:

stages:
  - build
  - test
  - docker
  - deploy

variables:
  USERNAME: dockerUsername
  REGISTRY: docker.io/$USERNAME
  IMAGE: imageName
  VERSION: $CI_PIPELINE_ID

.build_file:
  script: [...]

.test_file:

.docker_build:

.docker_testing:

docker_push:
  stage: docker
  needs:
    - docker_testing
  script:
    - echo "docker login --username=$USERNAME --password=$DOCKER_PASSWORD"
    - echo "docker push $REGISTRY/$IMAGE:$VERSION"

deploy_ec2:
  stage: deploy
  script:
    - cat dragon.txt
    - echo "deploying ..."
    - echo "Username - $USERNAME and Password - $DOCKER_PASSWORD"

Hidden jobs (.build_file, .test_file, etc.) will not execute, ensuring only docker_push and deploy_ec2 run in your demo.

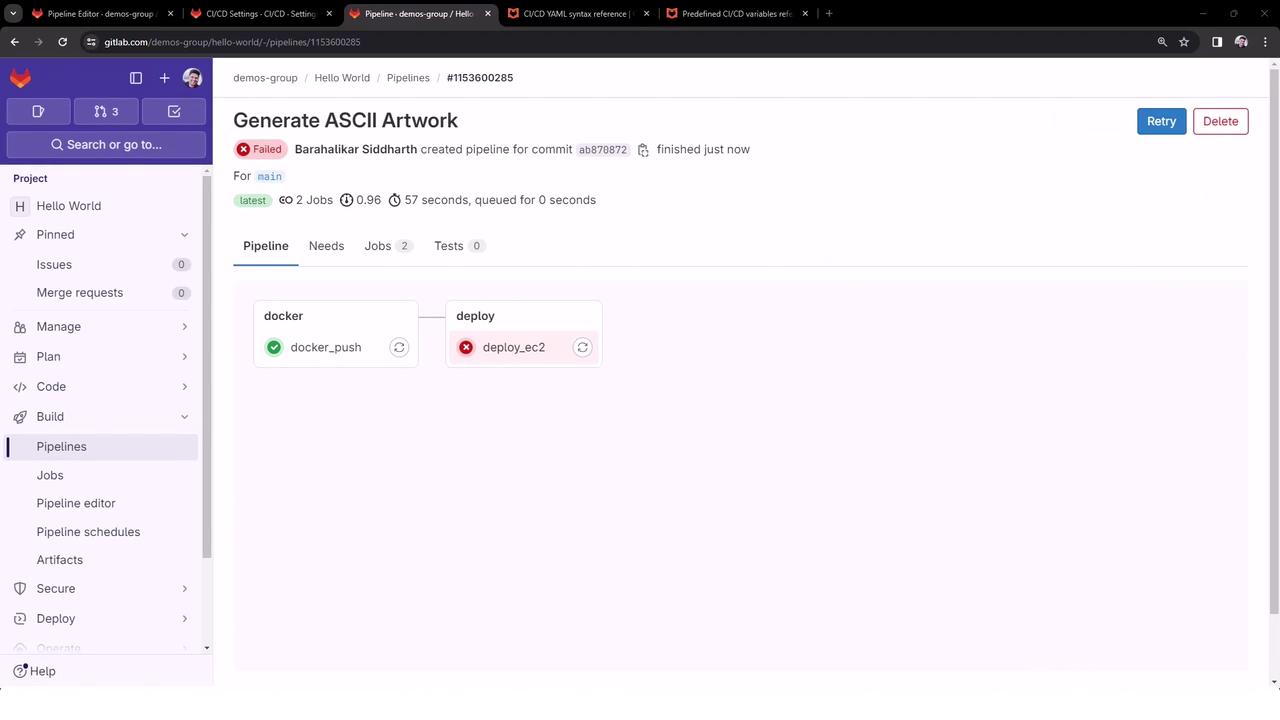

Example Pipeline Run

After pushing your changes, the pipeline triggers with just the visible jobs:

docker_push Logs

$ echo "docker login --username=dockerUsername --password=[MASKED]"
docker login --username=dockerUsername --password='[MASKED]'
docker push $REGISTRY/$IMAGE:$VERSION

The password is injected from CI/CD settings and masked in the output.

deploy_ec2 Logs

$ cat dragon.txt
cat: dragon.txt: No such file or directory
ERROR: Job failed: exit code 1

Although this job fails due to a missing file, it clearly demonstrates that $DOCKER_PASSWORD would be available—and masked—here as well.

Summary

By storing sensitive values in GitLab’s CI/CD settings and enabling the Masked flag, you can:

• Eliminate secrets from your code repository
• Prevent credentials from appearing in job logs
• Reference variables globally using $VARIABLE_NAME

Secure your pipeline today by moving all sensitive variables to project settings!

Links and References

• GitLab CI/CD Variables
• GitLab Pipeline Configuration Reference
