Staging Environment and Canaray Deployment with AutoDevOps part 2

In the previous lesson, we enabled a new Auto DevOps deployment strategy, pushed changes to a feature branch, and reviewed the Merge Request (including security and performance reports). Now we'll merge into main and watch Auto DevOps deploy to production using an incremental canary strategy.

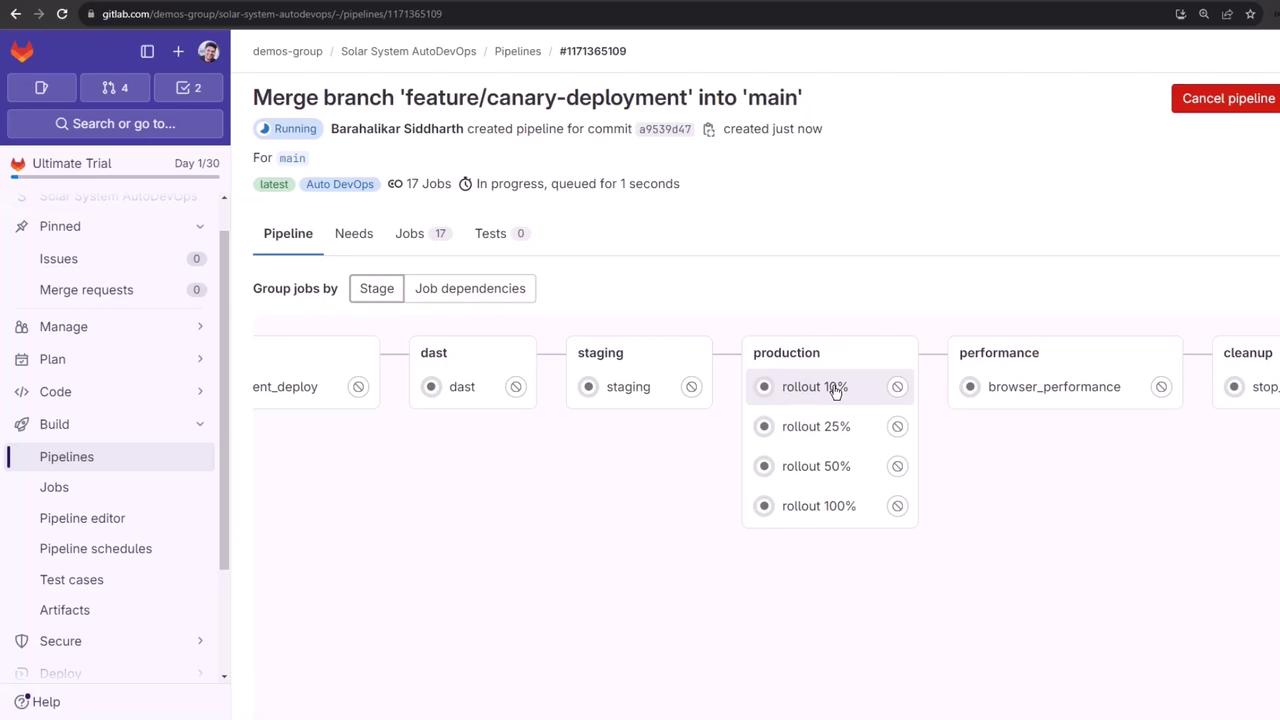

1. Merge into main and Trigger Production Pipeline

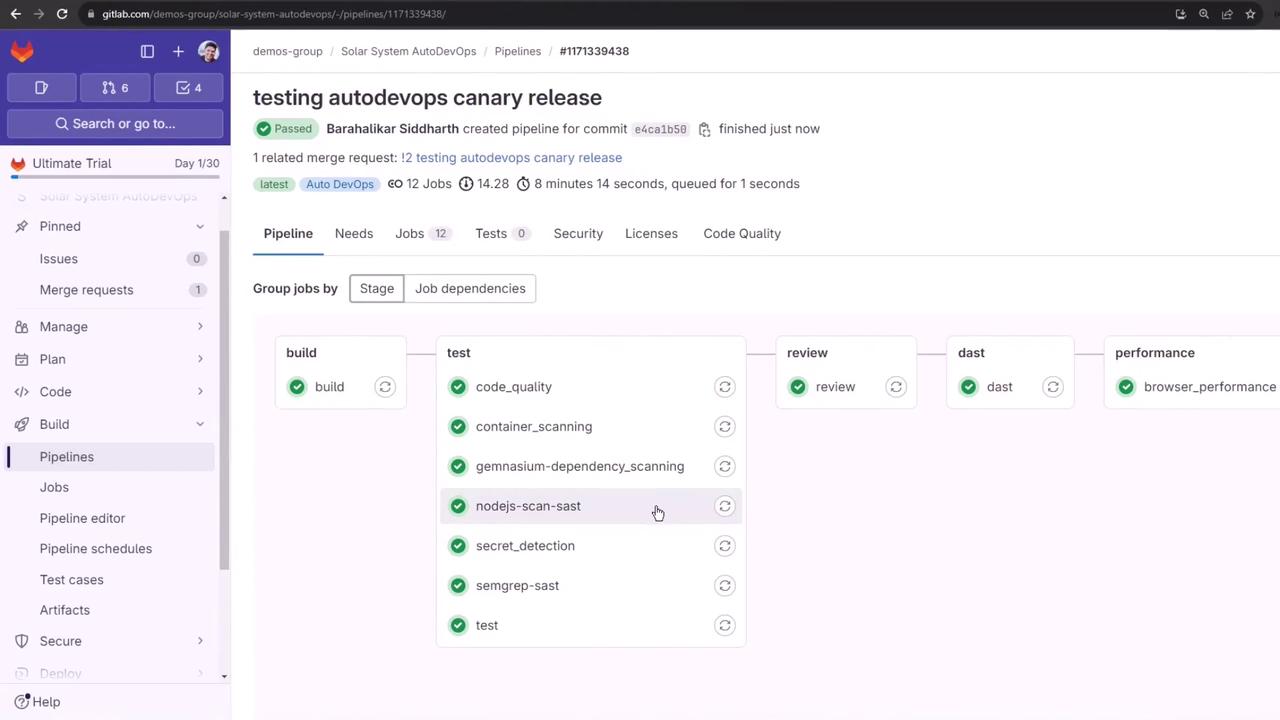

Once the Merge Request is accepted, GitLab triggers a new pipeline on the protected main branch. This pipeline adds deployment stages on top of the build, test, DAST and performance jobs.

The full sequence is:

1. build
2. test
3. review (DAST)
4. staging
5. production rollout (10%, 25%, 50%, 100%)
6. performance
7. cleanup

Cancelling Unneeded Jobs

If you need to skip rerunning certain tests, you can:

• Manually cancel jobs in the GitLab UI
• Disable specific jobs via Settings > CI/CD

For this walkthrough, we’ll focus on the staging and manual production rollout stages.

2. Staging Deployment

After build, test, and DAST succeed, the staging job deploys to the staging namespace and then waits for the production approval.

# Check staging resources
kubectl -n staging get all

NAME                                 READY   STATUS    RESTARTS   AGE
pod/staging-6548cd9479-tqpgp         1/1     Running   0          2m
service/staging-auto-deploy          10.98.41.96   <none>   3000/TCP   2m
deployment.apps/staging              1/1     1         1          2m
replicaset.apps/staging-6548cd9479   1       1         1          2m

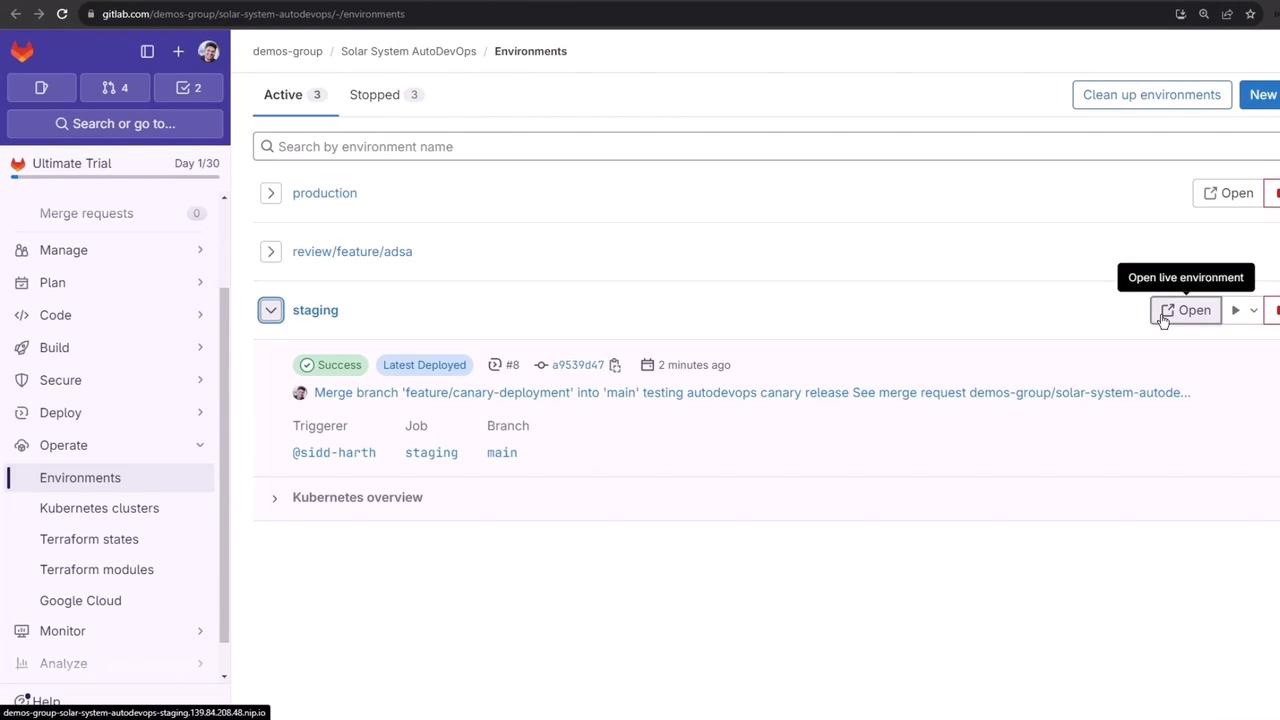

You can also verify the deployment under Operations > Environments:

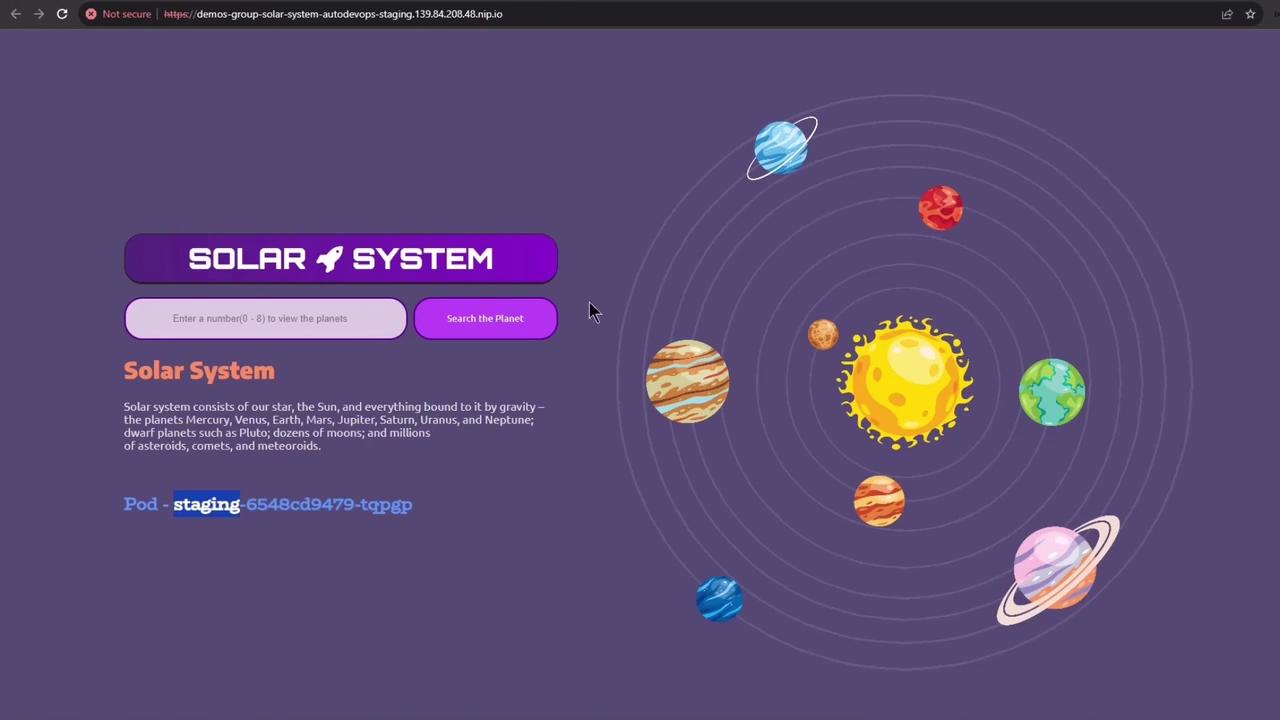

Opening the live URL confirms the staging app UI:

STAGING_ENABLED: "false"

3. Manual Production Deployment

Production is a protected environment requiring manual approval. Before rolling out, inspect current production workloads:

kubectl -n production get all

NAME                              READY   STATUS    RESTARTS   AGE
pod/production-df6dd64cf-xxxxx    10/10   Running   0          4h32m
service/production-auto-deploy    10.104.1.52   <none>   3000/TCP   4h32m
deployment.apps/production        10/10   10        10         4h32m
replicaset.apps/production-df6dd6 10      10        10         4h32m

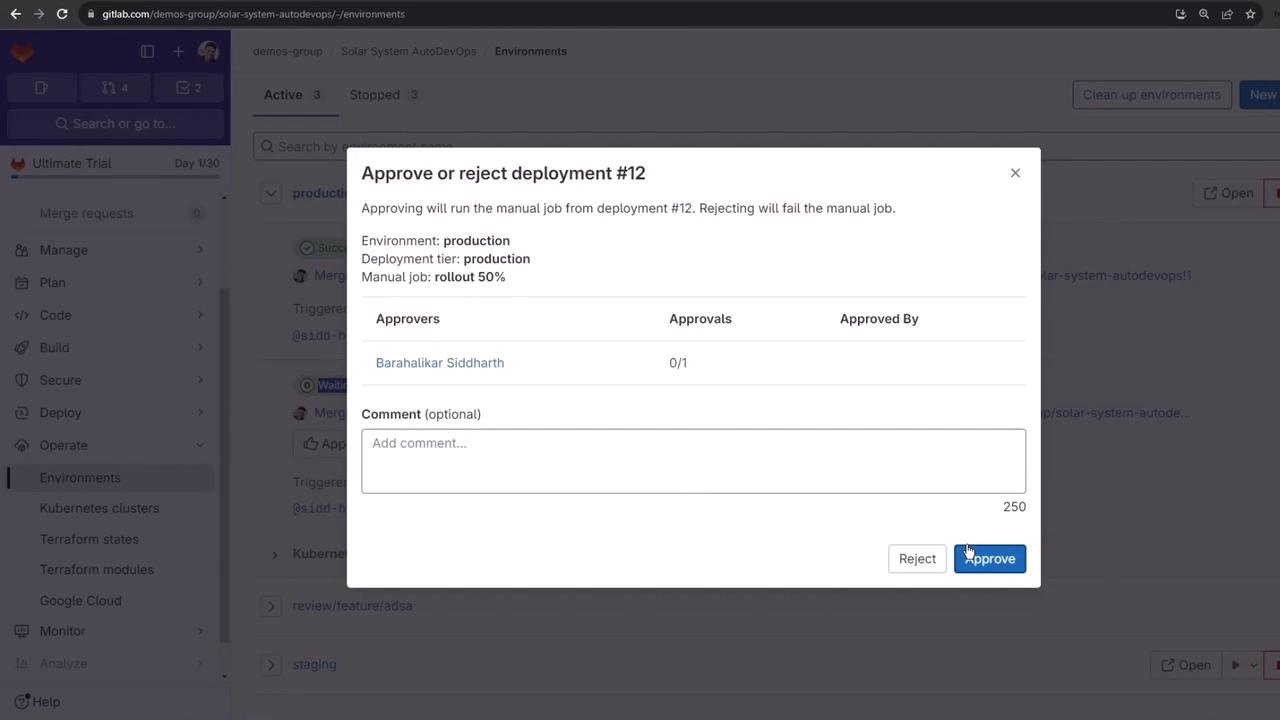

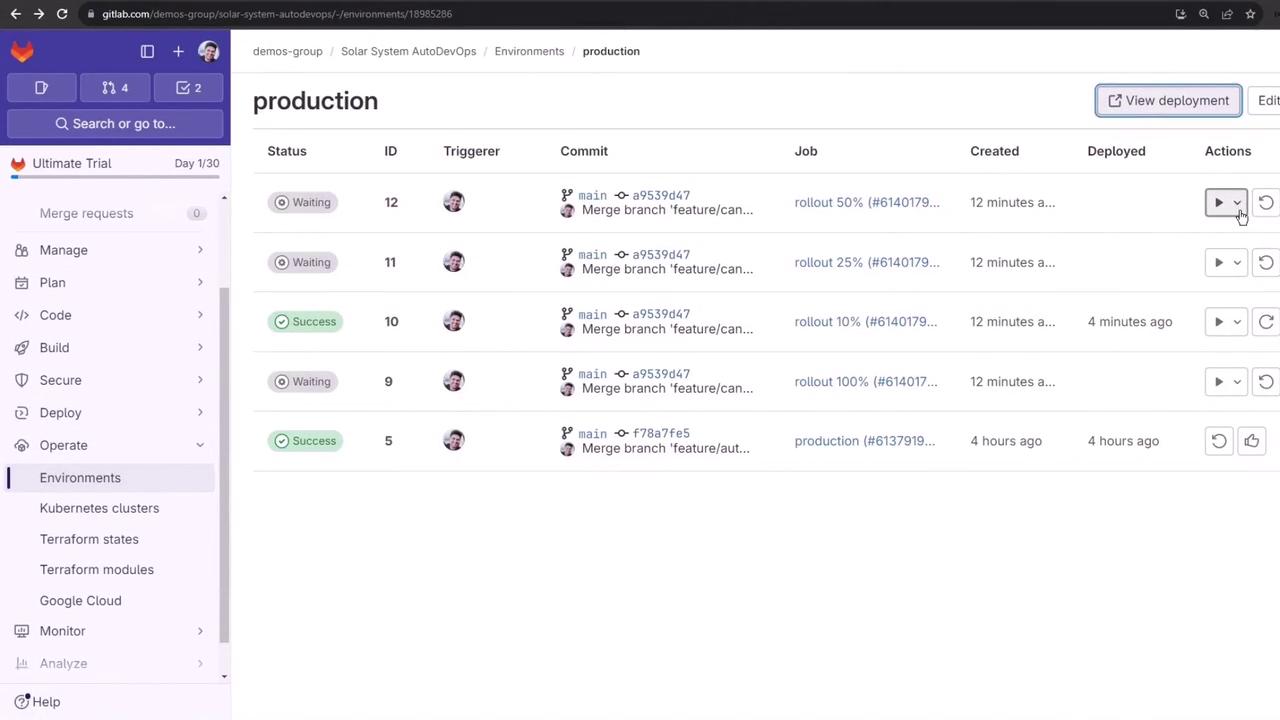

Navigate to Operations > Environments > production and click Approve on the pending rollout:

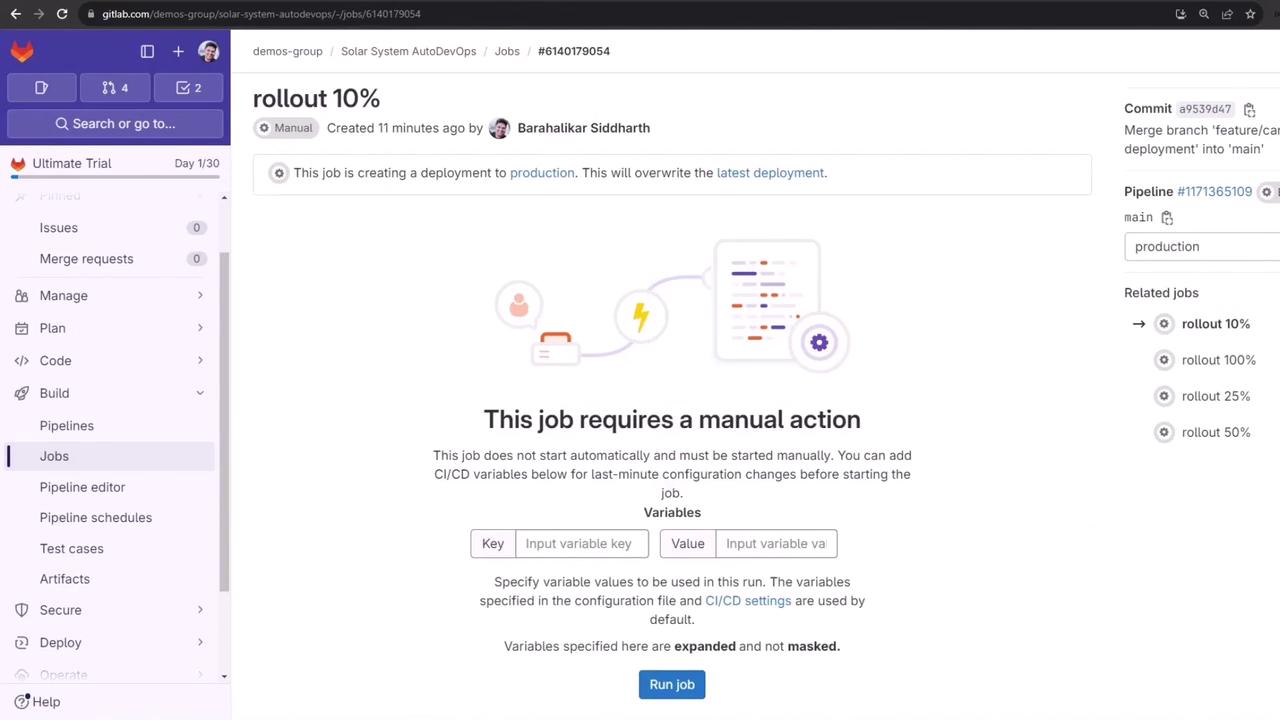

Once approved, click Run job on the next percentage rollout:

4. Canary Rollouts

Use incremental percentages to minimize risk. Below is a summary of each stage:

4.1 10% Canary

The job log runs:

$ auto-deploy use_kube_context
$ auto-deploy ensure_namespace
$ auto-deploy create_secret
$ auto-deploy deploy canary $ROLLOUT_PERCENTAGE
# ...
Job succeeded

Verify both primary and canary pods:

kubectl -n production get pods

NAME                                   READY   STATUS    AGE
production-canary-9d4475cdc-xxxxx      10/10   Running   2m
production-df6dd64cf-xxxxx             10/10   Running   4h32m

Check the canary Ingress weight:

kubectl -n production get ing production-canary-auto-deploy -o yaml

annotations:
  nginx.ingress.kubernetes.io/canary: "true"
  nginx.ingress.kubernetes.io/canary-weight: "10"

Run load tests to confirm ~10% traffic hits the canary pods:

while true; do \
  curl -sk https://demos-group-solar-system-autodevops.139.84.208.48.nip.io/os \
    | grep --color -E 'production-canary'; \
done

4.2 50% Midway

Approve and Run job for 50% rollout. After success, the weight updates:

nginx.ingress.kubernetes.io/canary-weight: "50"

Validate with a repeat of the traffic test:

while true; do \
  curl -sk https://demos-group-solar-system-autodevops.139.84.208.48.nip.io/os \
    | grep --color -E 'production-canary'; \
done

4.3 100% Full Release

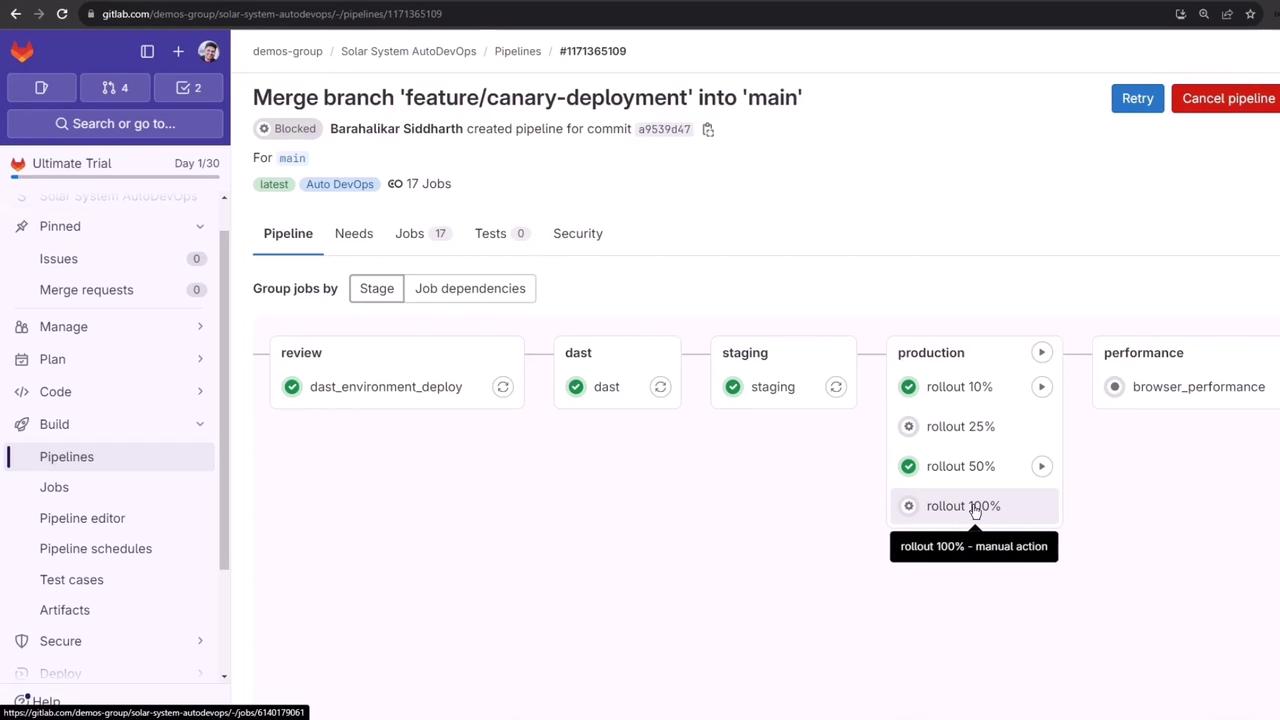

Approve and Run job for 100% rollout to merge canary into the primary deployment and remove the canary service:

After completion, verify only the updated primary pods remain:

kubectl -n production get pods

NAME                              READY   STATUS    AGE
production-84c4bd9684-xxxxx       10/10   Running   16h

Cleanup runs automatically:

auto-deploy delete canary    # Removes the canary release
auto-deploy persist_environment_url
# Job succeeded

What You Learned

• How Auto DevOps orchestrates staging and production deployments
• Manual approval workflows for protected environments
• Incremental canary rollouts (10%, 50%, 100%) with traffic validation
• Automatic cleanup of canary resources
